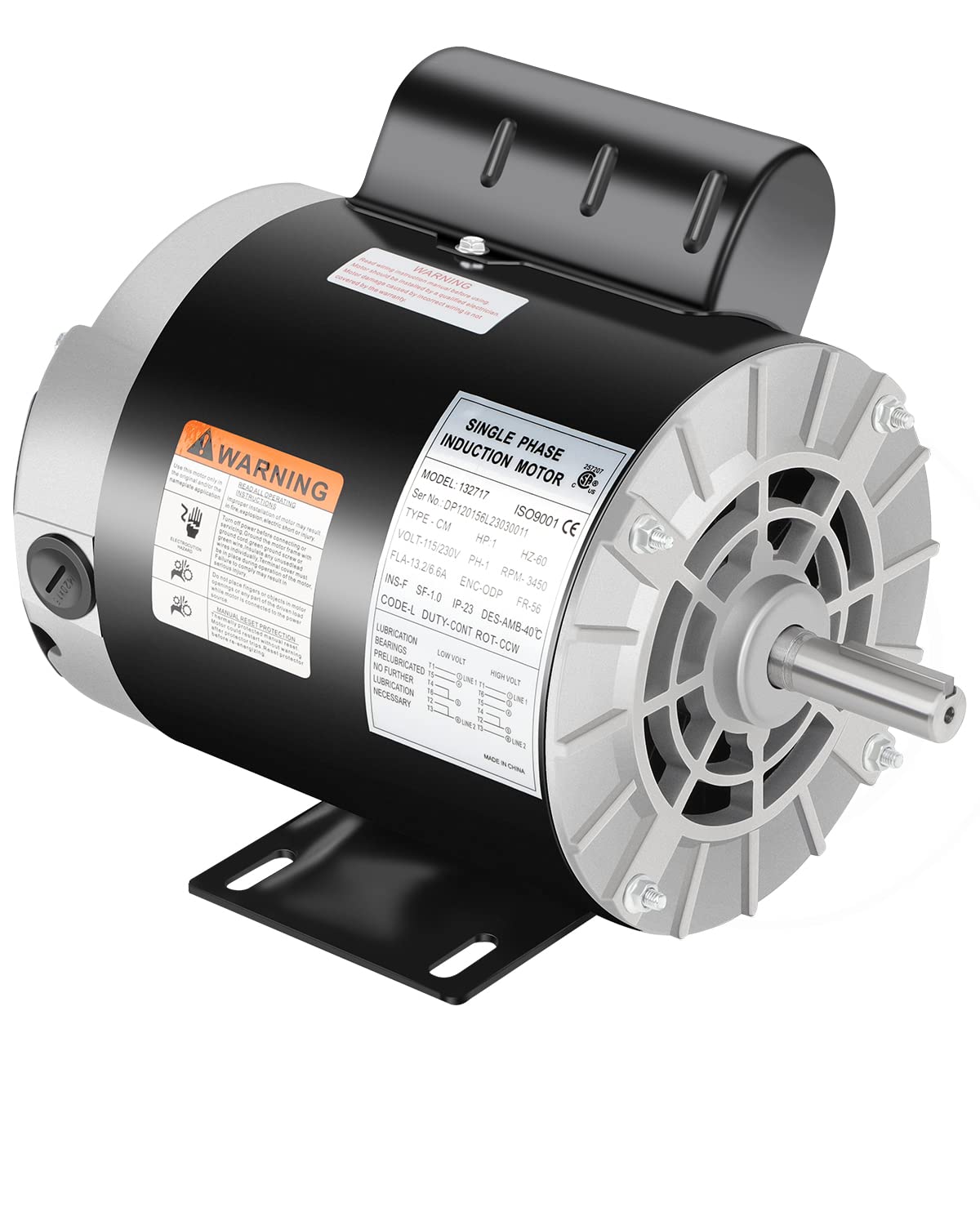

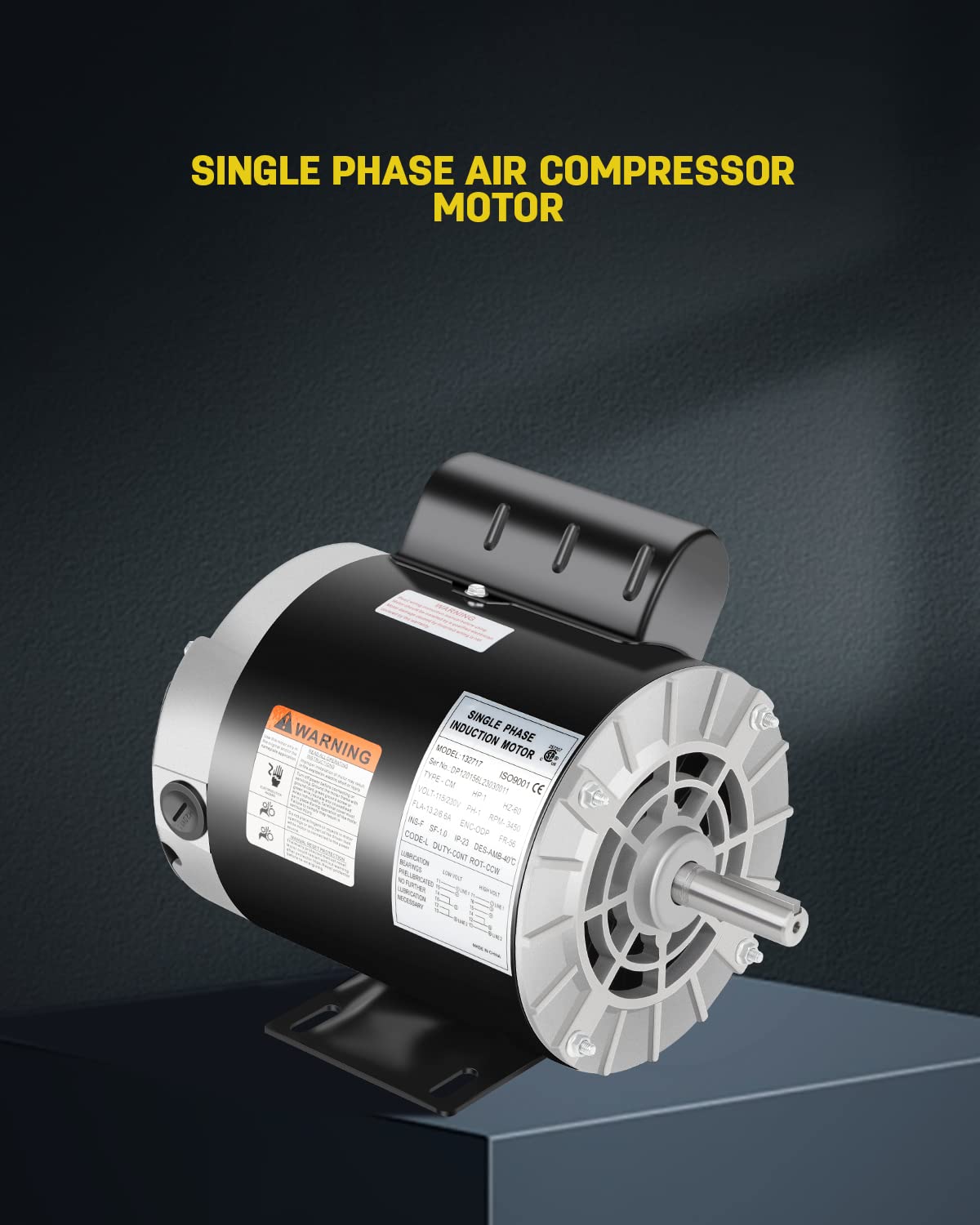

1 HP Air Compressor Motor, Electric Motor 3450 RPM, 115/230V Single Phase, 56 Frame 5/8" Keyed Shaft 60 Hz, Commercial-Duty CCW Rotation, 1.88" Shaft Length for Air Compressors

Brand: Cuilvu

Color: Black

Features:

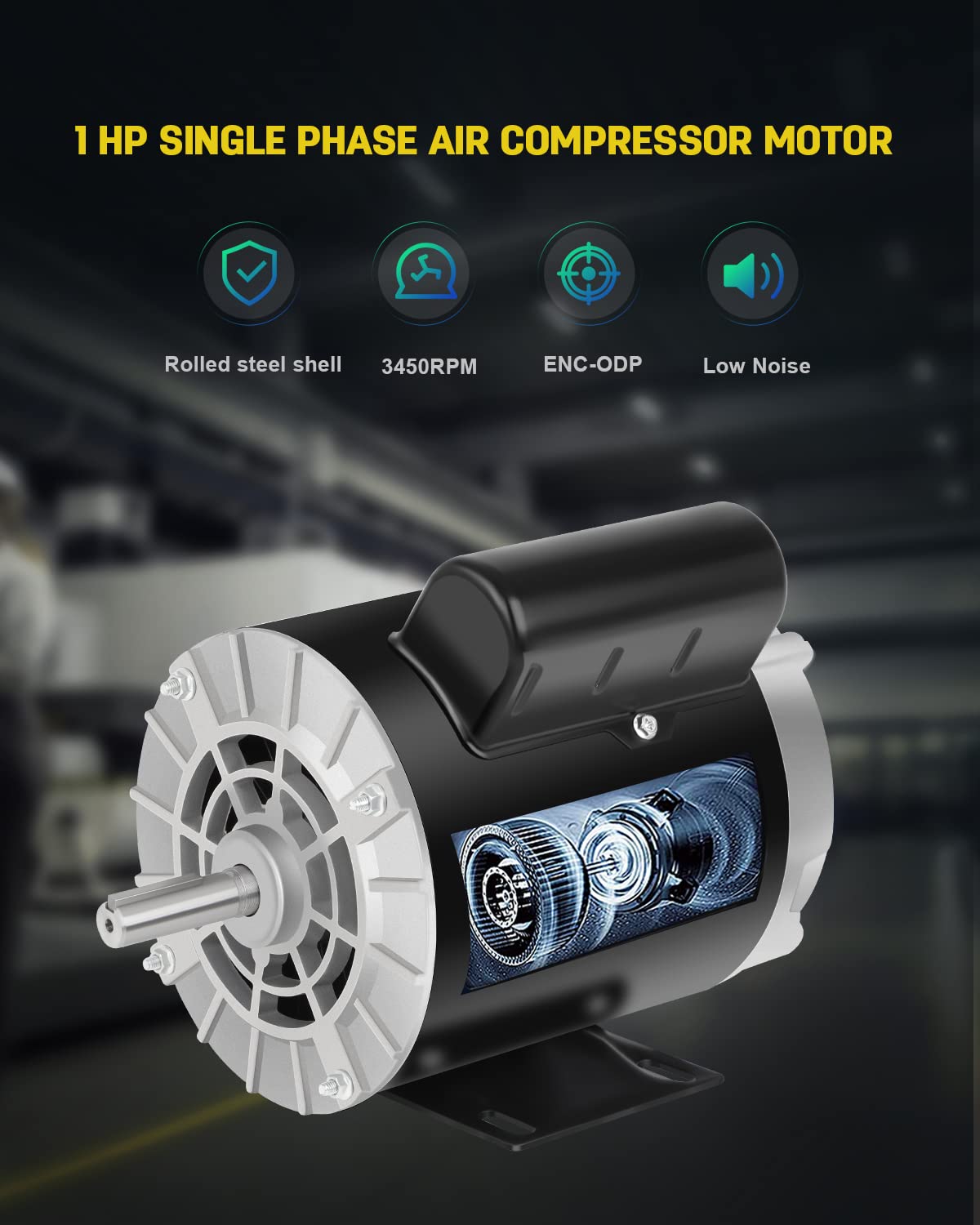

• Air Compressor Motor: HP - 1, POLE - 2, FRAME - 56, ENC - ODP, IP - 23,Open drip proof is better used in the environment that are relatively clean and dry environments.

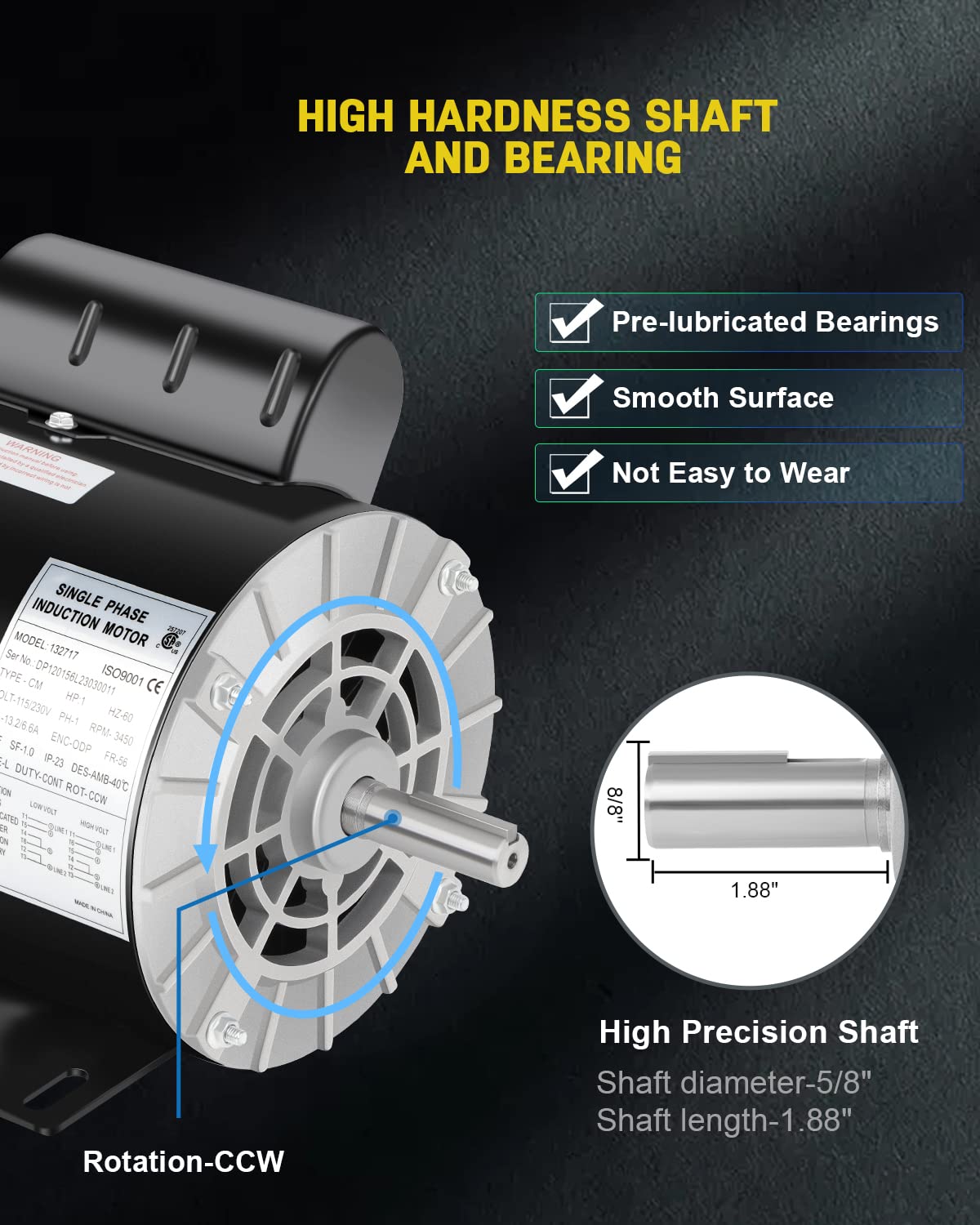

• Detailed Parameters: HZ: 60Hz, Voltage: 115V/230V, AMP: 13.2/6.6A, RPM: 3450, INS - F, Rotation - CCW, Shaft diameter - 5/8, Shaft length - 1.88.

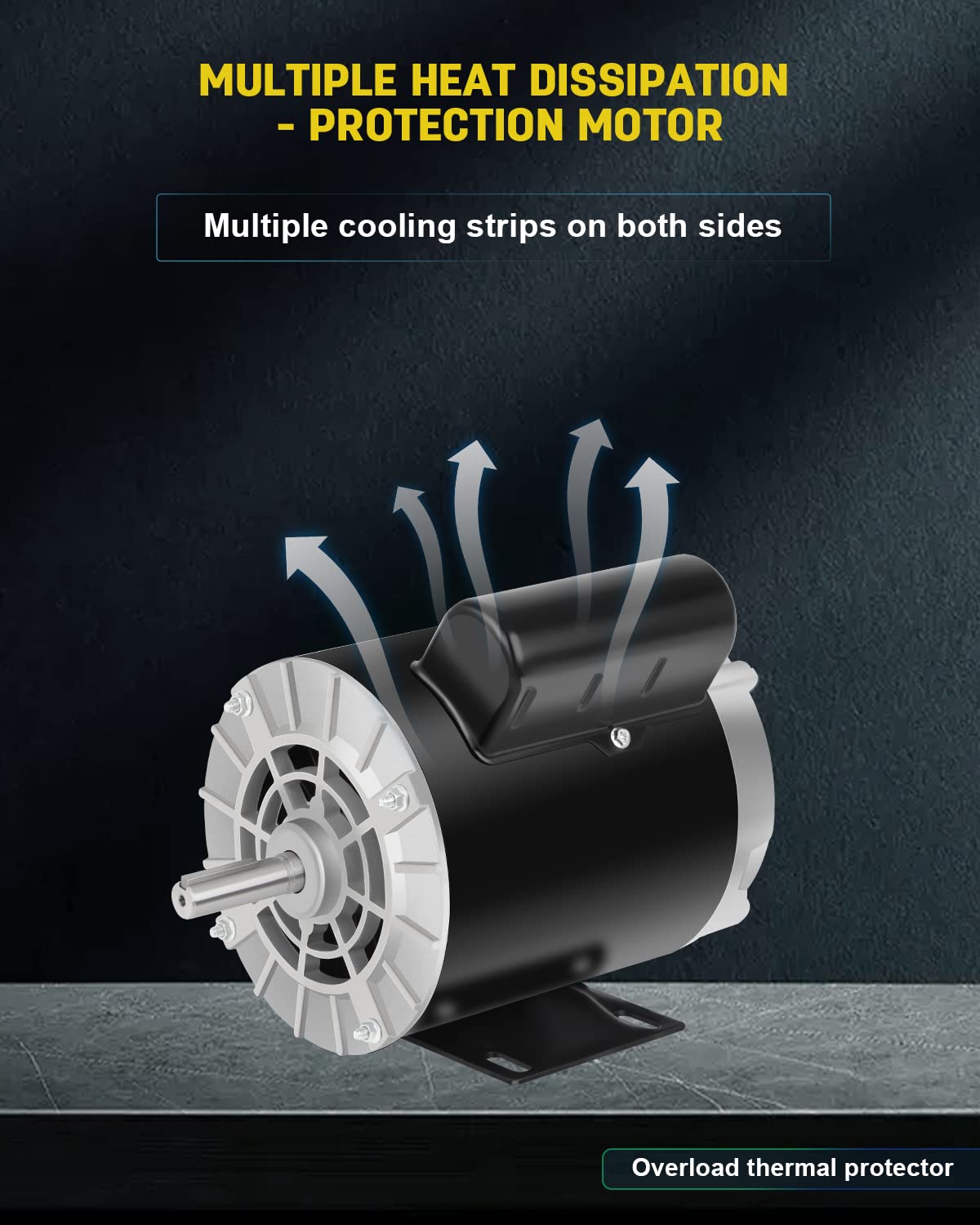

• High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working and efficient heat dissipation.

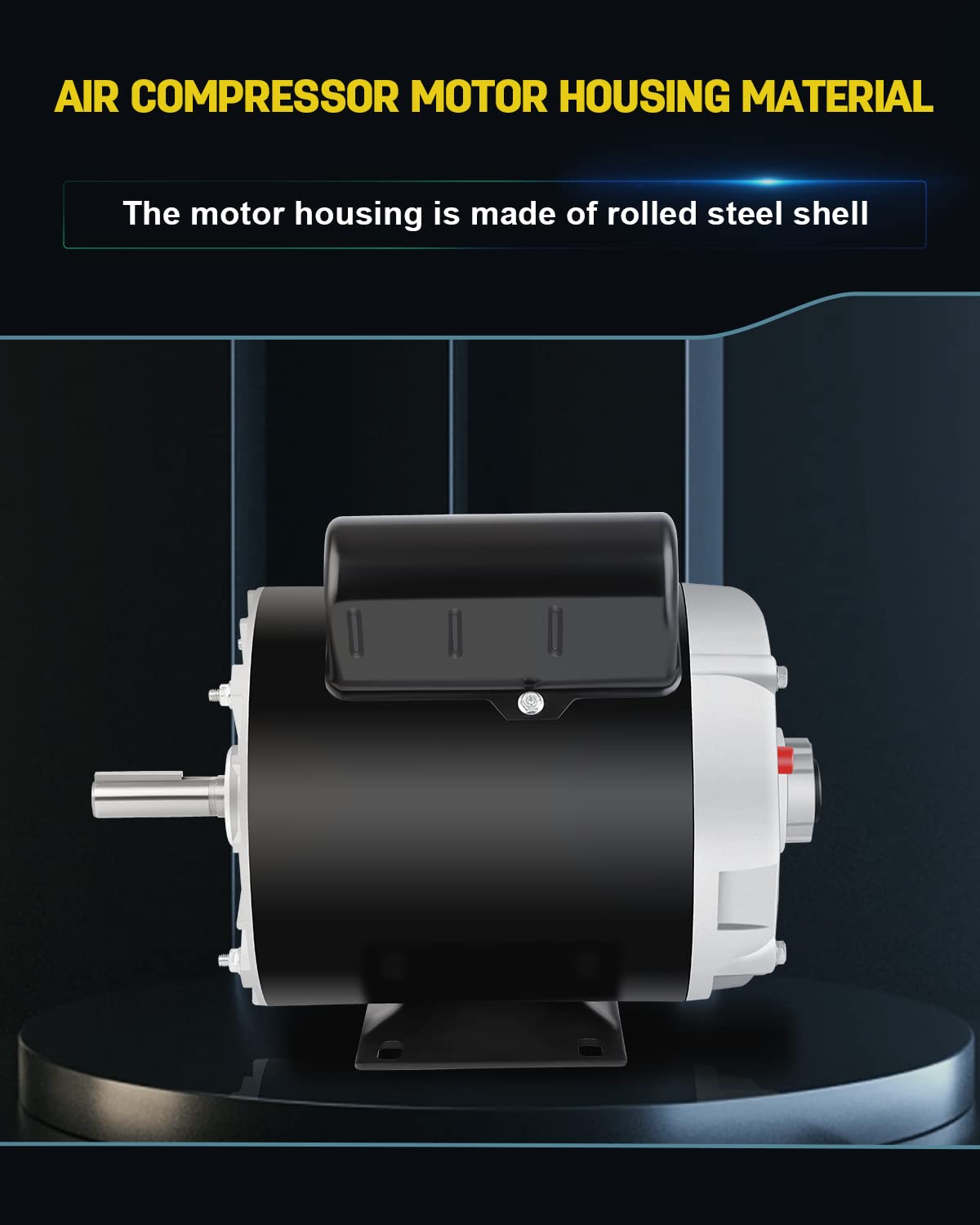

• Housing Material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.
• Protector and Application: Equip with protector, designed for air compressor tax purposes. Please purchase the motor according to the specific requirements of the compressor.

model number: 132717-5334-1557494411

Part Number: 132717-5334-1557494411

Package Dimensions: 14.0 x 11.0 x 11.0 inches
