1000W Horizontal Electric Blast Drying Oven, Cubic 14" Chamber Lab Forced Air Convection Oven with Digital PID Temperature Controller for Industrial, Laboratory, and Research Use

Brand: DONNGYZ

Color: Stainless Steel

Features:

• VERSATILE DRYING & CURING SOLUTION: This 45L powder coating oven and industrial drying oven efficiently dries, bakes, heats, or cures lab materials, electronic components, and powder-coated parts, serving as a lab oven for diverse applications

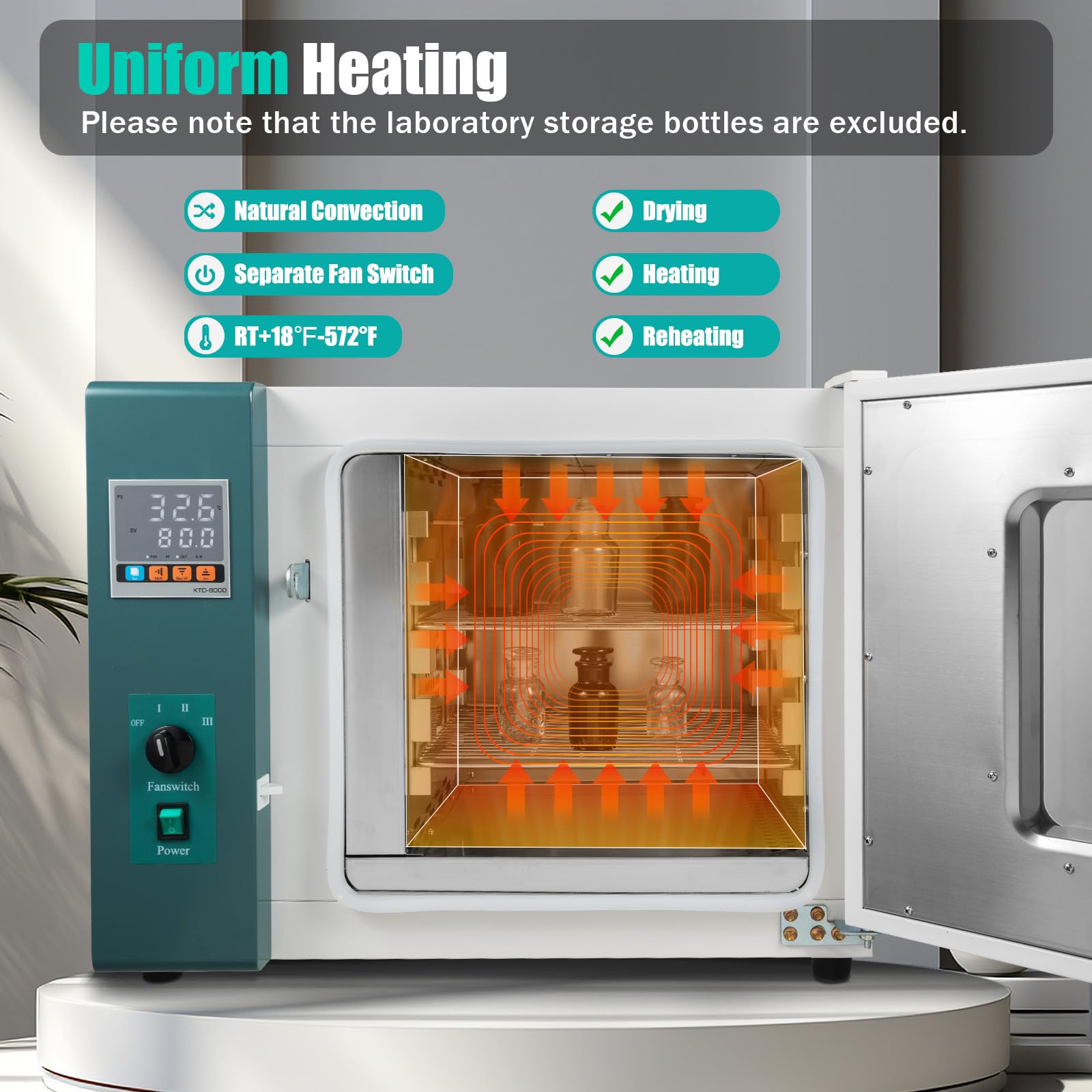

• PRECISE & UNIFORM FORCED AIR HEATING: The 1000W industrial drying oven achieves a max temperature of 572F (300C) with forced air convection and an independent fan switch, ensuring rapid, even heat distribution for consistent drying and curing results

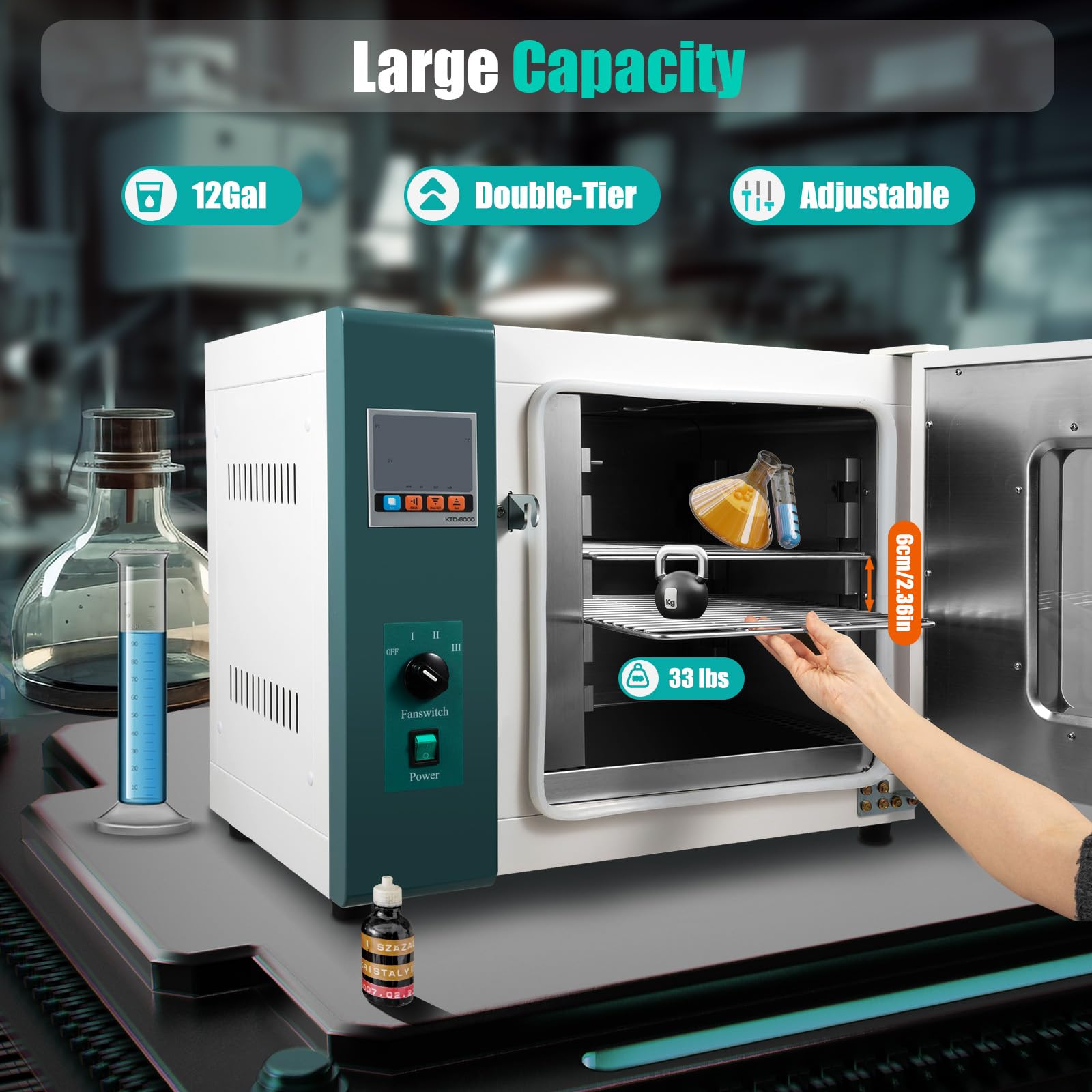

• HIGH-CAPACITY WORKSPACE: Featuring a 12-gallon (45L) chamber with two adjustable trays (each holding 33 lbs), this large-capacity drying oven maximizes productivity by allowing batch processing of materials, saving valuable time in industrial and research settings

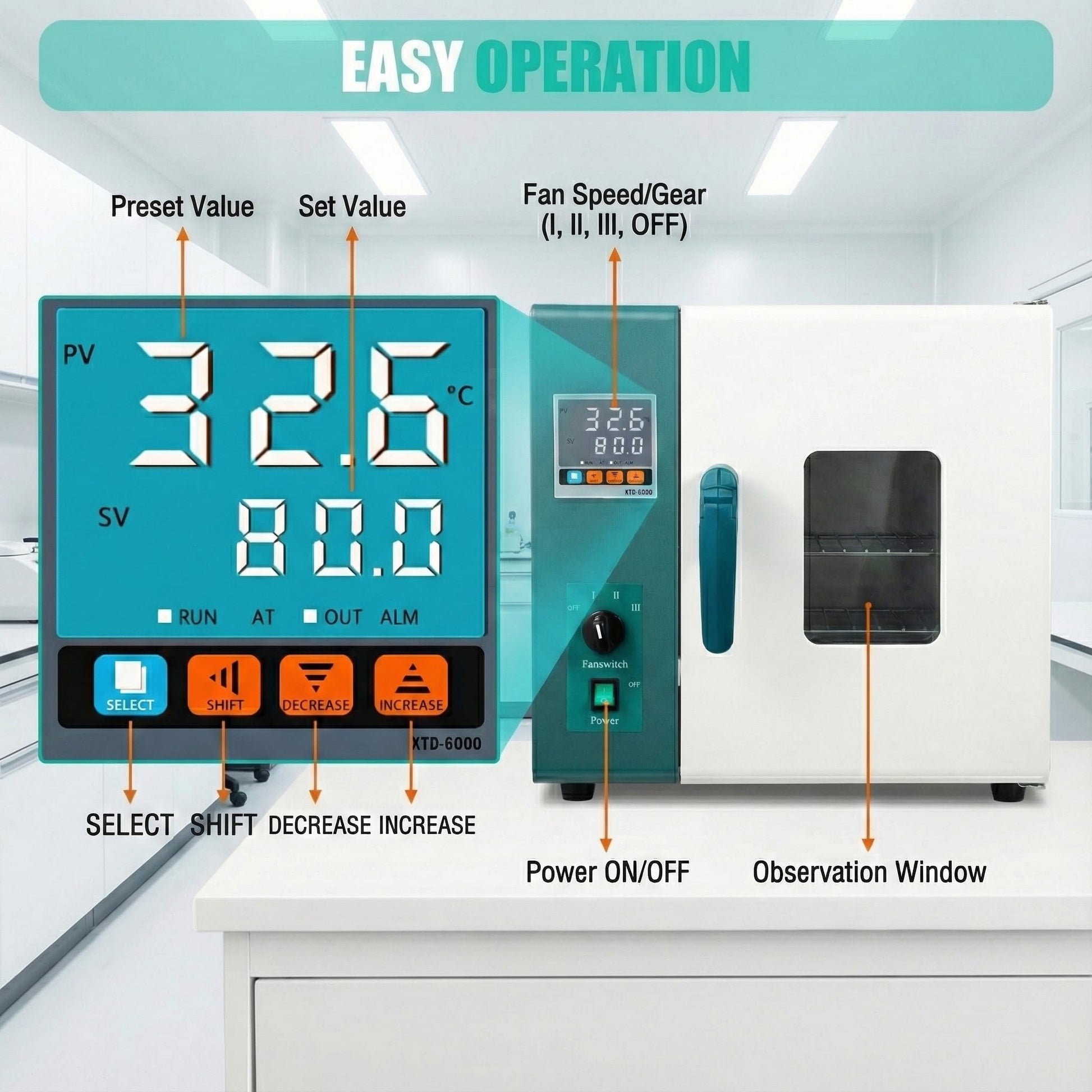

• INTELLIGENT PID TEMPERATURE CONTROL: Equipped with a digital PID controller, this advanced lab oven offers precise timing, over-temperature alarm, deviation correction, and self-tuning functions for reliable, set-and-forget operation in sensitive processes
• VERSATILE CONNECTIVITY OPTIONS: Supports a wide range of external upgrades to suit your specific needs, including LCD/programmable instrument panels, printers, RS-485 interfaces, USB storage, and SMS alarms. (Note: Peripheral accessories are not included.)
• DURABLE & LOW-NOISE CONSTRUCTION: Built with a robust cold plate shell and high-temperature stainless steel interior, this reliable drying oven ensures long-term stability, while its low-noise self-cooling fan maintains a quiet working environment

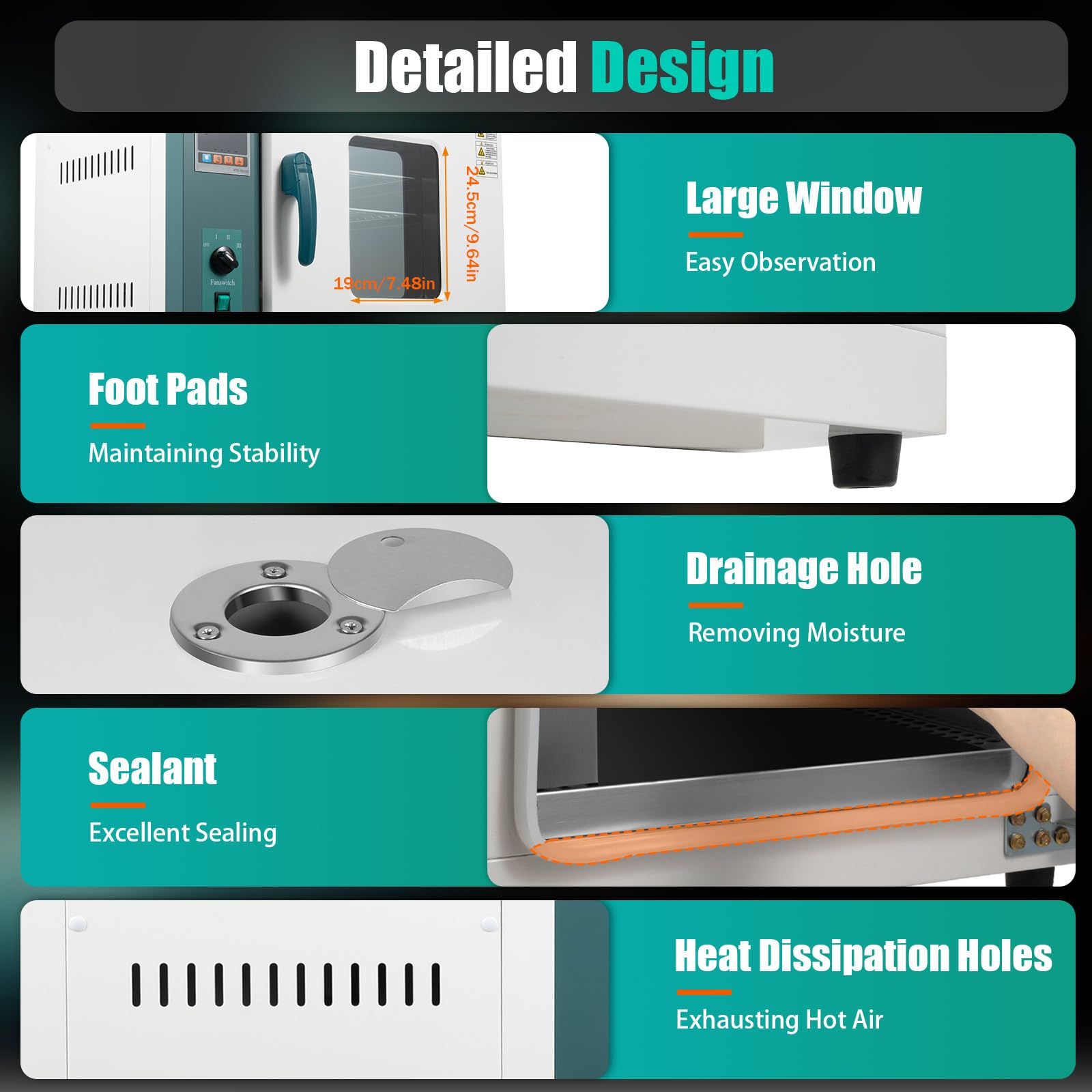

• SAFETY & CONVENIENCE FEATURES: Includes top drainage hole for moisture removal, synthetic silicone door seal for heat retention, anti-slip feet for stability, and double-row heat dissipation holes for enhanced safety during extended operation
• OBSERVATION WINDOW & EASY MONITORING: Side-opening door with double-layer tempered glass observation window (19 x 24.5 cm) allows you to monitor the drying process without opening the chamber and disrupting temperature stability

model number: 101-0AB

Part Number: 101-0AB

Details: Key Features
Designed for drying, baking, wax melting, heat treatment, and reheating of laboratory materials and equipment. Features a hot air circulation system with a separate fan switch for uniform heating and faster drying. Equipped with a digital PID temperature controller with timing, over-temperature alarm, temperature deviation correction, and self-tuning functions. Includes a top drainage hole for moisture removal, a synthetic silicone door seal, anti-slip feet, and double-row heat dissipation holes for safety and durability.
Package Includes
1 x Horizontal Electric Blast Drying Oven 1 x English Manual All necessary accessories for assembly

Specifications

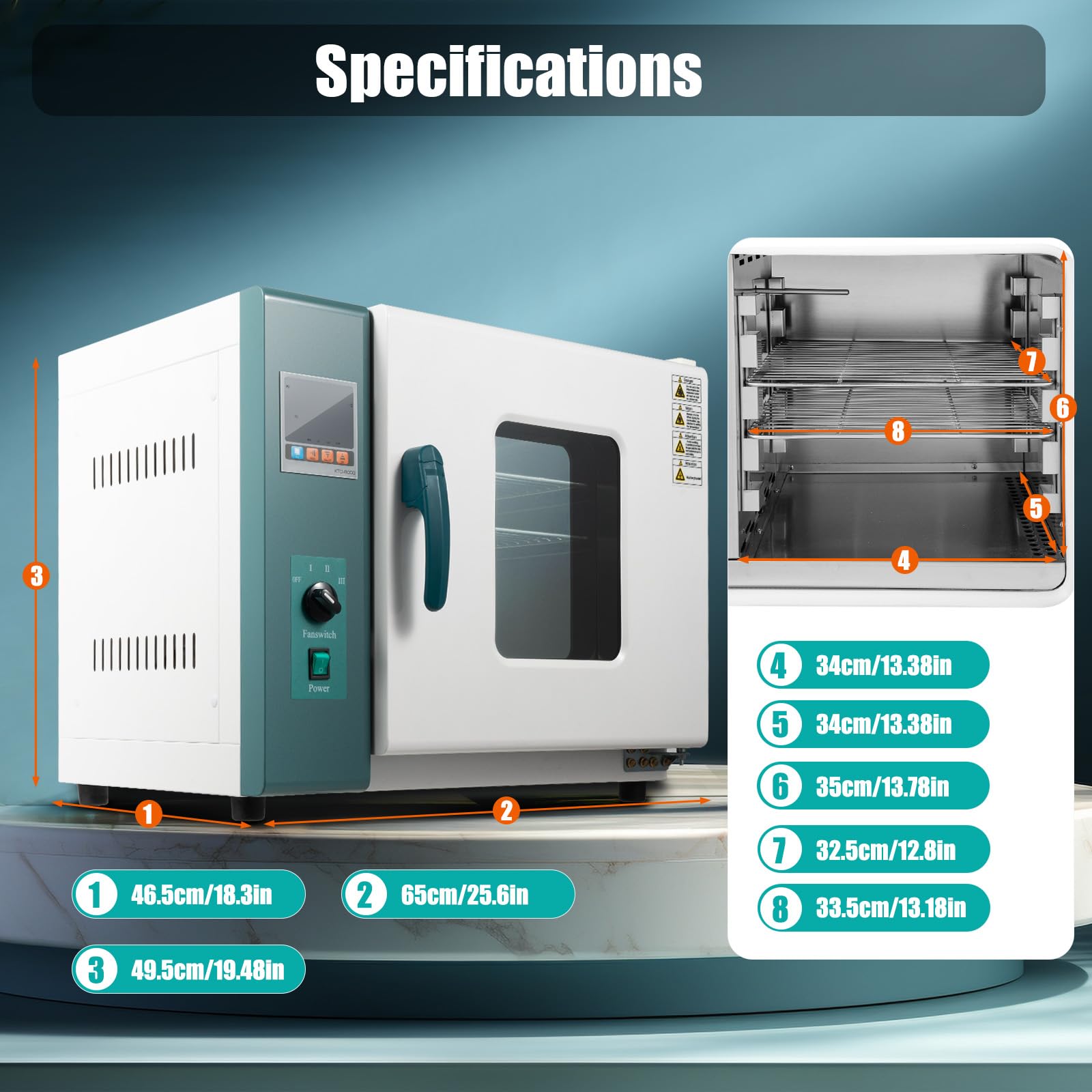

Model: 101-0AB Power: 1000W Voltage: 110V Capacity: 45L / 12 Gal Temperature Range: RT+10°C to 300°C / RT+18°F to 572°F Temperature Resolution: 0.1°C / 0.18°F Temperature Fluctuation: ±1°C / ±1.8°F Tray Maximum Load: 15kg / 33 lbs per tray Tray Spacing: 6 cm / 2.36 in Tray Size: 32.5 x 33.5 cm / 12.8 x 13.18 in Inner Chamber Size: 34 x 34 x 35 cm / 13.38 x 13.38 x 13.78 in External Product Size: 46.5 x 65 x 49.5 cm / 18.3 x 25.6 x 19.48 in Construction Material: Cold rolled sheet (exterior), Stainless steel (interior) Control Type: Button control with digital display Door Style: Side-opening door with double-layer tempered glass observation window (19 x 24.5 cm / 7.48 x 9.64 in)

Essential Notes
Read the manual carefully and strictly follow all precautions before operation. Suitable for industrial and mining enterprises, schools, research institutes, pharmaceutical/health industries, and laboratories. Optional functions like LCD/programmable panels, printers, and communication interfaces are available but not included.
