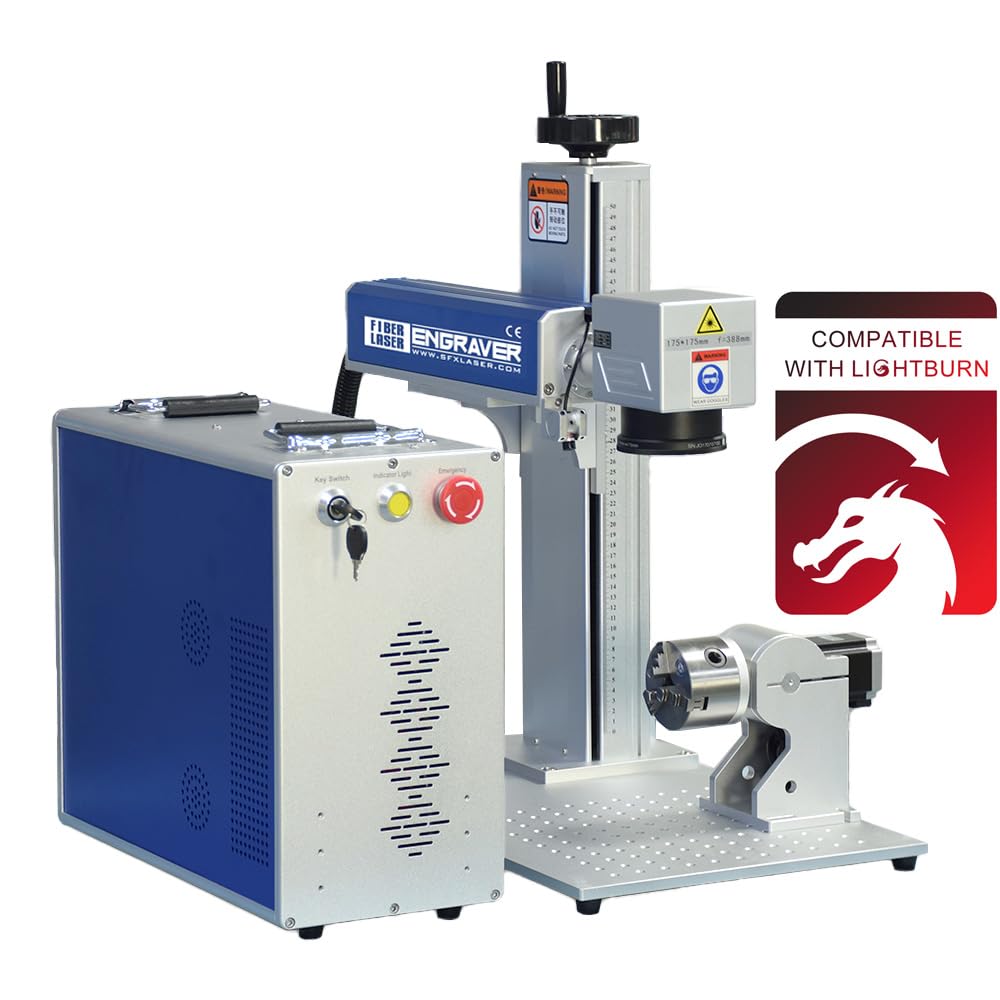

100W JPT M7 MOPA Fiber Laser Marking Machine Fiber Laser Engraver 300×300mm with 80mm Rotary Axis and Heightened 800mm Tower Lightburn Compatible Class 1 Laser Output Power 0.39mW

Brand: SFX

Color: Blue/Silver

Features:

• JPT MOPA M7 100W+Marking Area(Lens): 300*300mm+Engraving Depth:≤2mm+80mm Rotary Axis+800mm Taller Tower EZCAD2(Compatible with Lightburn);

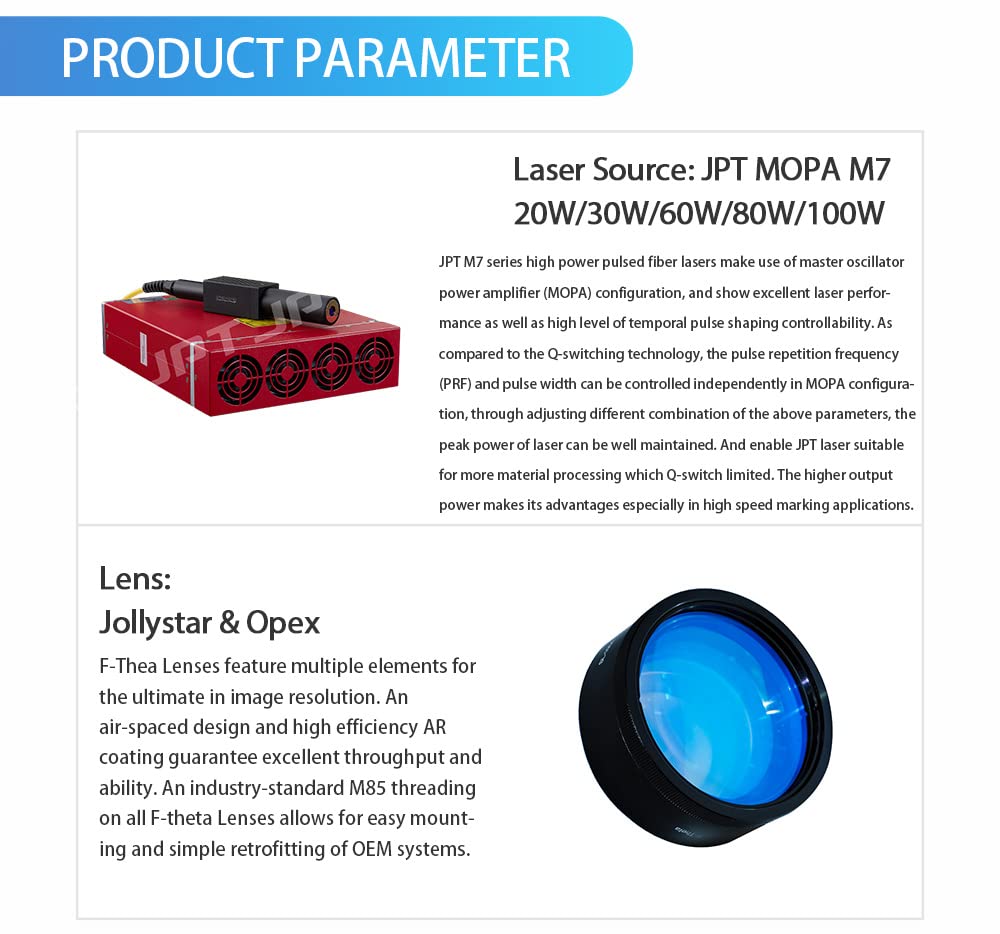

• Laser Source: JPT MOPA M7; Repetition Rate Frequency: 1-4000kHZ; Pulse Duration: 2-500ns; Max. Pulse Energy: 1.5mJ. Class 1 Laser Output Power 0.39mW;

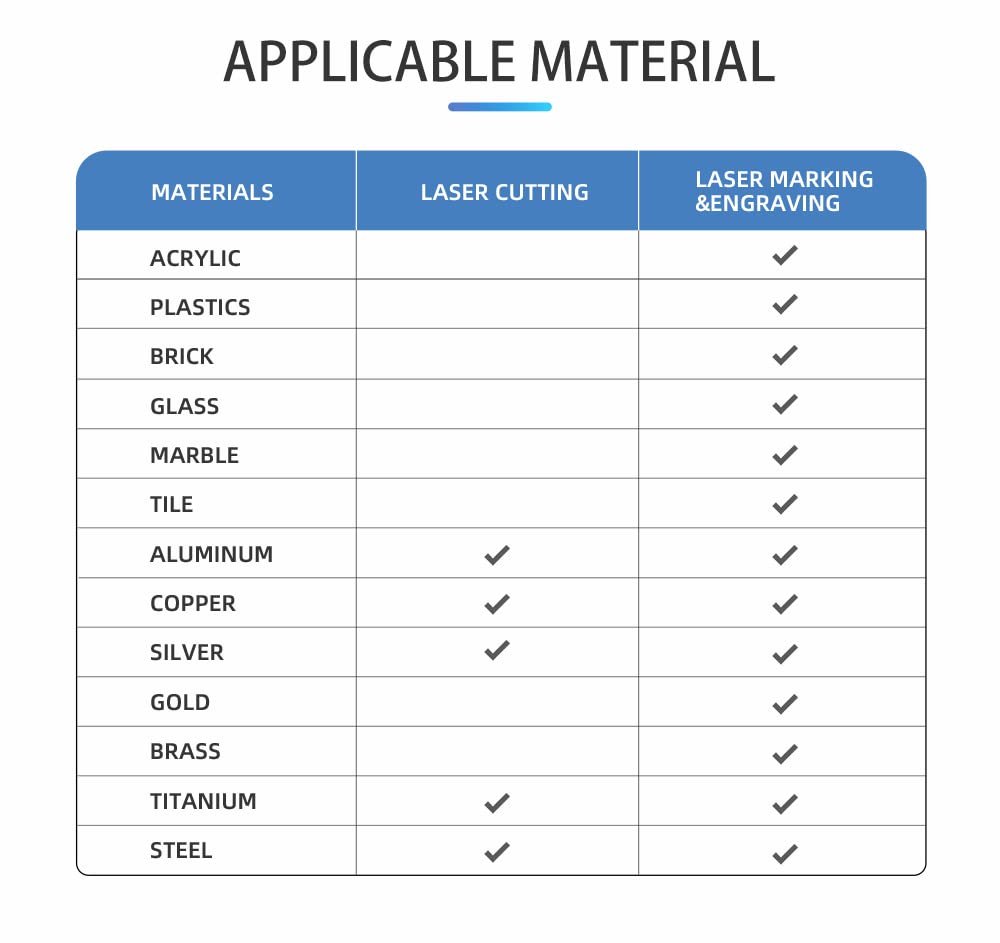

• Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.
• High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

model number: SFX-100GS

Part Number: BY-100GS-300-MOPA

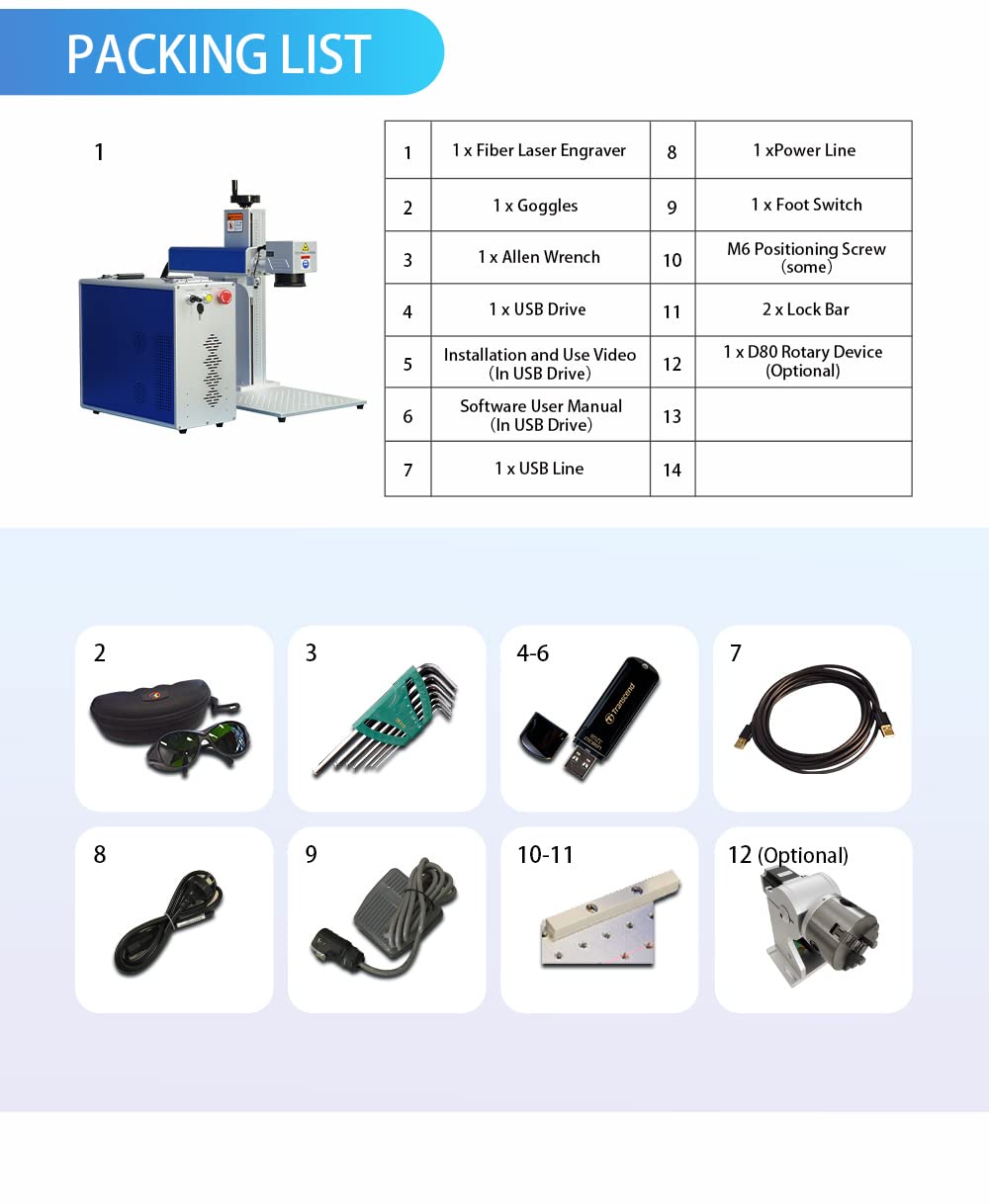

Details: Packaging Details:

100W JPT MOPA M7 Laser Engraver+300*300mm Lens+80mm Rotary Axis+800mm Taller Tower

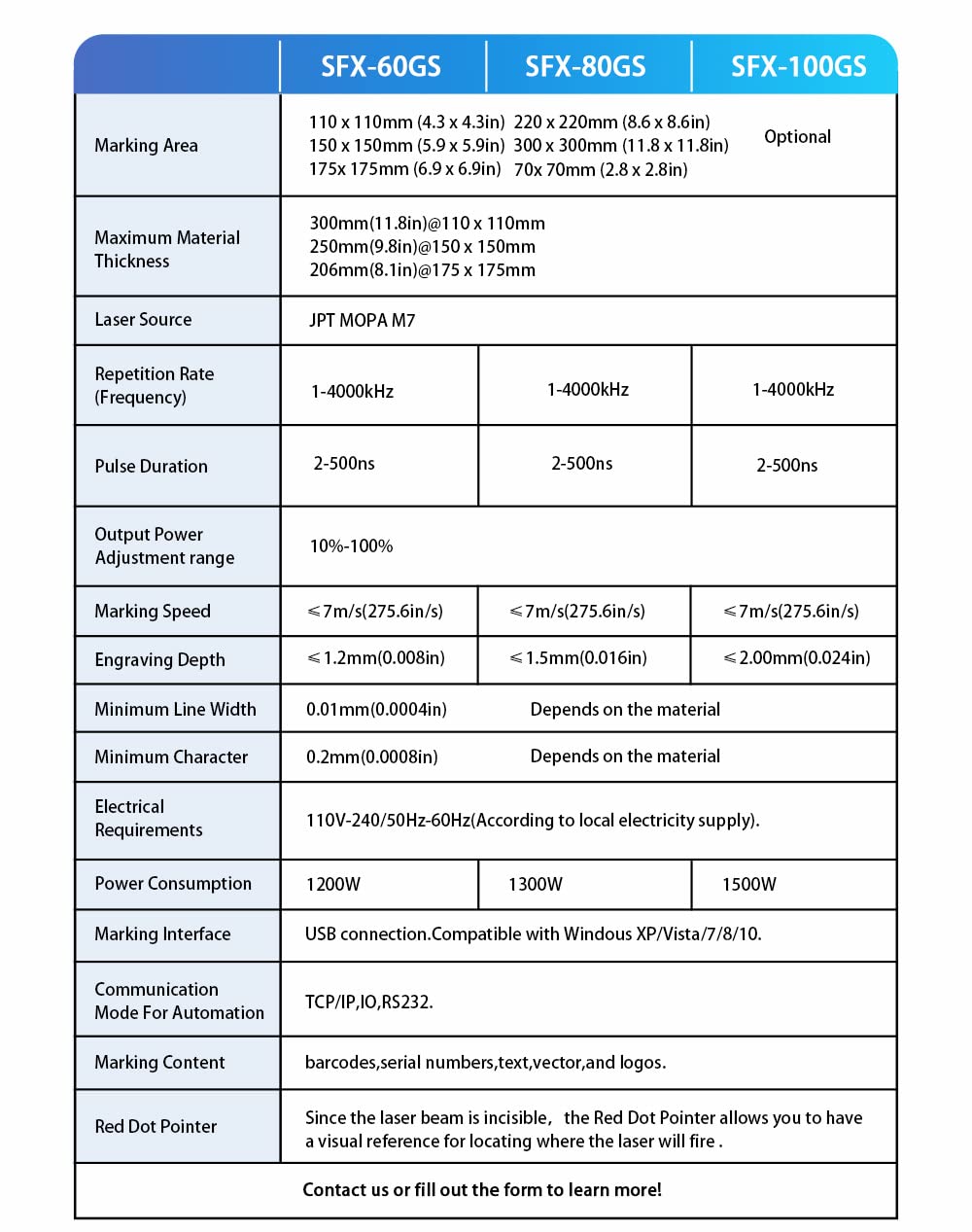

Technical Parameters:





Laser Power: 100W Marking Area: 300*300mm Laster Source: JPT MOPA M7 Repetition Rate Frequency : 1-4000kHZ@JPT Pulse Duration: 2-500ns Output power adjustment range 10%-100% Marking Speed: 7m/s Engraving Depth:≤2.0mm Min. Line Width: ≤0.01mm（Depends on the material) Min. Character: 0.2mm（Depends on the material) Input Voltage: 110V-240V/50-60Hz Complete Power Consumption: 1500W Communication Mode for Automation TCP/IP, IO,RS232



Application Advantages:


Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black marking and color marking on stainless steel.

EAN: 0782911575692

Package Dimensions: 40.0 x 19.0 x 19.0 inches
