110V Spindle Motor Kit，2.2Kw Spindle Motor 24000Rpm 400Hz ，VFD Variable Frequency Drive ，13 pcs ER20 Collets （1-13mm） for CNC Router Engraving Milling Machine

Brand: LCRHLCNC

Features:

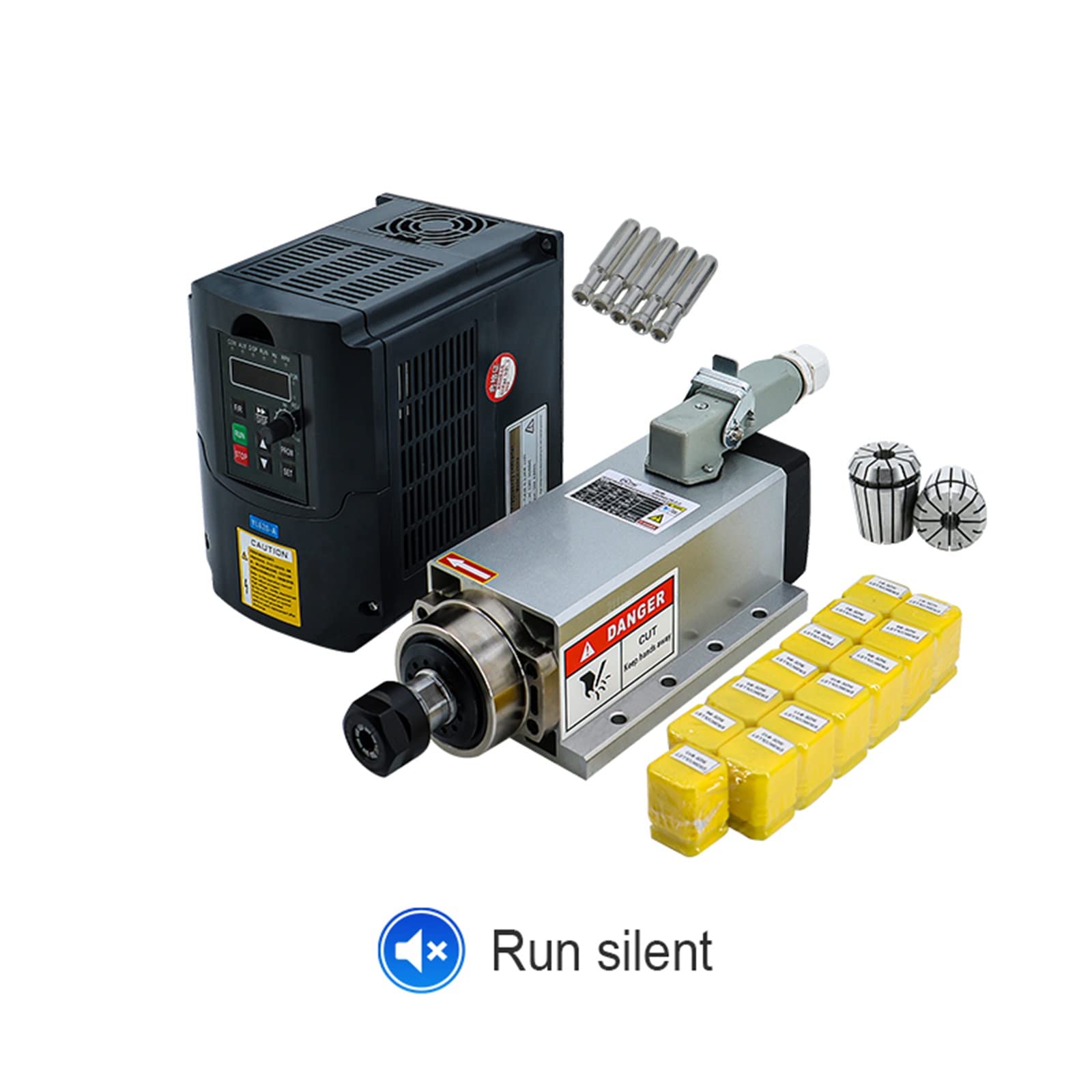

• Package include: 1x 110V/2.2KW Square Spindle Motor+1x 2.2KW/110V YL INVERTER+13x ER20 Collets

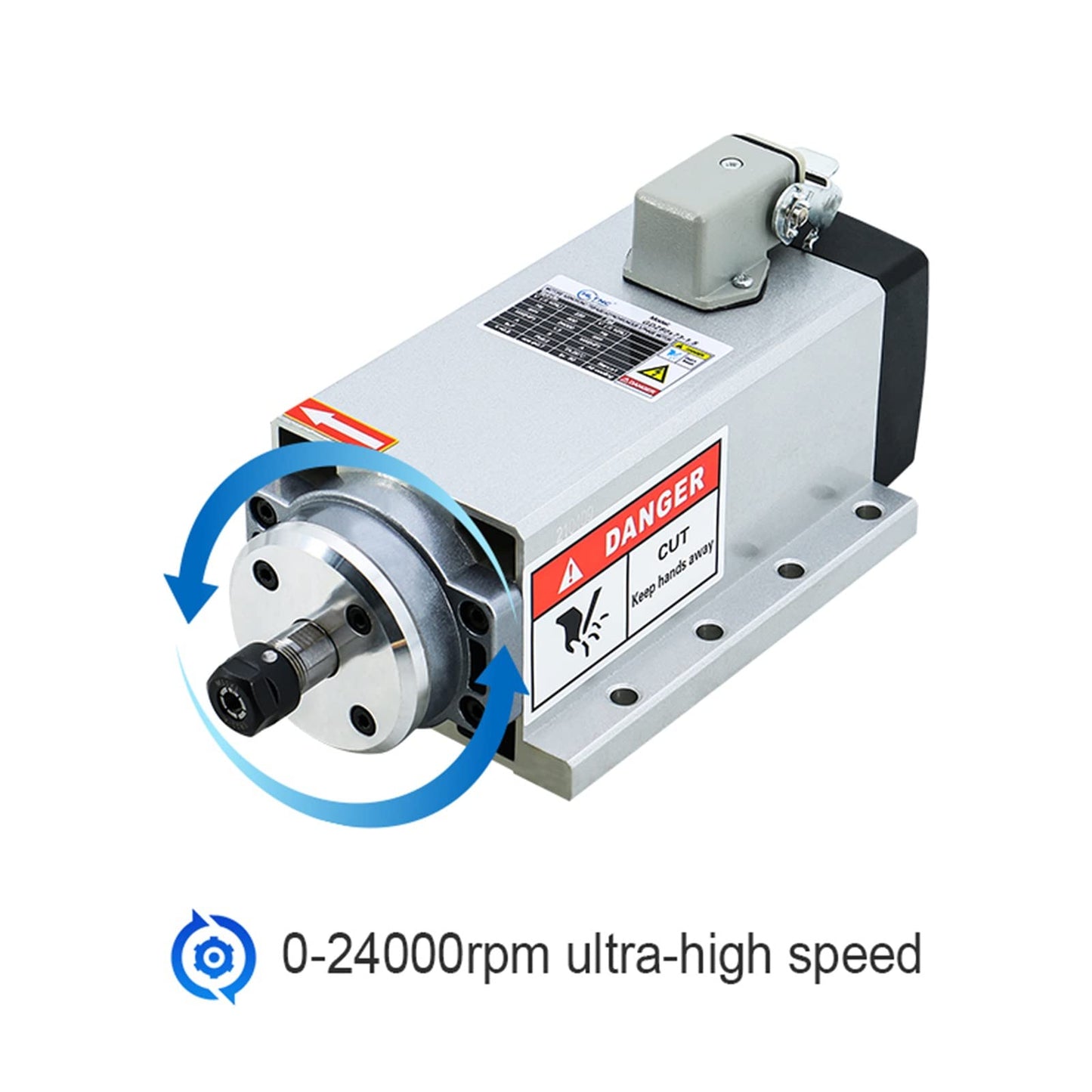

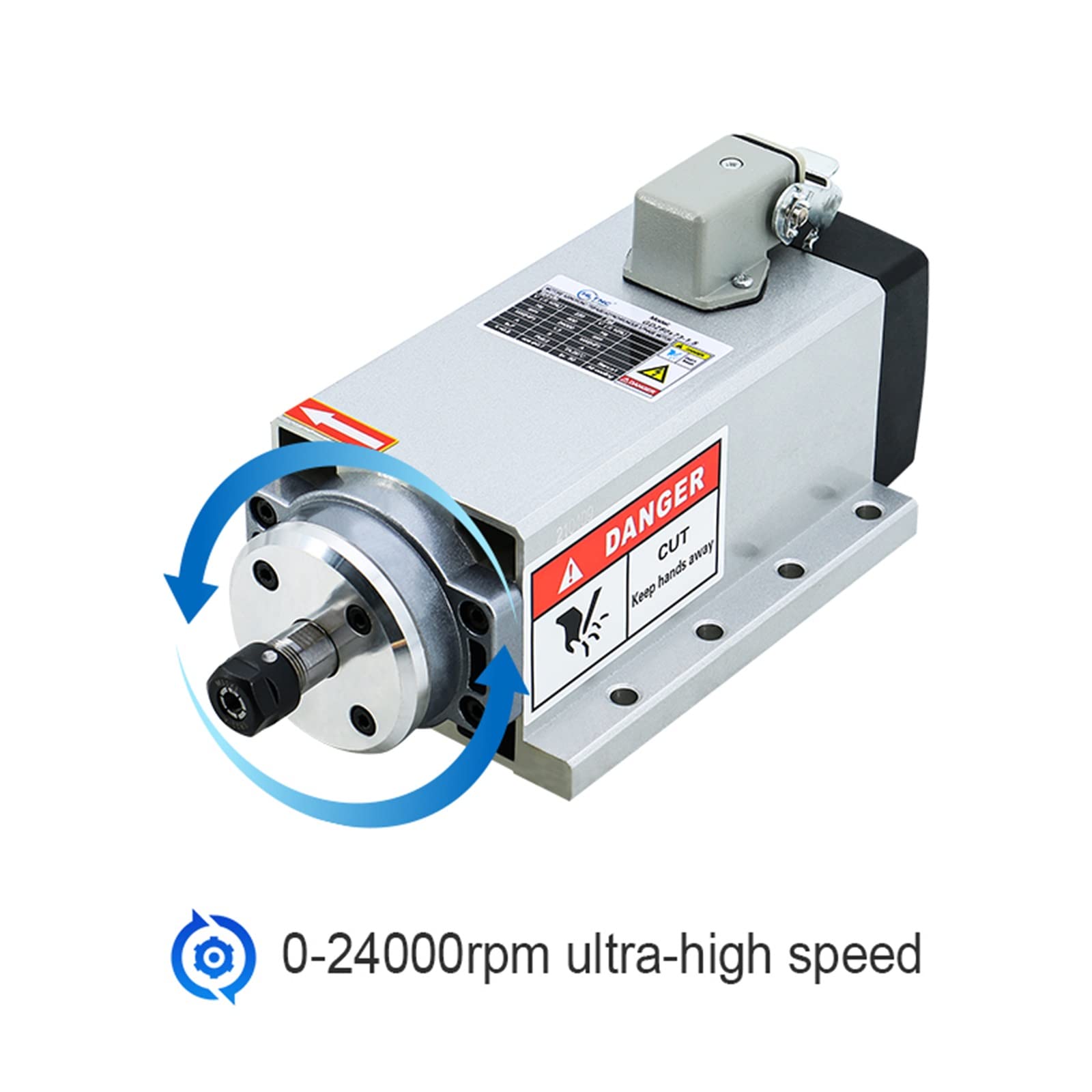

• Specification property：Run out off: less than 0.005mm,spindle speed:0-24000rpm, AC Inverters 50/60hz single phase / 3 phase ，0-400Hz，Inverter input：single phase or Three phase，Inverter inout：Three phase，spindle motor input：Three phase，Bearing is P4 grade, 2x7005C P4 DT, 2x7003C P4 DT, increase spindle life
• Main Application: engrave for wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone board(ABS)and etc nonmetal, also can engrave on gold, silver, copper, aluminium, Pb etc soft metal surface working.

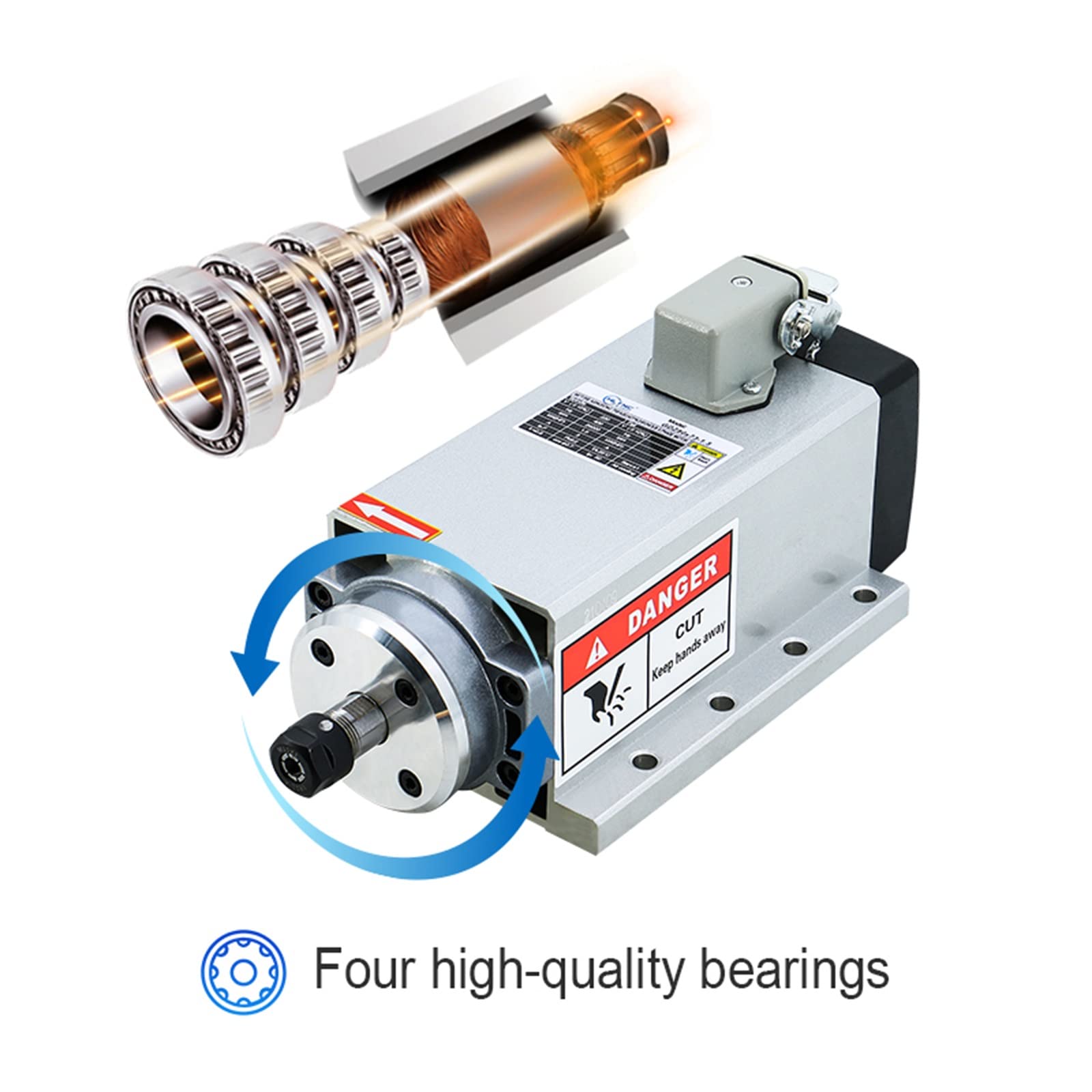

• High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved support stiffness and live spindle grinding accuracy under high-speed rotation.
• Notice：don't need to set VFD，please use it directly

model number: 2.2kw-110v

Package Dimensions: 15.9 x 13.5 x 7.5 inches
