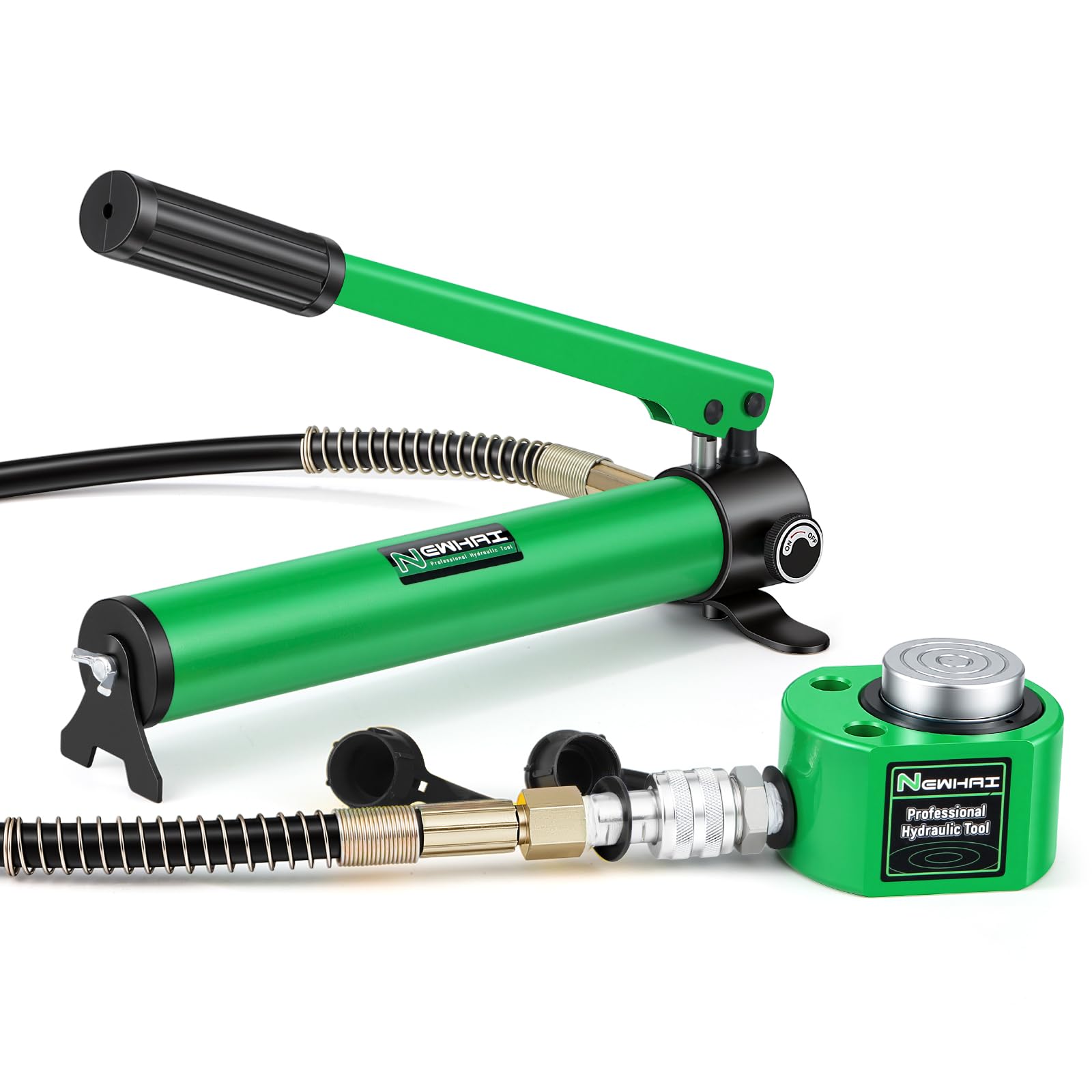

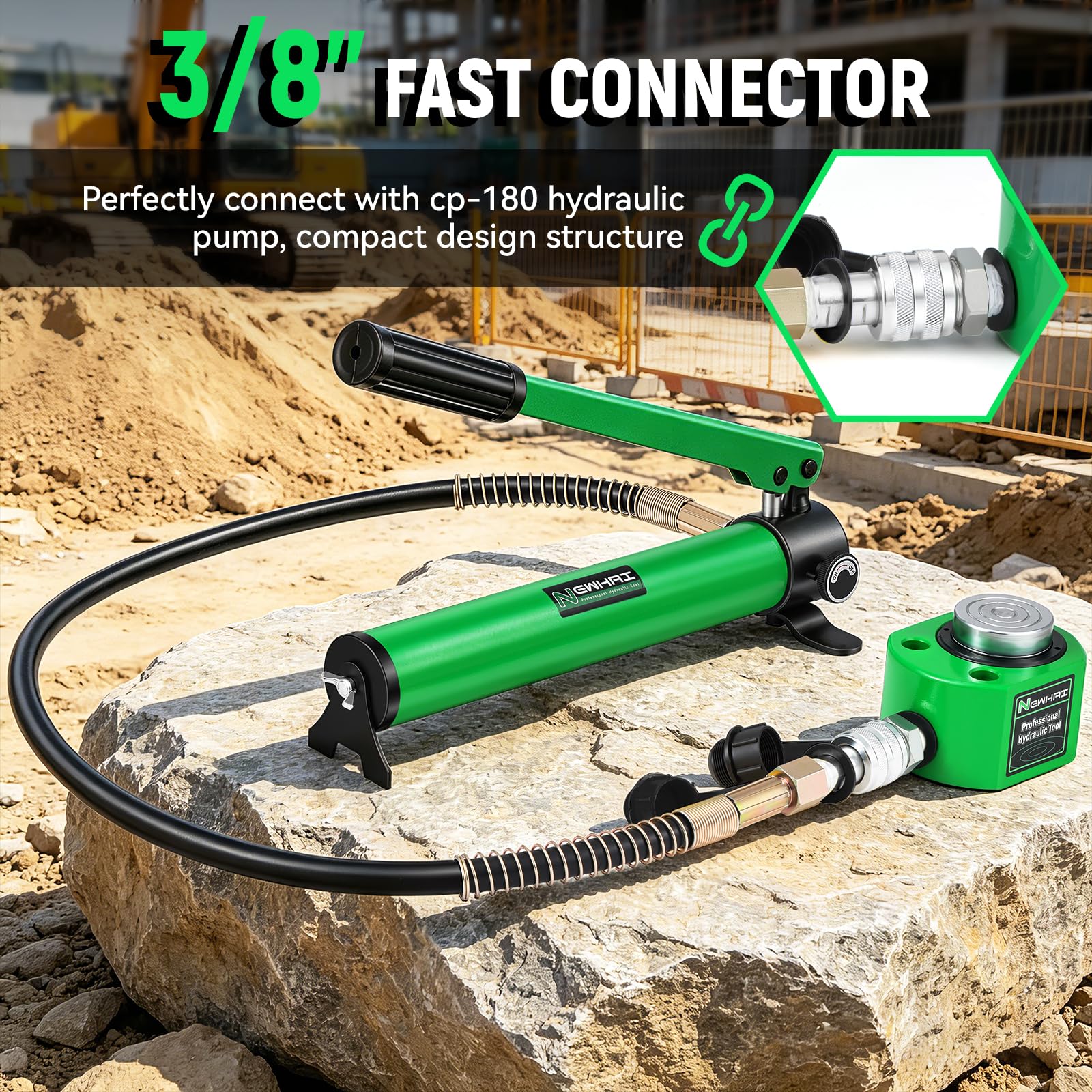

20 Ton Porta Power Ram Kit for Confined Spaces Mini Hydraulic Cylinder 0.47" Stroke with CP-180 Hand Pump Portable Hydraulic Jack for Precise Lifting in Tight Gaps Equipment Repair

Brand: Newhai

Features:

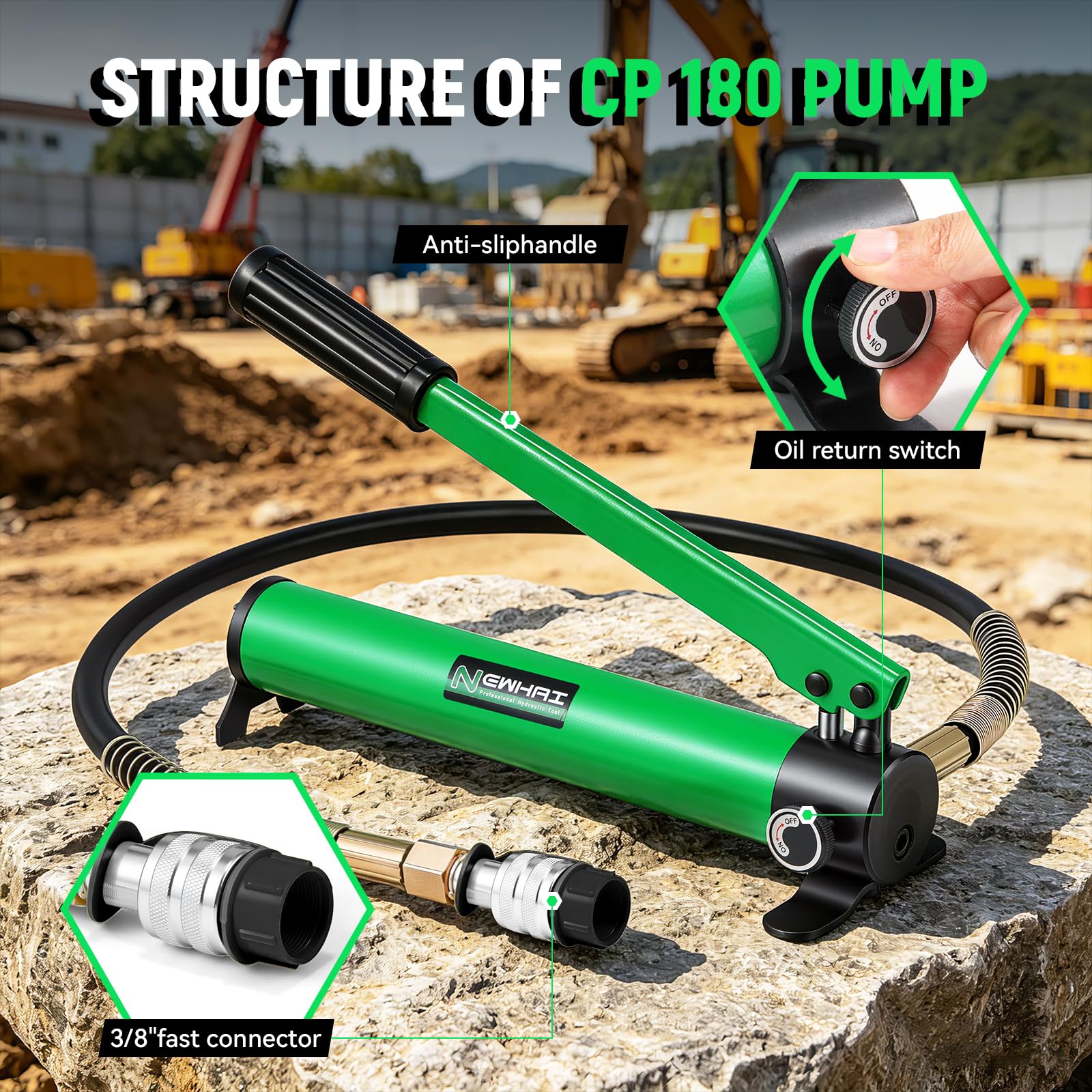

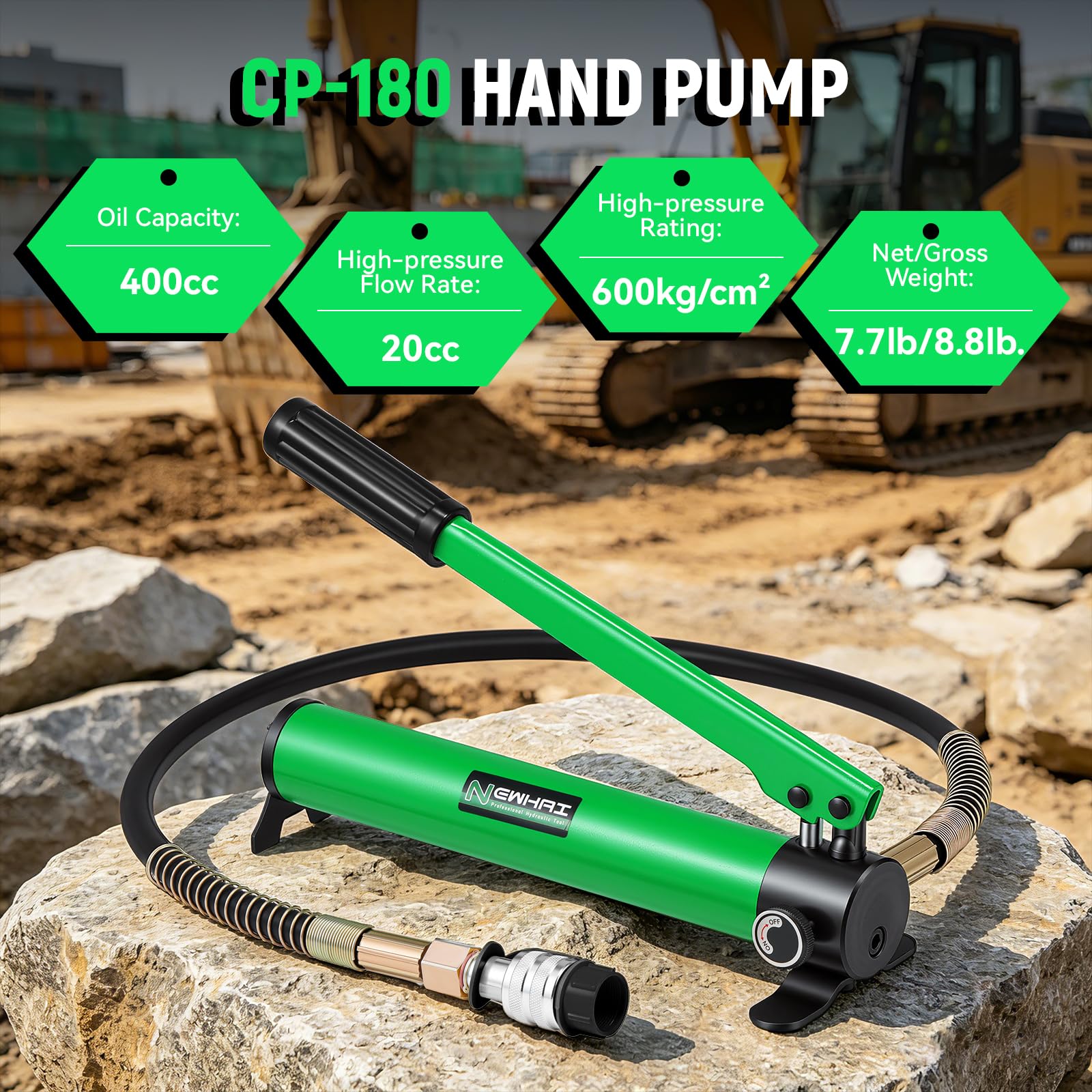

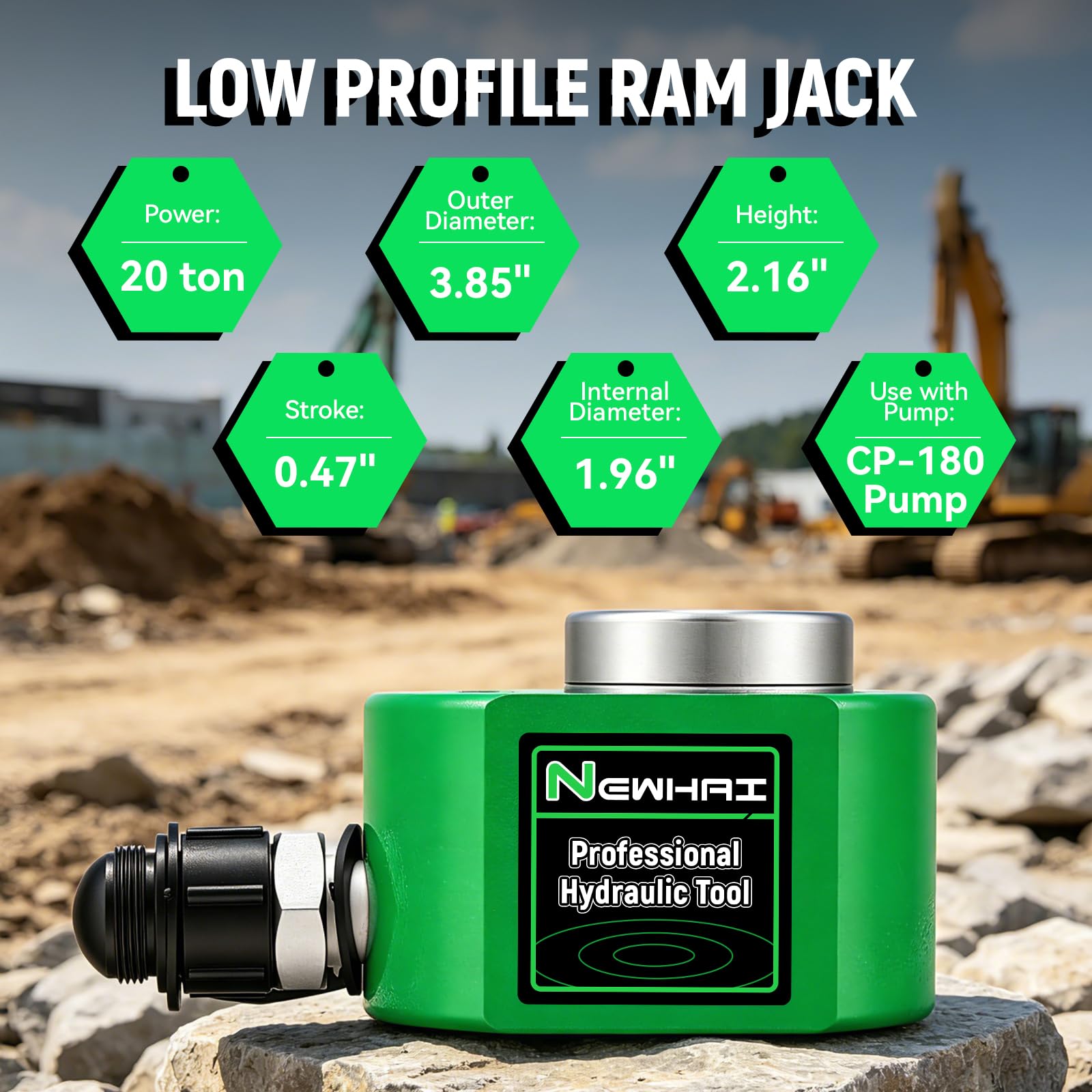

• [20T Jack+CP180 Pump Parameters]---Model: FPY-20; Capacity: 20 tons; Outer Diameter: 98mm / 3.85'; Height: 55mm / 2.16'; Stroke: 12mm / 0.47'; Piston Diameter: 50mm / 1.96'. CP-180 Pump: Oil Capacity: 400cc; High-pressure Flow Rate: 20cc; High-pressure Rating: 600kg/cm²; Net/Gross Weight: 7.7lb/8.8lb.
• [Ultra-Compact Design for Confined Spaces]---Featuring an ultra-low closed height and a compact outer diameter, this hydraulic ram easily fits into tight gaps where standard jacks can't reach. Ideal for equipment repair, mining machinery maintenance, or workspaces with limited access. Paired with the CP-180 manual pump, this porta power ram delivers the perfect solution for those hard-to-reach lifting points.

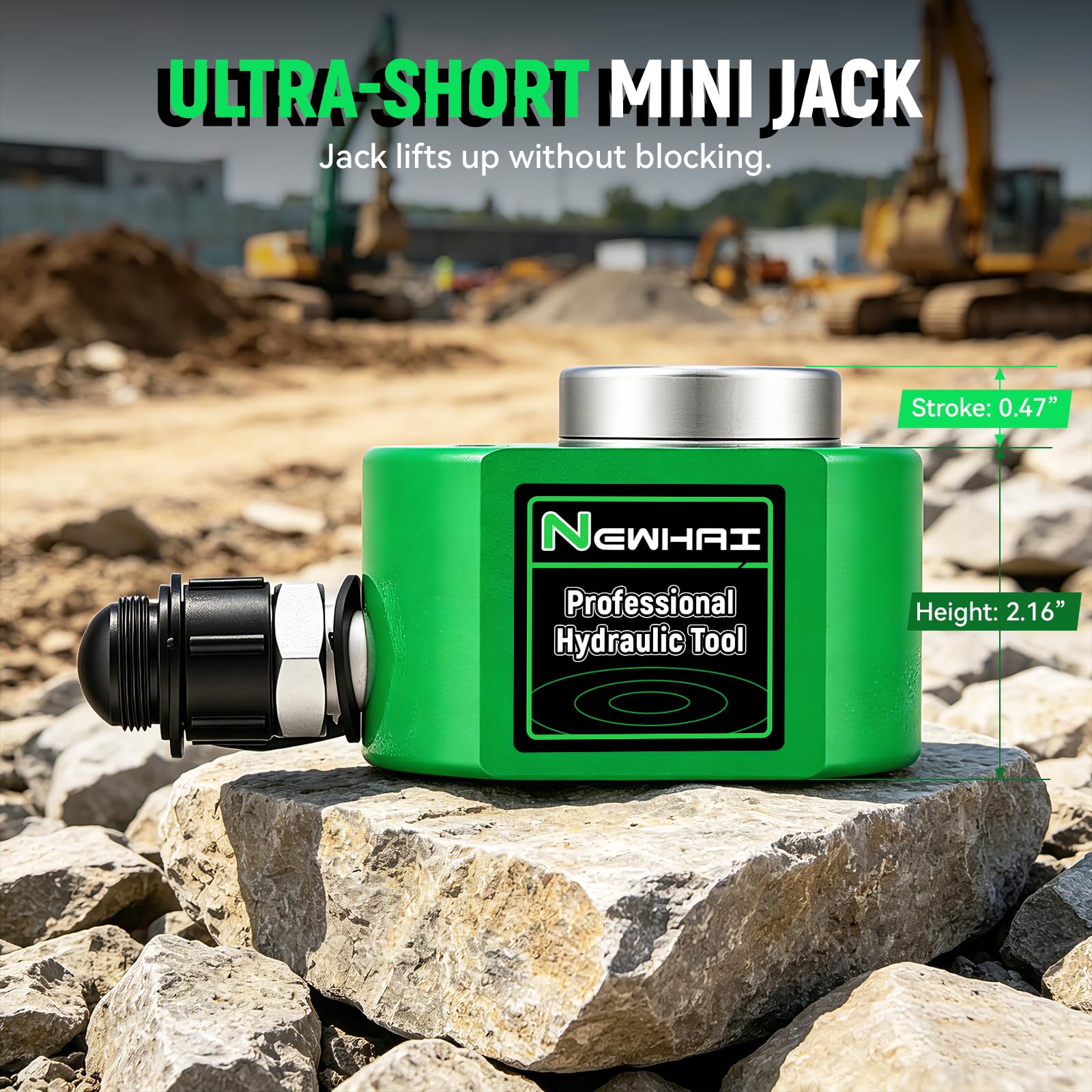

• [Precise Control with Short Stroke Lifting]---Engineered for accuracy, the short stroke of this hydraulic lifting cylinder provides exceptional control during operation. This design minimizes the risk of load shifting or wobbling, making it perfect for tasks requiring fine positioning or precise alignment, such as lining up bolt holes. Achieve pinpoint accuracy effortlessly with this compact hydraulic jack.
• [Portable Power in a Lightweight Frame]---Don't let the small size fool you; this hydraulic cylinder packs a powerful punch. Weighing very little and designed for one-person portability, it’s easy to move between job sites. Whether you are in an automotive shop or a remote field location, this hydraulic porta power combines portability with the brute force needed for serious lifting tasks.

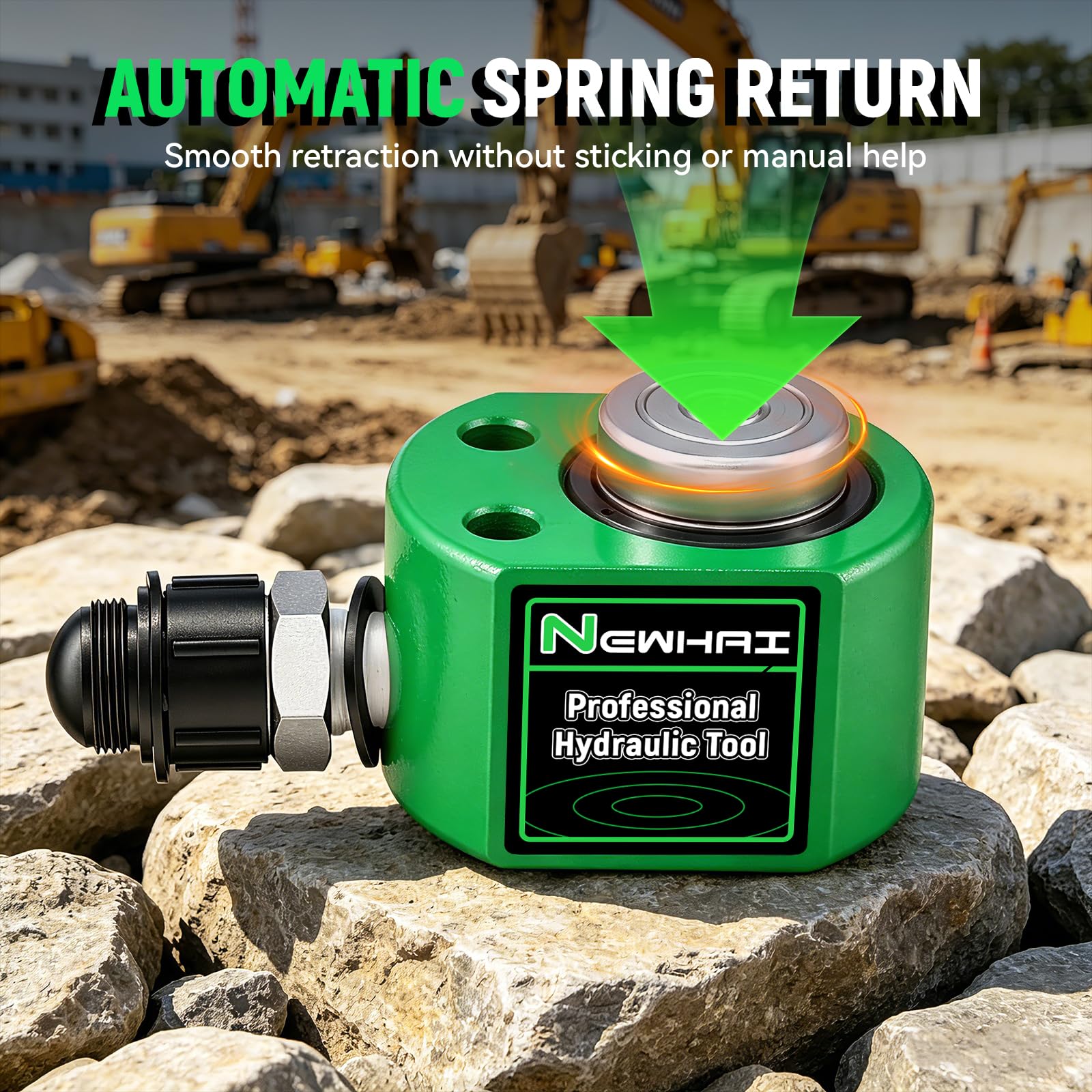

• [Built to Last with Versatile Application]---Constructed with a rust-resistant, high-frequency quenched piston, this porta power ram offers superior toughness and wear resistance, preventing deformation under heavy loads. It features an automatic spring return for smooth retraction without sticking and can be used vertically, horizontally, or inverted. Two mounting holes allow for easy installation in custom fixtures.

model number: JACK WWX101

Part Number: WWX101

Package Dimensions: 15.0 x 9.0 x 8.0 inches
