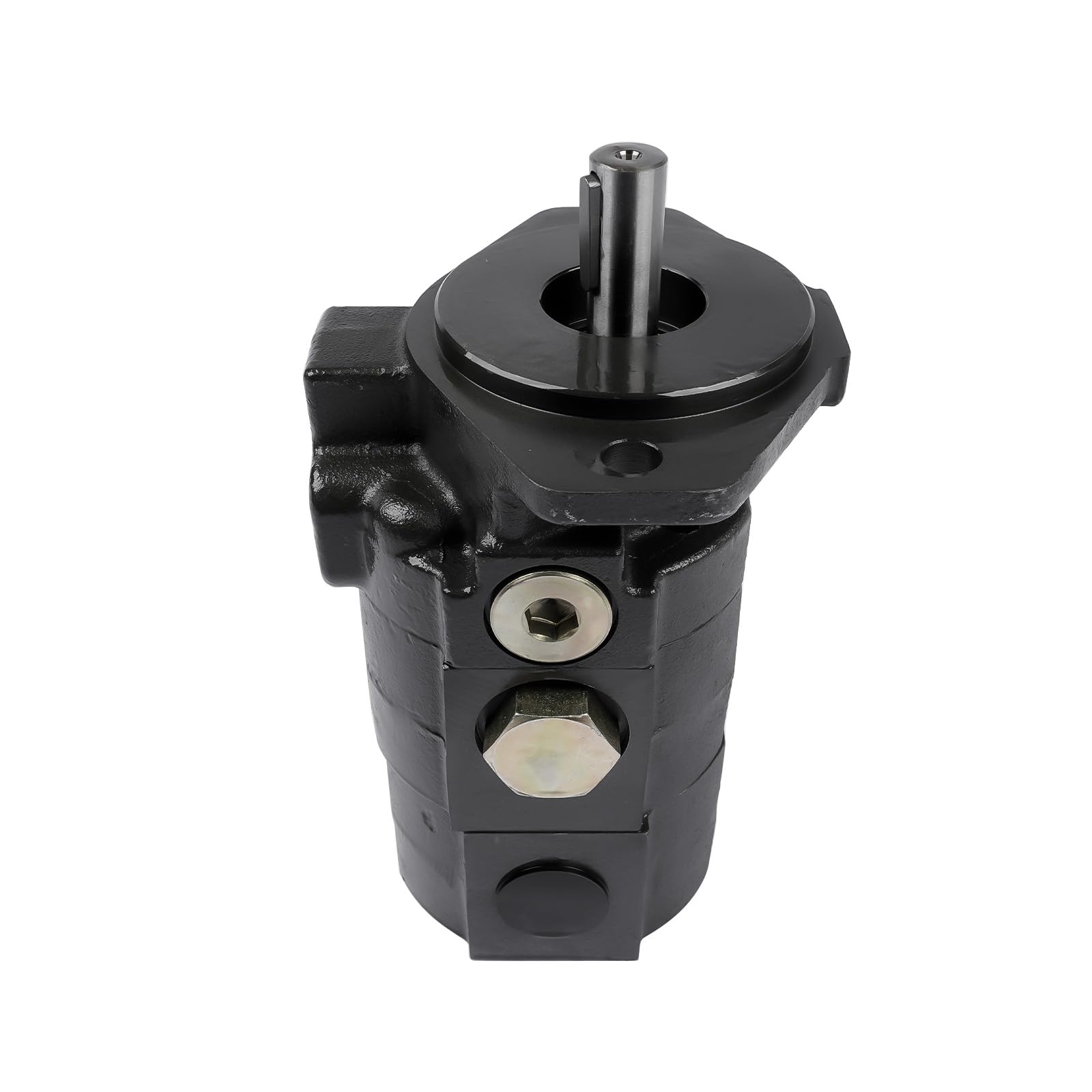

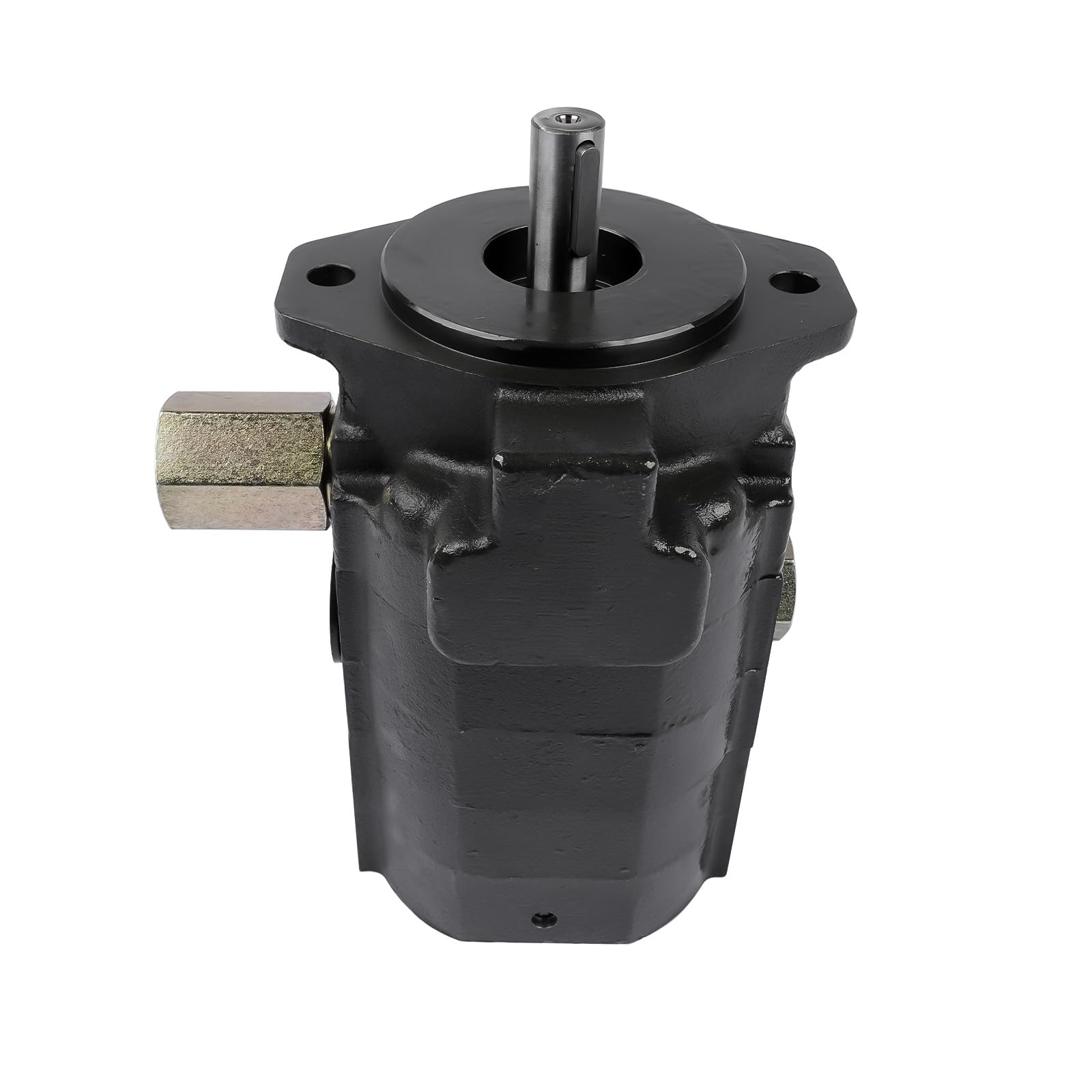

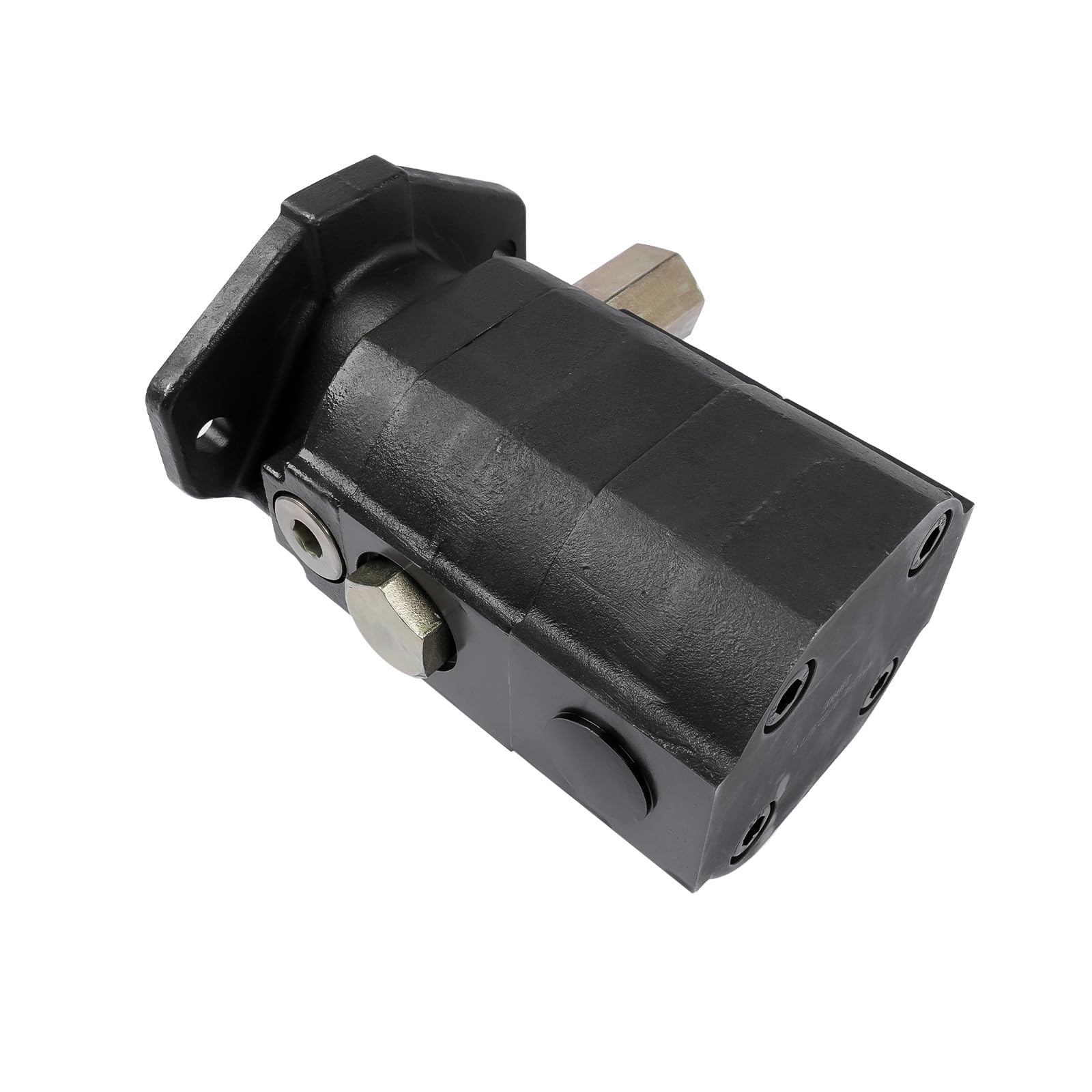

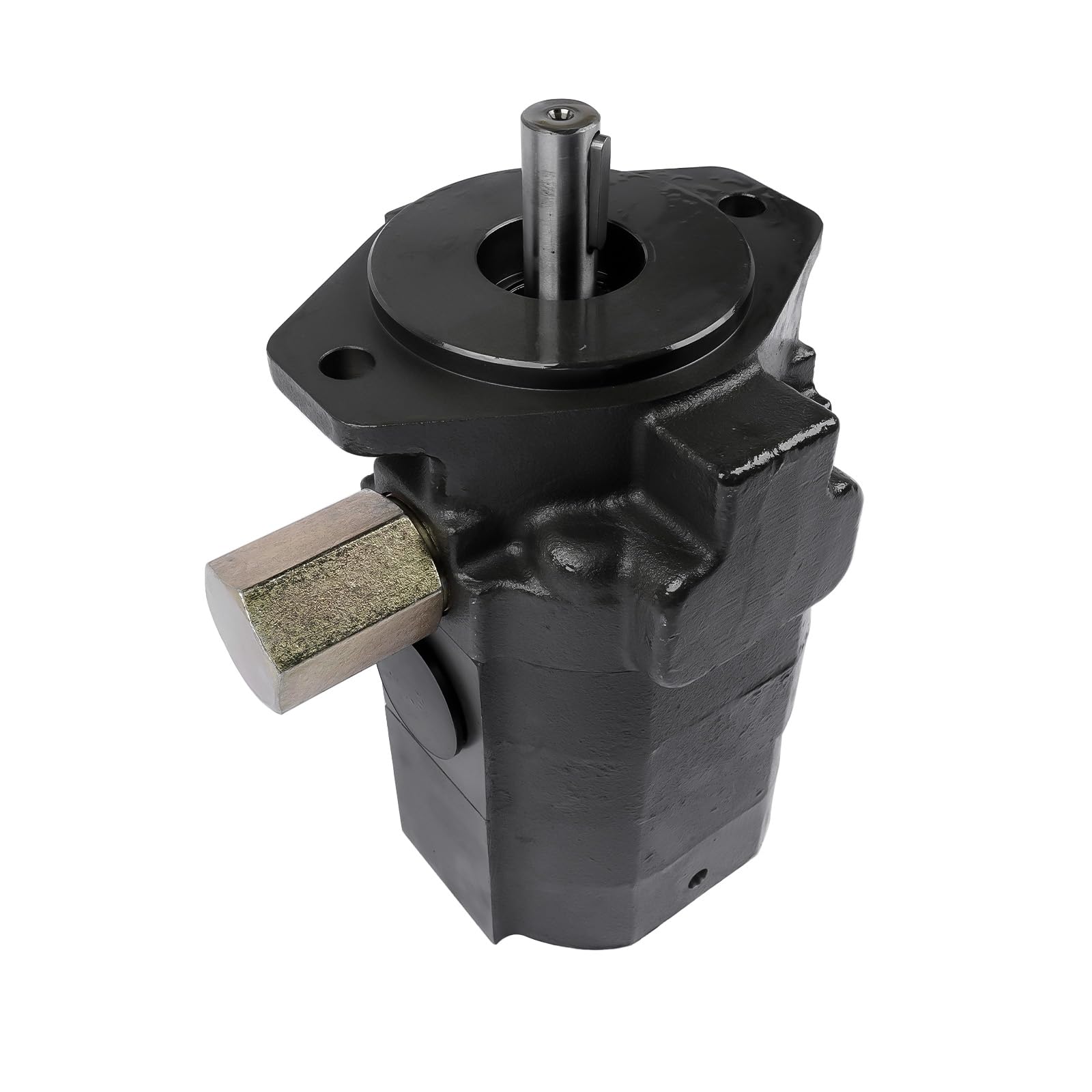

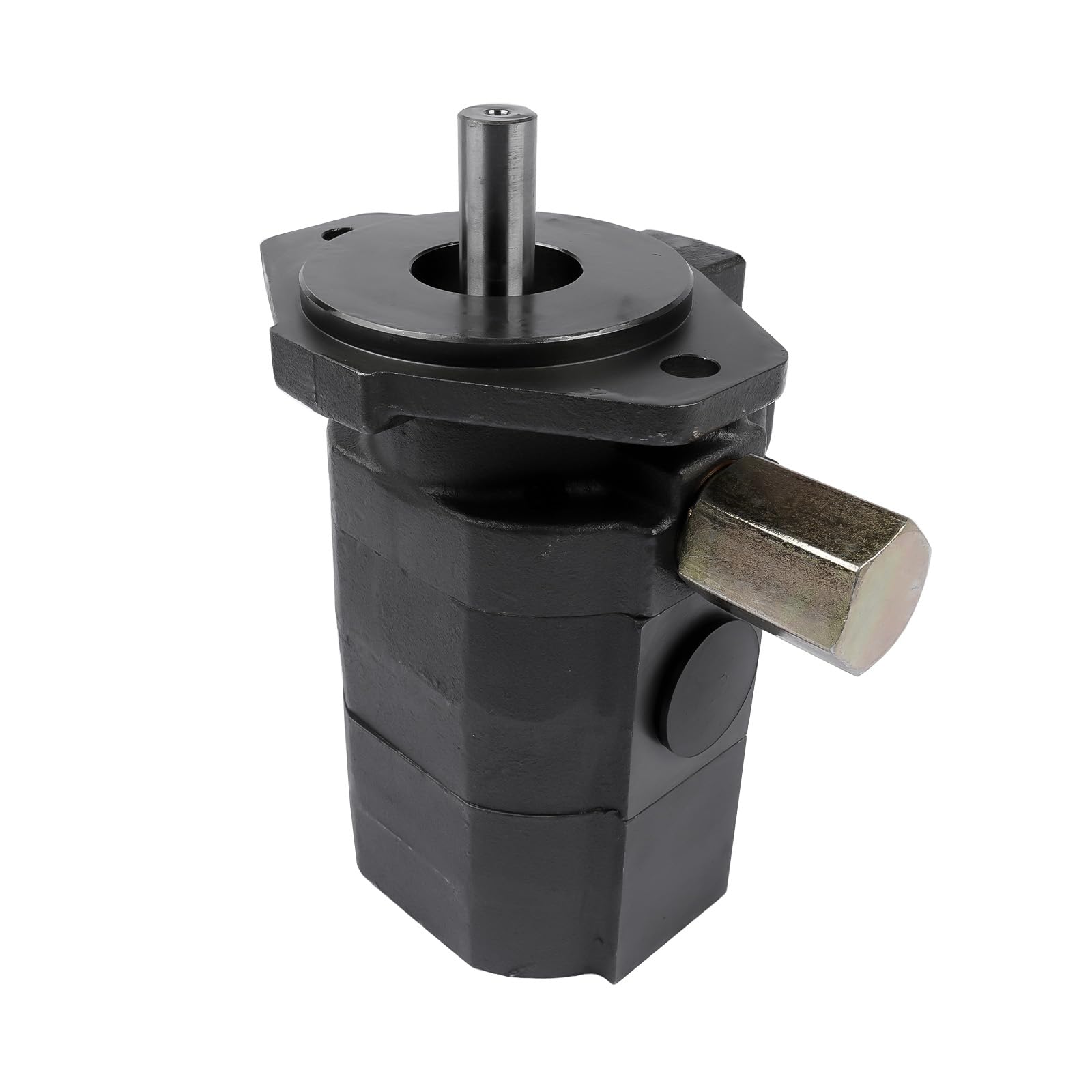

28 GPM 2 Stage Hydraulic Log Splitter Pump – Cast Iron Body, 4000 PSI Max Pressure, SAE Mount, 5/8" Shaft, Durable Steel Gears Wood Splitter Pump

Brand: Generic

Color: As Shown

Features:

• 【High Flow Dual-Stage Performance】 Features a two-stage design: 1st stage delivers up to 28 GPM, 2nd stage provides 7.6 GPM. Designed to maximize efficiency in log splitters, presses, and other hydraulic applications.
• 【Heavy-Duty Construction】 Cast iron housing and hardened steel gears ensure durability and long service life. Built to handle tough jobs in demanding environments with max intermittent pressure up to 4000 PSI and continuous pressure up to 3000 PSI.
• 【Note】Requires about 15 hp or more to run efficiently. Looking at shaft side, pump rotates clockwise - Your engine must spin counter clockwise when looking at the shaft !!!! Pump can be mounted in vertical or horizontal positions - must have 100% positive fluid supply or pump will burn up.
• Max Pressure 4000psi intermitant, 3000PSI continuous; Max RPM: 4000; Shaft size: 5/8'; Keyway: 3/16'; Inlet 1' npt; Outlet 3/4 not; SAE Mount.
• Check engine rotation and specs before installation to avoid damage. If you have any questions, feel free to contact us—we’ll provide professional assistance as soon as possible!

model number: 28 GPM

Part Number: 28GPM 2Stage Hydraulic Log Splitter Pump

Details: Description:
1st stage: 28 GPM; 2nd stage: 7.6 GPM.
Cast iron body handles demanding jobs.
Durable hardened steel gears.
Needle bearing construction.
Max Pressure 4000psi intermitant, 3000PSI continuous.
Max RPM: 4000
Shaft size: 5/8'
Keyway: 3/16'
Inlet 1' npt
Outlet 3/4 not
SAE Mount

Note:
Requires about 15 hp or more to run efficiently.

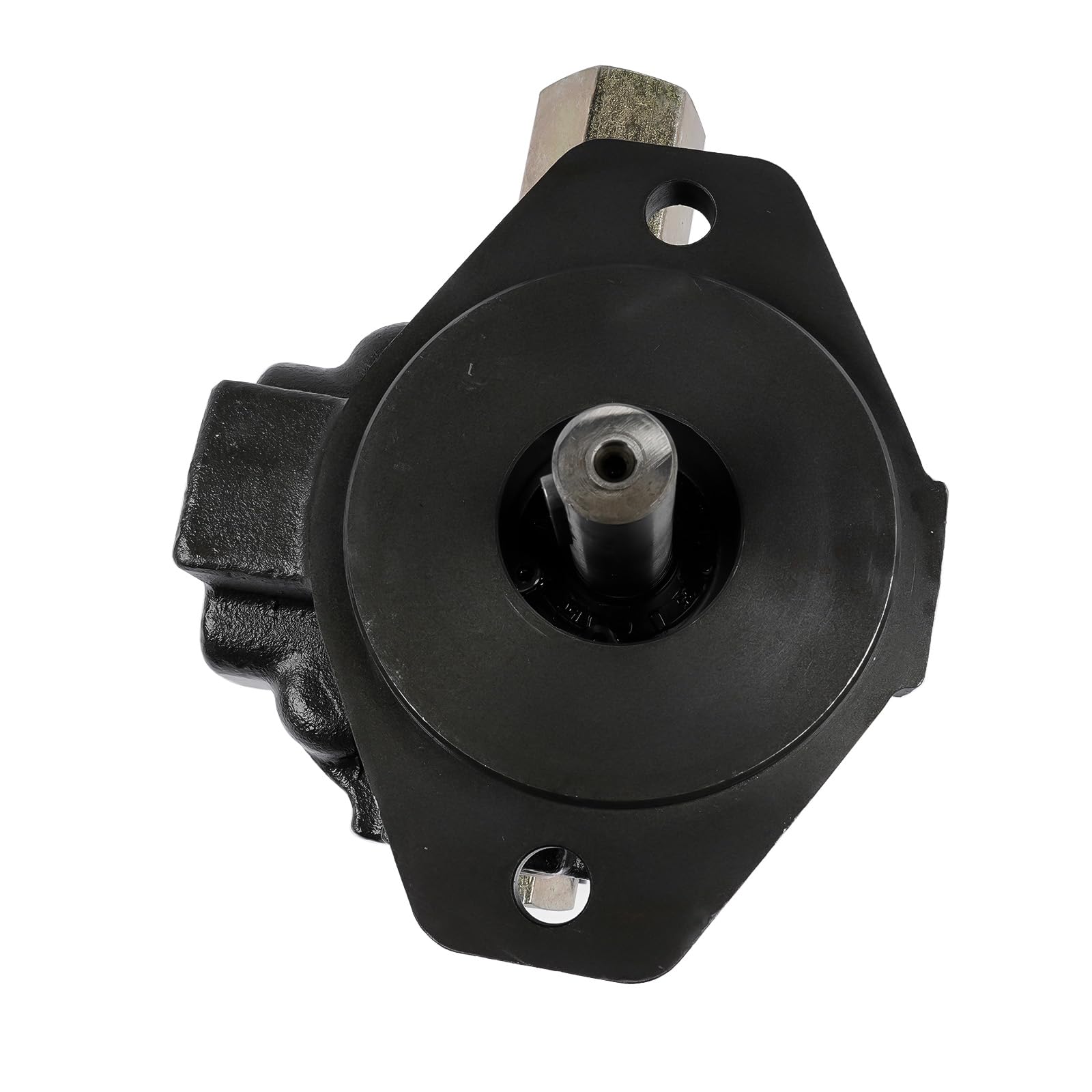

Looking at shaft side, pump rotates clockwise - Your engine must spin counter clockwise when looking at the shaft!!!!
Pump can be mounted in vertical or horizontal positions - must have 100% positive fluid supply or pump will burn up.

Package included:
1x 28GPM Two-Stage Hydraulic Log Splitter Pump

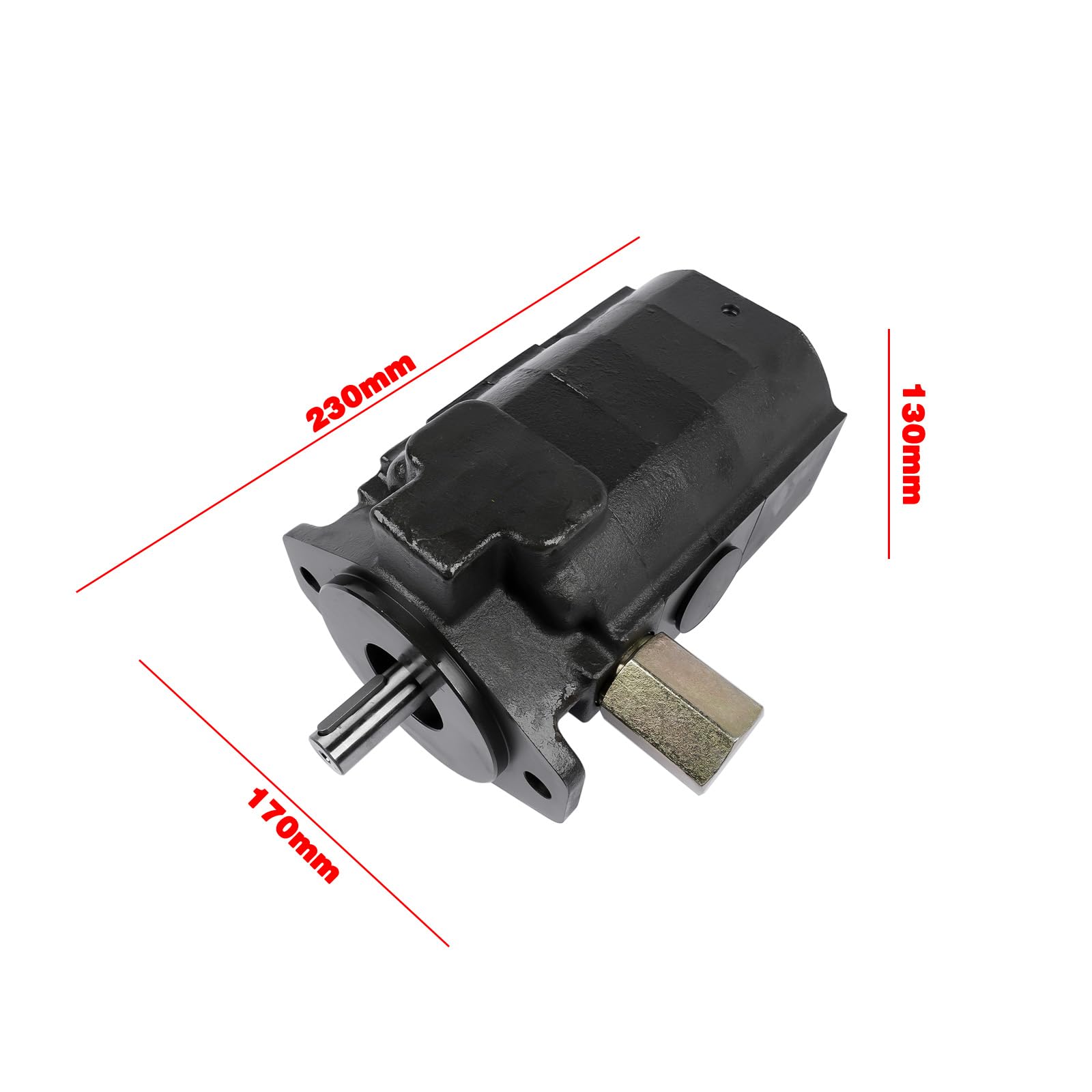

Package Dimensions: 12.2 x 8.6 x 6.6 inches
