2Pcs Stop Block for CNC Workbench, Push and Pull Action Cam Clamp Support Heavy Duty Milling, Toggle Clamps Control by Air Cylinder or M8 Screws | 5mm Stroke Short Stop Kit

Brand: LuTangous

Color: Silver

Features:

• CNC universal stop block: strong clamping force, support heavy cutting, high work efficiency. Two control modes: support airc ylinder control, support Manual screw fixing
• Double-sided clamping cnc clamps: milling machine clamps have single-sided 5mm stroke, surface grinding RA<0.4, roundness<0.8. High clamping precision, more reliable
• Finishing cam clamp: built-in spring, the main body is not easy to crack, the side threaded hole, can be equipped with a semicircular jaw, convenient for clamping cylindrical workpieces. Multiple side by side use, saving time and effort

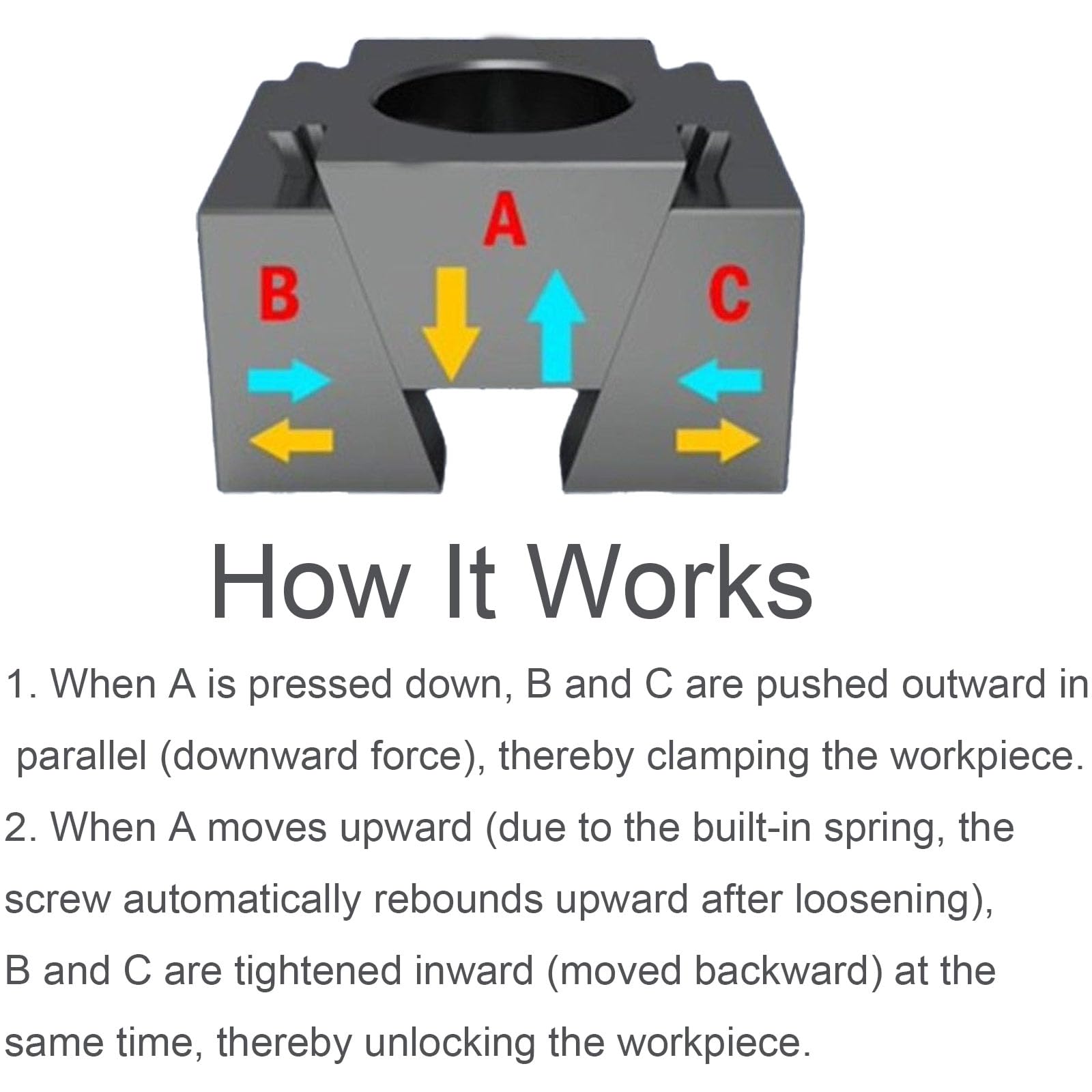

• Screw clamp working principle: Wedge Surface moves downward, squeezes and pushes outward to lock the workpiece. Wedge Surface moves upward, relaxes and shrinks inward, thereby releasing the workpiece

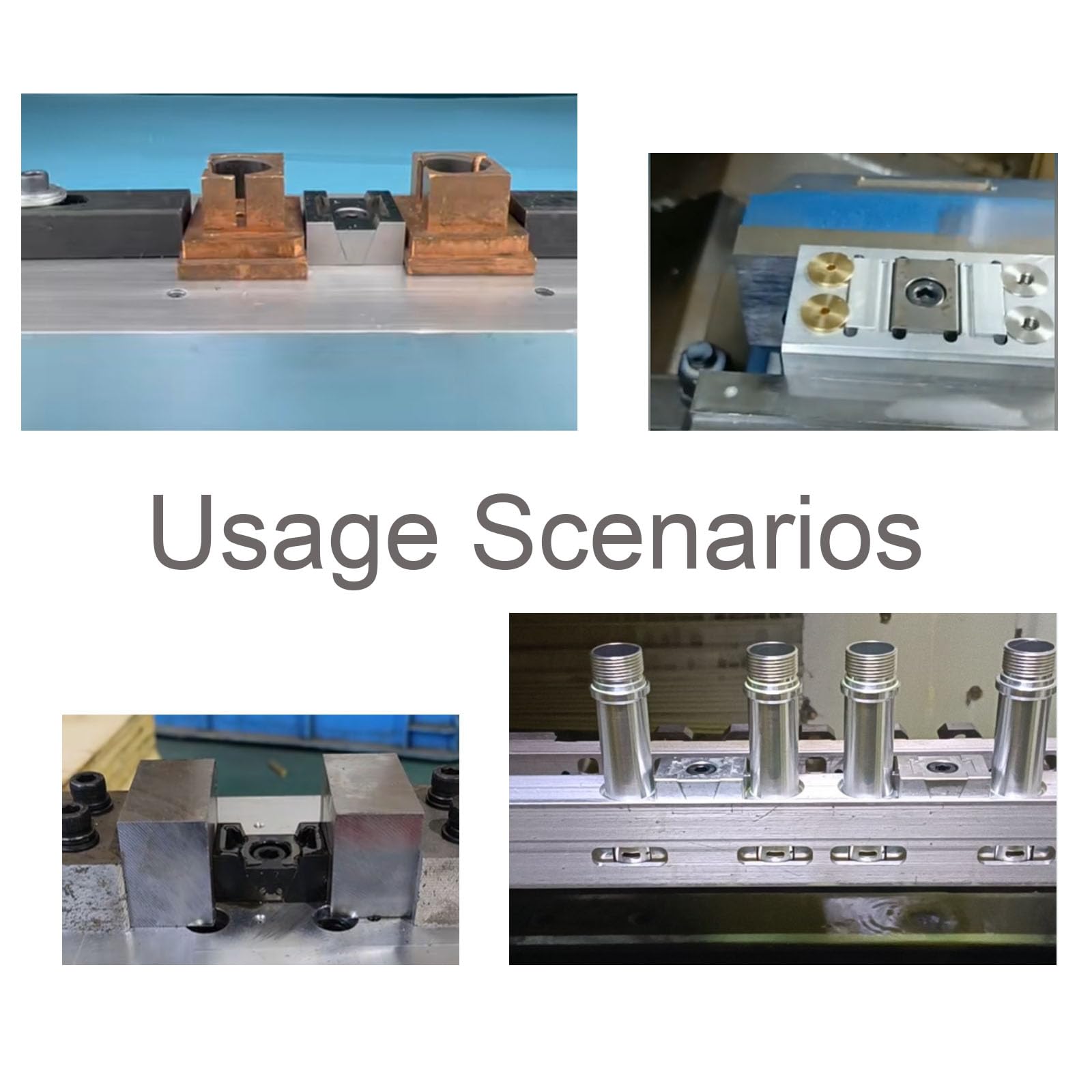

• Scope of use of quick clamps: steel parts, aluminum parts, quick-change pallets, wooden workpieces, suitable for metal workbenches with DIY screw holes, and workbenches with fixing holes

model number: LT-WB-0001

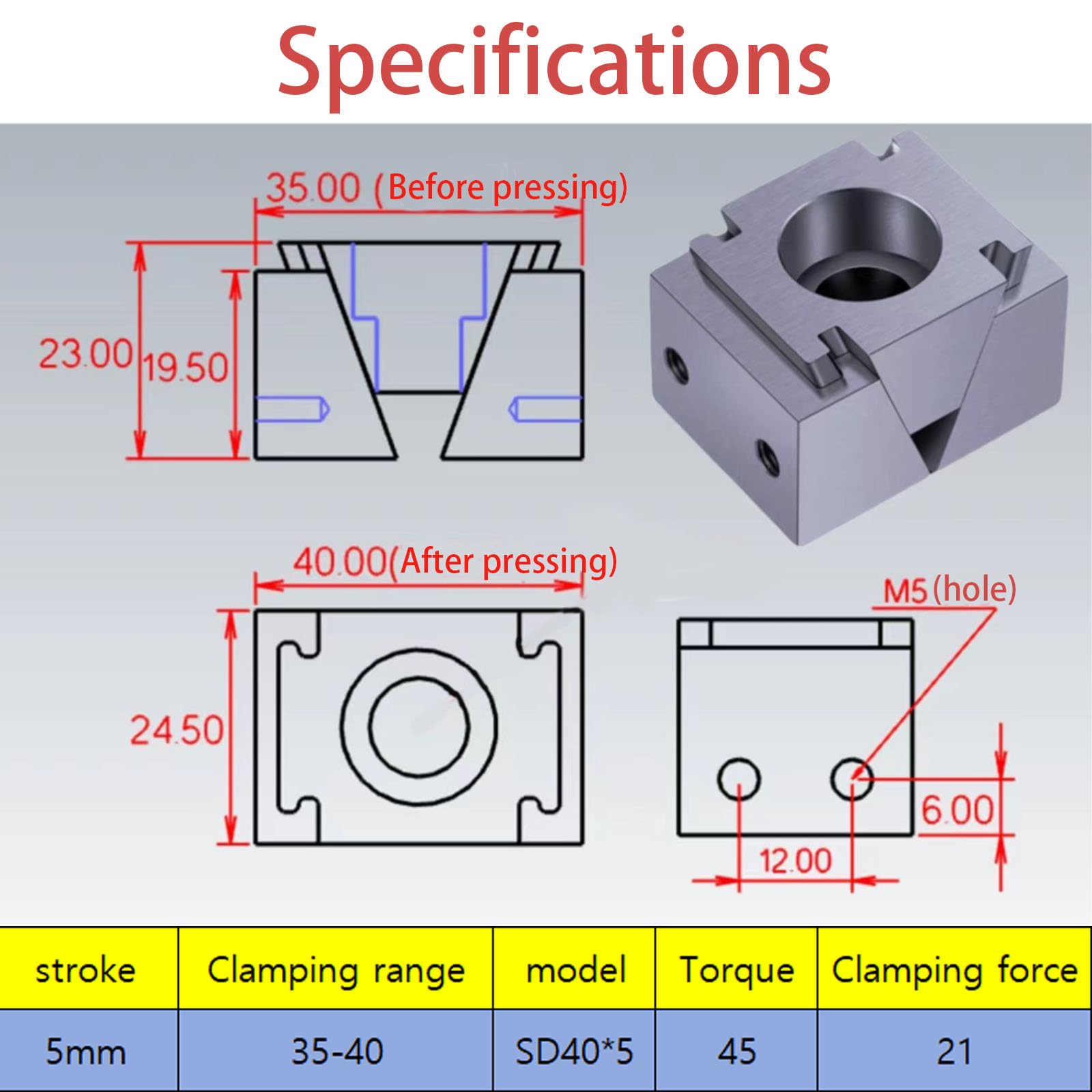

Details: CNC clamps stroke: 5mm on one side,
Cam clamps support studs: M8
Hand clamps size:
35*23*25
Change after locking
40*20*25

Package Dimensions: 2.2 x 1.7 x 1.6 inches
