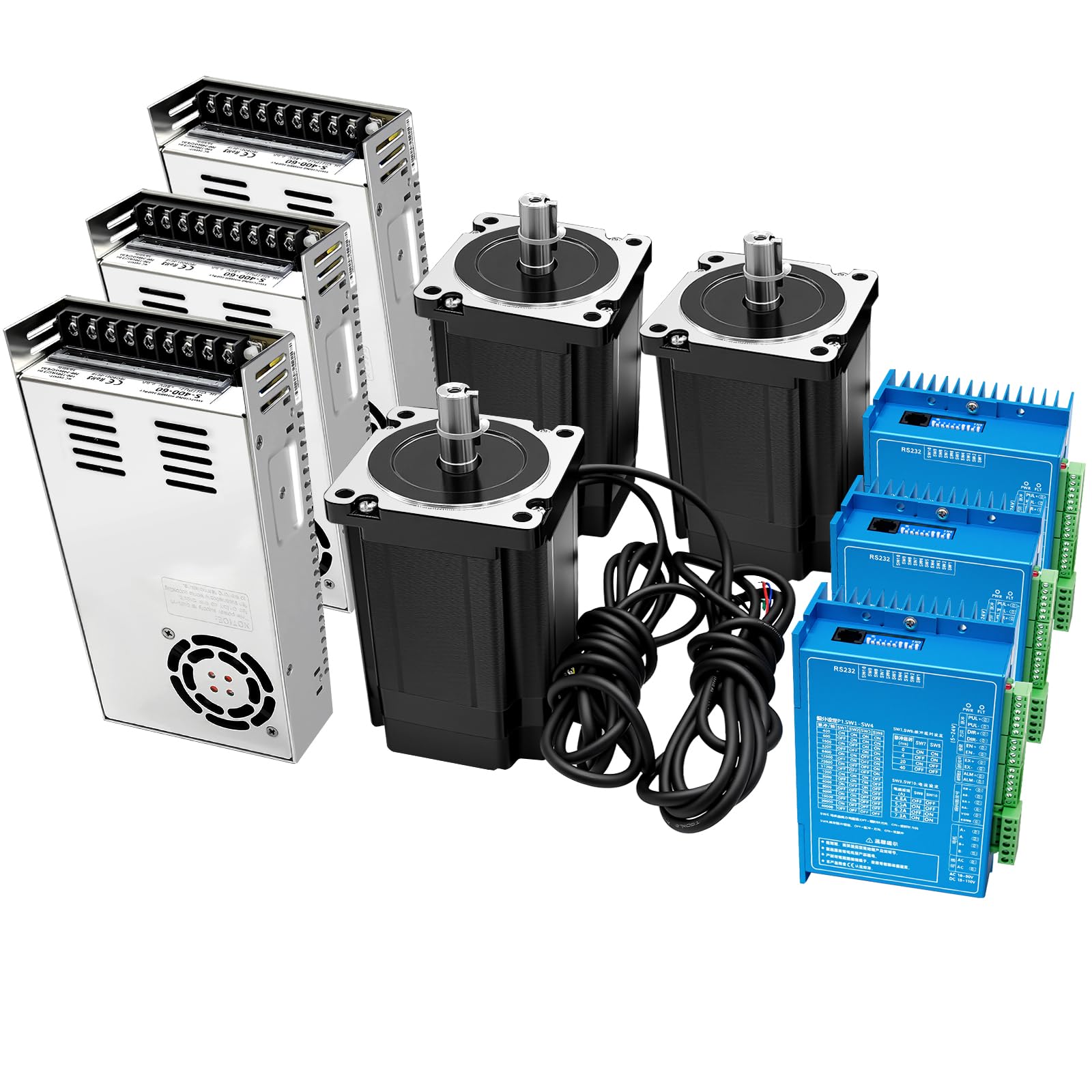

3 Axis CNC Controller Kit Nema34 86mm Closed Loop Stepper Motor Kit 8.5Nm DSP Easy Servo & Steping Driver & 400W 60V DC Power Supply, for 3D Printer Engraving Milling Machine

Brand: TOSEASTARS

Features:

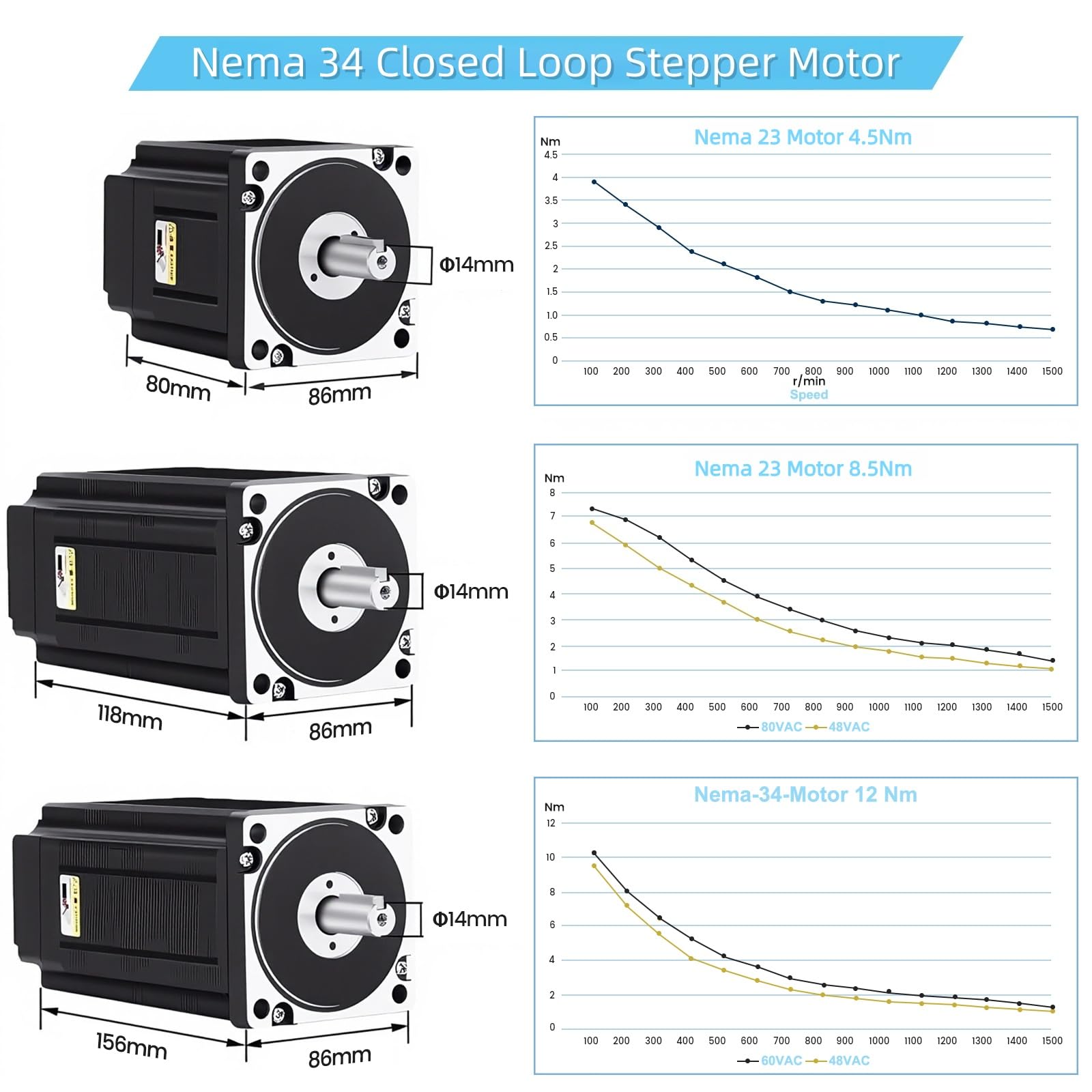

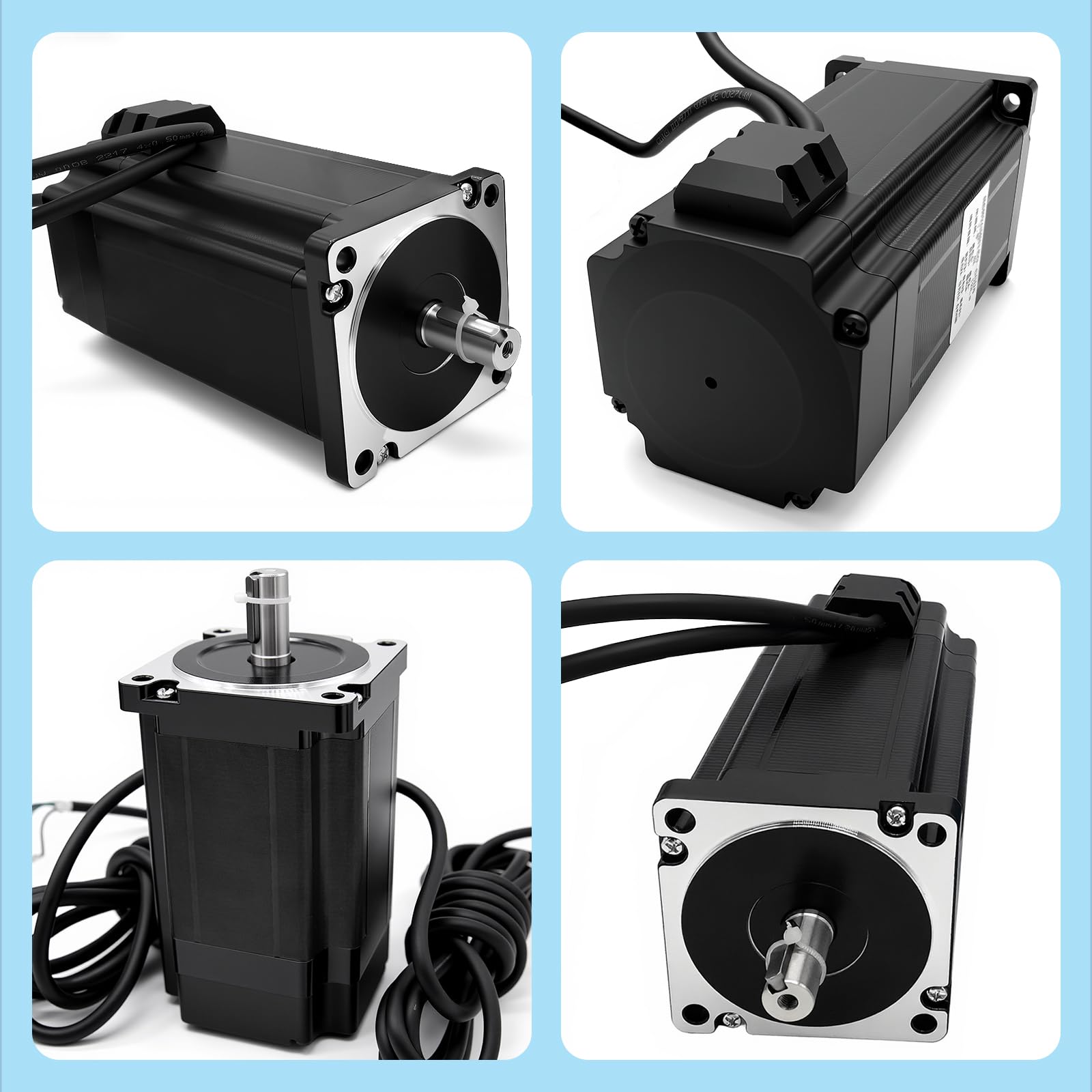

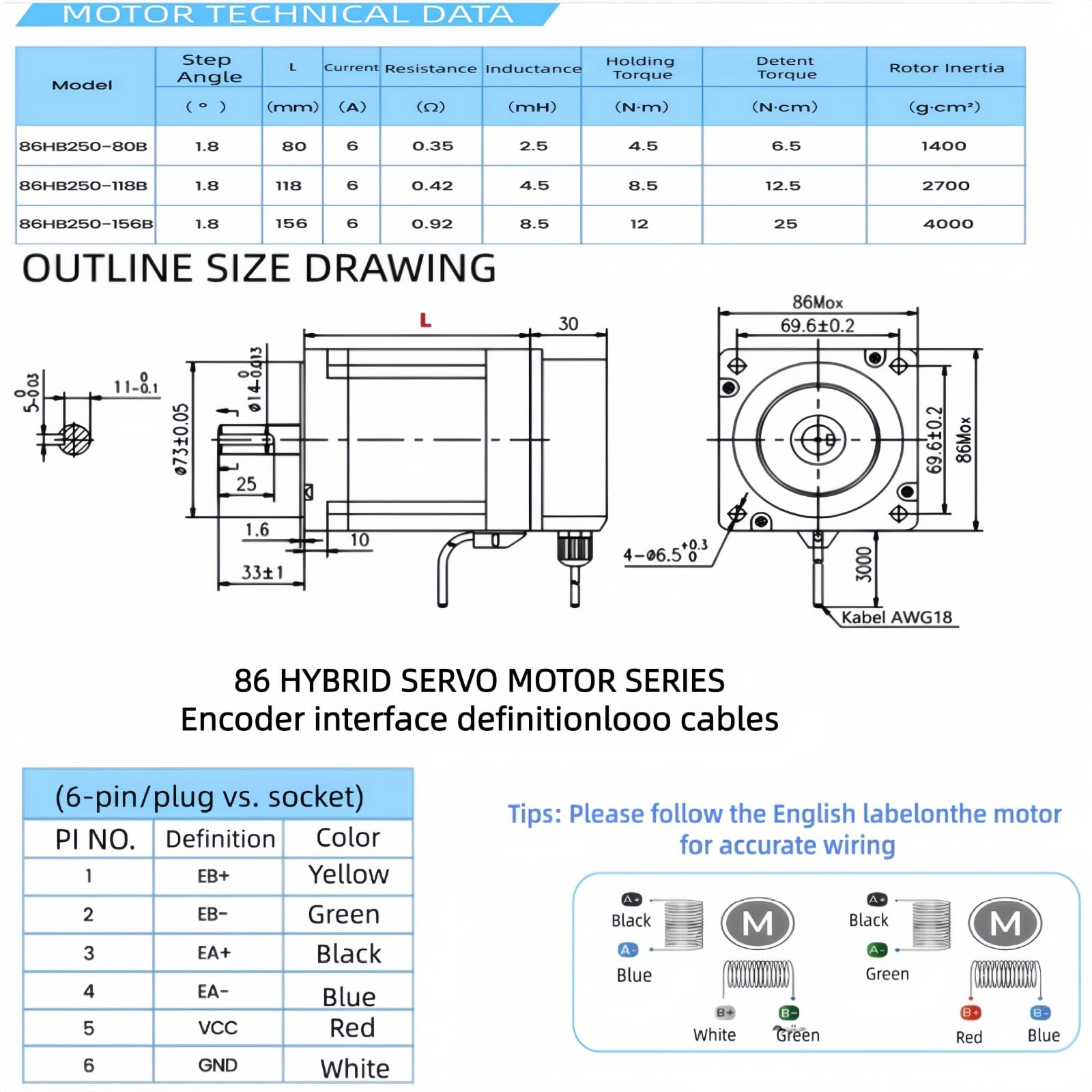

• 3 PCS Nema 34 86mm Closed Loop Stepper Motor: Holding Torque: 8.5N.m (850ncm 1203.7 oz.in); Rated Current: 6A; Phase: 2-Phase; Motor Lead Wire: 4-Wires; Step Angle:1.8 degree; Encoder lines:1000; Shaft diameter: 14mm; Size: 86x86x118mm / 3.38*3.38*4.65 inch.

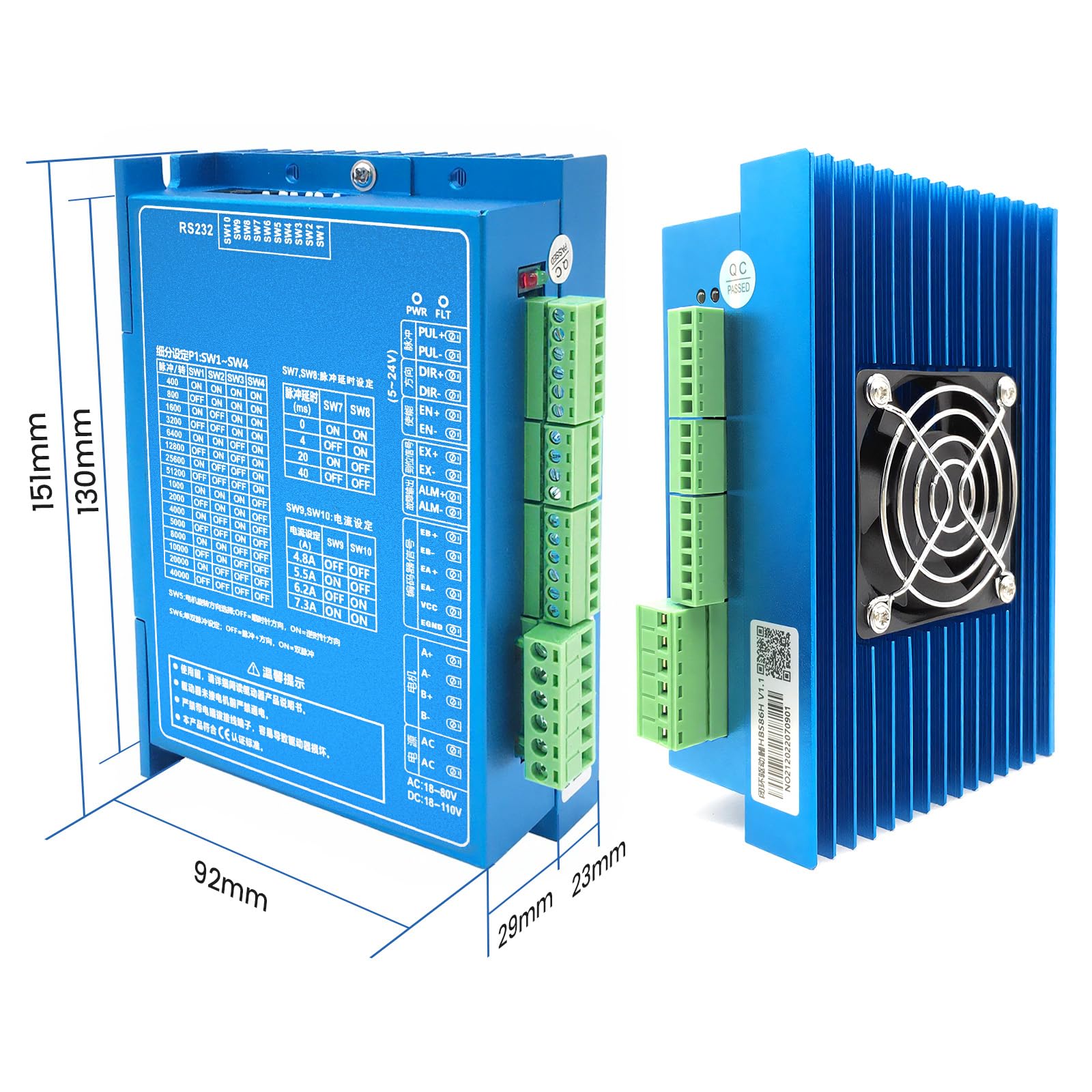

• 3 PCS Motor Driver: Type: 2-Phase Hybrid Step Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Output Peak Current: 0~8A; Voltage: AC 18-80V or DC 18-110V input; Micro-stepping driver: 200~51200ppr.

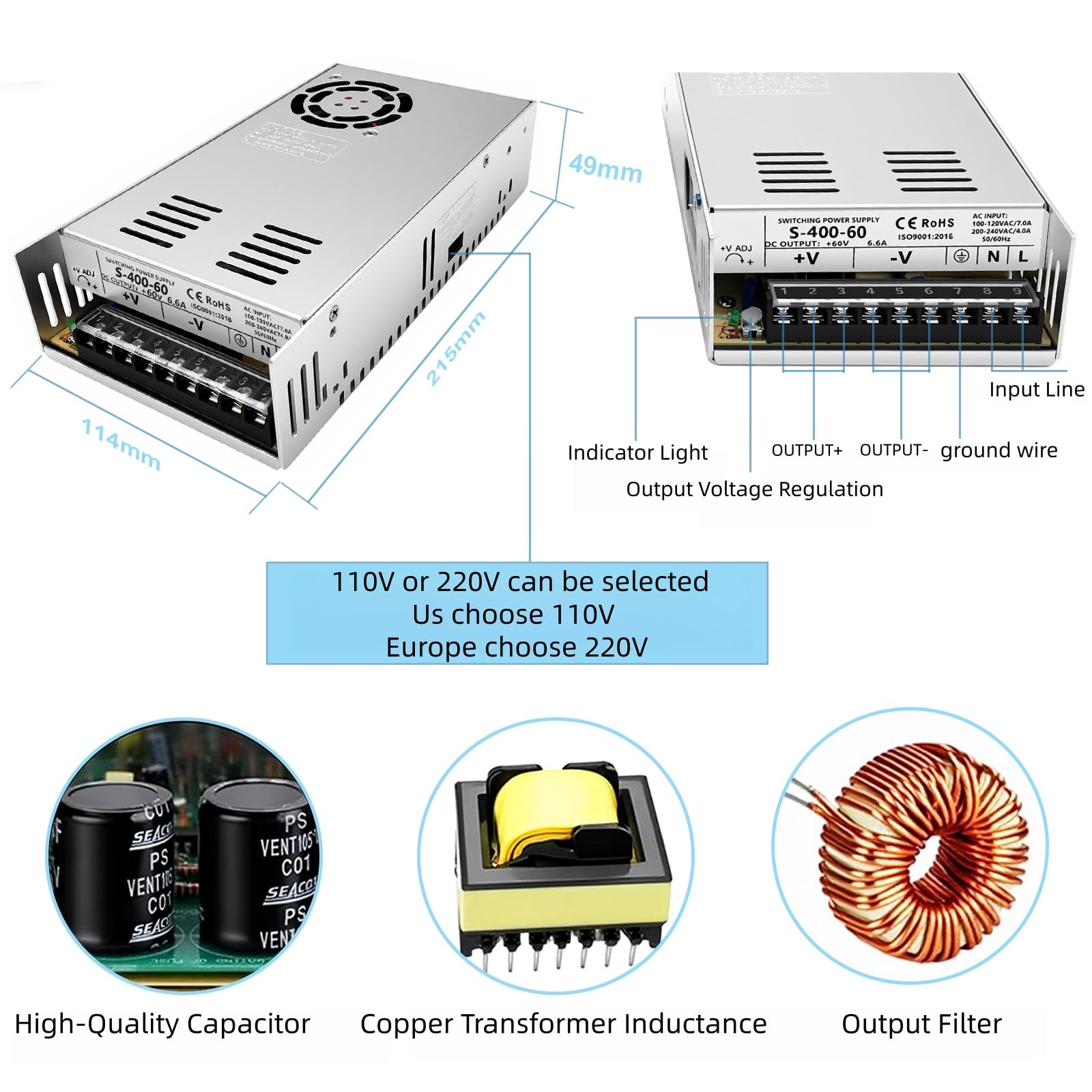

• 3 PCS 60V 400W Power Supply: Power:400W; Output Voltage(DC): 60VDC; Input Voltage (AC): 110V/220V(+-10%), Us choose 110V; Output Current: 6.6A; Safety Compliance:CCC/ FCC / CE.
• Advantages: Stepper motor closed loop system,never lose step. The encoder technology can increase the accuracy of the motor; Improve motor output torque and working speed. It supports over-current protection, over-voltage protection, position outside the tolerance protection.
• High Efficiency: Our nema 34 closed loop stepper motor can suitable for all kinds of small and medium-sized automationequipment and instruments, such as: engraving machines, cuttingmachines, laser machines, plotters, CNC machine tools, automaticassembly equipment, electronic processing equipment, textile andclothing equipment, etc.The application effect is better in the equipment with low noise.

Part Number: 86HB250-118B

Package Dimensions: 21.1 x 13.0 x 9.7 inches
