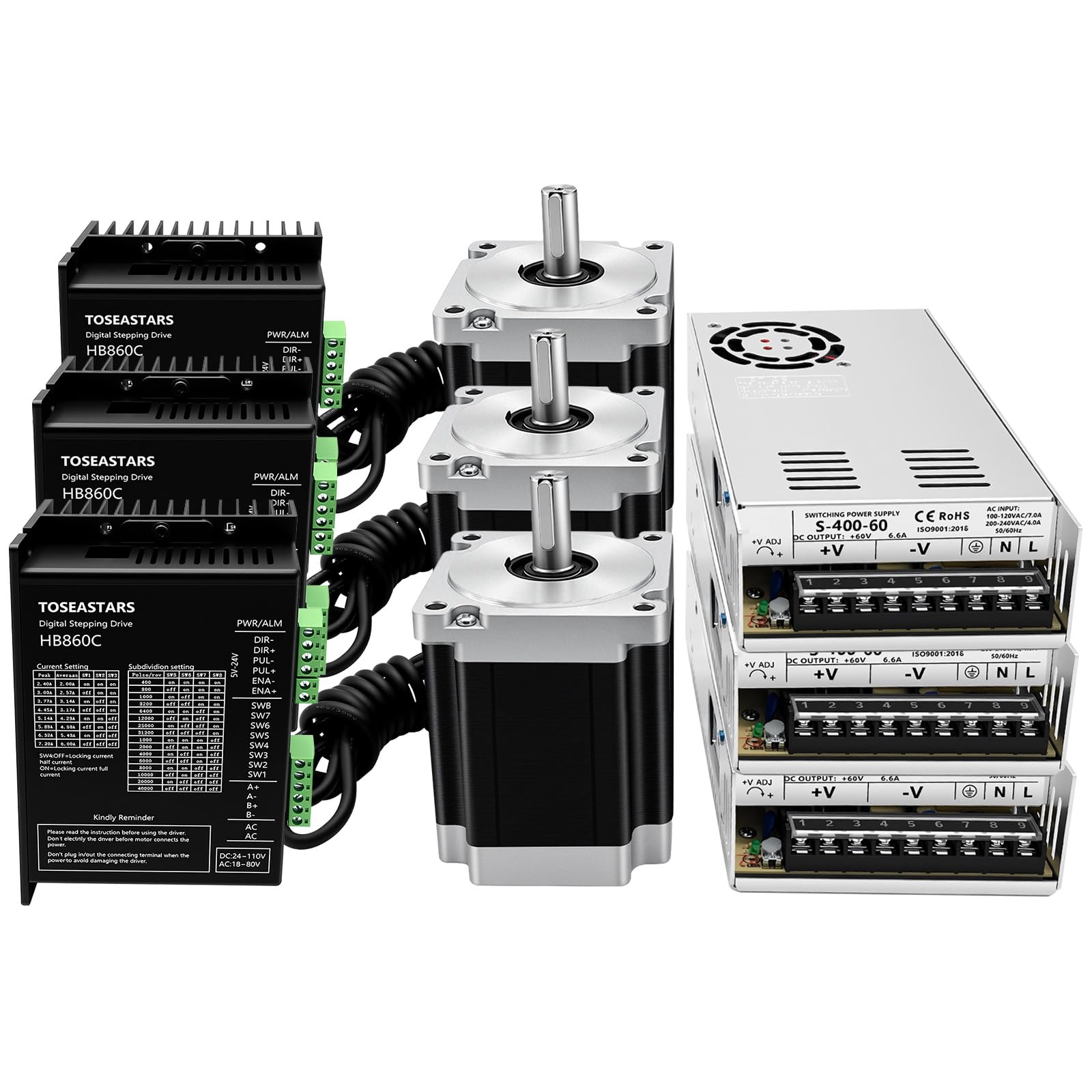

3 Axis CNC Controller Kit Nema34 86mm Stepper Motor 4.5Nm 640oz.in 2-Phase 6A, Step Motor Driver, 400W 60V Power Supply, Mach3 Control Card for CNC Router Machine Engraving

Brand: TOSEASTARS

Color: 3 Axis

Features:

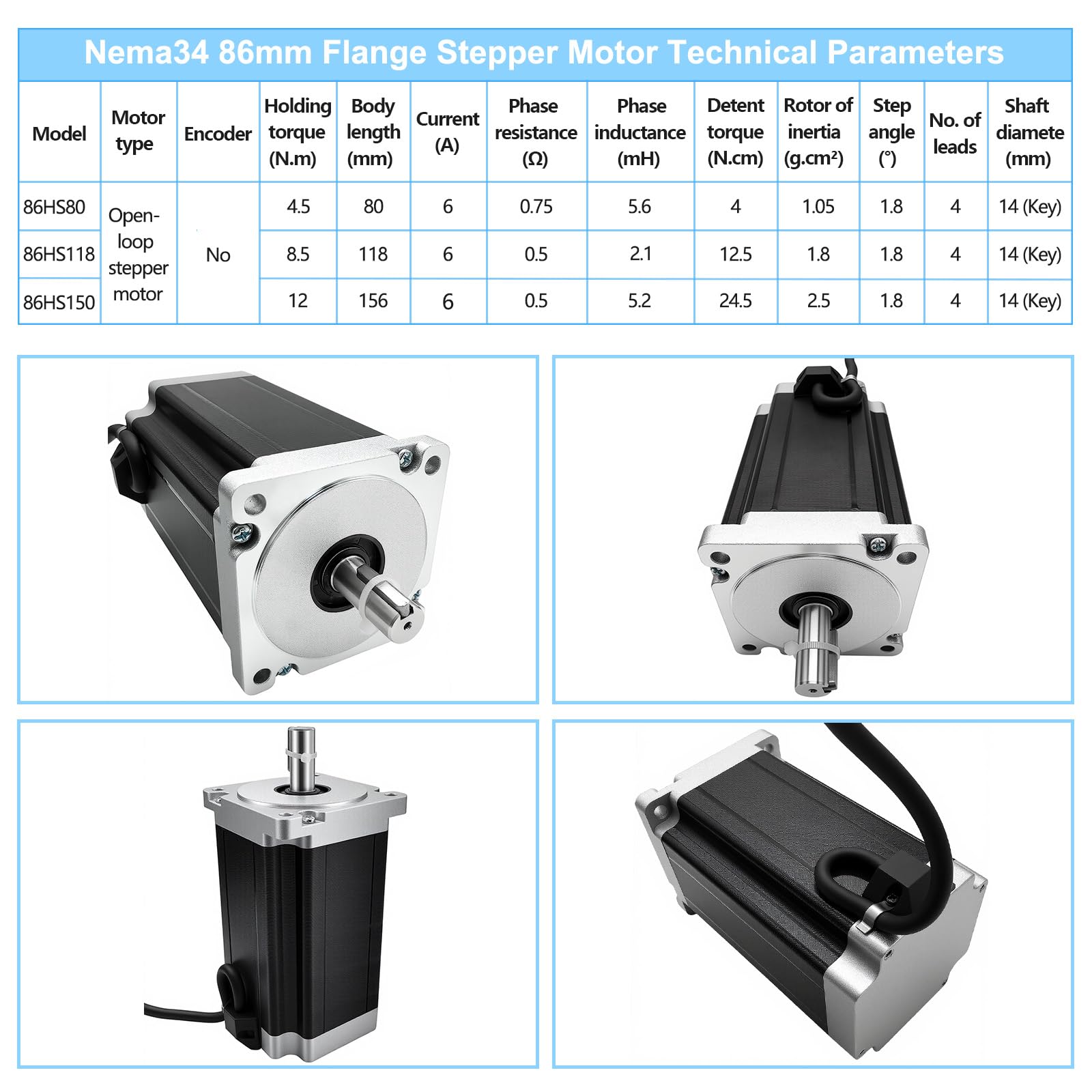

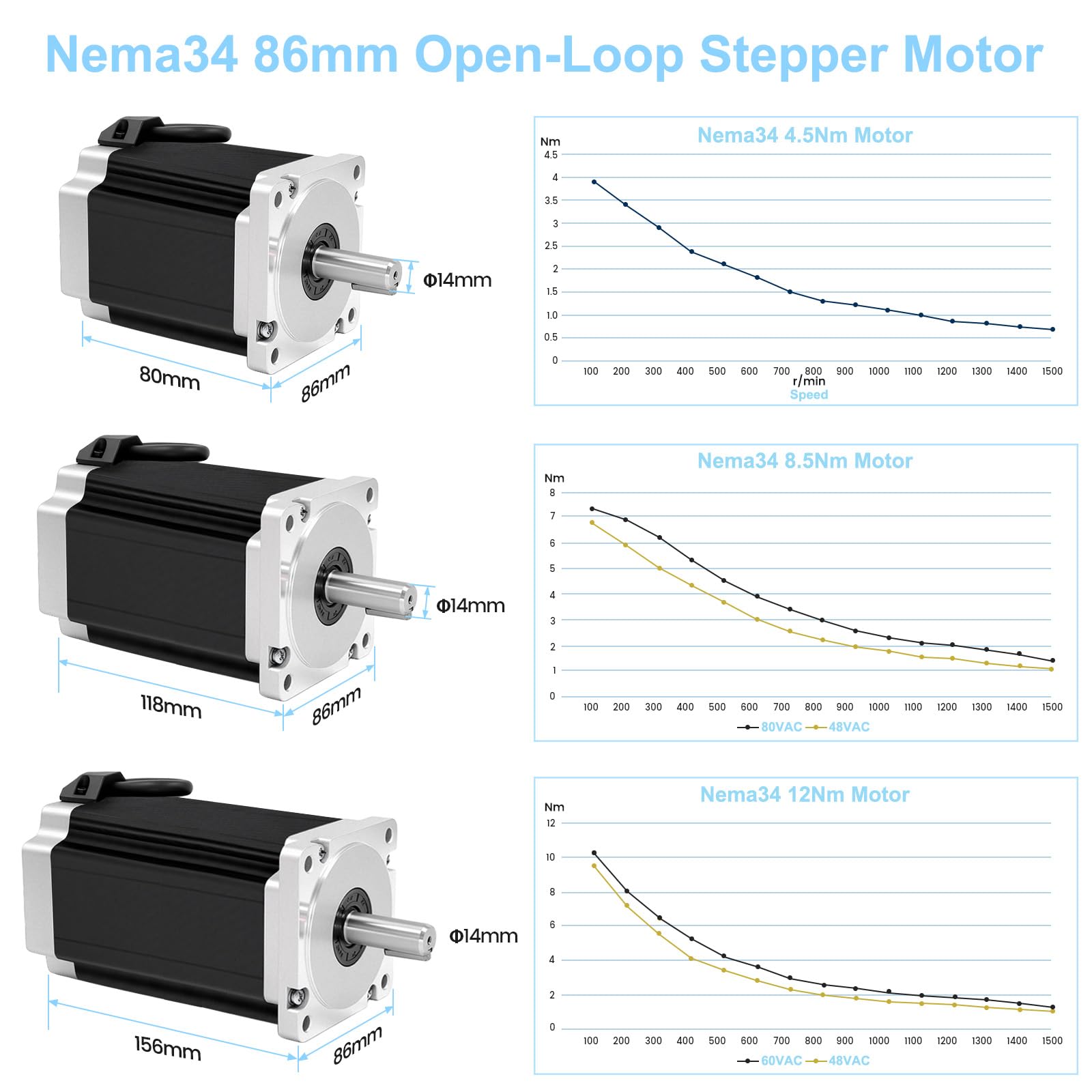

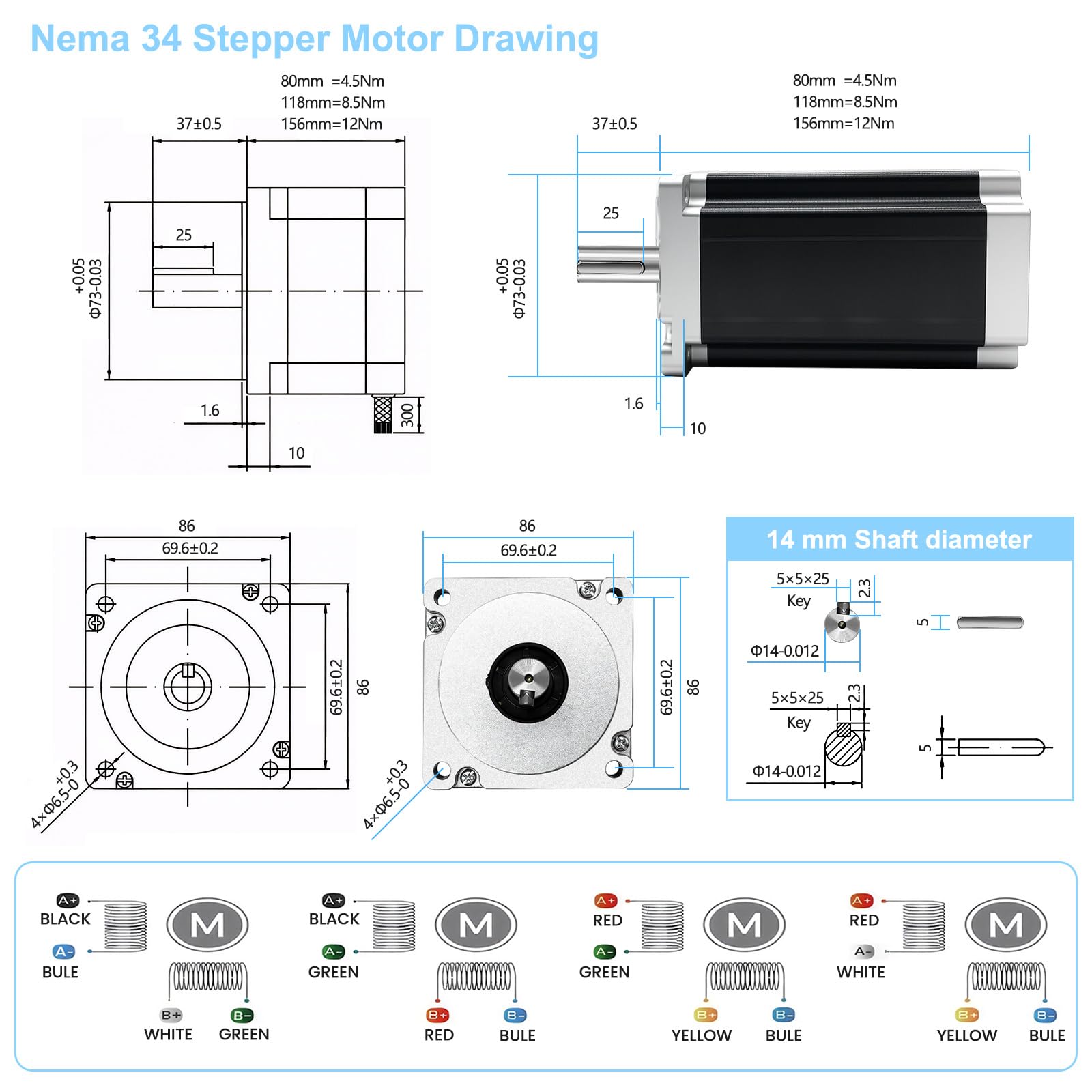

• 3 Pcs Nema 34 86mm Stepper Motor: 4.5Nm (450Ncm 640oz.in) holding torque and low noise, nema34 step motor size 86x86x80mm (3.38x3.38x3.14 inch). Current: 6A; 1.8 deg. step angle(200 steps/rev); 2 phase 4-lead wires; 14mm key-way shaft, phase inductance 5.6±20%(mH) & resistance 0.75±10% ohms(Ω).

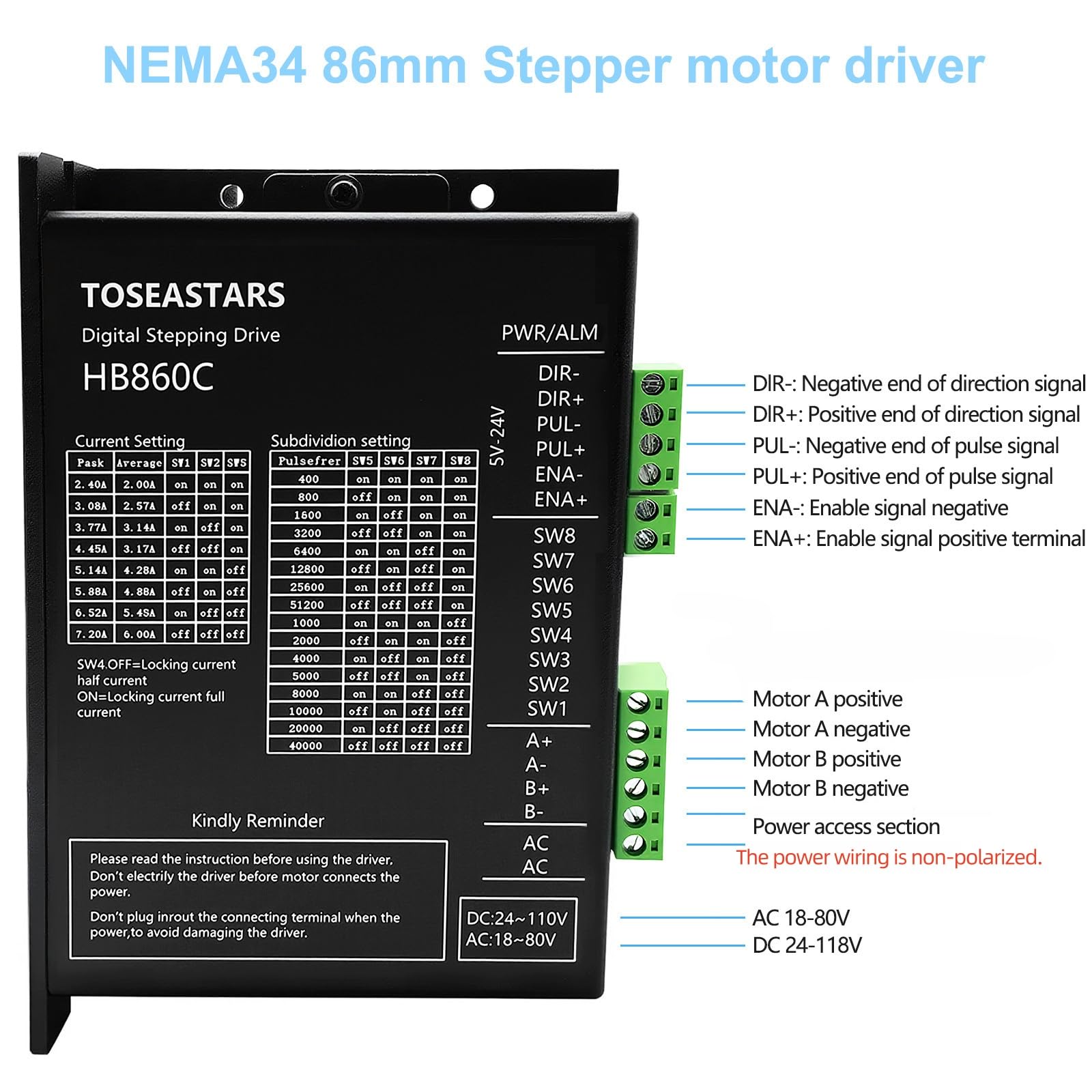

• 3 Pcs HB860C Stepper Motor Driver: Driver Voltage: DC 24-110V, AC 18-80V, which is suitable for all two-phase hybrid nema34 stepping motors. There are 16 kinds of micro steps, and the output current has 8 gears. Subdivision: 400-51200 steps/turn.

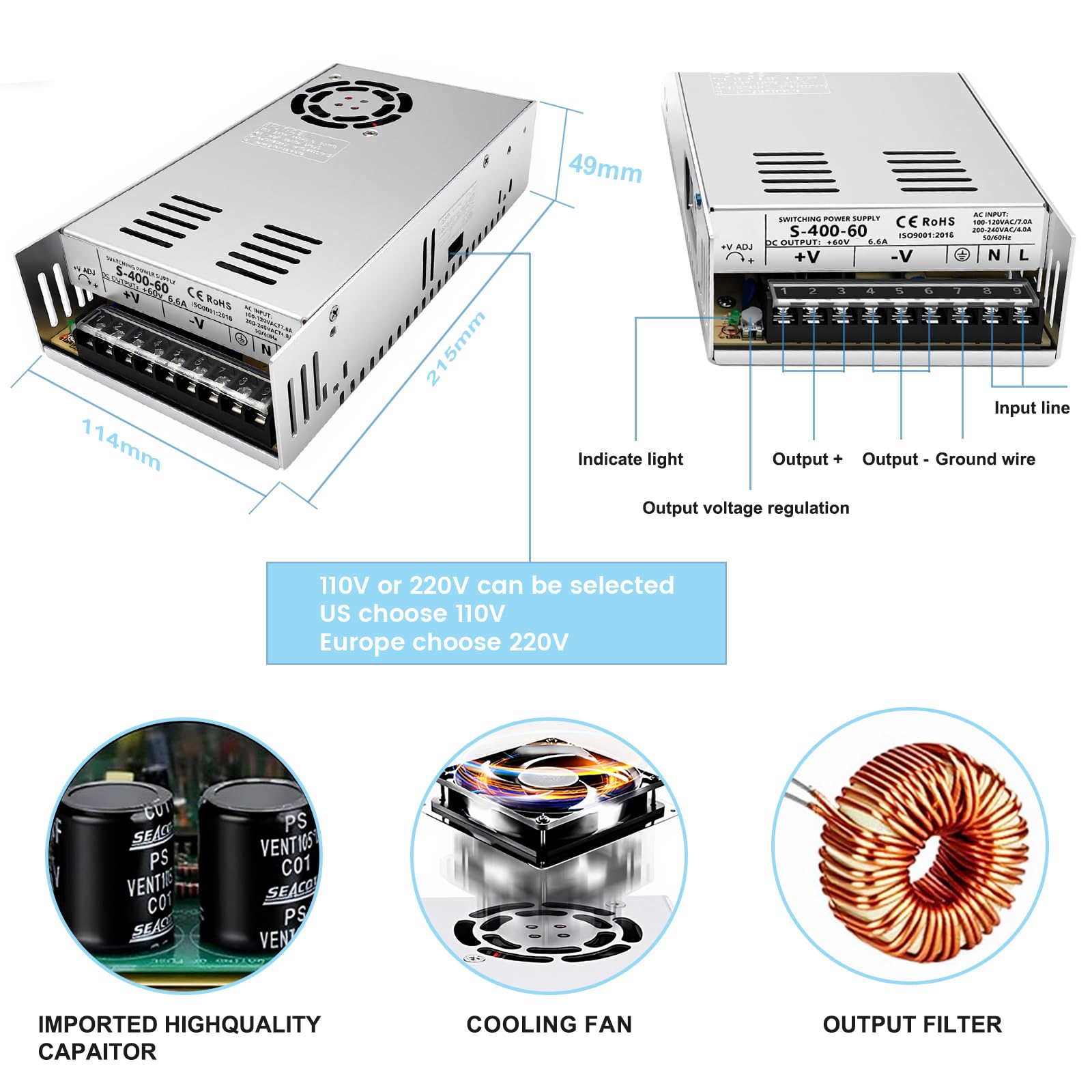

• 3 Pcs Stable output 400W 60V DC power supply: Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Shell hollow design, heat dissipation ability faster and stronger, more durable performance. AC input voltage range: 110V or 220V AC; selected by switch to choose input voltage.
• Functions of the Mach3 Control Board: It supports 5-axis linkage control at most for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device. Strong anti-interference and high reliability. As long as Mach3 is running, the control card can be used without installing any drivers.
• Professional CNC Controller Kit: This is a professional 3d printer DIY kit made of high premium materials. It's a DIY kit with tons of possibilities with multiple types of modules or components you need. Applications: Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment, laser machine, automation devices,etc.

Part Number: 3 Achsen Nema 34 Schrittmotor

Package Dimensions: 15.2 x 10.7 x 10.0 inches
