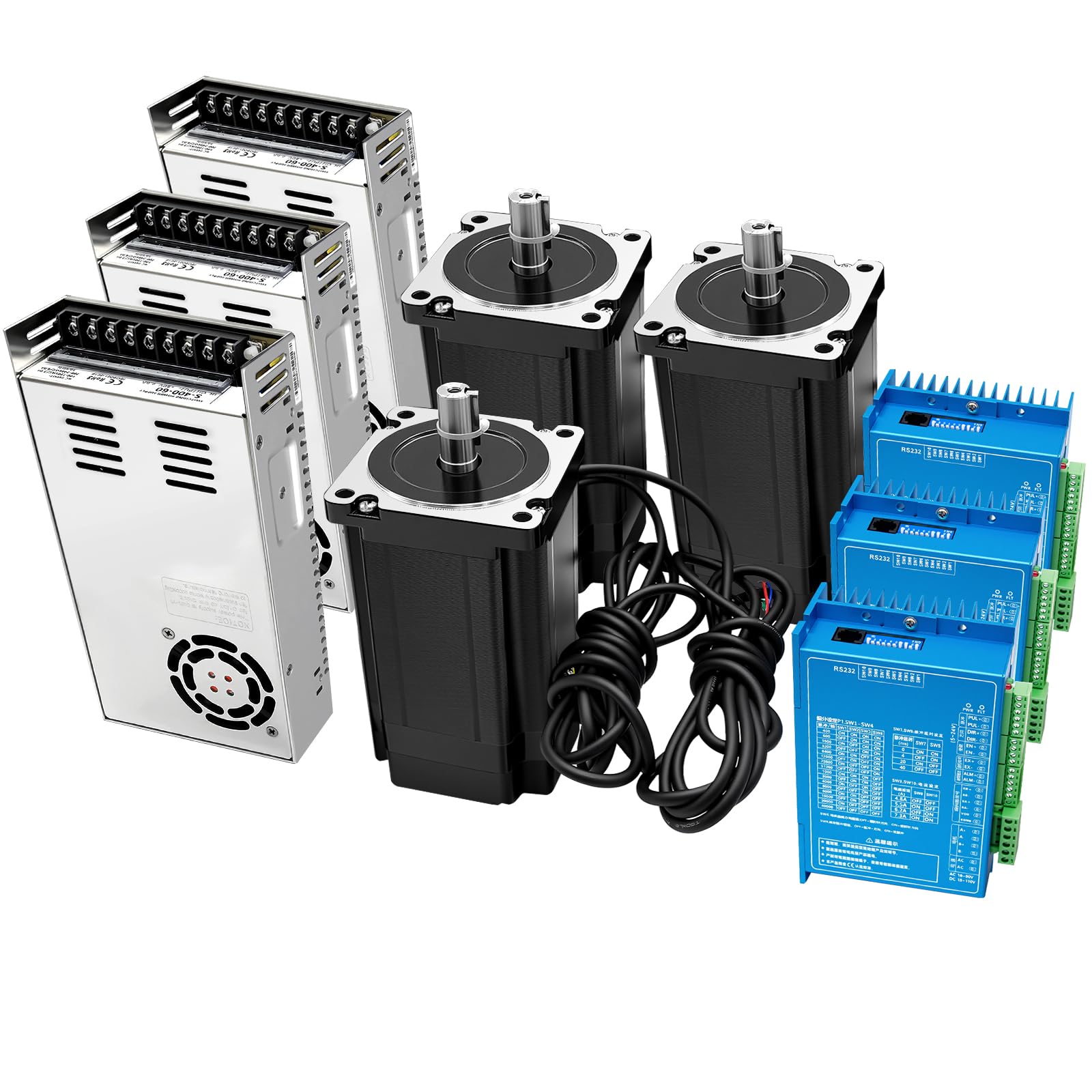

3 Axis Nema 34 86mm Closed Loop Stepper Motor Kit 12Nm / 1700oz.in 1000 Line Encoder Easy Servo Motor & 0-8.0A Motor Driver & 400W 60V Power Supply, CNC Kit for CNC Router 3D Printer

Brand: TOSEASTARS

Color: 3

Features:

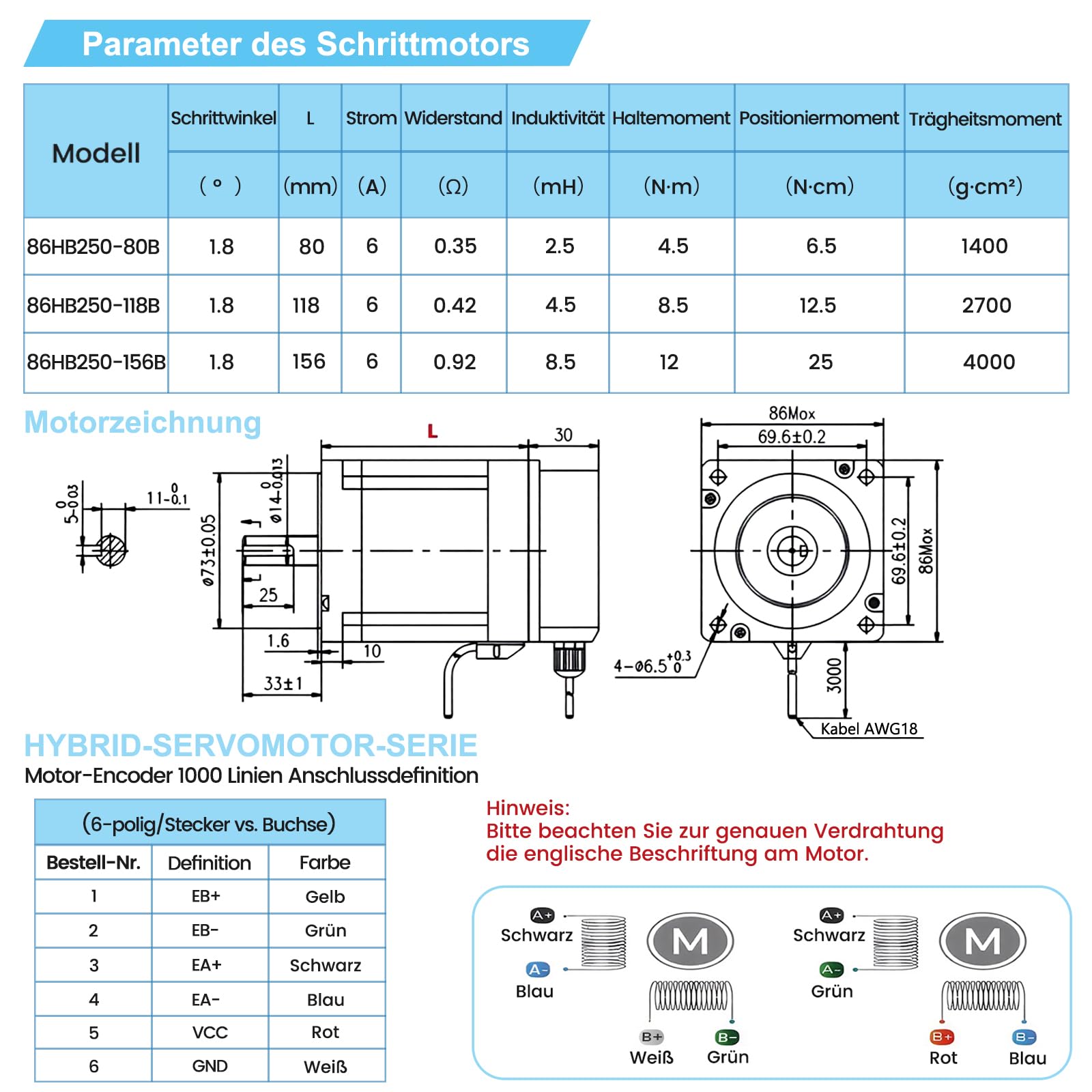

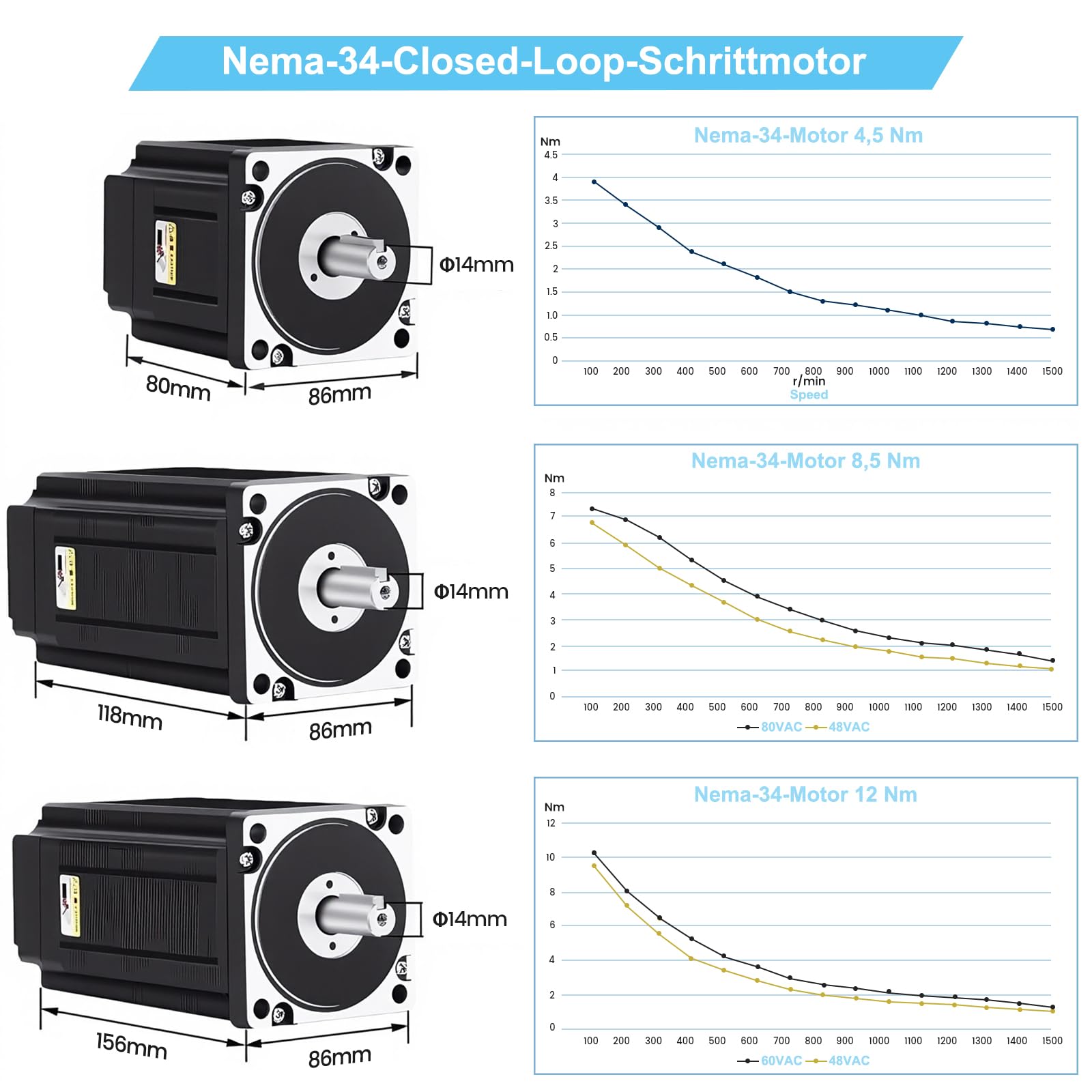

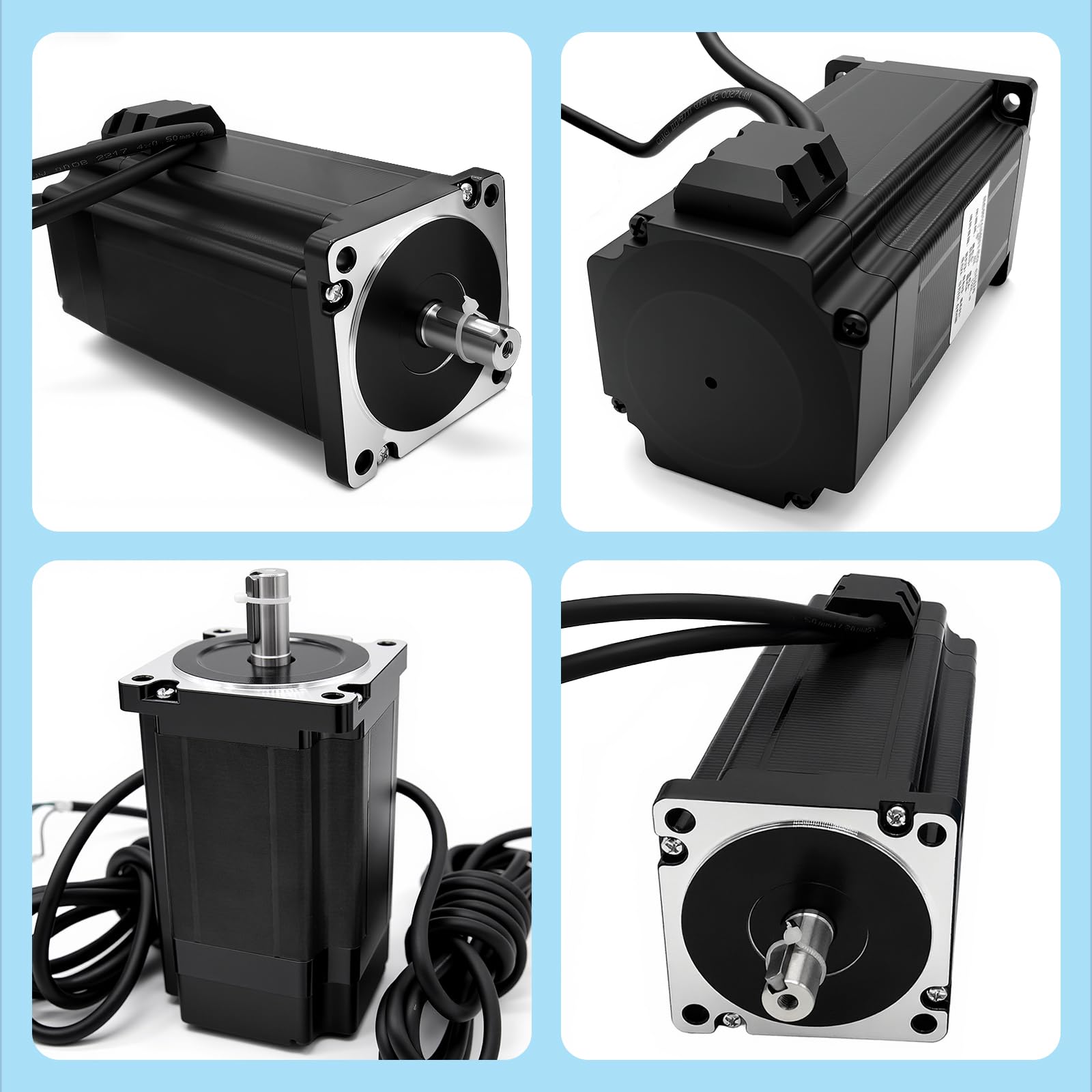

• Specifications of Motor: Holding Torque: 12N.m / 120ncm 1700 oz.in; Rated Current: 6A; Peak Current: 8A; Phase:2-Phase; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines: 1000; Shaft diameter: 14mm; Size: 86x86x156mm / 3.38*3.38*6.14 inch.

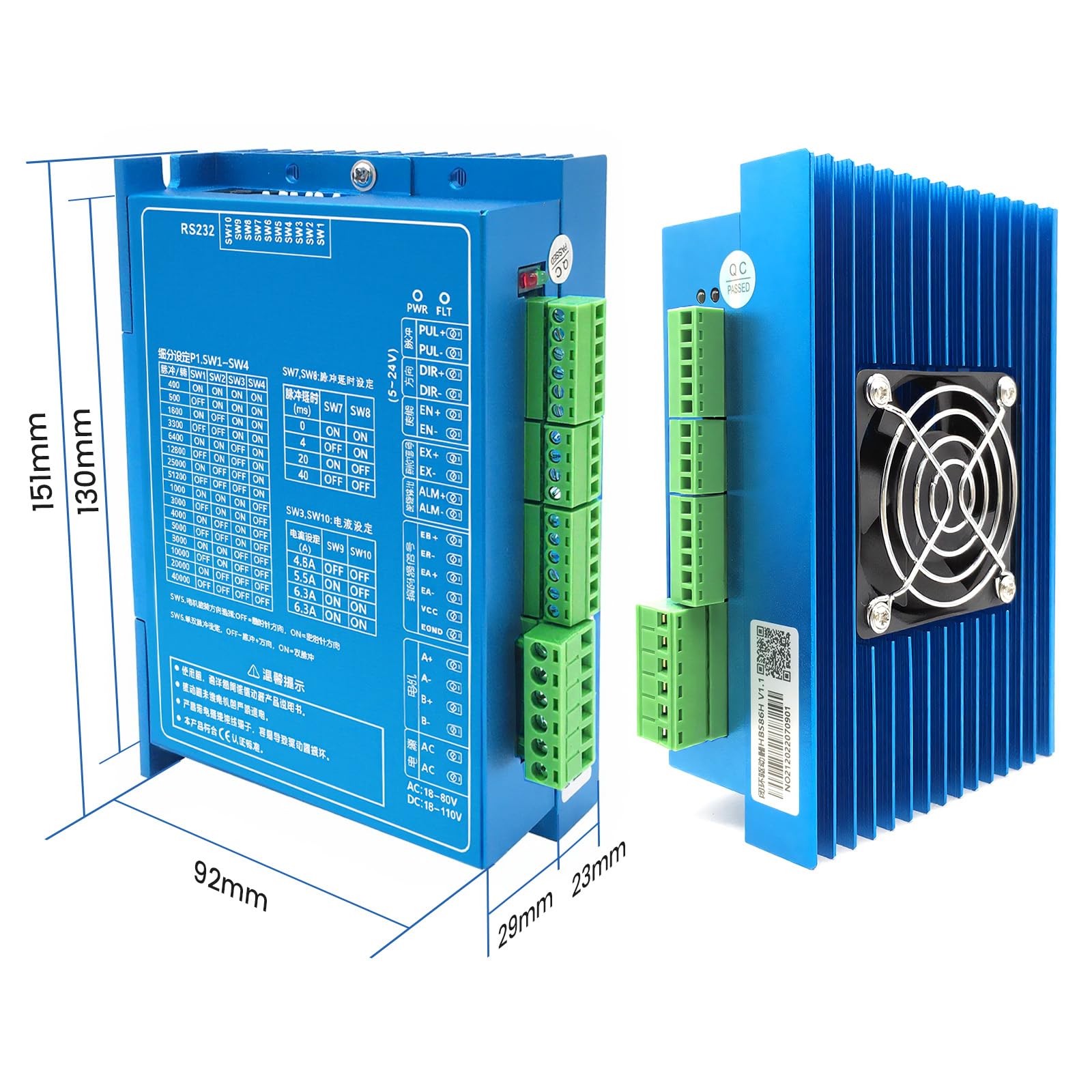

• Stepper Motor Driver: Type:2-Phase Hybrid Stepper Servo Driver; Output Peak Current: 0~8A; Voltage: AC 18-80V or DC 18-110V input; Micro-stepping driver: 200~51200ppr. Frequency:0-200KHz; Insulation resistance:>=500MΩ.
• Advantages: Stepper motor closed loop system,never lose step. The encoder technology can increase the accuracy of the motor; Improve motor output torque and working speed. It supports over-current protection, over-voltage protection, position outside the tolerance protection.

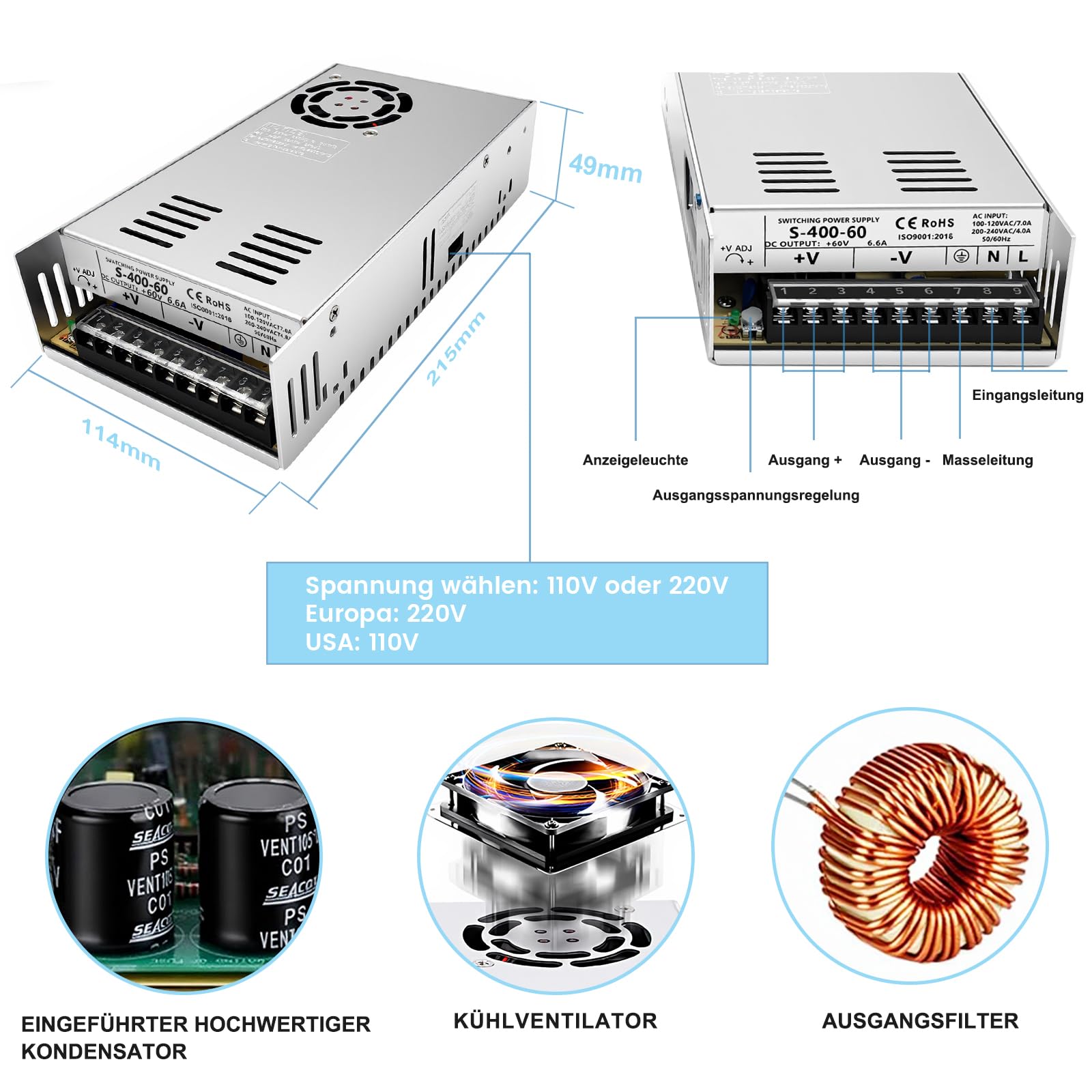

• 400W 60V DC Power Supply: Power: 400W; Output Voltage(DC): 60VDC; Input Voltage (AC): 110V/220V(+-10%), US choose 110V; Output Current: 6.6A; Safety Compliance:CCC/ FCC / CE.
• High Efficiency: Our nema 34 closed loop stepper motor can suitable for all kinds of small and medium-sized automationequipment and instruments, such as: engraving machines, cuttingmachines, laser machines, plotters, CNC machine tools, automaticassembly equipment, electronic processing equipment, textile andclothing equipment, etc.The application effect is better in the equipment with low noise.

model number: Nema34 Closed Loop Stepper Motor Kit

Part Number: 86HB156B-3

Package Dimensions: 21.5 x 13.5 x 10.0 inches
