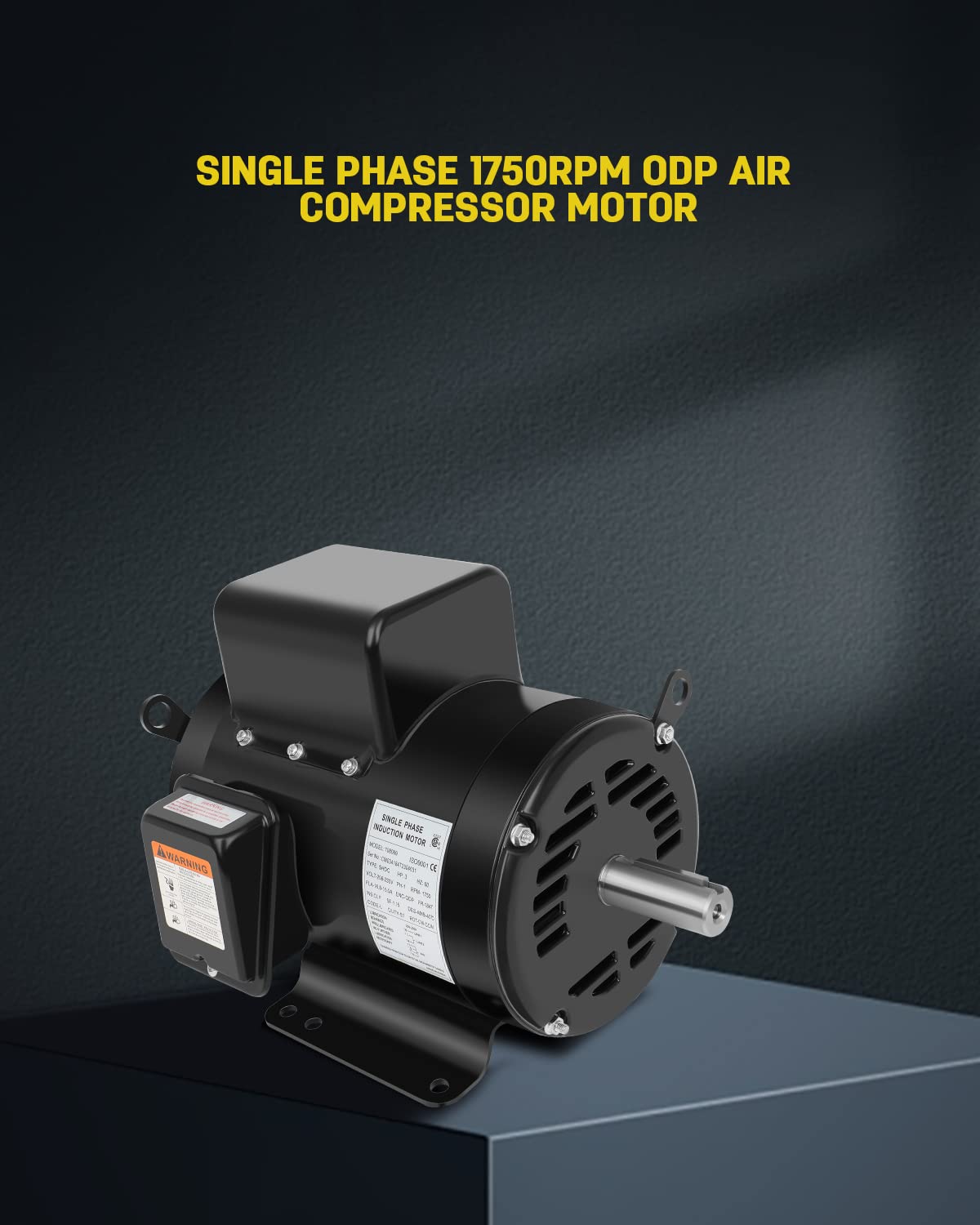

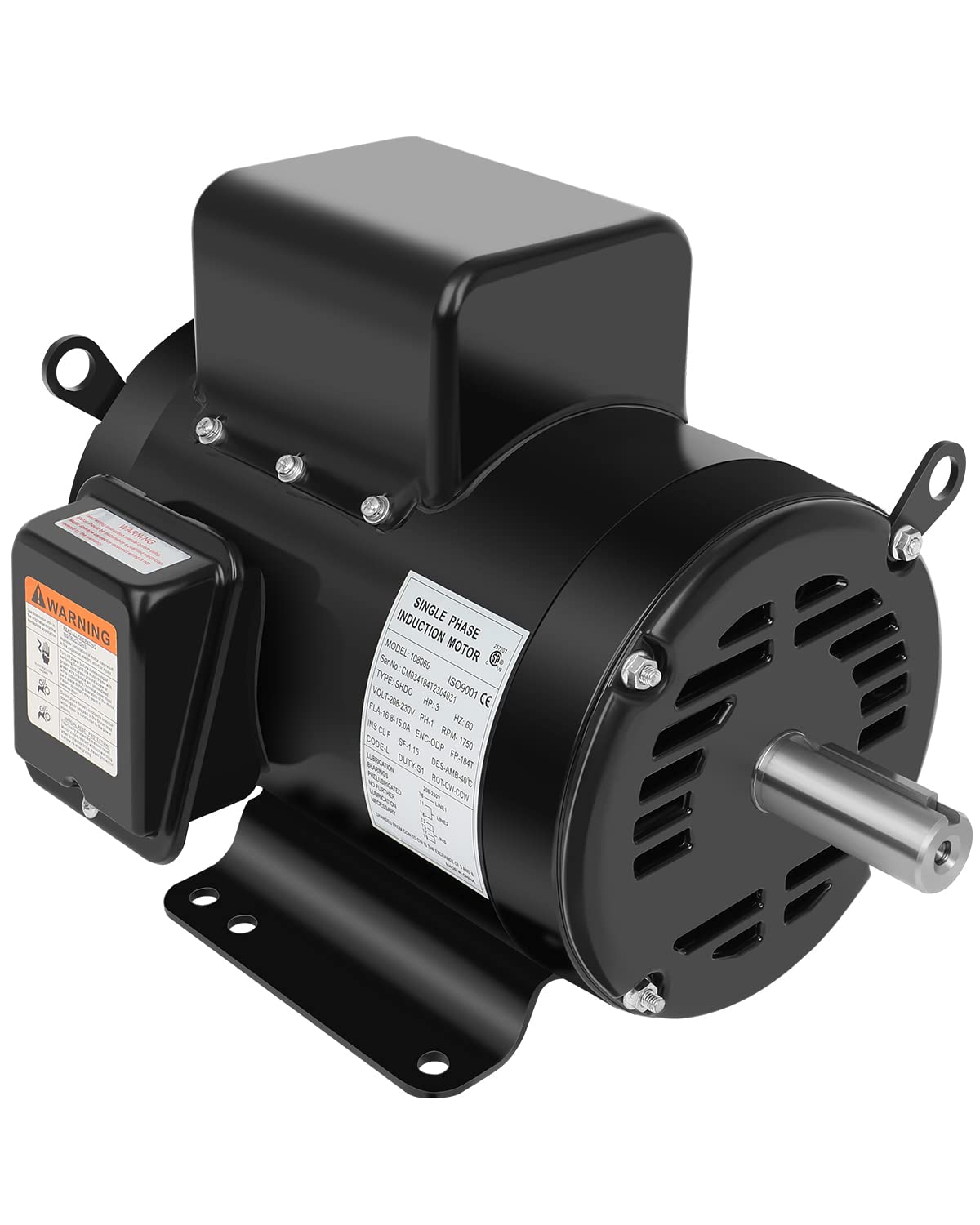

3HP Air Compressor Motor Single Phase Electric Motor 1750RPM 184T Frame ODP 208V-230V 1-1/8“Shaft Diameter Rolled Steel Shell 60HZ

Brand: Cuilvu

Color: Black

Features:

• Air Compressor Motor: HP - 3, POLE - 4, FRAME - 184T, ENC - ODP,IP - 23, HZ: 60HZ, Voltage: 208V-230V, AMP: 16.8-15.0A , RPM: 1750
• ODP: Open drip-proof is better used in environment that are relatively clean and dry environments

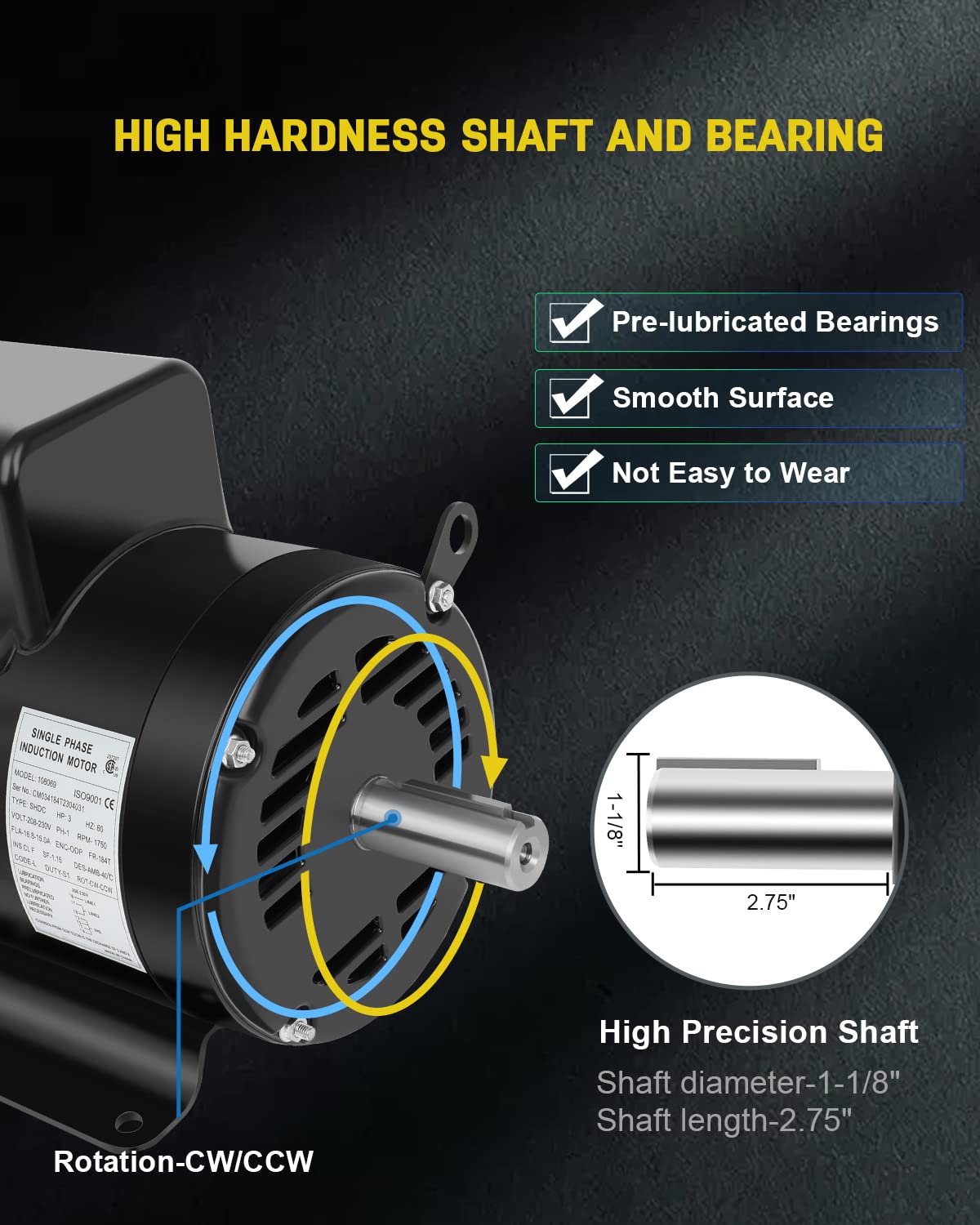

• INS - F, Rotation - CW/CCW, Shaft diameter - 1-1/8', Shaft length - 2.75'

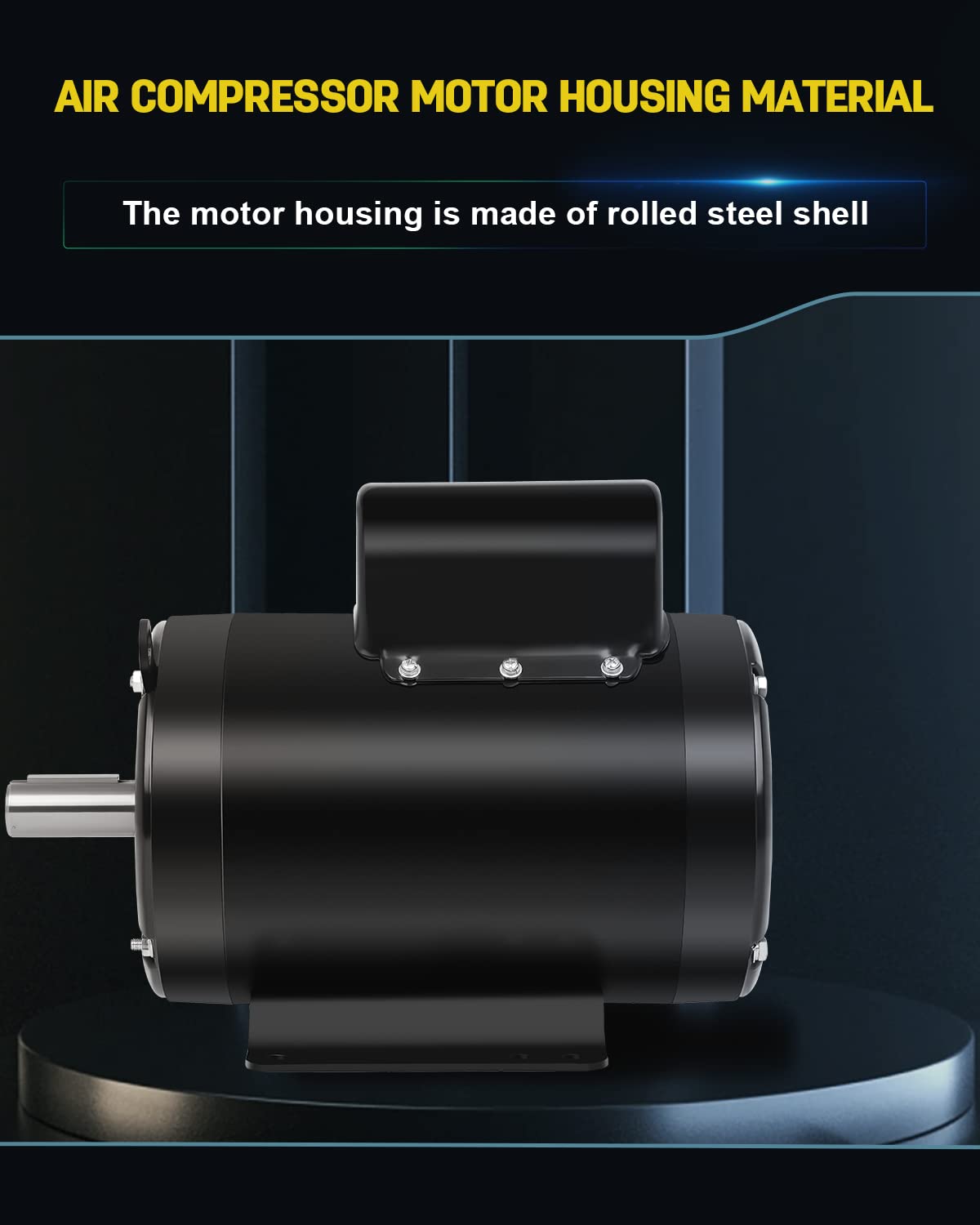

• Housing Material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life

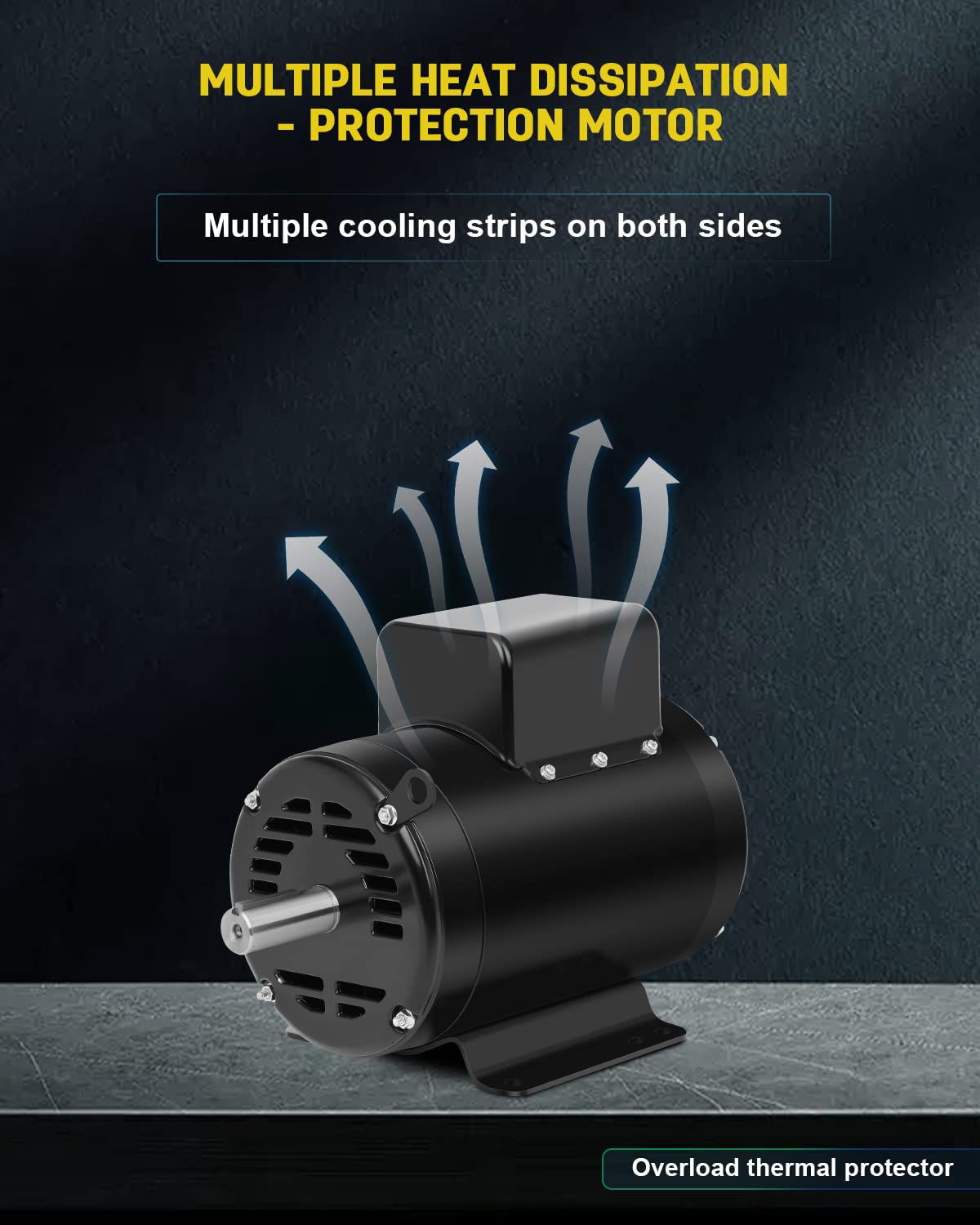

• Protector and Application: 3HP air compressor motor with protector. The air compressor motor exclusively serves the air compressor. Please buy the motor according to the specific parameters you need. You can send an email for detailed inquiry at any time

model number: 108069-5334-1447383191

Part Number: 108069-5334-1447383191

Package Dimensions: 20.0 x 15.5 x 15.0 inches
