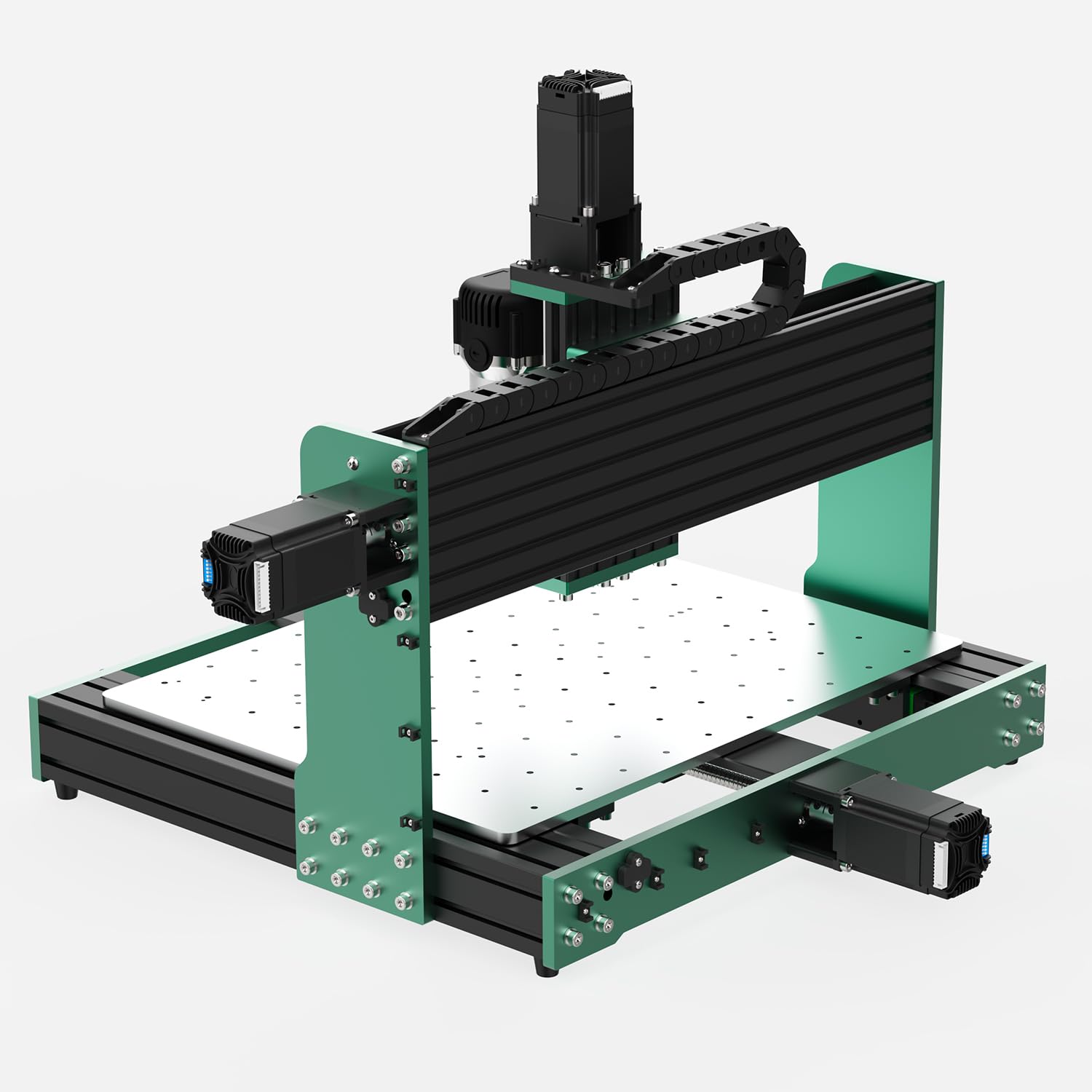

3Pcs Closed Loop Stepper Motor for AnoleX CNC 4030-Evo Ultra/ 4030-Evo Ultra 2

Brand: AnoleX

Features:

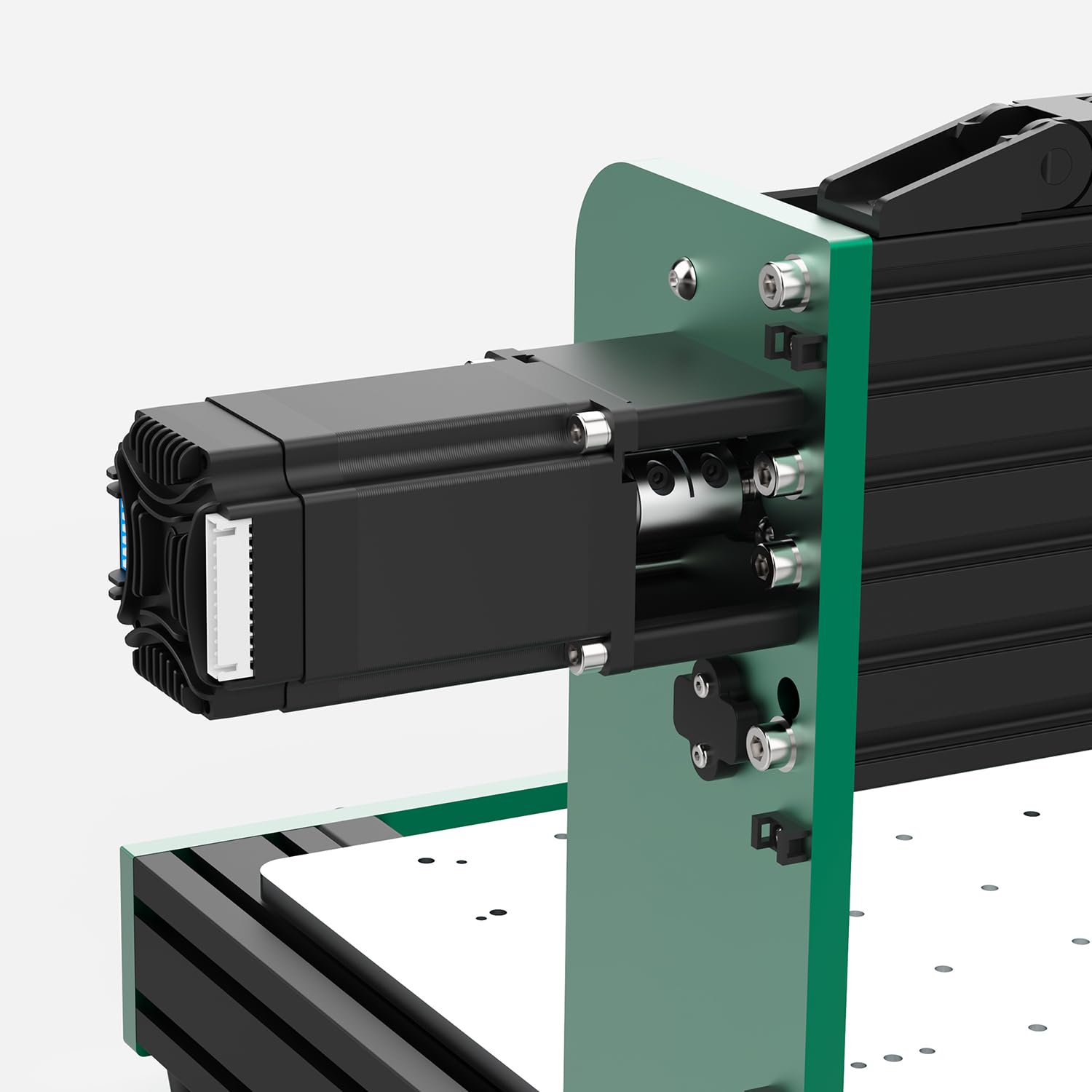

• Closed Loop Stepper Motor for AnoleX CNC 4030-Evo Ultra/4030-Evo Ultra2
• Size: 57*57*97mm (excluding shaft)
• Speed ​​increased to 6000mm/min, no step loss
• Easy to replace, loosen the screws that fix the stepper motor and replace it
• Holding torque: 2.2N.m


model number: ANX-CL-76

Part Number: ANX-CL-76

Details: Please Note: When upgrading with the new version 4030-Evo Ultra 2, you need to change the motor cable sequence. That is, swap the green and white wires on one end of the motor cable. For more info, please contact us. Input voltage: 24VDC
Output current (peak): 3.0A
Control signal input current: 10mA
Overvoltage protection: 55VDC
Input signal voltage: 5VDC
Holding torque: 2.2N.m
Size: 57*57*97mm (excluding shaft)
Shaft length: 19mm

Package Dimensions: 8.3 x 8.3 x 8.3 inches
