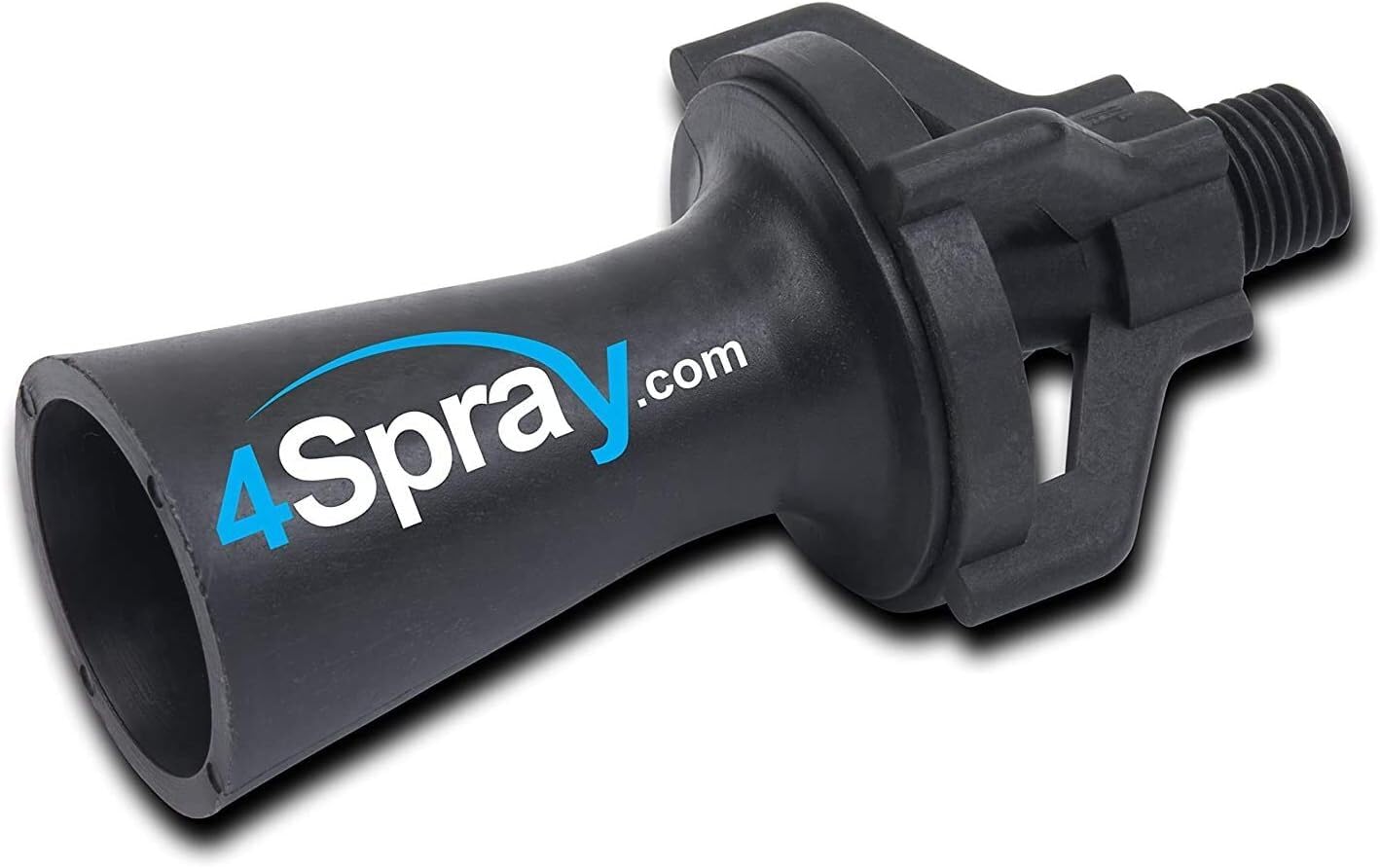

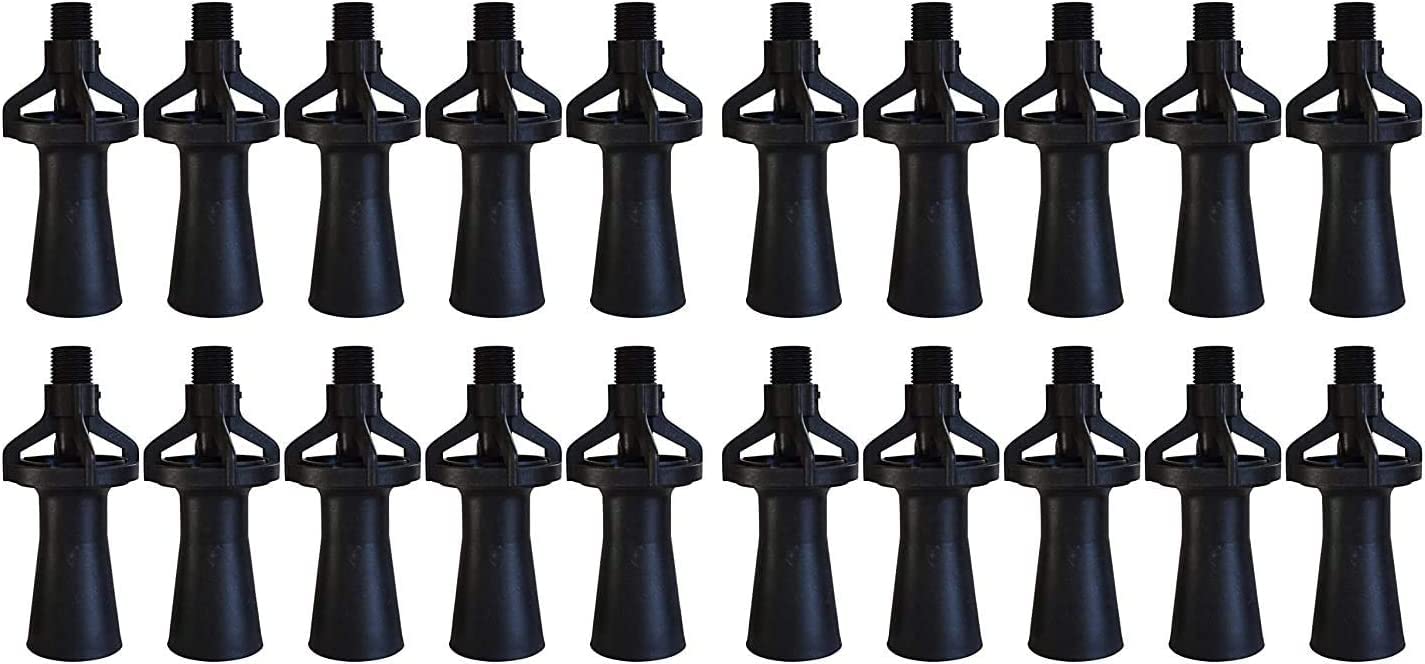

4Spray Eductor Nozzle - NPT Fluid Mixing Eductors - Glass Reinforced Polypropylene - Minimal Maintenance and Clog Resistant Tank Mixing Agitation Nozzles - 1.5 inch (20 Count)

Brand: 4SPRAY

Color: Black

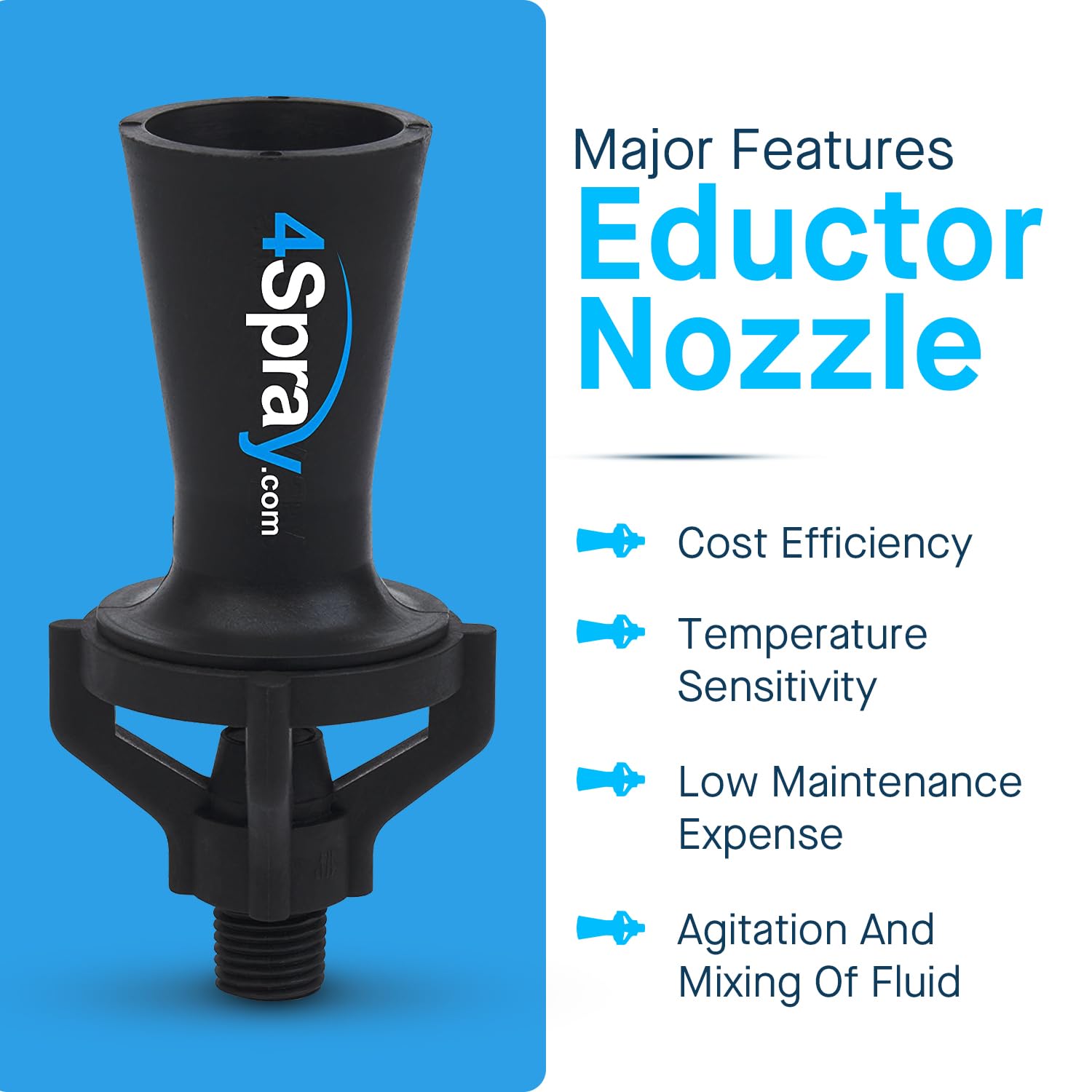

Features:

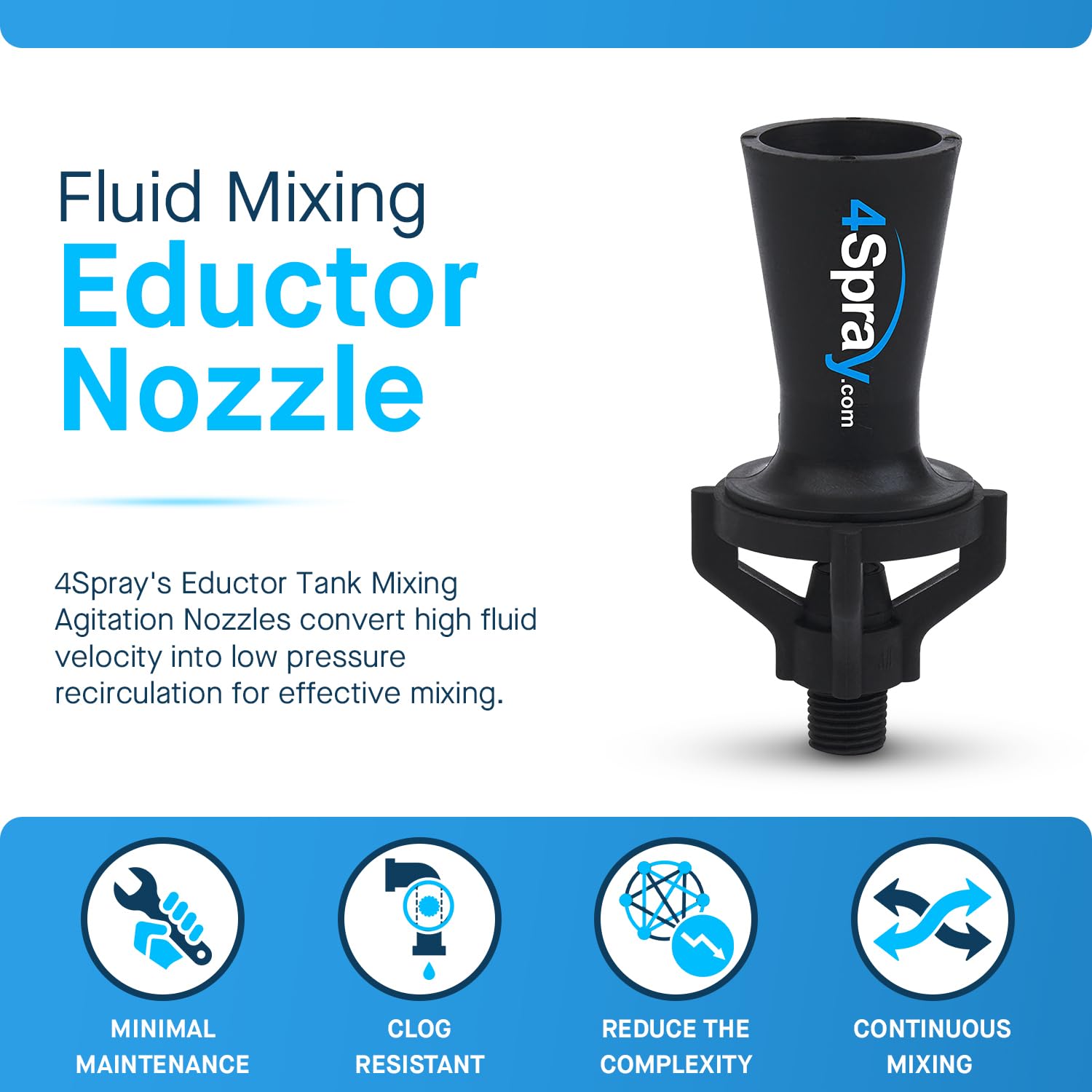

• ✔️ 𝗘𝗙𝗙𝗘𝗖𝗧𝗜𝗩𝗘 𝗠𝗜𝗫𝗜𝗡𝗚 𝗔𝗡𝗗 𝗔𝗚𝗜𝗧𝗔𝗧𝗜𝗢𝗡 – 4Spray tank mixing agitation nozzles are designed to convert high fluid input velocity into a low pressure zone that induces surrounding liquid in the tank to enter into the nozzle and recirculate, thus effectively mixing the tank contents

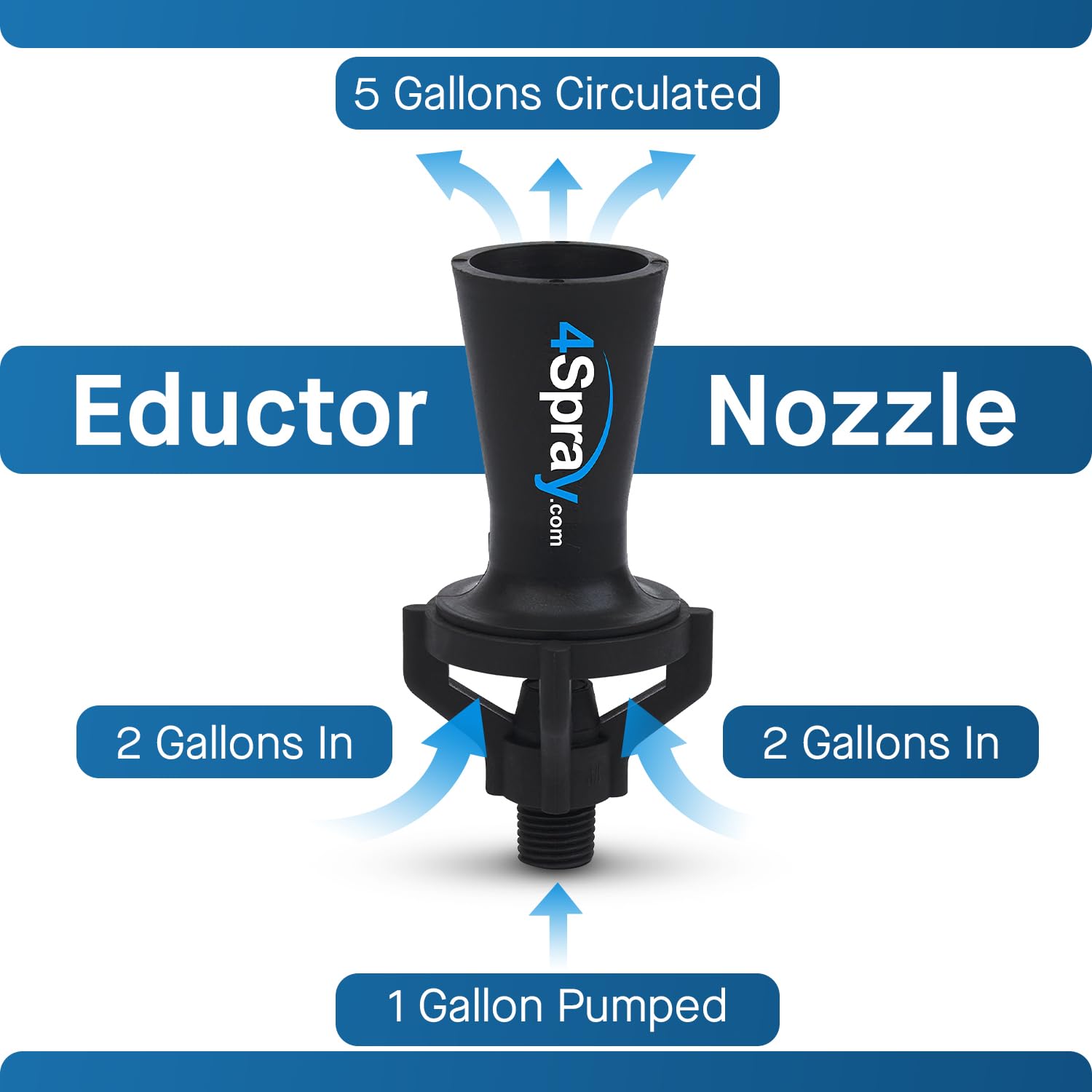

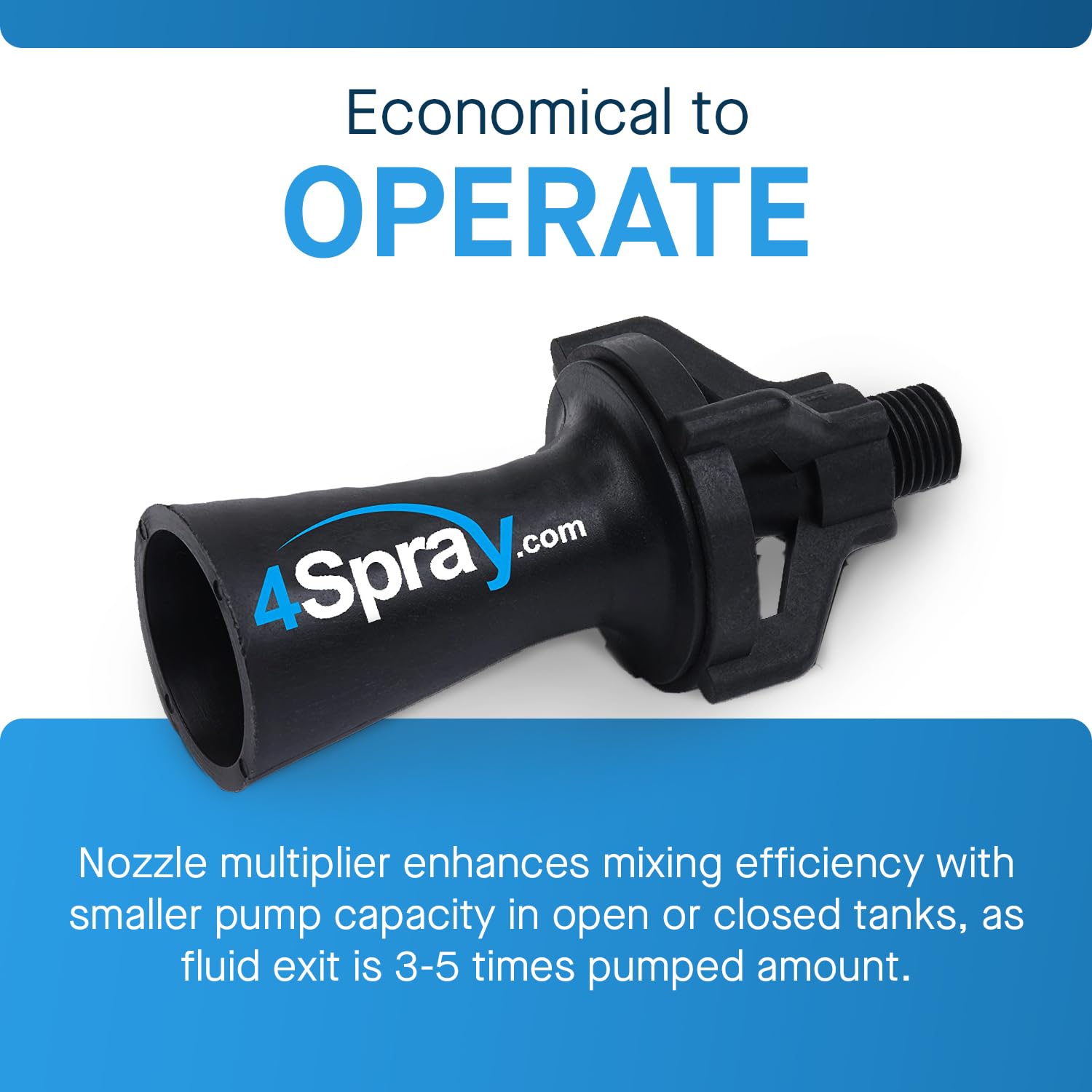

• ✔️𝗘𝗖𝗢𝗡𝗢𝗠𝗜𝗖𝗔𝗟 𝗧𝗢 𝗢𝗣𝗘𝗥𝗔𝗧𝗘 – The amount of fluid that exits the nozzle is three to five times the amount of fluid that is pumped. This multiplier effect allows greater mixing efficiency while using smaller pumping capacity in open or closed tanks
• ✔️ 𝐌𝐈𝐍𝐈𝐌𝐀𝐋 𝐌𝐀𝐈𝐍𝐓𝐄𝐍𝐀𝐍𝐂𝐄 & 𝐂𝐋𝐎𝐆 𝐑𝐄𝐒𝐈𝐒𝐓𝐀𝐍𝐓 – 4Spray tank mixing agitation nozzles require minimal maintenance with proven results. With no moving parts, our eductors are inherently clog resistant for reducing required maintenance and maximizing flow
• ✔️ 𝗜𝗠𝗠𝗘𝗗𝗜𝗔𝗧𝗘 𝗔𝗡𝗗 𝗖𝗢𝗡𝗧𝗜𝗡𝗨𝗢𝗨𝗦 𝗠𝗜𝗫𝗜𝗡𝗚 – Our eductor design allows the fresh feed to be supplied to the nozzle inlet rather than recycling it from the tank. This allows immediate mixing of the fresh feed with the contents of the tank, and then continuous mixing as the exit jet propagates downstream
• ✔️ T𝐎𝐋𝐄𝐑𝐀𝐓𝐄𝐒 𝐓𝐄𝐌𝐏𝐄𝐑𝐀𝐓𝐔𝐑𝐄𝐒 𝐔𝐏 𝐓𝐎 𝟗𝟓° 𝐂 – 4Spray’s glass reinforced polypropylene plastic tank mixing nozzles are a value-based product that allows you to mix fluids with temperatures up to 95° C without thermal breakdown

model number: 1.5 Inch

Details: 4Spray’s Eductor Tank Mixing Agitation Nozzles are designed to convert high input fluid velocity into low pressure recirculation for effective mixing and agitation. The amount of fluid that exits the nozzle is three to five times the amount of fluid pumped. Our nozzles require minimal maintenance and are inherently clog-resistant for immediate and continuous mixing at temperatures up to 95° CWhat Do Eductor Tank Mixing Agitation Nozzles Do?Tank mixing is necessary to keep contents and solutions thoroughly mixed, proper chemical/biological reactions, homogenization of products, sediment build-up prevention, proper draining/pumping, thermal stratification prevention and bacterial growth avoidance.4Spray tank mixing nozzles greatly reduce the complexity, capital cost, and maintenance requirements of any system by utilizing a pump and submerged spray nozzles, in place of conventional mechanical components, to mix immiscible liquids or solids that need to be kept suspended. Common Applications for Tank Mixing NozzlesWaste water treatment plant-soil and gas storage tank drinking water holding tanks and reservoirsAerobic & anaerobic digestersHomogenize tank contents when pumping/drainingSweep sludge & sediment from tank bottomsBlending ethanol and bio-diesel particulate/solid suspensionTransport tankersChemical injection/mixingAcid/chemical storage tanksSlurry mixing/holding tanks like/river water inletsSteam/air injectionAquarium and Aquatic usePlating tanks, Cleaning tanksPhosphating tanks-coat tanksFertilizer tanksPulp tanksSludge tanksPaint boothsAnodizing tanksCooling towers and decorative fountains4Spray PPL tank mixing nozzles are available in sizes from 1/4 inch to 1.5 inch

Package Dimensions: 18.0 x 12.0 x 12.0 inches
