4"x12" 40 Plates SS316L/Copper Brazed Plate Heat Exchanger with 1" MPT Port - Water to Water for Water Heating, Floor Heating, Snow Melting, Commercial & Industrial Refrigeration(FHC028-40)

Brand: FIQUKI

Color: ‎Silver

Features:

• Ultra high quality, sturdy and durable: Selected 316L stainless steel as the main material, advanced vacuum brazing technology is used to perfectly blend high-purity copper with stainless steel. The heat exchanger components produced by this process are extremely sturdy, with excellent resistance to high temperature, high pressure, corrosion, and leakage. Whether in harsh refrigeration environments or high temperature and high pressure industrial operation scenarios, it can operate stably, providing reliable guarantees for your production process.

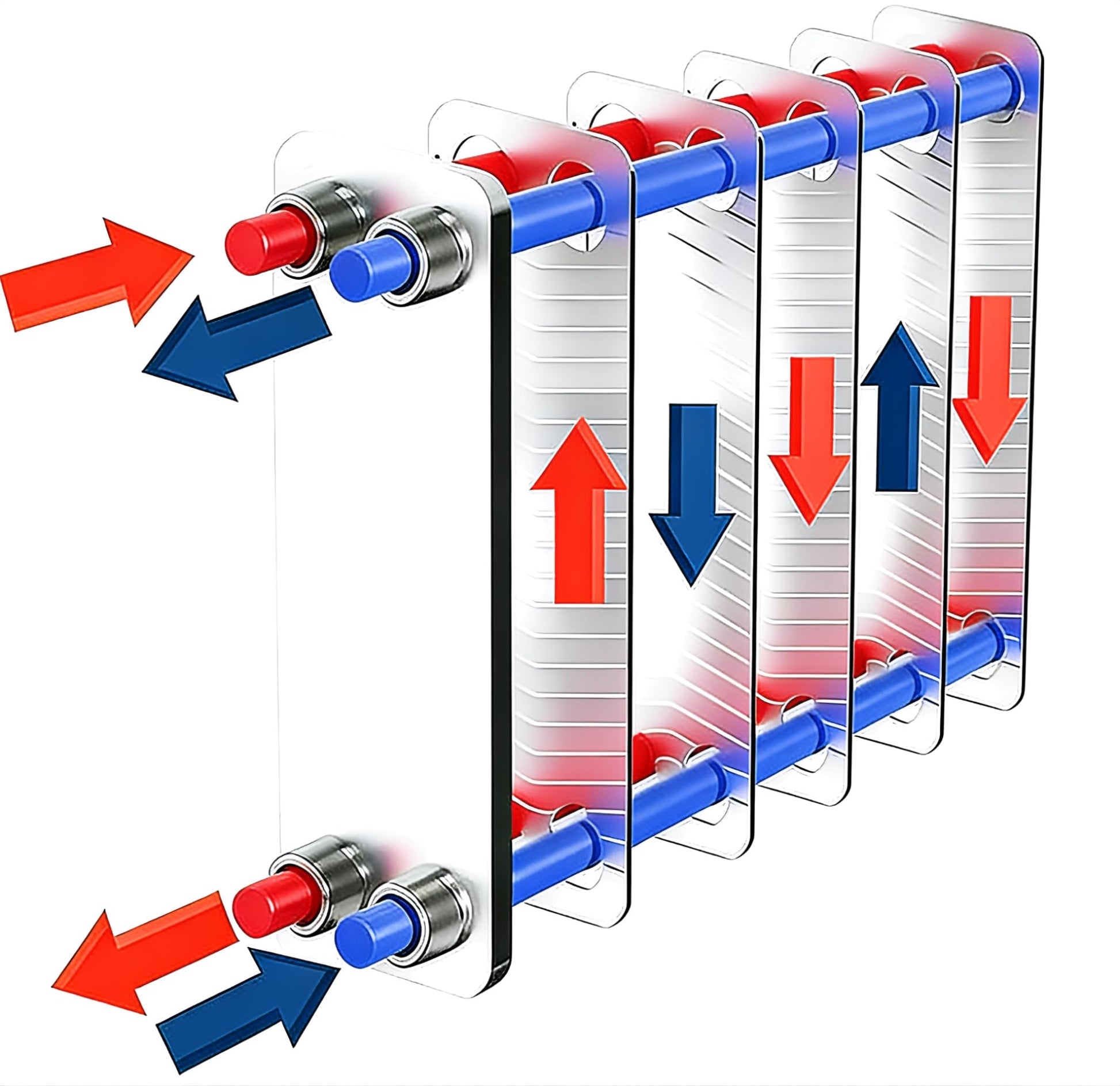

• Innovative Design, Superior Heat Transfer Efficiency：The unique plate design significantly enhances fluid turbulence while creating multiple robust support points. This not only effectively reduces secondary-side pressure but also achieves a breakthrough in heat transfer efficiency, delivering a 99% improvement compared to traditional heat exchangers. This ensures faster and more efficient heat exchange, helping you save energy and costs.
• User-Friendly & Eco-Conscious Performance：Equipped with quick-connect interfaces for effortless installation and disassembly, our design eliminates the need for specialized tools or technical expertise. The ultra-thin stainless steel plates, optimized for exceptional thermal conductivity, excel in both heating and cooling applications. This innovation boosts energy utilization, significantly reduces operational costs, and supports your business in achieving sustainability goals.
• Precision Engineering, Broad Compatibility：Take the [HD-4X12-40P] model as an example: it delivers an impressive [418,000 ] BTU/hour heat output, features a [11.45] sq.ft heat transfer area, and incorporates plates sized [4X12] with [40 of plates]. Standard 1' MPT connections ensure seamless integration into commercial HVAC systems or industrial heating/cooling processes. Our plate heat exchangers adapt precisely to diverse operational demands.
• Reliable Support, Hassle-Free Service：Backed by a 1-year limited warranty covering all manufacturing defects, we guarantee product quality and performance. Our professional after-sales team is available 24/7 to resolve any issues, ensuring your equipment operates at peak efficiency. Experience worry-free ownership with our dedicated customer service.

model number: HD-4X12-40P

Details: Plates Heat Exchanger with 1' MPT Port Water to Water

EAN: 0799408318052

Package Dimensions: 9.9 x 4.4 x 4.1 inches
