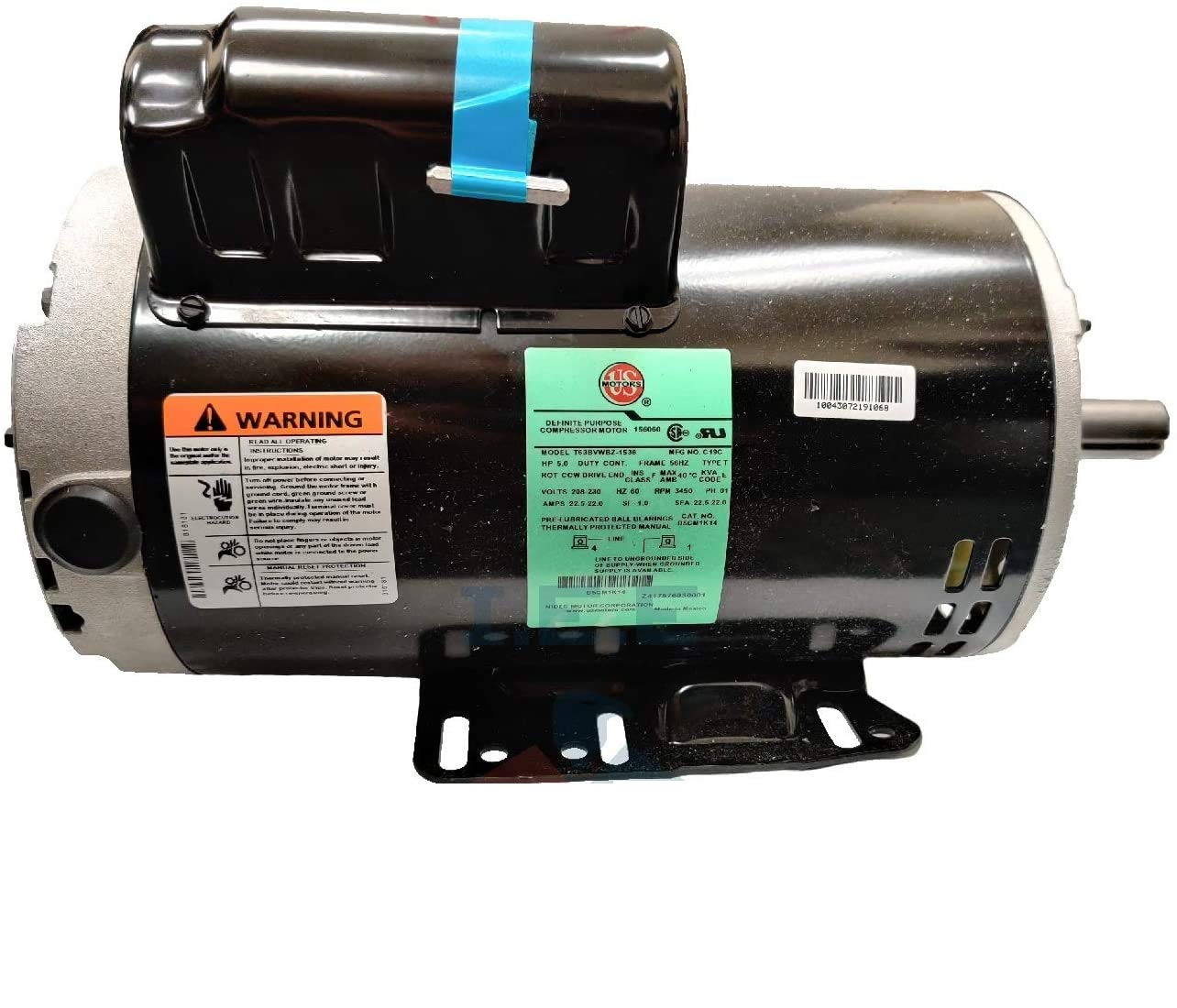

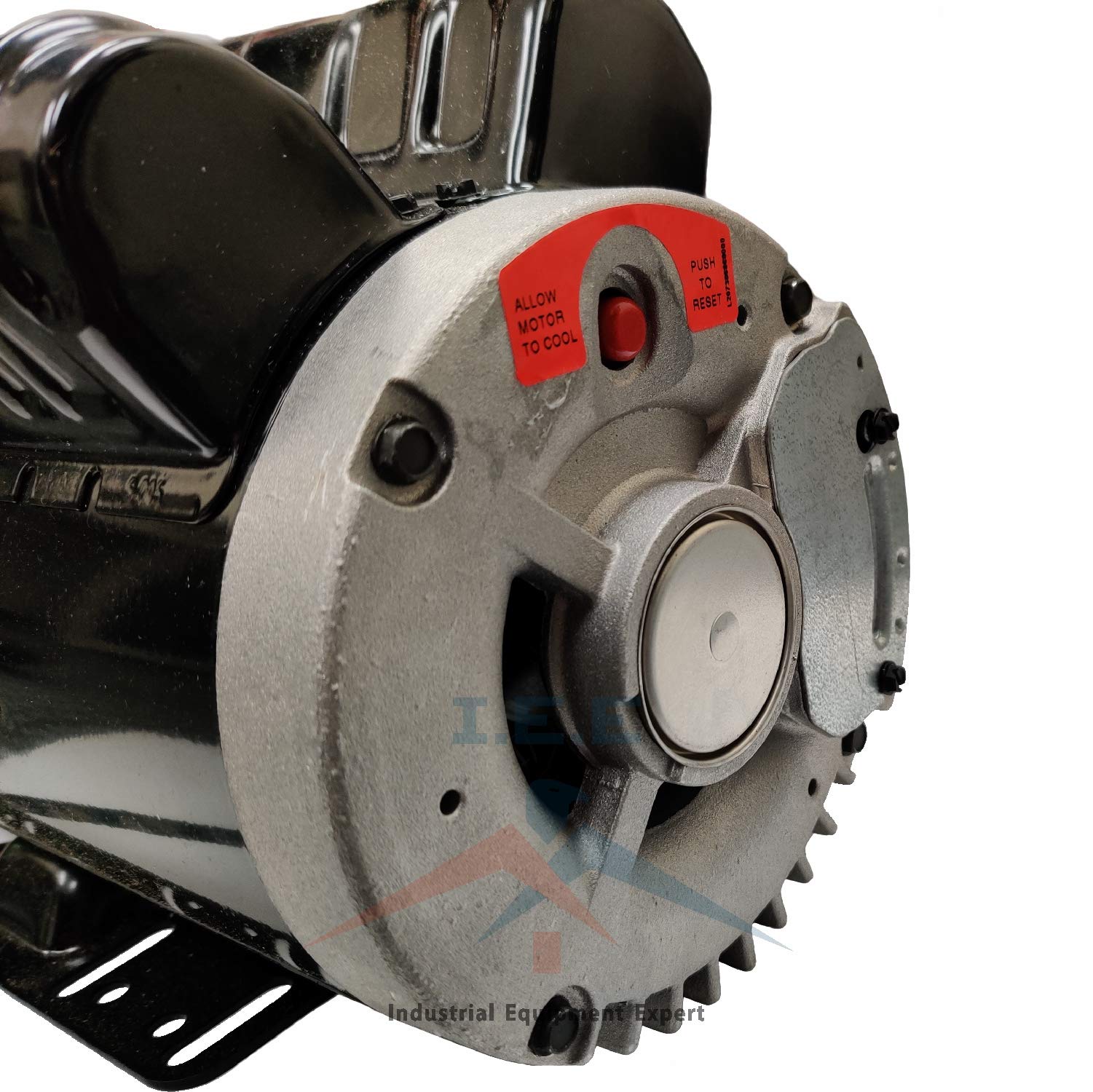

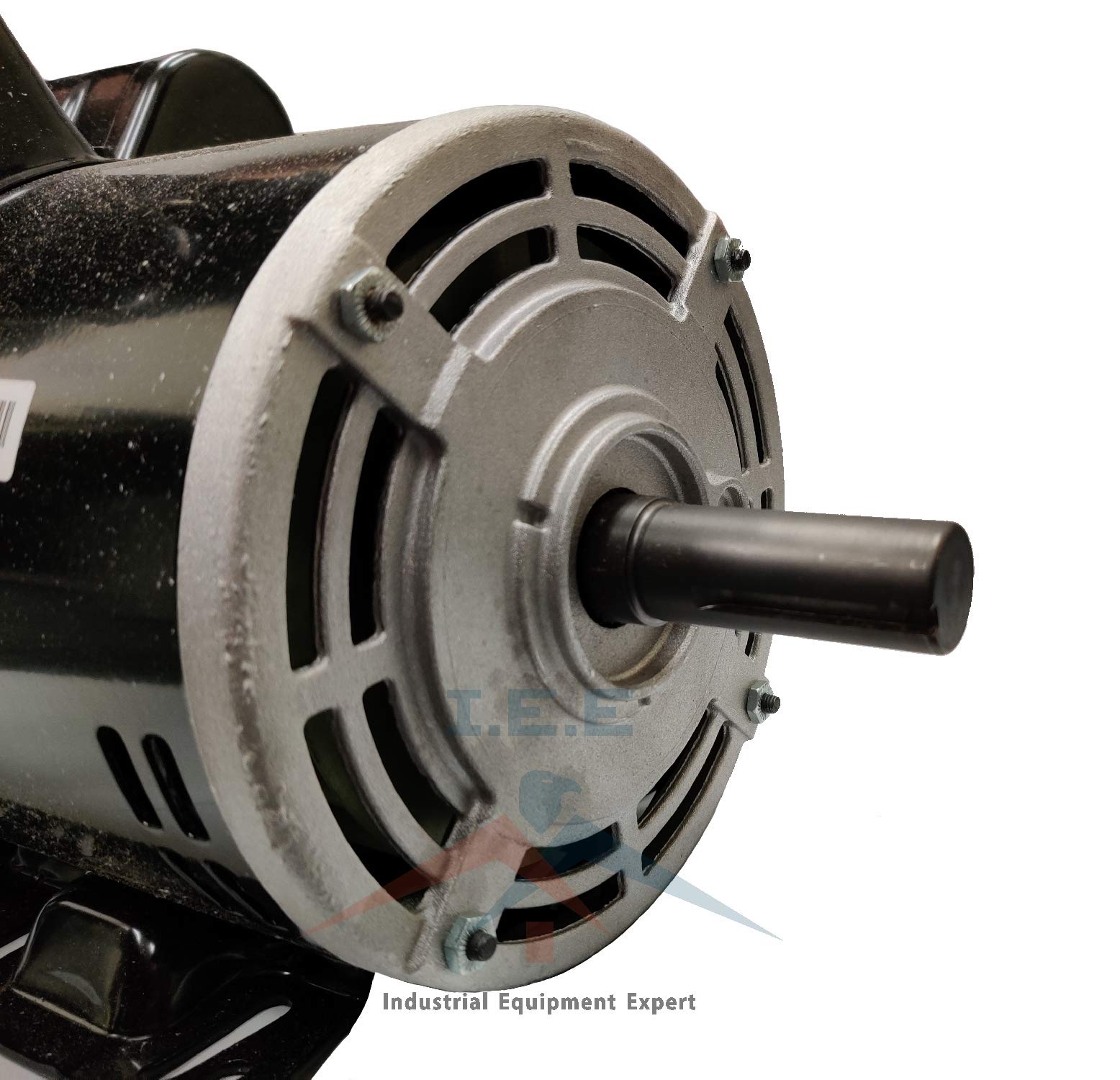

5 HP 3450 RPM Electric Motor COMPRESSOR DUTY 56 Frame 1 Phase 7/8 Shaft

Brand: US Motors

Color: Black

Features:

• Power 5 HP Definite Purpose Special Compressor Duty Voltage 208-230 VAC Amperage 22.5-22 Amps Speed 3450 RPM Phase 1 Rotation CCW Service Factor 1.0 Bearings Ball Enclosure ODP Duty Continuous Frame 56 Mount Base Shaft 7/8' diam. x 2-1/4' w/ 3/16' keyway Size 11-1/4' x 6-1/2' x 6-1/2'

model number: 795525335743

Part Number: 5 HP 3450 RPM

Details: BRAND NEW TRUE 5HP COMPRESSOR DUTY MOTOR, 56HZ FRAME, 3450RPM, 7/8' SHAFT DIAMETER 22 FULL LOAD AMP AT 230V, THIS MOTOR NOT SUITED FOR INCOMING VOLTAGE LESS THAN 208V CCW (COUNTER CLOCKWISE) SHAFT ROTATION WHEN VIEWED FROM THE SHAFT END. SHAFT ROTATION IN NOT REVERSIBLE 2.25' SHAFT LENGTH, KEYED SHAFT, 60HZ, 1.0 SERVICE FACTOR WIRING INFO SHOWN ON NAMEPLATE, PROFESSIONAL INSTALLATION REQUIRED

EAN: 0795525335743

Package Dimensions: 19.0 x 12.0 x 12.0 inches
