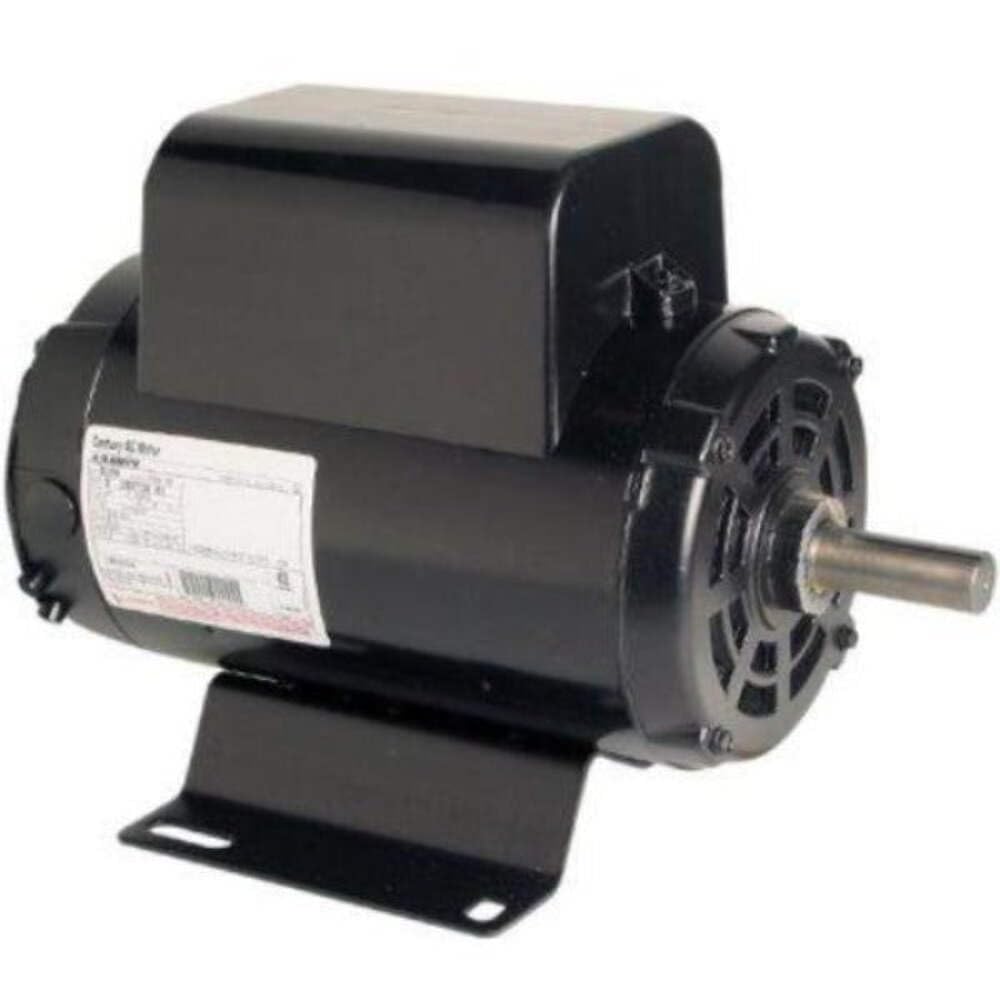

5 HP 3450 RPM R56Y Frame 208-230V Air Compressor Motor - Century # B384

Brand: Century 3D

Features:

• Price For: Each Motor Shaft Design: Keyed Hz: 60 Motor Bearings: Ball Motor Shaft Rotation: CCWSE Phase: 1 Ins. Class: B Full Load Amps: 22.0 Motor Mounting Type: Rigid Base Shaft Length: 2-1/4' Max. Ambient Temp.: 40 Degrees C Capacitor Included: Yes Motor Application: Air Compressor Motor Enclosure Design: Open Dripproof Item: Air Compressor Motor
• Nameplate RPM: 3450 HP: 5 Motor Thermal Protection: Manual Motor Design: Capacitor-Start/Run Shaft Dia.: 7/8' Duty: Continuous Voltage Compatibility: 115/208-230, 208-230, 208-240 Motor Service Factor: 1.15 Frame: 56Y Voltage: 208-230 Overall Length: 14-5/8' Country of Origin (subject to change): China

model number: FBA_B384

Part Number: FBA_B384

Details: ' Air Compressor Motor, Capacitor-Start/Run, Open Dripproof, 5 HP, Nameplate RPM 3450, 56Y Frame, Voltage 208-230, 60 Hz, 1 Phase, Full Load Amps 22.0, Rigid Base Motor Mounting Type, Motor Thermal Protection Manual, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Shaft Design Keyed, Overall Length 14-5/8 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In. '

EAN: 0663001193128

Package Dimensions: 19.0 x 12.2 x 10.6 inches
