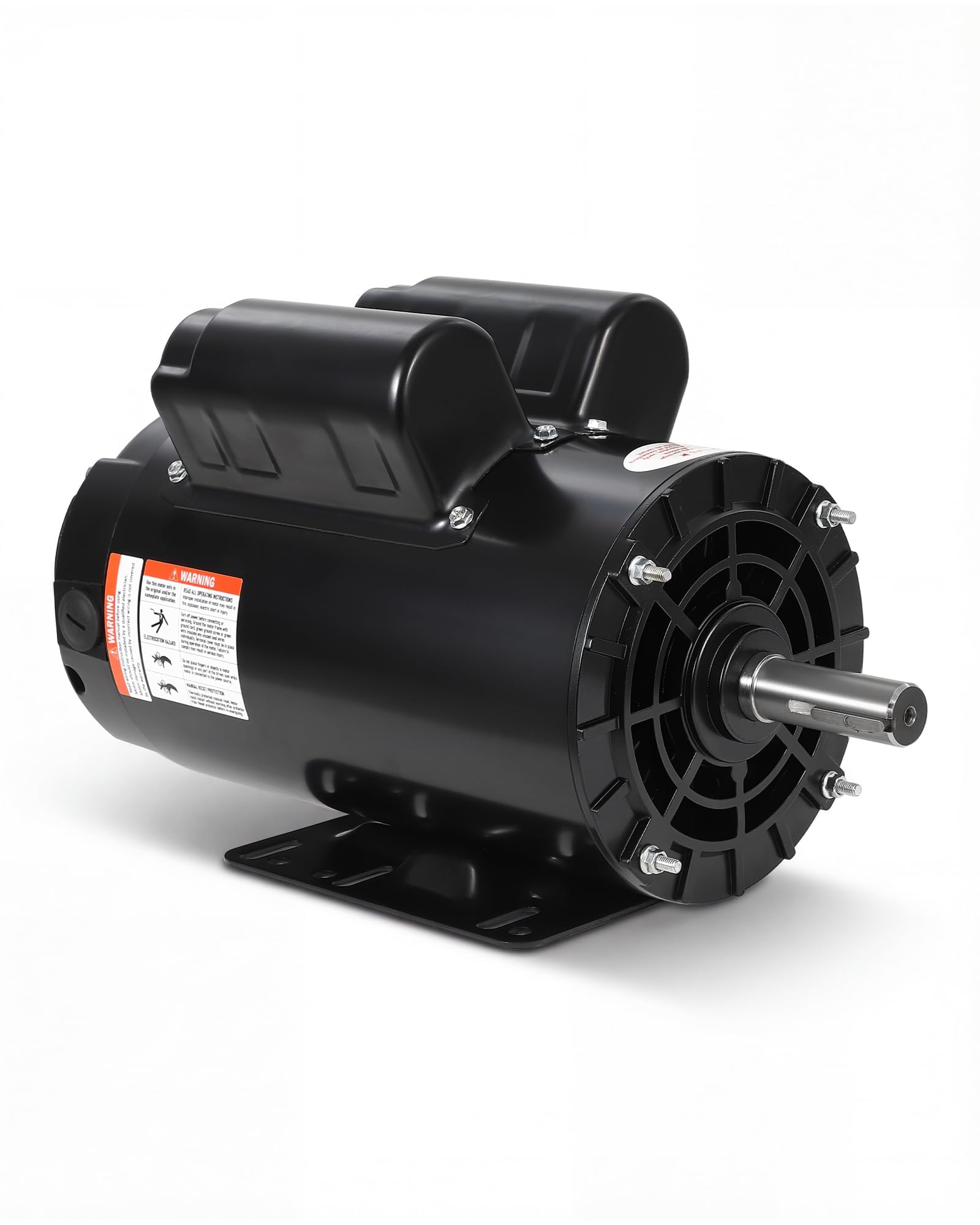

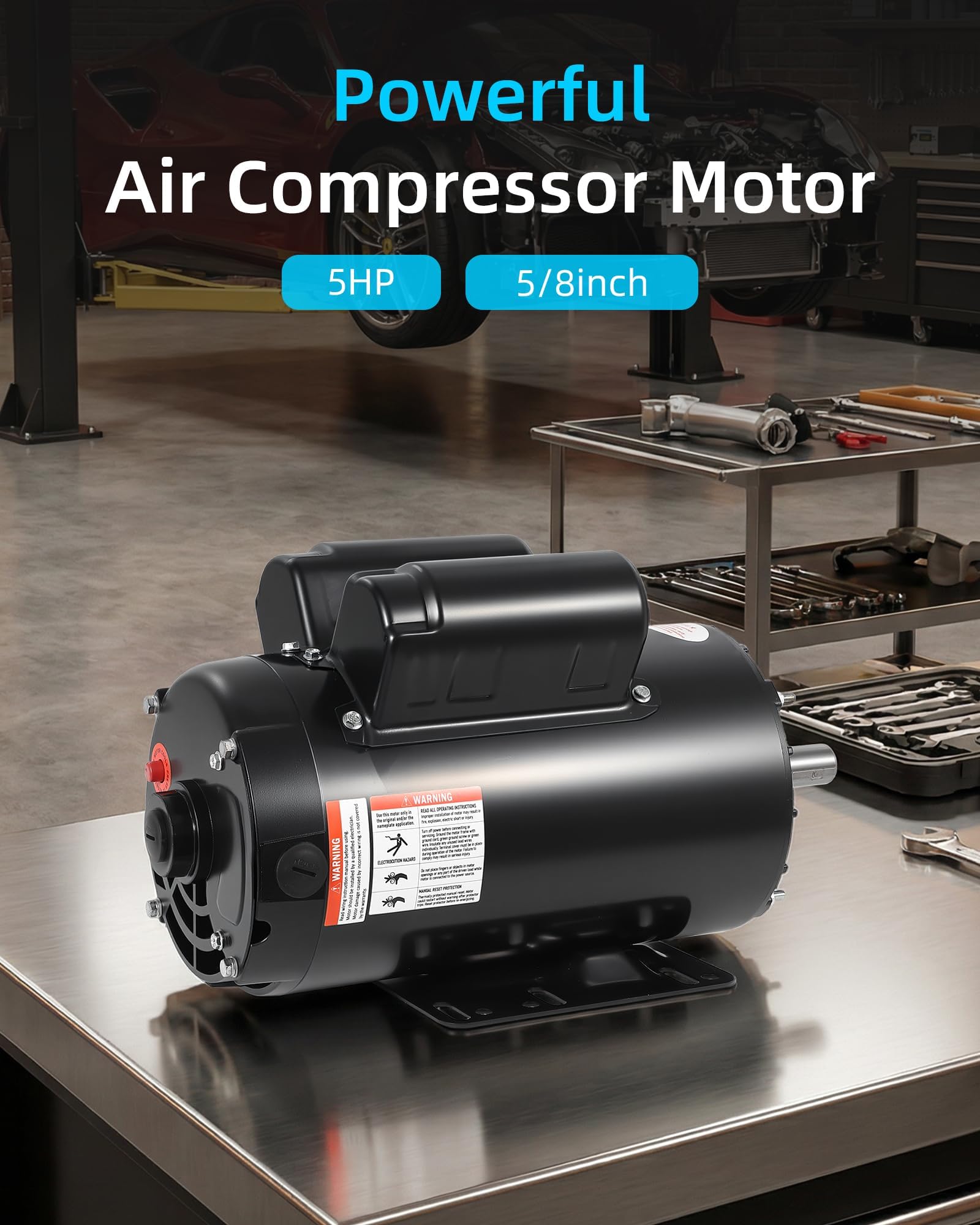

5HP SPL Air Compressor Electric Motor, 230V 17.6Amps, 56 Frame 3450RPM, 5/8“ Keyed Shaft, 1.88” Shaft Length, Single Phase, CW/CCW Rotation, Powerful Motor for General Equipment

Brand: EliteEdge

Color: Black

Features:

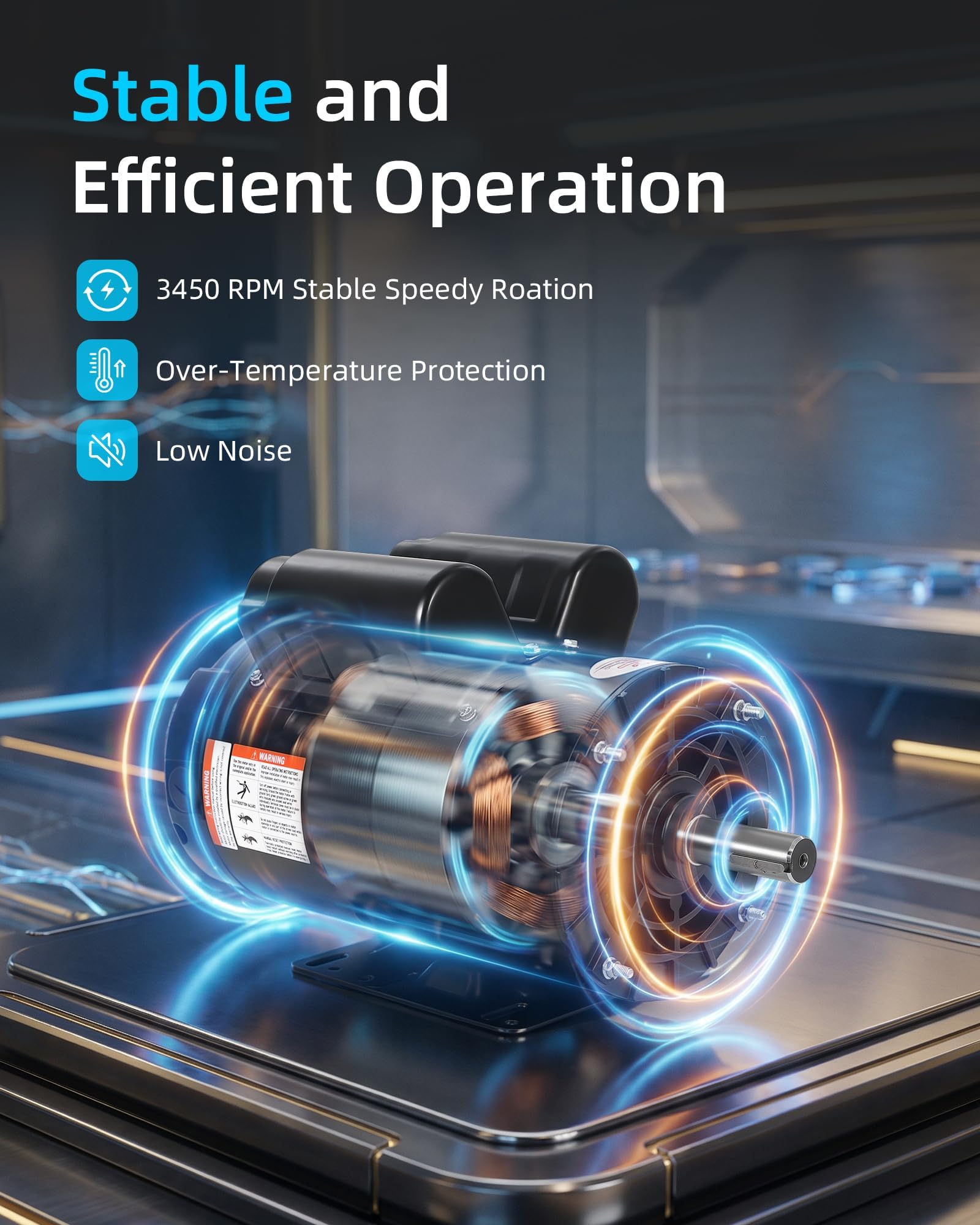

• Powerful Performance: 5HP air compressor motor, single-phase, full-load current: 17.6 amps, AC 230 volts, high-speed operation at 3450 RPM. 45-amp circuit breaker

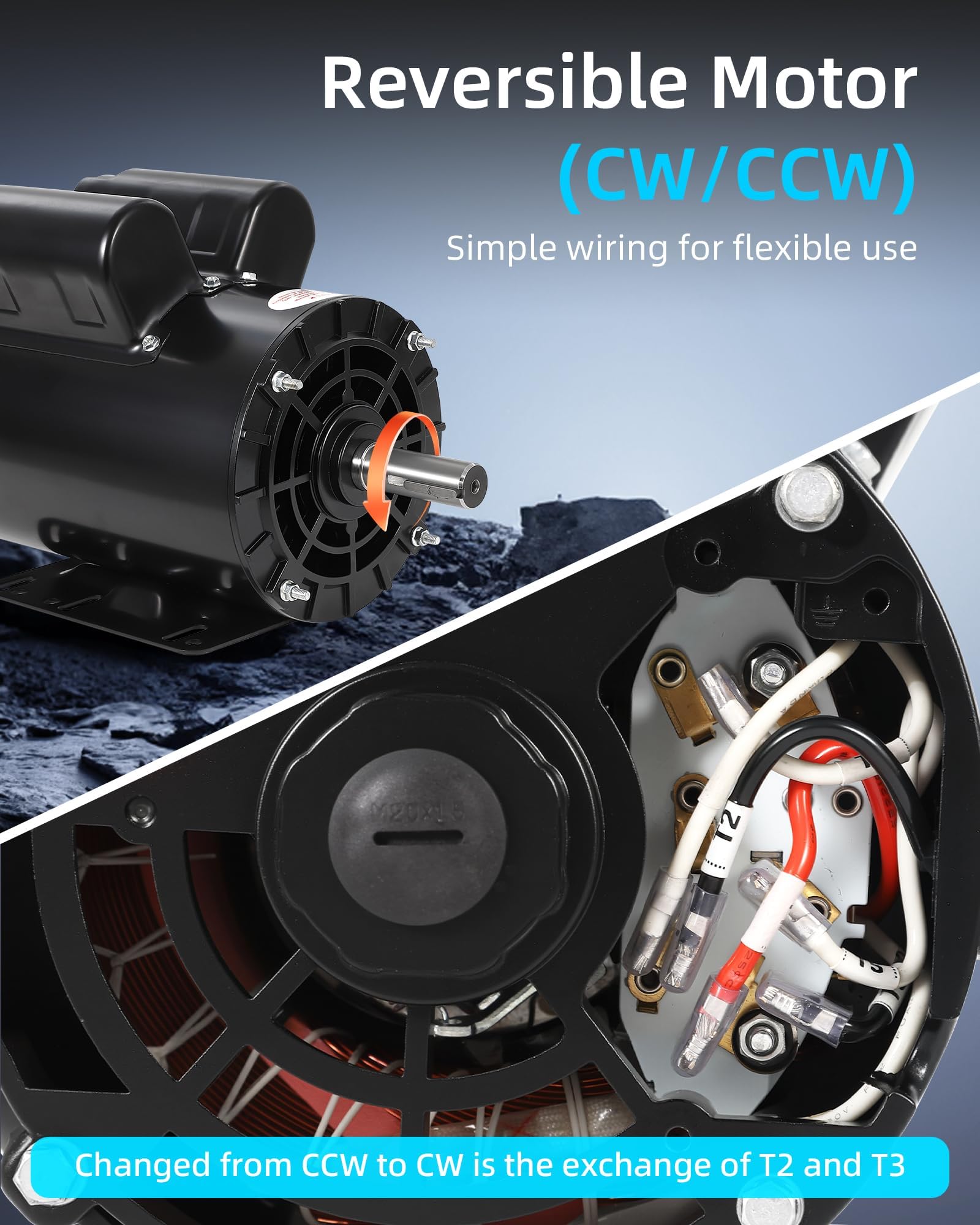

• Frame Type: This air compressor motor features a 56 frame with a 5/8' keyed shaft, shaft length: 1.88'. Electric motor supports reversible CW/CCW rotation, simplifying wiring and installation, no additional adjustments or machining are required during installation, ensuring a straightforward and convenient setup.
• Durable and Safe: Strategically positioned wide ventilation openings on both sides of the single motor facilitate efficient heat dissipation, significantly enhancing equipment safety and service life. This ensures stable, smooth, and low-noise operation during use.
• Open Drip Proof: Drip-proof design allows air circulation for heat dissipation. The air compressor motor features a heavy-duty rolled steel housing with rust and corrosion resistance, ensuring extended service life and reliable performance. Recommended for use in clean, dry environments.

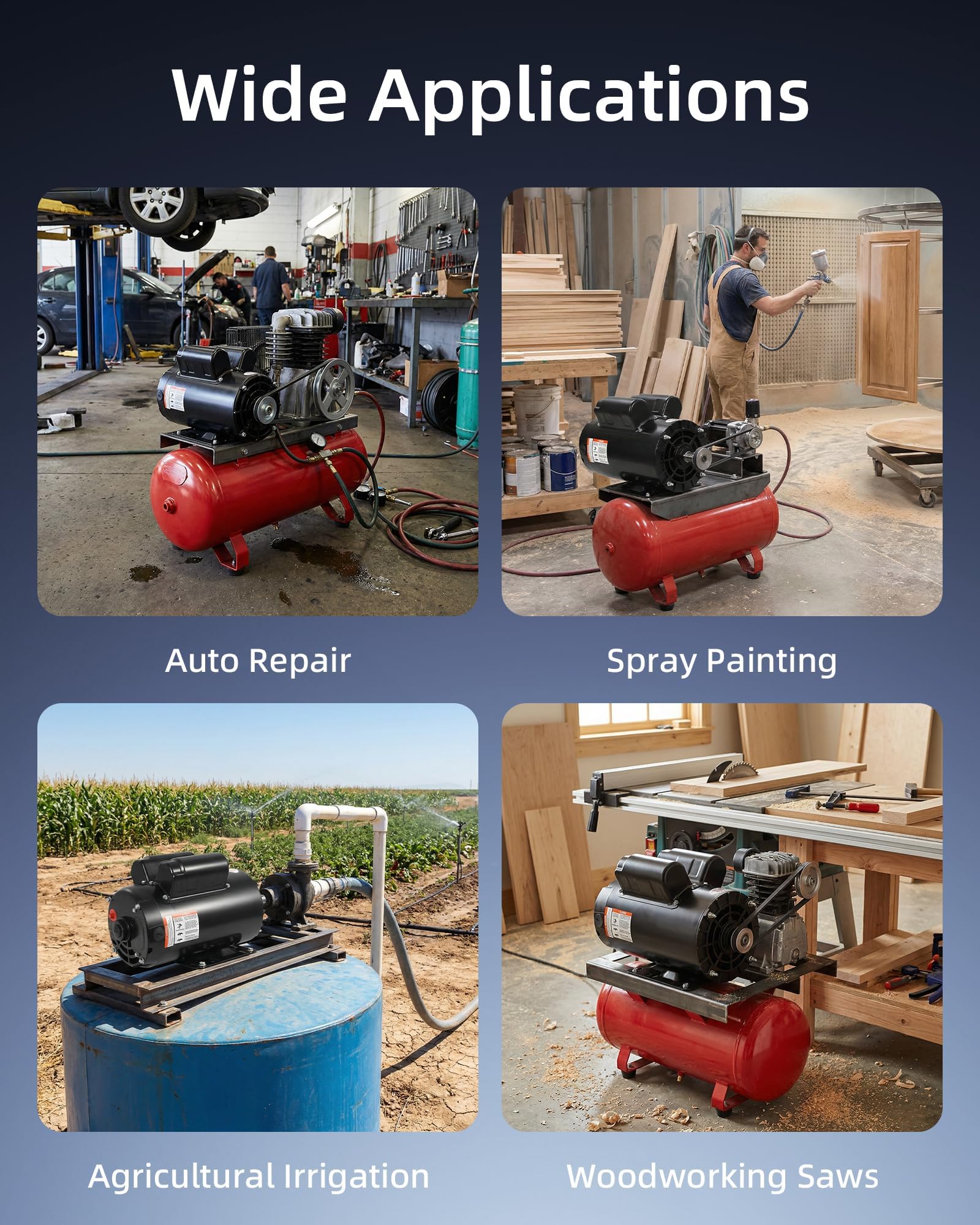

• Wide Application: The 5HP air compressor motor offers broad applicability, suitable for water pumps, table saws, agricultural machinery, and general equipment. It perfectly meets DIY project and repair replacement needs, delivering versatile, powerful performance for diverse scenarios.

Part Number: 49N-RI-SONQVMOG-HGMFILVYABL3Y

EAN: 0820061516742

Package Dimensions: 17.5 x 12.0 x 11.2 inches
