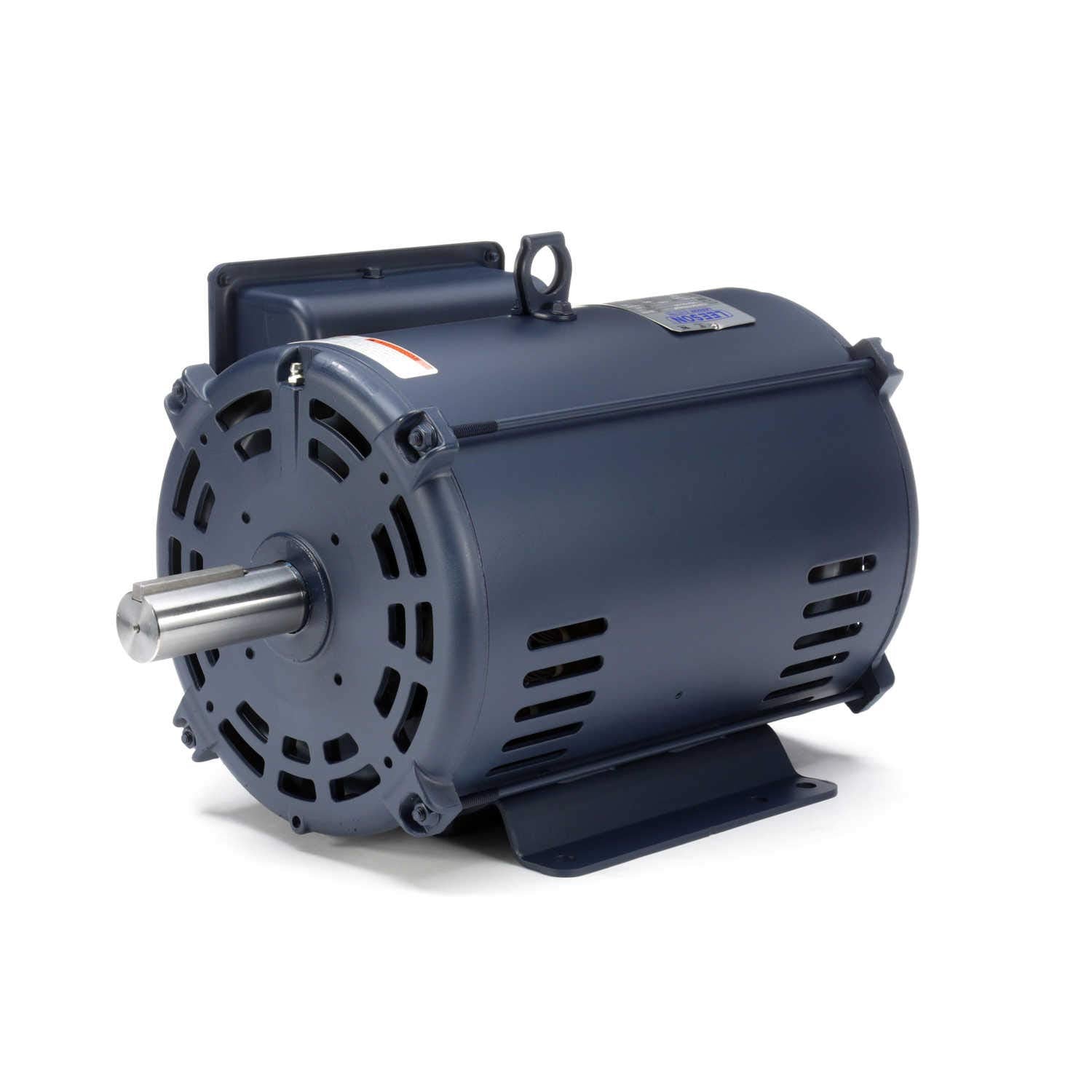

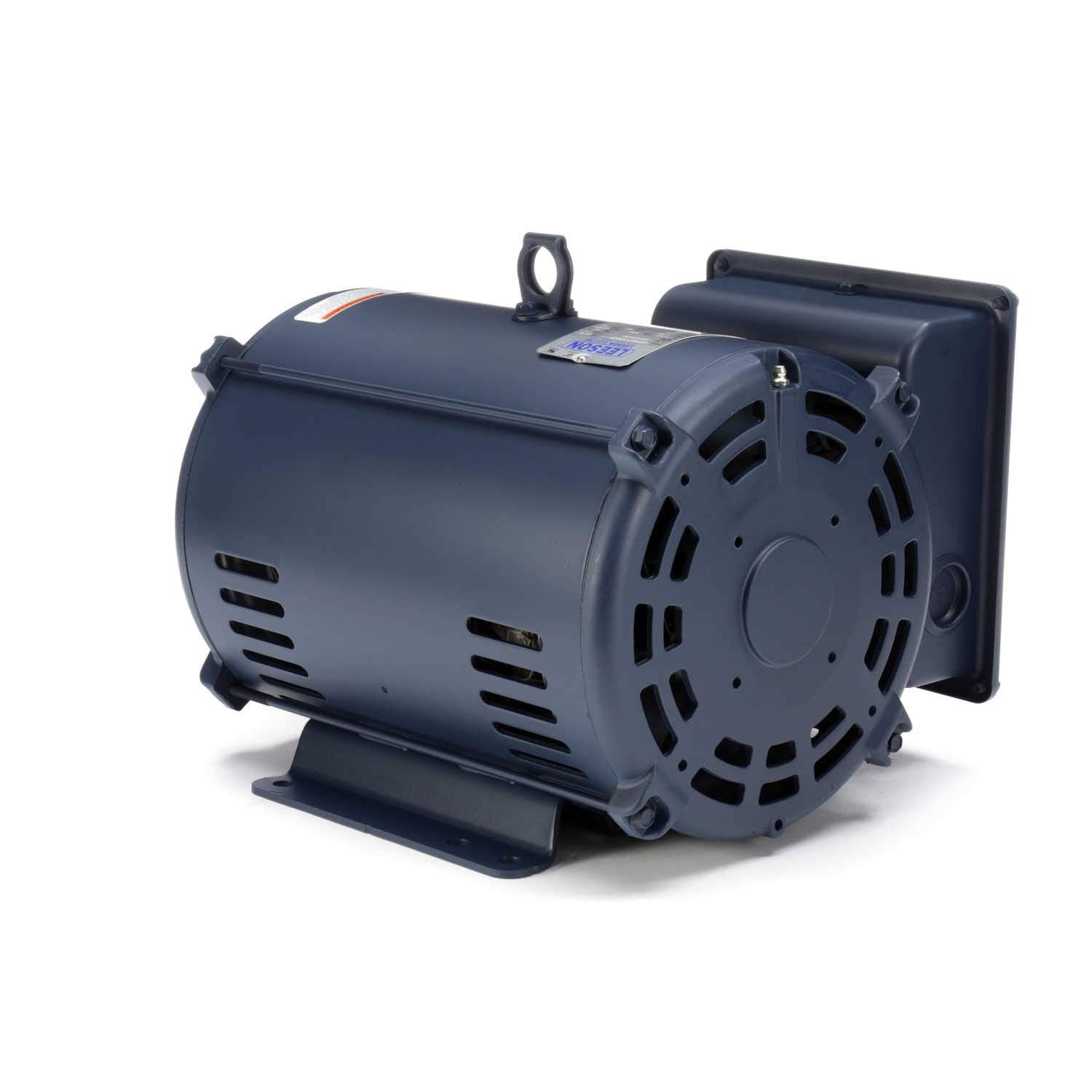

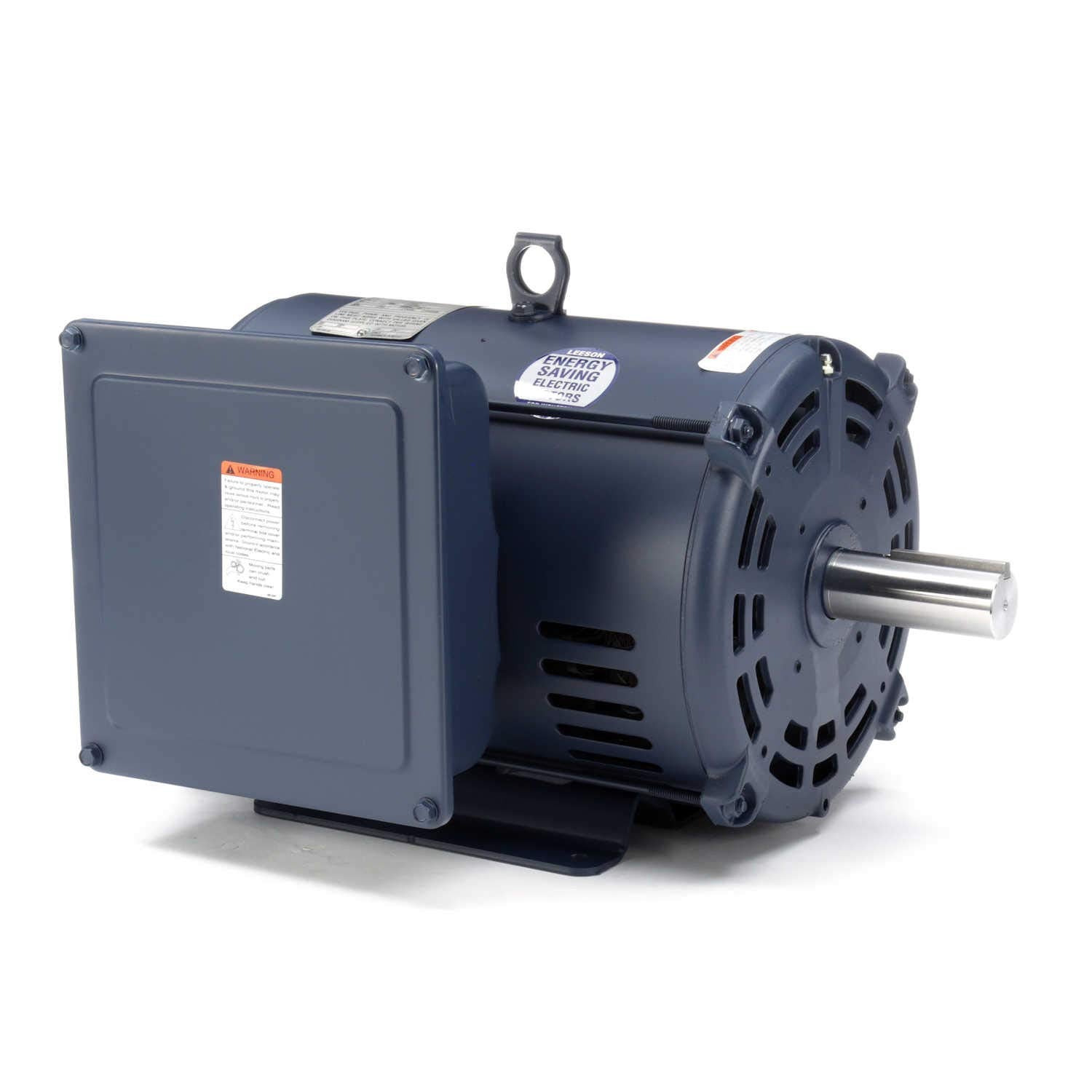

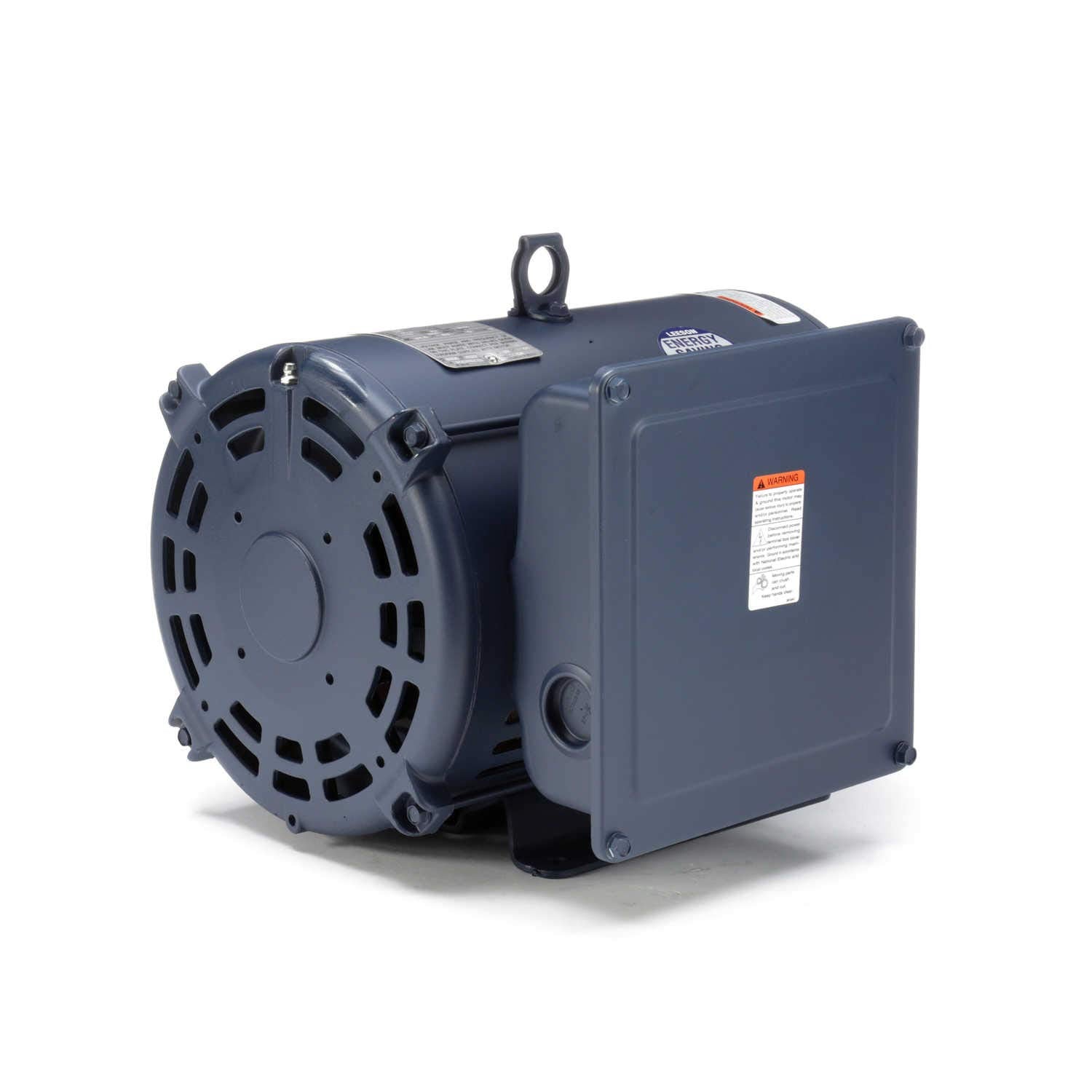

7.5 HP 1740 RPM 215T Single Phase Compressor Motor # 140155 Same as L1510T

Brand: Leeson

Color: Standard

Features:

• This is a TRUE 7.5hp H/D Electric Motor that weighs 113 lbs. 7.5HP.... SINGLE PHASE...230 VOLT.....215T FRAME.....1725RPM.....1 3/8' SHAFT DIAMETER ..... REVERSABLE SHAFT.... 1.15 SERVICE FACTOR This Heavy Duty motor weighs 113lbs, and is good up to 36 F.L amps @ 230Volts

Details: BRAND NEW H/D LEESON ELECTRIC MOTOR. MADE IN THE USA This is a TRUE 7.5hp H/D Electric Motor that weighs 113 lbs. 7.5HP.... SINGLE PHASE...230 VOLT.....215T FRAME.....1725RPM.....1 3/8' SHAFT DIAMETER ..... REVERSABLE SHAFT.... 1.15 SERVICE FACTOR This Heavy Duty motor weighs 113lbs, and is good up to 36 F.L amps @ 230Volts Engineering Data Volts 230 Volts Volts F.L. Amps 36 F.L. Amps F.L. Amps S. F Amps 40.5 S. F Amps S. F Amps RPM 1800 Hertz 60 HP 7.5 Duty CONTINUOUS TYPE KD KW 5.60 Frame 215T Serv. Factor 1.15 Phase 1 Max Amb 40 Design L Code G Insul Class F Protection NOT Therm.Prot. Eff 100% 81.5 Eff 75% PF 83 UL Yes CSA Yes Bearing OPE 6206 CC Number CE No Bearing PE 6207 Load Type Inverter Type Speed Range NONE Motor Wt. 116 LB Enclosure DP Lubrication POLYREX EM Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW Assembly 210-006.03 Shaft Dia. 1 3/8 IN Ext. Diag. 005077.10 Cust Part No Outline 037602-1200 Ext. Diag2 Packaging B Outline Dash No Winding K9416 Carton Label Leeson Gen Purpose GROUP: 2 Iris Paint STANDARD Test Card 01

EAN: 0795525336023
