AC 220V/2.2KW Variable Frequency Drive - 220VAC Single Phase Variable Frequency Drive VFD Speed Controller for 3 Phase 2.2kW AC Motor

Brand: Aatraay

Features:

• 120v 2.2kw vfd, Simple to operate and wire, connect to wires by terminals which are more convenient, ed with large heat sink for better heat dissipation
• 120v 2.2kw vfd, PRODUCT FEATURE: It has good anti trip performance and ability to adapt to rough power, temperature, v bl electric motor, humidity and dust interference, greatly imp d stability
• High Performance : This VFD uses unique control method to realize high moment of force, and wid regulating range driving, with high performance.
• Low Noise:By optimizing PWM control technology and electromagnetic compa lity, it satisfies users requirement of low noise, low electromagnetic interference

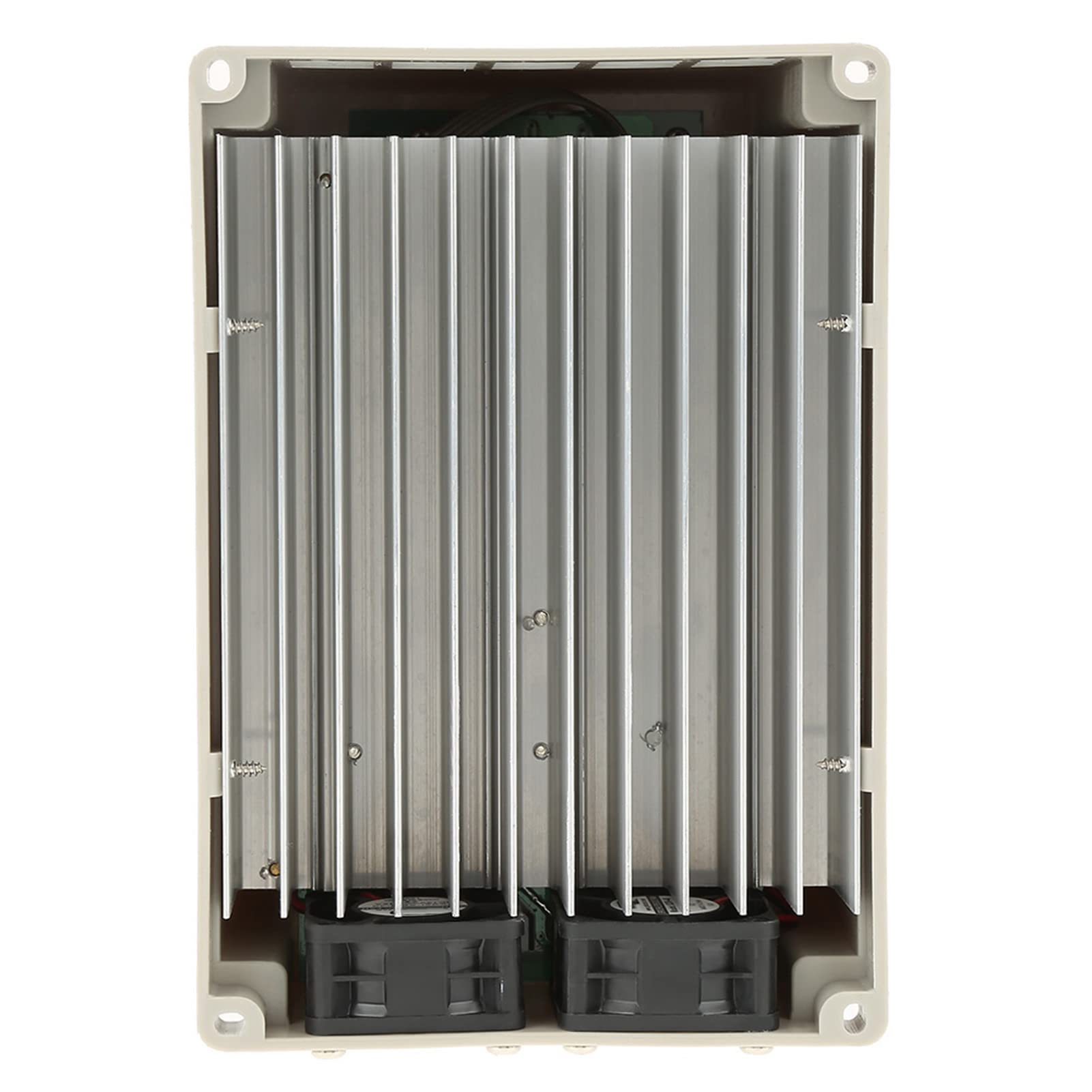

• Great Designed with large heat sink for better heat dissipation

model number: Aatraayg3ver5sw4f

Part Number: Aatraayg3ver5sw4f

Details: Specifications:
Model: AT1-2200X
Power Source Phase: Single-phase
Rated Voltage: single-phase/3-phase AC220V
Power Supply Voltage: Low voltage
Suitable Motor Power: 2.2kW
Filter: Built-in filter
DC Power Supply Type: Voltage type
Control Method: V/F closed loop
Output Voltage Adjusting Method: PWM control
Rated Current: 12A
: Over-current, over-voltage, over-heat, under-voltage, short circuit
. Output Frequency: 400Hz

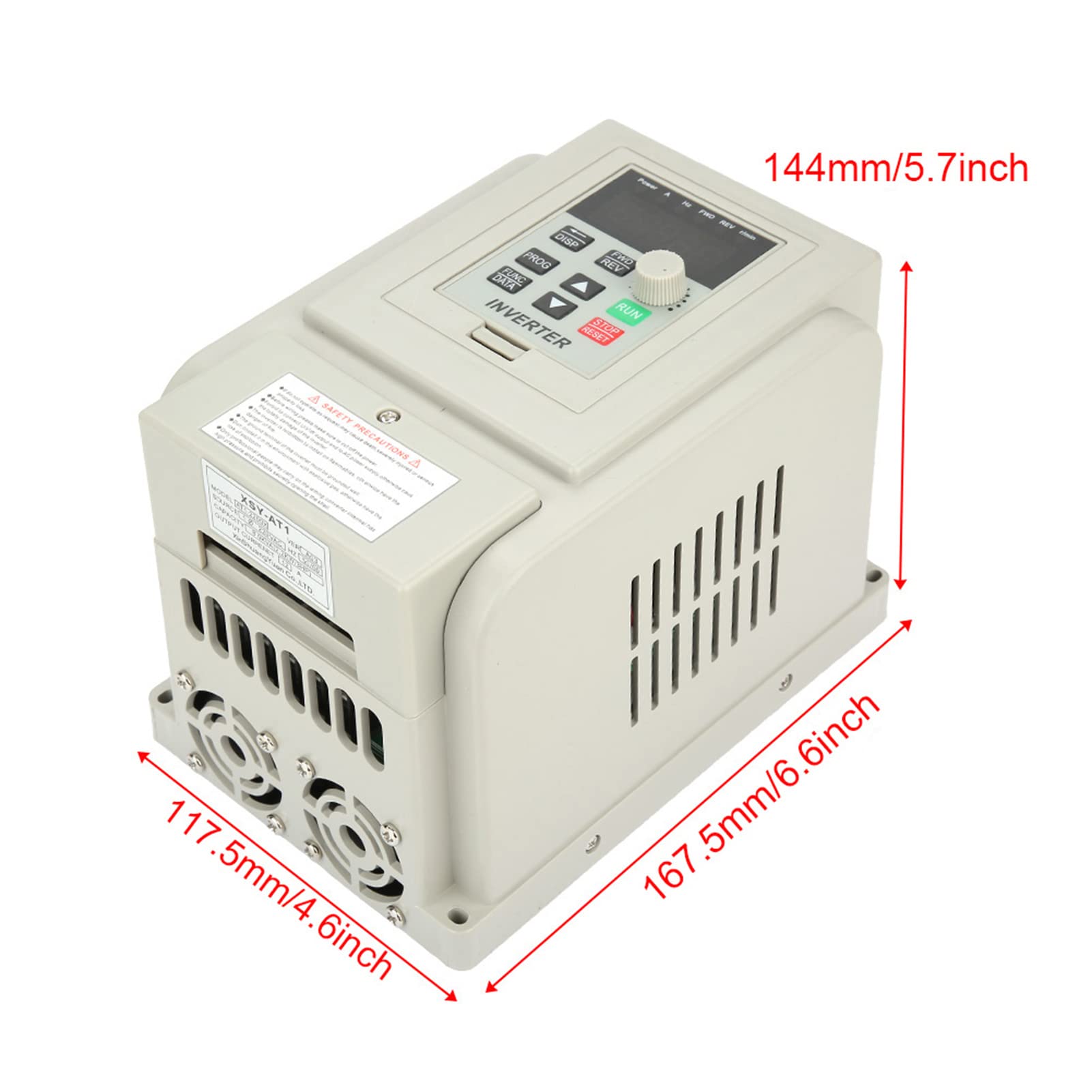

Size: 117.5 x167.5 x 144mm/4.6 x 6.6 x 5.7in
Weight: 1.3kg(approx.)
Terminal Instruction:
Terminal Function Details
15V/24V 15V/24V power input 200mA15V/24V power supply output
X6 Input terminal 6 (wire control CW/CCW switch) X6 connects to COM, input is effective
X5 Input terminal 5 (wire control CCW) X5 connects to COM, input is effective
X4 Input terminal 5 (wire control CW) X4 connects to COM, input is effective
X3 Input terminal 3 (speed range 3) X3 connects to COM, input is effective
X2 Input terminal 2 (speed range 2) X2 connects to COM, input is effective
X1 Input terminal 3 (speed range 3) X1 connects to COM, input is effective
SP1 Open collector output 1
SP2 Open collector output 2
5V/10V 5V/10V 20mA power supply output
TC Relay output 250VAC 5A/30VDC 3A TA & TB are NC, TA & TC are NO
TB Relay output
TA Relay output
Note:
When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting.
Please note that the new type and old type of this product will be sent randomly, and sure you will not mind before ordering.
Package Includes:
1 x Variable Frequency Drive

Package Dimensions: 8.3 x 7.9 x 6.7 inches
