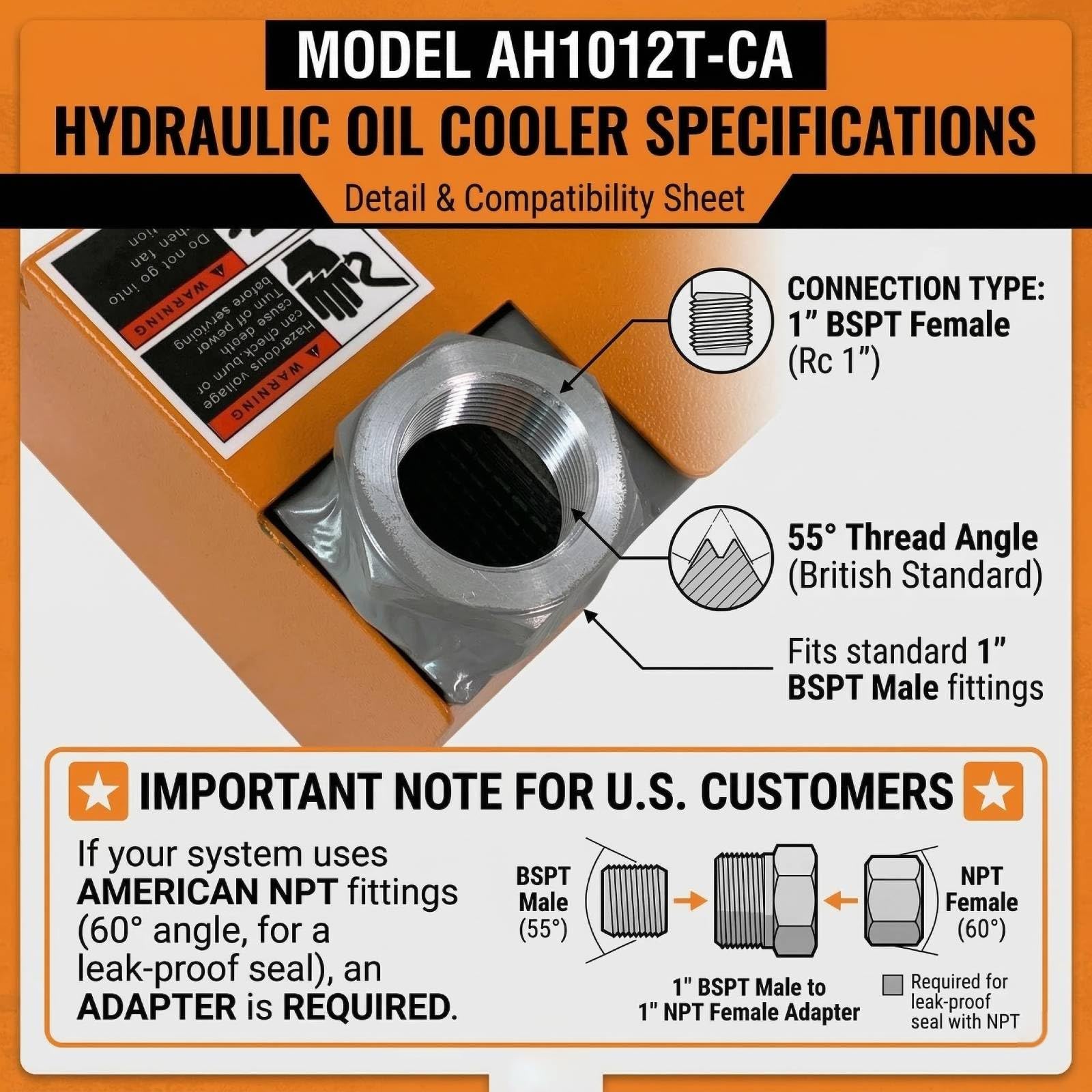

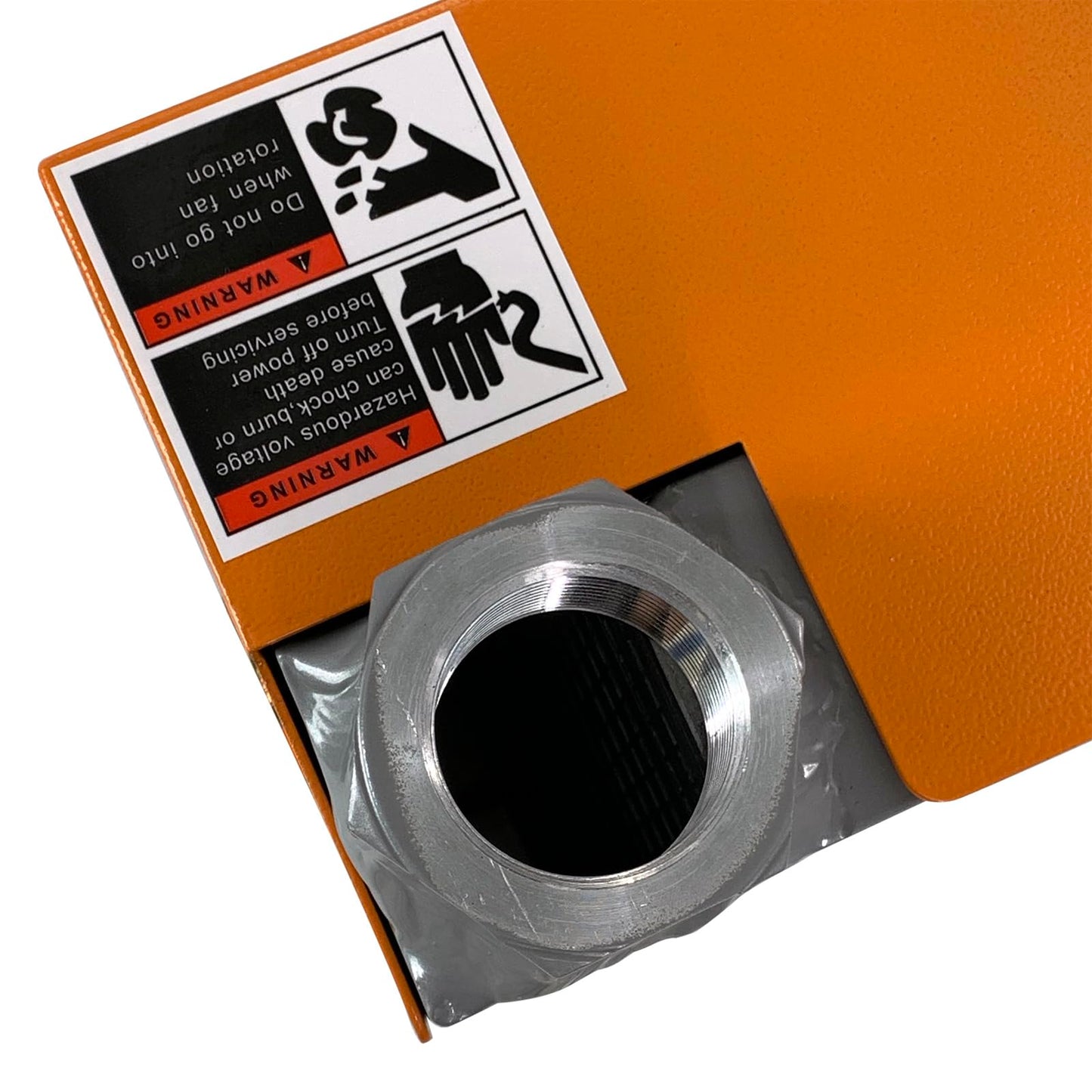

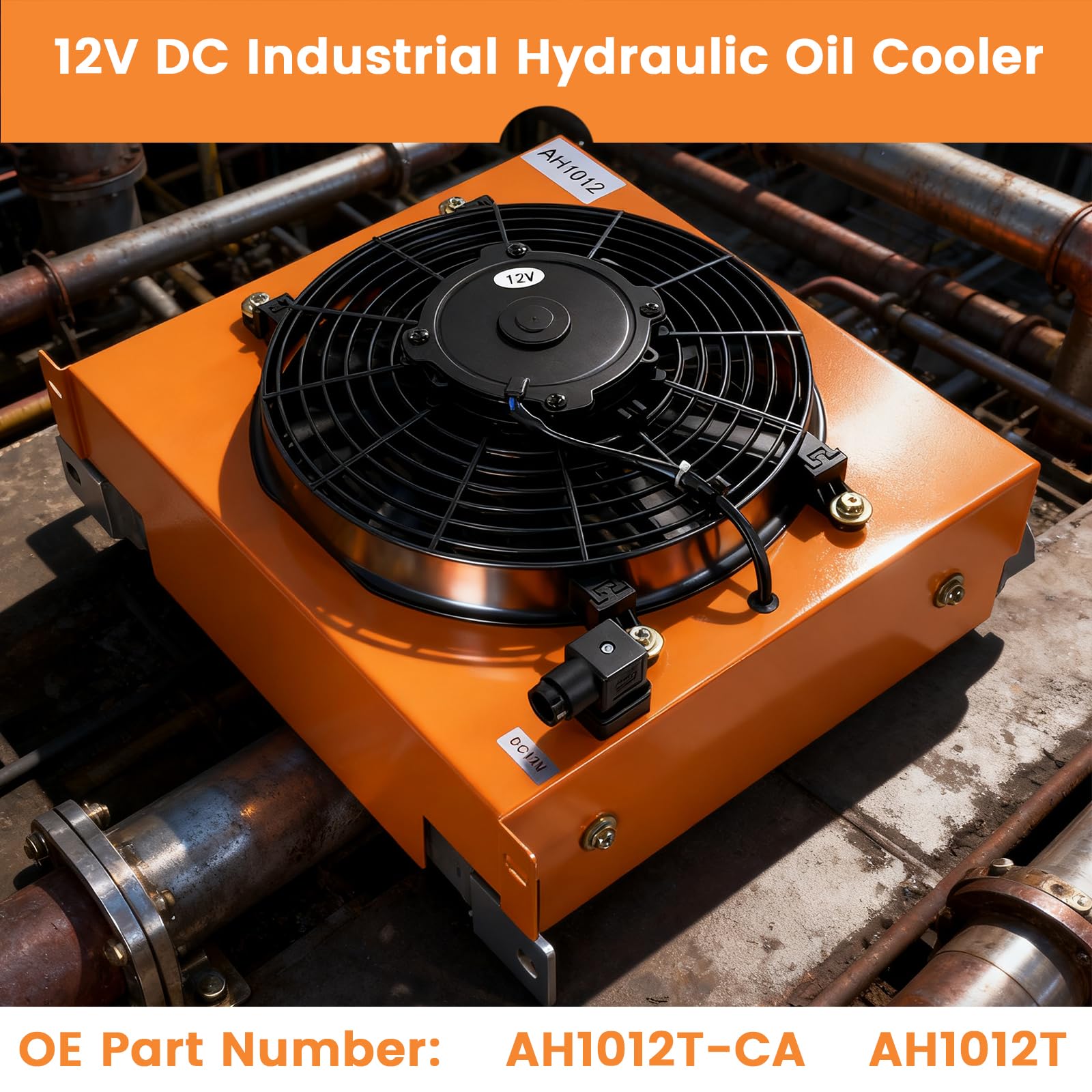

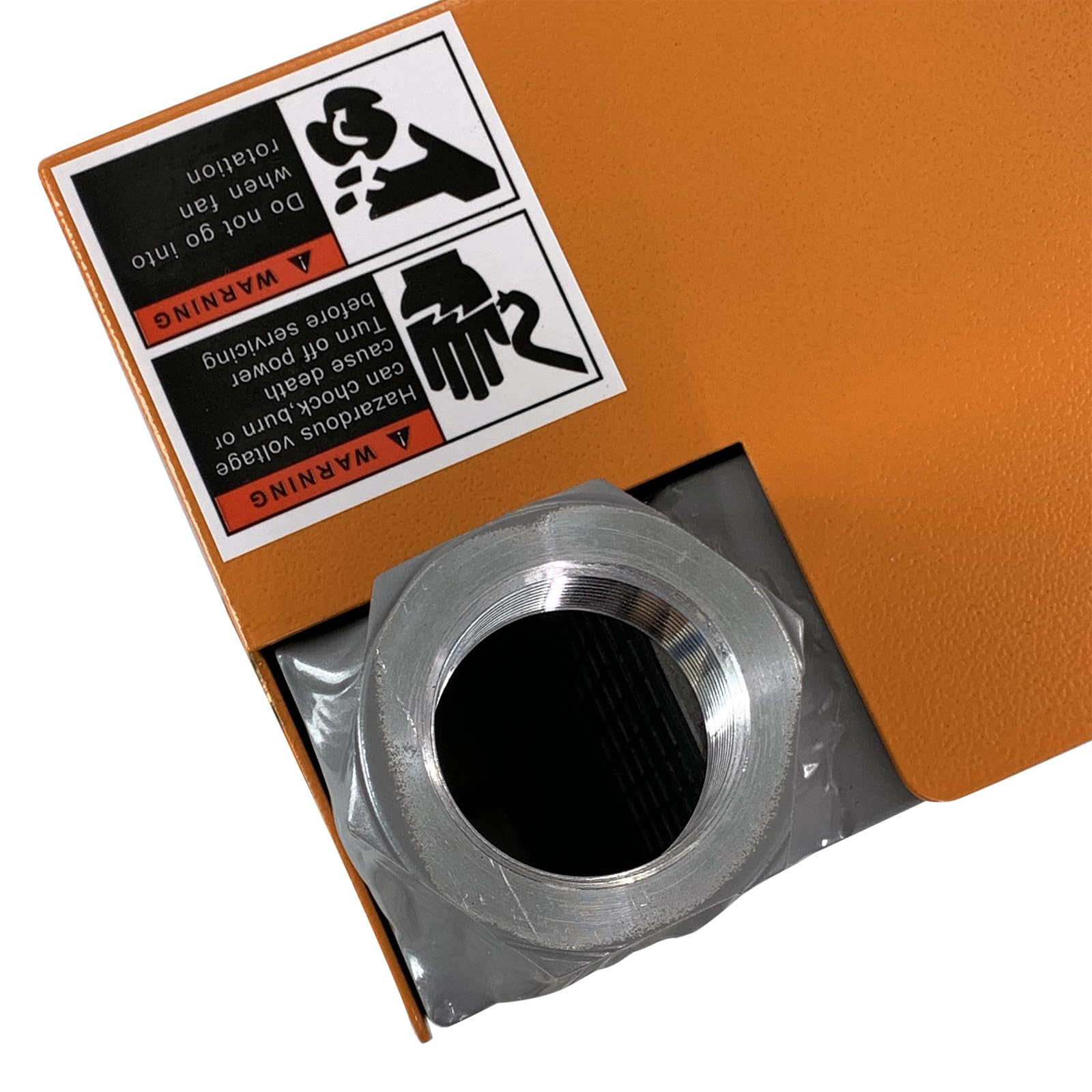

【Wide Application】For excavators around 2-3 tons, ah1012t oil air cooler broadly applicable to engineering construction machinery, including concrete mixer trucks and other heavy-duty site equipment. Cranes and lifting equipment, oil pressure systems. 【Note: Connection Type: 1' BSPT Female (Rc 1') Fits standard 1' BSPT male fittings. If using NPT, an adapter is required.】
【High Flow Capacity】 With a 100L/min 26GPM flow rate, this oil radiator efficiently handles high-volume hydraulic systems, ensuring optimal performance in industrial machinery and preventing overheating during demanding operations.

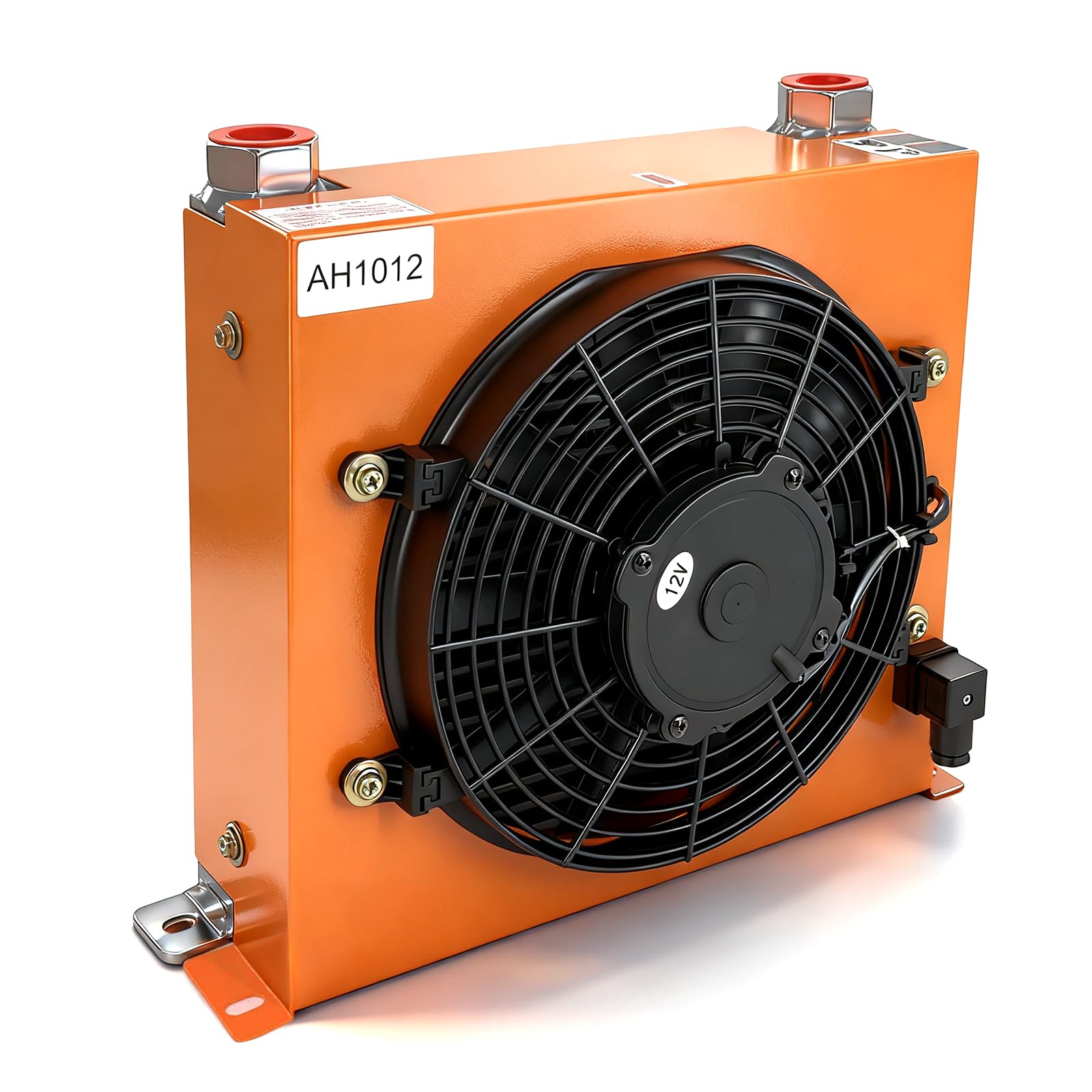

【Superior Heat Dissipation】This air cooled oil radiator features a large heat dissipation area and high heat exchange efficiency, delivering rapid cooling while withstanding working pressures up to 20bar (2mpa) for enhanced system reliability

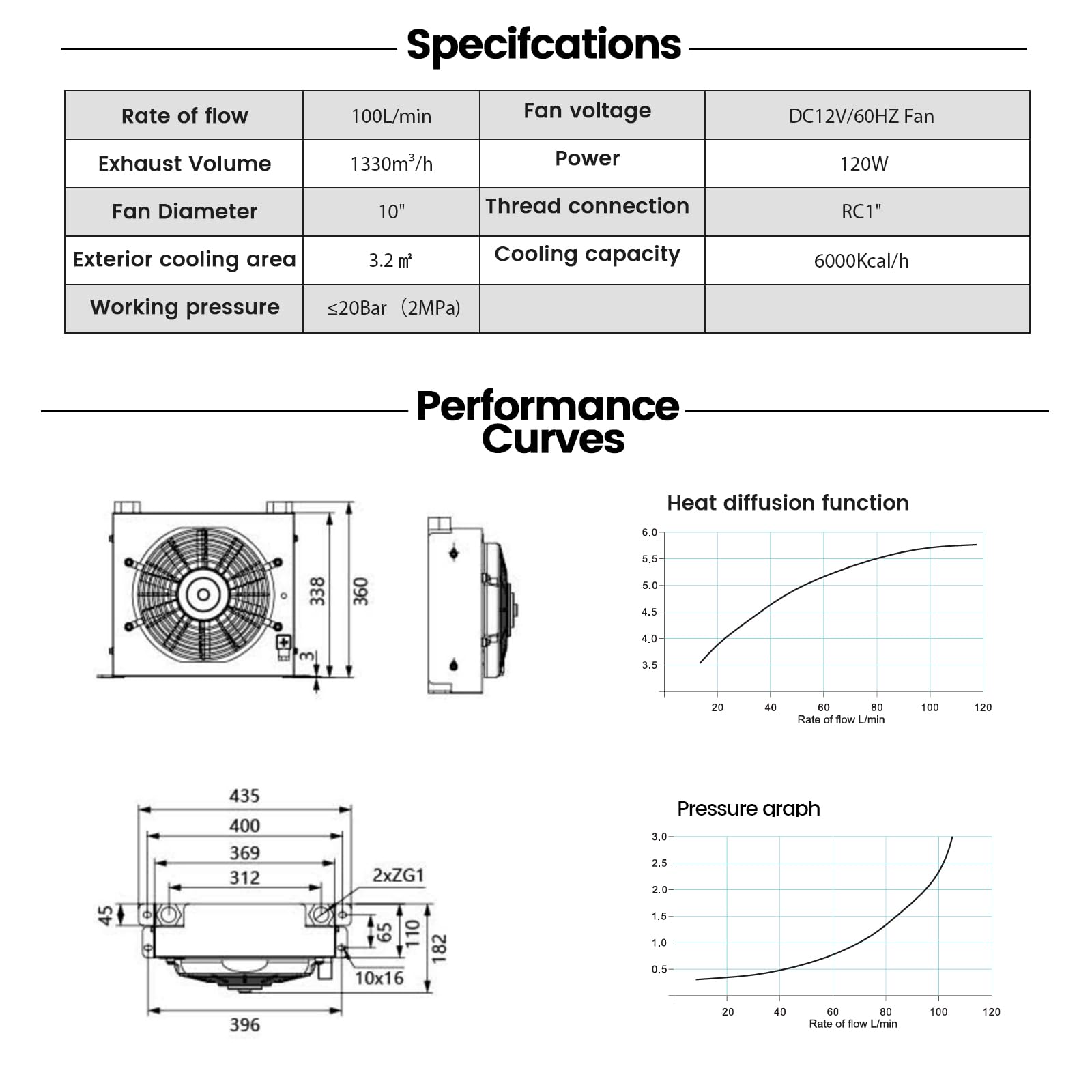

【Specifications】 Rate of flow:100L/min (26GPM); Exhaust Volume:1330m³/h; Fan Diameter: 10'; Exterior cooling area: 3.2㎡; Working pressure: ≤20Bar（2MPa); Fan voltage: DC12V/60HZ Fan; Power: 120W; Thread connection: RC1'; Cooling capacity: 6000Kcal/h oil cooler
