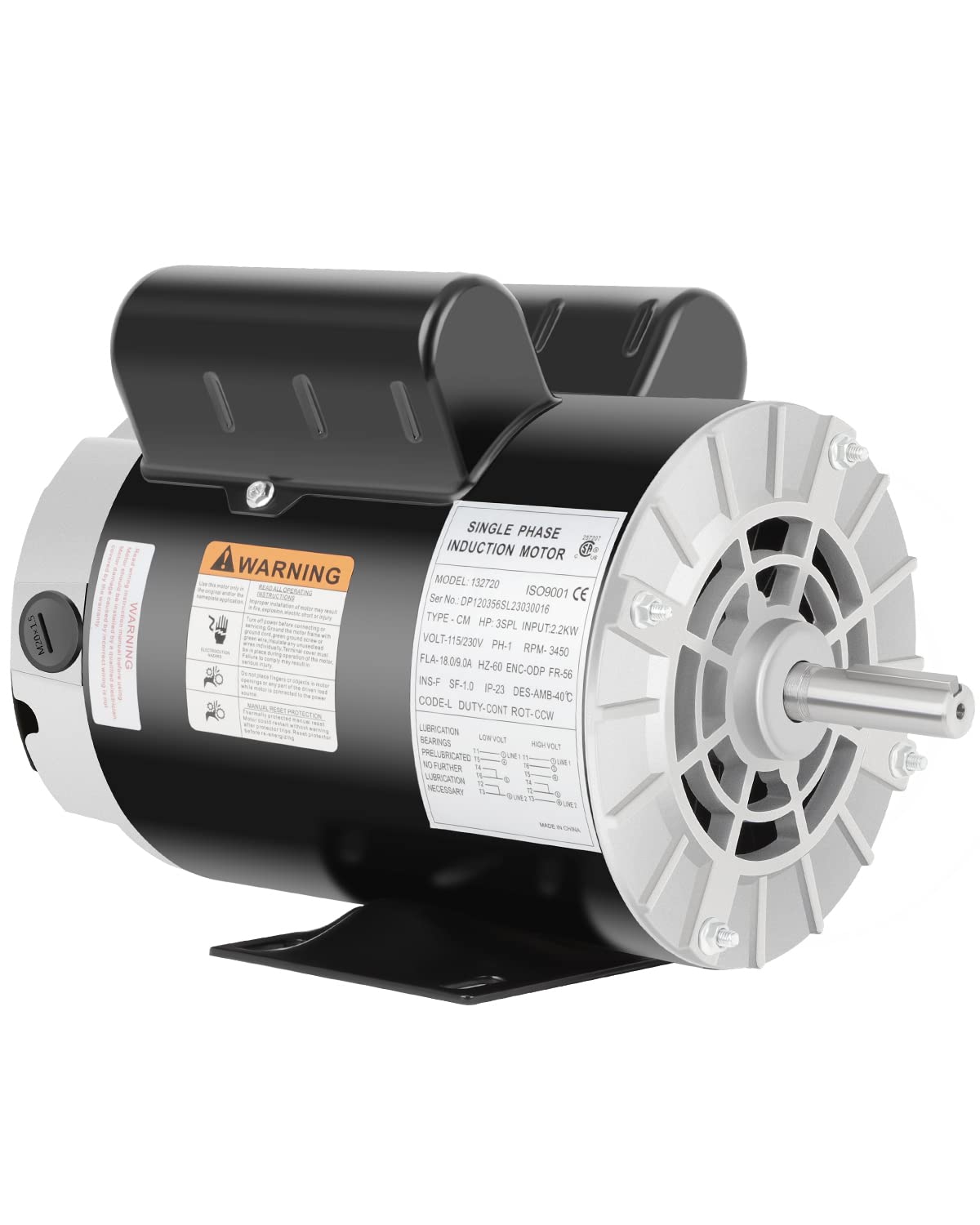

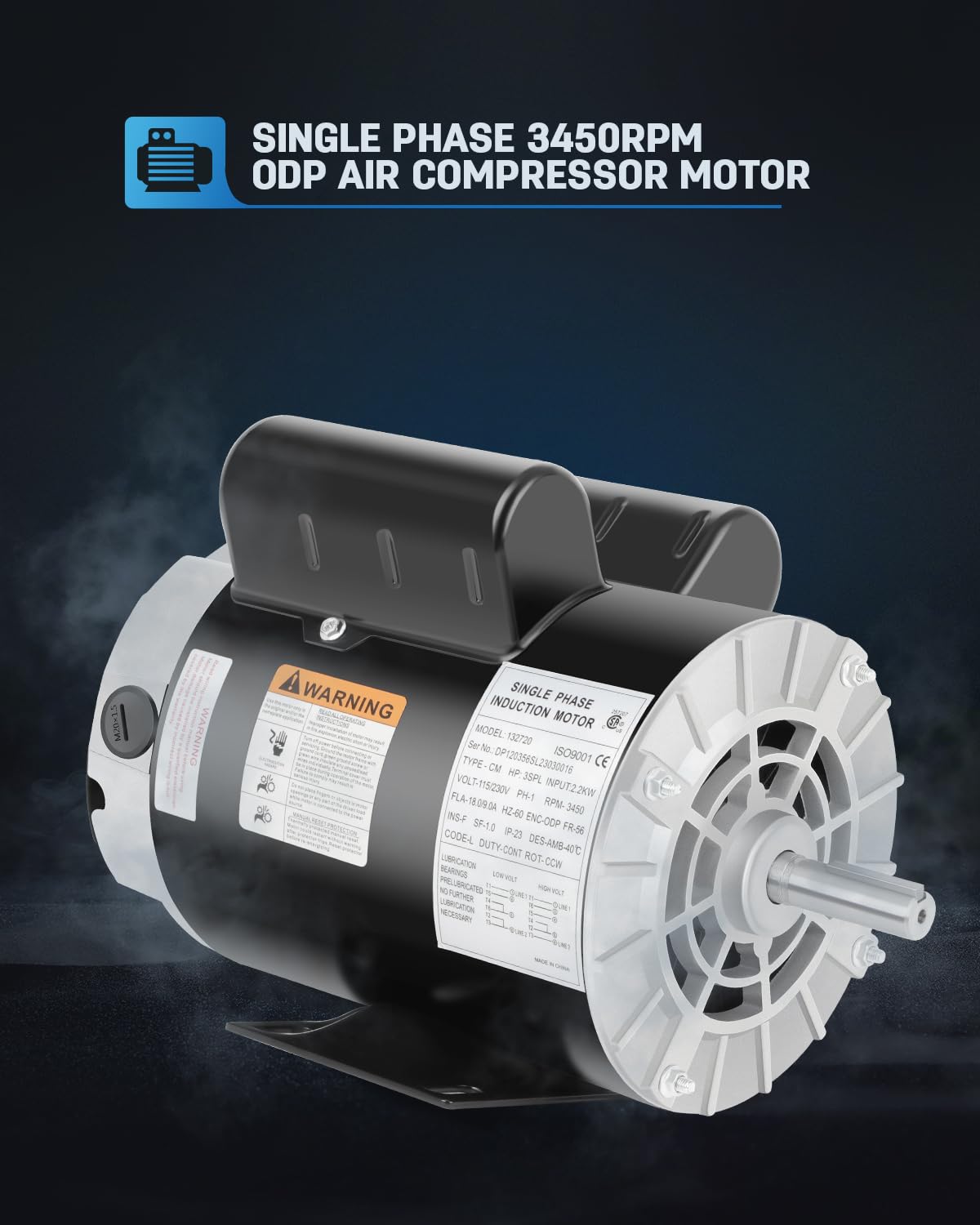

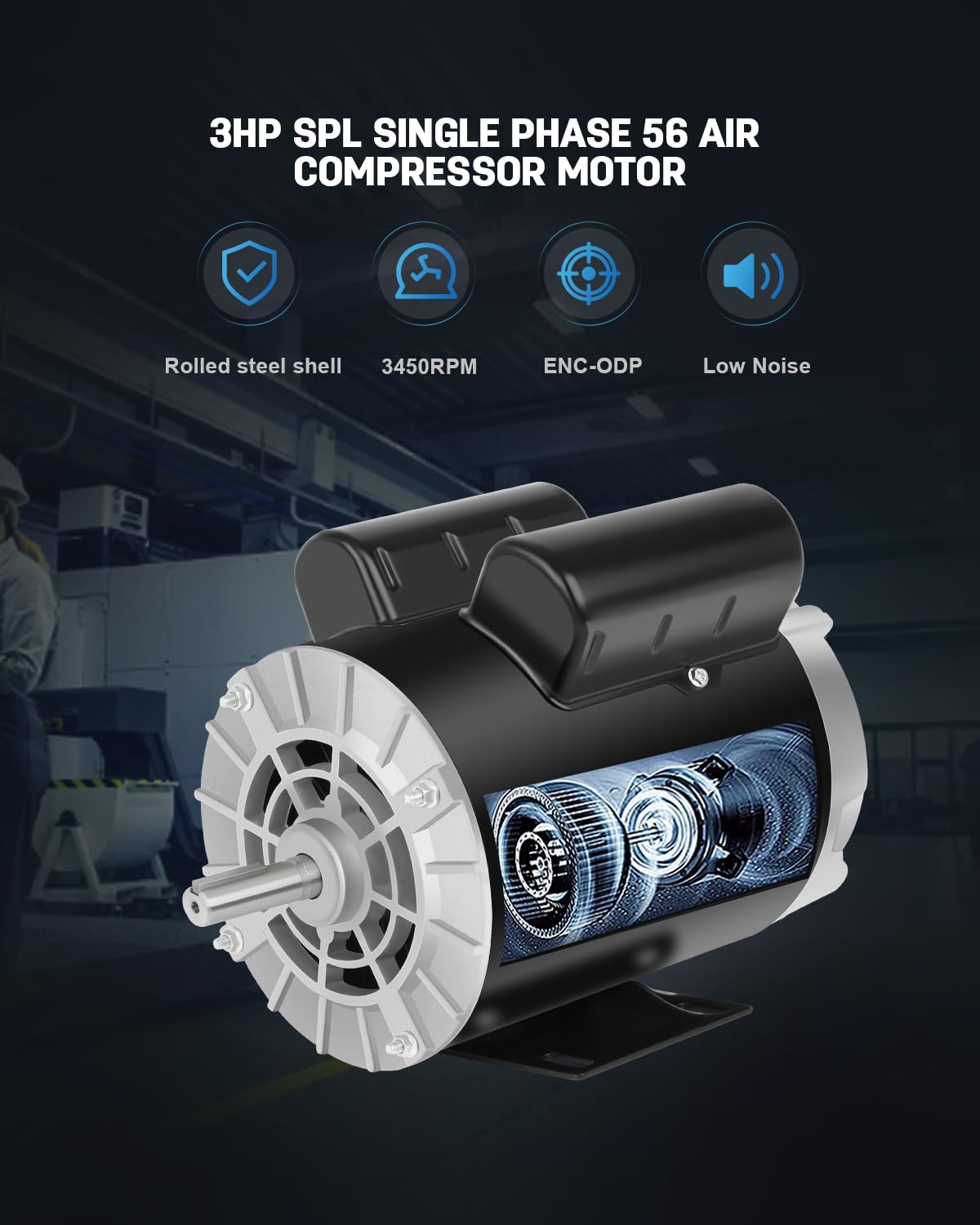

Air Compressor Motor:Runs as 3HP SPL, POLE - 2, FRAME - 56, ENC - ODP, IP - 23,Open drip proof is better used in the environment that are relatively clean and dry environments.

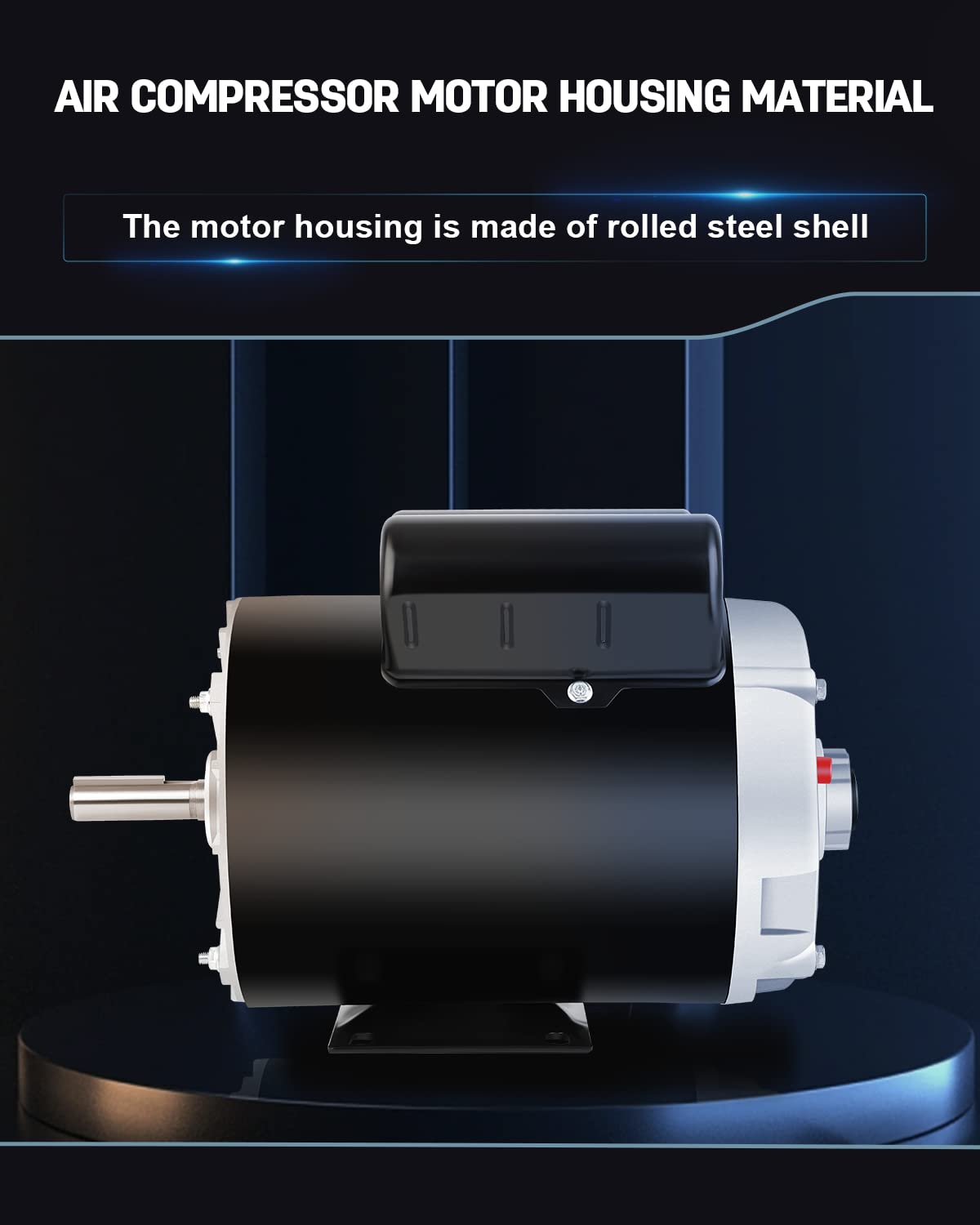

Motor Housing material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.

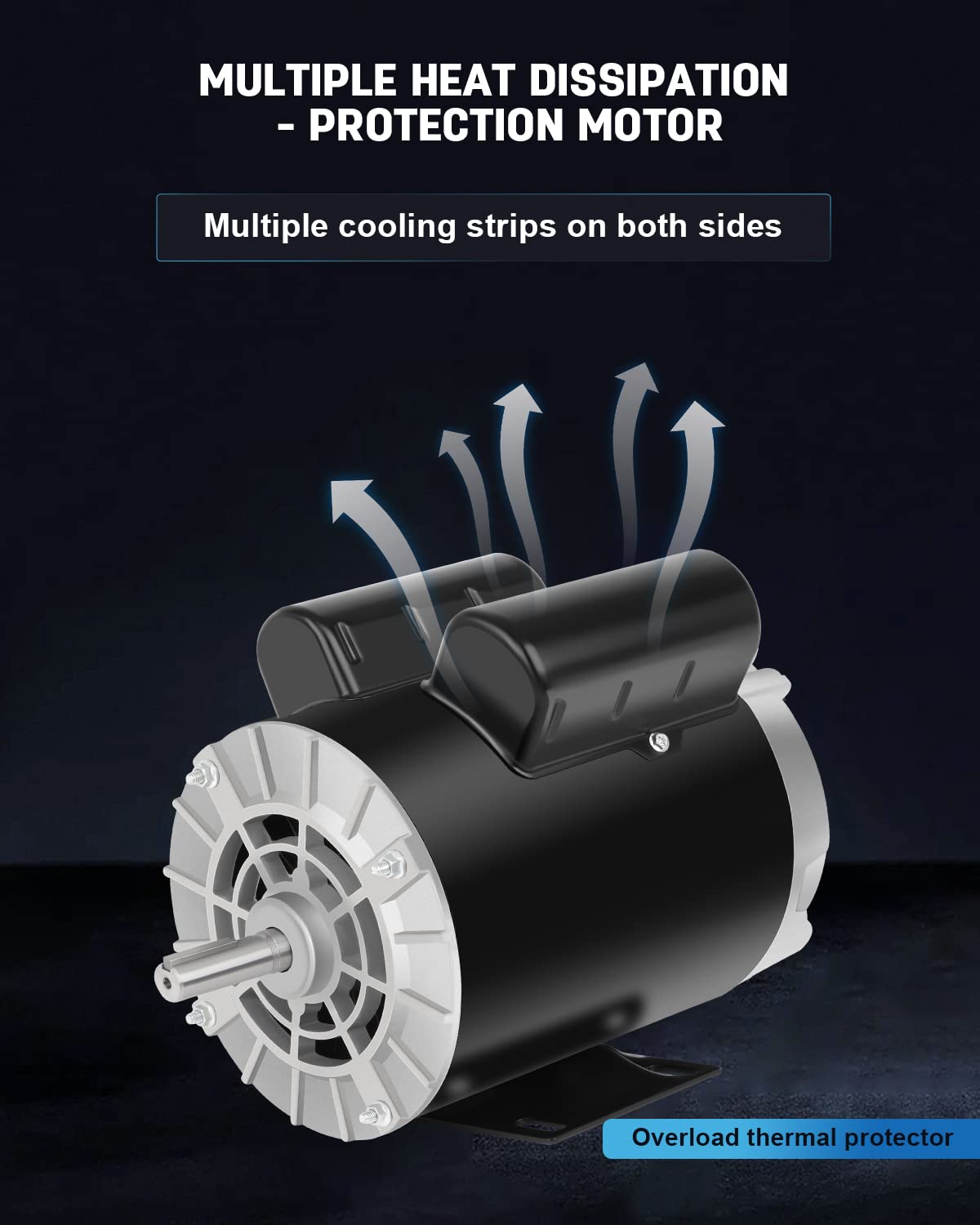

High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.

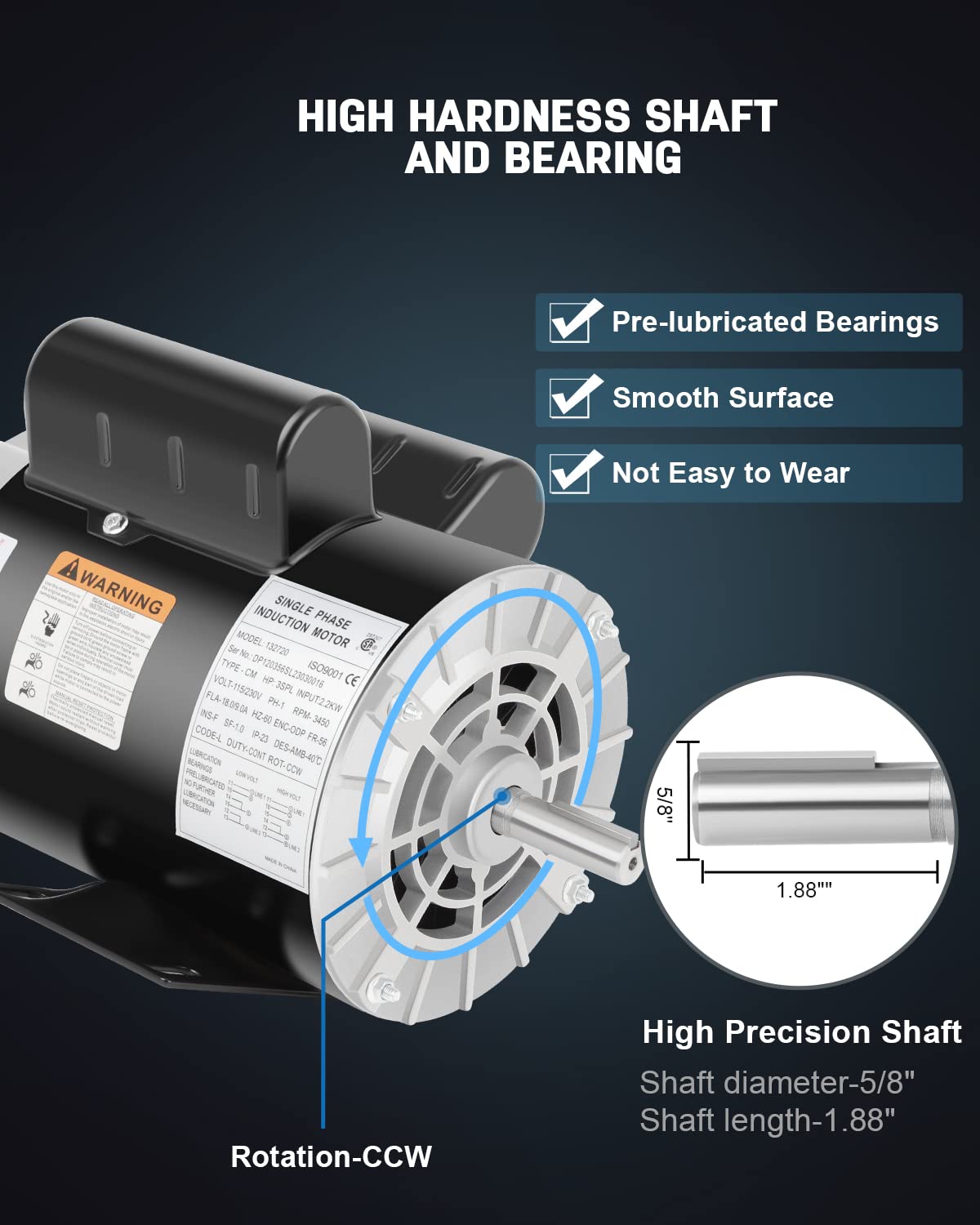

AC Motor Detailed Parameters: HZ: 60Hz, Voltage: 115V/230V, AMP: 18/9A, RPM: 3450, INS - F, Rotation - CCW, Shaft diameter - 5/8', Shaft length - 1.88'.
Widely Application: Equip with protector, designed for air compressor tax purposes. Please purchase the motor according to the specific requirements of the compressor.
