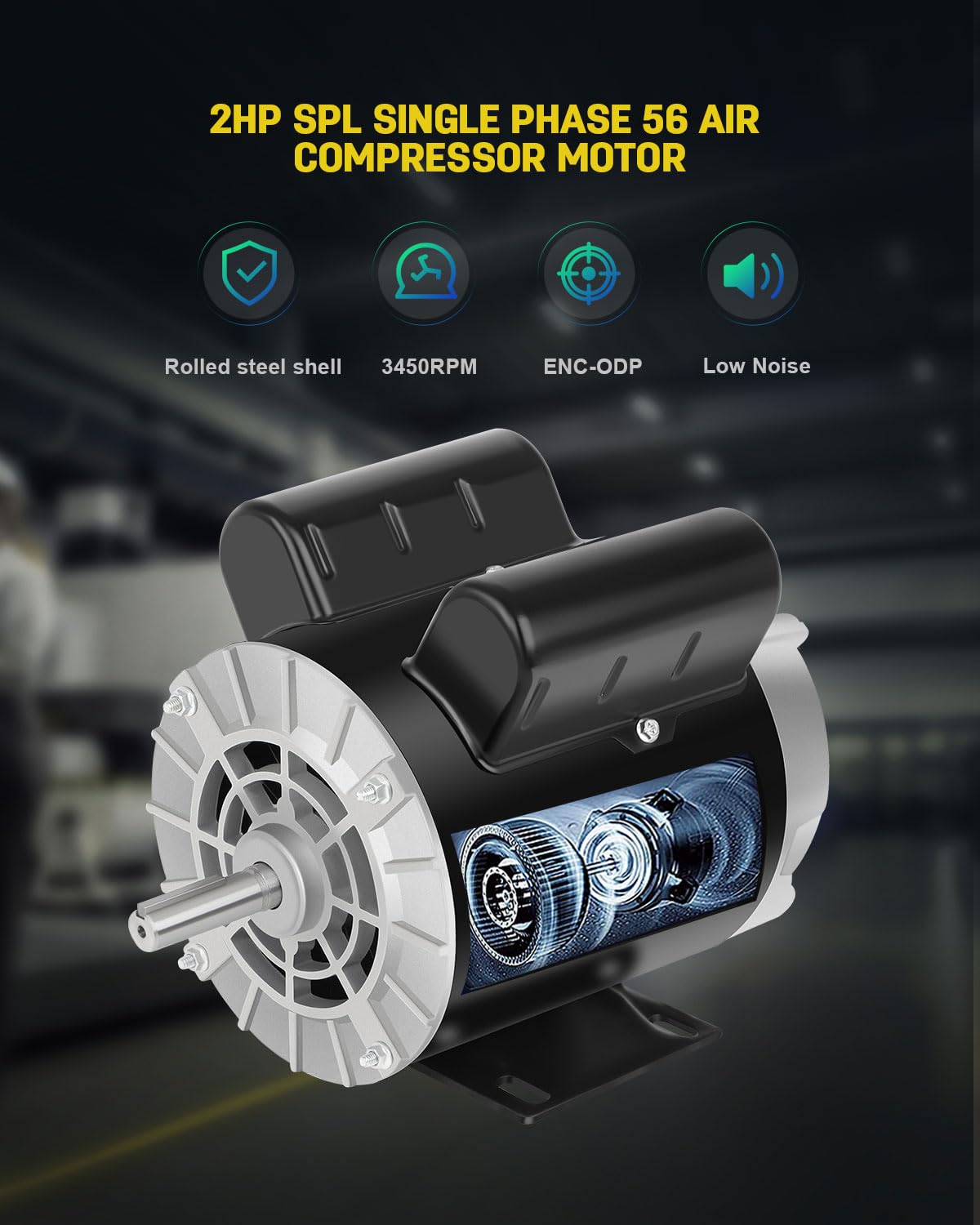

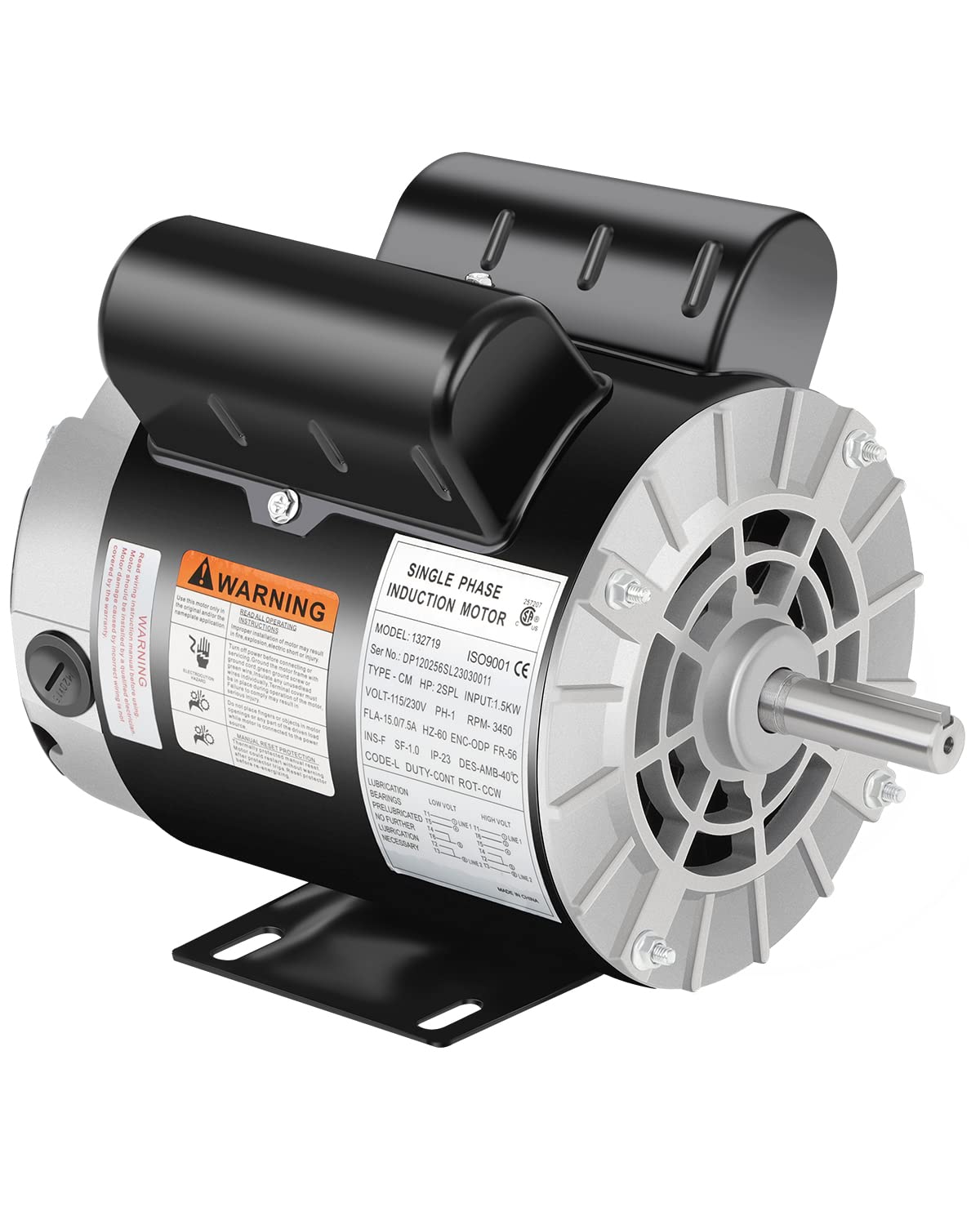

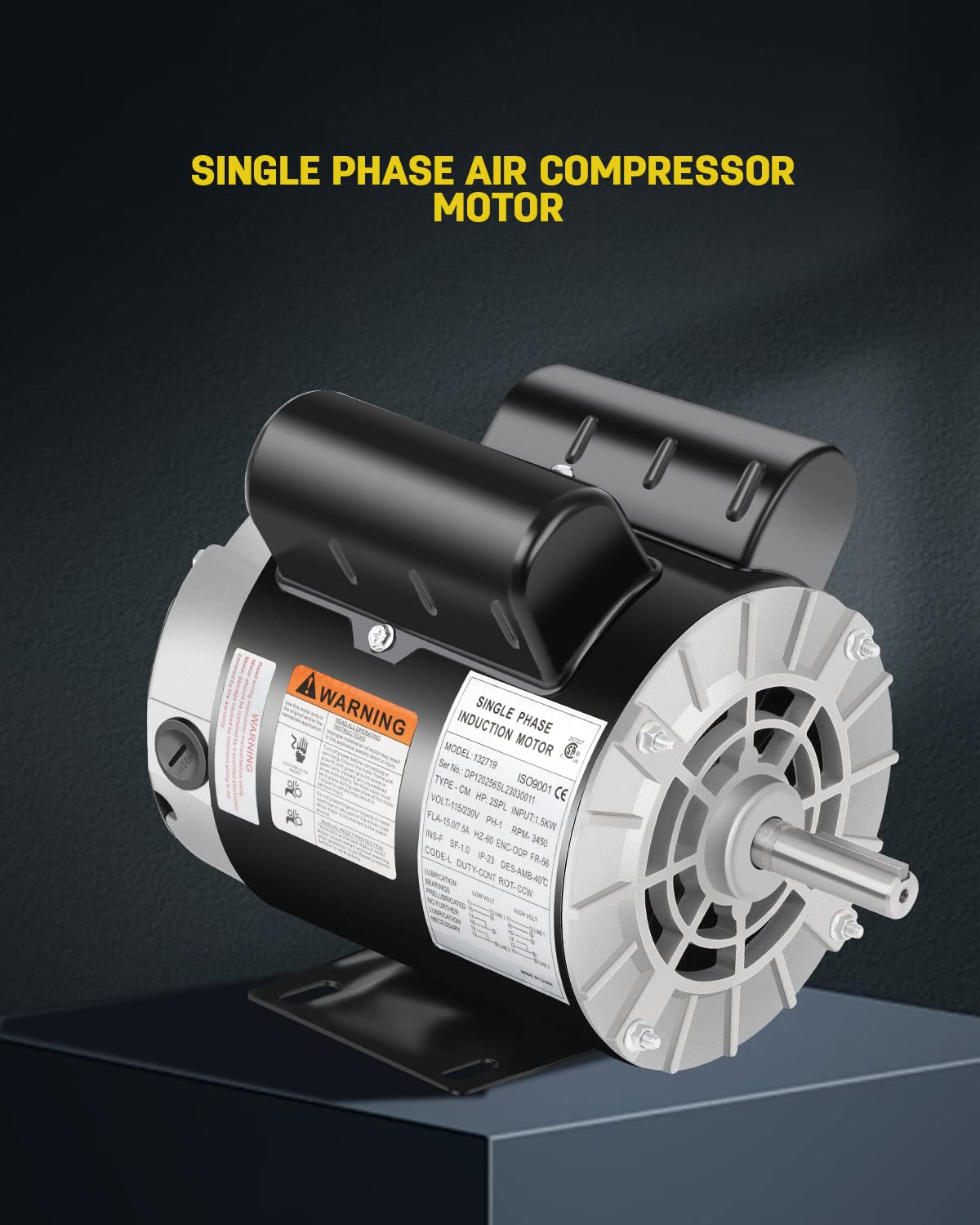

Air Compressor Motor,2 HP SPL 3450 RPM Electric Motor, 115/230V 15/7.5A Single Phase, 56 Frame 5/8" Keyed Shaft, Commercial-Duty CCW Rotation, 1.88" Shaft Length for Air Compressors

Brand: Cuilvu

Color: Black

Features:

• Air Compressor Motor: HP - 2HP SPL , POLE - 2, FRAME - 56, ENC - ODP, IP - 23,Open drip proof is better used in the environment that are relatively clean and dry environments.

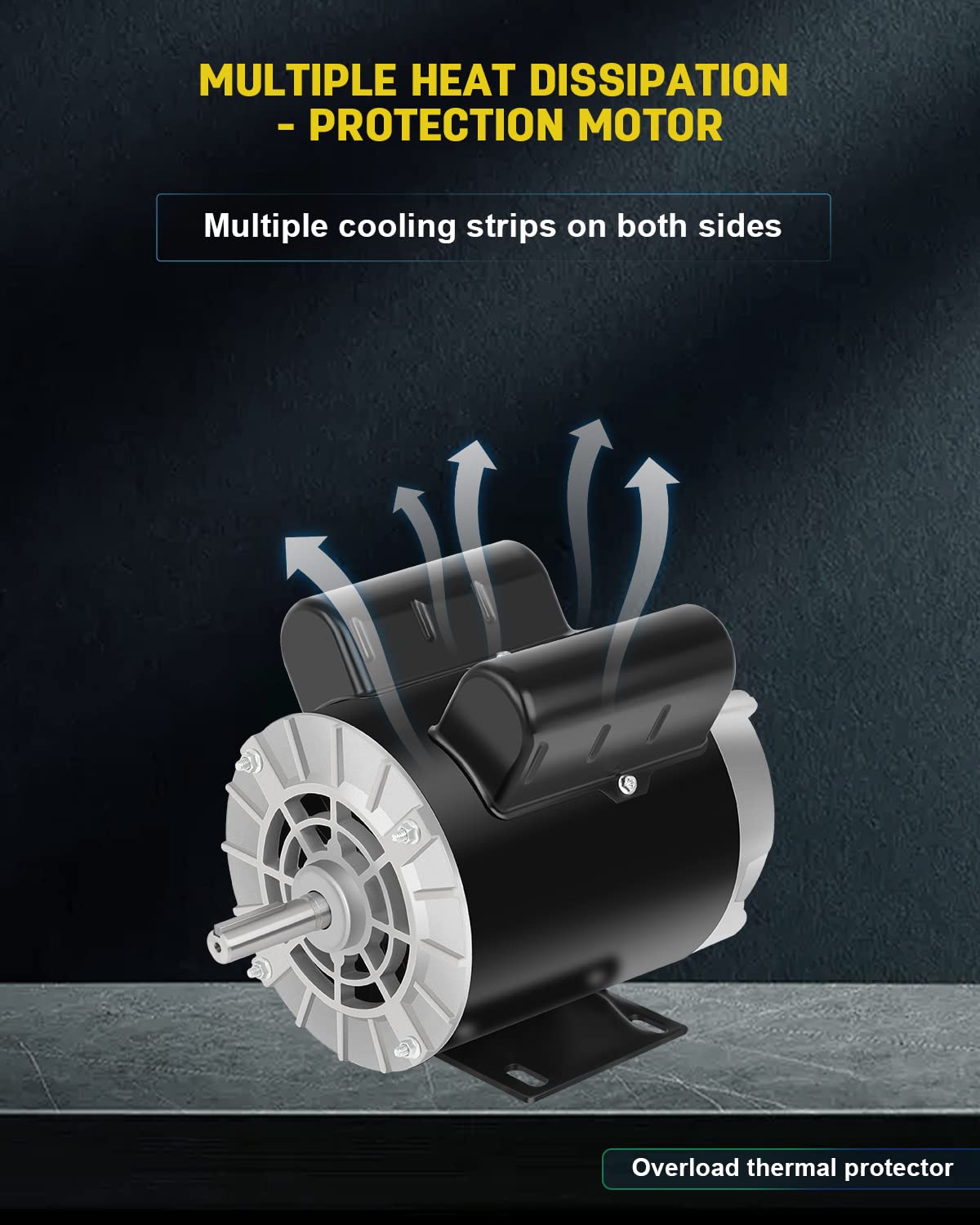

• High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.

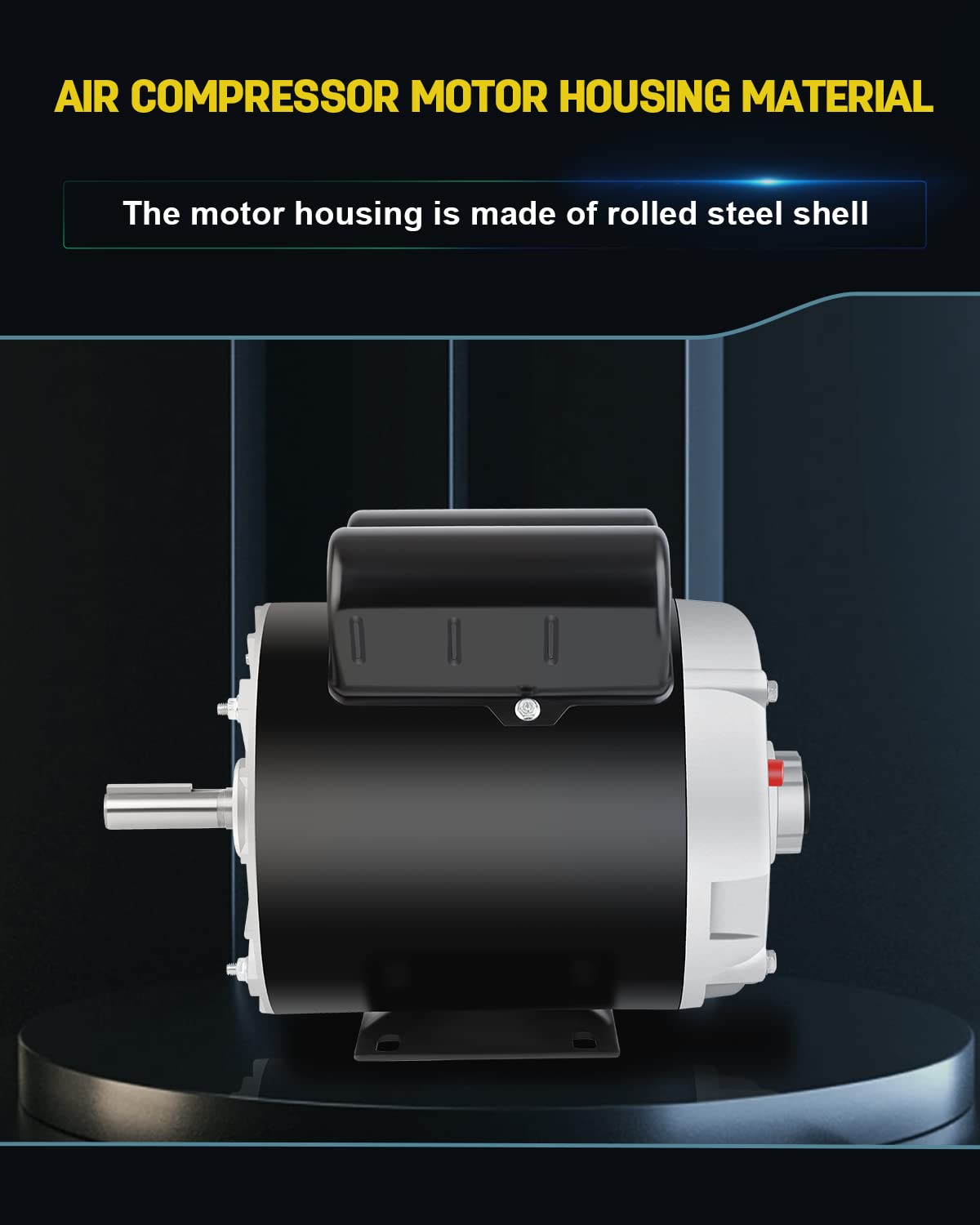

• Housing material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.

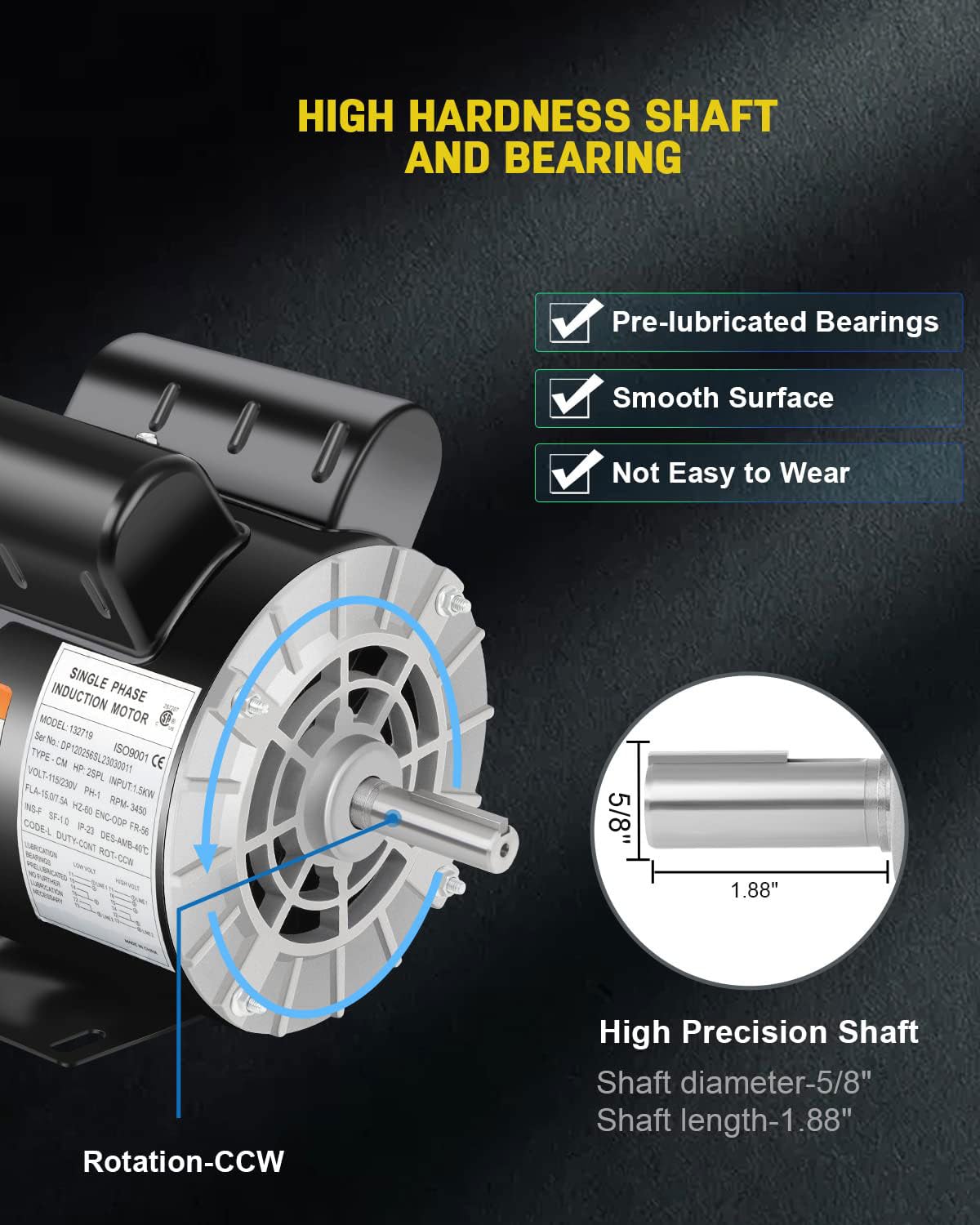

• Detailed Parameters: HZ: 60Hz, Voltage: 115V/230V, AMP: 15/7.5A, RPM: 3450, INS - F, Rotation - CCW, Shaft diameter - 5/8', Shaft length - 1.88'.
• Protector and Application: Equip with protector, designed for air compressor tax purposes. Please purchase the motor according to the specific requirements of the compressor.

model number: 132719-5334-1625360311

Part Number: 132719-5334-1625360311

Package Dimensions: 14.6 x 11.2 x 9.6 inches
