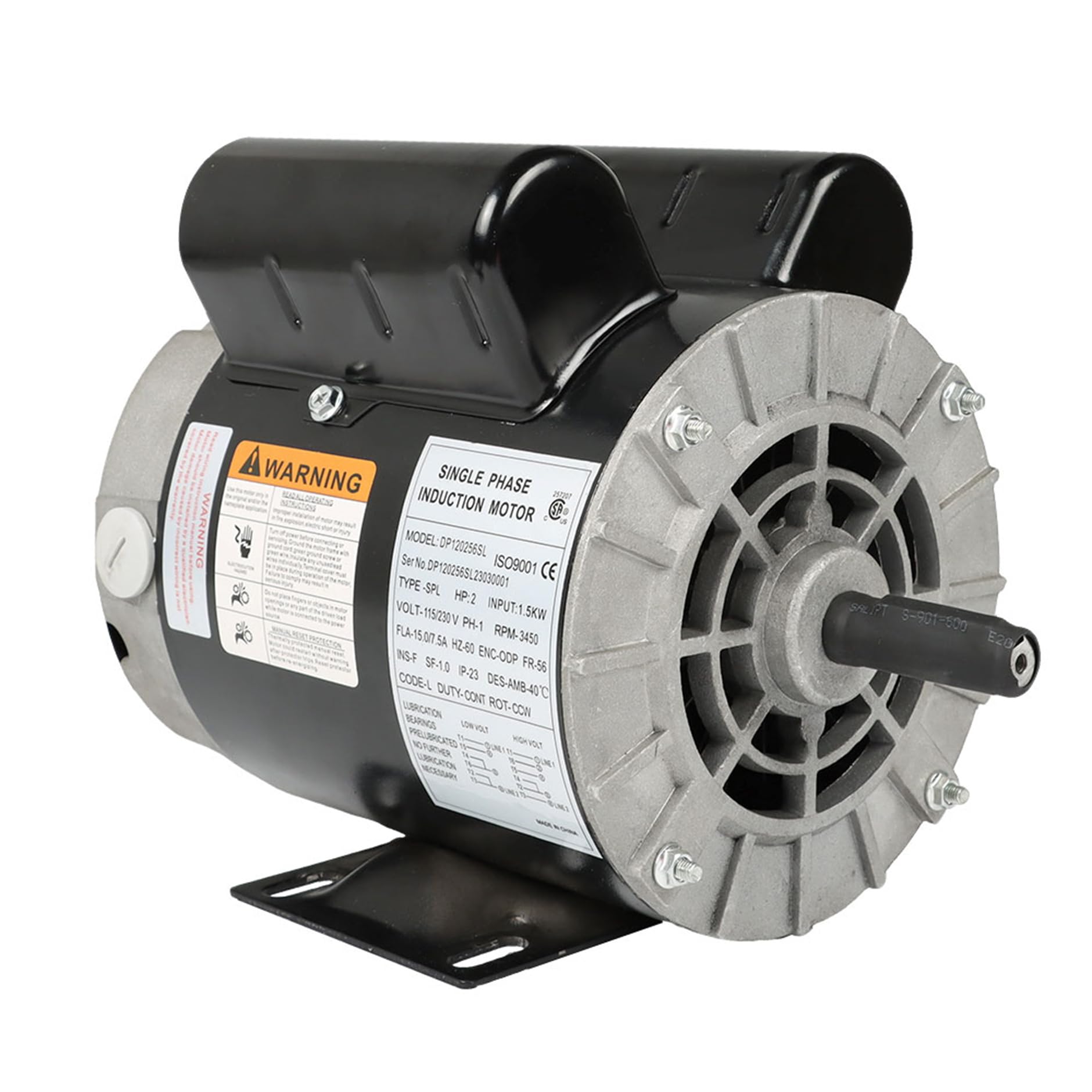

Air Compressor Motor 2 HP SPL Motor 56 Frame 5/8 Inch Shaft 120/240V

Brand: GENRICS

Color: Black

Features:

• The air compressor motor is made of iron material with high strength and long service life
• Multiple cooling holes on the air compressor motor for rapid heat dissipation
• Air compressor motors are suitable for air compressors, metal cutters, pumps, fans, transportation machinery mixers, etc
• Specifications: 2 HP SPL operating horsepower, 3450 RPM maximum speed, 5/8-inch shaft diameter
• Package includes:1 x 2 HP SPL motor

model number: Does not apply

Part Number: GE-7679372-723318-CS

Details: Electric Motor 56 Frame 3450RPM Single Phase Motor General Air Compressor Motor 2 HP SPL 5/8' Shaft 120/240V

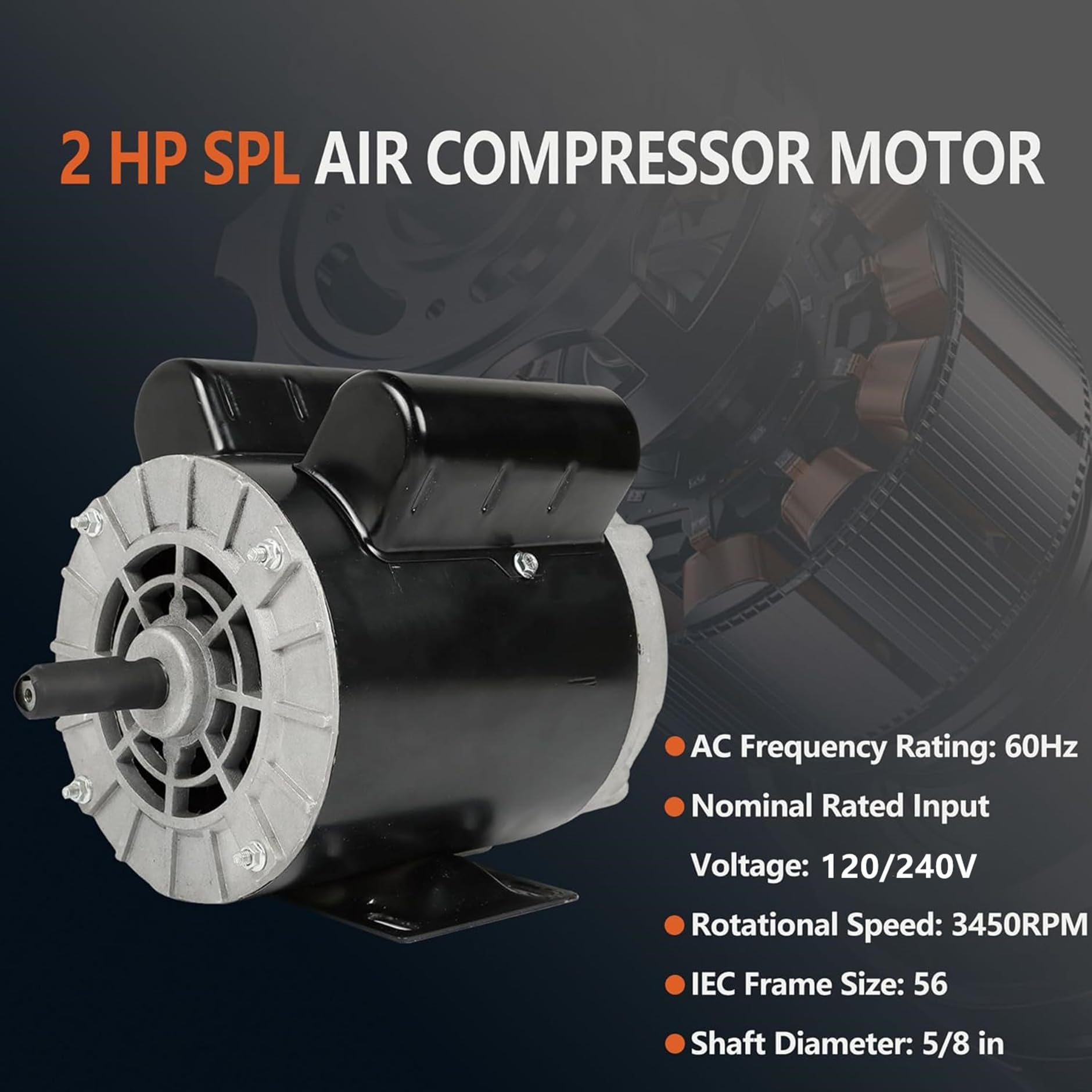

Specification:
AC Frequency Rating: 60Hz
Nominal Rated Input Voltage: 120/240V
Rotational Speed: 3450RPM
Amps: 15.0/7.5A
NEMA Frame Size: 56
Shaft Diameter: 5/8 in
Shaft Length: 1.88 in
AC Phase: Single phase
Model: General electric motor

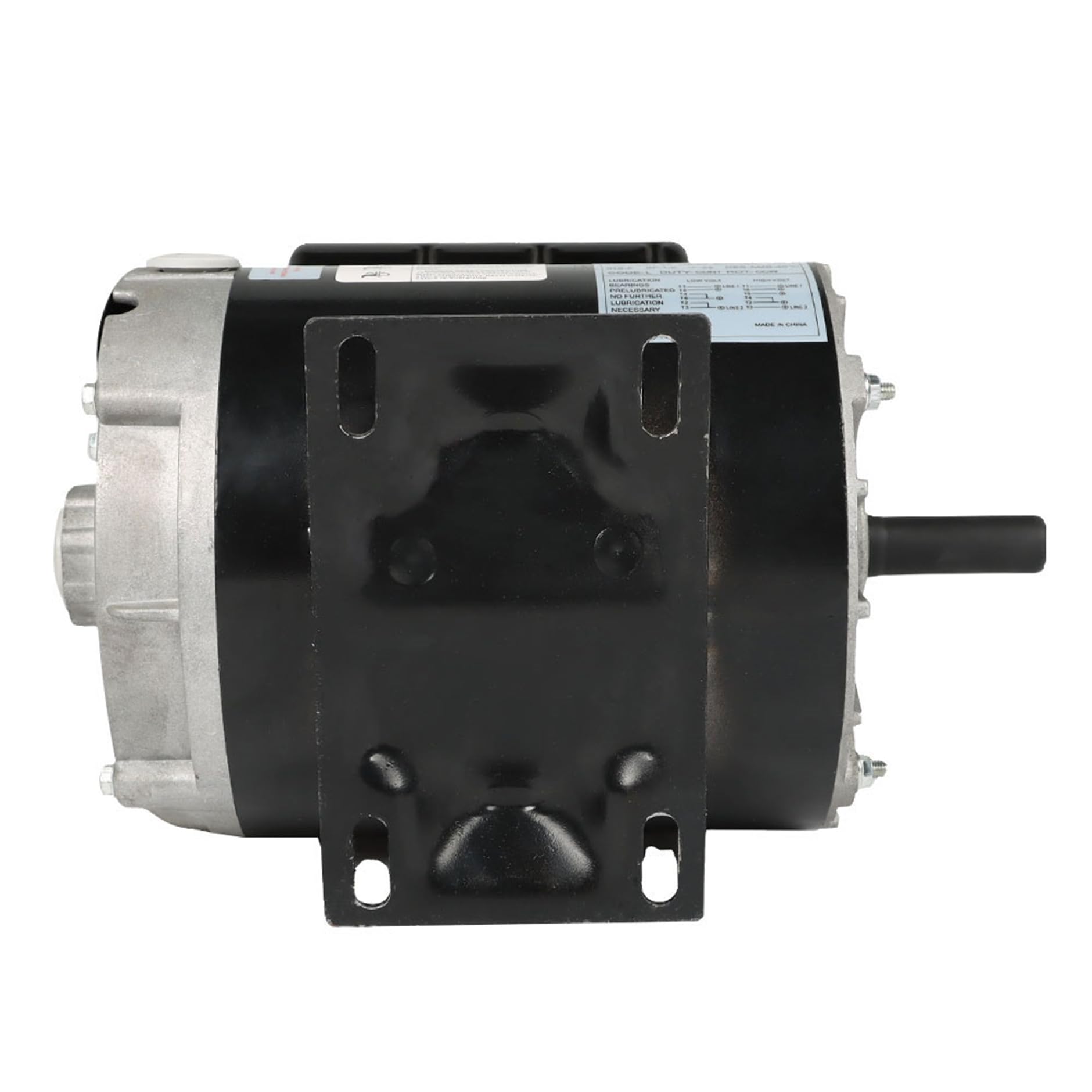

Mounting Type: Base-Mounted

Note:

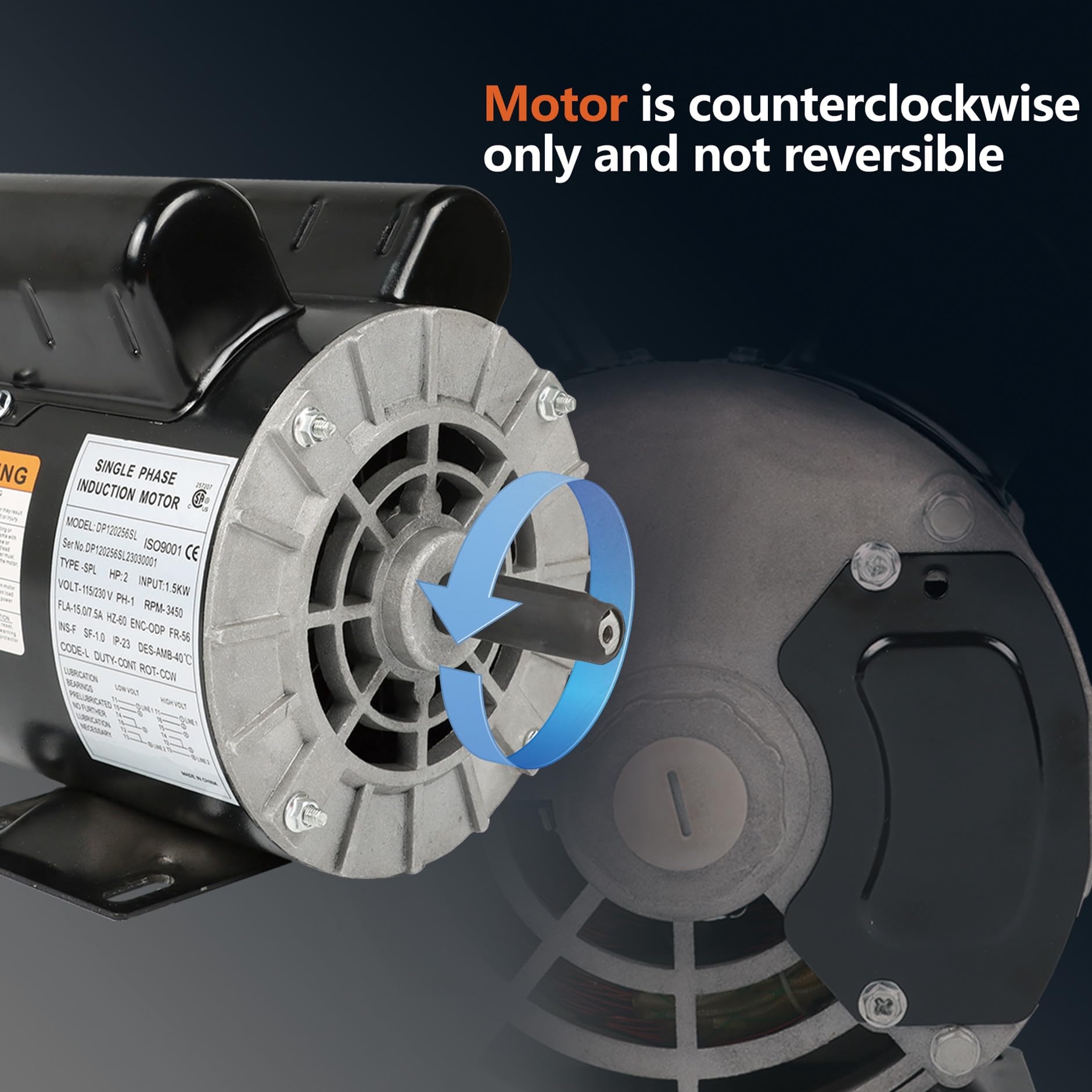

The motor is only counterclockwise (counterclockwise) and irreversible

Features:
Iron material, not easily damaged, long service life
High work efficiency, multiple heat dissipation holes, quick heat dissipation
Equipped with installation brackets, the bracket structure is stable
The fan can cool the motor and dissipate heat during operation
If faults such as overcurrent, phase loss, short circuit, overvoltage,
leakage occur during use, the motor will be shut down, making it safer to use
Can be used for various general equipment, please carefully check the model to meet your needs

Package Includes:
1 x 2 HP SPL motor

Package Dimensions: 14.5 x 11.0 x 9.5 inches
