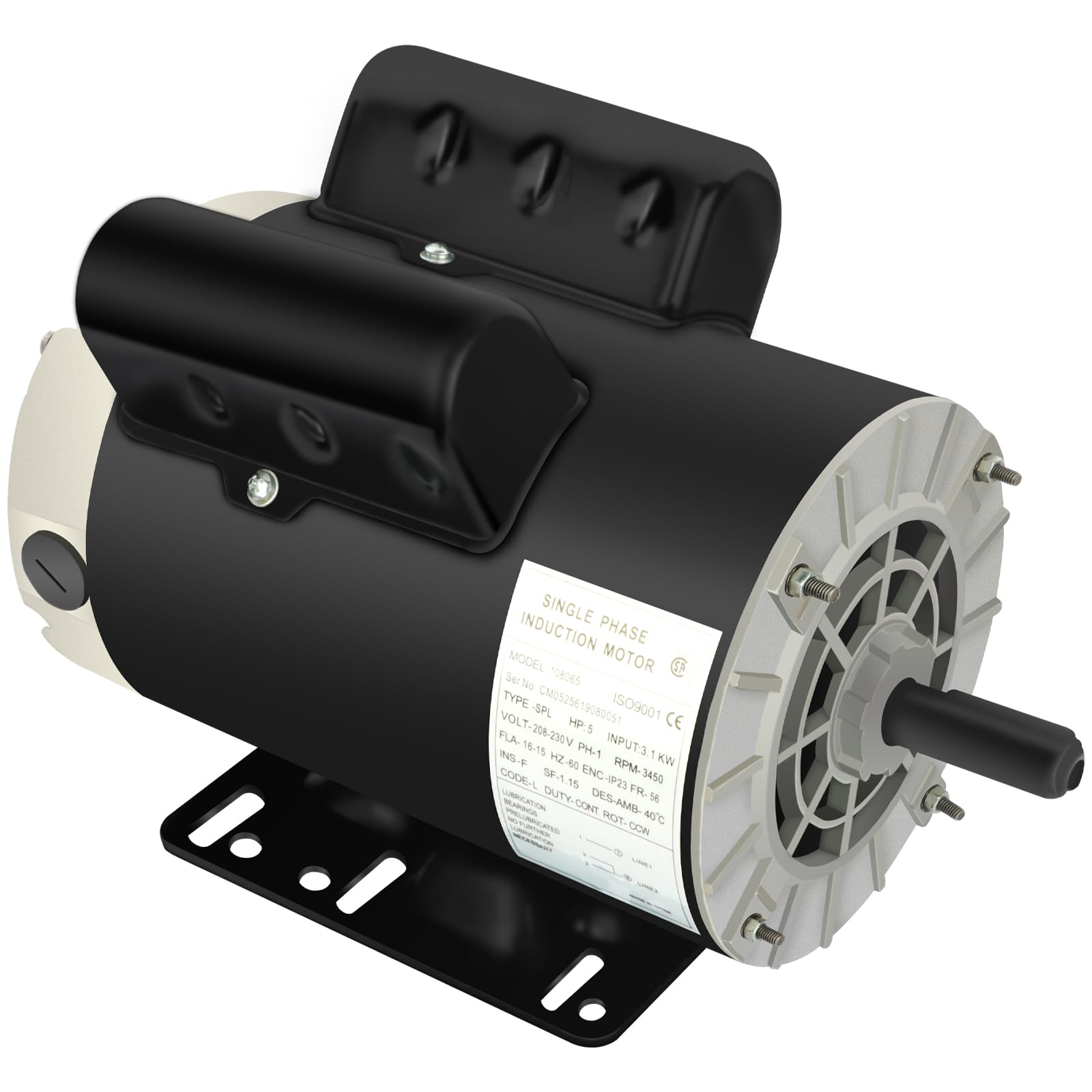

MOTOR INFORMATION: IP - 23, HZ - 60HZ, 16.0-15.0A, 208-230V, INS - F, Service Factor-1.0, 2 Pole.
ODP MOTOR: Open drip-proof is better used in environment that are relatively clean and dry environments.

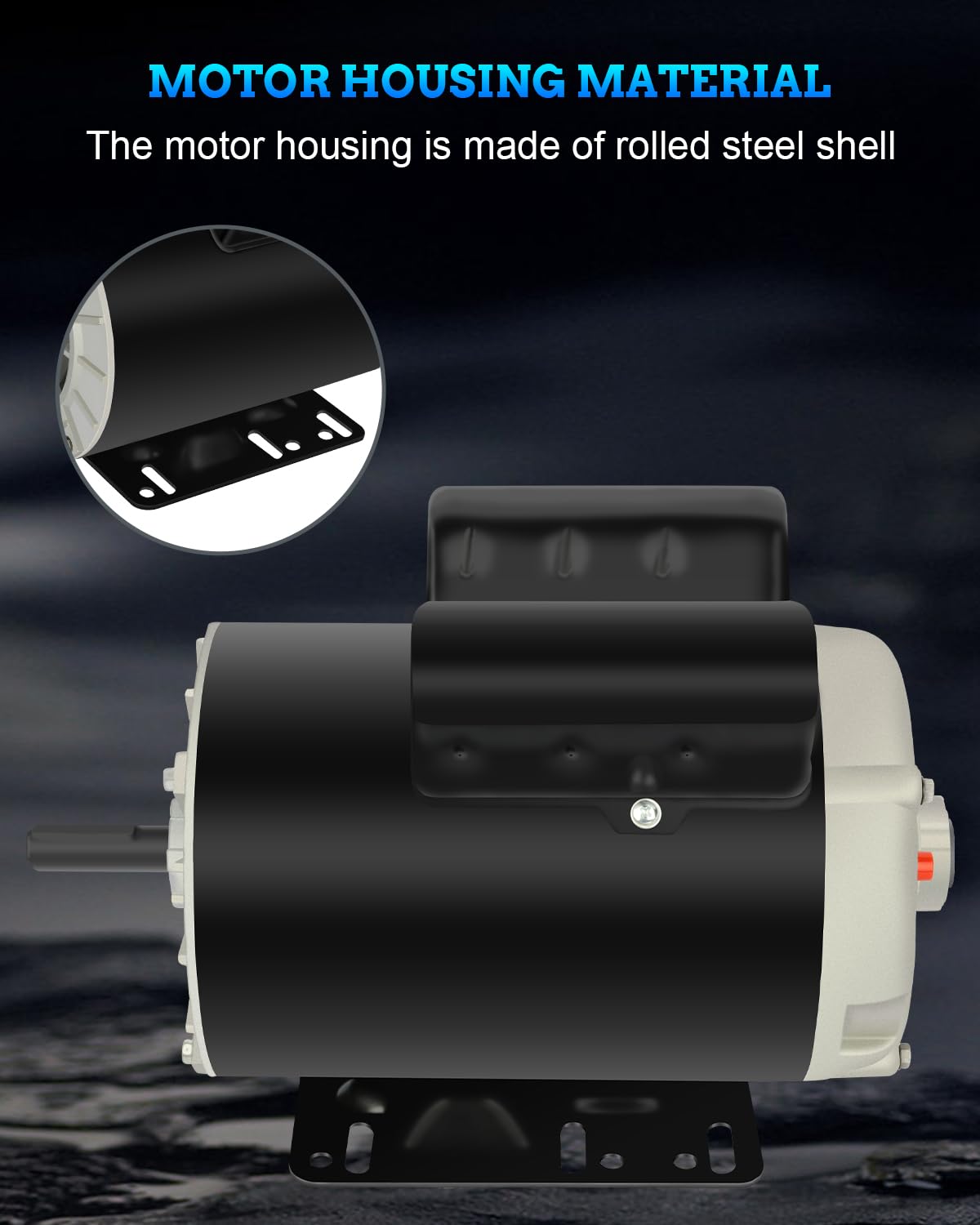

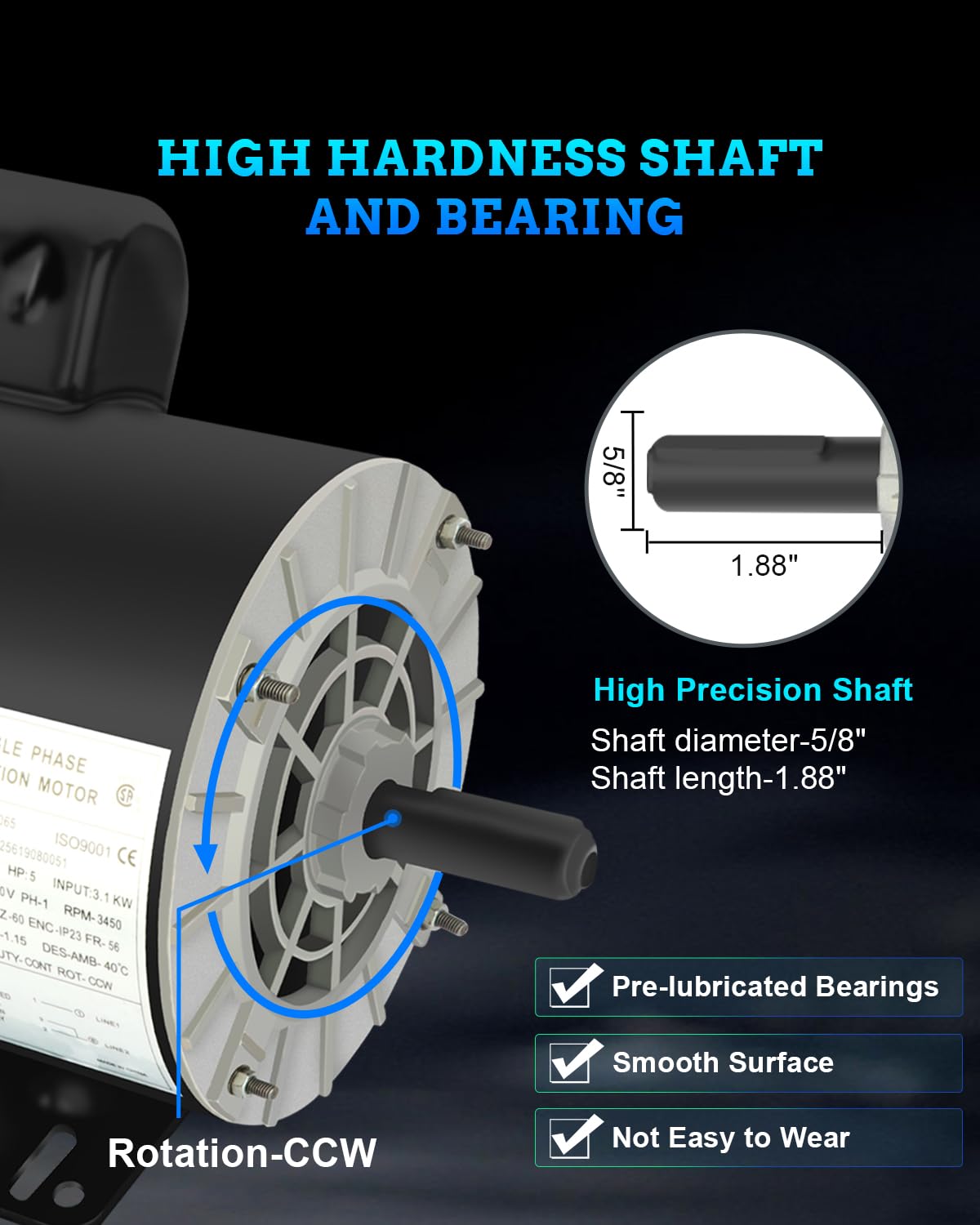

ELECTRIC MOTOR FRAME TYPE: 56 frame, Shaft diameter - 5/8',Shaft length - 1.88'. Rolled steel shell, safe and durable, long service life.

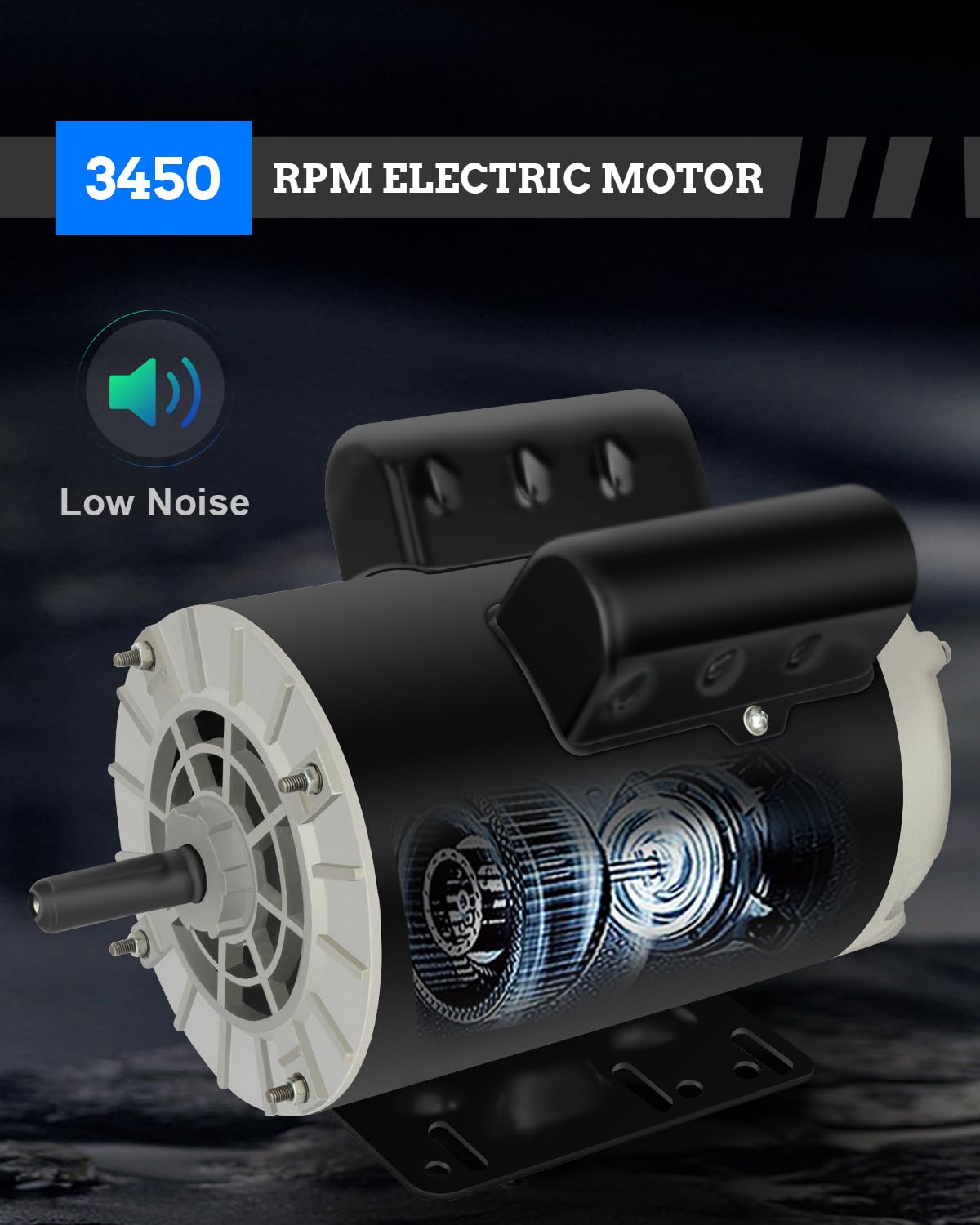

MOTOR ROTATION DIRECTION: The 3450 rpm single phase motor rotation is CCW, following the provided wiring diagram for easier operation.

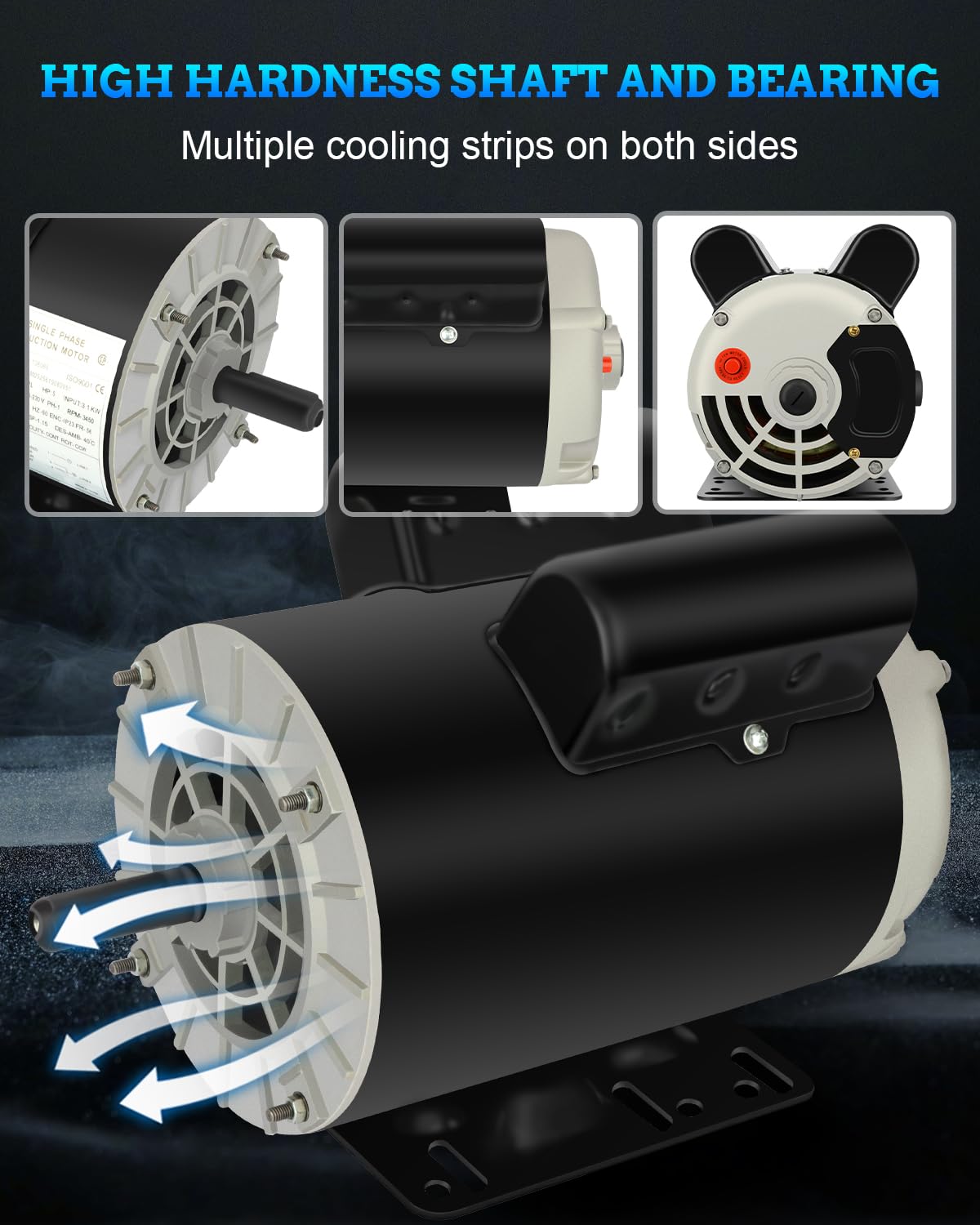

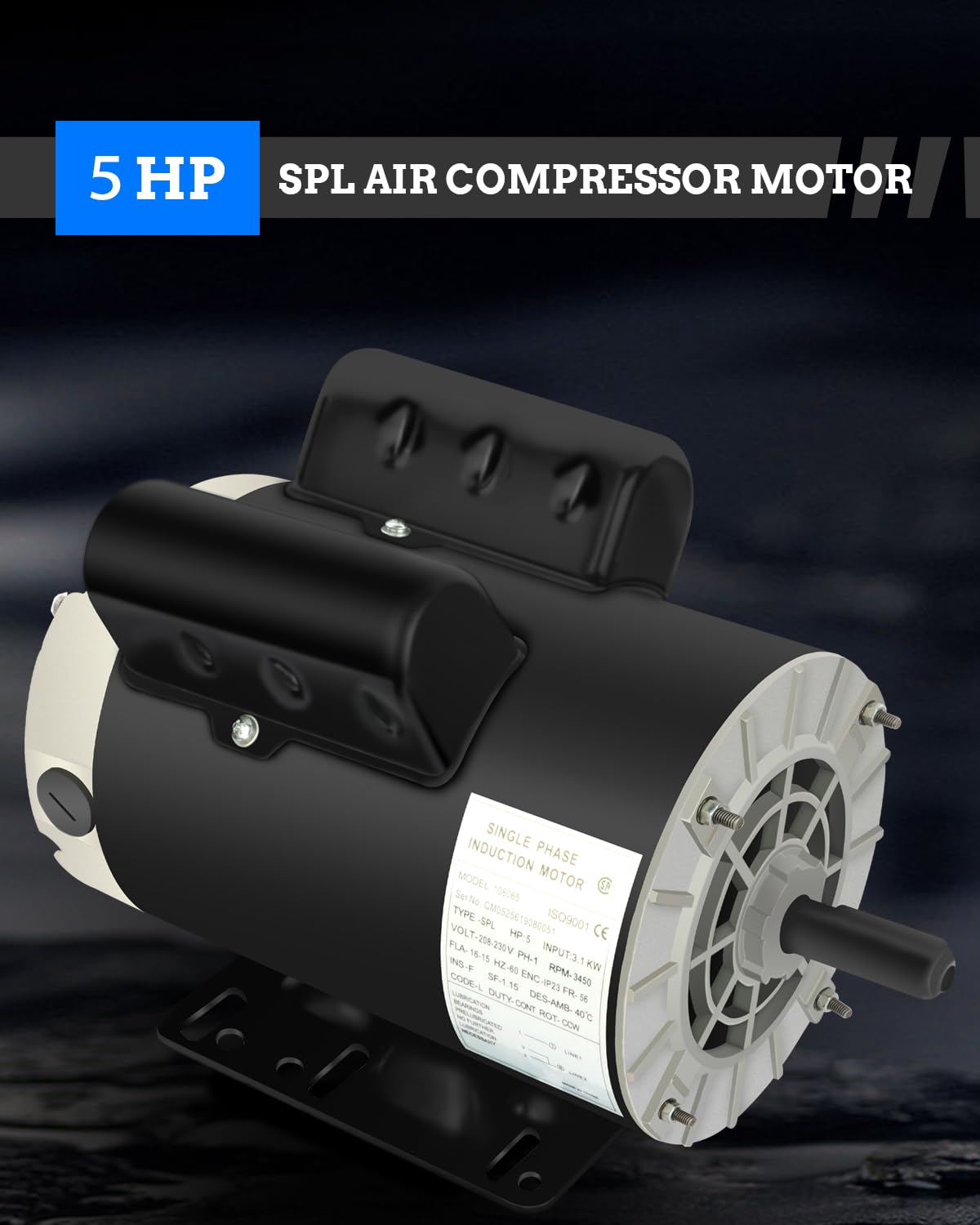

SPECIAL DESIGN: 5HP SPL electric motor is air compressor motor that only can be used in air compressors and is CSA certified. Rolled steel housing, fast heat dissipation, compatible with keying shaft, long-term use.
