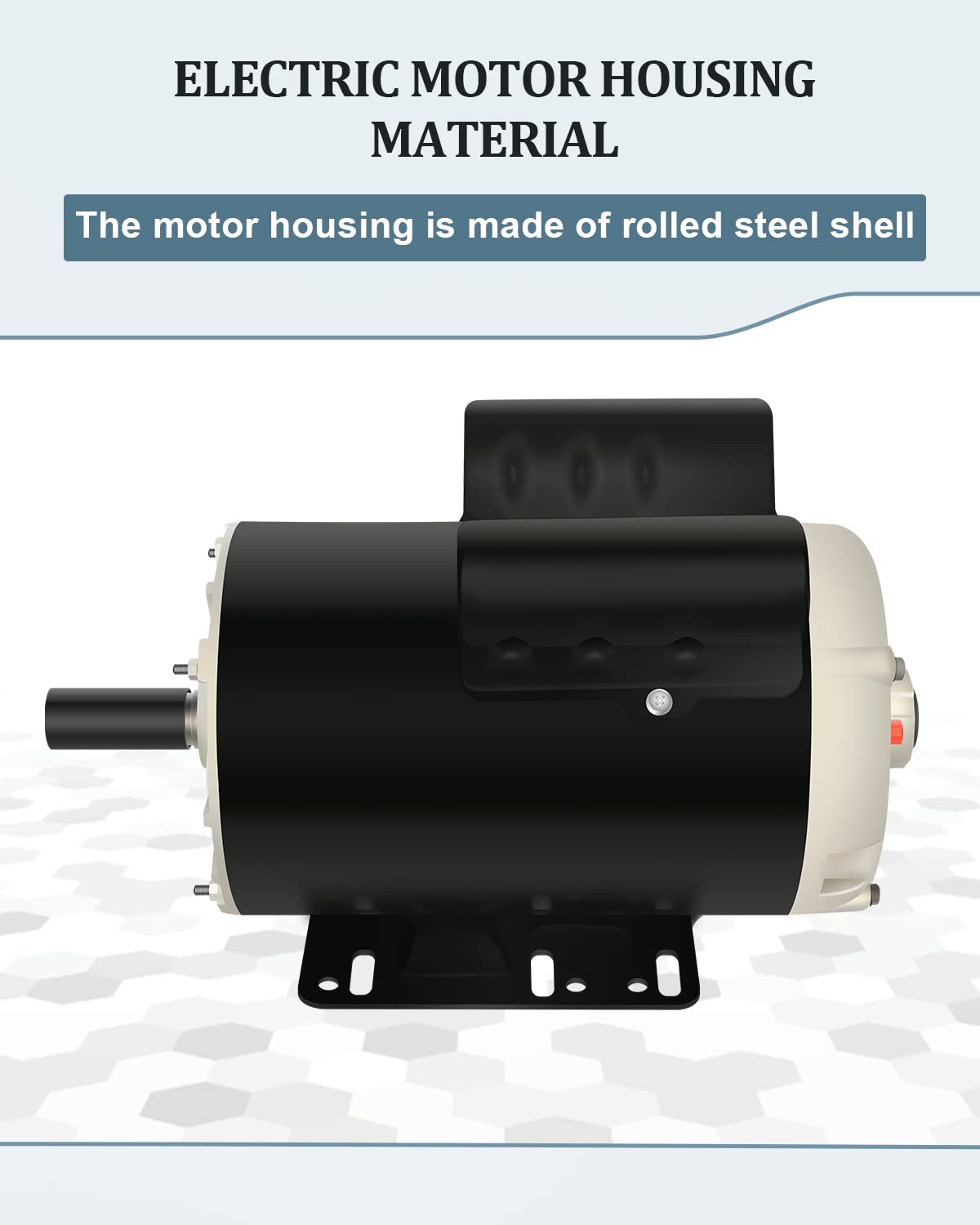

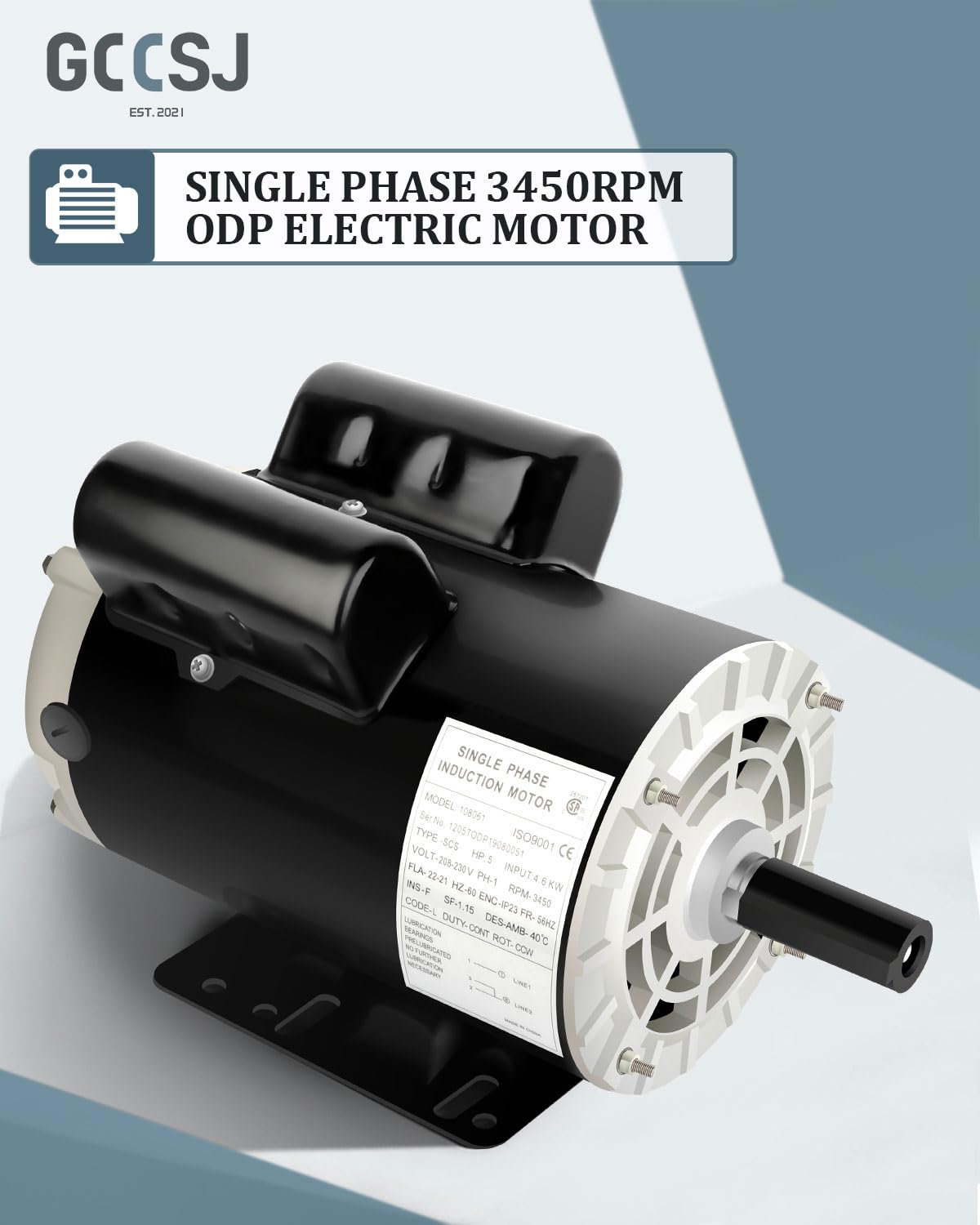

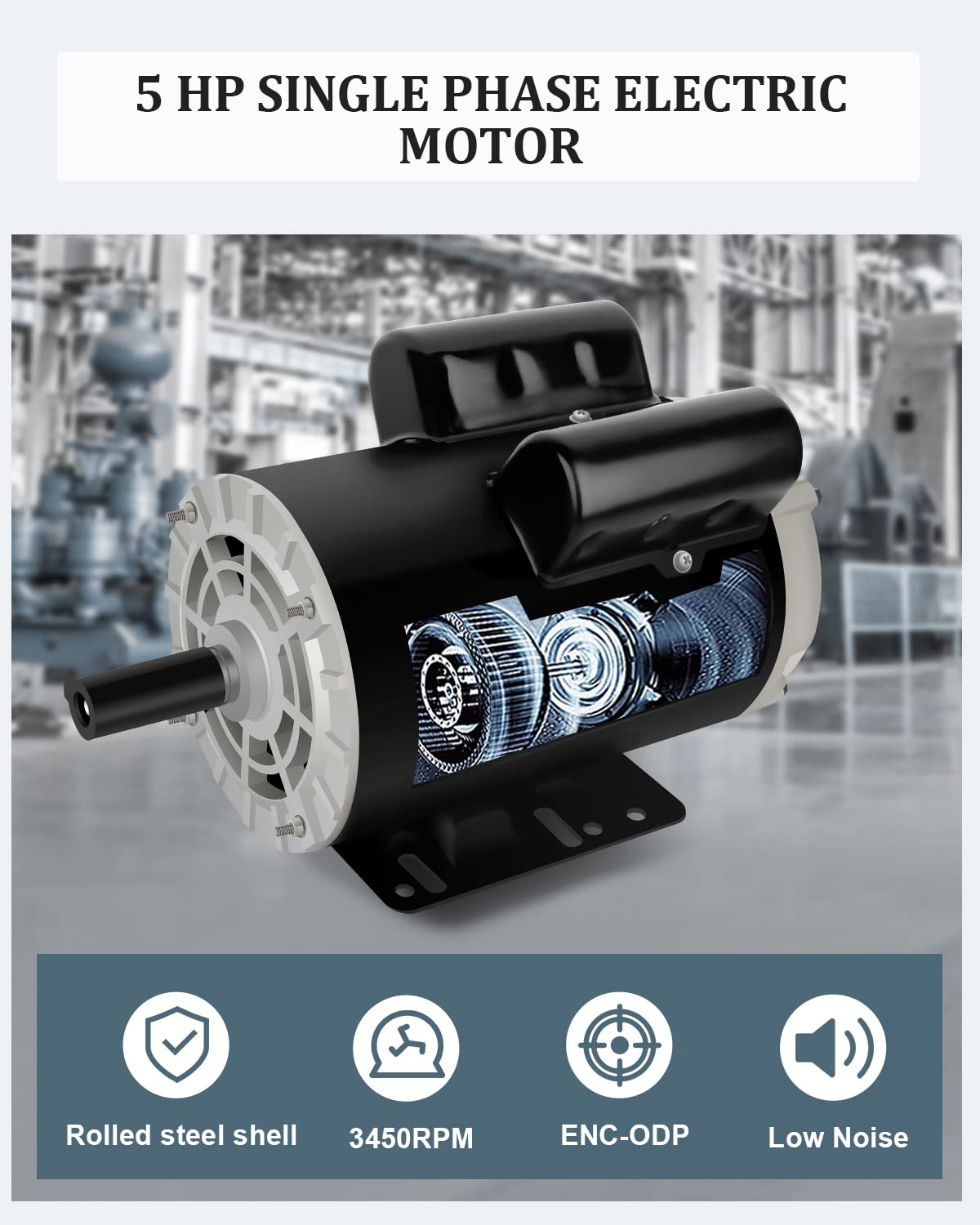

Electric Motor Material: The 5hp motor housing material is made of rolled steel shell. POLE - 2, FRAME - 56HZ, ENC - ODP, IP - 23, HZ: 60Hz, Voltage: 208-230V, AMP: 22.0-21.0A, RPM: 3450.

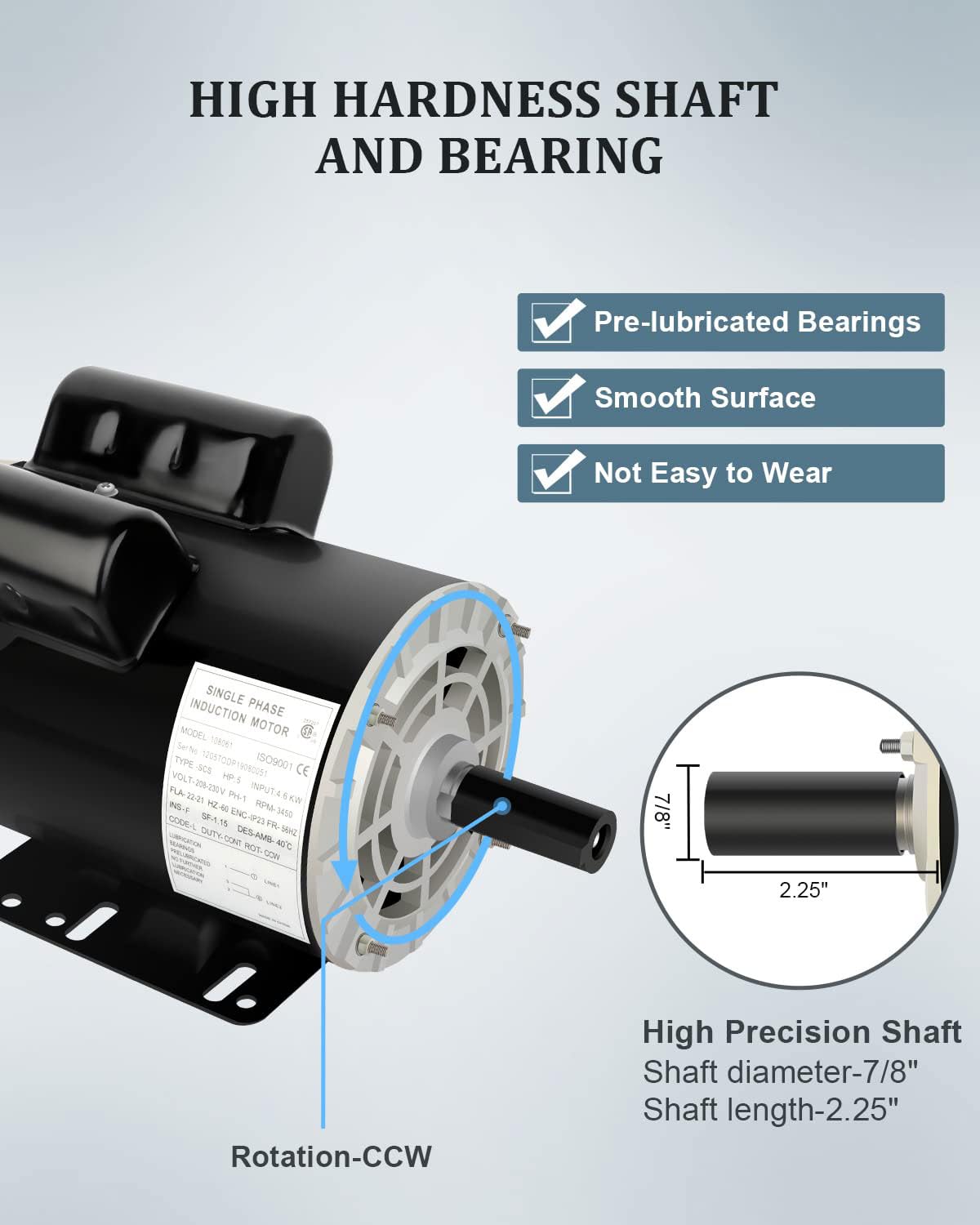

Overload Heat Protector: The heavy duty motor adopts manual reset knob to prevent overload at high temperature. Lower starting amperage design ensures lower starting voltage at rated load. INS - B, Rotation - CCW, Shaft diameter - 7/8',Shaft length - 2.25'.
Powerful AC Motor: The electric optimized slot matches the specially designed rotor, which makes the motor noise lower. Open drip-proof is better used in environment that are relatively clean and dry environments.

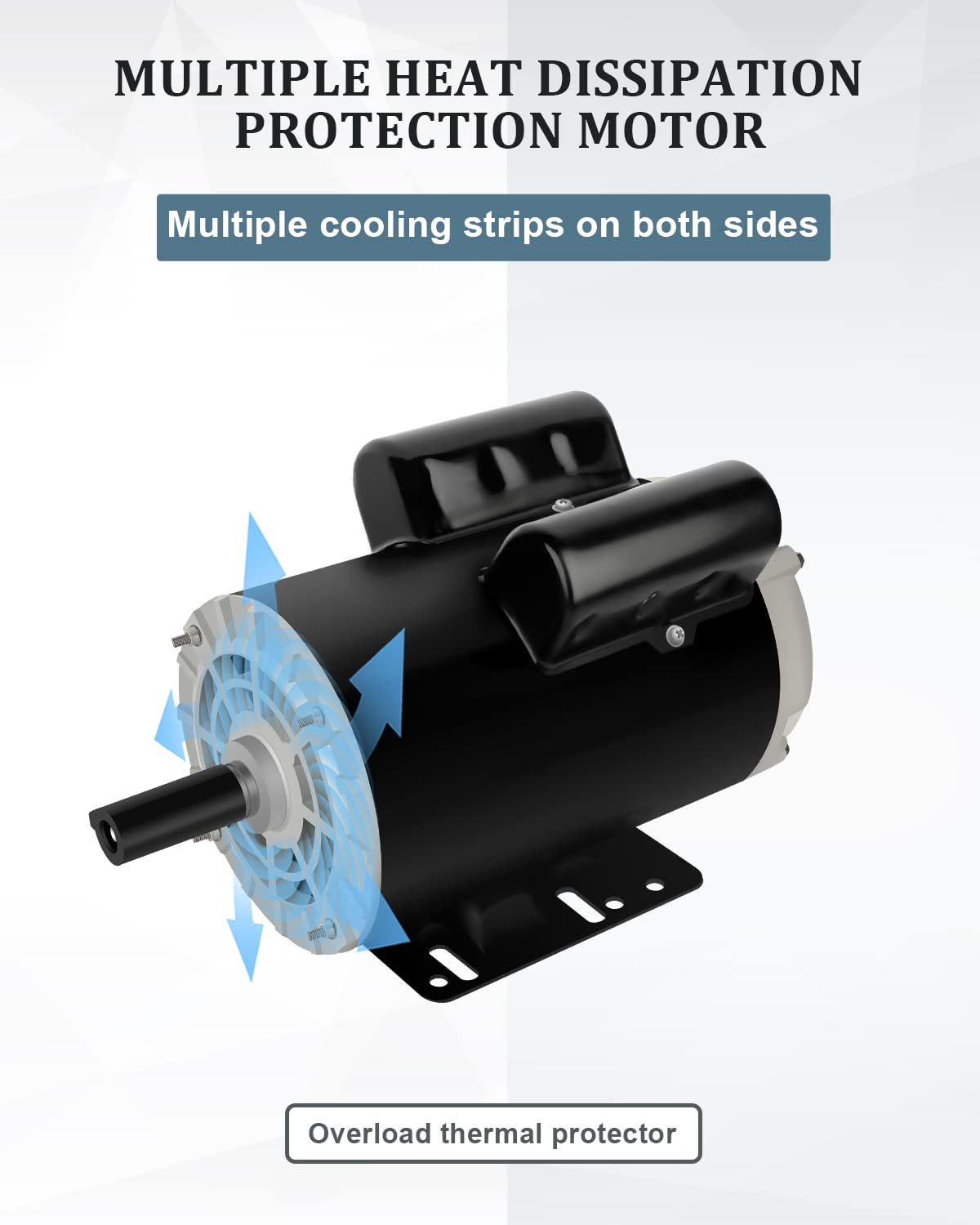

Multiple Heat Dissipation Holes: 5HP Air compressor motor has multiple heat dissipation strips for efficient heat dissipation. It can also prevent chips and objects from falling into the motor and causing accidents.
Designed for AC Motors: Open type drip-proof motor is more suitable for use in relatively clean and dry environment. Designed for air compressor load use. Please purchase the motor according to the specific needs of the compressor.
