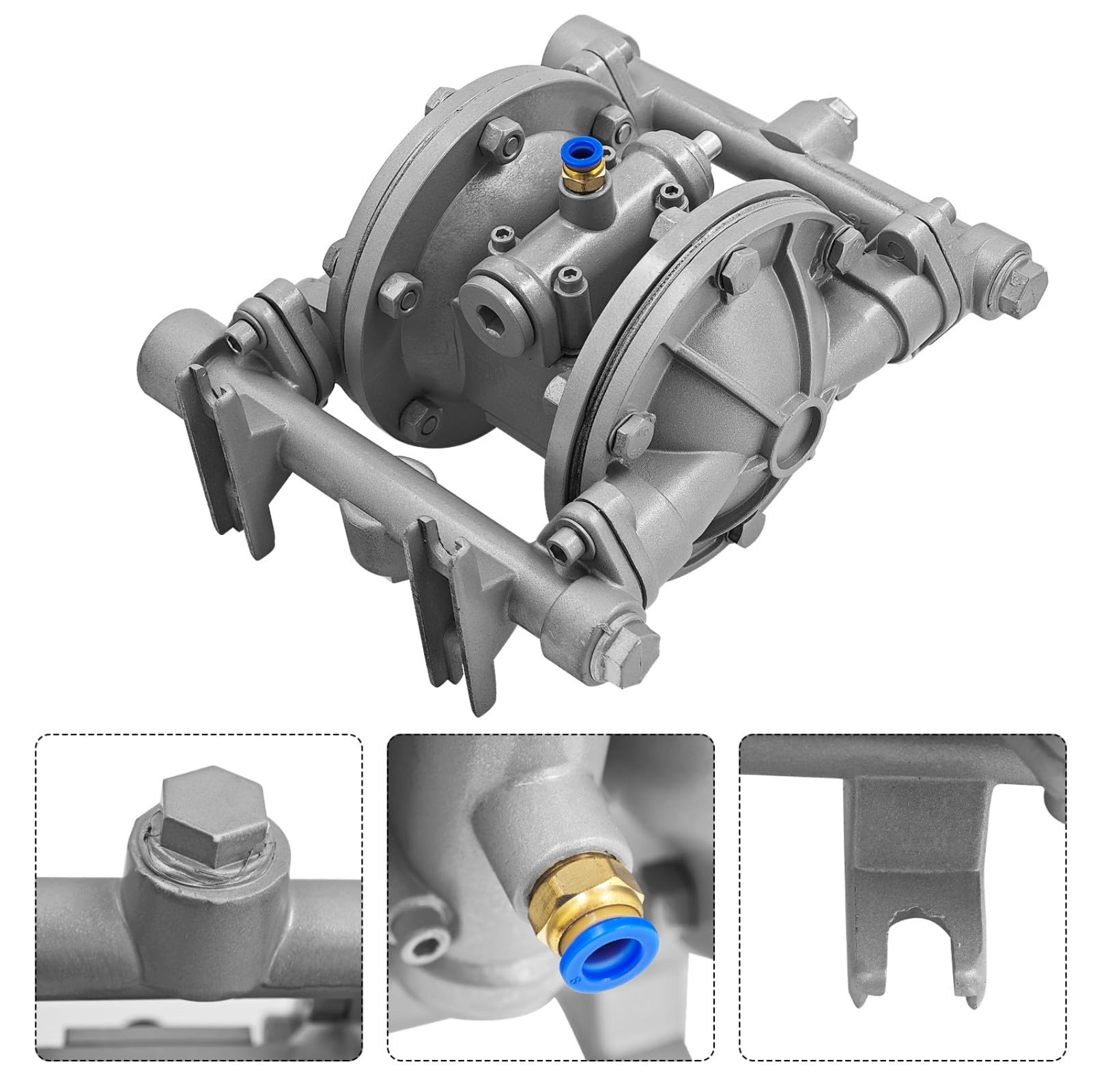

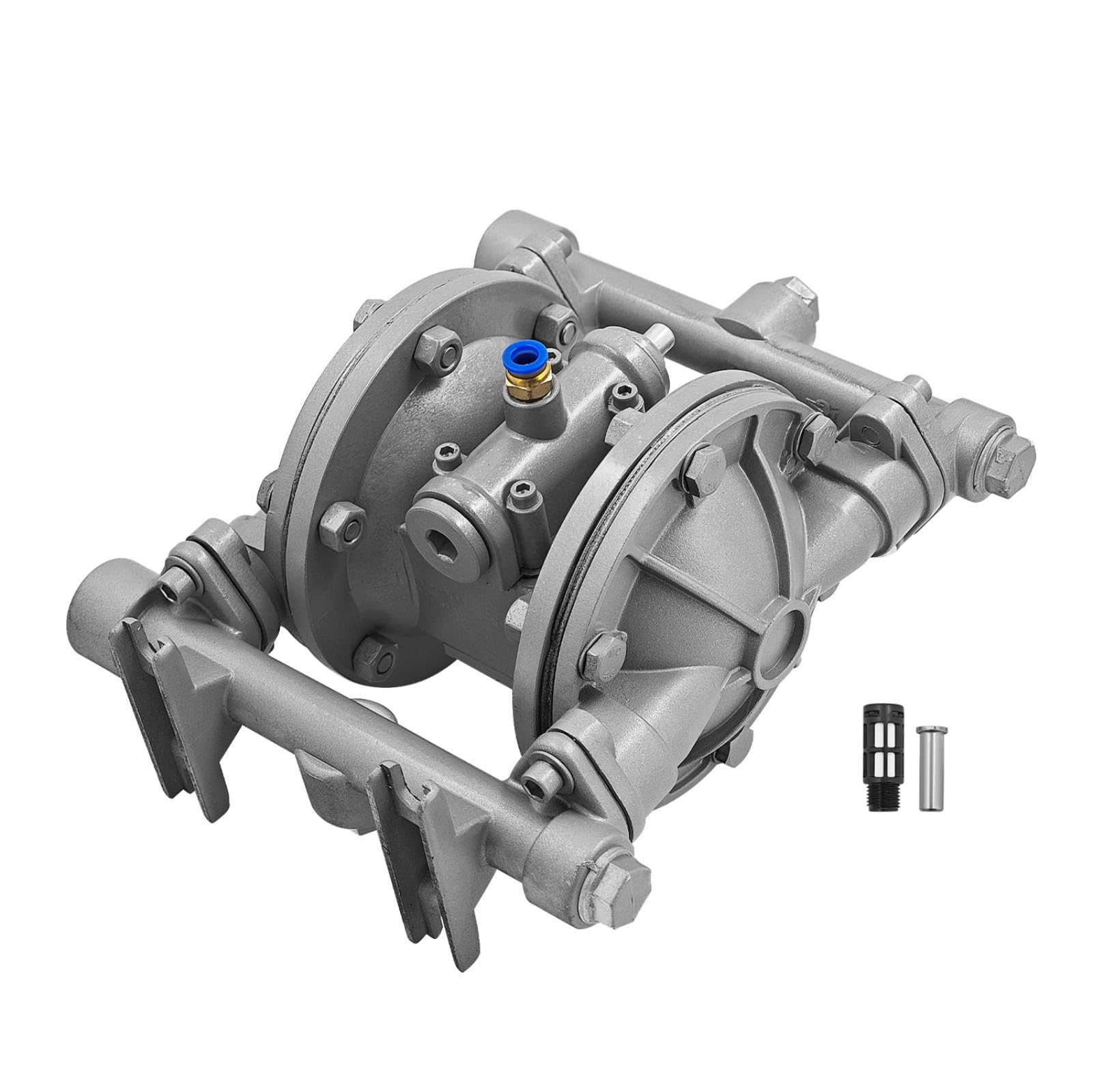

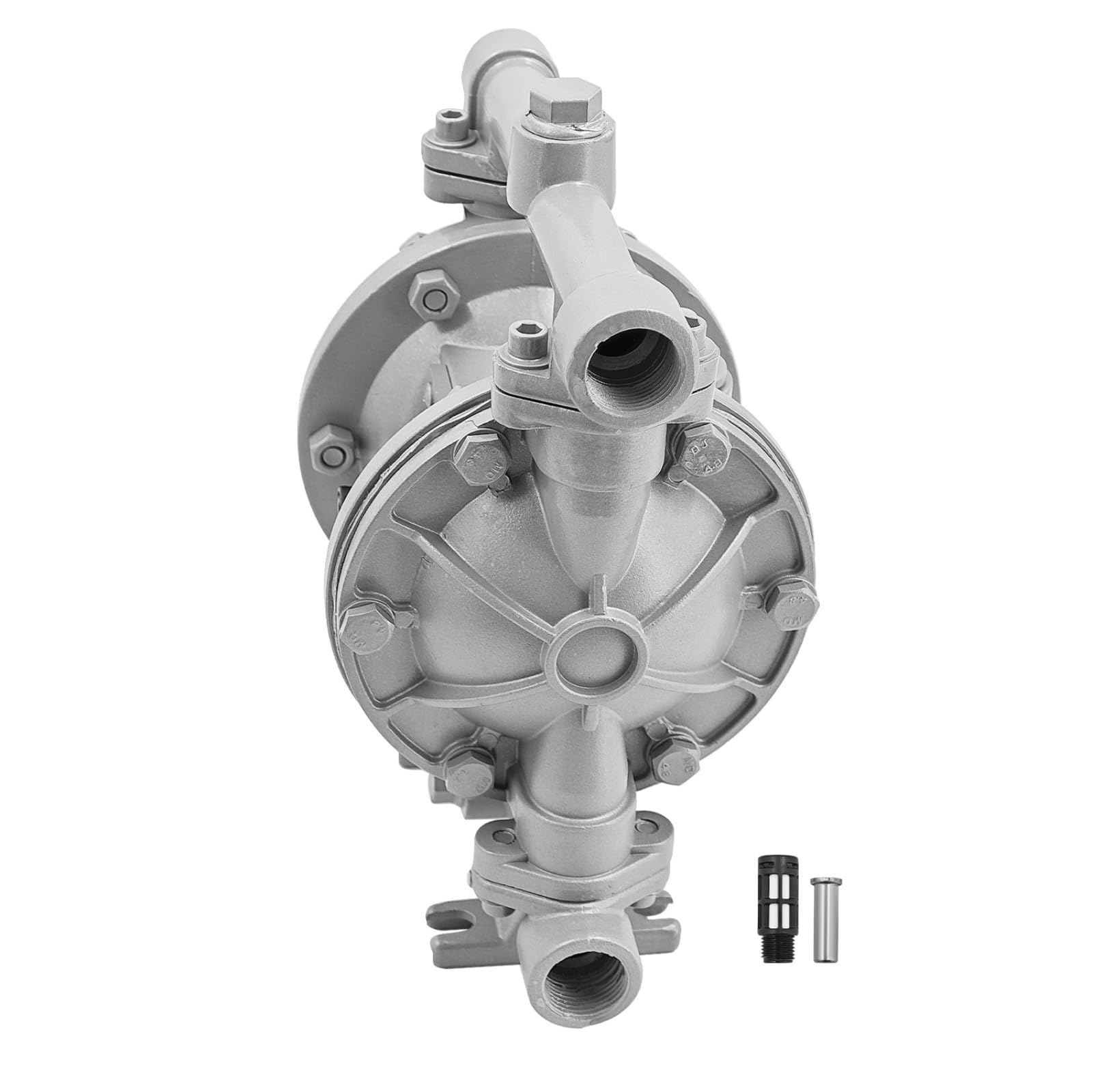

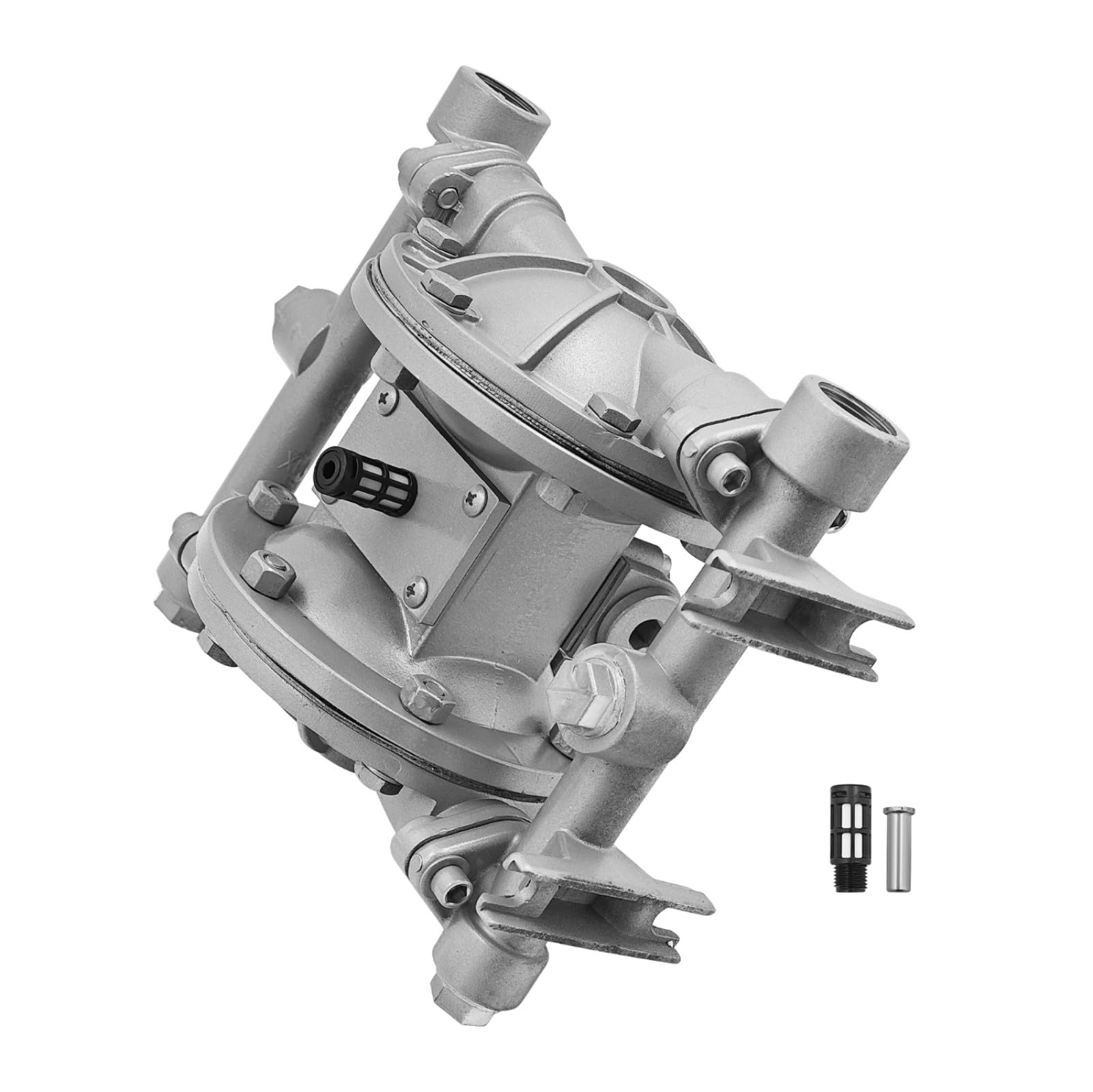

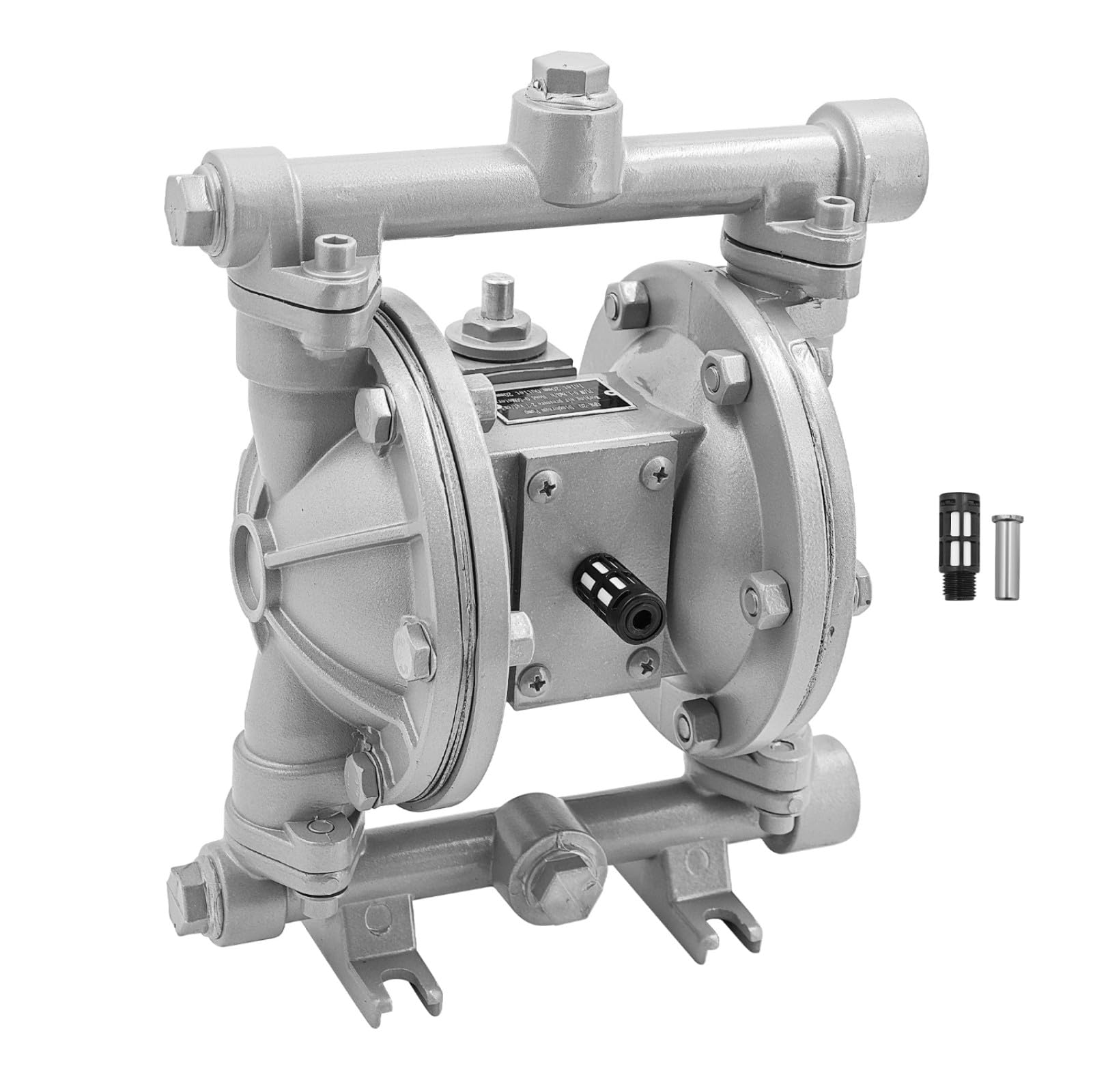

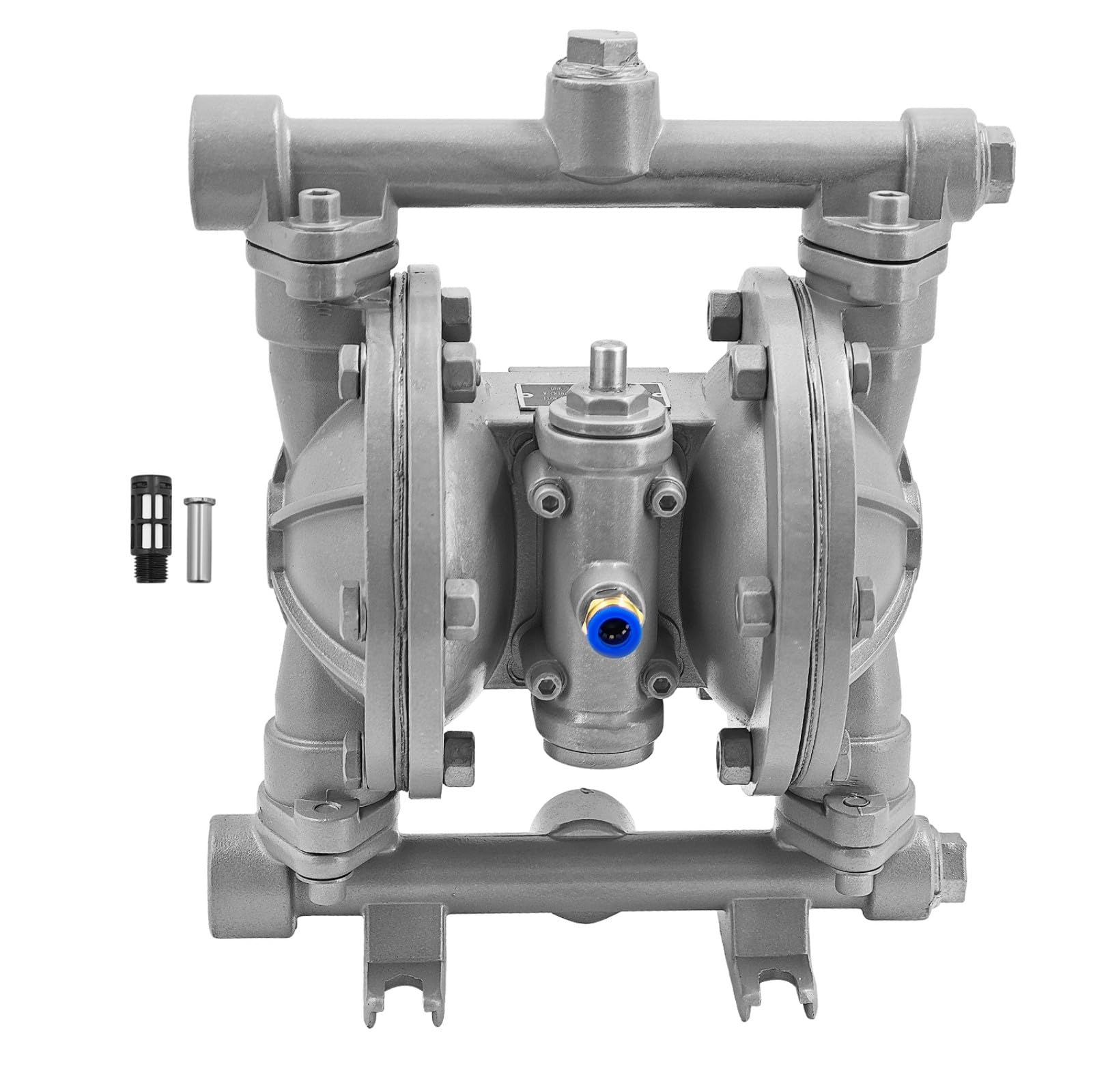

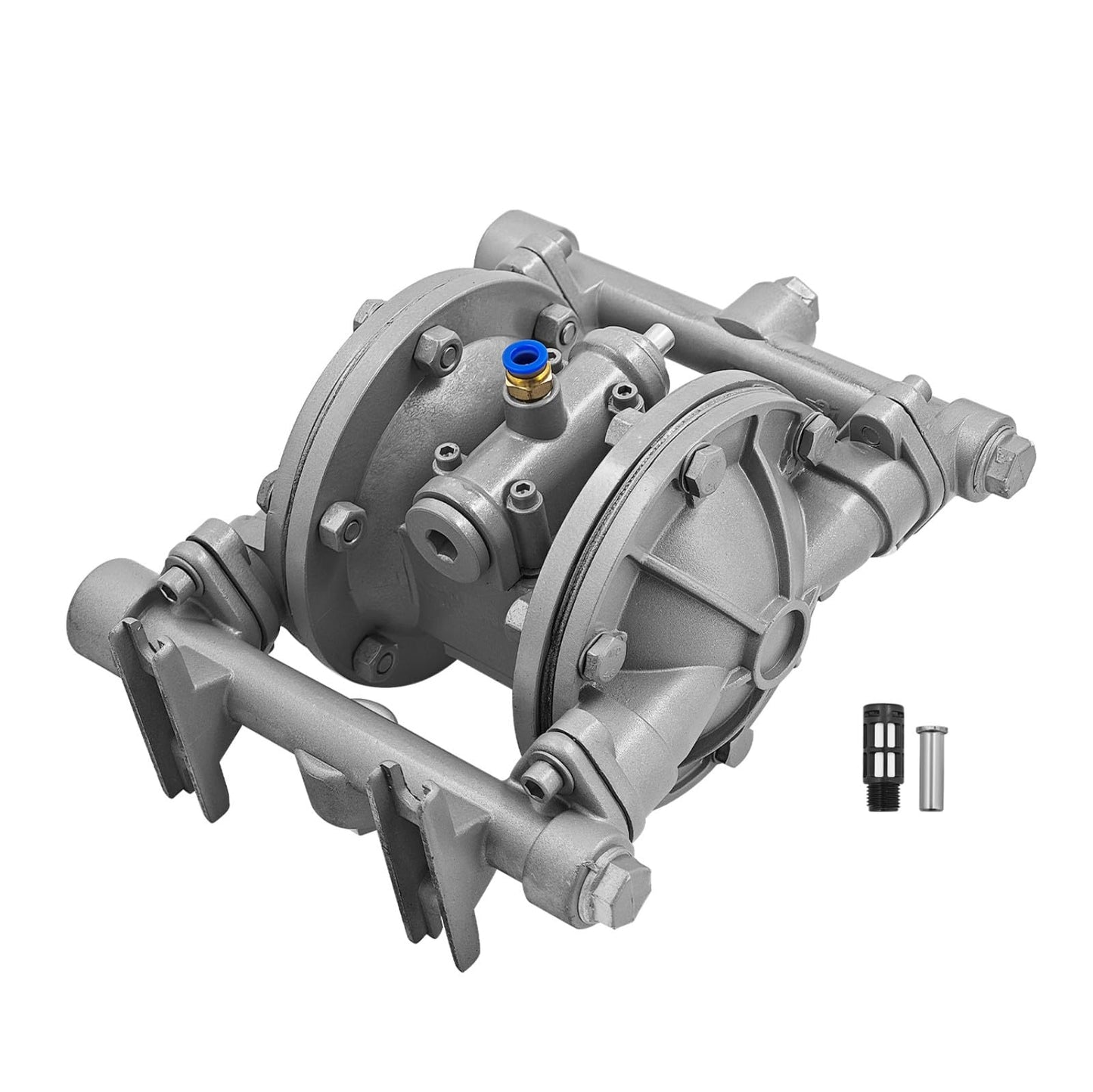

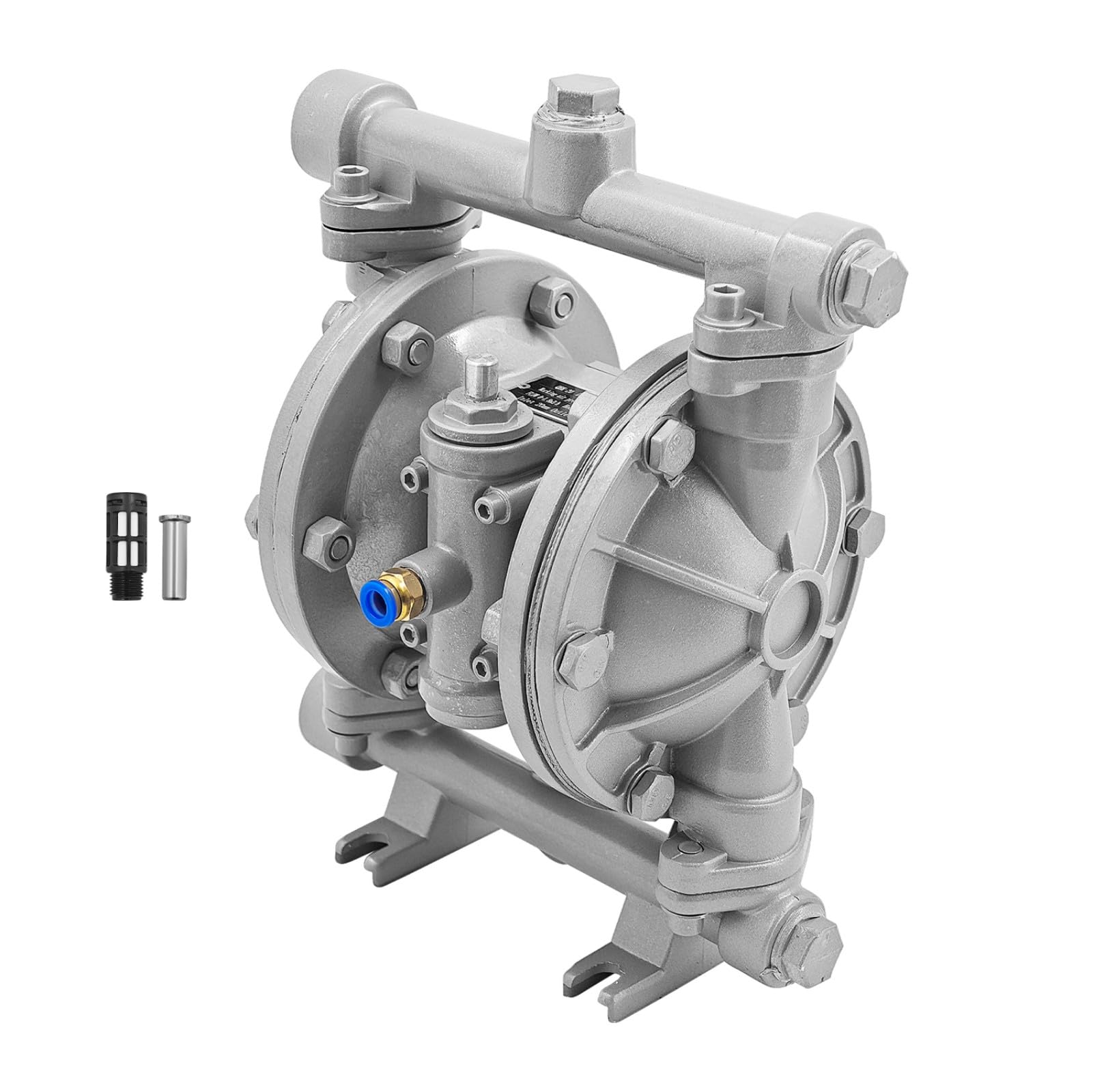

Air Operated Double Diaphragm Pump 1/2 inch Inlet/Outlet Max 115PSI Pneumatic Waste Oil Transfer Pump 16 GPM/60 LPM Replace#DP34-001

Brand: QuenPenge

Color: Silver

Features:

• Replace Part Number: DP34-001. Inlet/Outlet Port Size: 1/2” NPT ; Air Inlet Size: 1/4” ; Flow Rate: 16 GPM (60 LPM) ; Maximum Head: 164 ft ; Maximum Suction Height: 10 ft ; Maximum Working Pressure: 115 PSI ; Maximum Temperature: 140℉ (60℃)
• Excellent Air-Operated Design: 1/2 inch NPT Inlet/Outlet Port Size; 1/4 inch Air Inlet Size. Precision-engineered double-acting seals ensure smooth airflow and reliable pumping under varying pressures.
• Sturdy Leak-Proof Construction: Built with a durable aluminum pump body and nitrile diaphragm, forming a tightly sealed structure that helps prevent leaks during operation. The separated air and fluid chambers improve reliability and ensure safer, long-term use
• Package Contained: 1*Air Operated Double Diaphragm Pump
• After-Sales Support: If you have any questions during the process of using this product, we provide 12-Months After-Support for our items

model number: DP34-001

Part Number: DP34-001

Details: Replace Part Number:
DP34-001.

SPECIFICATIONS:
Inlet/Outlet Port Size: 1/2” NPT ;
Air Inlet Size: 1/4” ;
Flow Rate: 16 GPM (60 LPM) ;
Maximum Head: 164 ft ;
Maximum Suction Height: 10 ft ;
Maximum Working Pressure: 115 PSI ;
Maximum Temperature: 140℉ (60℃)

Package Contained:
1*Air Operated Double Diaphragm Pump

Package Dimensions: 14.0 x 10.0 x 8.0 inches
