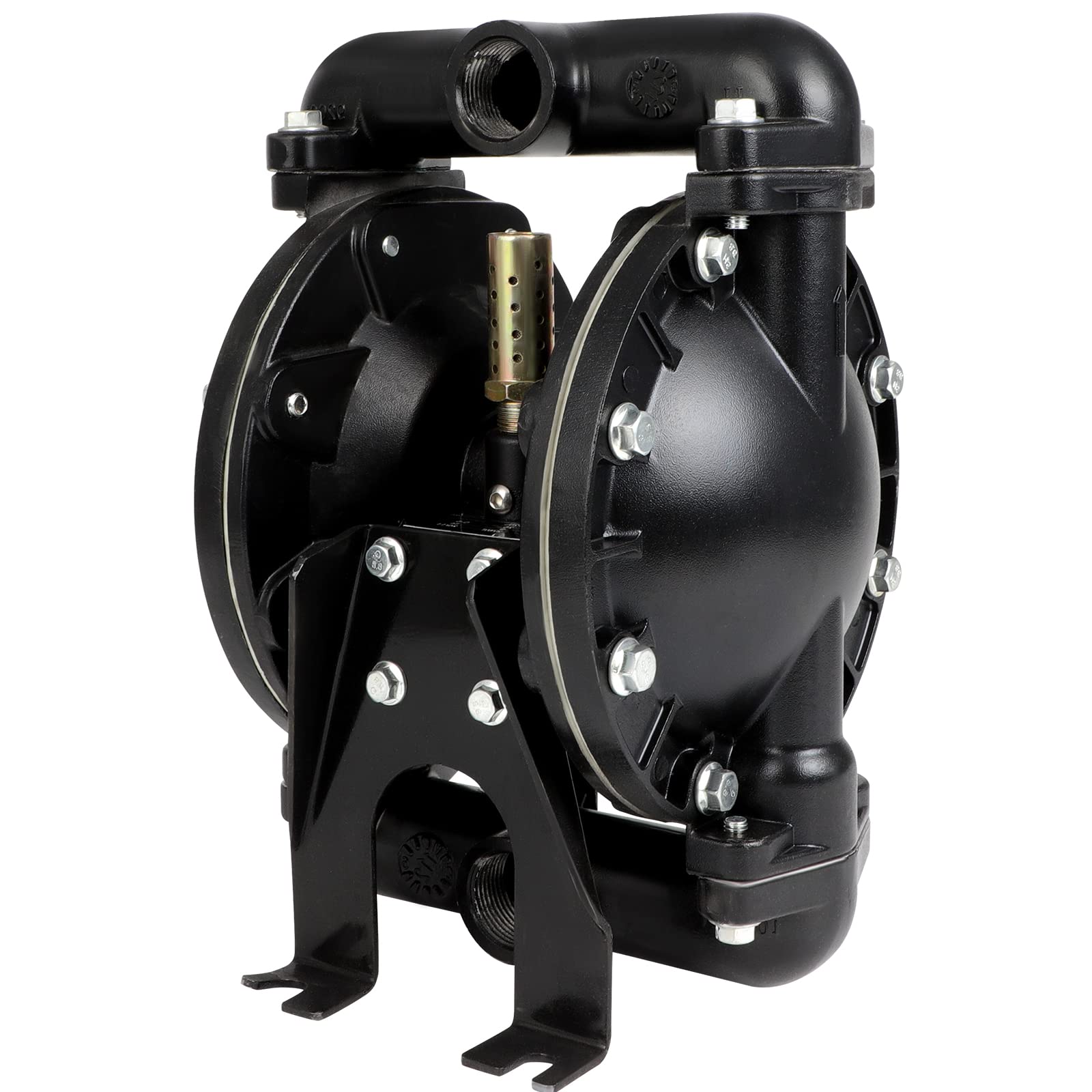

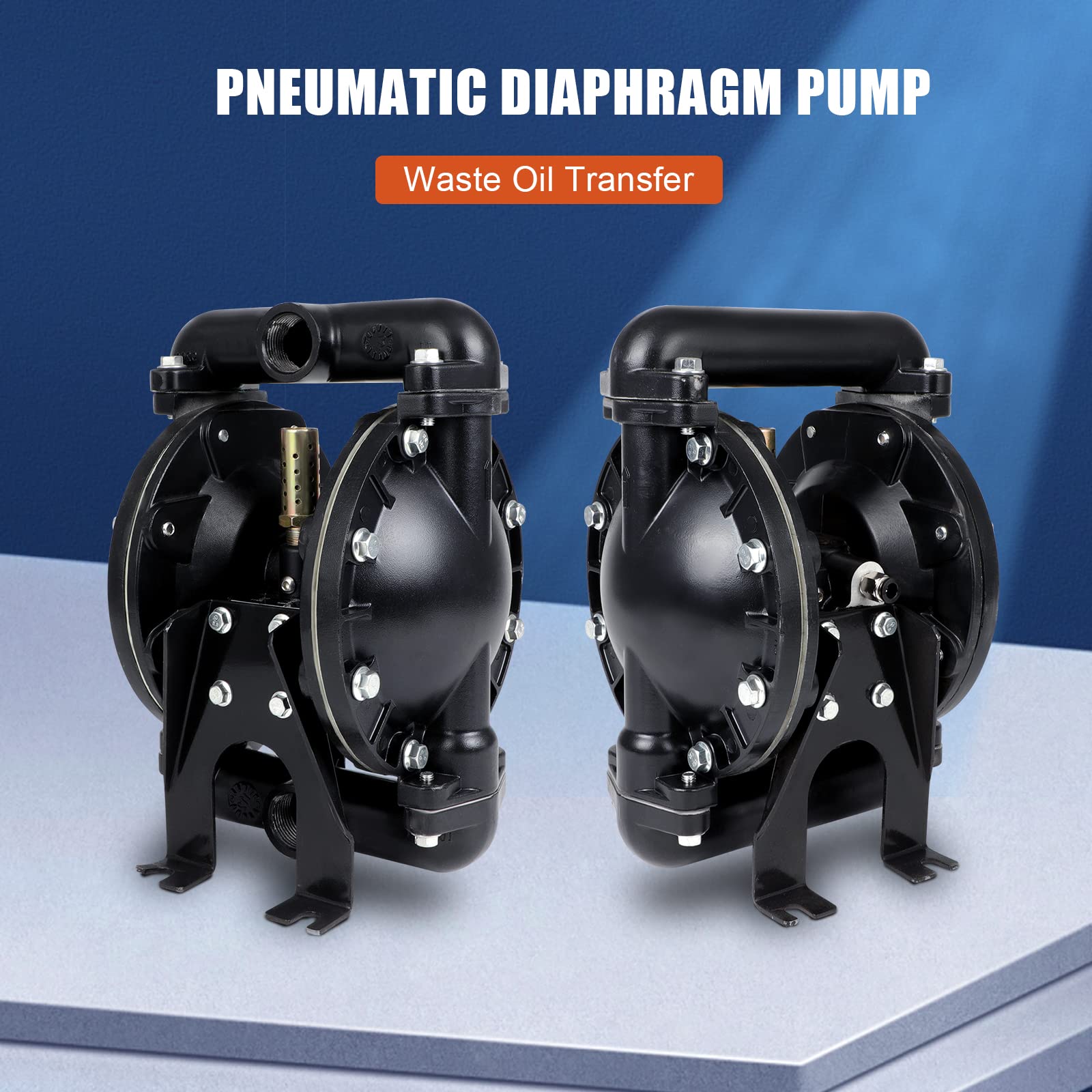

Air Operated Double Diaphragm Pump Pneumatic Waste Oil Transfer Pump for Chemical Dual Diaphram Polypropylene Nitrile Rubber by Stainless Steel Plastic (black, 1/2 inch Inlet)

Brand: FAHKNS

Color: Black

Features:

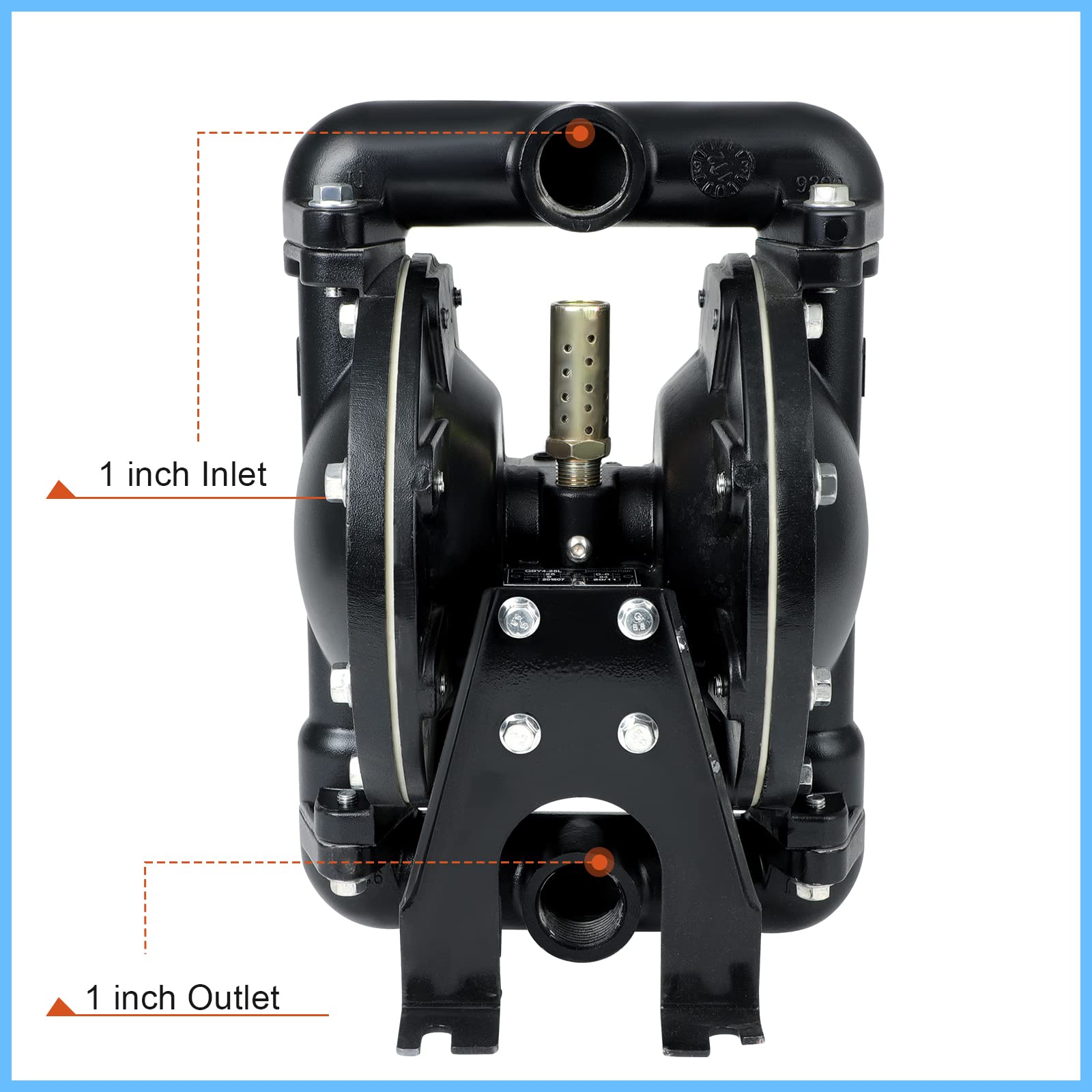

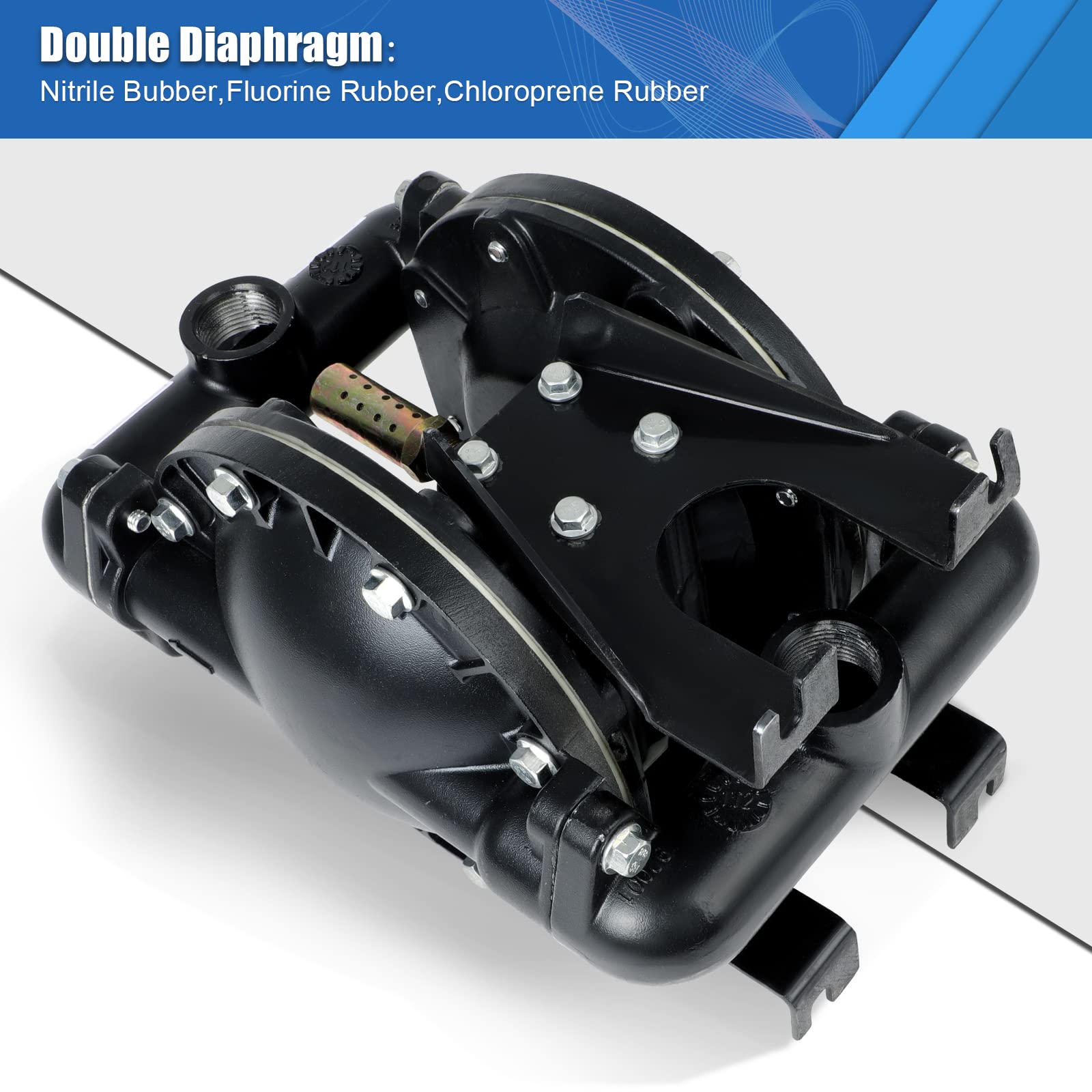

• INDUSTRIAL QBY4-25L：Material:aluminum; Dissepiment Material:Nitrile Bubber,Fluorine Rubber,Chloroprene Rubber; Type: double diaphragm; Operation Type: Air-operated; Inlet/Outlet Port Size: 1 inch (25mm); Air Inlet Size: NPT 1/2 inch (12.7mm); Flow Rate: 35 GPM; Max Head Lift: 275 ft(84 M); Suction: 23 ft(7M).Can not use for corrosive liquid.
• MAXIMUM HEAD：Air-Operated Double Diaphragm Pump have top quality, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation.275.59FT/84M, Max Temp : 150 ℉, Max Pressure: 120 PSI.

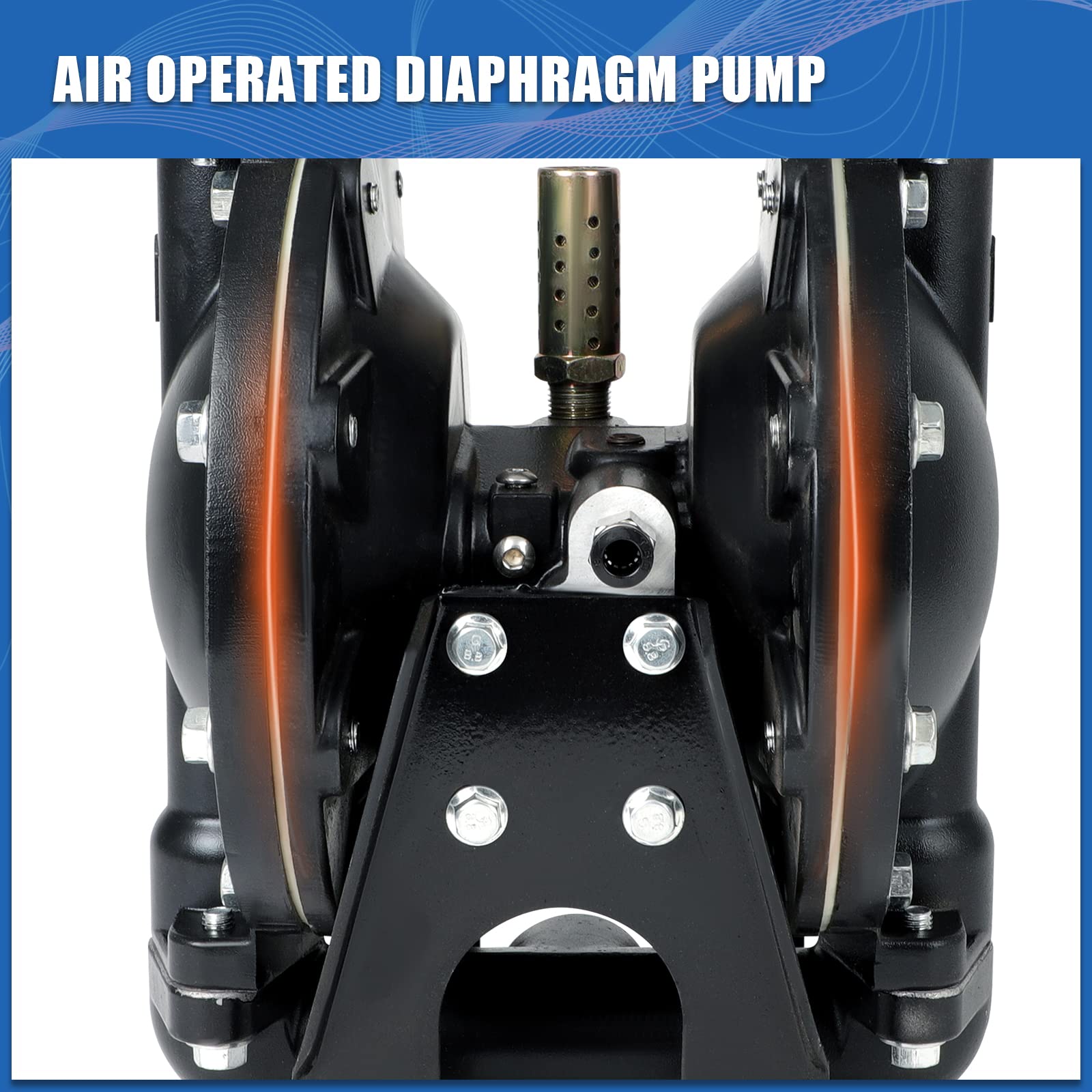

• EXCELLENT PERFORMANCE：Double Diaphragm Pump features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.
• RUGGED CONSTRUCTION：Diaphragm Pump resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling.
• WIDELY USE：The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive etc.
• NOTE: Before using the diaphragm pump, please check whether all the screws are tightened or not, you need to tighten the screws before using the diaphragm pump, to prevent water leakage caused by loose screws.

model number: 167155167156147144-1

Part Number: Air Operated Double Diaphragm Pump

EAN: 0840366421558

Package Dimensions: 15.2 x 11.6 x 10.0 inches
