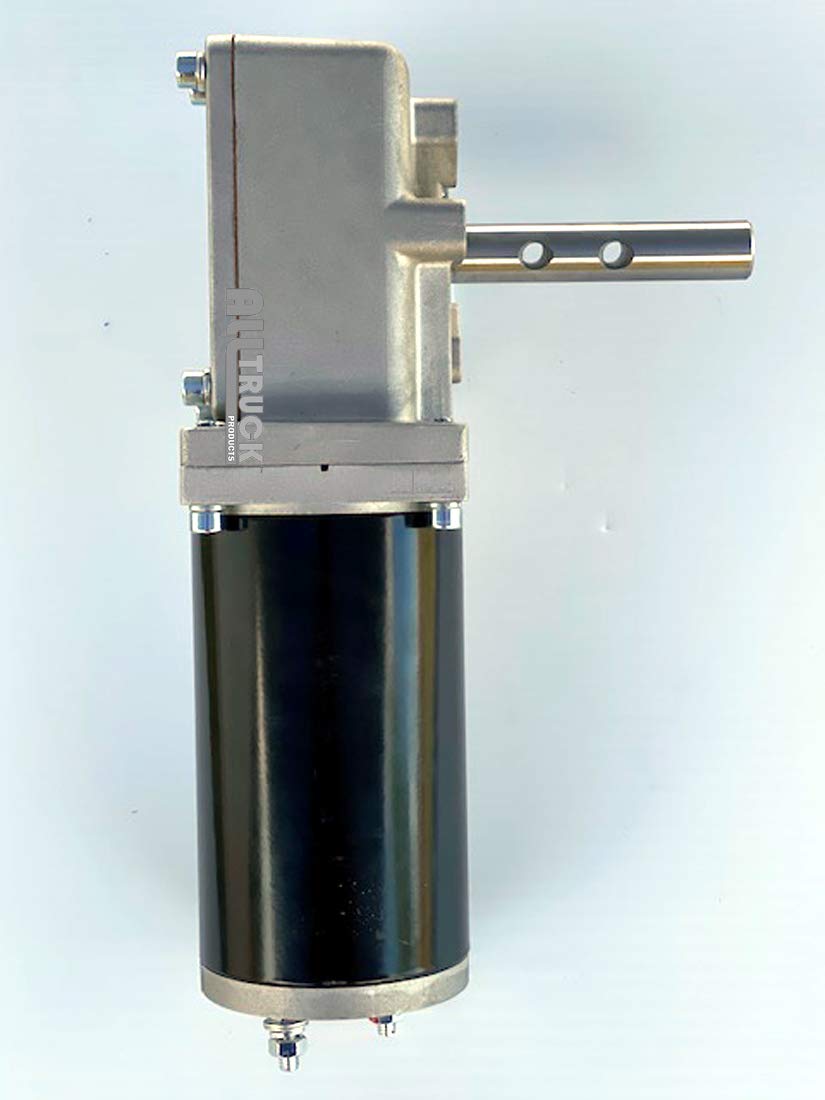

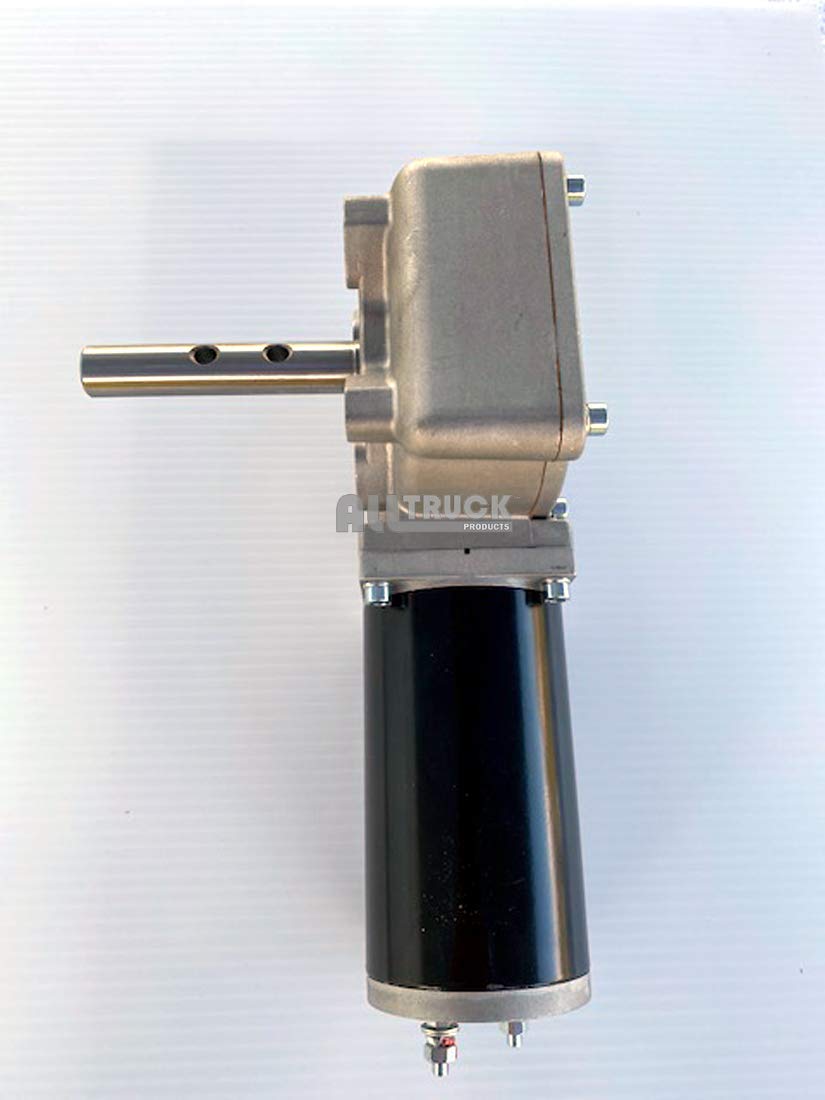

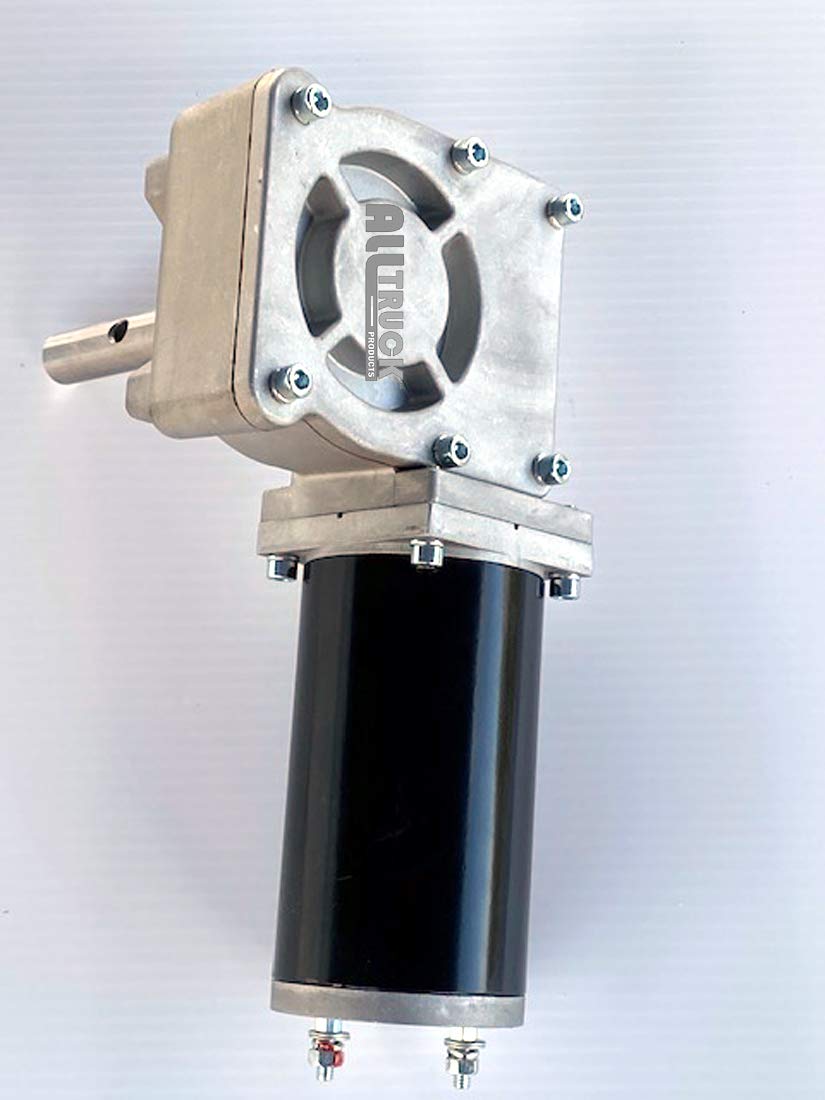

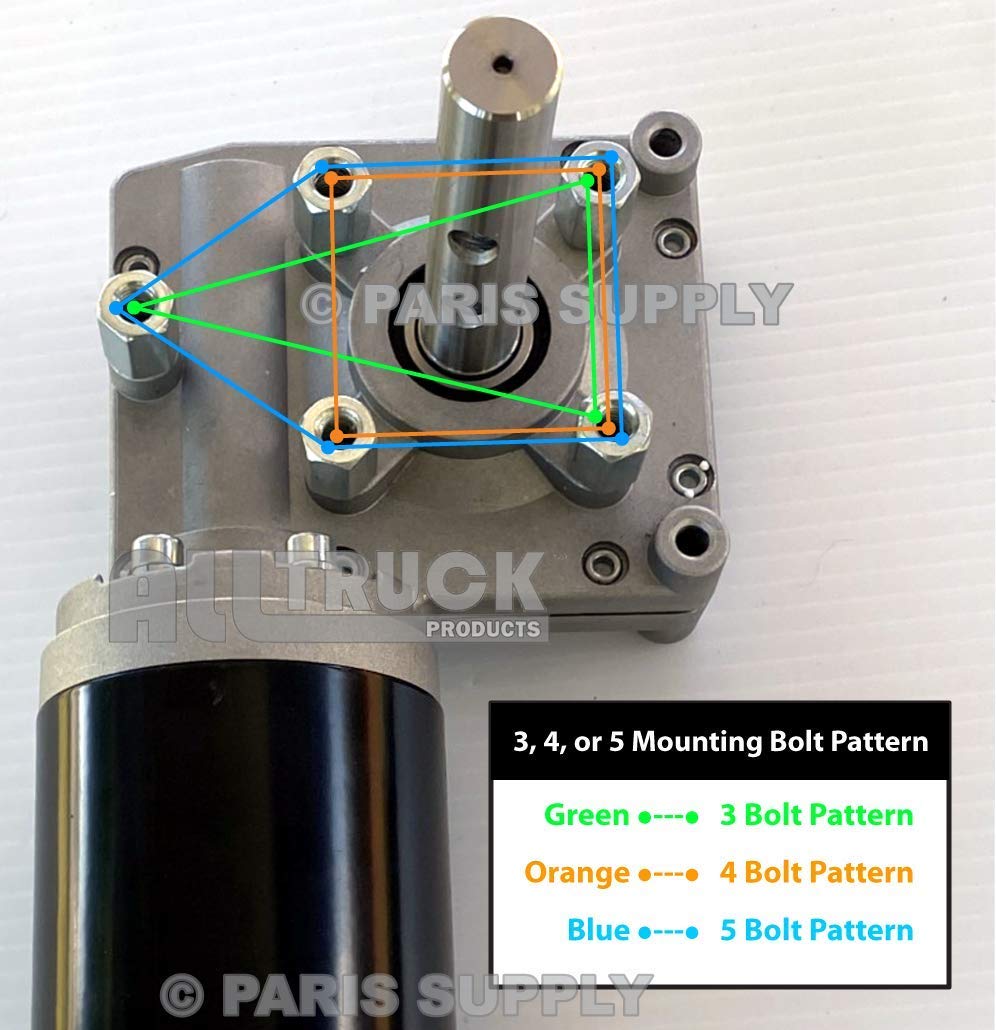

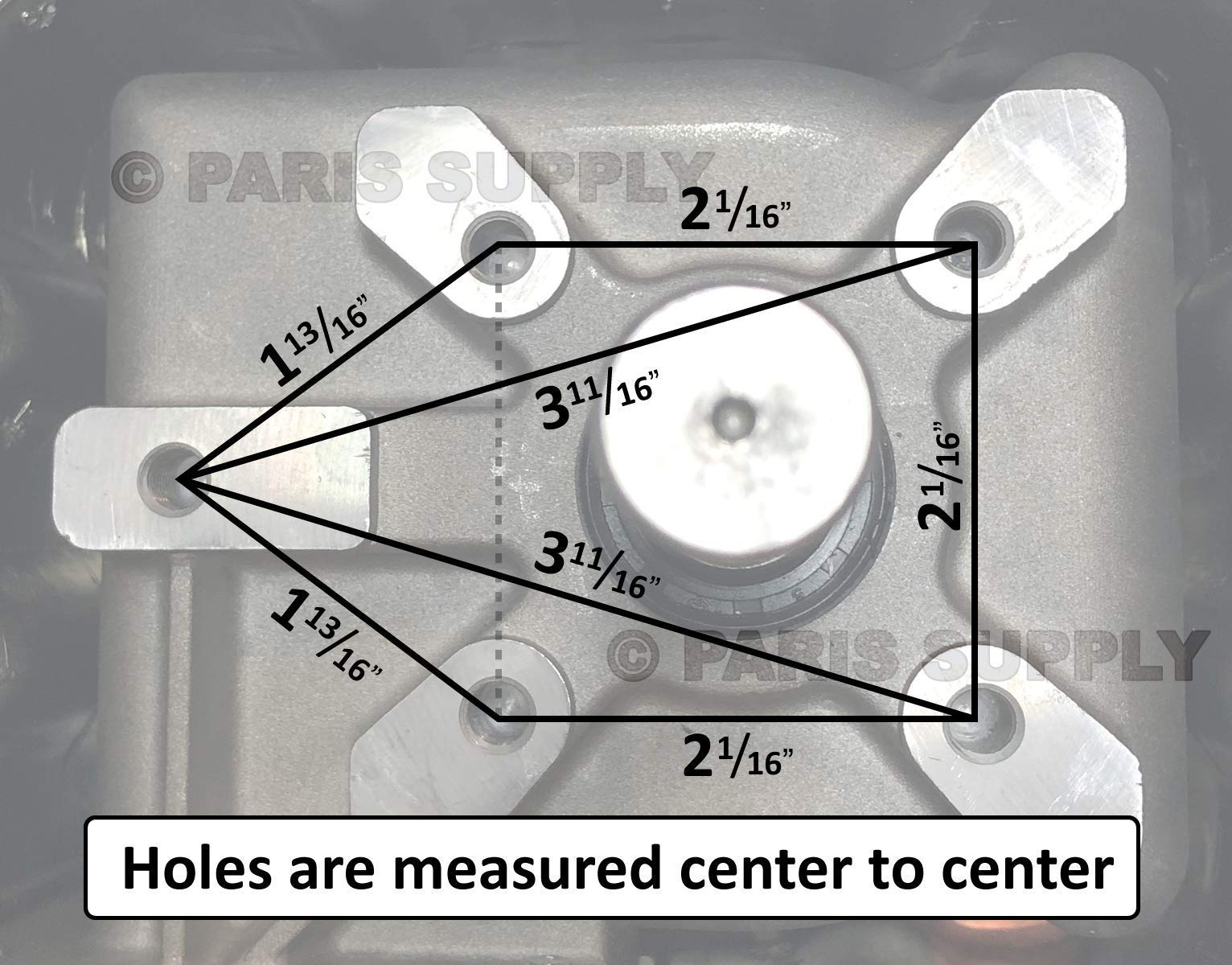

Our STRONG 1200-WATT tarp motor has a 5 Bolt Pattern that will work with 3 or 4 bolt system for Easy Mounting. It has a 90:1 Gear Ratio, Sealed Worm Gear with universal 3/4' x 4' Shaft with 2 holes (one at 1” and the second at 2”) for thru bolts
UNIVERSAL FIT for Dump Bodies up to 40 feet and works with most Electric Tarp Systems, Replaces: Roll Rite, Donovan, Tarping Systems Inc, Kym Industries, TarpUSA, Aero, US Tarp, Buyers, Pull Tarp, Mountain Tarp
One of the Strongest Tarp Motors on the market! 12 VDC, 2 HP, 1200-WATTS, 40 AMPS, Reversing Gear Motor, 50 NM Operating Torque

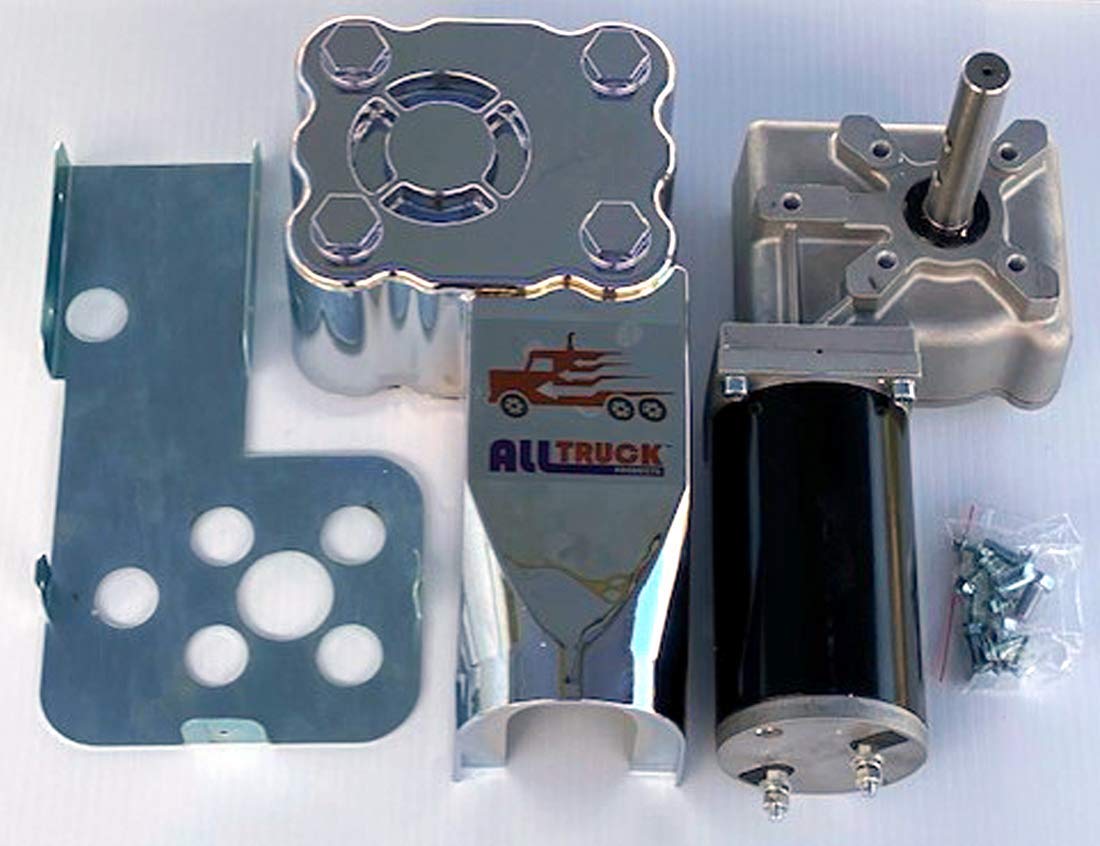

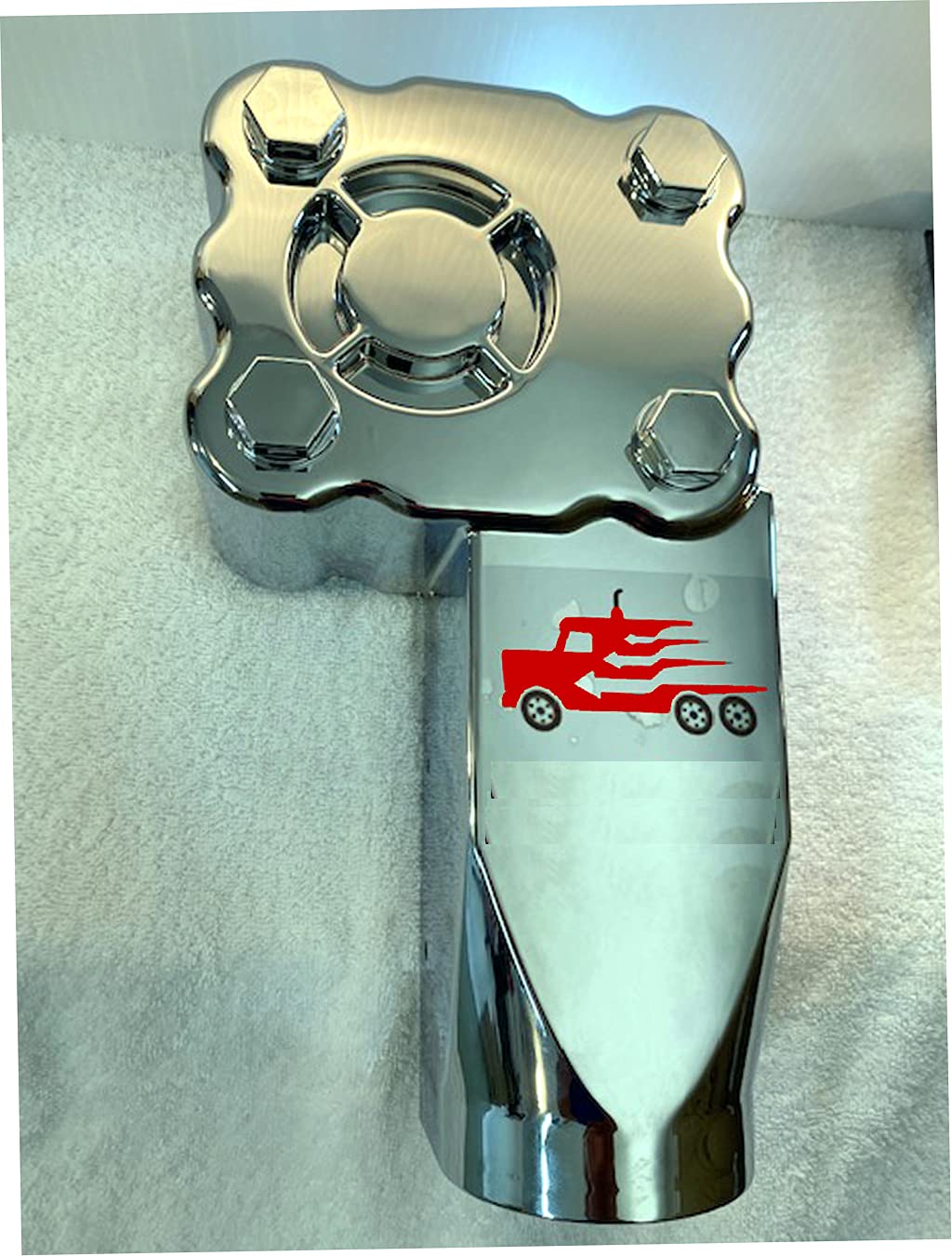

3 Year Warranty - Chrome Cover and All Mounting Hardware Included
Part Number: ATP90
Details: The ATP90 Tarp Motor is designed for dump trucks and dump bodies up to 40'. It has a Universal 3/4' x 4' Shaft with thru-bolt holes at 1” and 2”. This 1200-Watt, 12VDC, 2 HP, 90:1 Gear Ratio, Worm Drive Gear Motor replaces: Mytee, Roll Rite, Donovan, Kym Industries, TarpUSA , Aero, US Tarp, Buyers, Pull Tarp, Mountain Tarp, Slim Line motors. The ATP90 has a 3 Year Warranty. The warranty is voided if motor is opened.
