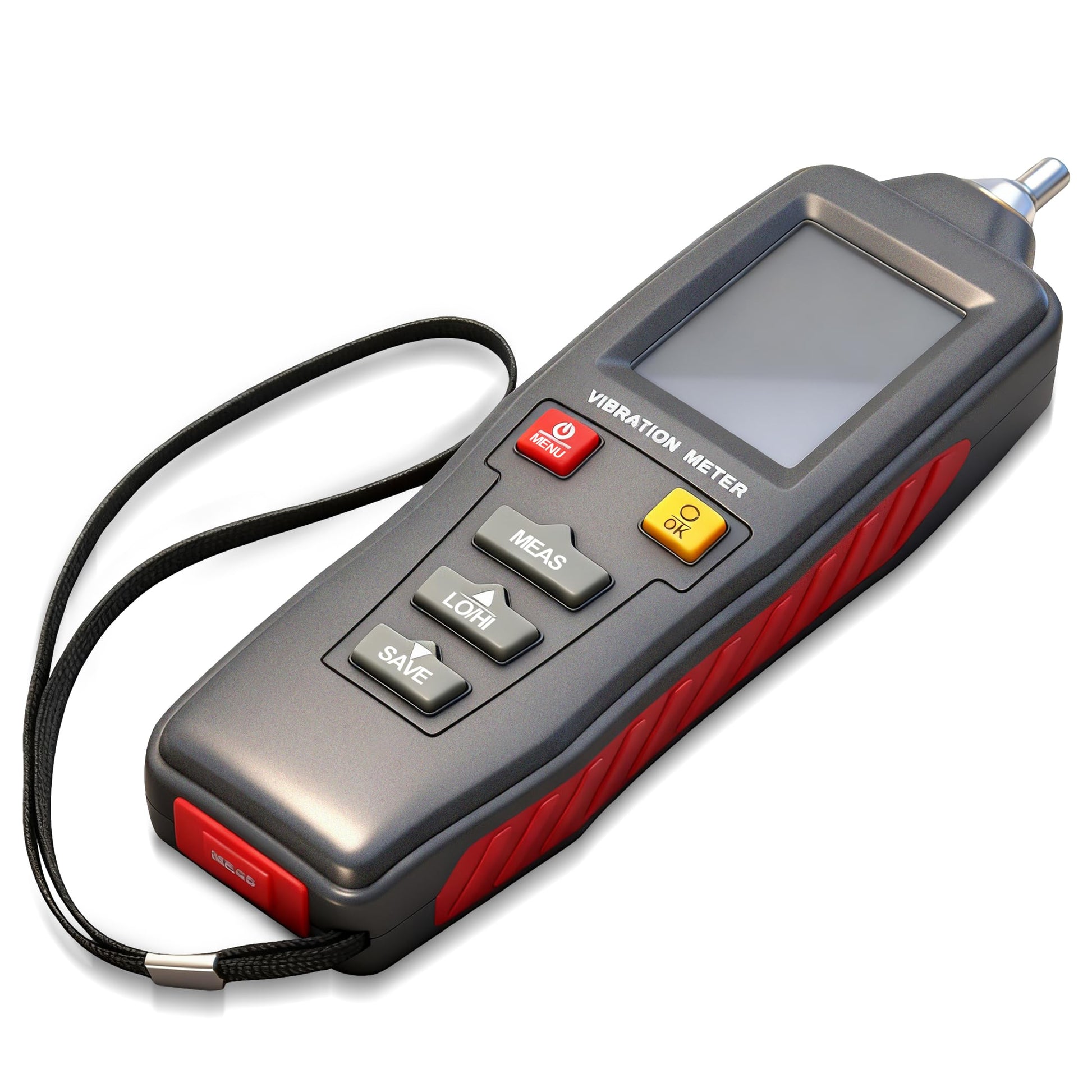

AMTAST Vibration Meter Digital Vibration Meter Measures 0.1~199.9m/s² Acceleration, 0.001~1.999mm Displacement & 0.1~199.9mm/s Velocity Vibration Detector Used for Industrial (Model AMF116)

Brand: AMTAST

Features:

• 𝐂𝐨𝐦𝐩𝐫𝐞𝐡𝐞𝐧𝐬𝐢𝐯𝐞 𝐕𝐢𝐛𝐫𝐚𝐭𝐢𝐨𝐧 𝐀𝐧𝐚𝐥𝐲𝐬𝐢𝐬 – This vibration meter measures acceleration, displacement, and velocity using a ceramic piezoelectric accelerometer. It is ideal for monitoring machinery like compressors, fans, gearboxes, and pumps, with data storage for future reference.
• 𝐃𝐮𝐚𝐥-𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐜𝐲 𝐌𝐞𝐚𝐬𝐮𝐫𝐞𝐦𝐞𝐧𝐭 – These professional vibration testers allow you to switch acceleration measurement between high frequency (1KHz~10KHz) and low frequency (20Hz~1KHz), ensuring precise analysis for various application needs.

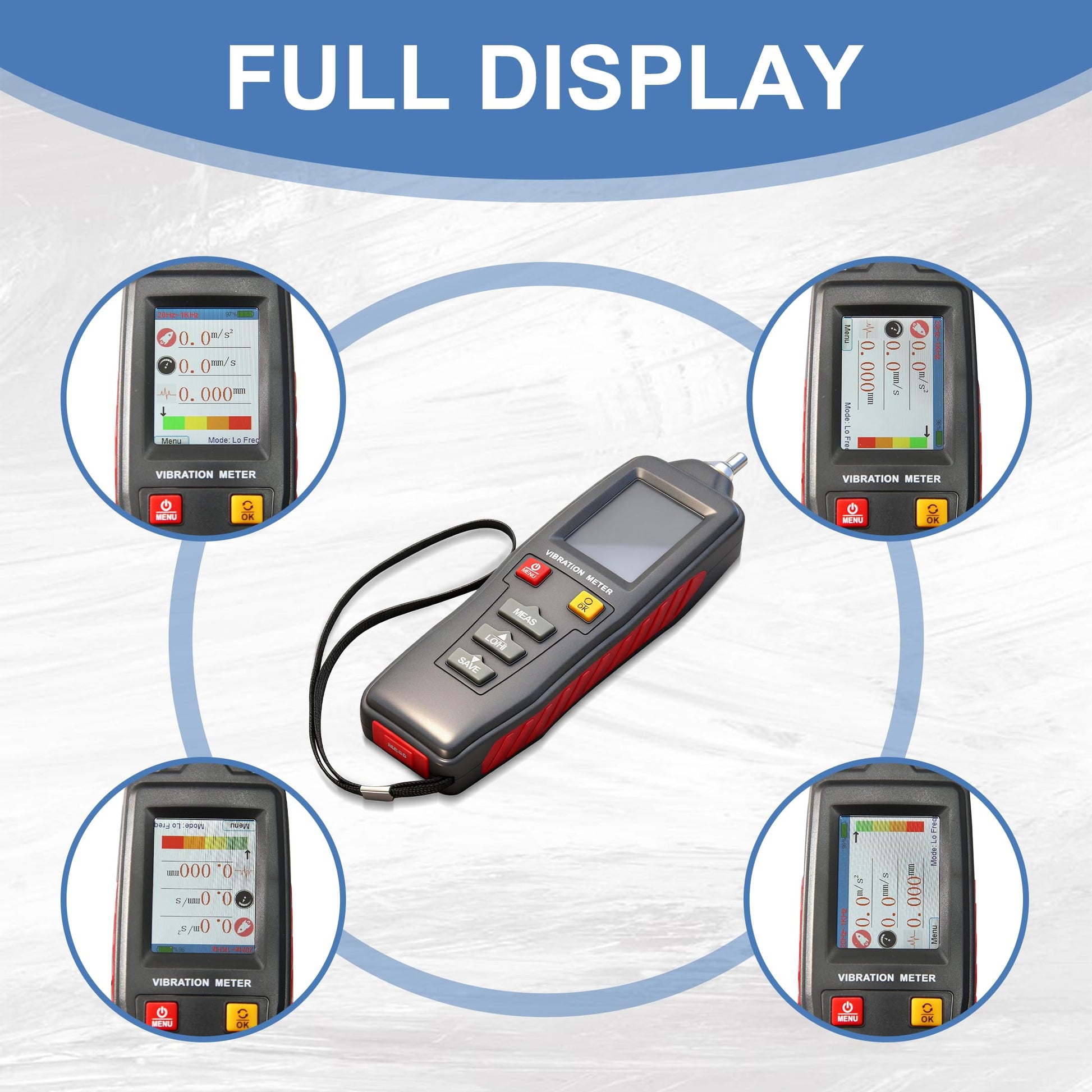

• 𝐈𝐧𝐭𝐮𝐢𝐭𝐢𝐯𝐞 𝐃𝐚𝐭𝐚 𝐕𝐢𝐬𝐮𝐚𝐥𝐢𝐳𝐚𝐭𝐢𝐨𝐧 – The vibration meter tool features a full display with clear curve graphics, enabling users to easily view and interpret vibration patterns and trends during operation.

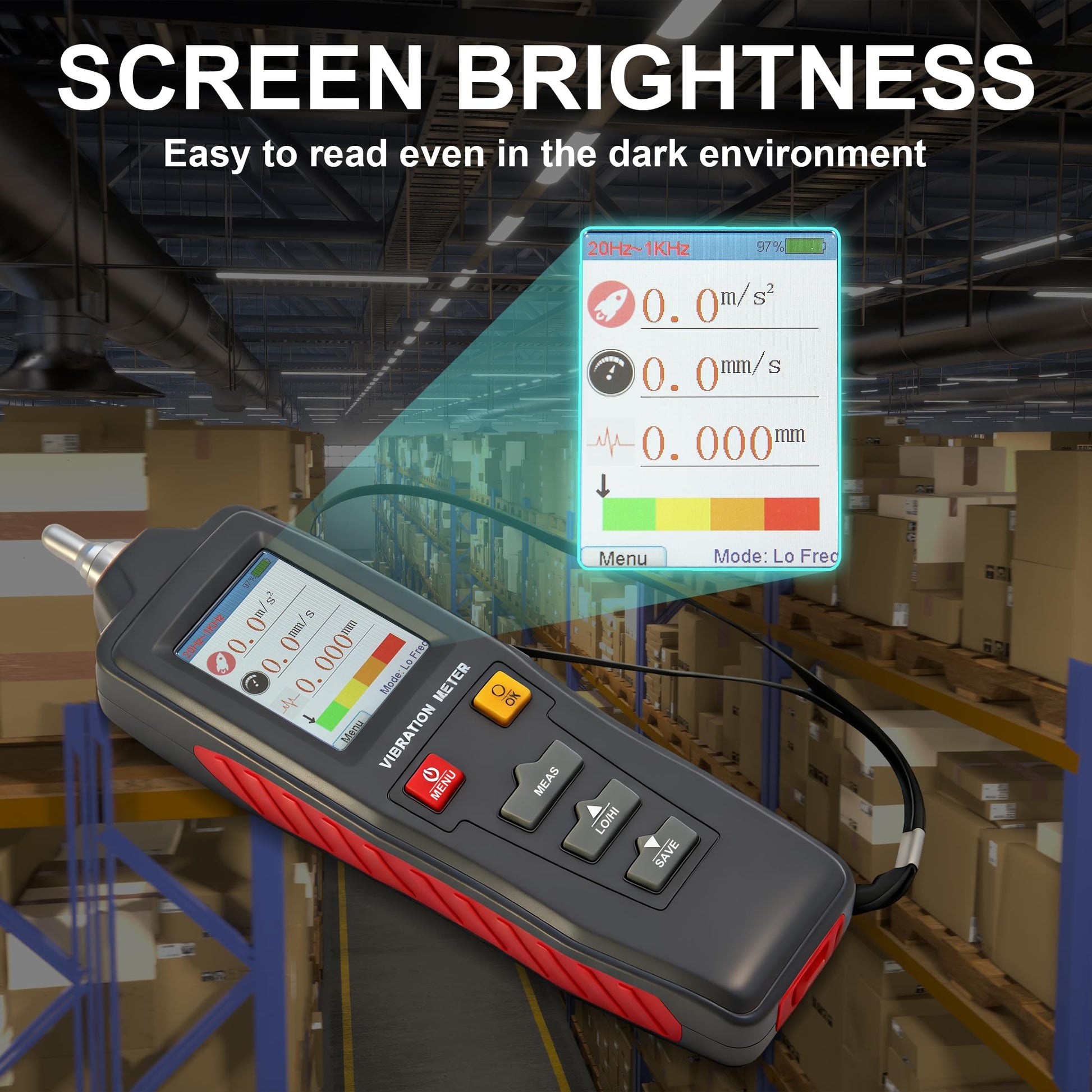

• 𝐏𝐫𝐚𝐜𝐭𝐢𝐜𝐚𝐥 𝐎𝐧-𝐒𝐢𝐭𝐞 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬 – This vibration meter handheld device stores and reviews files, includes a power indicator, adjustable screen brightness, a flashlight for low-light conditions, and supports Chinese/English language selection.
• 𝐀𝐝𝐯𝐚𝐧𝐜𝐞𝐝 𝐃𝐞𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐟𝐨𝐫 𝐏𝐫𝐞𝐜𝐢𝐬𝐢𝐨𝐧 𝐓𝐚𝐬𝐤𝐬 – As a portable vibration detector, it provides machinery grade assessments, making it a reliable choice for detailed analysis and performance monitoring in demanding industrial environments.

model number: AMF116DE

Part Number: AMF116

Details: AMTAST Digital Vibration Meter (Model AMF116)

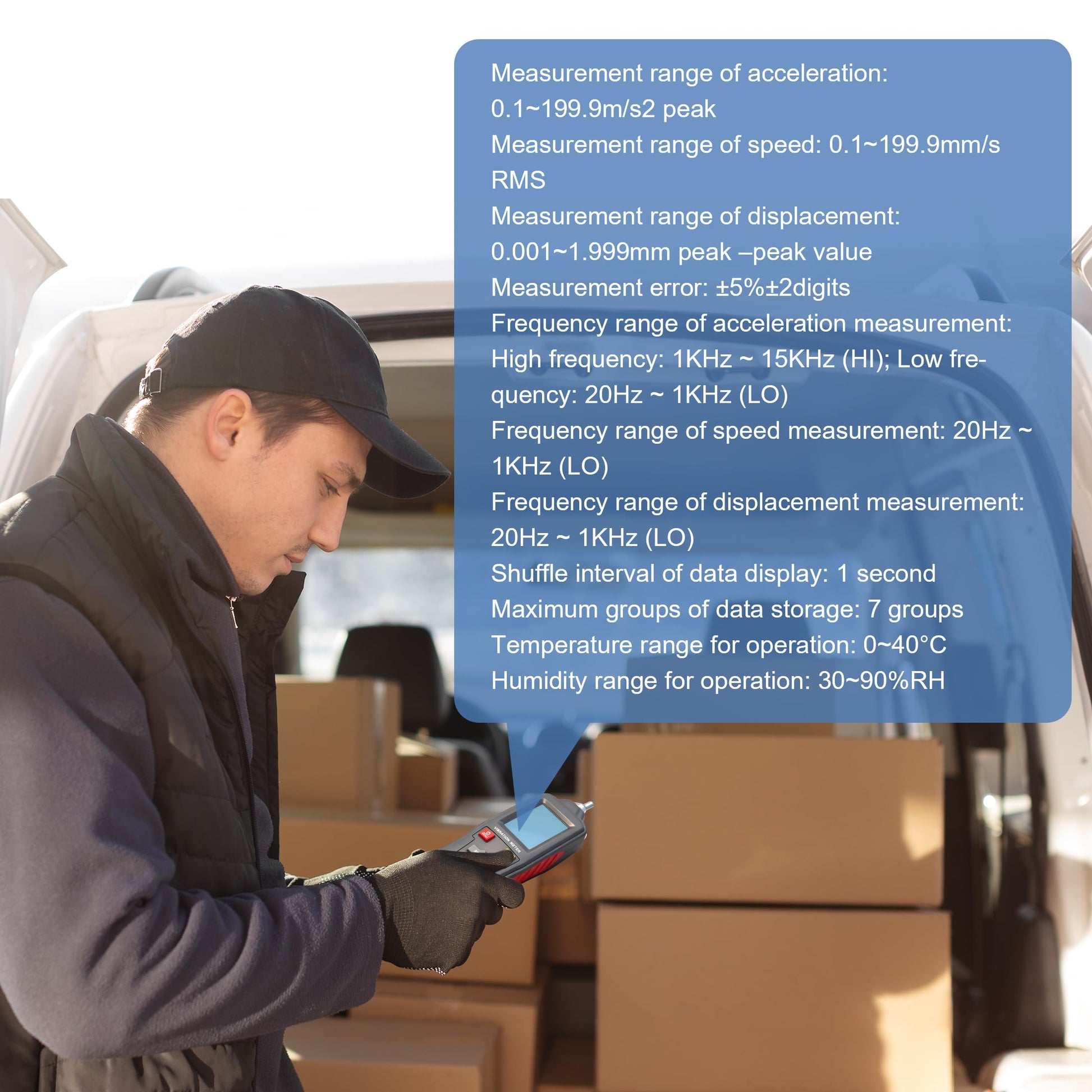

Specifications:
1. Vibration acquisition: Piezoelectric ceramic accelerometer (shear type)
2. Measurement range of acceleration: 0.1~199.9m/s2 peak
3. Measurement range of speed: 0.1~199.9mm/s RMS
4. Measurement range of displacement: 0.001~1.999mm peak –peak value
5. Measurement error: ±5%±2digits
6. Frequency range of acceleration measurement: High frequency: 1KHz ~ 15KHz (HI); Low frequency: 20Hz ~ 1KHz (LO)
7. Frequency range of speed measurement: 20Hz ~ 1KHz (LO)
8. Frequency range of displacement measurement: 20Hz ~ 1KHz (LO)
9. LCD display: color display
10. Shuffle interval of data display: 1 second
11. Maximum groups of data storage: 7 groups
12. Temperature range for operation: 0~40°C
13. Humidity range for operation: 30~90%RH

Information:
Comprehensive Vibration Analysis – This vibration meter measures acceleration, displacement, and velocity using a ceramic piezoelectric accelerometer. It is ideal for monitoring machinery like compressors, fans, gearboxes, and pumps, with data storage for future reference.
Dual-Frequency Measurement – These professional vibration testers allow you to switch acceleration measurement between high frequency (1KHz~10KHz) and low frequency (20Hz~1KHz), ensuring precise analysis for various application needs.
Intuitive Data Visualization – The vibration meter tool features a full display with clear curve graphics, enabling users to easily view and interpret vibration patterns and trends during operation.
Practical On-Site Features – This vibration meter handheld device stores and reviews files, includes a power indicator, adjustable screen brightness, a flashlight for low-light conditions, and supports Chinese/English language selection.
Advanced Detection for Precision Tasks – As a high frequency vibration detector, it provides machinery grade assessments, making it a reliable choice for detailed analysis and performance monitoring in demanding industrial environments.

EAN: 0792855830207

Package Dimensions: 10.7 x 7.9 x 2.7 inches
