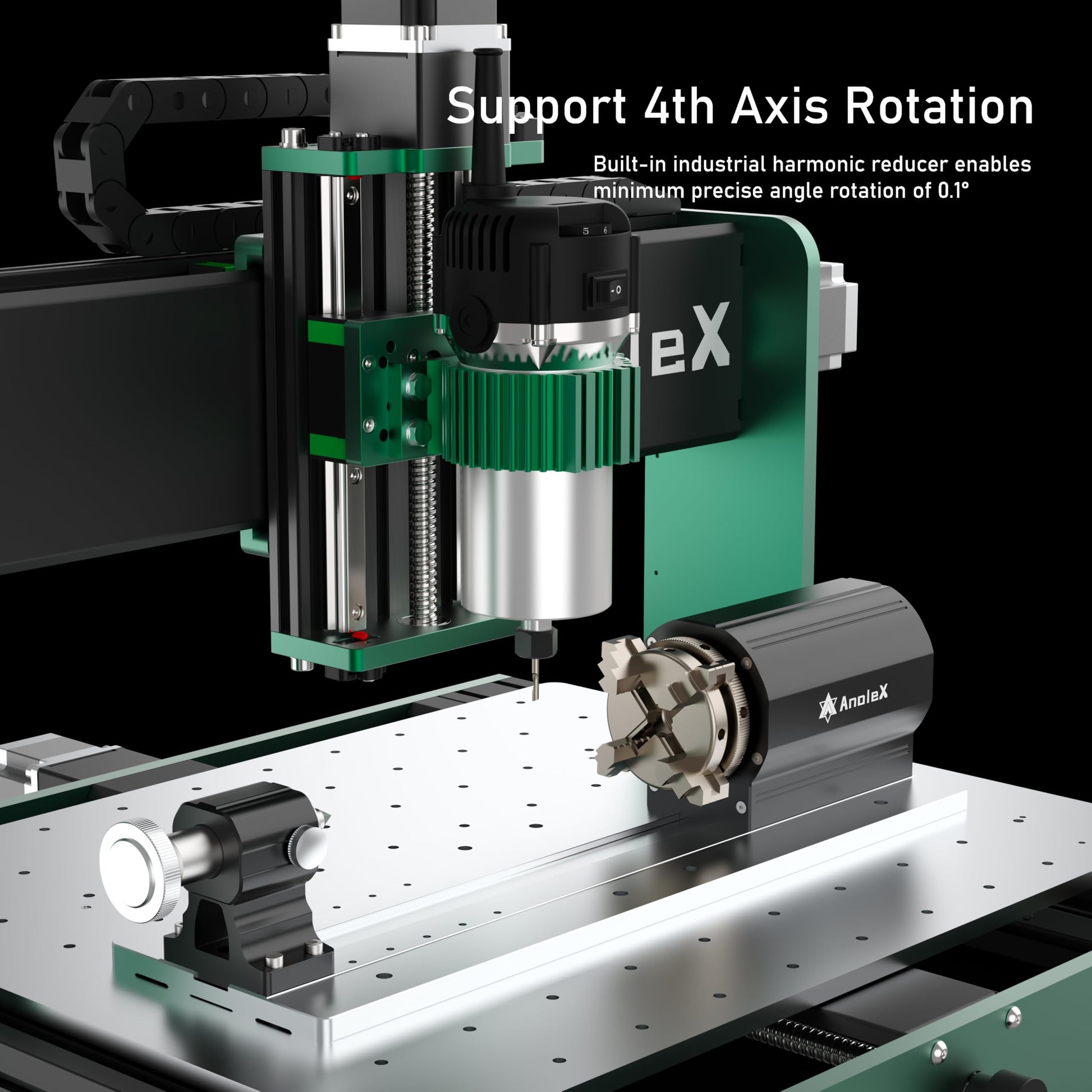

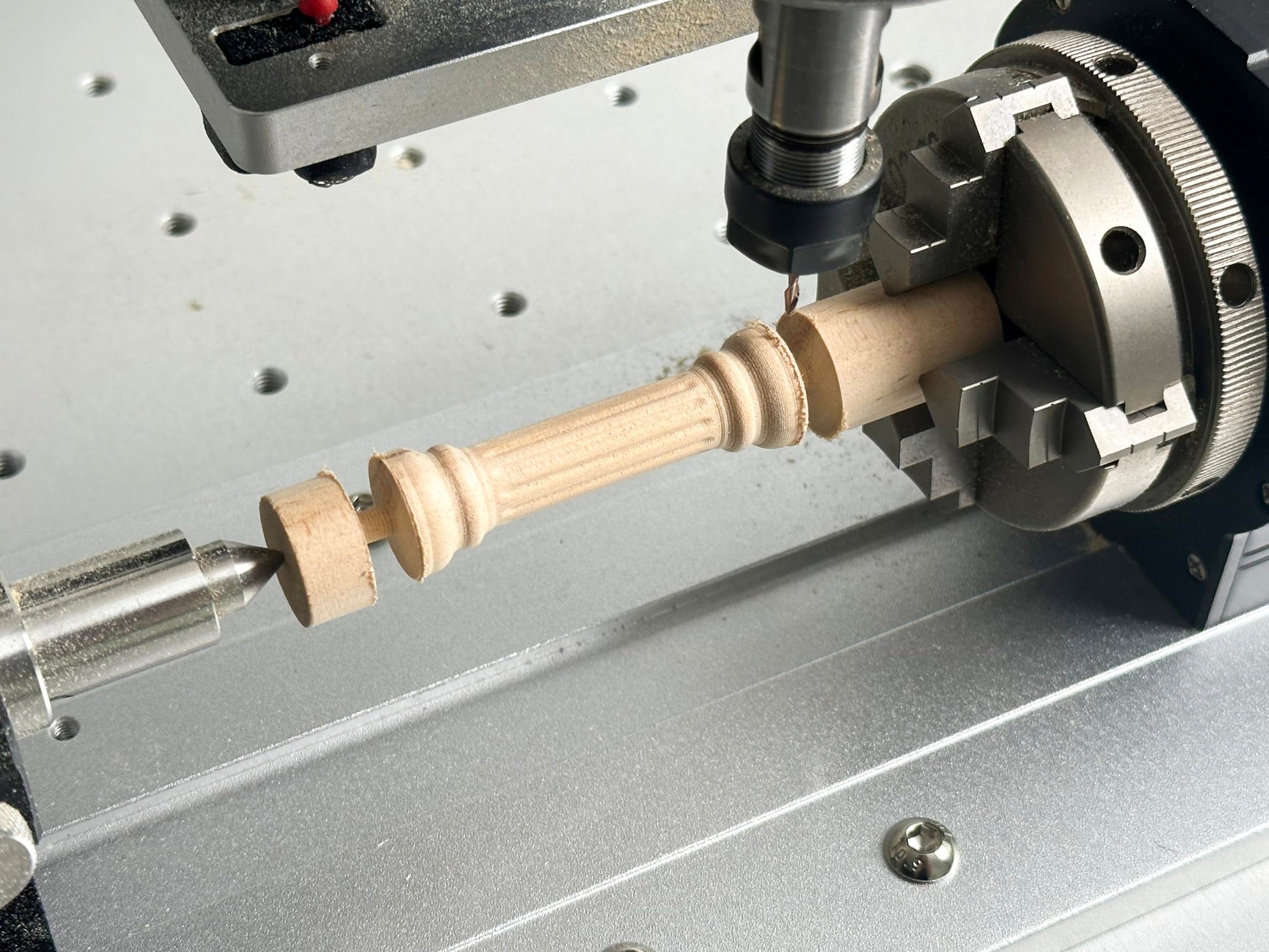

4-axis linkage: The rotary module enables the machine to achieve 4-axis linkage for processing, such as 3D engraving/laser of cylinders or 3D artworks.
Easy installation: Built-in stepper drive, no additional wiring required, plug and play. Clamped Material Size: forward mounting: 2-37mm, reverse mounting: 20-67 mm. With Tailstock Length: 20-195mm, without lailstock Length: 20-260mm

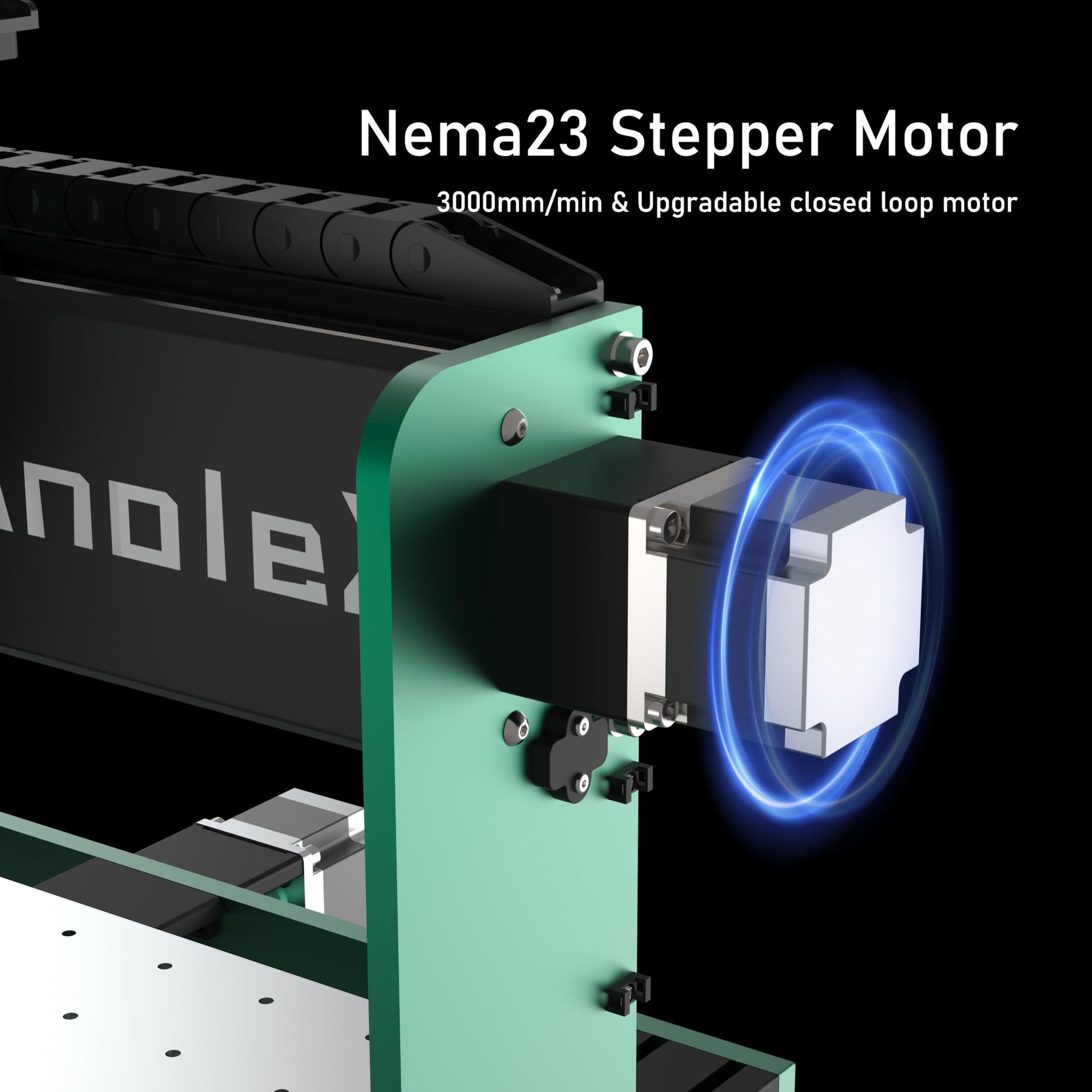

Speed increased to 6000mm/min, no step loss. Holding torque: 2.2N.m
Easy to replace, loosen the screws that fix the stepper motor and replace it

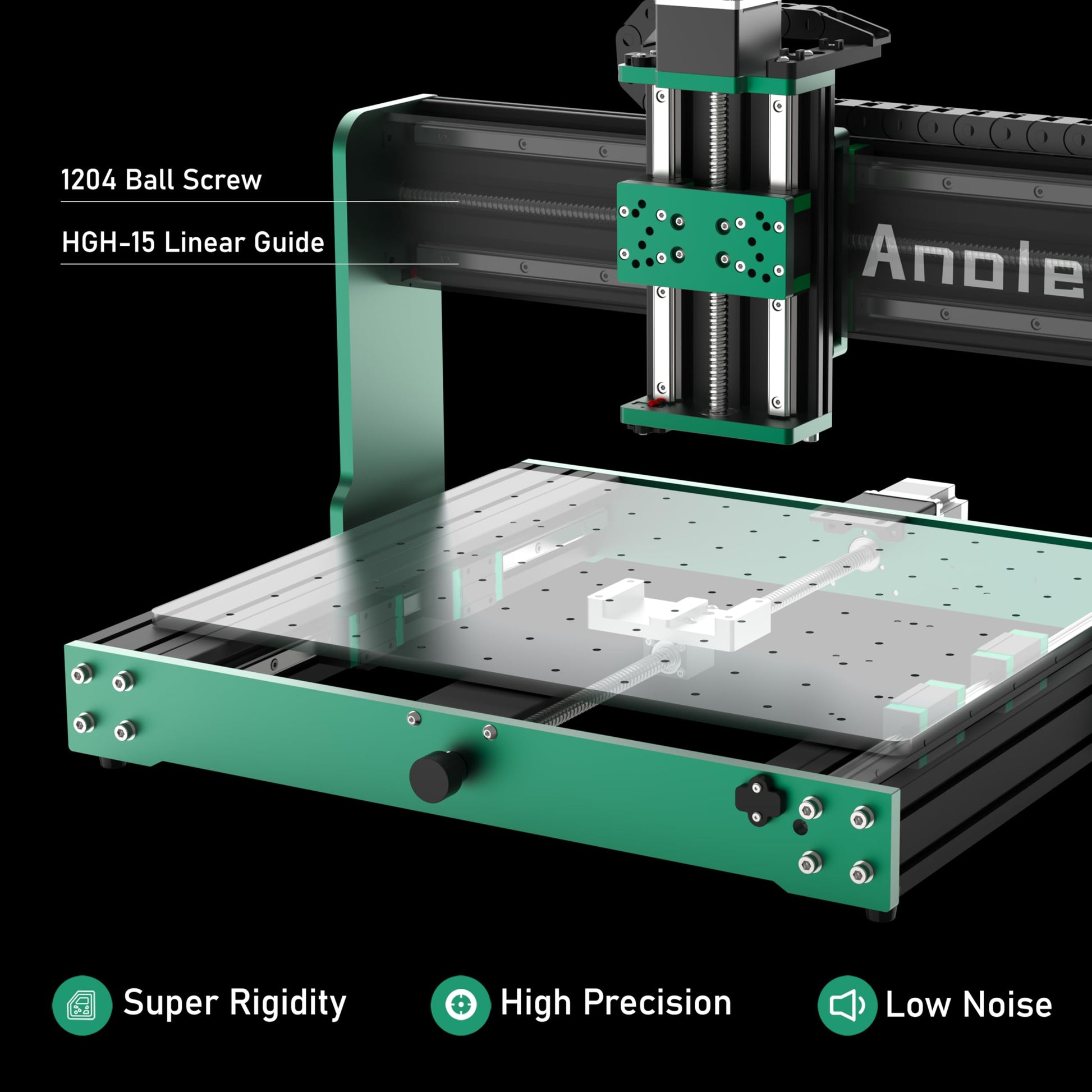

[Dual Linear Rails and Ball Screws] Each axis (X, Y, Z) equipped with HGH-15 dual linear rails and 1204 ball screws. Enhances precision, rigidity, and load capacity for metal cutting, with improved dust protection for the X&Y axes.
