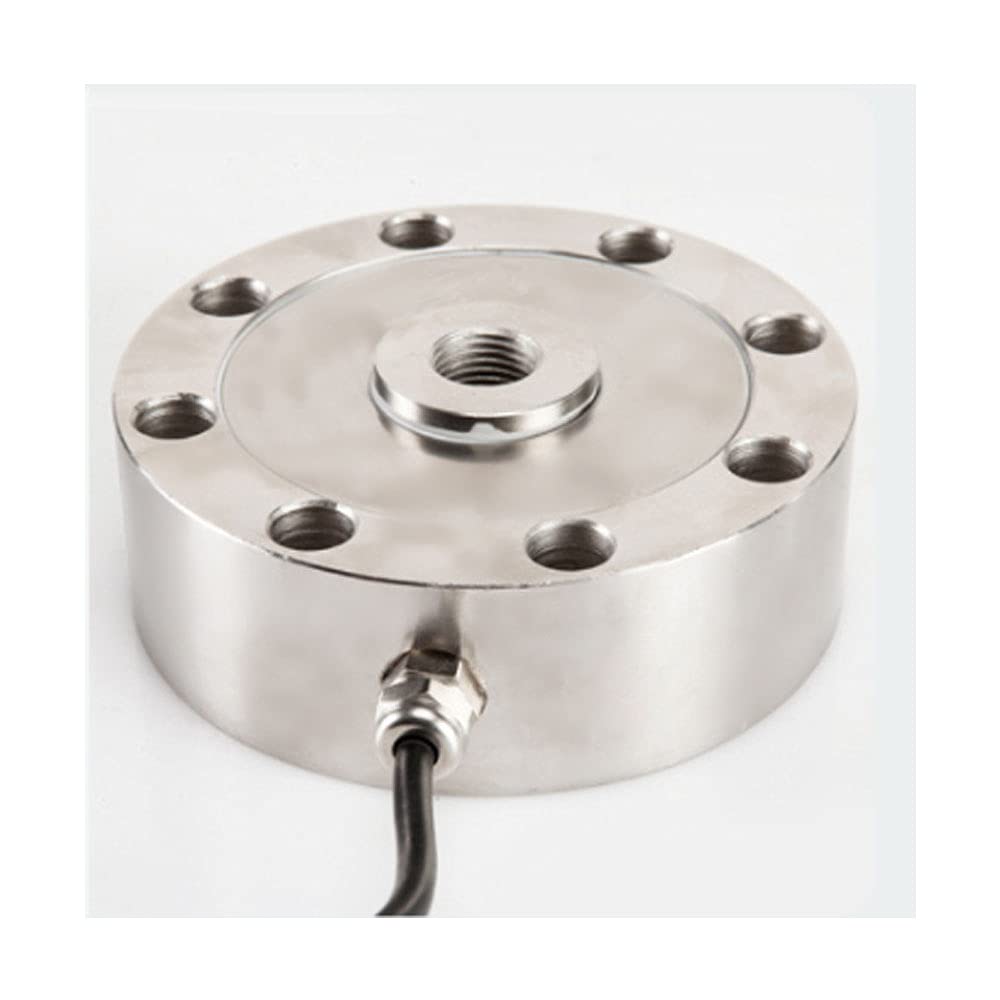

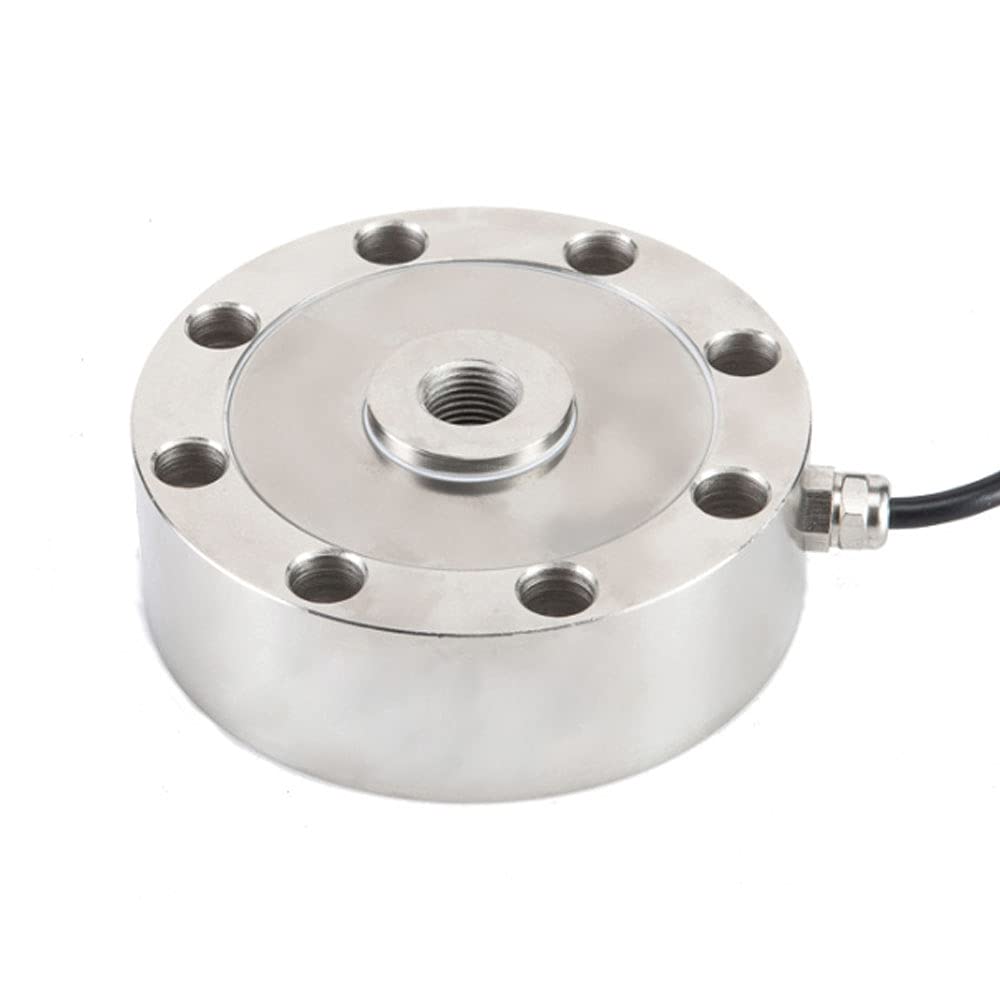

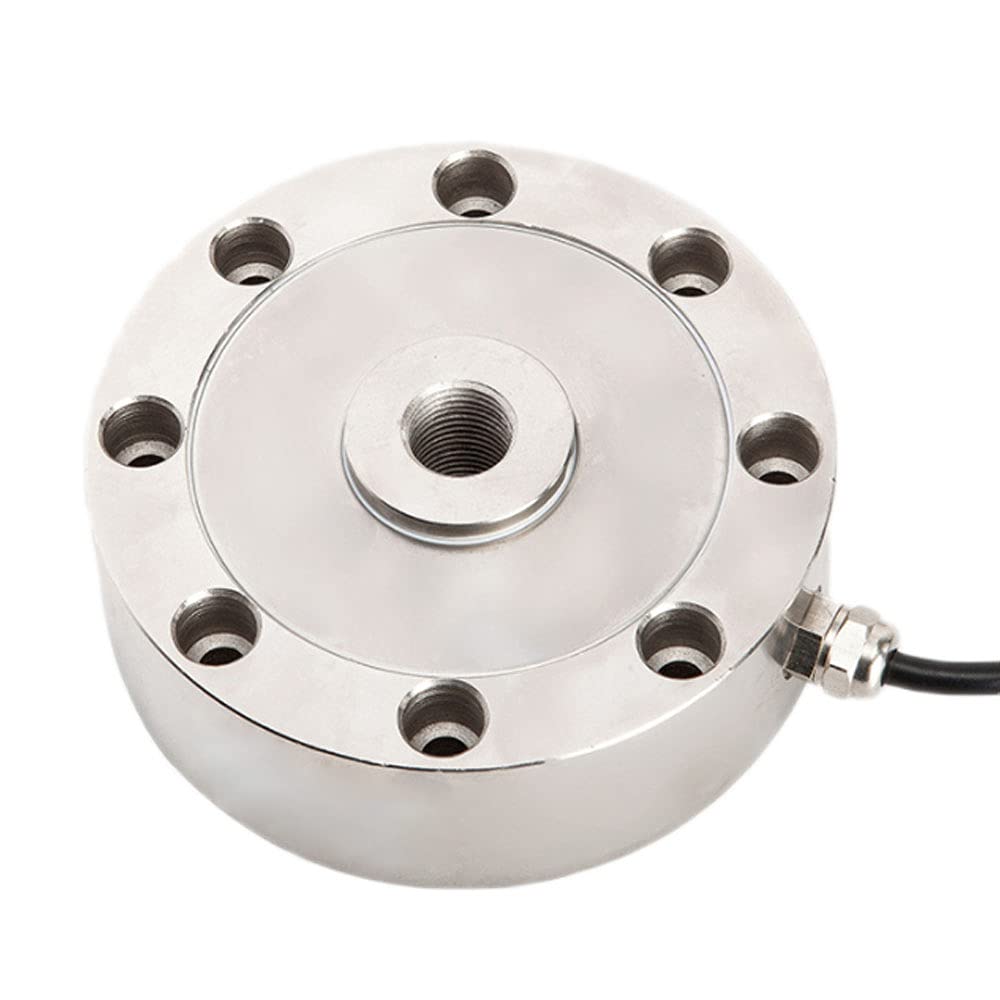

ATO Tension and Compression Load Cell 1000kg/5ton/10ton Pancake, Spoke Type, High-Precision Strain Gauge Force Sensor (1, 5ton)

Brand: ATO

Features:

• 【Capacity】Tension and compression load cells have capacity range from 500kg to 10 ton for choose
• 【Function】Circular load cell also is known as pancake load cell, with good anti-eccentric load performance, low profile, high accuracy and complete specifications
• 【Specification】Accuracy: 0.05%F.S (linearity + hysteresis + repeatability) ; Sensitivity: 2.0±0.1mV/V; Bridge voltage: DC 5~10V
• 【Application】ATO Tension and compression load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse
• 【Service guarantee】CUSTOMER FIRST, if you are not sure about the size or have any issue about the product or service, please don't hesitate to email us. We will answer you within 12h

model number: ATO-LCST-TJH-4B

Part Number: ATO-LC

Package Dimensions: 7.9 x 6.7 x 5.4 inches
