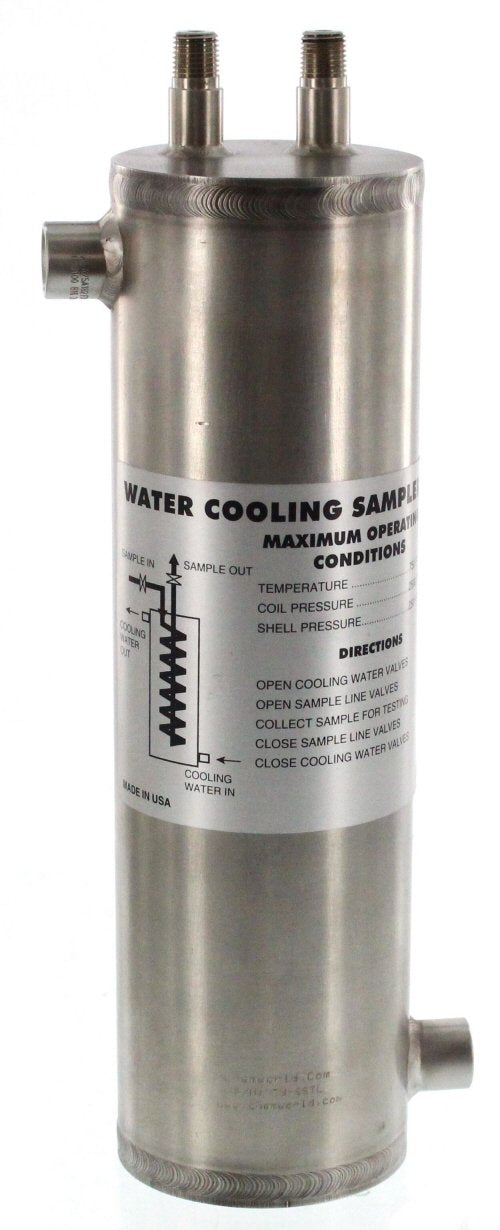

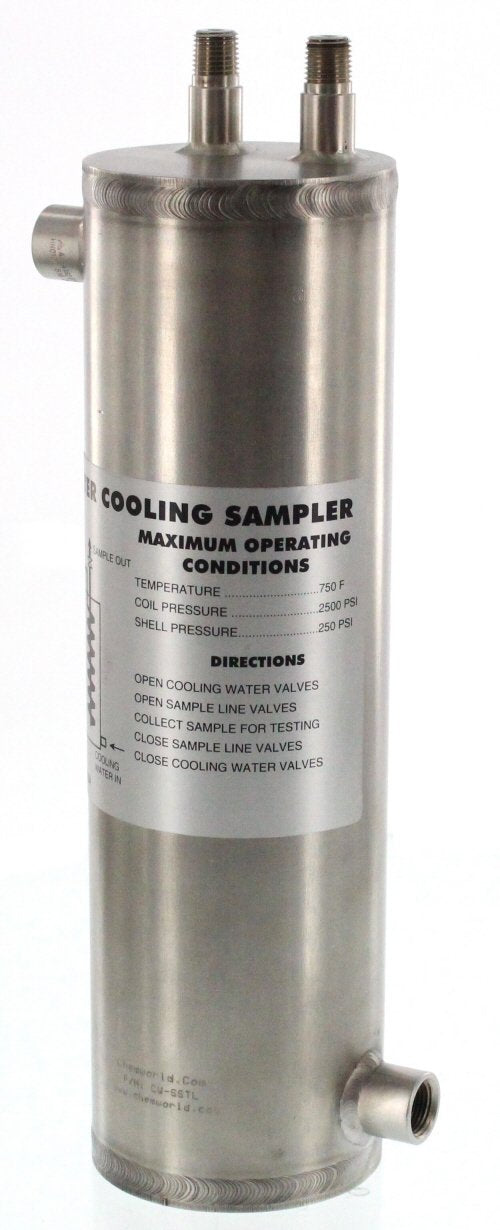

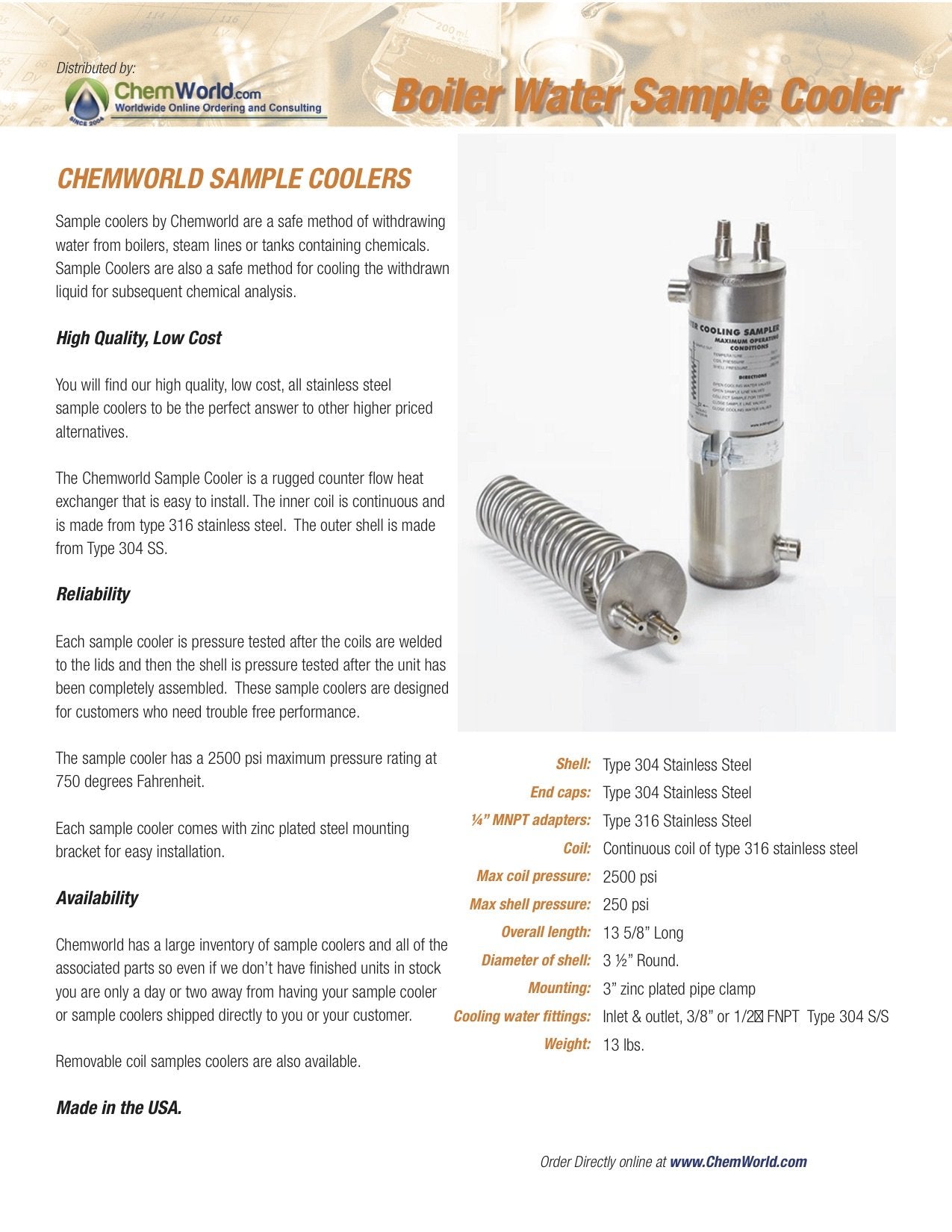

Boiler Sample Cooler

Brand: ChemWorld Boiler Sample Cooler

Features:

• Stainless Steel Shell and End Caps. 1/4' NPT Stainless Steel Adaptors.
• Continuous 316 Stainless Steel Coil.
• Coil rated to 2,500 psi. Shall Rated to 250 psi.
• Overall Length 13 5/8'. Shell Diameter 3 1/2'. 3' Pipe Clamp.
• 3/8' Steel Female Inlet and Outlet. 13 pounds.

model number: CW-SSTL

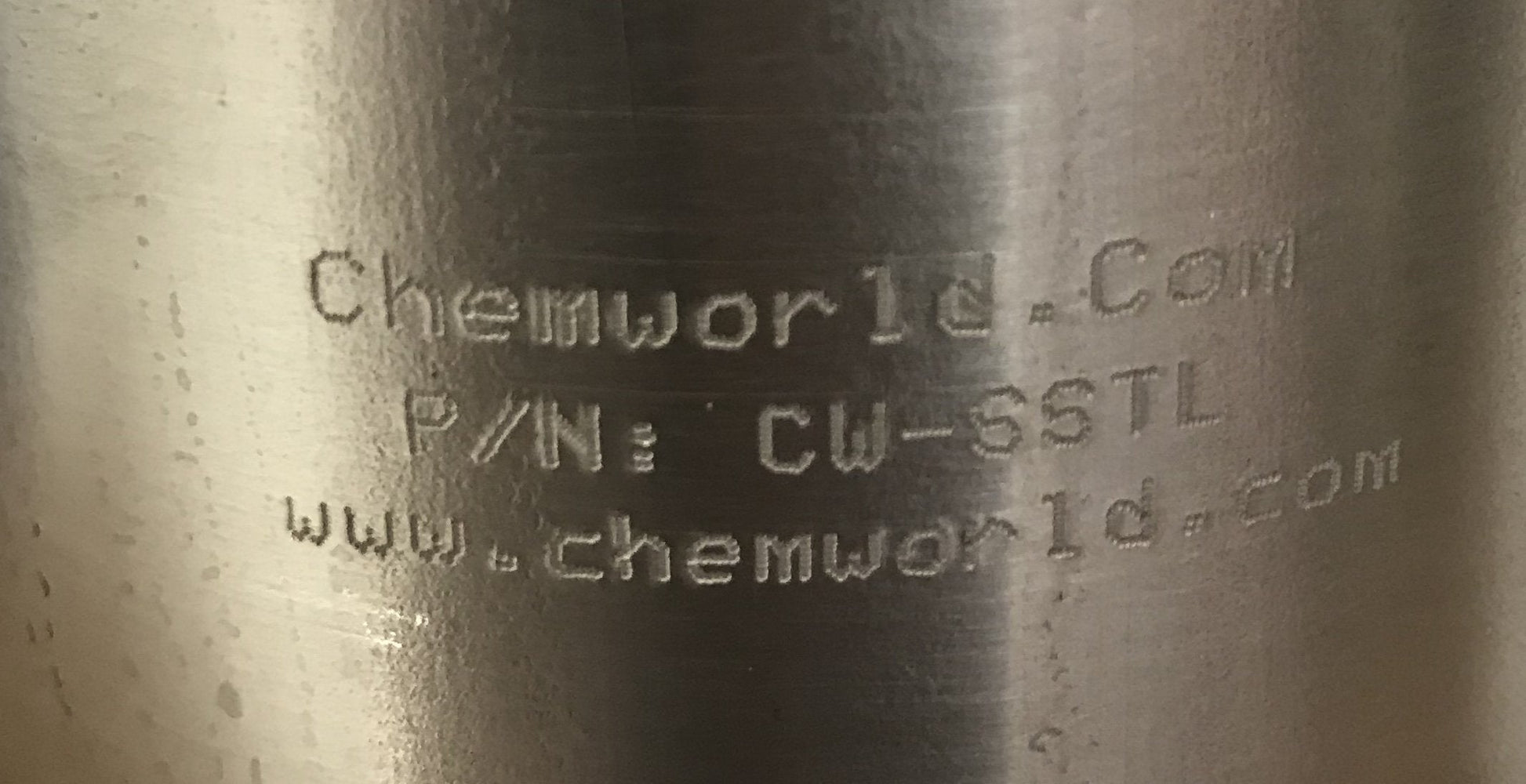

Part Number: CW-SSTL

Details: Model Number CW-SSTL is used as a safe method of obtaining a water sample from boilers, feedwater lines, and steam lines. Stainless Steel Shell. Stainless Steel End Caps. 1/4' NPT Stainless Steel Adaptors. Continuous 316 Stainless Steel Coil. Coil rated to 2,500 psi. Shall Rated to 250 psi. Overall Length 13 5/8'. Shell Diameter 3 1/2'. 3' Pipe Clamp. 3/8' Steel Female Inlet and Outlet. 13 pounds

EAN: 0816885020206

Package Dimensions: 18.1 x 6.8 x 6.4 inches
