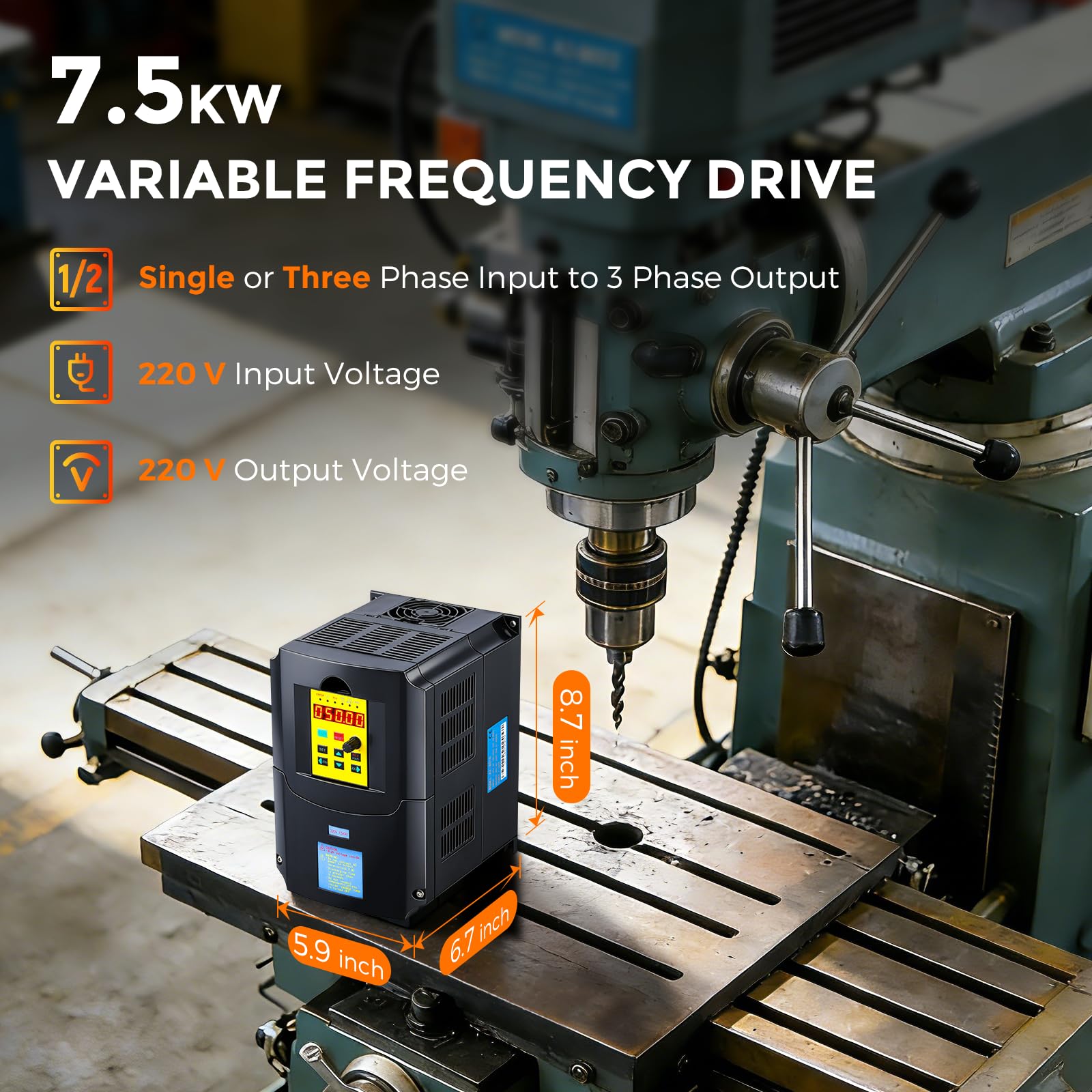

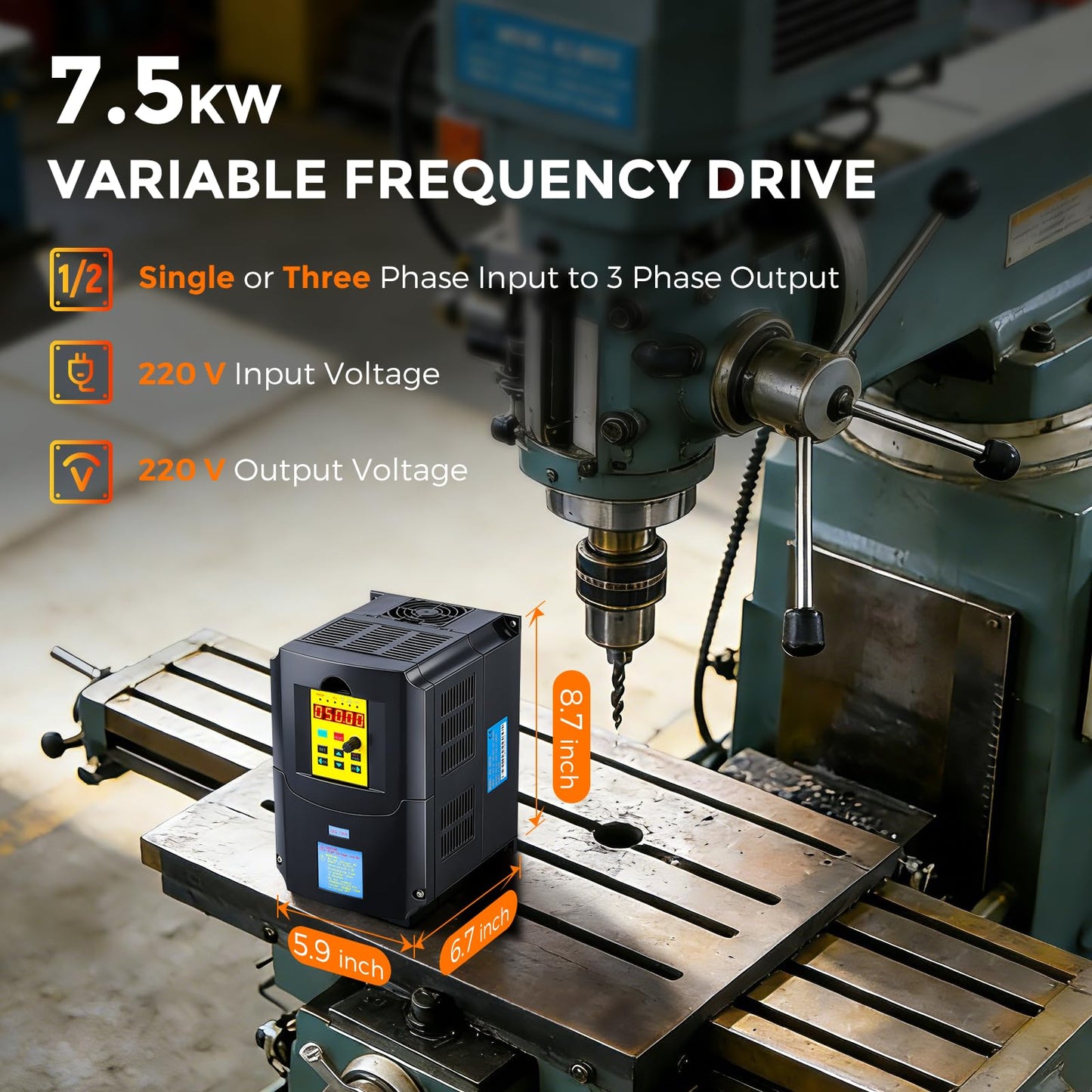

Ideal Choice: Bonvoisin 7.5KW/10HP VFD provides single-phase or three-phase AC 220V input and three-phase AC 220V output, ensuring soft start and stop, stable motor control, and energy efficiency. Current: 32A; Input frequency: 50/60Hz; Output frequency: 0-400Hz.

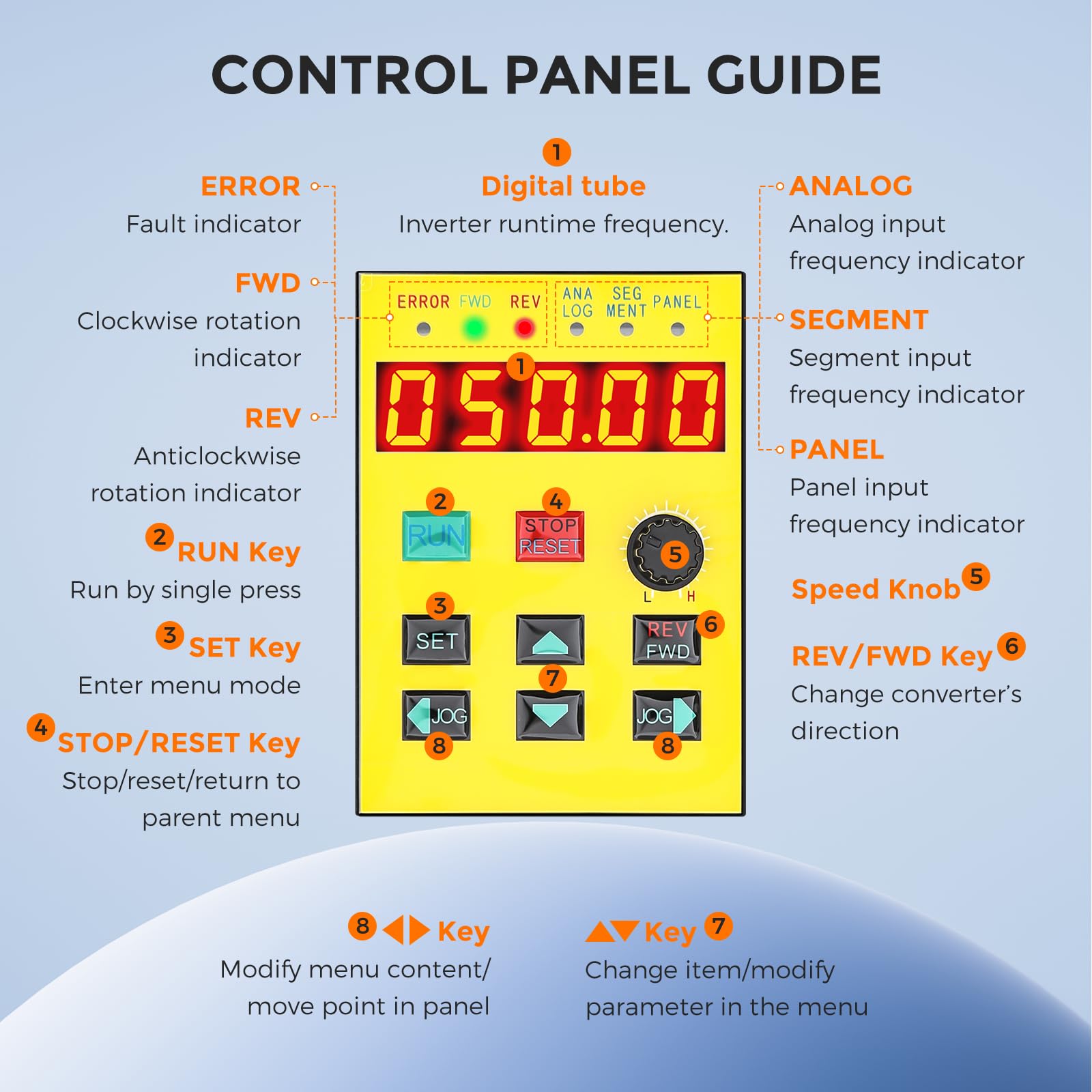

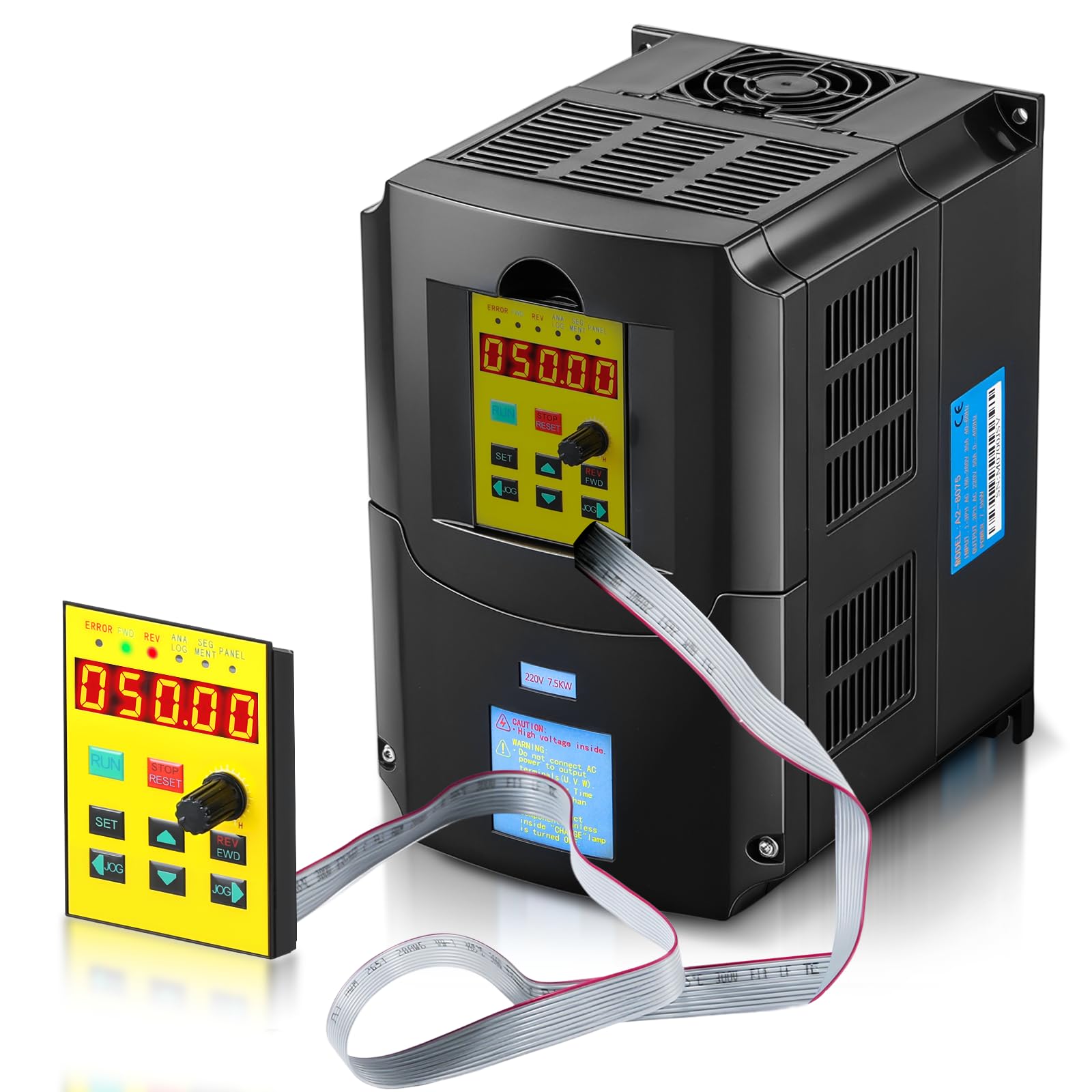

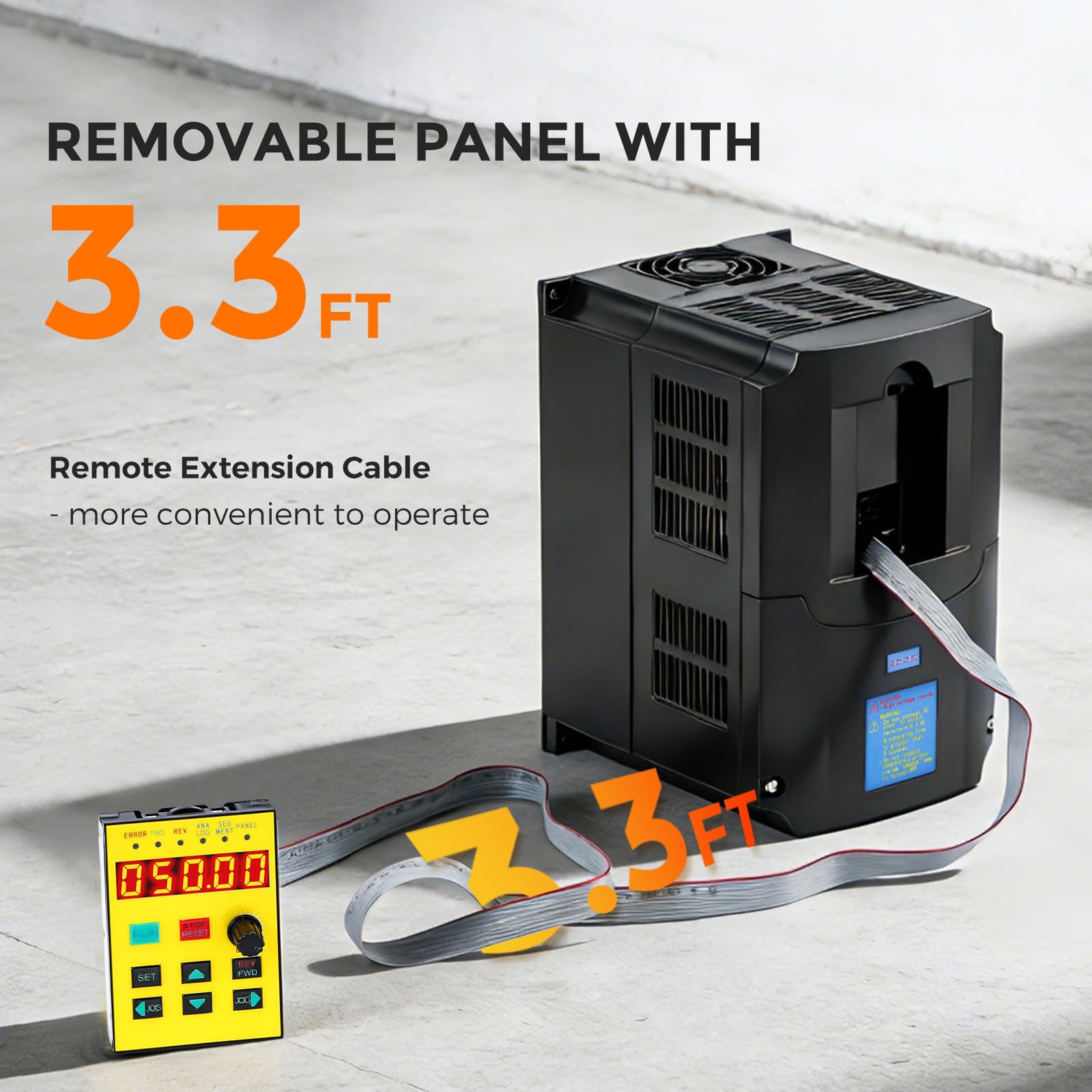

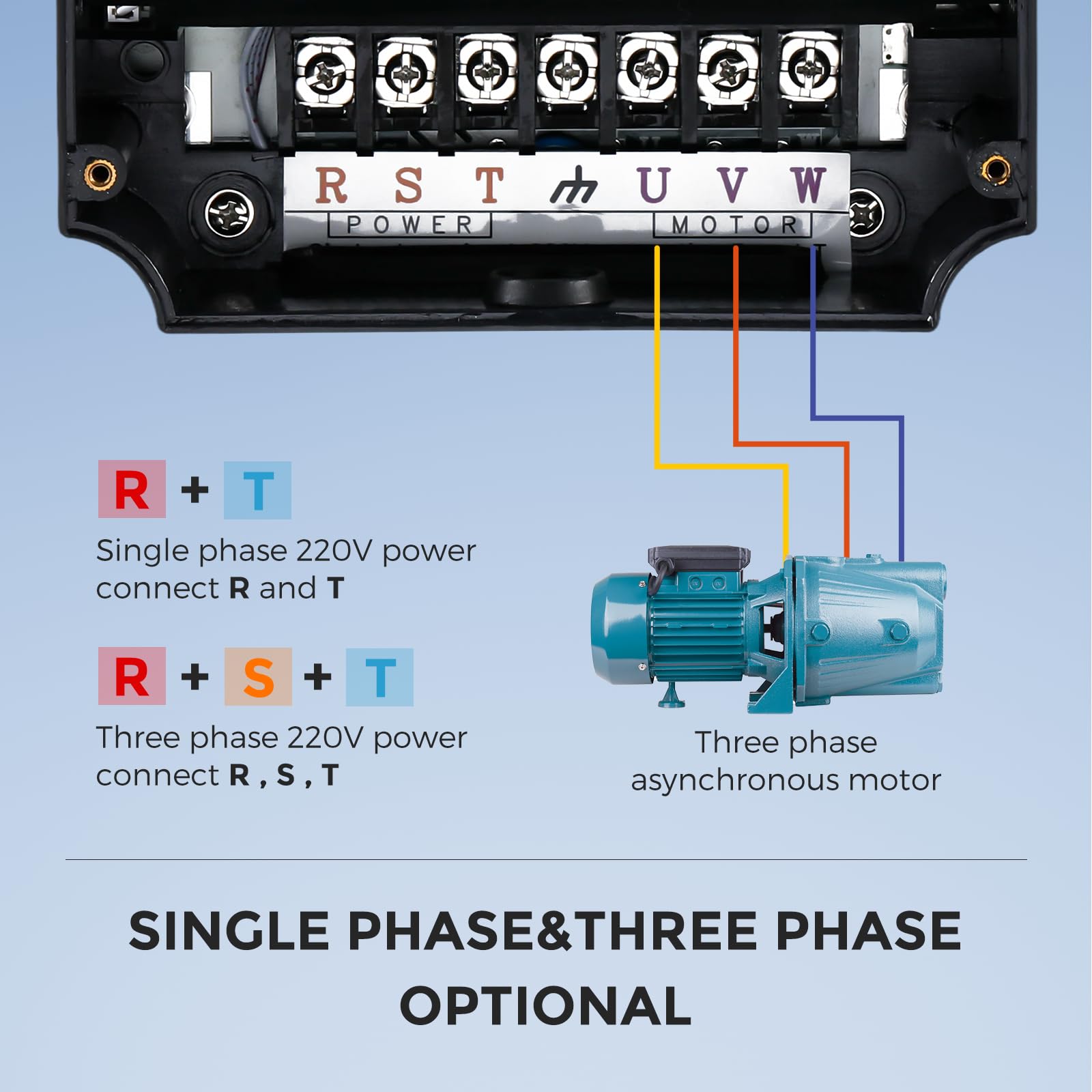

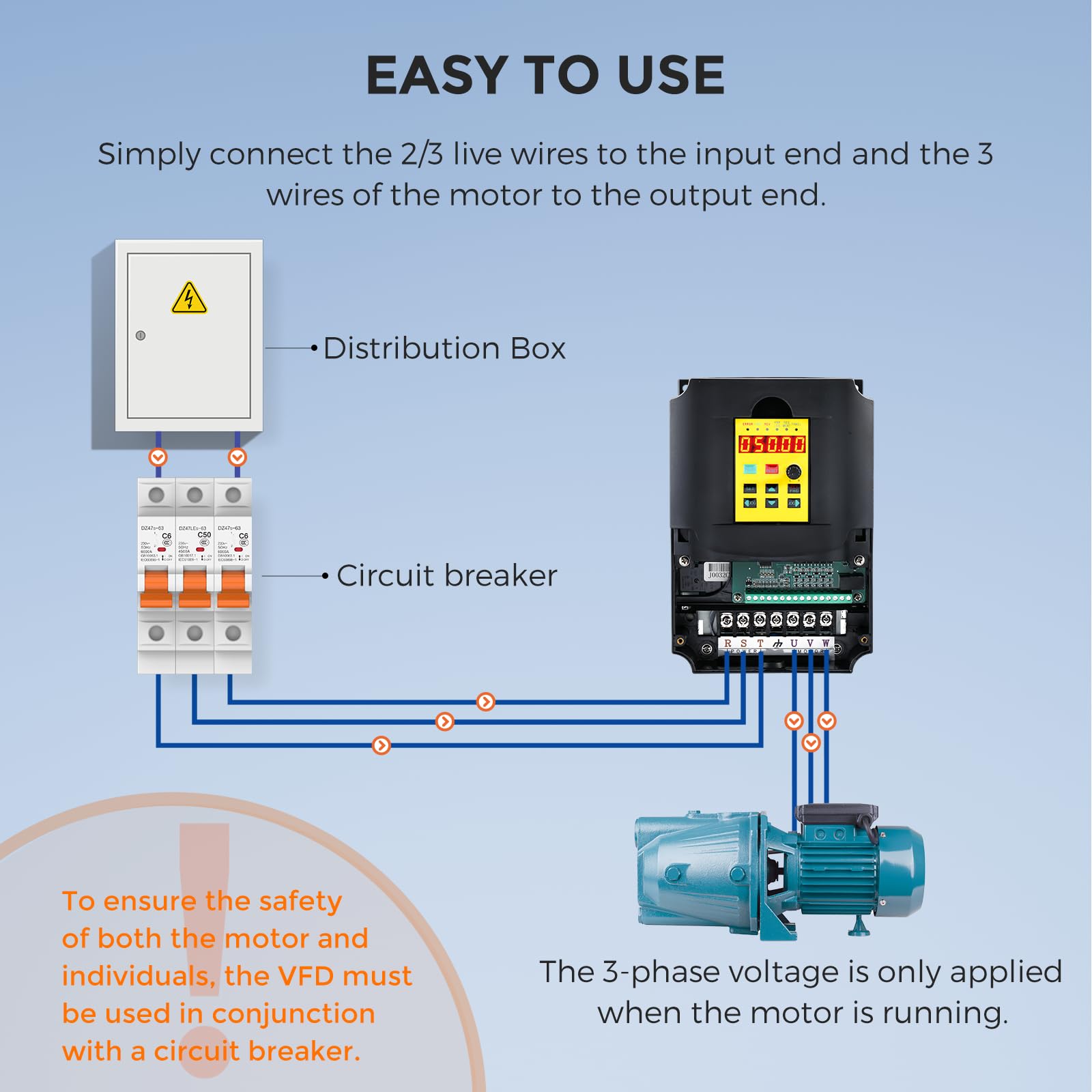

Easy To Use: Simply connect 2/3 of the live wires to the input end and connect 3 motor wires to the output end. The intuitive control panel, detailed user manual, and speed knob simplify the operation. The detachable panel with a 3.3-foot cable is convenient for remote use.
Safety & Cooling: The Variable Frequency Drive ensures safe operation with overcurrent, overload, and overvoltage protection. Its powerful fan and perforated design enable rapid cooling and quiet, efficient ventilation.
VFD Capacity Selection: For most motors VFD power>motor power is sufficient. 7.5kw VFD can be used for 1.5kw/2.2kw/5kw/7.5kw motors. For specific applications such as car lifts, air compressors, and other devices with high starting torque/load, the power of the VFD must be 2-3 times (or more) the rated power of the motor.
Wide Application: Our frequency converter is very suitable for driving three-phase motors in various machinery, including lathes, fans, milling machines, etc. Note: It does not support external braking resistors.
