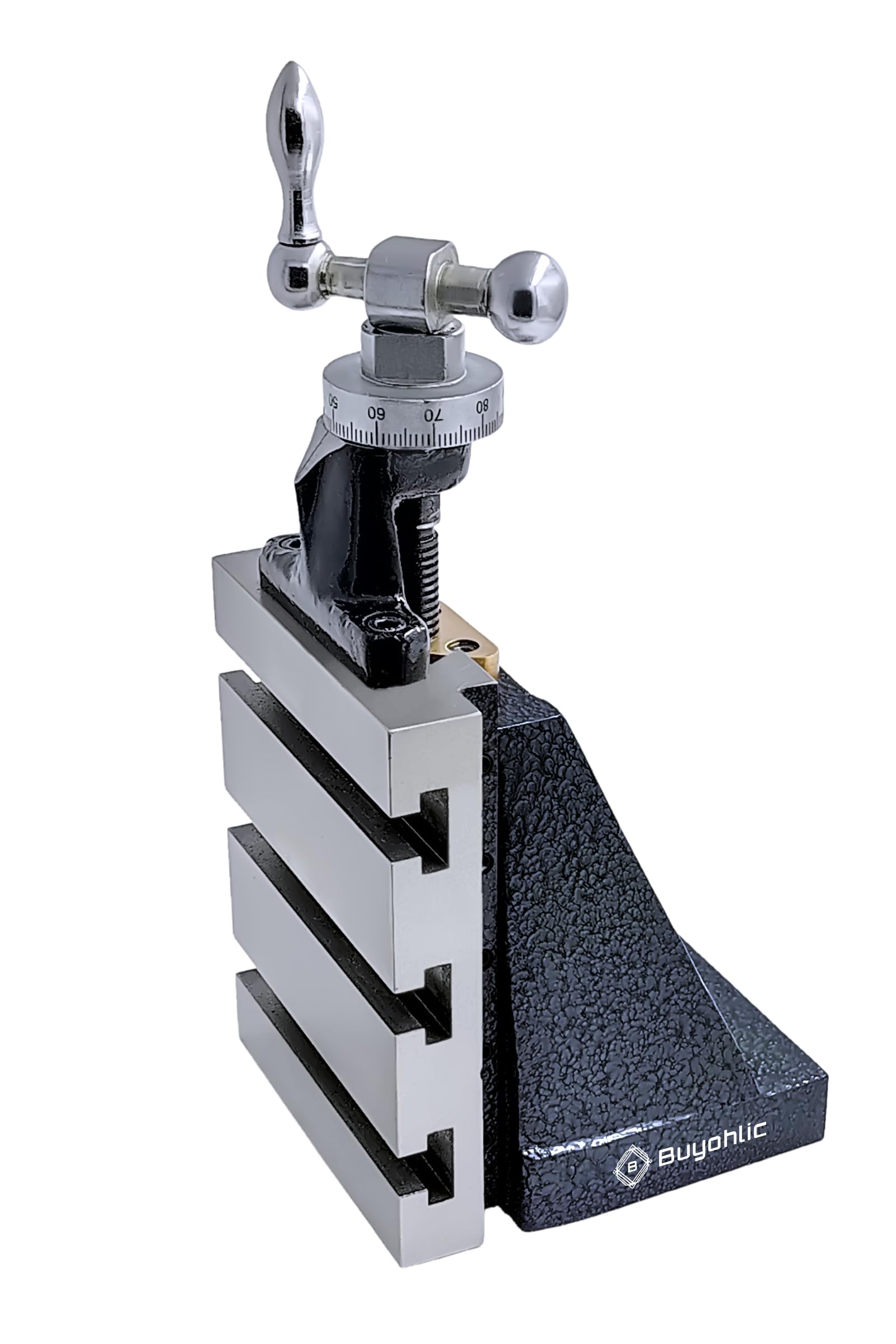

Buyohlic Lathe Milling Vertical Slide 100 x 125 mm- Fixed Base

Brand: BUYOHLIC

Color: 1-metallic

Features:

• Use of Item-A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment. Lathe Milling Vertical Slide Slotted Table Table Bed Size: 125 mm x 100 mm Provides ample working area for various milling operations
• Base Type: Fixed Base Ensures a stable and rigid setup for precise milling.

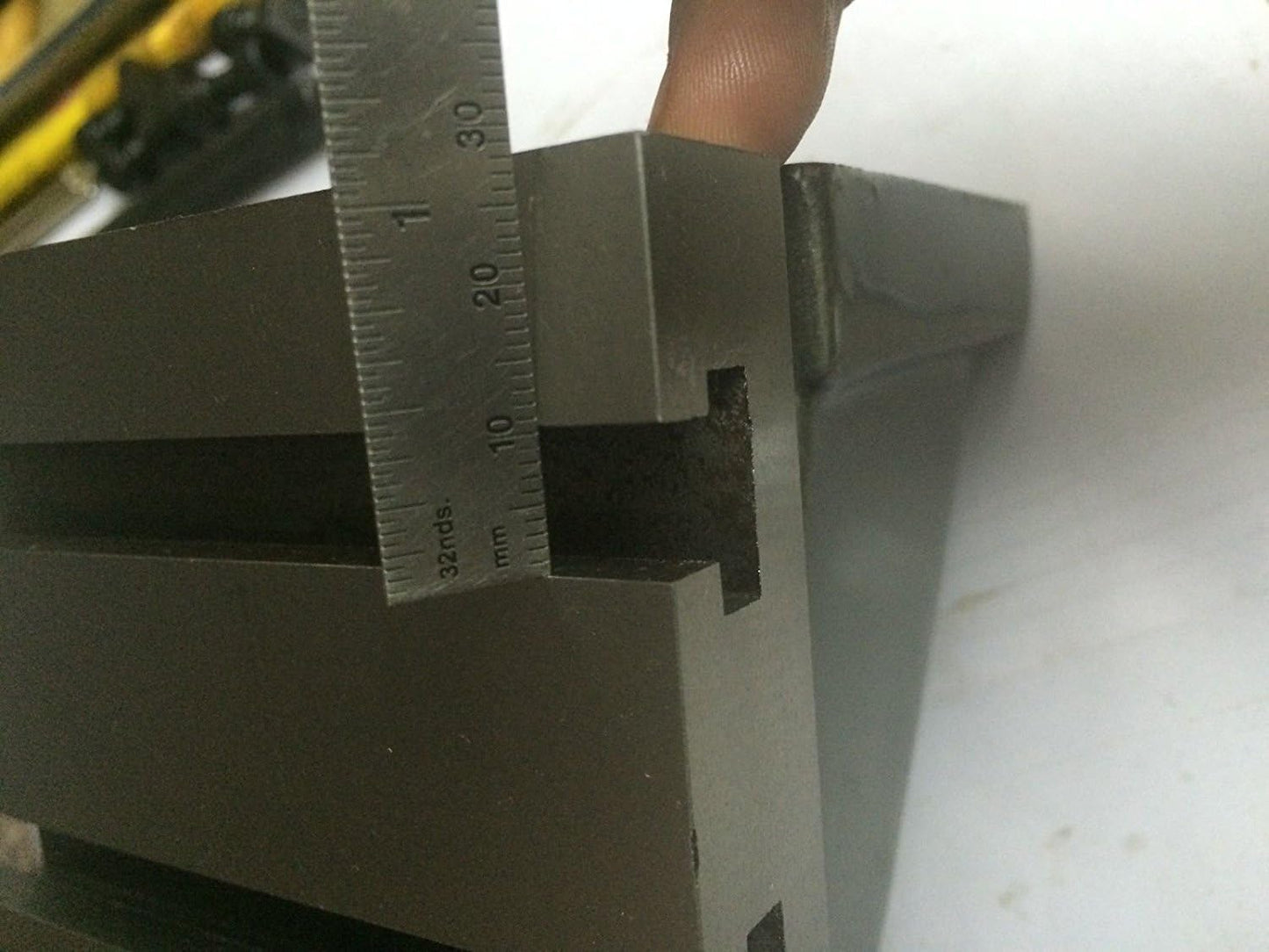

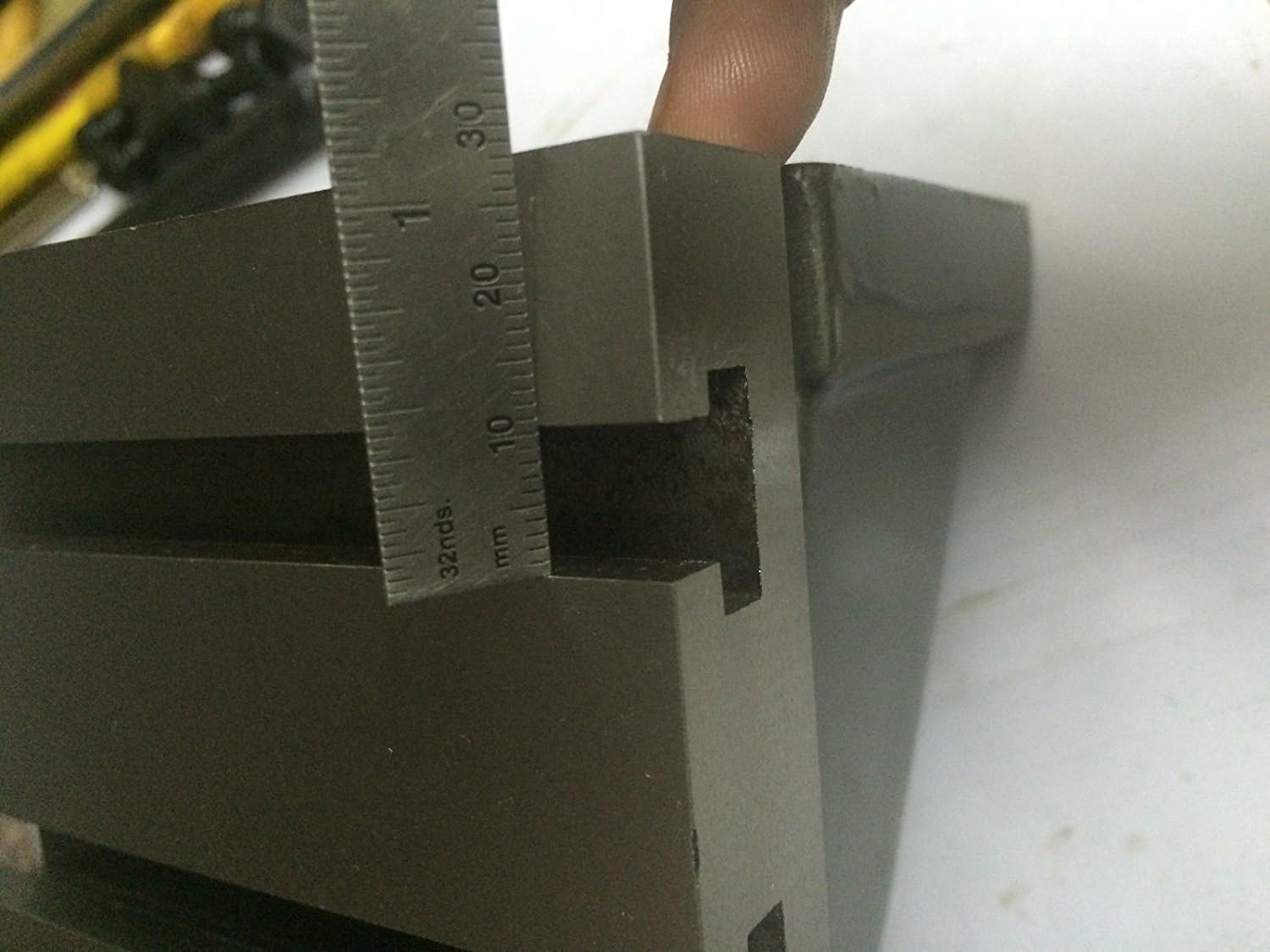

• Tee Slots: Number of Tee Slots 3, Width at the Top of the Tee 10 mm, Width at the Bottom of the Tee 15 mm. Facilitates secure mounting of workpieces and accessories.
• Compatibility: Specifically designed to allow milling lathes.
• Table Movement: Approximately 80 mm of table movement. Provides flexibility and range for milling tasks.
• Construction: Made from high-quality materials for durability and longevity. Precision-engineered to withstand the demands of milling operations.

model number: 3691739

Details: Use of Item-A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment. Product Name: Lathe Milling Vertical Slide Slotted Table Table Bed Size: 125 mm x 100 mm Provides ample working area for various milling operations. Base Type: Fixed Base Ensures a stable and rigid setup for precise milling. Tee Slots: Number of Tee Slots: 3 Width at the Top of the Tee: 10 mm Width at the Bottom of the Tee: 15 mm Facilitates secure mounting of workpieces and accessories.

EAN: 8906183730357

Package Dimensions: 10.3 x 6.7 x 6.6 inches
