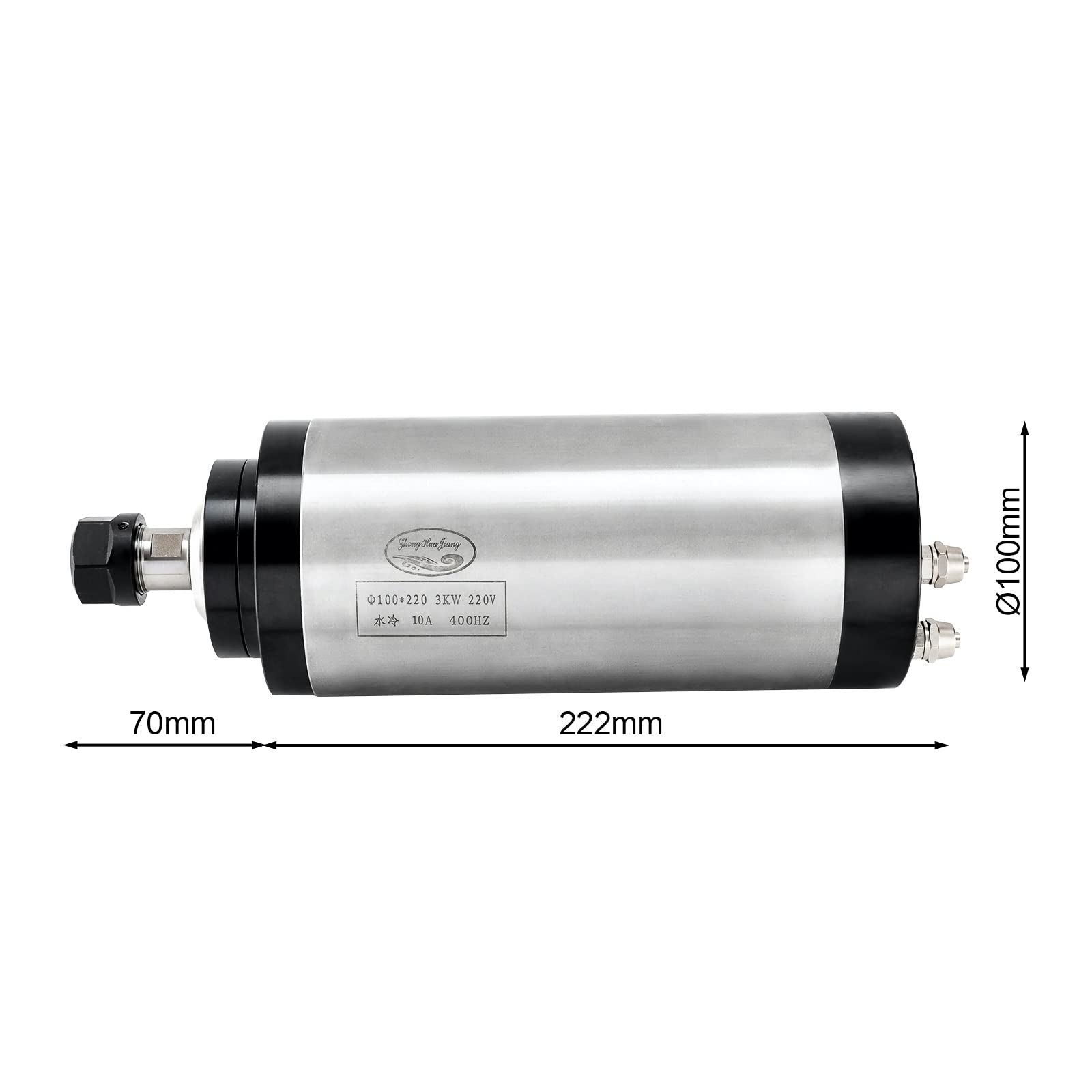

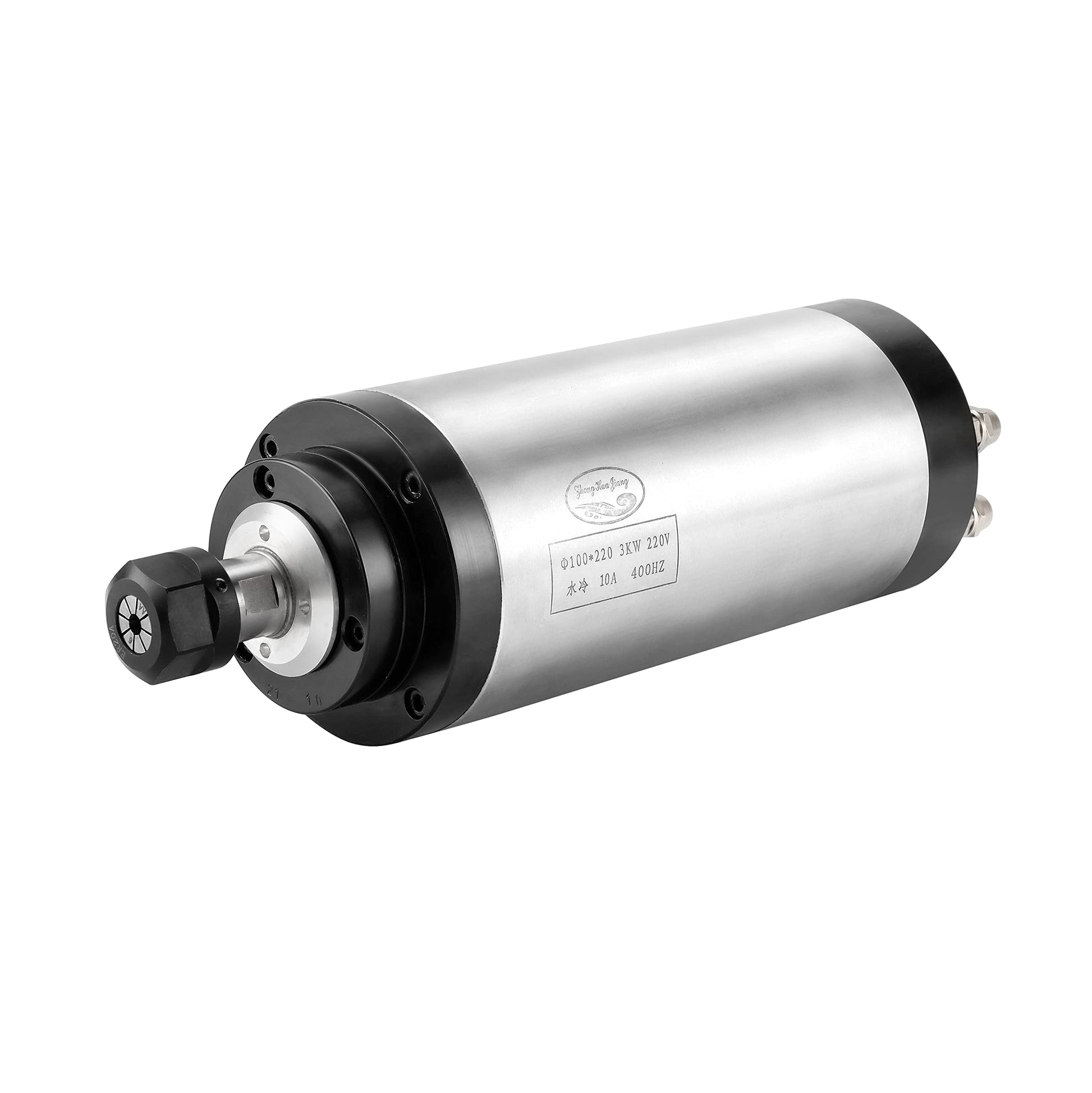

【BASIC INFORMATION】-This spindle motor should be equipped with VFD 220V,400HZ. 2 Poles, Collet ER20-6mm,Diameter： Φ100mm，Voltage: 220V ,Power: 3KW, Frequency: 400 Hz, Current: 10A, Speed: 5000-24000 RPM, Runout off: less than 0.005 mm,weight:8.8kg(19.4lbs)

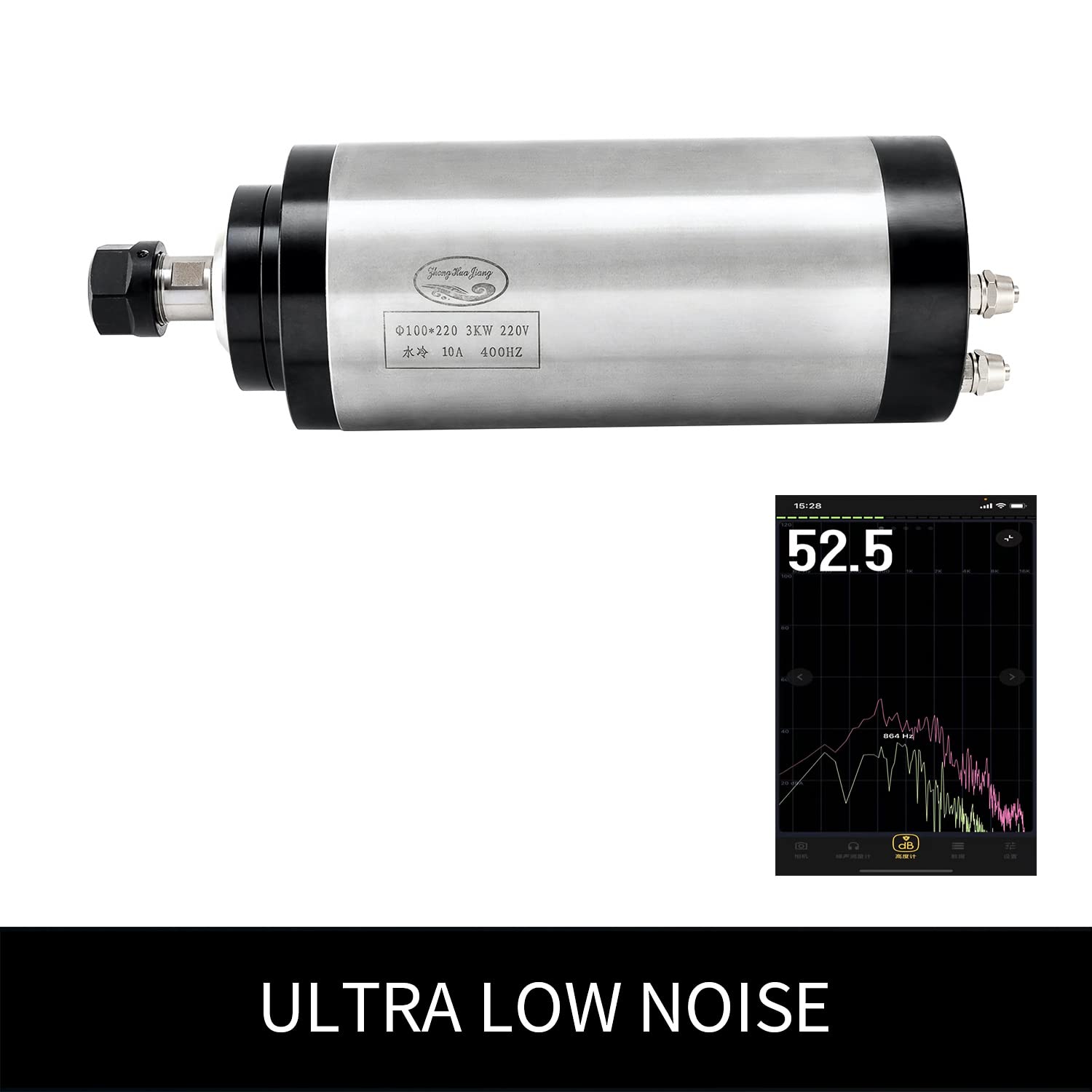

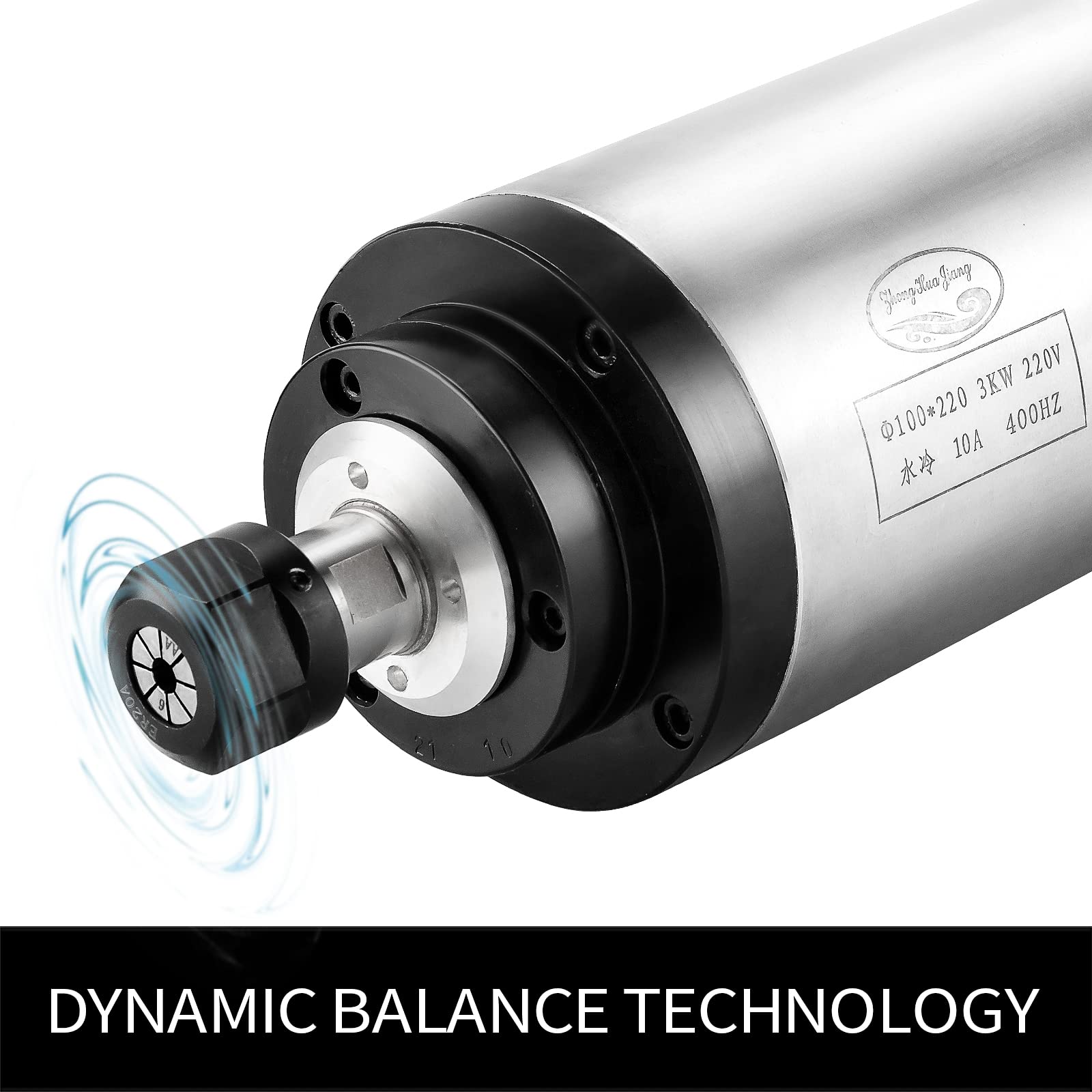

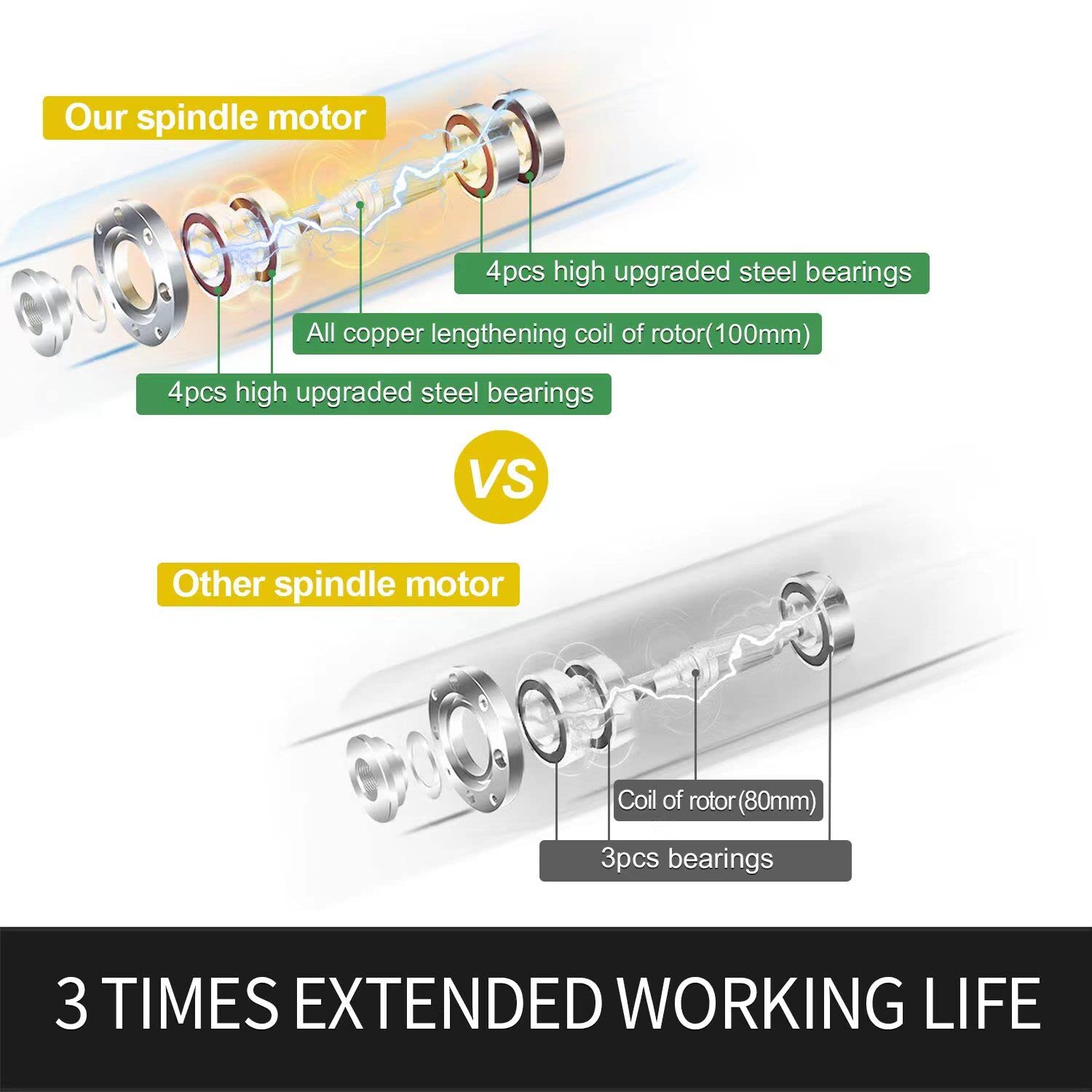

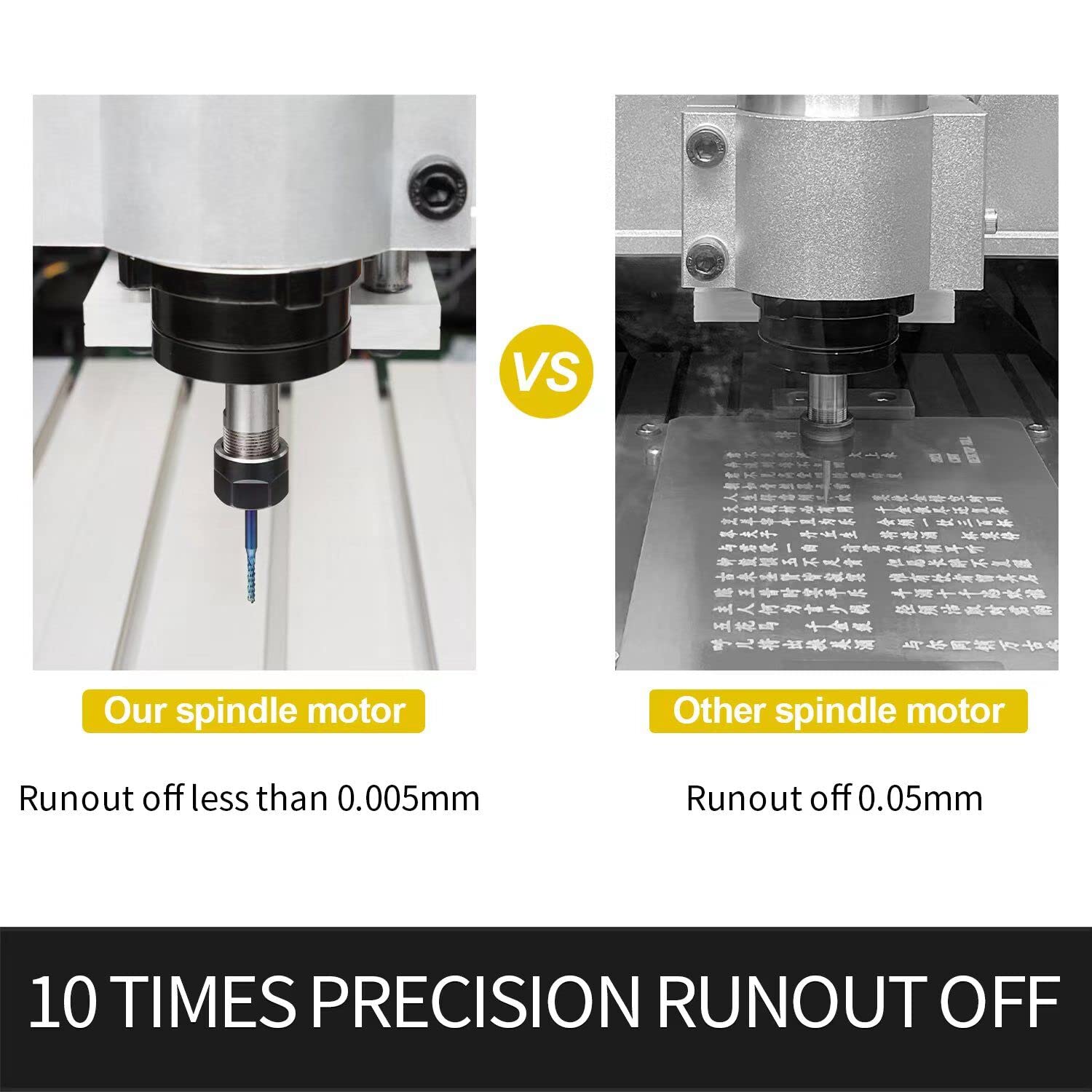

【SPINDLE ADVANTAGE 】-It made less noise when working, Authentic 4pcs upgraded steel bearings significantly extend working life 3 times longer than ordinary spindle motor; Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process; Runout off less than 0.005mm that 10 times precision beyond average spindle motor.

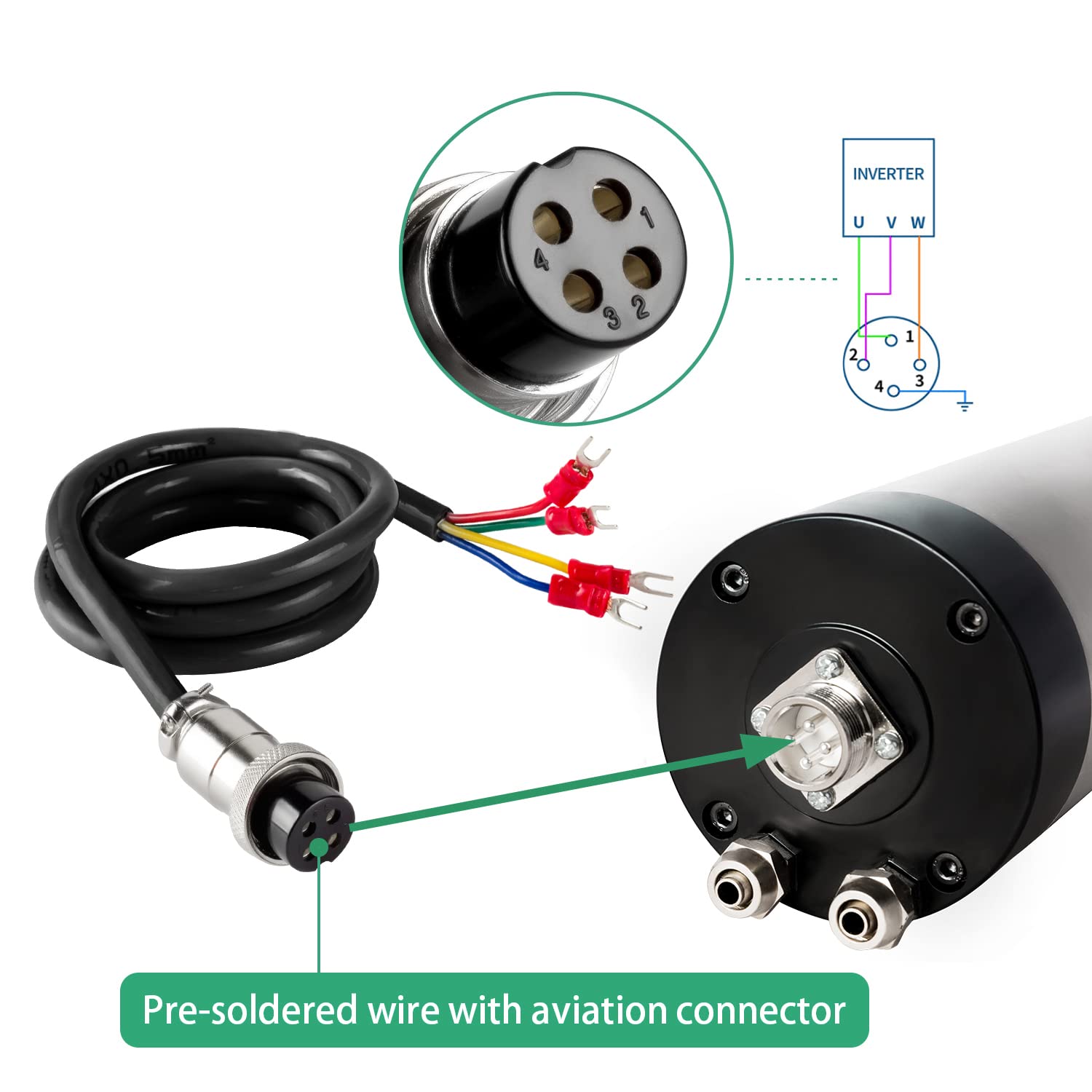

【EASY AND FAST TO ASSEMBLE 】-We offer pre-soldered aviation wire , You will take 2 minutes to connect spindle motor with VFD.
【WIDE APPLICATION】-Kinds of engraving and drilling material :Kinds of drilling and engraving materials , such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon.
【WARRANTY ASSURANCE】-We have 20 years manufacturing experience , pls contact us for any question or problem. We are proficient in customizing products according to various requests and applications. If you have special inquiry, pls let us know.
