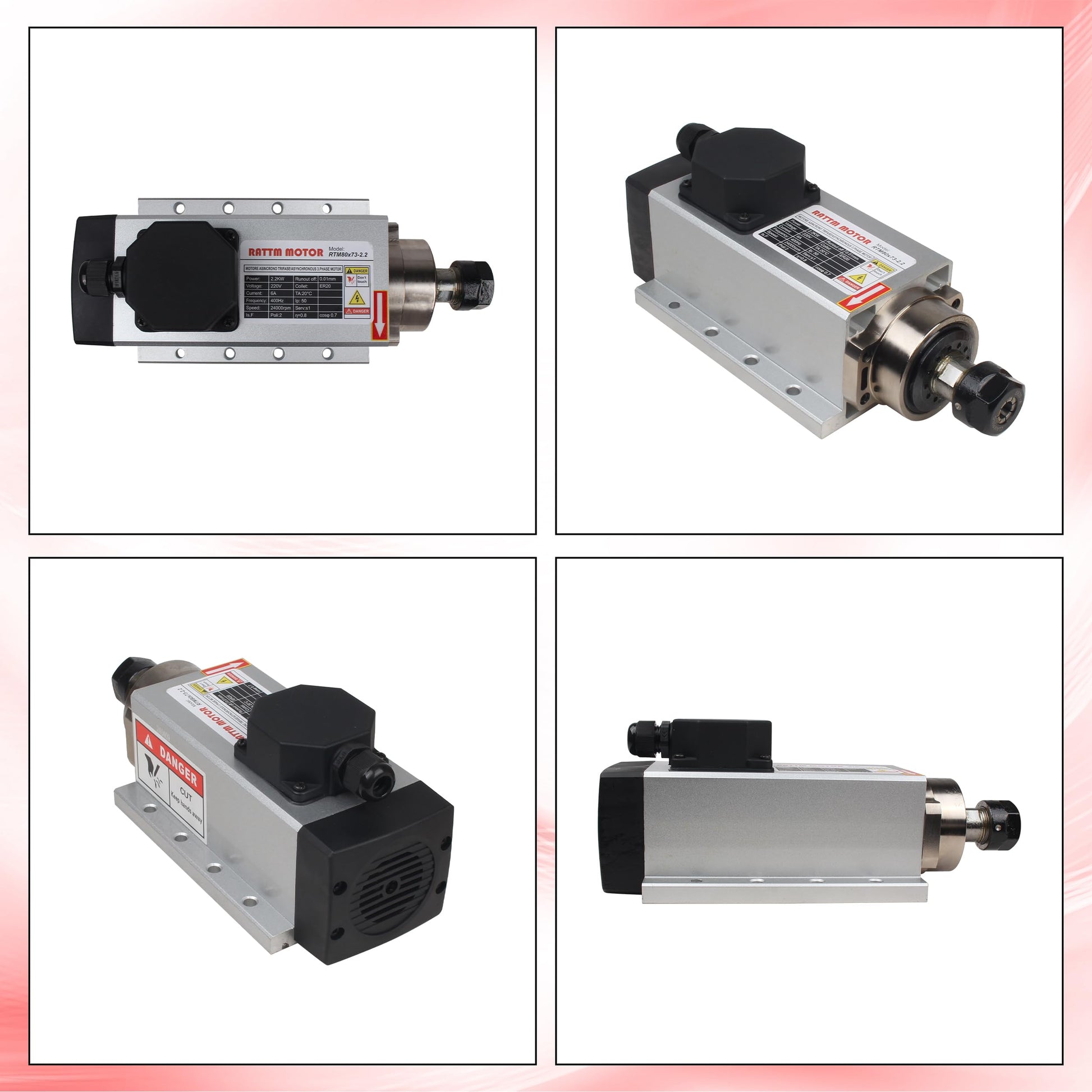

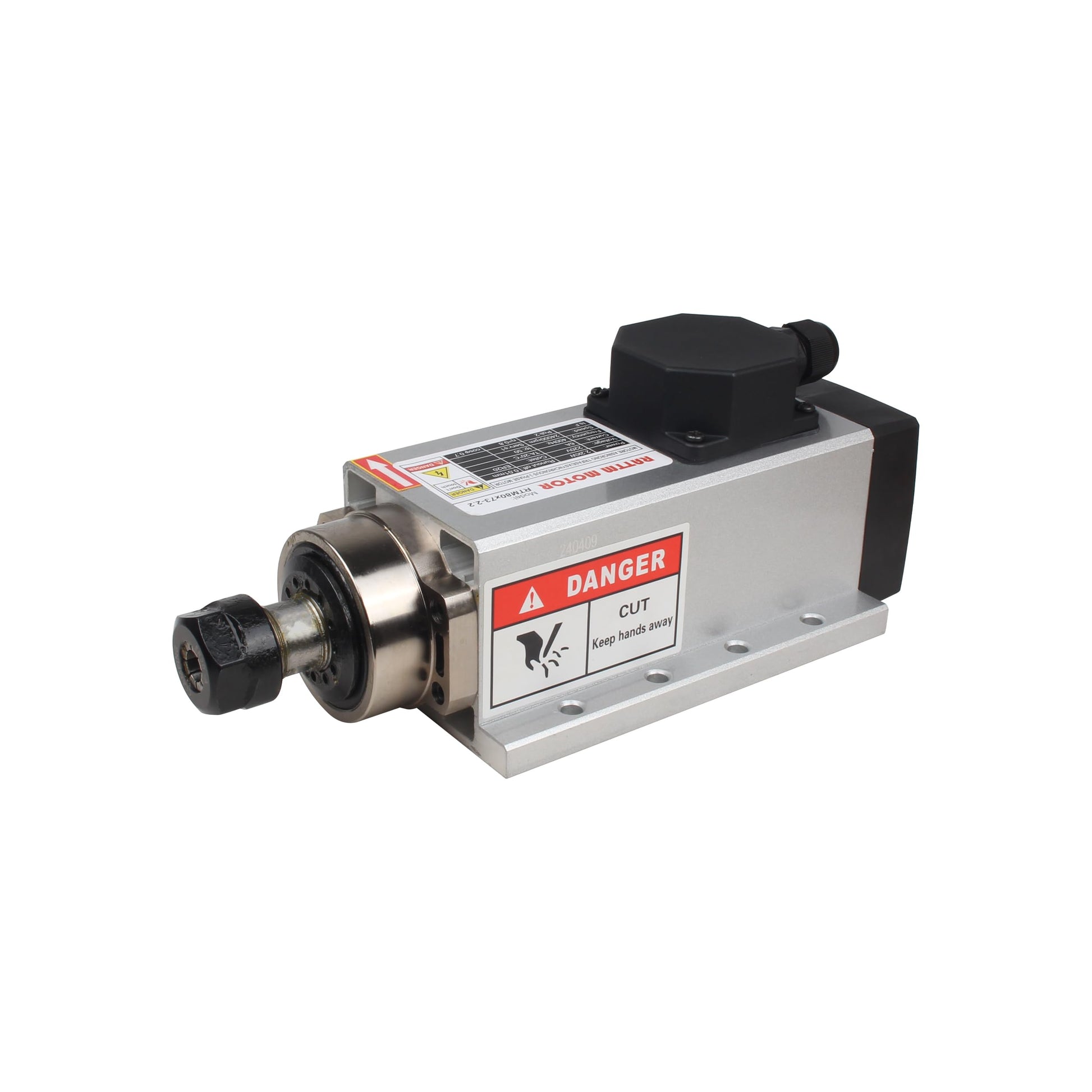

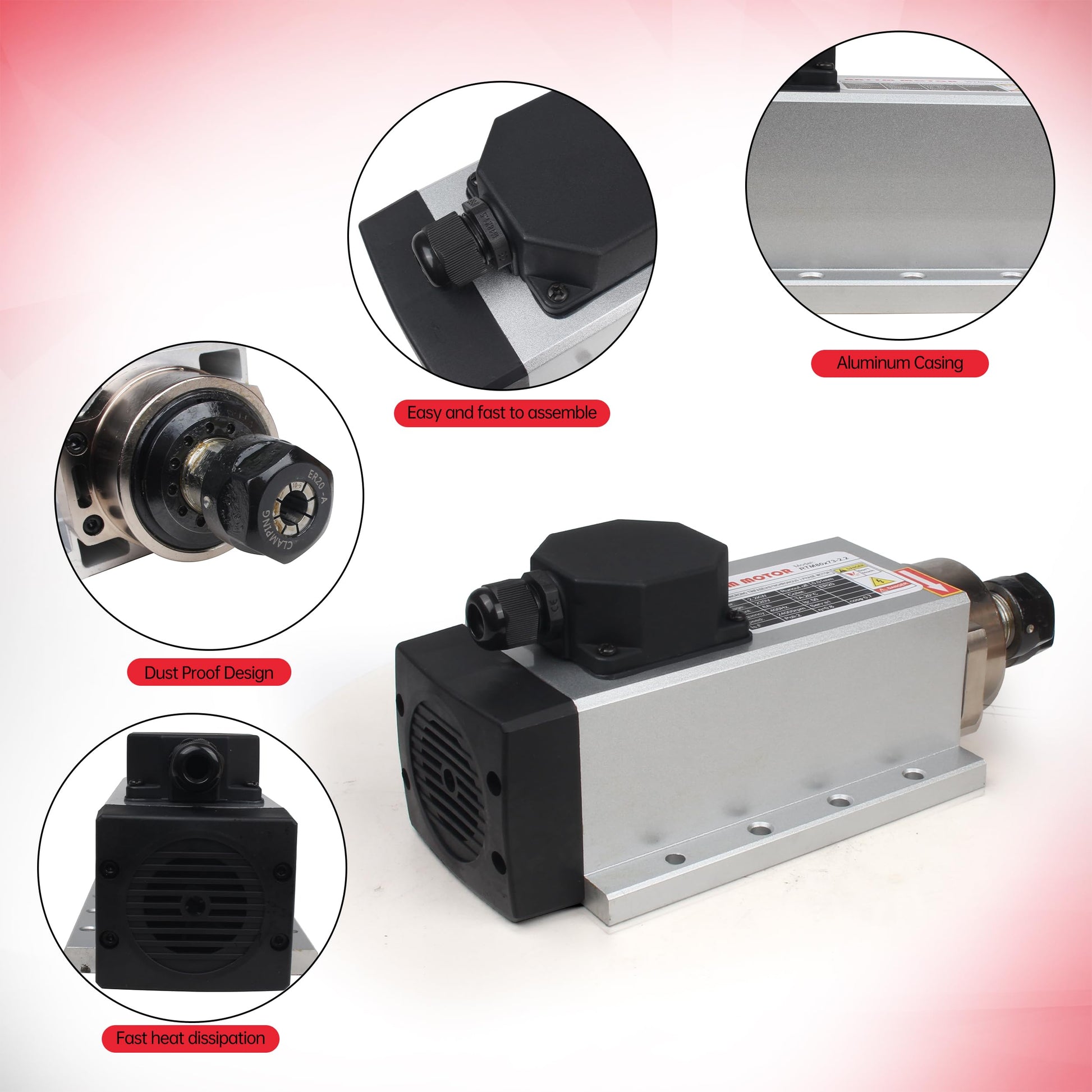

CNCTOPBAOS 2200W 220V CNC Router Spindle Motor,Square 2.2KW Air Cooled Spindle Motor ER20 400Hz 24000rpm 4 Bearings for CNC Milling Machine Engraving Cutting Wood,Plastic,Aluminum,Acrylic,PVC etc

Brand: CNCTOPBAOS

Features:

• Spindle: High Power 2200W 2.2KW Square Air Cooled Spindle Motor ER20 220V

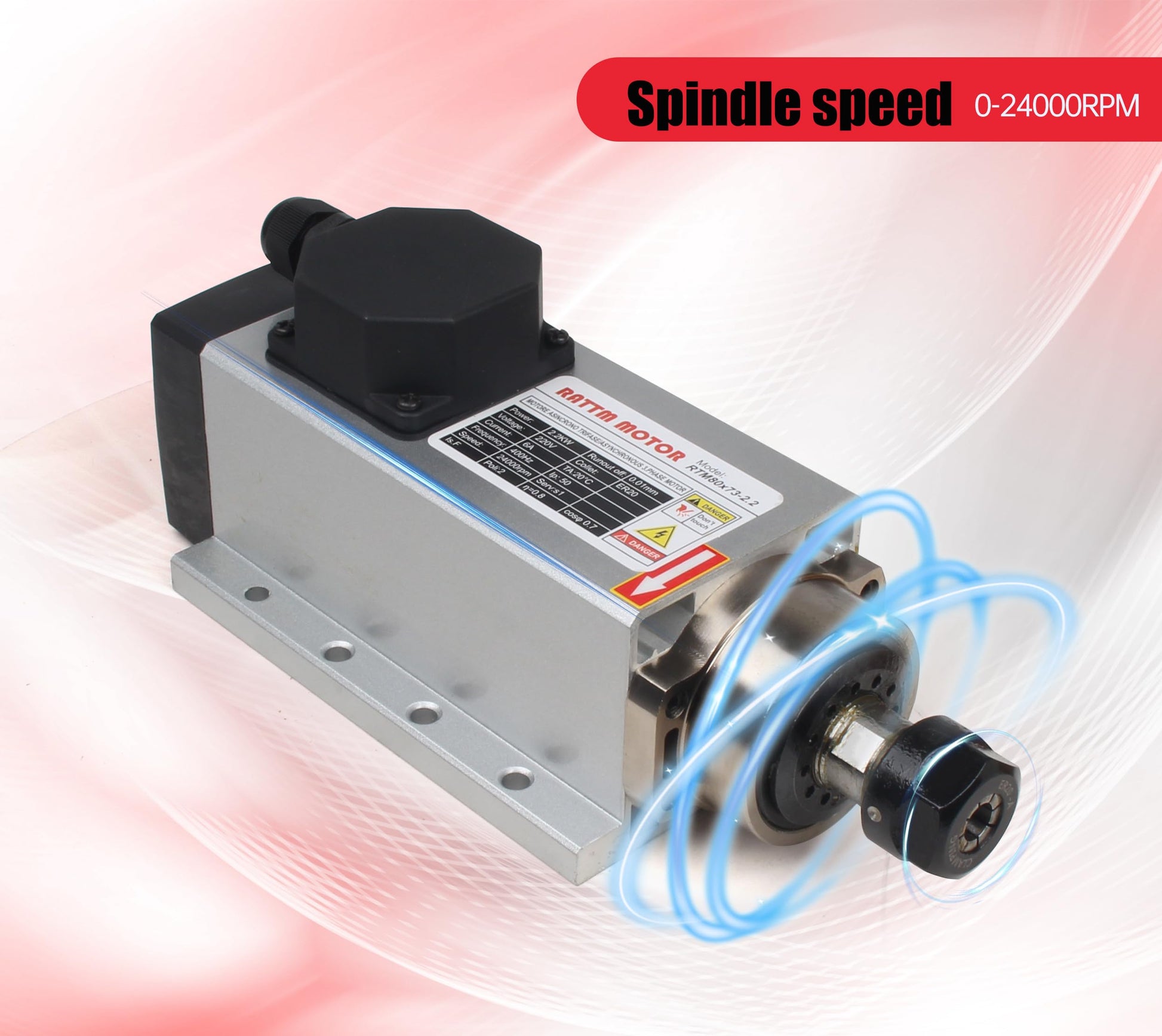

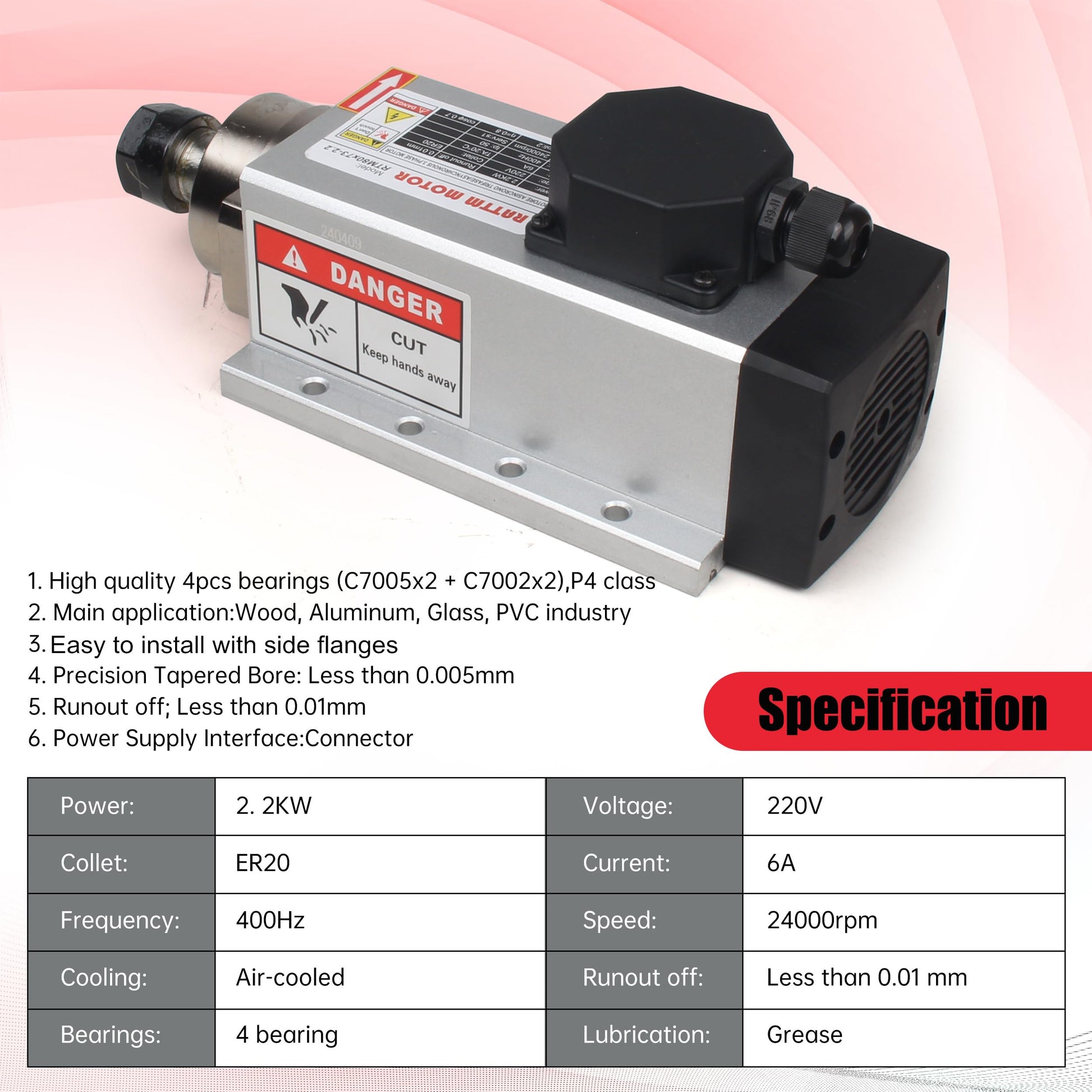

• Specifications: Operating Speed:10-24000rpm; Frequency:400Hz; Voltage:220V; Collet:ER20; Bearings:4pcs bearings; Lubrication: Grease; Current:6A
• Runout off: Less than 0.01mm ; Precision Tapered Bore: 0.005mm

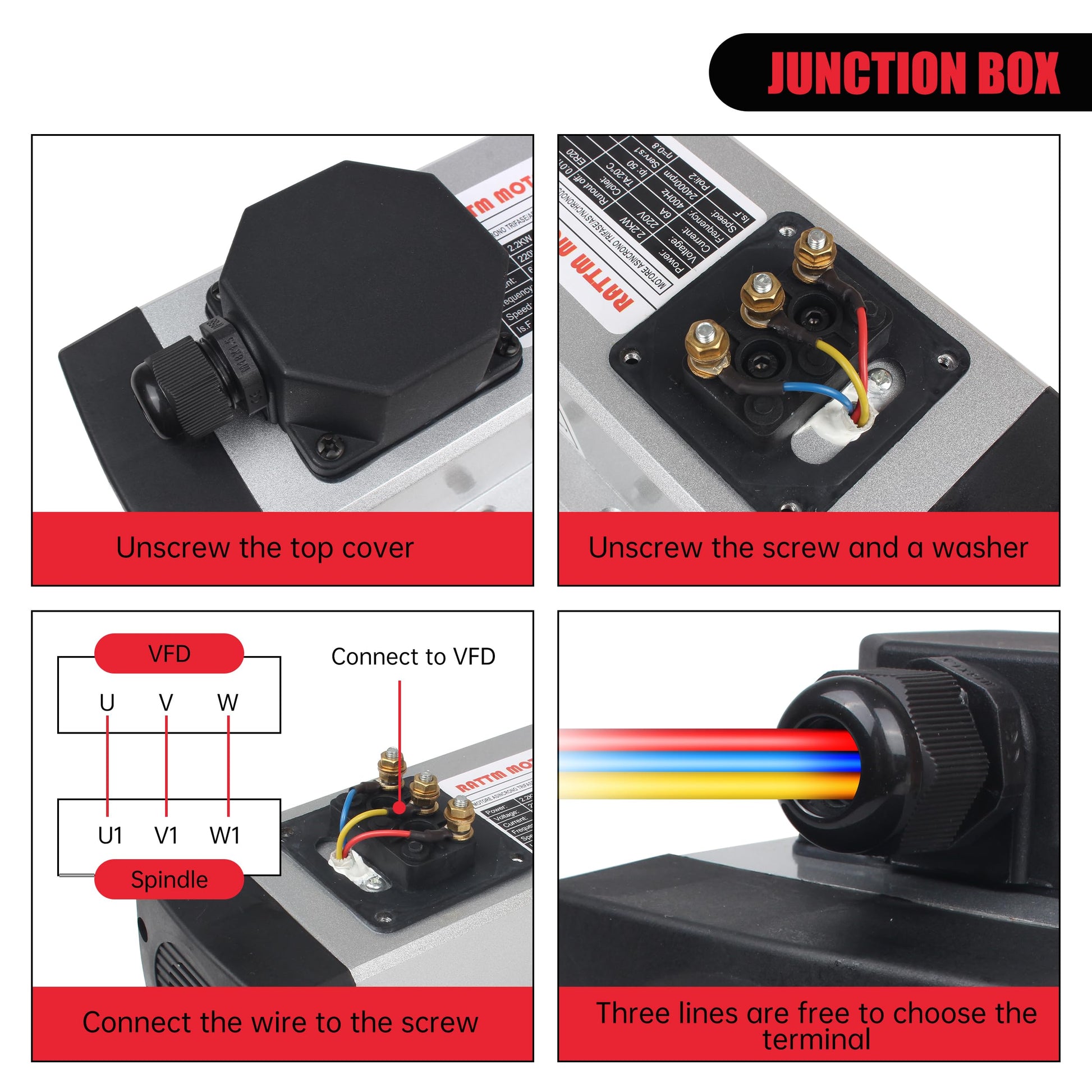

• Wirings: Spindle’s terminal U1 connect to VFD’s U,spindle’s terminal V1 connect to VFD’s V,spindle’s terminal W1 connect to VFD’s W
• Main applications: Wood, Aluminum, Glass, PVC industry.The Spindle motor Mainly suitable for non-metallic engraving,cnc router carving engraving milling cutting machine

model number: 22AC

Part Number: 22AC

EAN: 0681385631357

Package Dimensions: 17.7 x 8.3 x 8.1 inches
