Model Number: DDCSV4.1; 7 inches TFT screen,resolution ratio: 1024x600 ; 17 operation keys;Difffferential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation

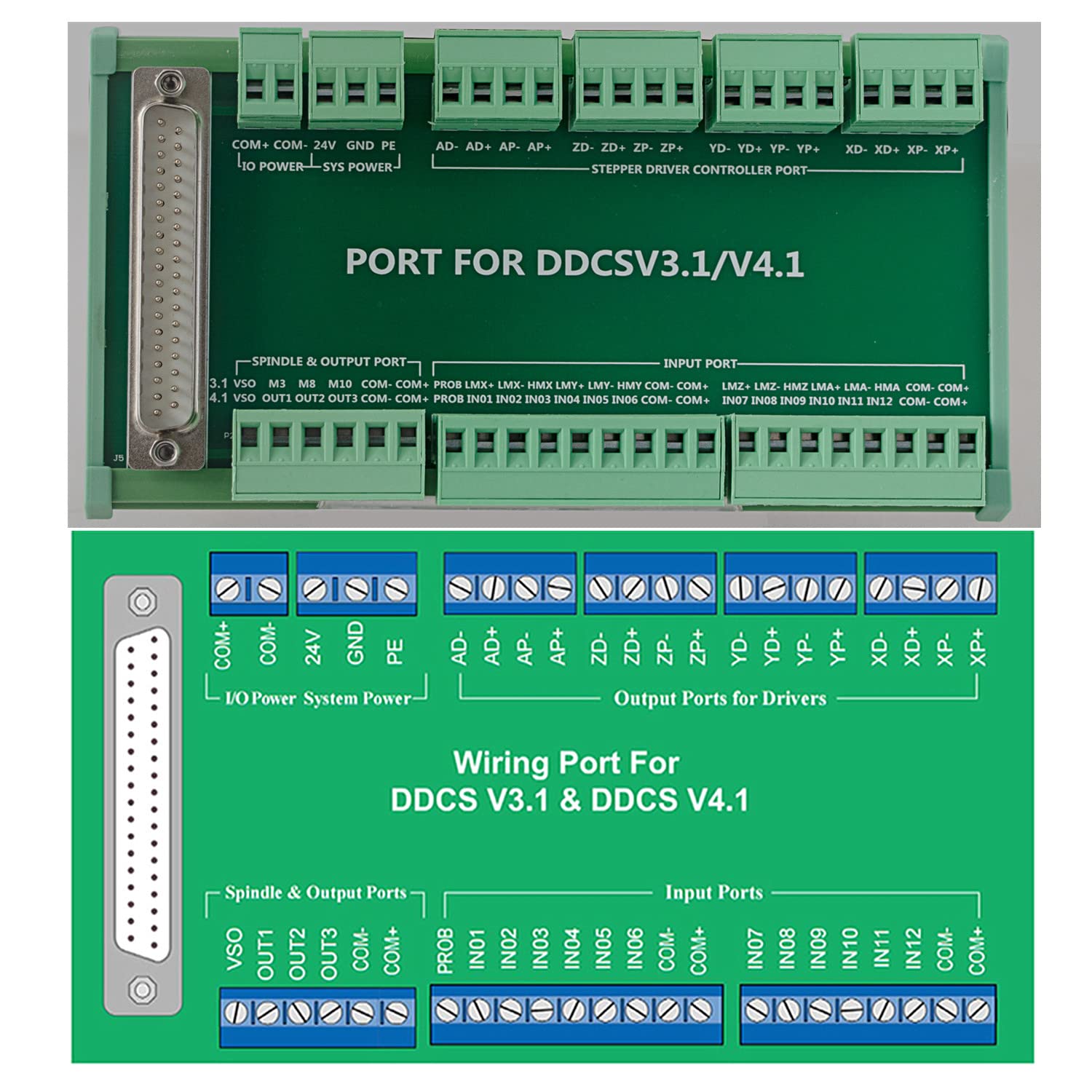

Feature: ARM9 main control chip,FPGA core algorithm chip;18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs; The spindle can be confifigurated as Analog spindle/0-10V and also Servo spindle

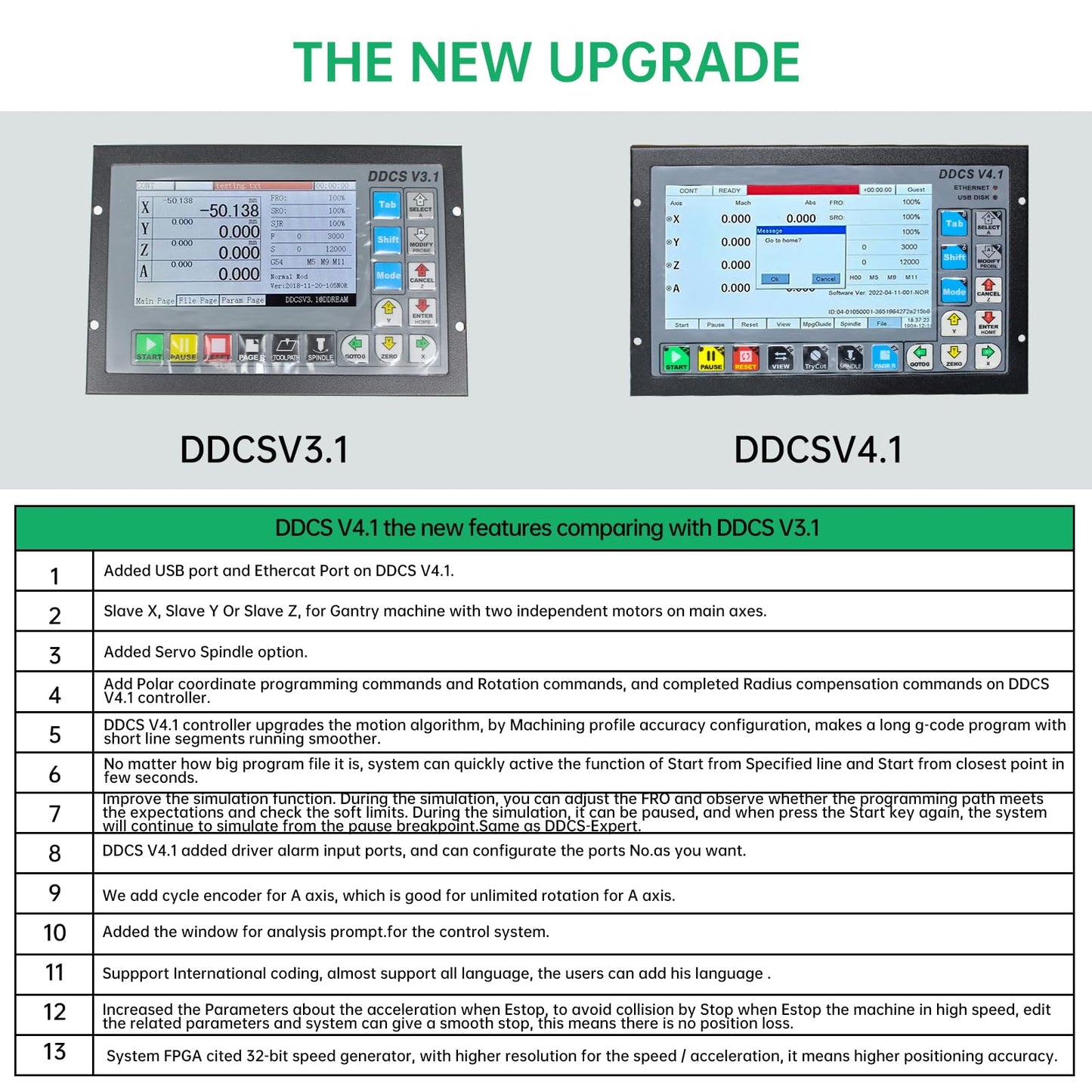

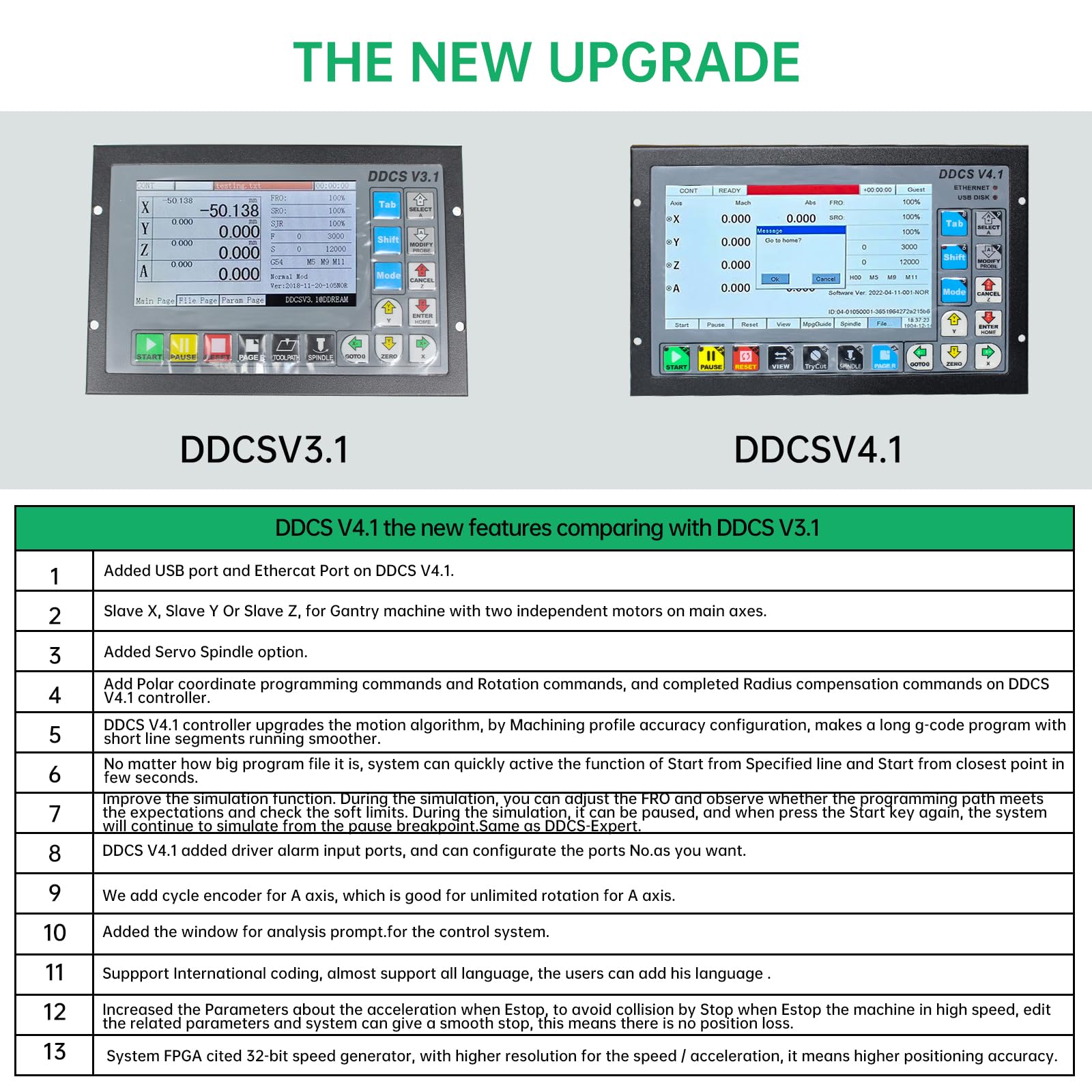

Slave function: Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axes
Power requirements: The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly
Support G code file: USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller; No size limited of the G-code file
