CNCTOPBAOS 4 Axis CNC Motion Controller System,DDCSV3.1 Offline Stand Alone PLC,Servo Stepper Motor Driver Controller for CNC Router Lathe Milling Engraving Machine

Brand: CNCTOPBAOS

Color: silver, gray

Features:

• Brief introduction: The DDCSV3.1 is a 4 axis motion controller,the highest output pulse per axis is 500KHz.This provides high control precision for stepper motors and servo motors.The DDCS operates as a stand alone system without the need of a computer

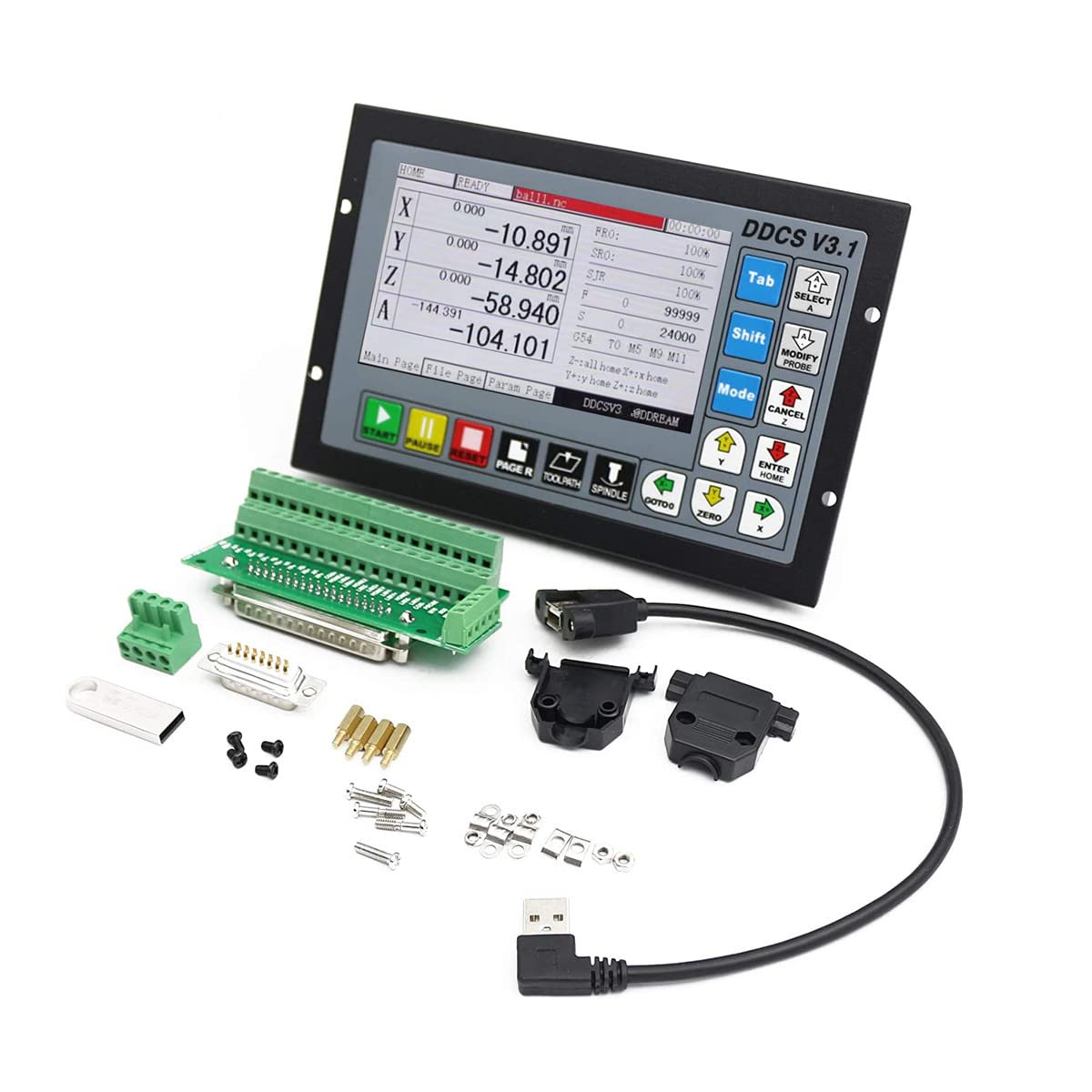

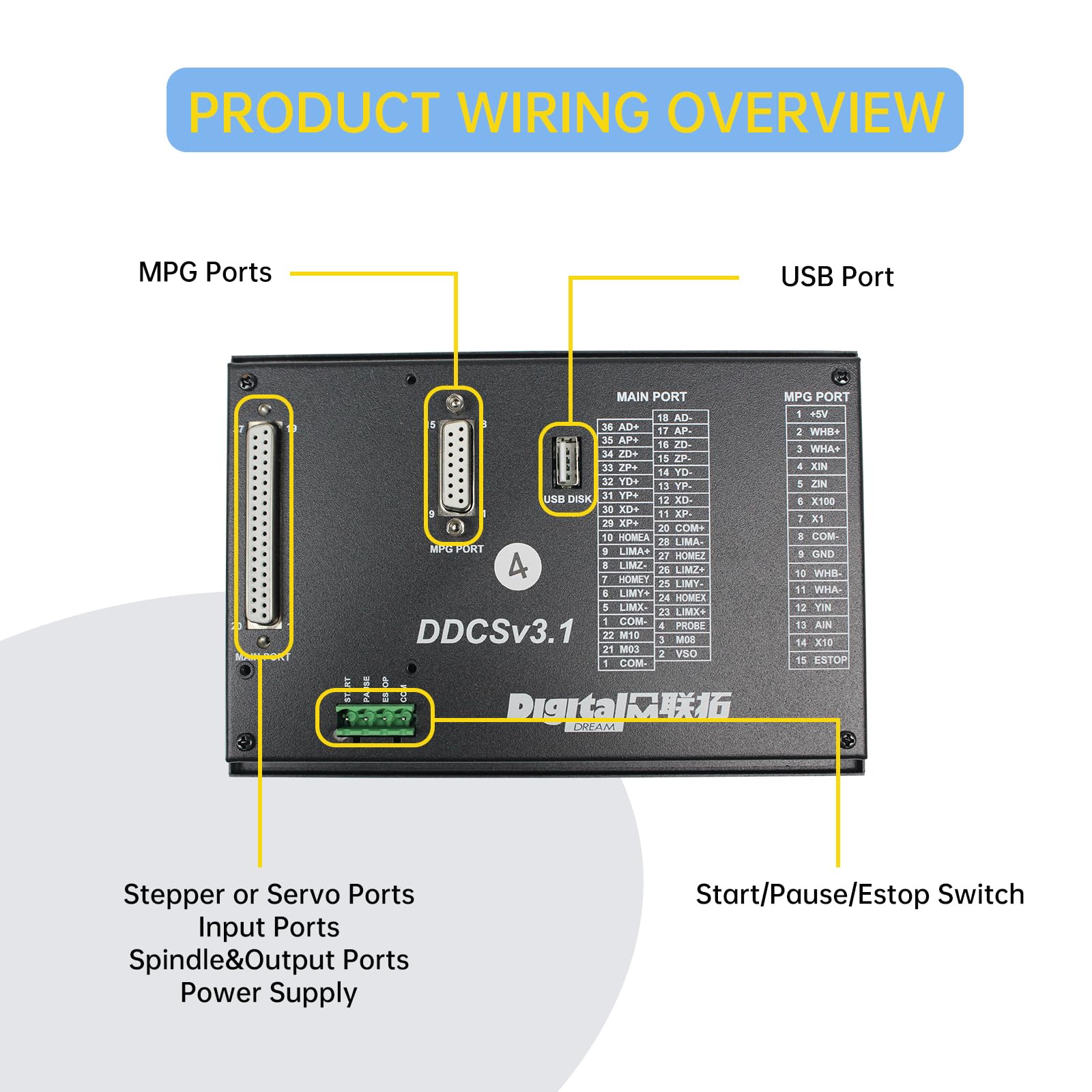

• Compatible with G code set: 5 inches TFT Screen ; Resolution ratio: 480x272 ;16 photoelectric isolated digital inputs ; 3 photoelectric isolated digital outputs ; All operations are controlled by only 17 keys and it supports the FANUC with high universality to be compatible with G code set,with 4G USB flash disk support for G code file input,no size limited of the G-code file

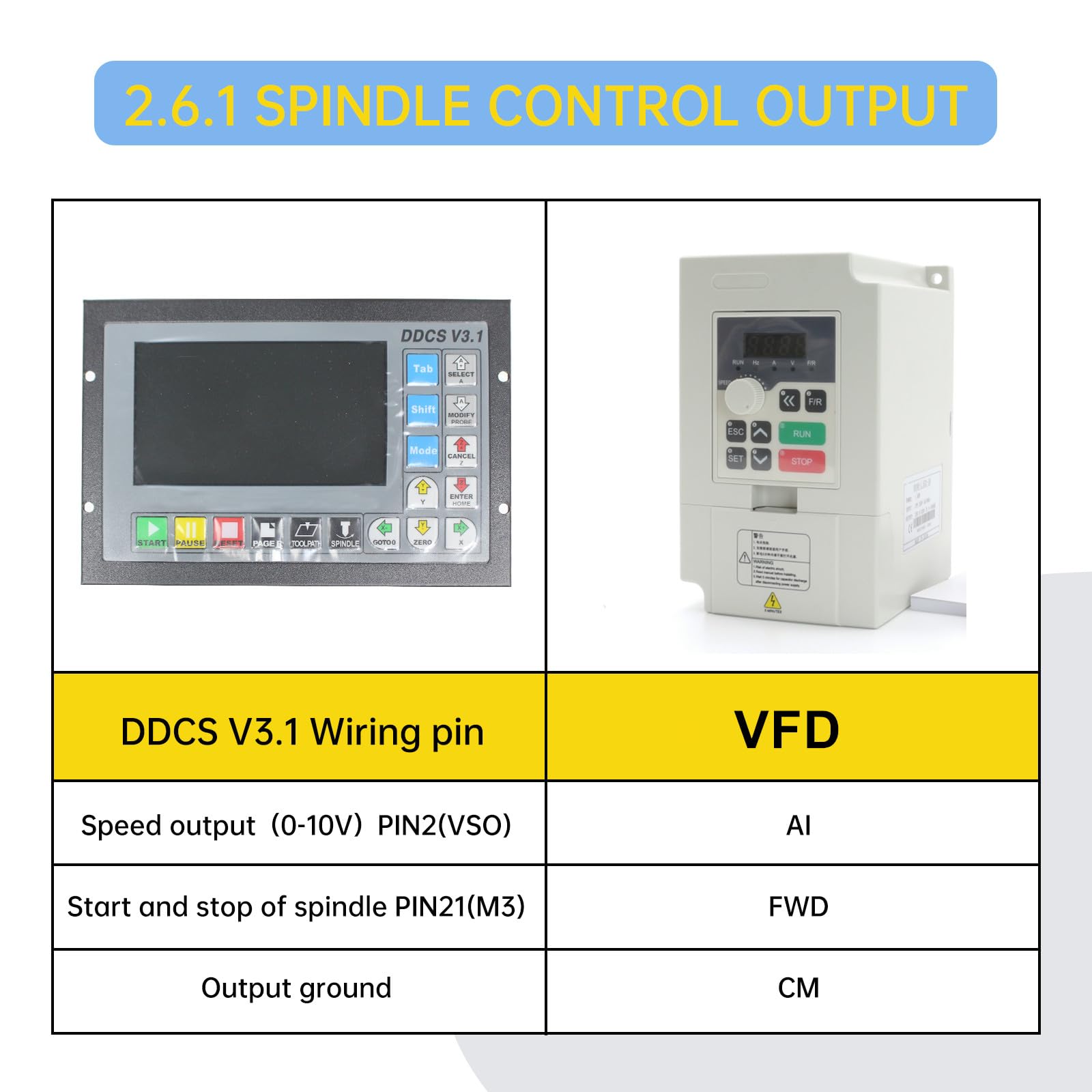

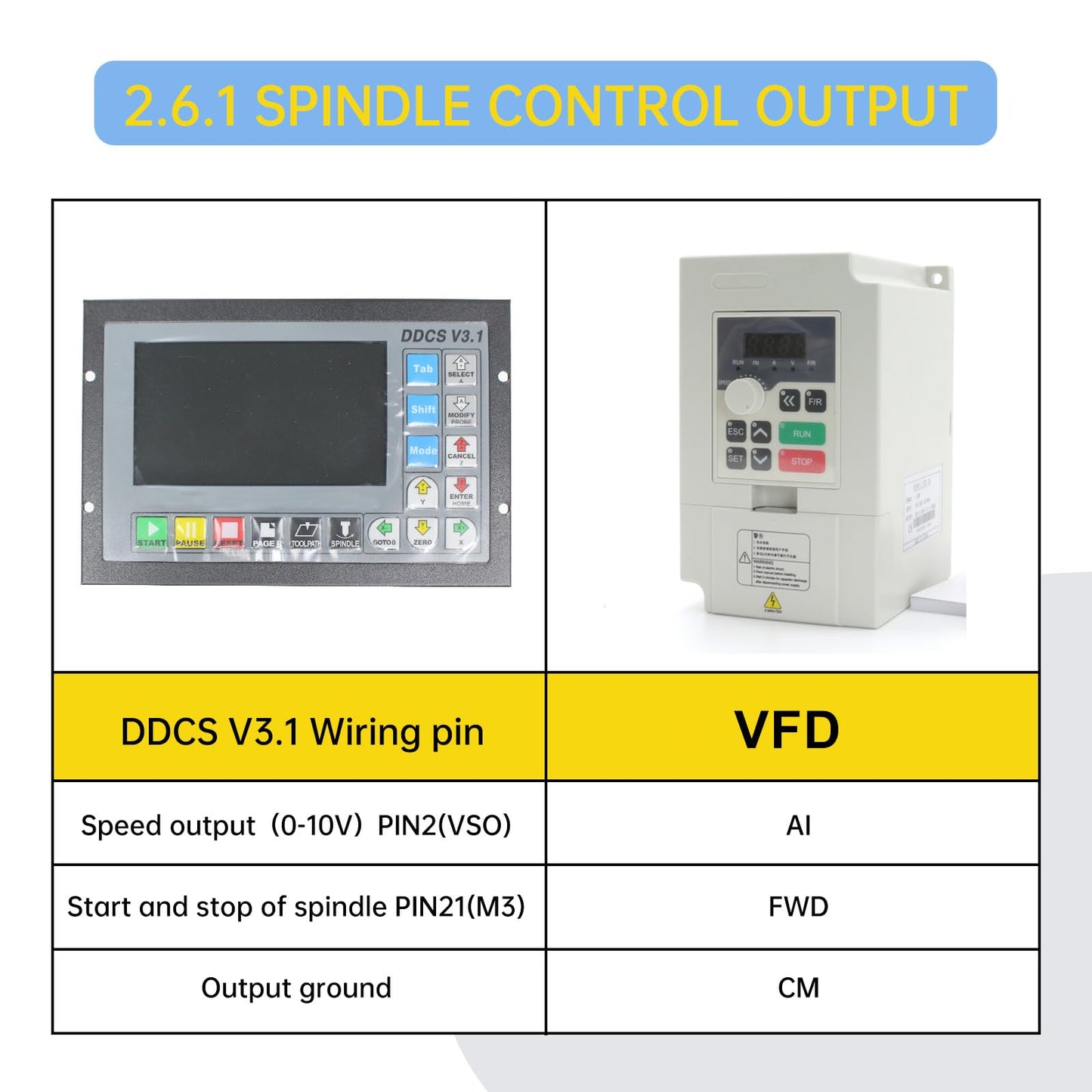

• Brief technical feature: 16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs ; Analog spindle control 0-10V spindle control can be modified as PWM output; ARM9 main control chip,FPGA core algorithm chip ; Jog function for each axis continuous, step, defined distance; Customer can define the distance ; Support NPN type limited switch
• Power requirements: The Power Supply for the controller is 24VDC,DDCSV3.1 needs two power supplies,main power is for system,IO port is for input and output ports, Current is not less than 1A;Because of the IO power,system can supply the power for all IO ports.So no need the external power supply for IO port anymore
• Applications: The DDCV3.1 can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick&Place and Milling Machine,lathe machine and cutters are just a few examples

model number: DDCS V3.1

Part Number: DDCS V3.1

EAN: 0681385631265

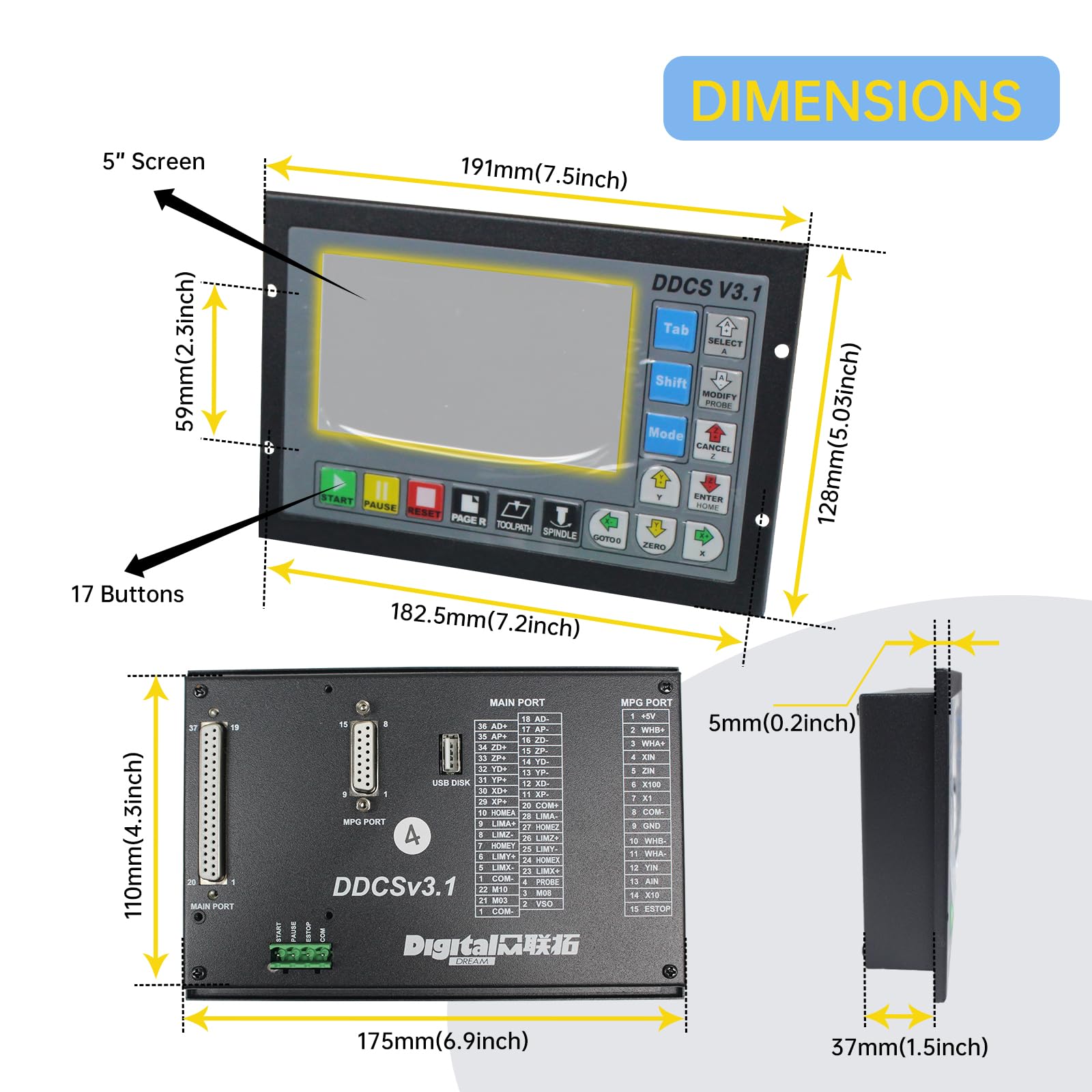

Package Dimensions: 8.6 x 6.2 x 3.5 inches
