CNCTOPBAOS High Precision 3D Edge Finder 0.001mm NO,Waterproof CNC Machining Center Trigger Touch Probe,Milling Machine Automatic Find Center Position Locator,XYZ Coordinate Tool Setter Measuring+Tip

Brand: CNCTOPBAOS

Features:

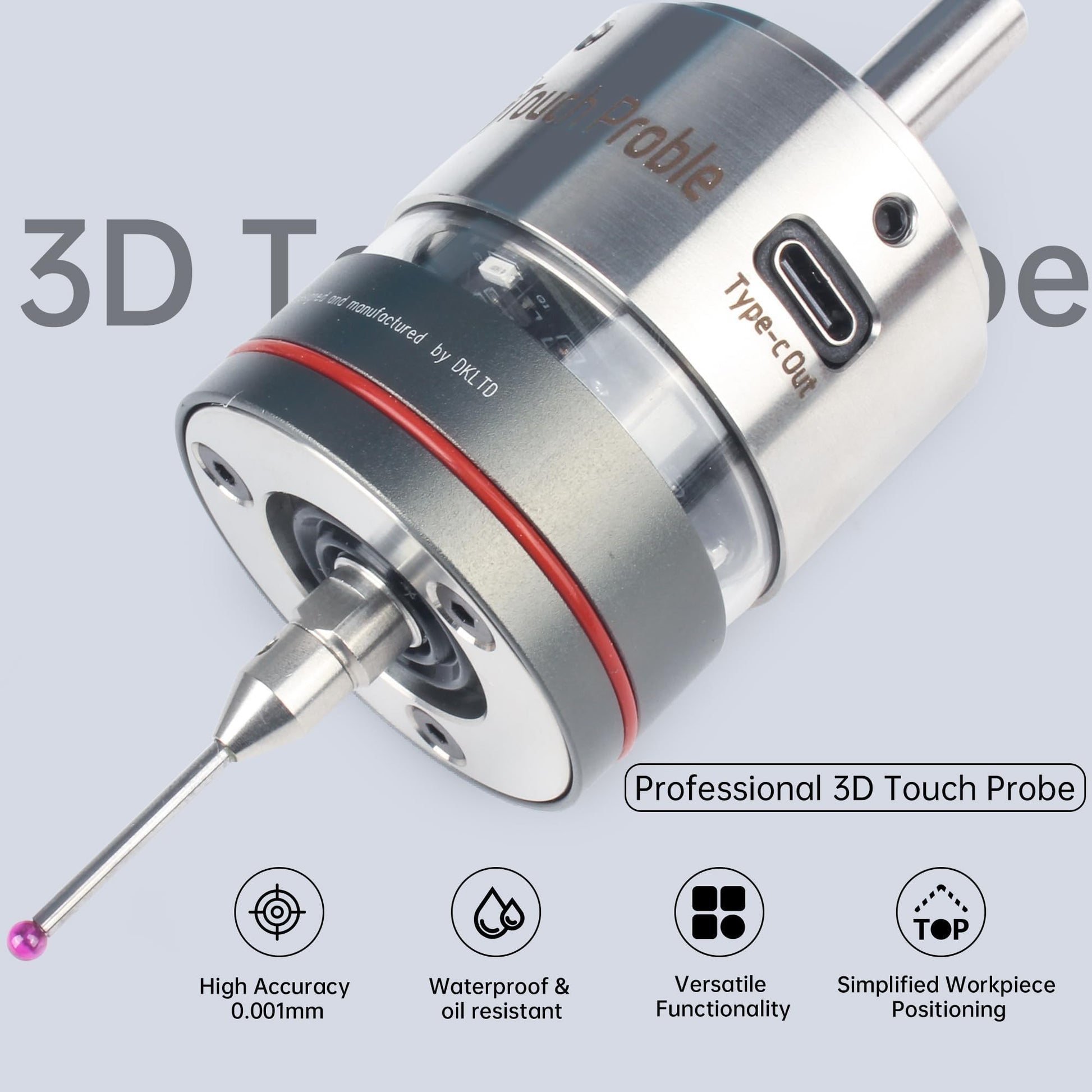

• Function: This high-precision 3D edge finder can realize quick centering, edge finding, center finding, shape measurement and other functions, with an accuracy of 0.001 mm; It has excellent 3D performance, can measure three-dimensional surfaces, can select channels, and has a working distance of up to 3 m; It is suitable for 3D measurement of various machining centers

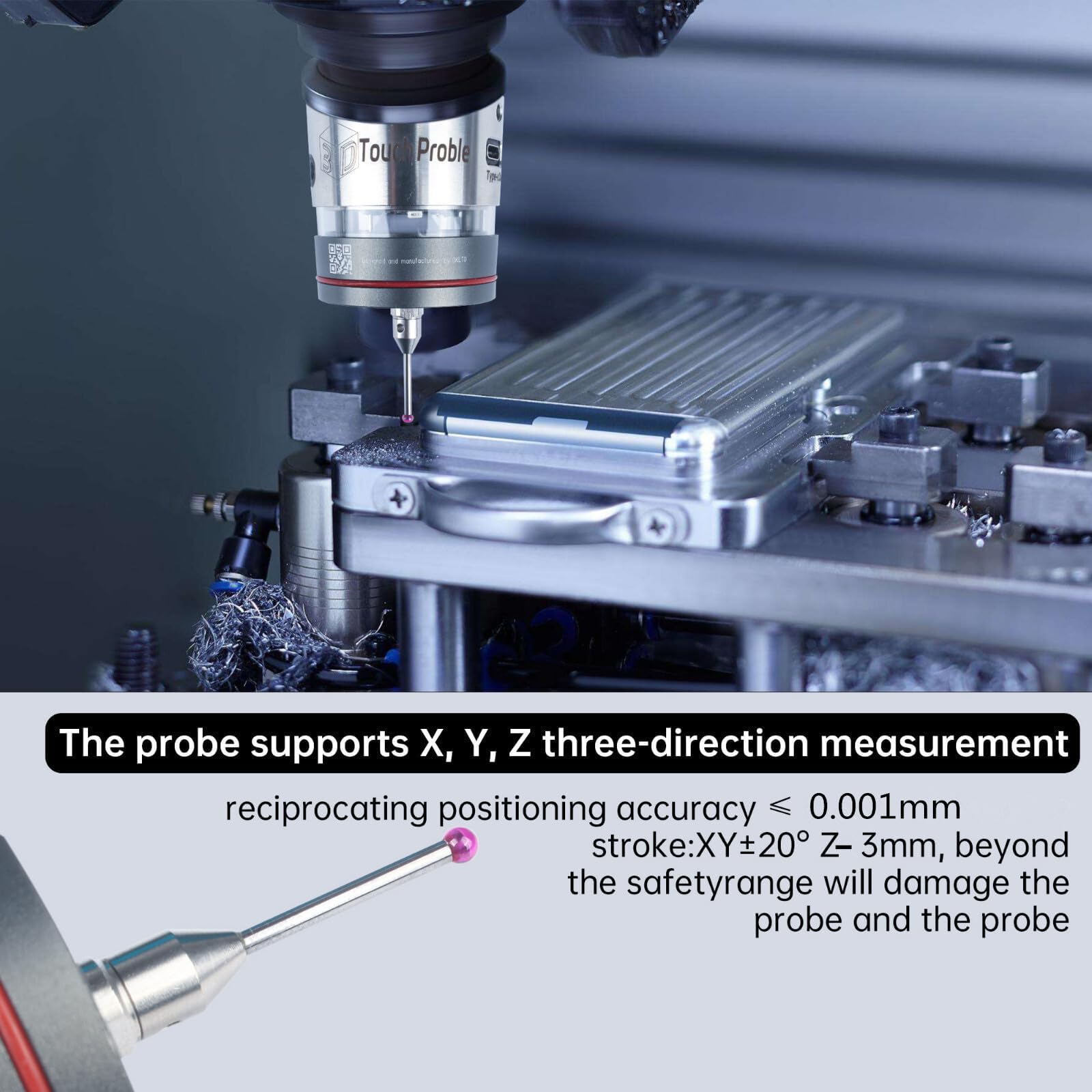

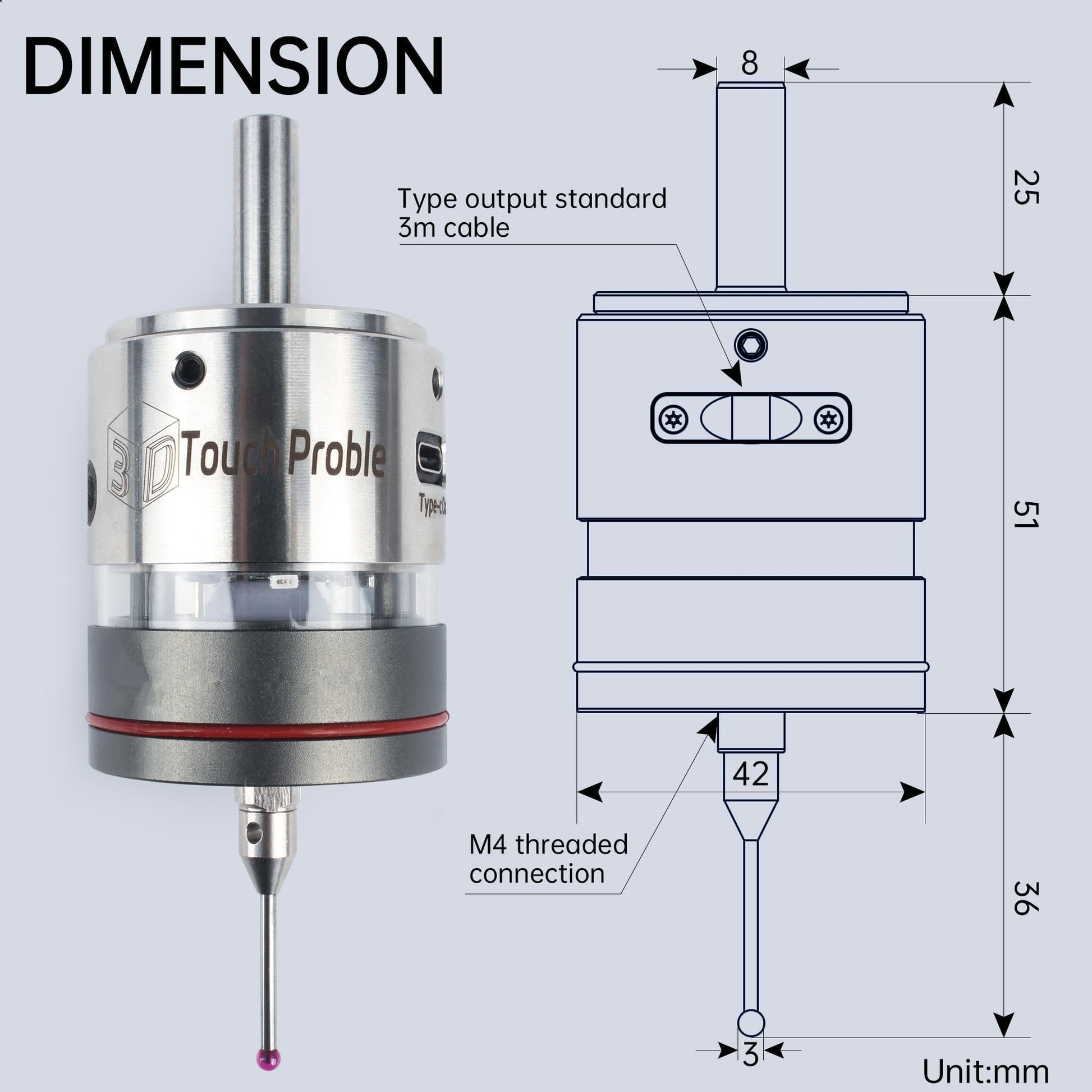

• Specification: Probe thread: M3; Probe ball head: φ3MM ruby; Probe stroke: XY±: 20° Z-: 3mm (Safty stroke: XY± 15°;Z- 3mm); Protection level: IP67; Trigger force: 1Nm; Indicator light: NC/normally closed/lit when triggered; Signal allows current<50ma;Output mode: NO/normally open;Weight: 328g
• Material: The needle rod of this product is made of tungsten steel, the needle holder is made of 304 stainless steel, and the housing is made of aluminum alloy; The needle tip is made of ruby,which has extremely high hardness,making it highly wear-resistant and able to maintain stability and accuracy during long-term use;It can achieve a measurement accuracy of 0.001mm and is suitable for various precision measurement tasks, achieving optimal performance and delaying service life

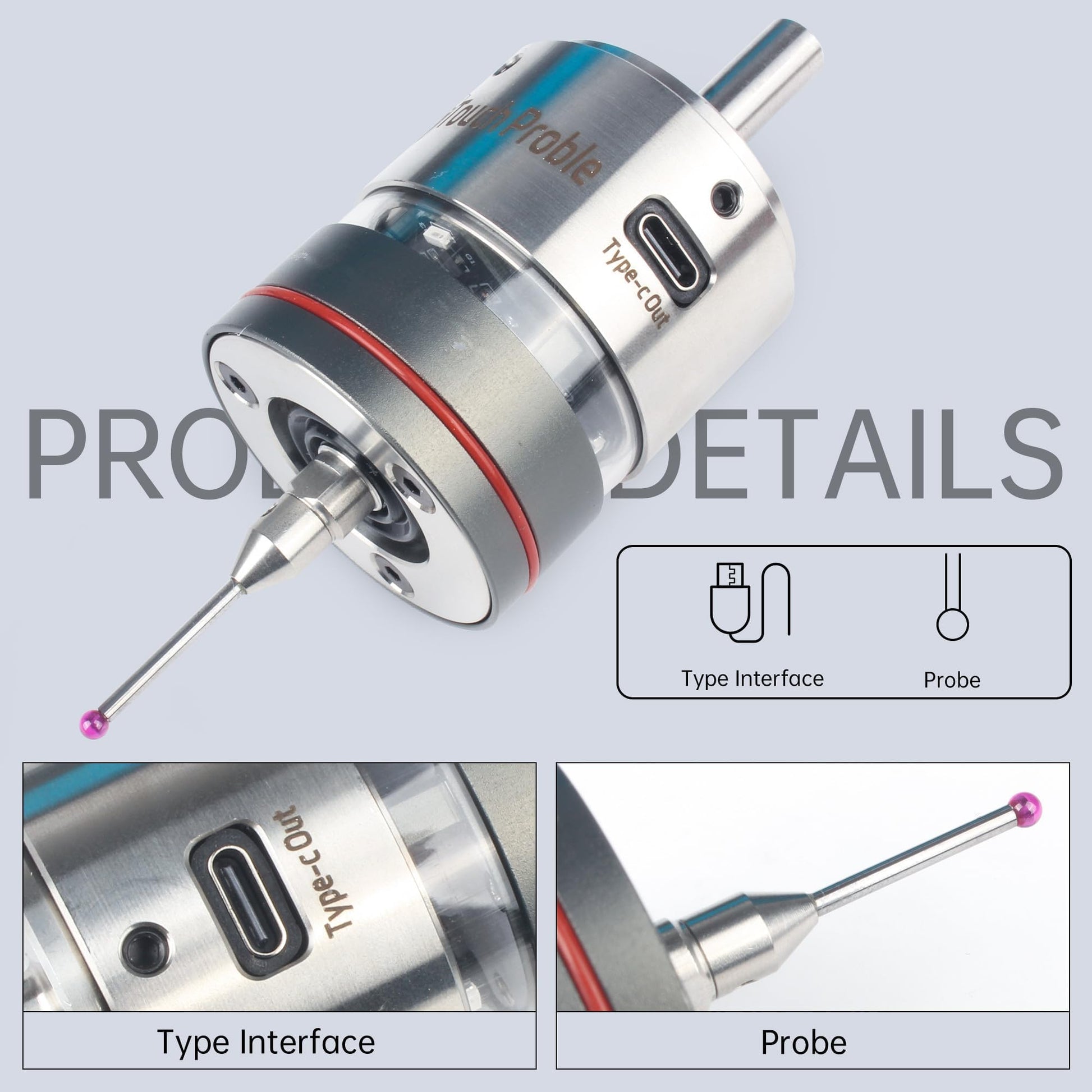

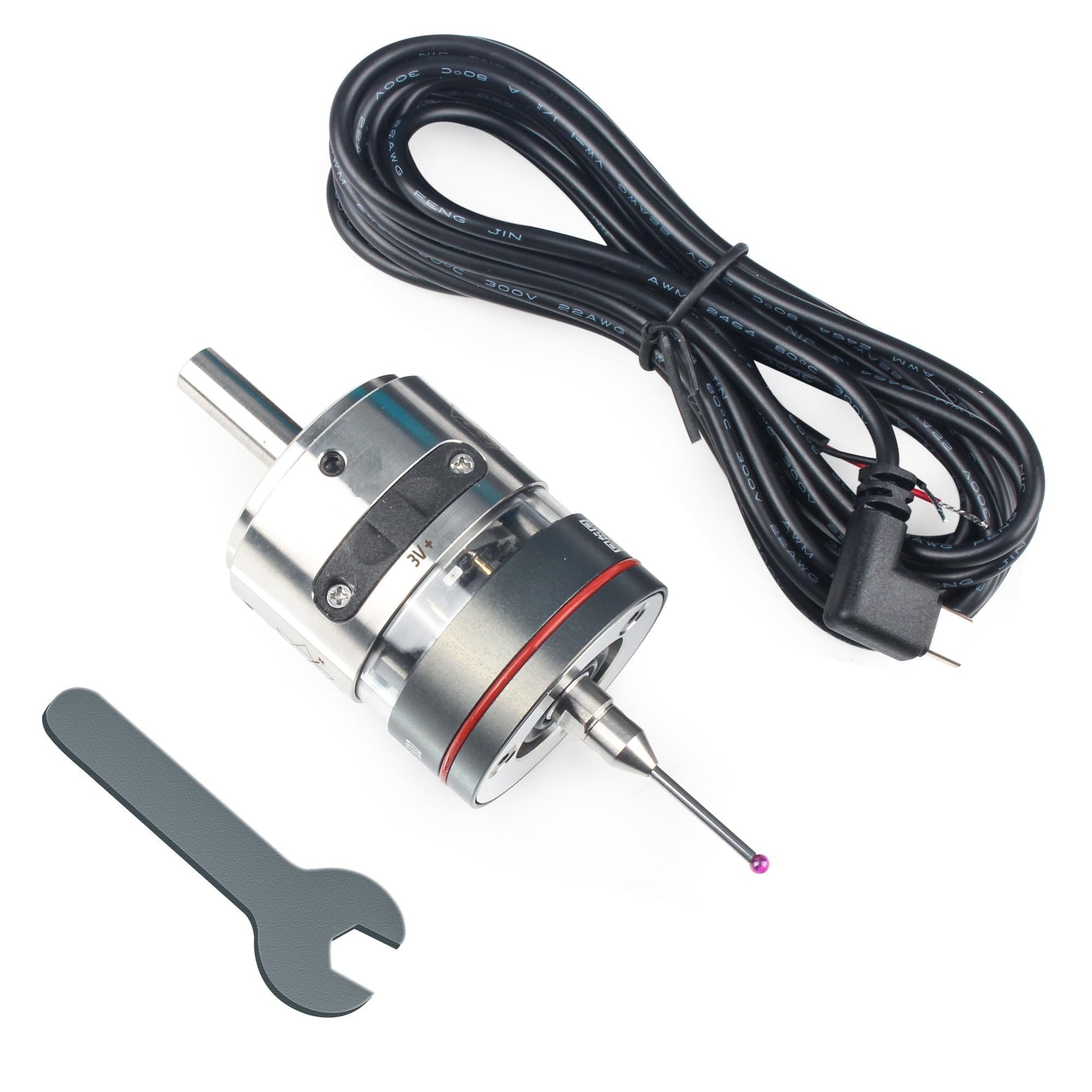

• Advantages: waterproof grade IP67, can work in the coolant spray environment, good sealing, oil and dust resistance; This wired probe adopts Type-C quick plug interface output and is equipped with 3M 2-core output signal cable;It can effectively reduce machine downtime, automatic fixture, workpiece calibration, and rotation axis setting, eliminate manual setting errors, reduce scrap rates, improve productivity, and increase the flexibility of batch product size
• Support offline or wired work: When working offline, it can be used as a photoelectric splitter rod; When working with wires, it can be used in conjunction with various CNC systems for automatic centering

Part Number: W-500

Package Dimensions: 5.5 x 4.7 x 2.6 inches
