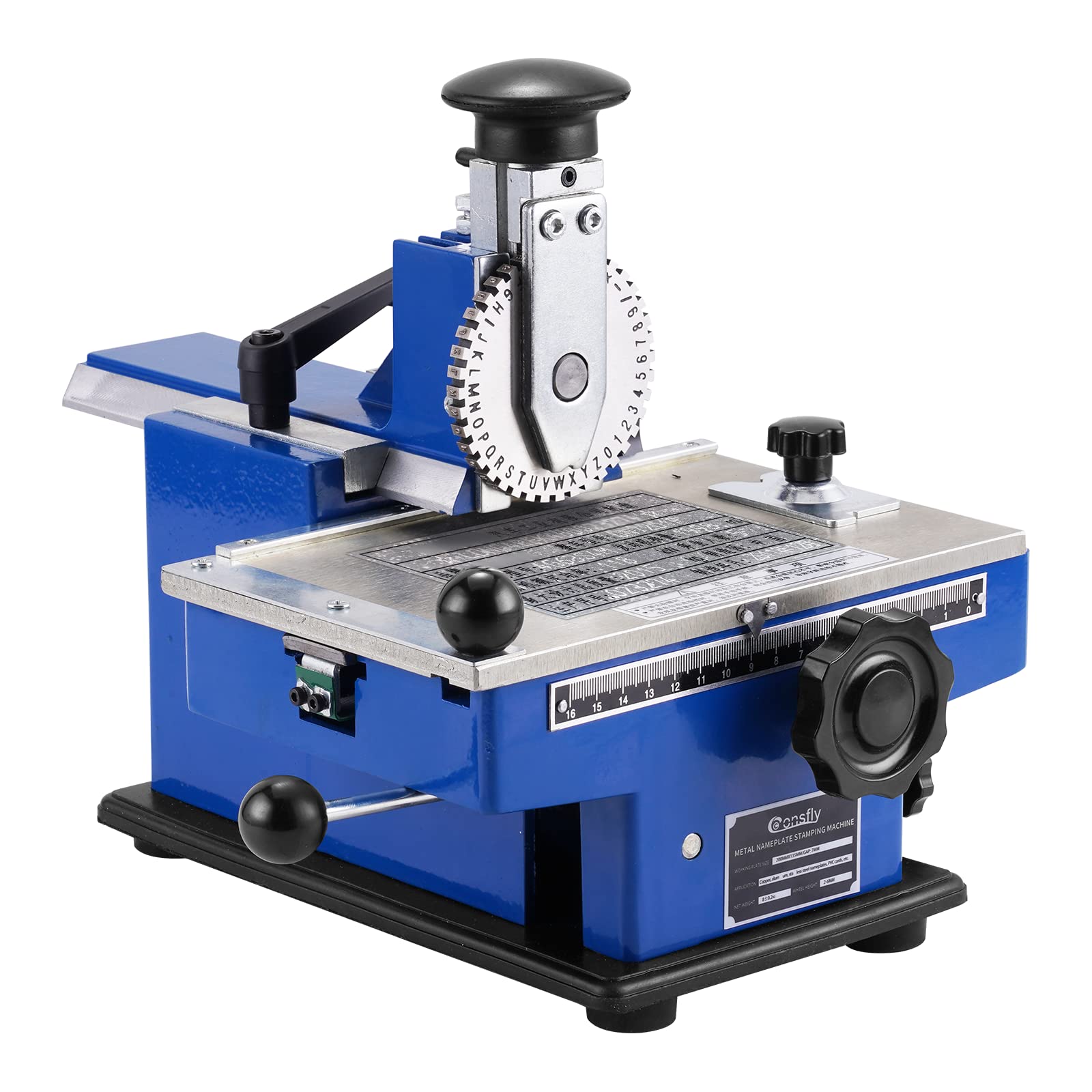

Consfly Metal Nameplate Stamping Machine Semi-Automatic Embosser Label Printing Marking Machine Dog Tag Printer (5mm Character Wheel)

Brand: Consfly

Color: Blue

Features:

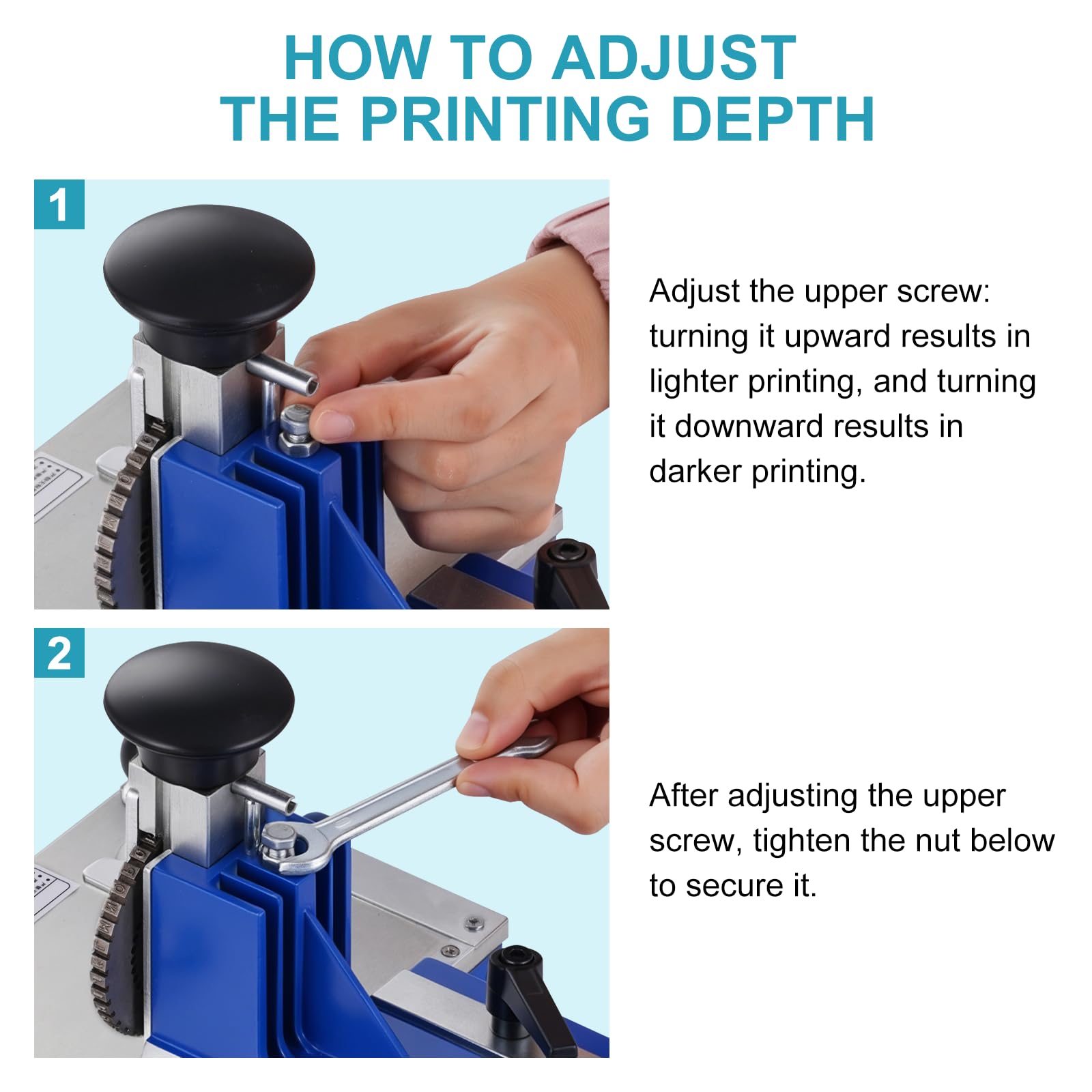

• [Working principle]: Under the action of external force (pressing by hand or rubber hammer), the alloy steel wheel after high frequency quenching and heat treatment will engrave letters or numbers with a certain depth (0.1~0.3mm deep) on the metal plate.

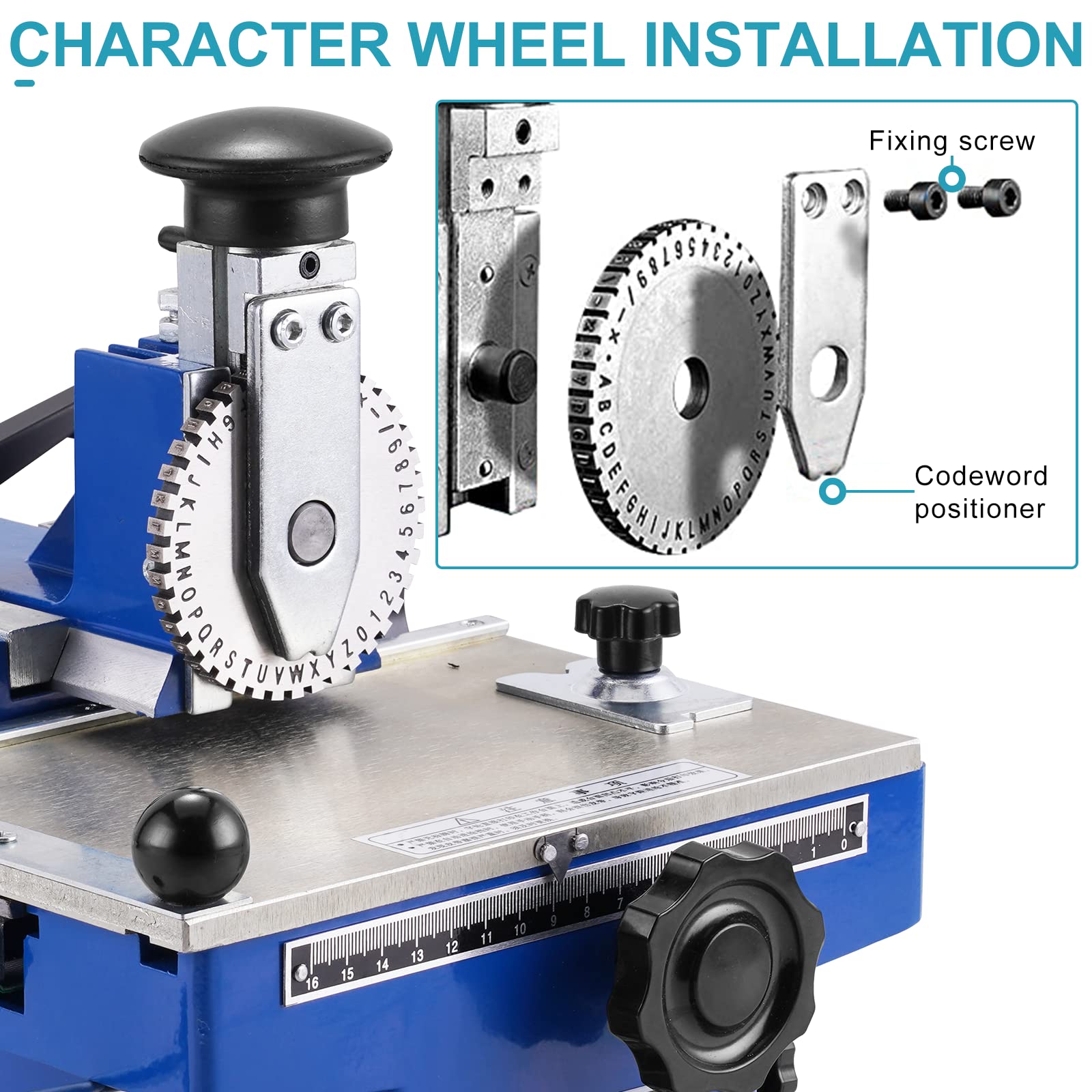

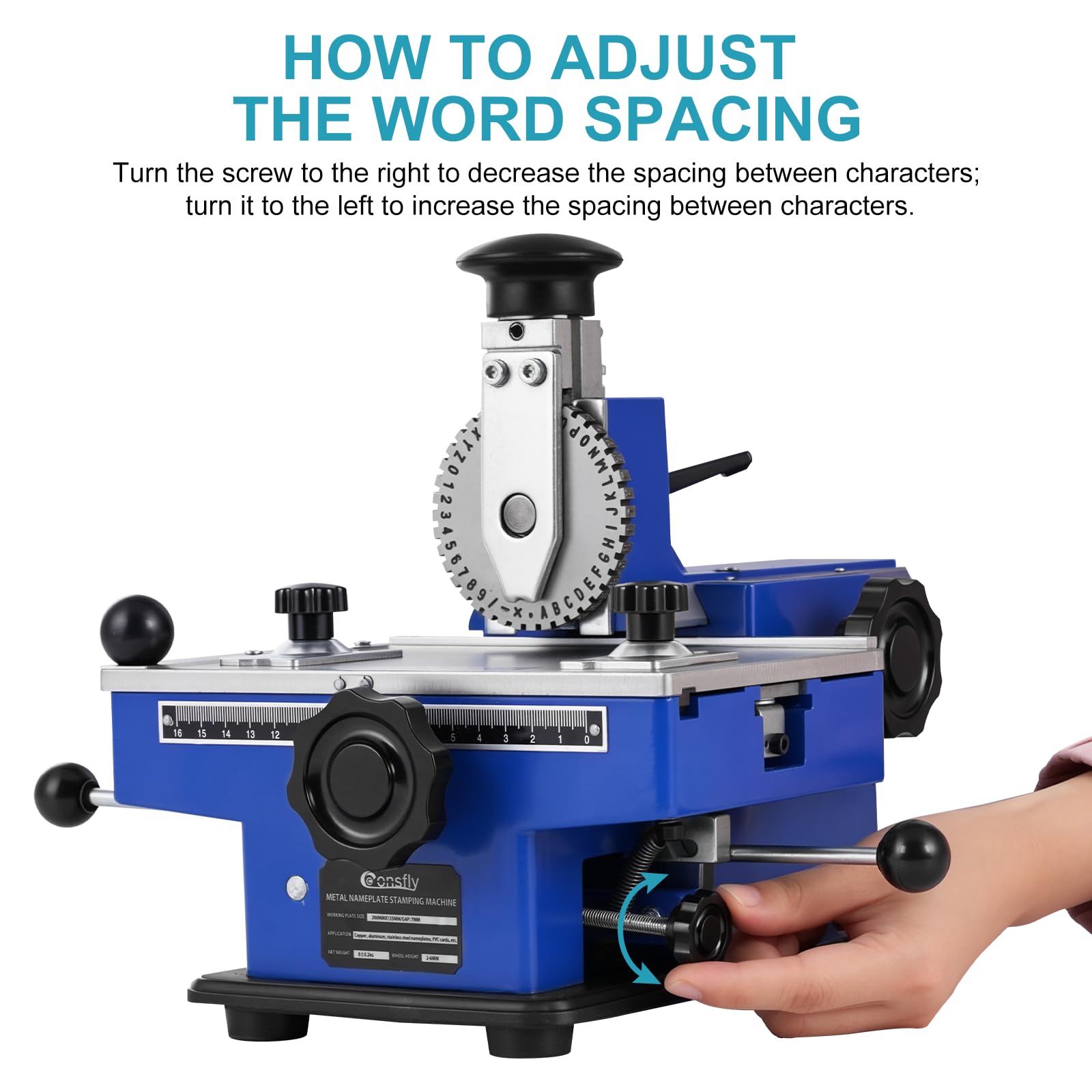

• [Features]: The heat-treated steel wheel can be rotated to the required letters or numbers, and the typeface can be easily changed; the word spacing can be adjusted manually; different character heights can be realized by replacing the wheel.

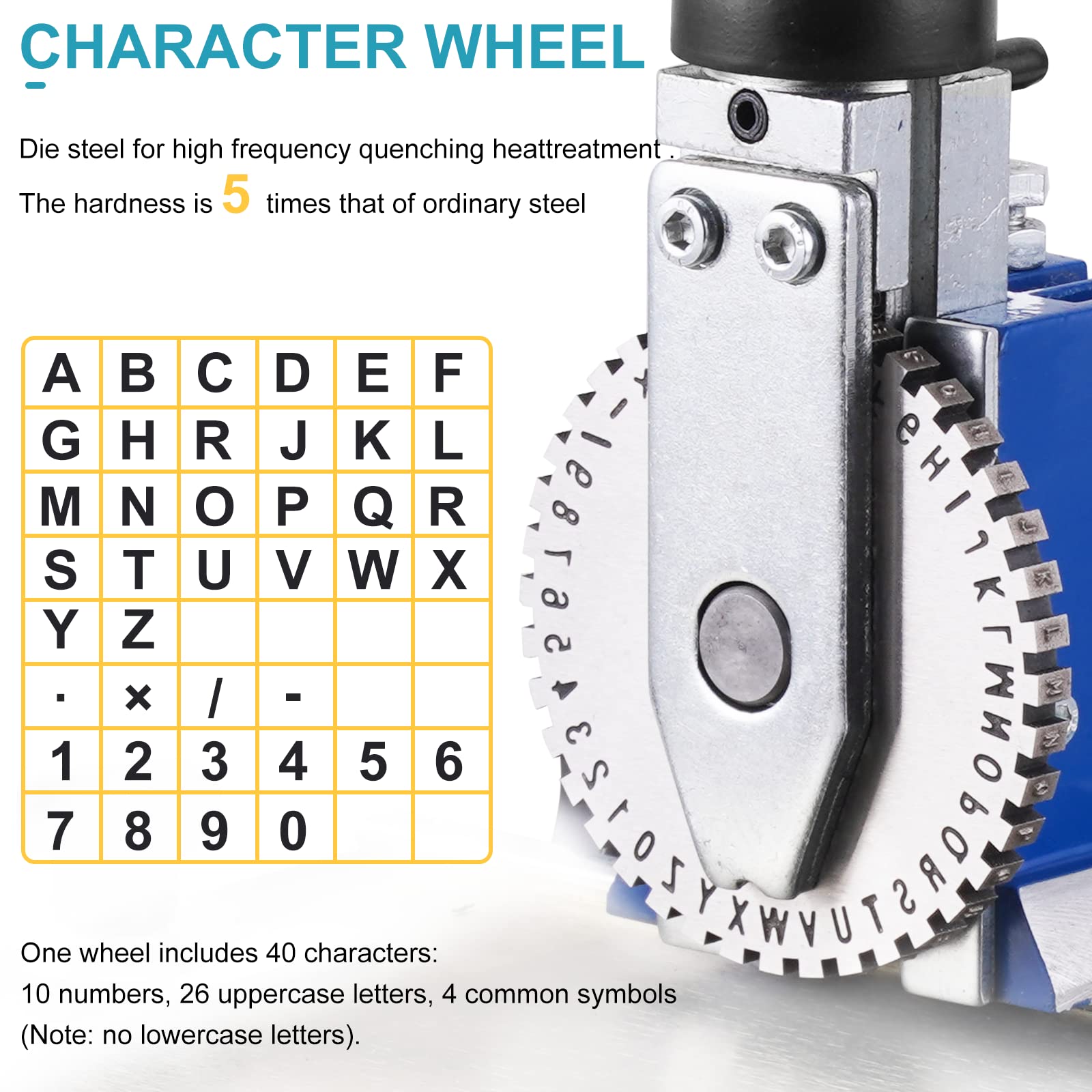

• [40 characters]: One wheel includes 40 characters: 10 numbers, 26 uppercase letters, 4 common symbols(Note: no lowercase letters).

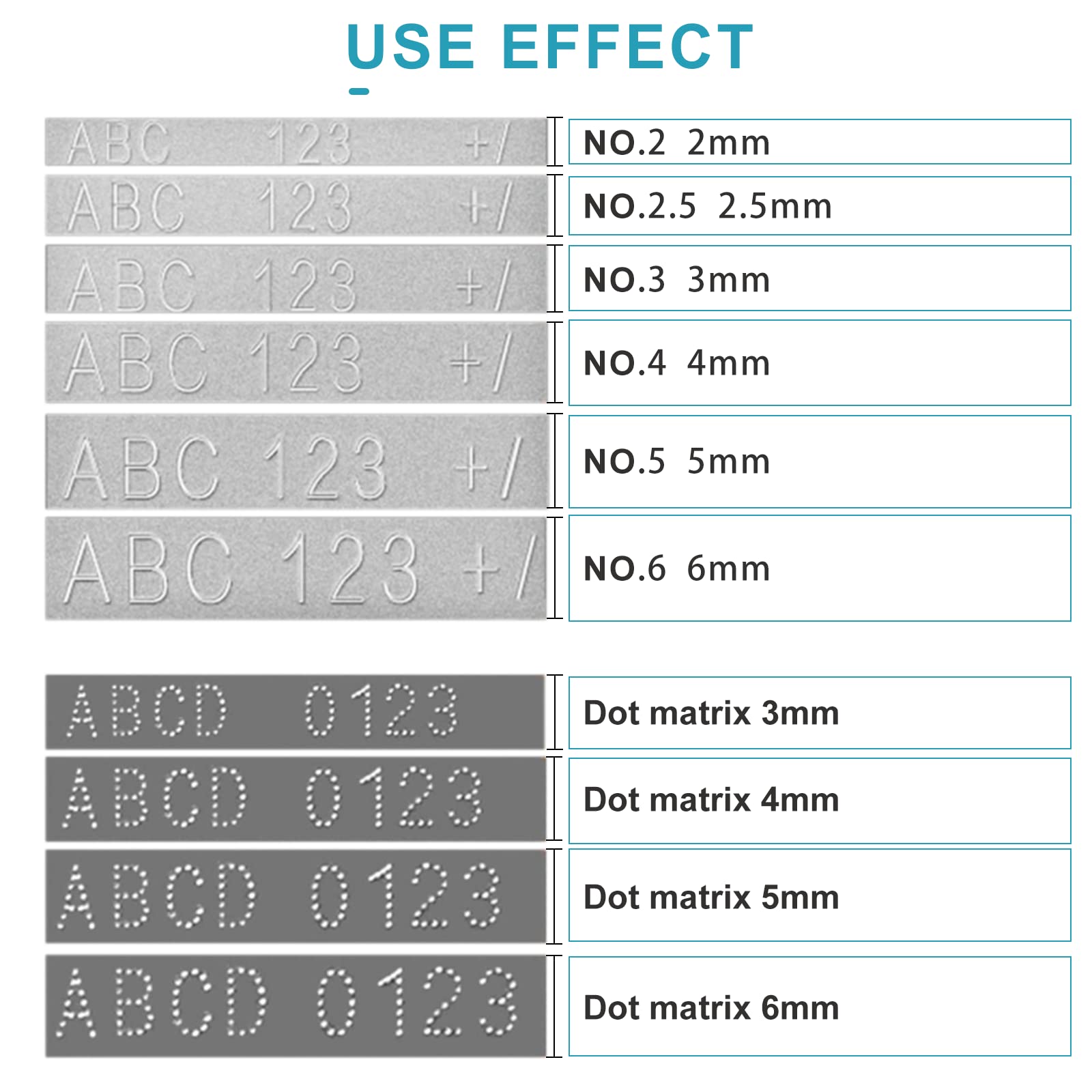

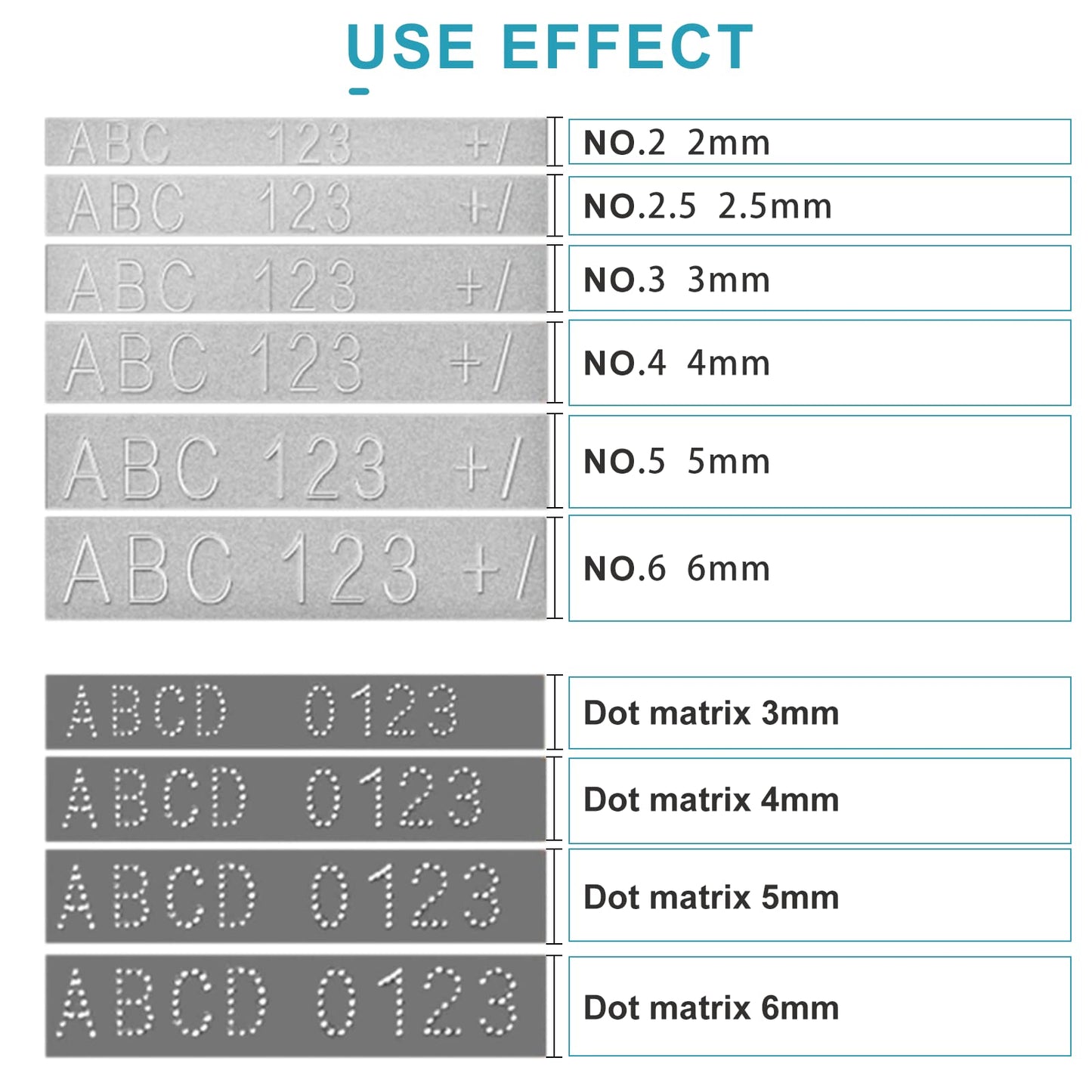

• [Size of the wheel]: No 2 wheel: Fonts height 2mm Fonts width 1 mm; No.2.5 wheel: Fonts height 2.5mm Fonts width 1.25 mm; No.3 wheel: Fonts height 3mm Fonts width 1.5 mm; No.4 wheel: Fonts height 4mm Fonts width 2 mm; No.5 wheel: Fonts height 5mm Fonts width 2.5 mm; No.6 wheel: Fonts height 6mm Fonts width 2.8 mm

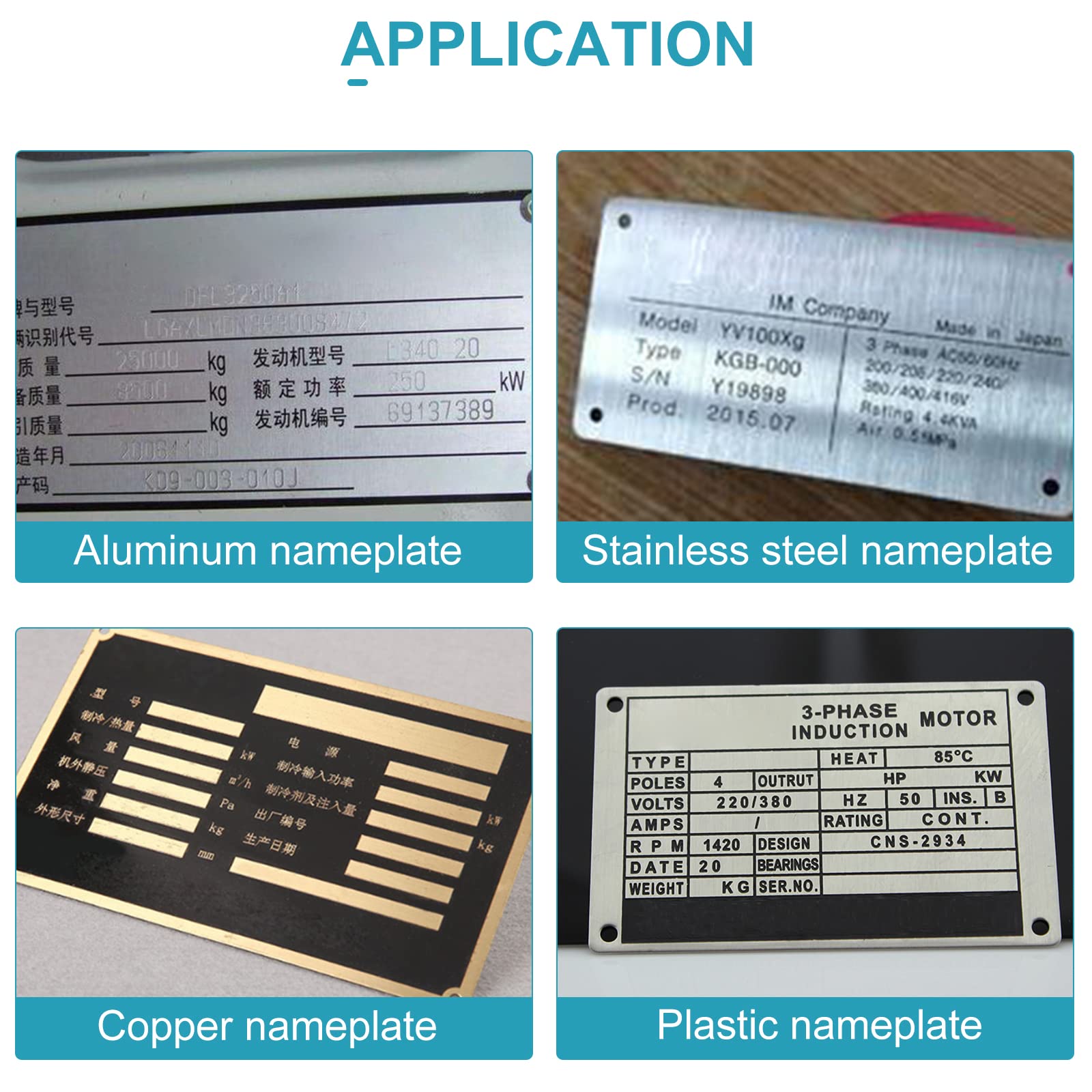

• [Application]: Changed parameters printed on the metal plate: such as specific model, date, batch number, serial number, serial number, etc.

model number: AHQ-102

Part Number: AHQ-102

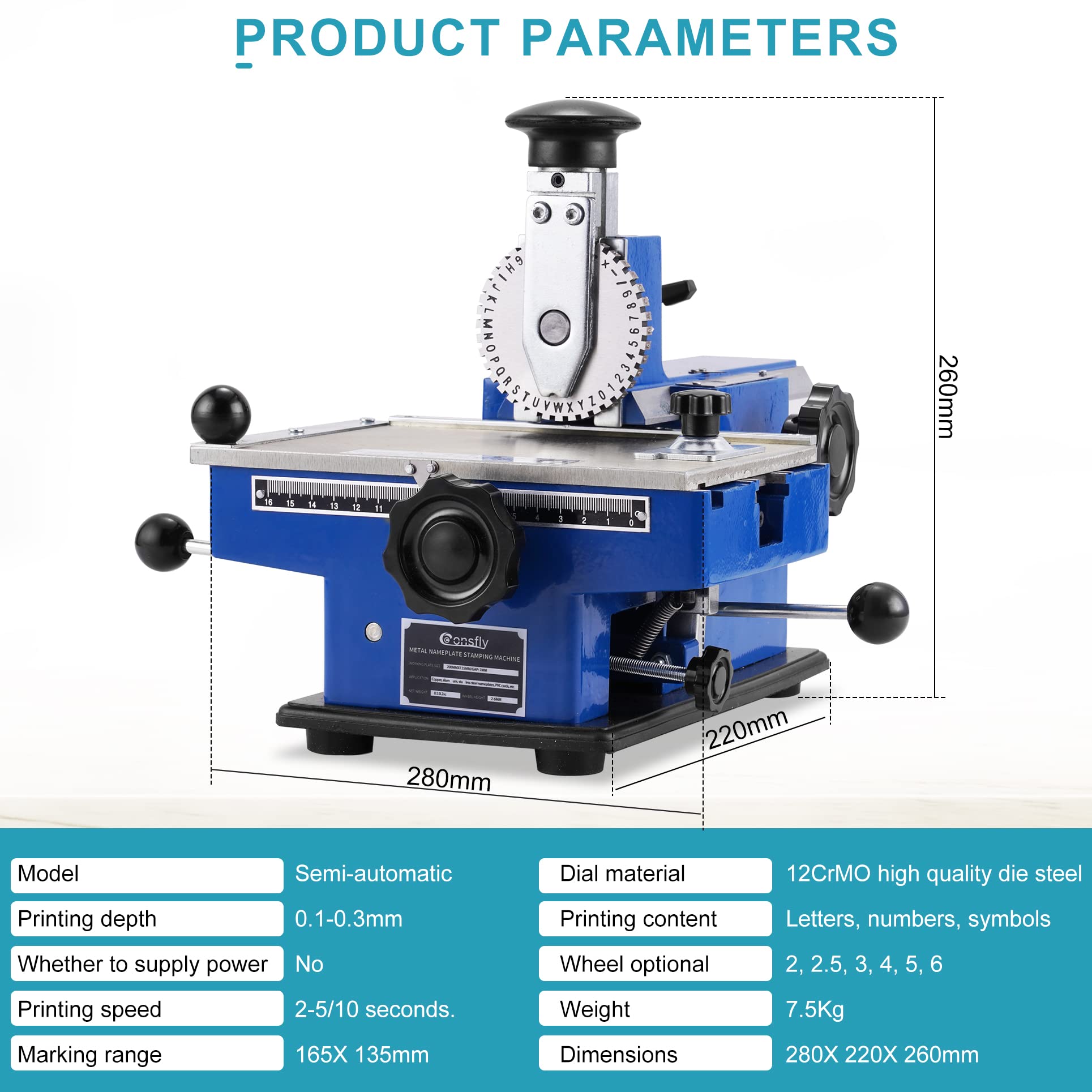

Package Dimensions: 14.8 x 13.2 x 12.6 inches
