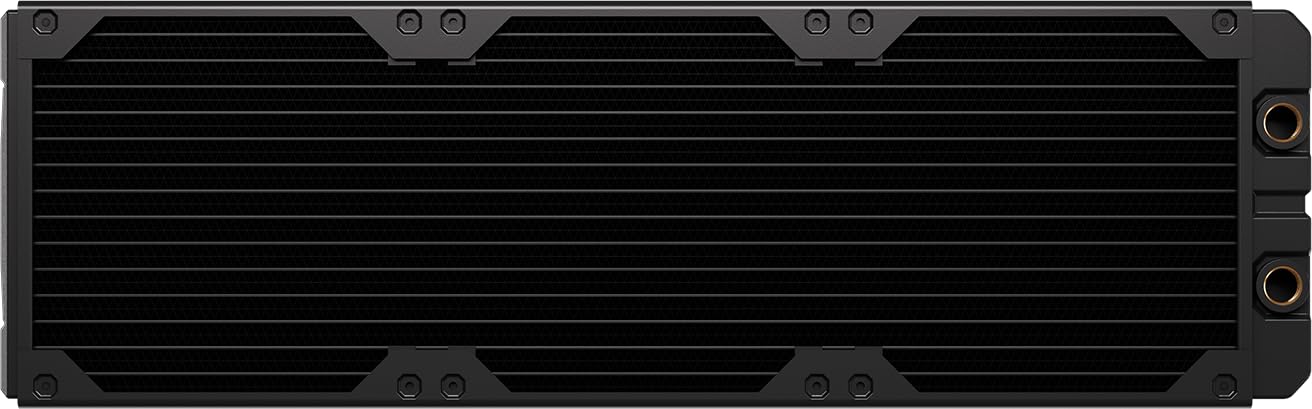

CORSAIR Hydro X Series XR5 420mm V2 Custom Cooling Radiator – Compatible with iCUE Link Fans, 3x140mm Fan Mounts, Screw Protection Plates, G1/4” Threads – Black

Brand: Corsair

Color: Black

Features:

• Extreme Custom Cooling Performance – Triple 140mm fan mounts on either side are ready for your most ambitious custom liquid cooling build
• XR5 High Surface Area – 30mm radiator thickness delivers easy installation and great cooling performance with low-noise fans and high-airflow fans

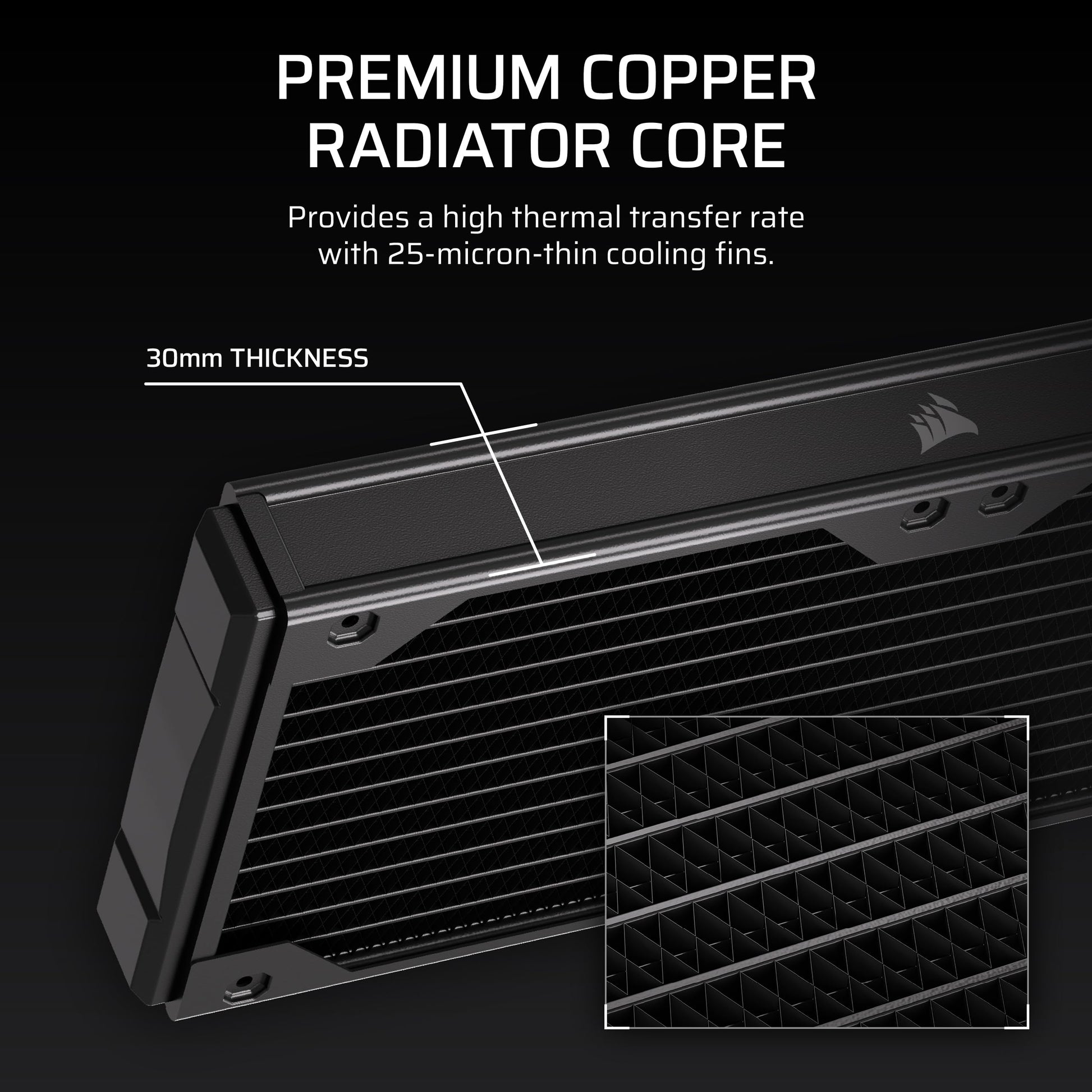

• Premium Copper Construction – A premium copper radiator core and 25-micron thin cooling fins provide a high thermal transfer rate optimized for CORSAIR’s performance copper water blocks

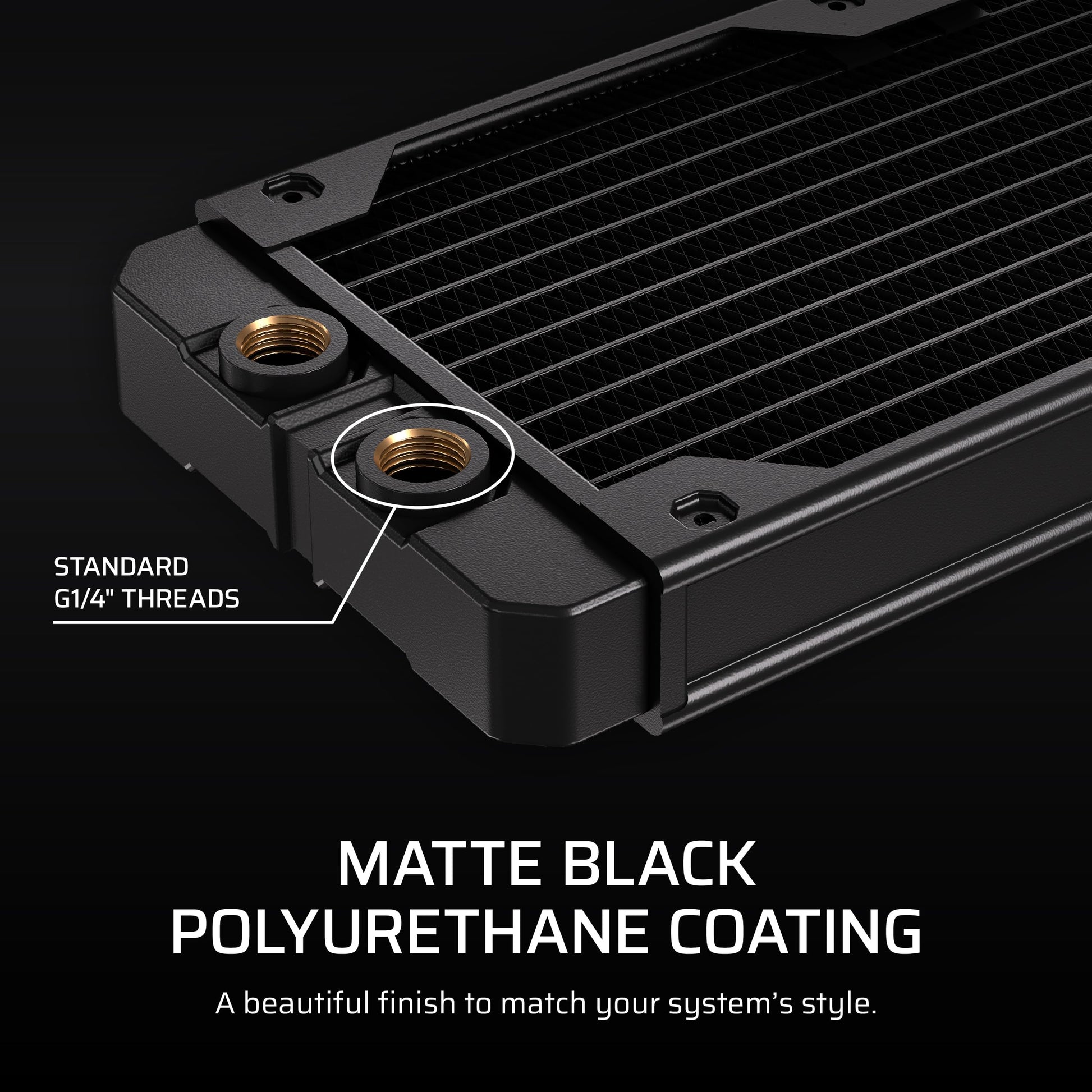

• High-quality polyurethane coating – A flawless finish to match your system

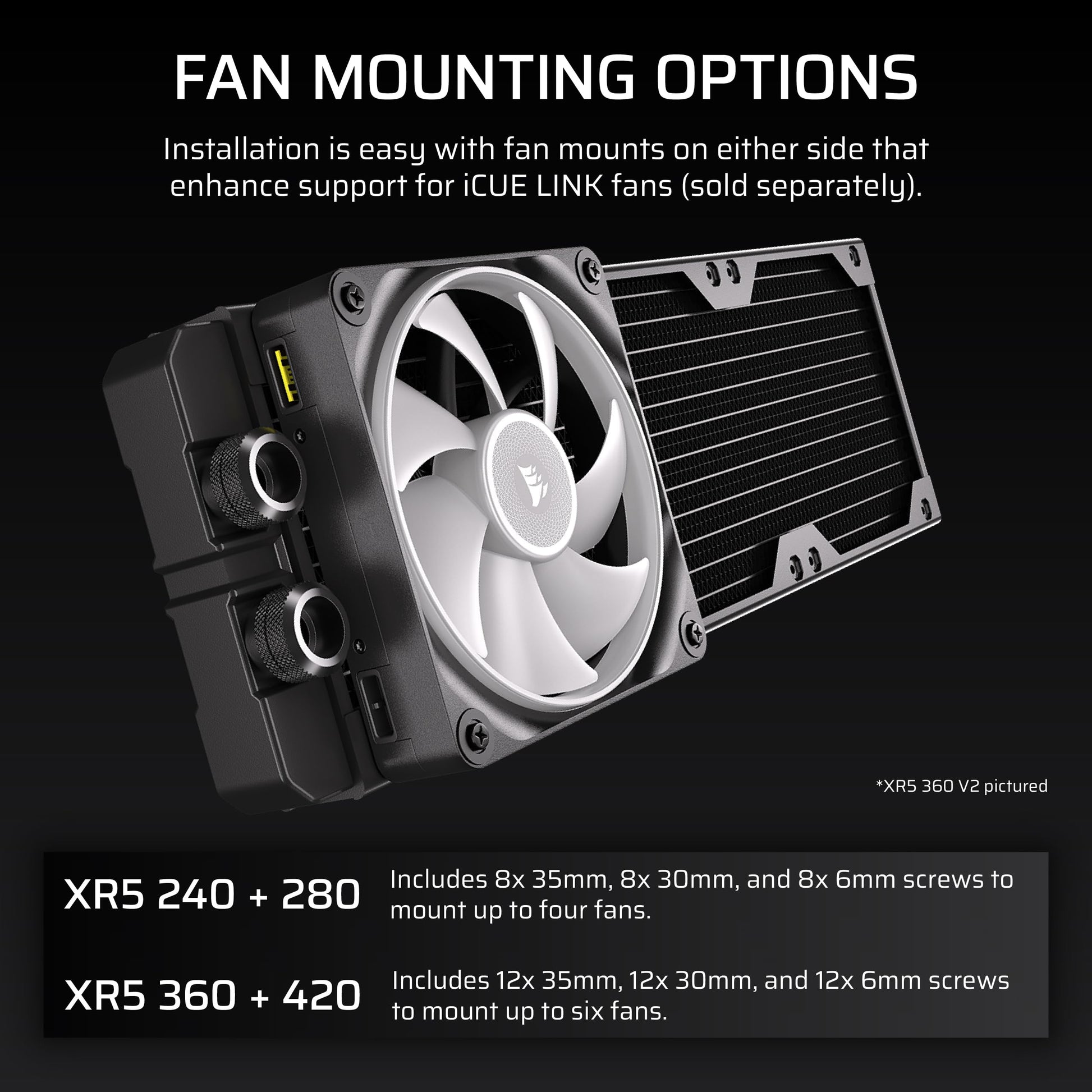

• Easy access design – The inlet and outlet ports have been moved to make it even easier to attach your fan cables, including iCUE LINK fans

Release Date: 09-10-2025

model number: CX-9034002-WW

Part Number: CX-9034002-WW

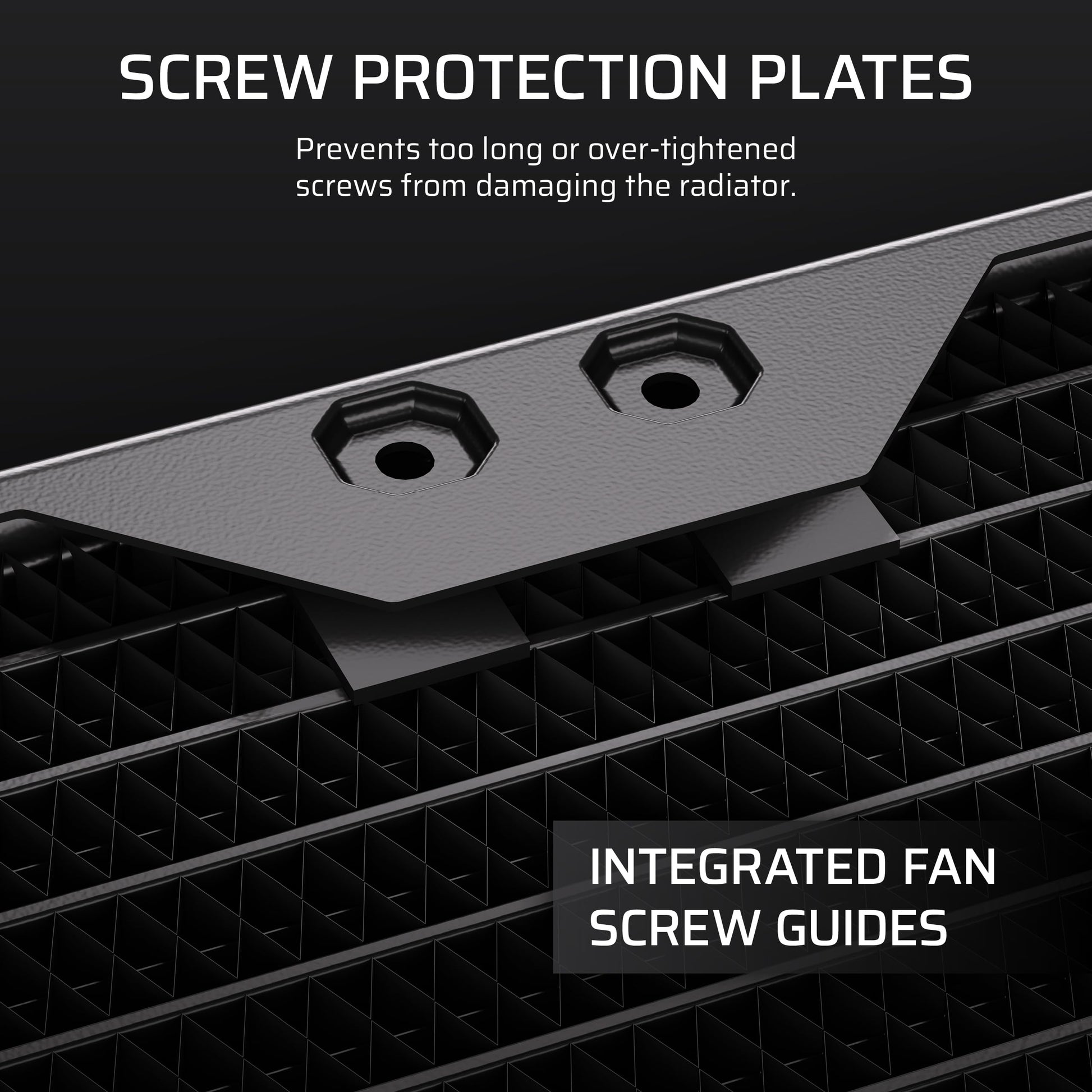

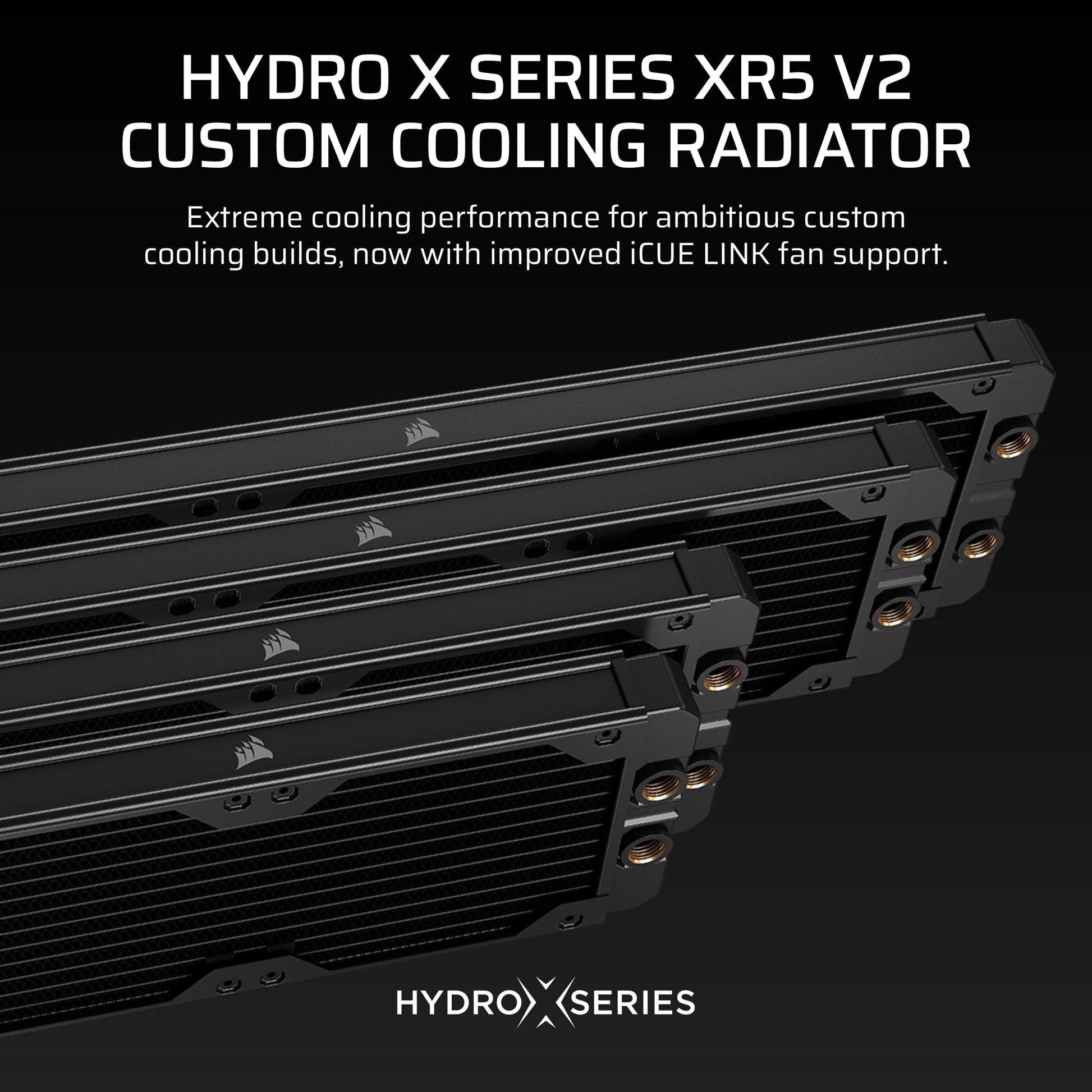

Details: The CORSAIR Hydro X Series XR5 V2 Custom Cooling Radiator delivers extreme cooling performance, featuring a 30mm thick radiator and 25-micron thin cooling fins to maximize heat dissipation surface area. A premium copper radiator core is optimized for use alongside copper CPU and GPU water blocks, enhancing thermal transfer efficiency. Intuitive features, such as Integrated Fan Screw Guides, built-in Screw Protection Plates, improved support for iCUE LINK fans, simplify installation and help prevent radiator damage. With standard G1/4' threads for universal compatibility and a surface area capable of handling cutting-edge high-performance hardware, the Hydro X Series XR5 V2 Custom Cooling Radiator is engineered to cool even the most ambitious custom liquid cooling loops and conquer heat.

Technical Specifications
Product Type: Radiator
Fin Spacing: 25 Micron Copper Fins
Compatible Fan Size: 140 mm
Radiator Thickness: 30 mm
Radiator Dimensions: 452m x 140mm x 30mm
Port Thread: G1/4' BSPP
Screw Thread Size: M4xP0.7
Material: Copper / Brass
Compatible Materials: Only mix with other copper / brass products
Compatible Coolants: CORSAIR XL or equivalent
Max Operating Temperate: 60°C Coolant Temperature

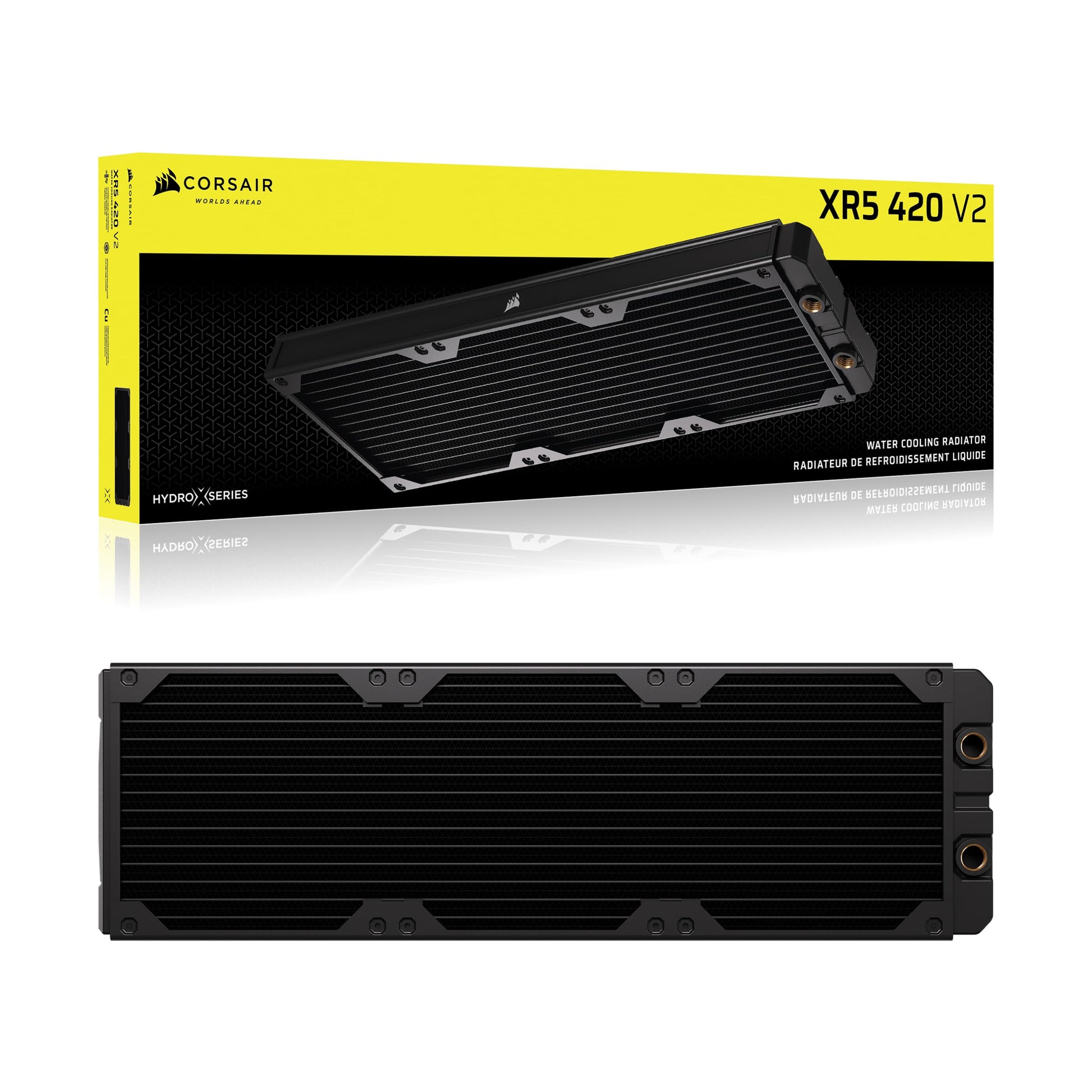

Box Contents - 1x XR5 420 V2, 12x M4x6mm Screws, 12x M4x30mm Screws, 12x M4x35mm Screws

EAN: 0840440400455

Package Dimensions: 21.3 x 6.6 x 1.7 inches
