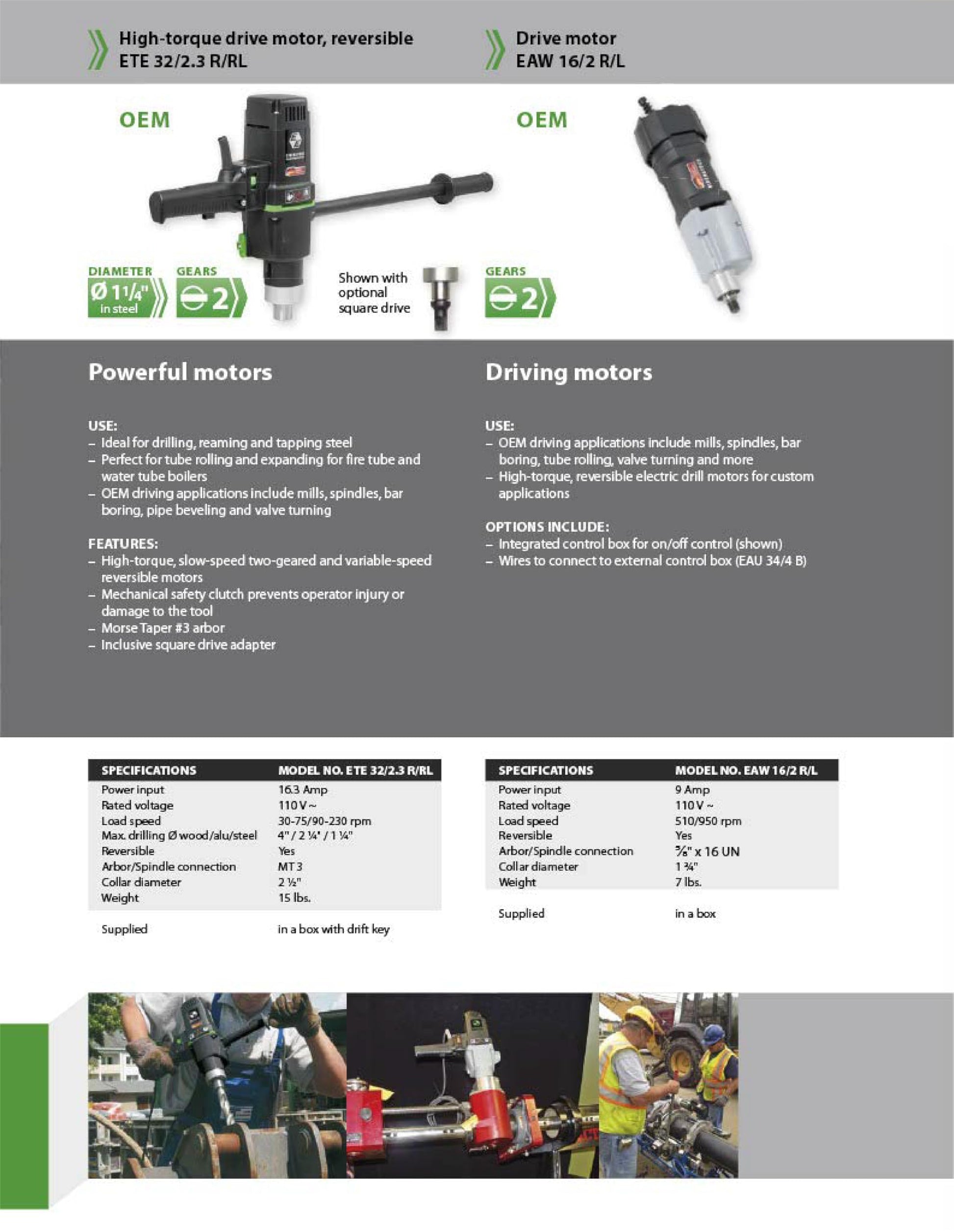

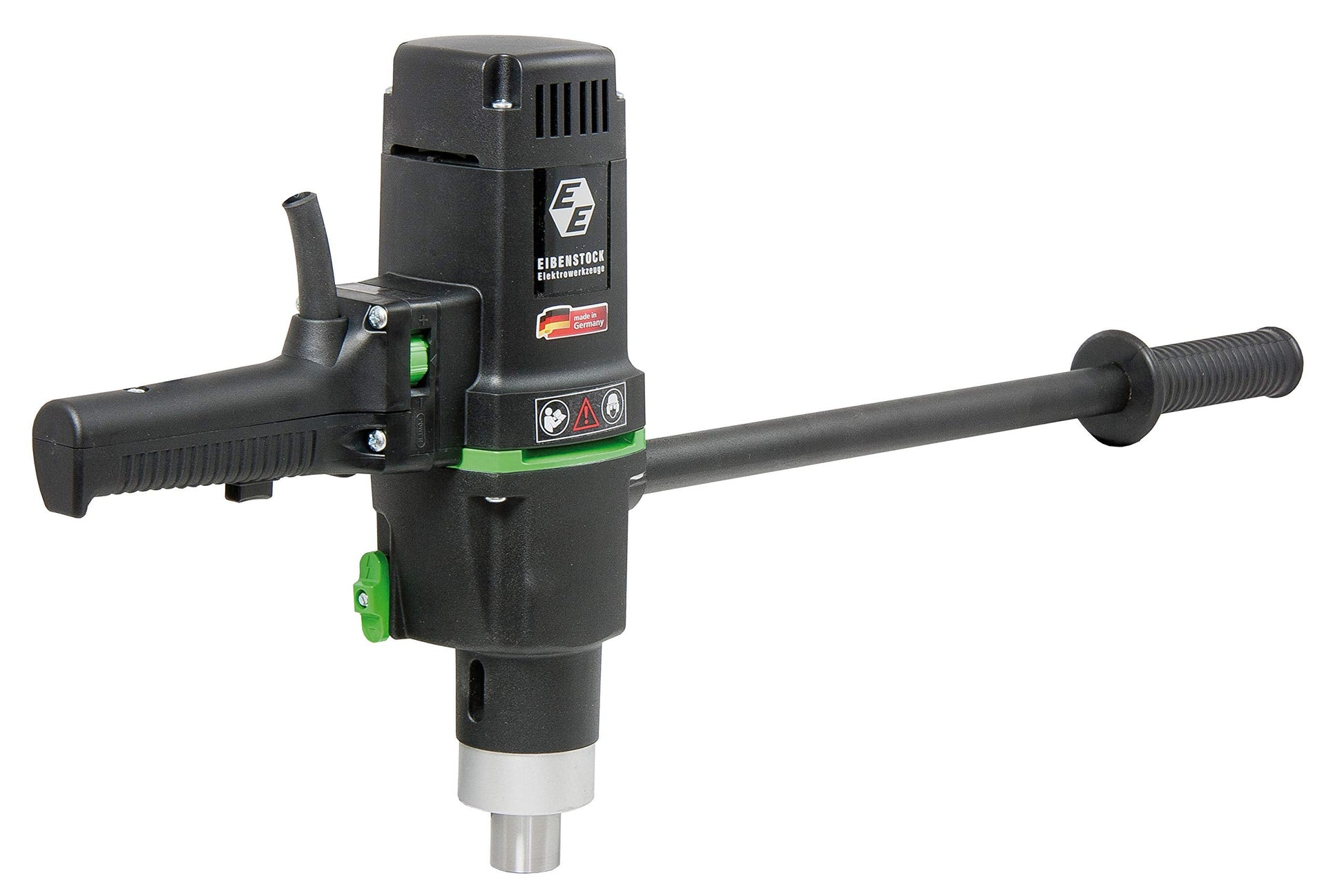

CS Unitec | ETE 32/2.3 R/RL | High-Torque Reversible Drive Motor/Drilling Machine – 16.3 Amp, 110V, 2-Speed/Variable-Speed (30-75 & 90-230 RPM) – Made in Germany

Brand: CS Unitec

Color: Green and Black

Features:

• Industrial Versatility: Designed for heavy-duty drilling, reaming, and tapping in steel. Ideal for tube rolling and expanding in fire tube and water tube boilers.
• OEM Applications: Perfect for driving mills, spindles, bar boring, pipe beveling, and valve turning—built for demanding industrial environments.
• High-Torque Performance: Features a two-speed, variable-speed reversible motor delivering exceptional torque for precision work.
• Safety First: Equipped with a mechanical safety clutch to protect operators and prevent tool damage during overload conditions.
• Robust Specifications: 16.3 Amp motor, 110V rated voltage, MT3 arbor/spindle connection, collar diameter of 2-1/2', and weighs 15 lbs.
• General Specifications: [Power] 16.3 Amp, 110 V; [Load Speed] 30-75 and 90-230 RPM; [Max Drilling Outer Diameter in Wood/Aluminum/Steel]: 4' / 2-1/4” / 1-1/4'; [Collar Diameter] 2-1/2”; [Arbor Connection] MT3; [Reversible Capability] Yes; [Weight] 15 lbs; [Dimensions] 18” x16-1/2” x 9”.
• Package: Includes ETE 32/2.3 R/RL and a drift key.
• Optional square drive adapters: Male Square Drive, 1/2', MT 3 (part no. 830-1230-050); Male Square Drive, 3/4', MT 3 (part no. 830-1230-075); 3/4' drill chuck with MT3 shank (part no. IBC 21).

model number: ETE 32/2.3 R/RL

Part Number: ETE 32/2.3 R/RL

Details: Experience unmatched power and precision with CS Unitec’s ETE 32/2.3 R/RL High-Torque Drive Motor. Engineered for industrial applications, this reversible drill motor excels in drilling, reaming, and tapping steel, as well as tube rolling and expanding for boiler maintenance. Its two-speed, variable-speed motor (30–75 RPM and 90–230 RPM) ensures optimal torque control for heavy-duty tasks. Safety is paramount with a mechanical clutch that prevents operator injury and tool damage. Featuring a Morse Taper #3 arbor for versatile tooling compatibility, this 16.3 Amp powerhouse is built for OEM applications such as mills, spindles, bar boring, pipe beveling, and valve turning. Supplied with a drift key and compatible with optional square drive adapters, the ETE 32/2.3 R/RL is your go-to solution for demanding industrial environments.

Package Dimensions: 18.0 x 16.4 x 9.1 inches
