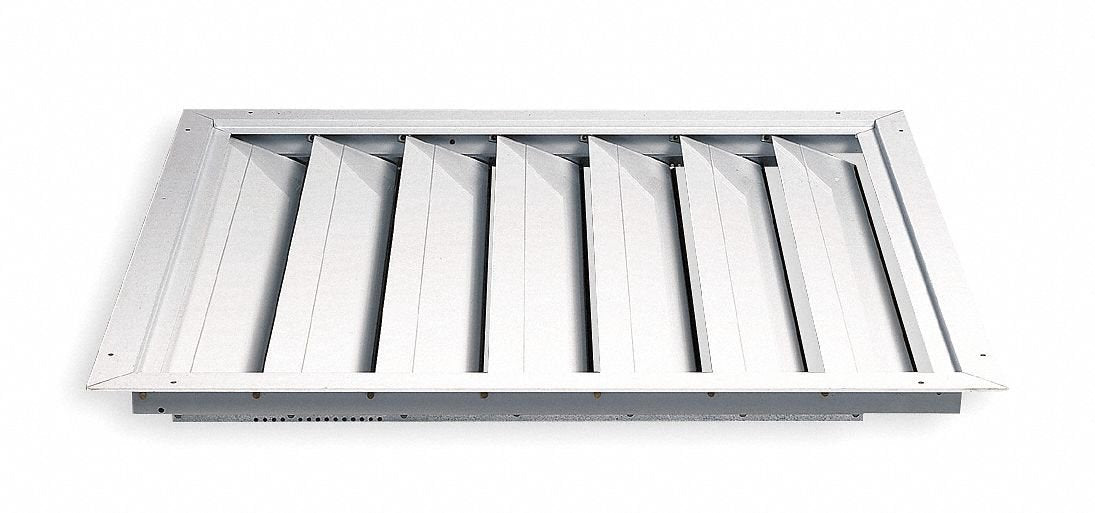

Dayton 30" Whole House Fan Premium Ceiling Shutter/Ceiling Shutter, 30" x 30" Opening Required

Brand: CAI - DAYTON

Color: white

Features:

• Item: Whole House Fan Premium Ceiling Shutter / Ceiling Shutter
• Fits Fan Dia.: 30'
• Shutter Overall Size: 32' x 32'
• Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
• Shutter Opening Required: 30' x 30'

model number: Dayton-30WH

Part Number: 4C225

Details: These ceiling shutters fit flush in ceiling opening below whole-house fans. They feature tie rods at each side to assure a uniform opening when the fan is operating. Also has white louvers with felted edges; louvers are reinforced with galvanized steel.

Item: Whole House Fan Premium Ceiling Shutter / Ceiling Shutter
Fits Fan Dia.: 30'
Shutter Overall Size: 32' x 32'
Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Opening Required: 30' x 30'
Shutter Free Area: 4.652 sq. ft.
Shutter Mounting Position: Horizontal
Shutter Mounting Location: Ceiling
Shutter Item: Whole House Fan Premium Ceiling Shutter
Length: 32'
Width: 32'
Frame Depth: 1-3/8'
Open Depth: 5'
Flange Width: 1-1/2'
Mounting Hole Size: Prepunched
Max. Velocity: 2250 FPM
Blade Material: White Painted Aluminum
For Use With: 30' Whole House Fans
Number of Panels: 1

EAN: 0727079908166

Package Dimensions: 2.0 x 2.0 x 2.0 inches
