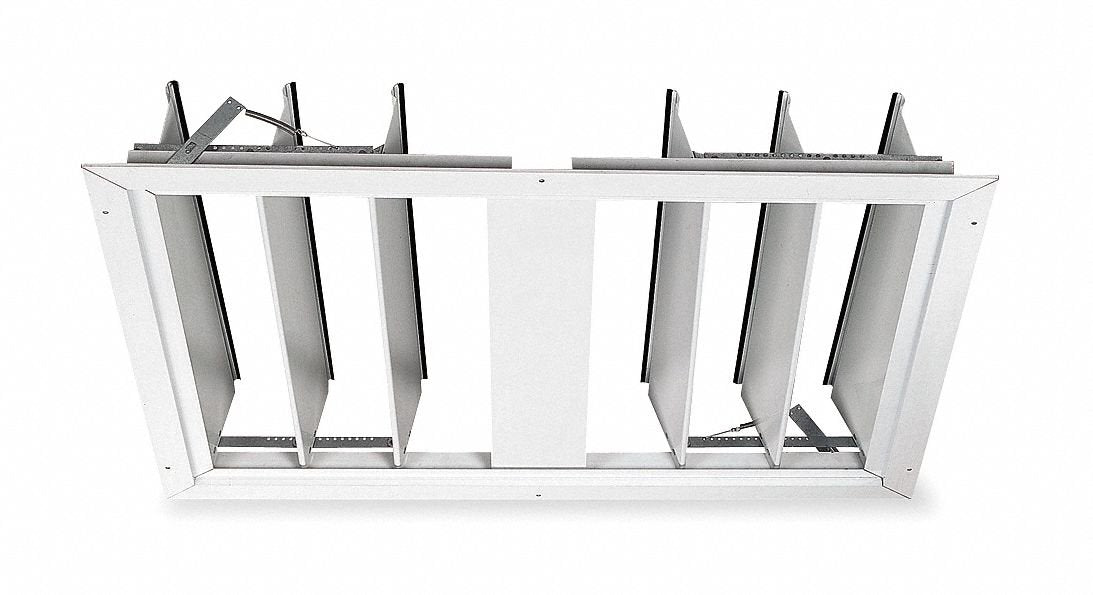

Dayton 36" Whole House Fan Economy Ceiling Truss Shutter/Ceiling Shutter, 34" x 30" Opening Required

Brand: CAI - DAYTON

Color: White

model number: 696333254335

Part Number: 3C512

Details: The DAYTON ceiling truss shutter is recommended for horizontal-mount exhaust in residential ceilings for whole house fans. Truss shutter installs without framing or cutting the ceiling joist. Tie rods at each end side of shutter assure uniform opening when fan is operating. White extruded aluminum frame with 1-1/2' flange and 3/16'-dia. mounting holes. White louvers with felted edges.

Item: Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter
Fits Fan Dia.: 36'
Shutter Overall Size: 36' L x 32' W
Shutter Construction Material: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Opening Required: 34' x 30'
Shutter Free Area: 5.981 sq. ft.
Shutter Mounting Position: Horizontal
Shutter Mounting Location: Ceiling
Shutter Item: Whole House Fan Economy Ceiling Truss Shutter
Length: 34'
Width: 30'
Frame Depth: 1-3/8'
Open Depth: 5'
Flange Width: 1-1/2'
Mounting Hole Size: Prepunched
Max. Velocity: 1500 FPM
Blade Material: White Painted Aluminum
For Use With: 36' Whole House Fans
Number of Panels: 1

EAN: 0696333254335

Package Dimensions: 2.0 x 2.0 x 2.0 inches
