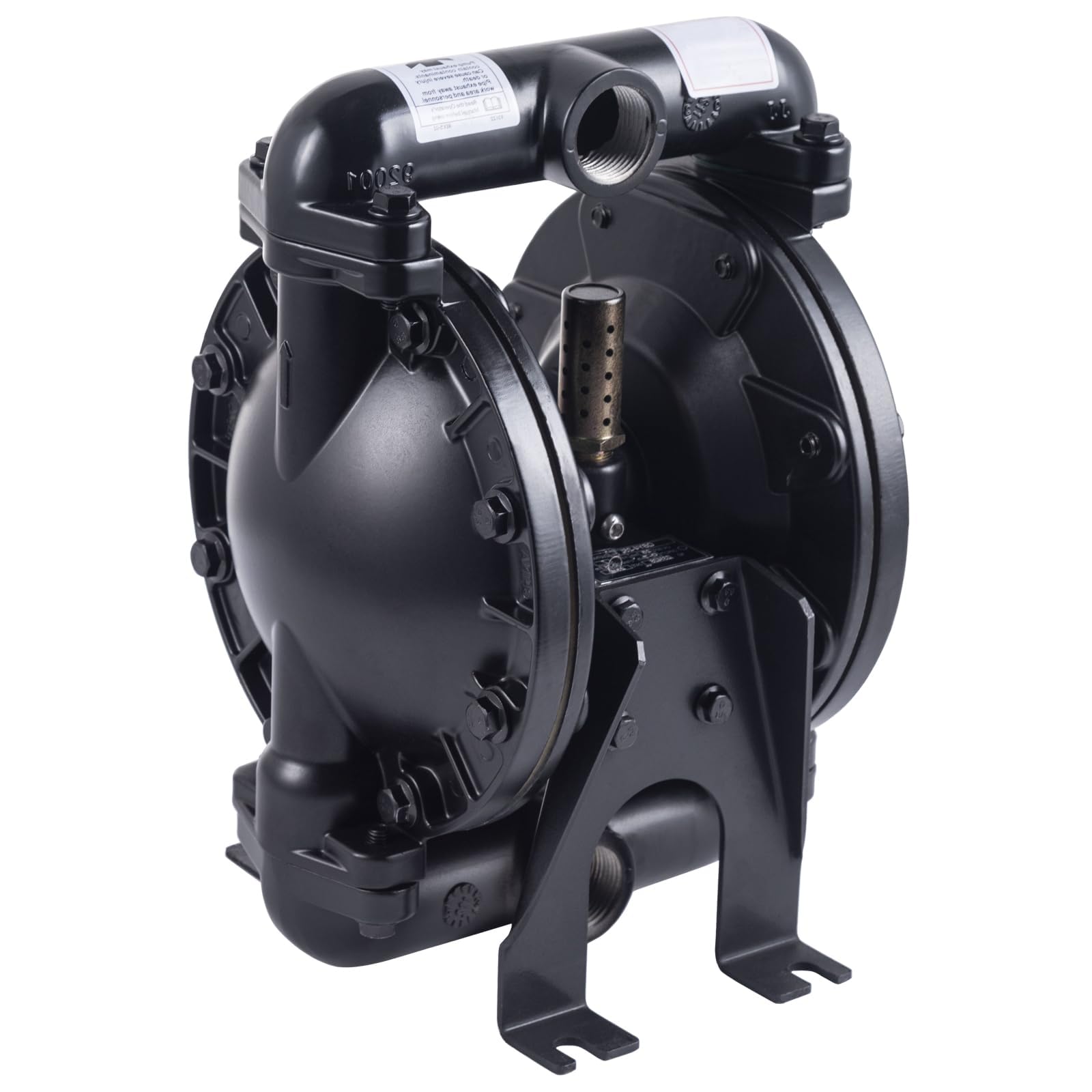

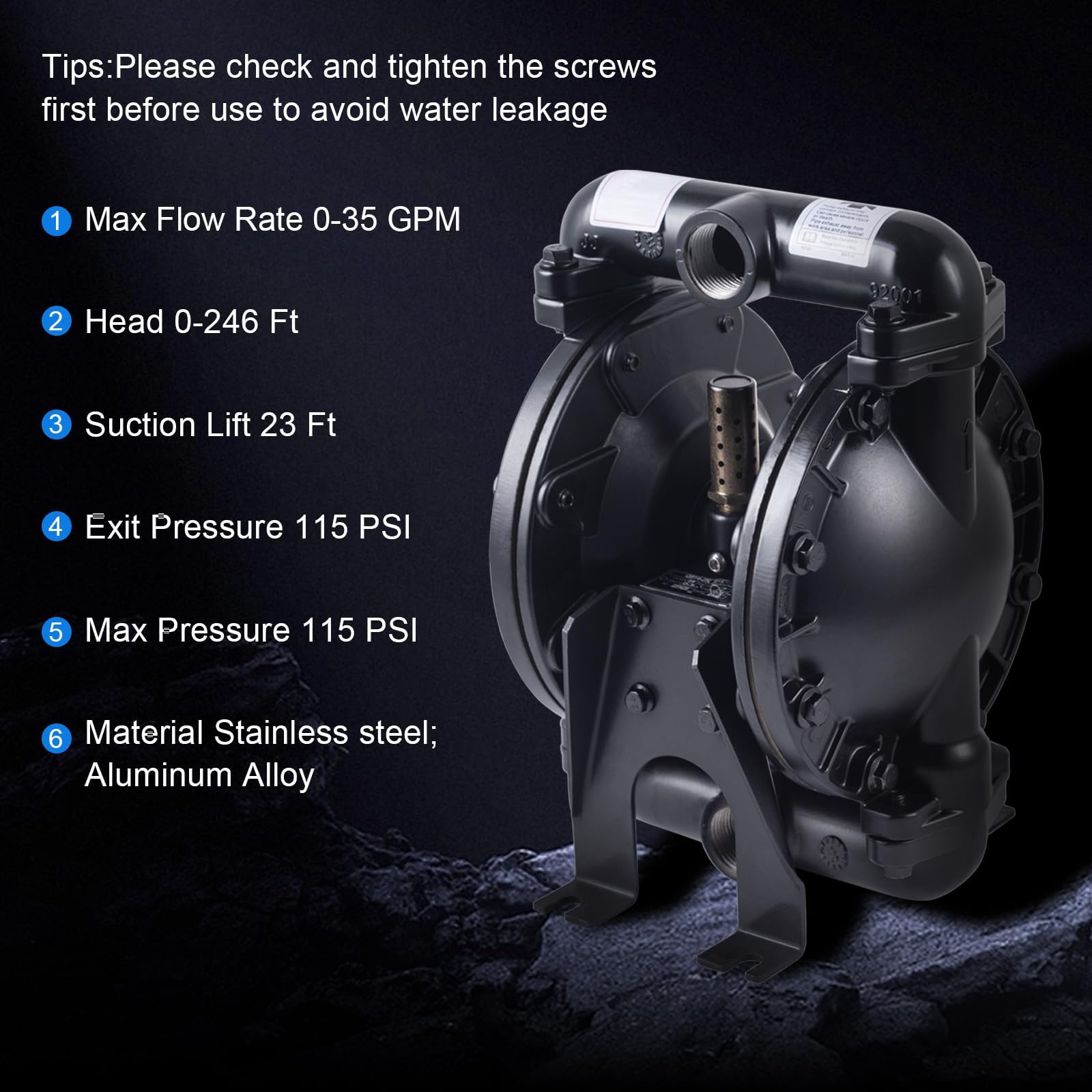

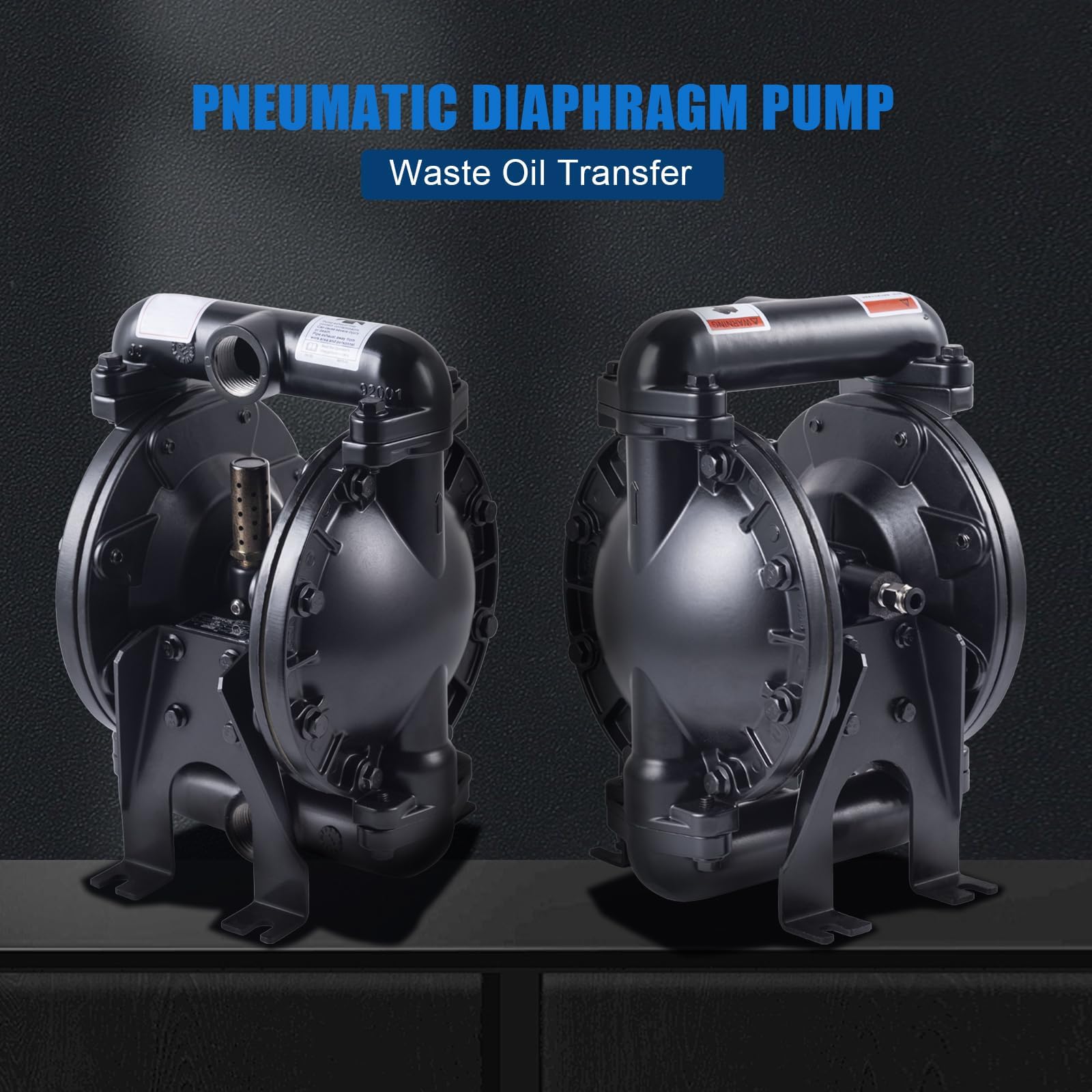

Double Diaphragm Pump Air Operated 1 inch Inlet/Outlet Pneumatic Waste Oil Transfer Pump for Chemical QBY4-25L 35 GPM Dual Diaphram Polypropylene Nitrile Rubber by Stainless Steel Iron 115 PSI
BEFORE USE【Please check and tighten the screws first before use to avoid water leakage】

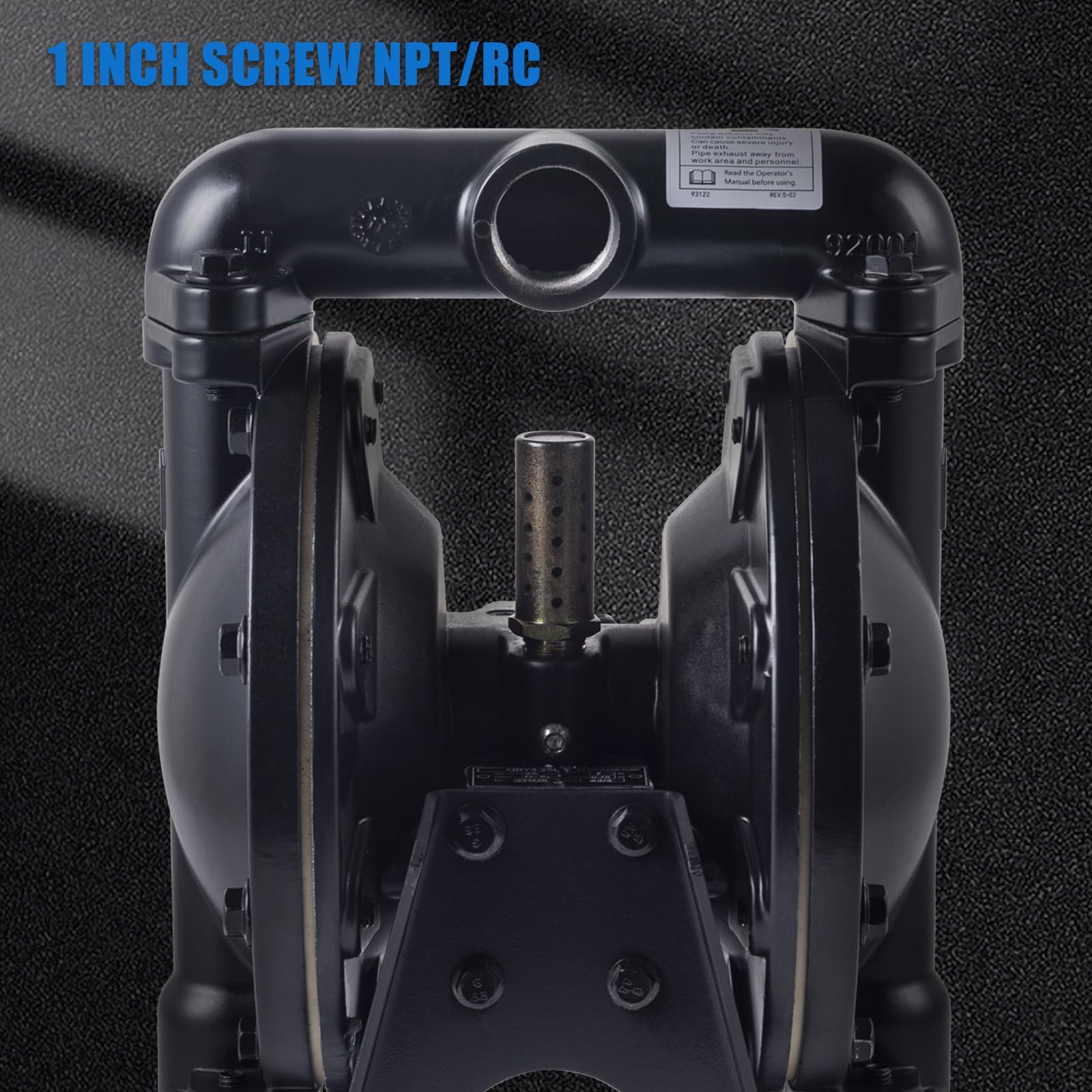

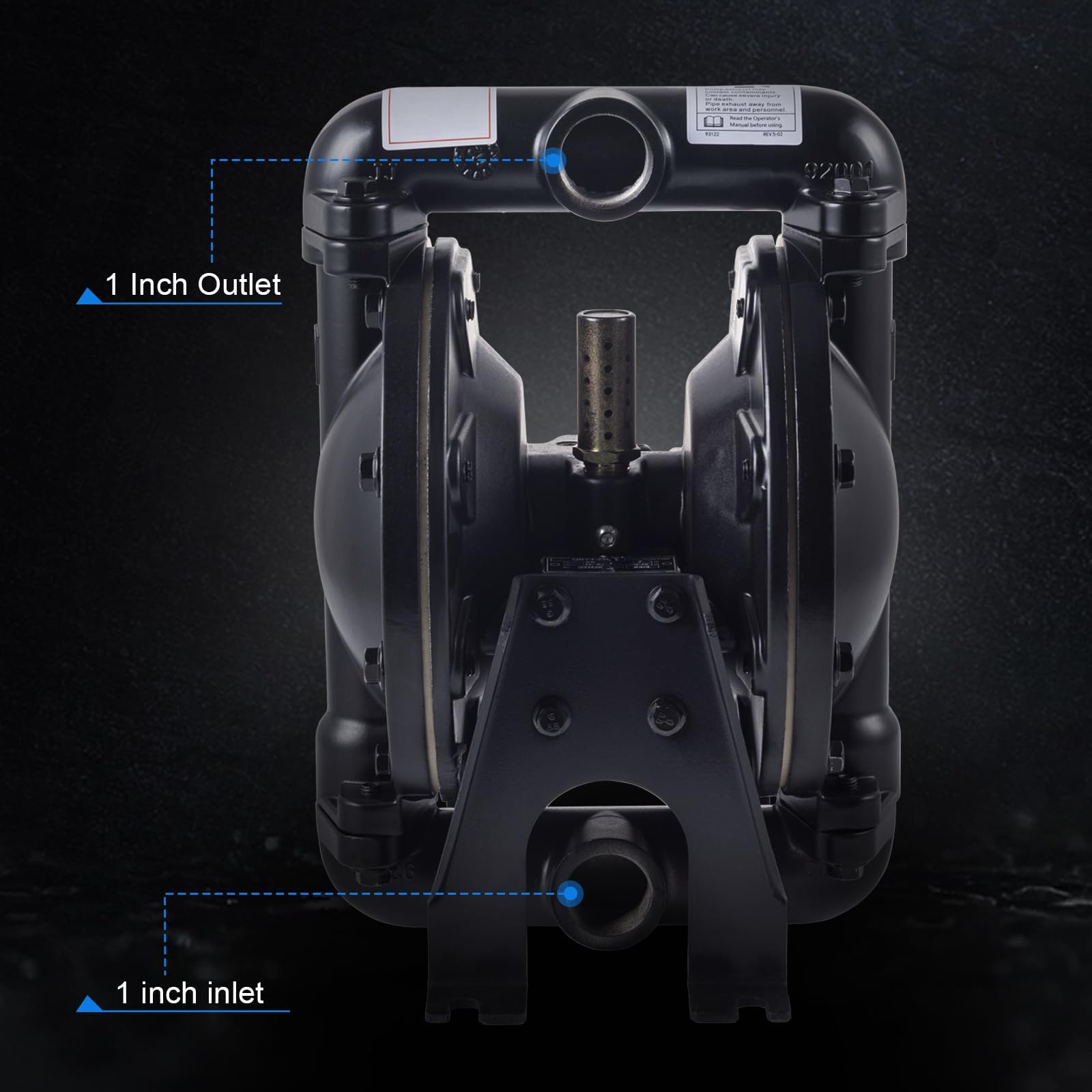

【1 INCH PORT】Double diaphragm pump with 1 inch inlet and 1 inch outlet.Exit pressure is 8 kgf/cm³.

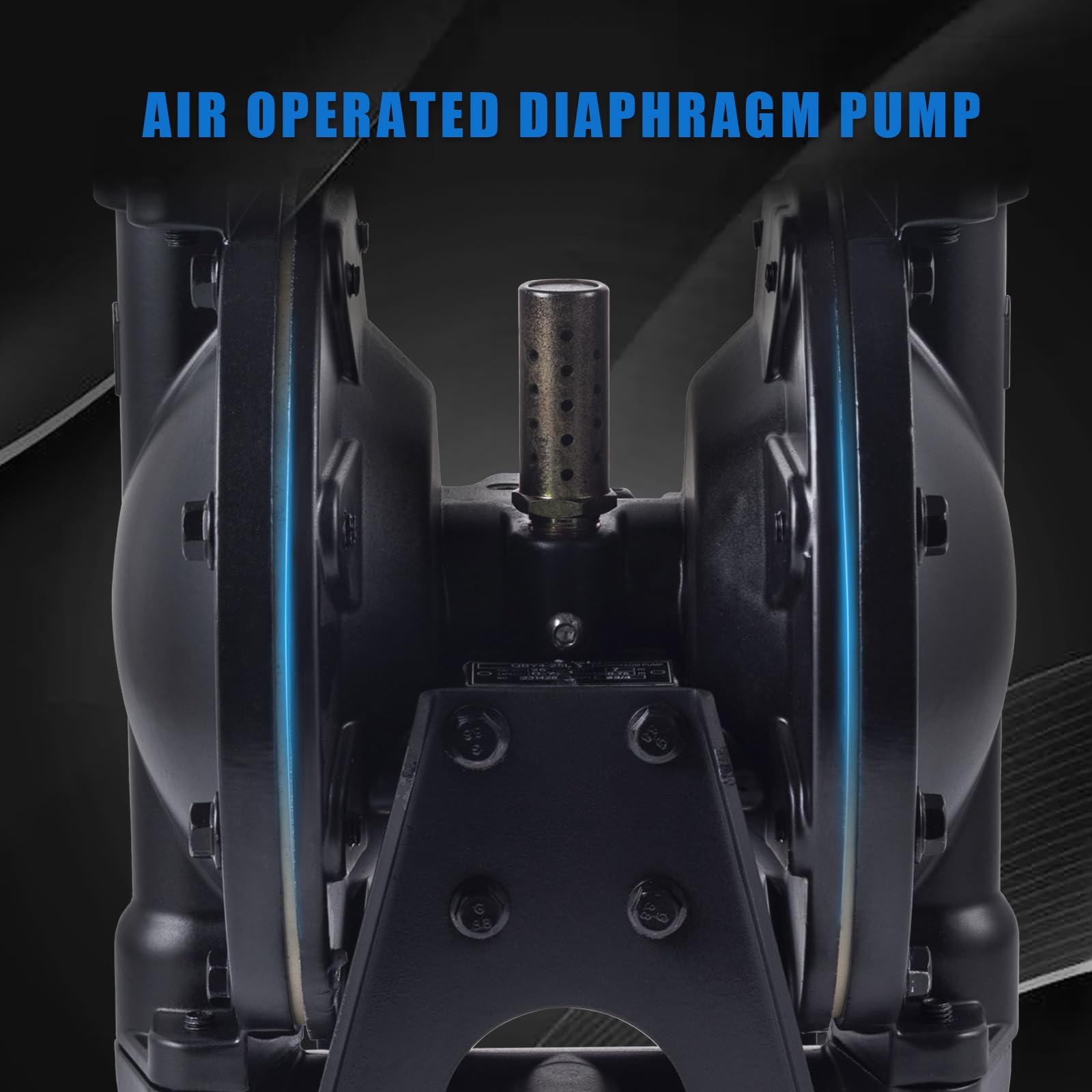

【PNEUMATIC DIAPHRAGM PUMP】Air inlet size:1/2 inch.Gas Nozzle:0.32 inch with silencer.Diaphragm pump unbalanced air valve prevents stall operation.Air diaphragm pump good abrasion resistance, chemical resistance, and heat resistance.

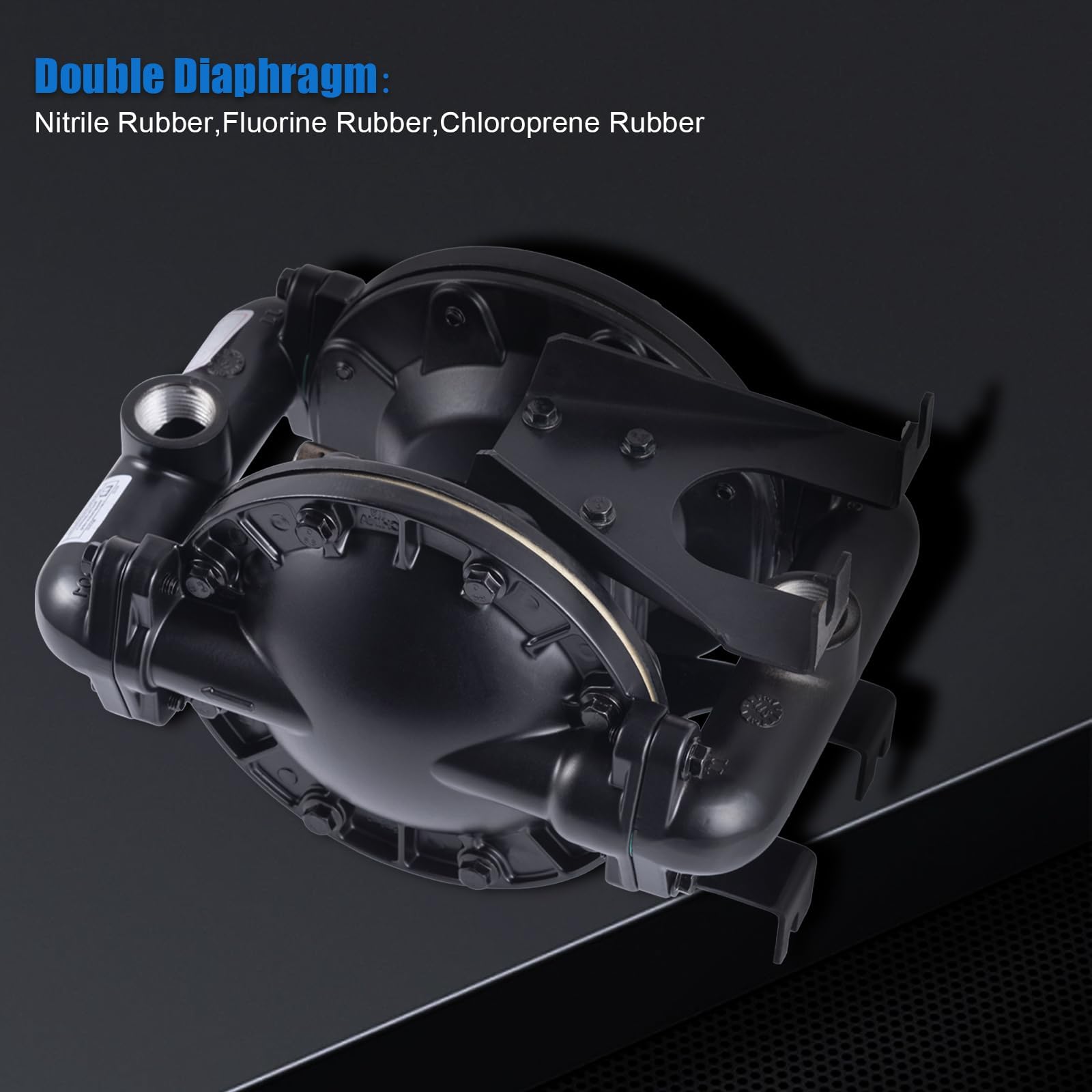

【DOUBLE DIAPHRAM】Chloroprene rubber and nitrile rubber;polypropylene dual dissepiment.Double diaphragm pump motor design delivers optimum air efficiency.
【STAINLESS STEEL BODY】Air operated diaphragm pump body made of stainless steel, aluminum alloy and cast iron.Air diaphragm pump bolted construction for leak-free fluid handling.
model number: Double Diaphragm Pump Air Operated
Part Number: Diaphragm Pump Air Operated
Details: BEFORE USE【Please check and tighten the screws first before use to avoid water leakage】 Air Operated Double Diaphragm Pump 1 inch Inlet/Outlet Pneumatic Waste Oil Transfer Pump for Chemical QBY4-25L 31 GPM Dual Diaphram Polypropylene Nitrile Rubber by Stainless Steel Iron 115 PSI
