DRO Digital Readout 2 Axis 3 Axis Screen DRO Readout Display Linear Scale for Bridgeport/Knee Mill Milling Machine Lathe Machine Tools (SDS-3MS)

Brand: CHAWED

Features:

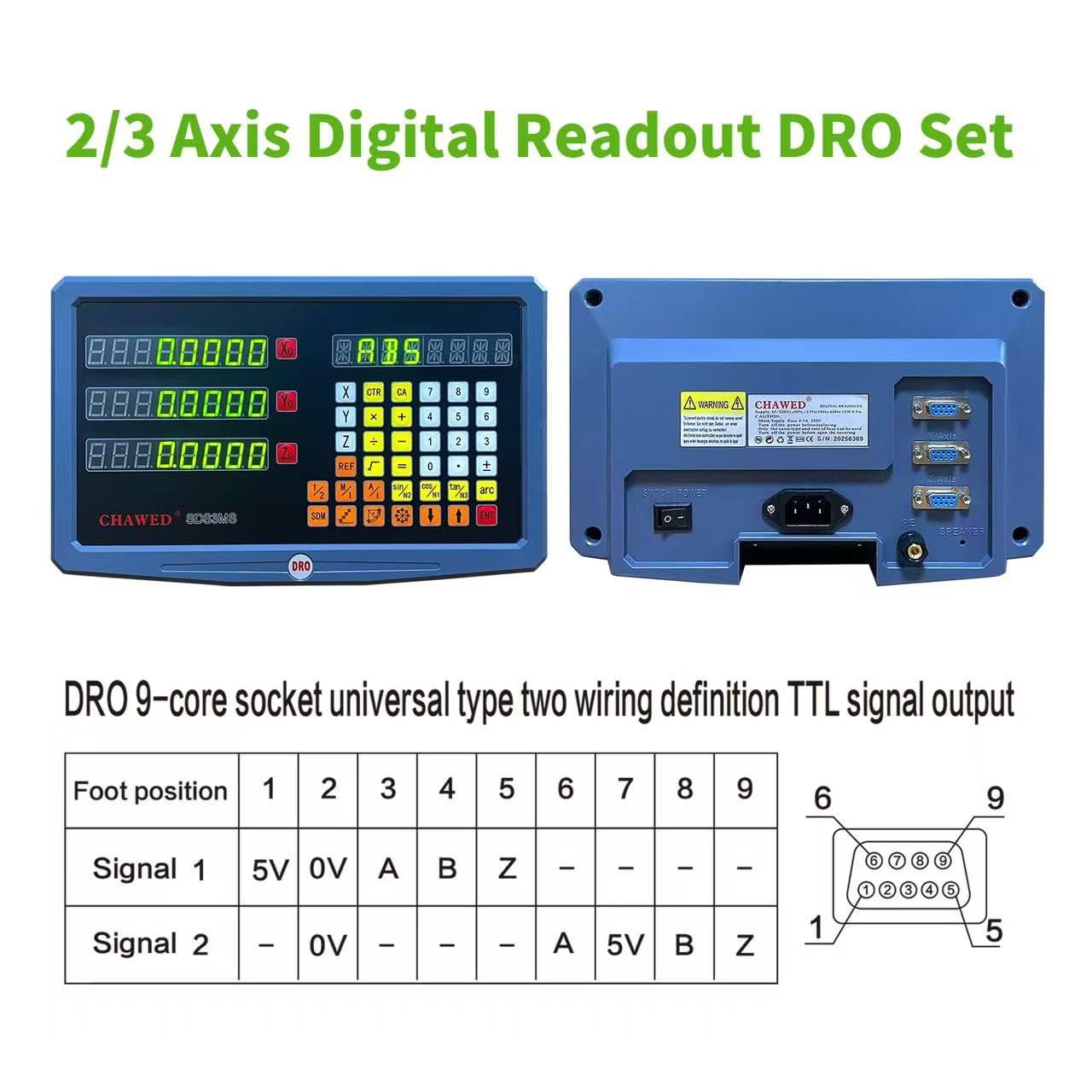

• 3 AXIS DRO High Precise- 3 Axis DRO Readout Display Glass precision Metrology Grating, Supply Voltage range: AC 80V-250V / 50HZ-60HZ, Acceptable resolution: 10μm,5μm,2μm,1μm, 0.5μm.Resolution 5μm/0.0002'; 8-bit Digital High-definition nixie tube. Faster data processing.，Mean Well Power long life time.

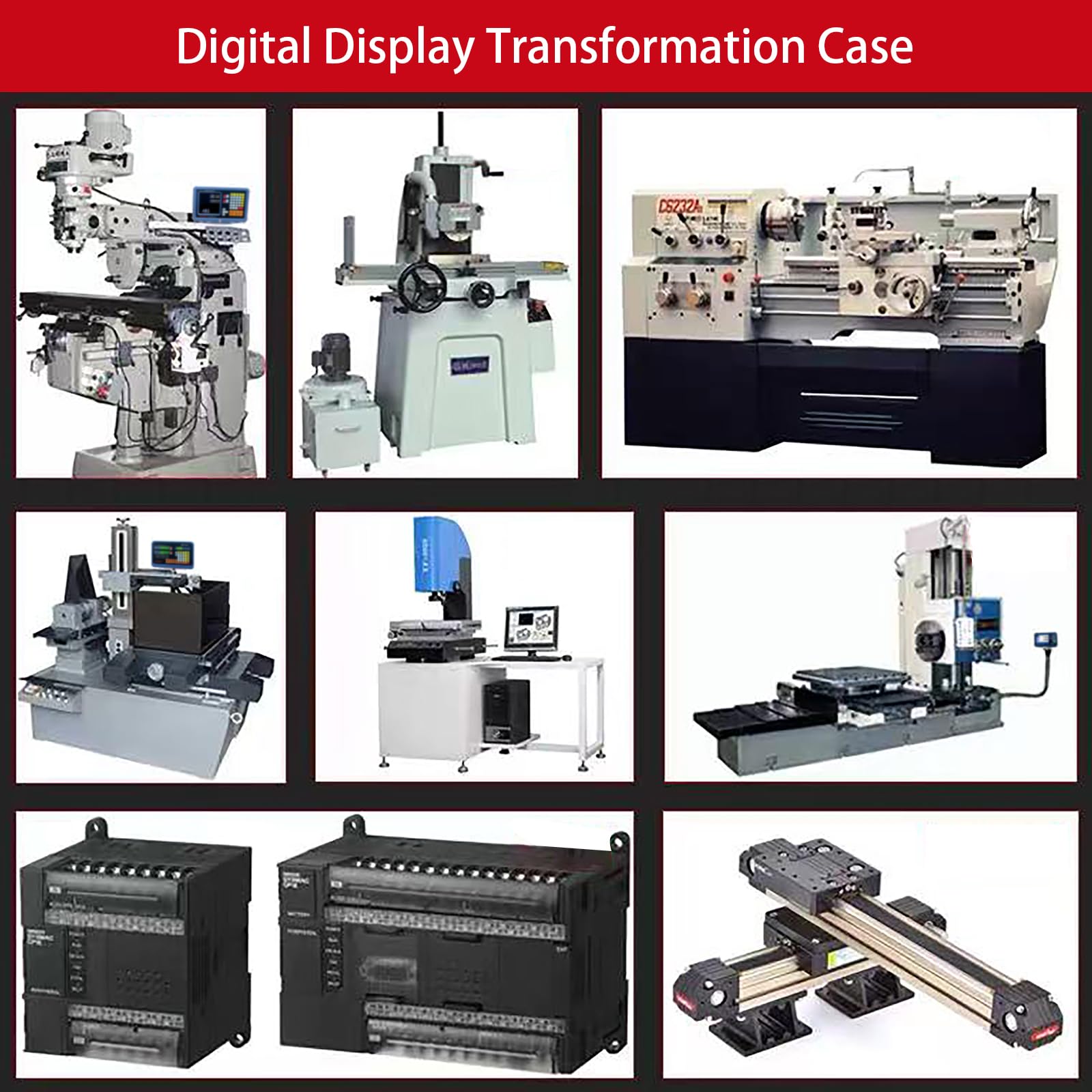

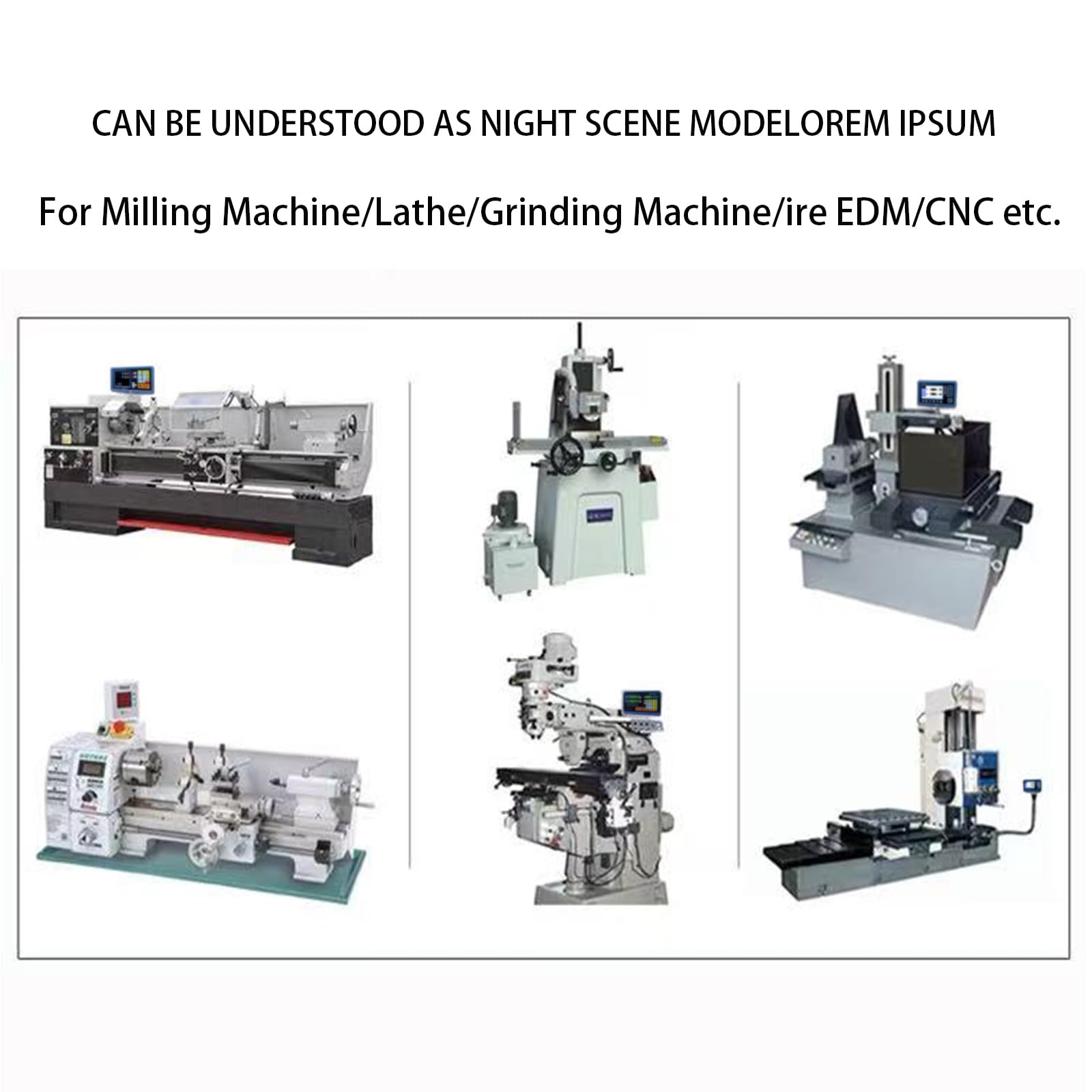

• High Performance- 3 Axis DRO Digital Readout can be widely used on the Milling Machine bridgeport milling machine,Lathe Machine. Easy for operation. Built-in User manual , freeing hands from paper manuals.

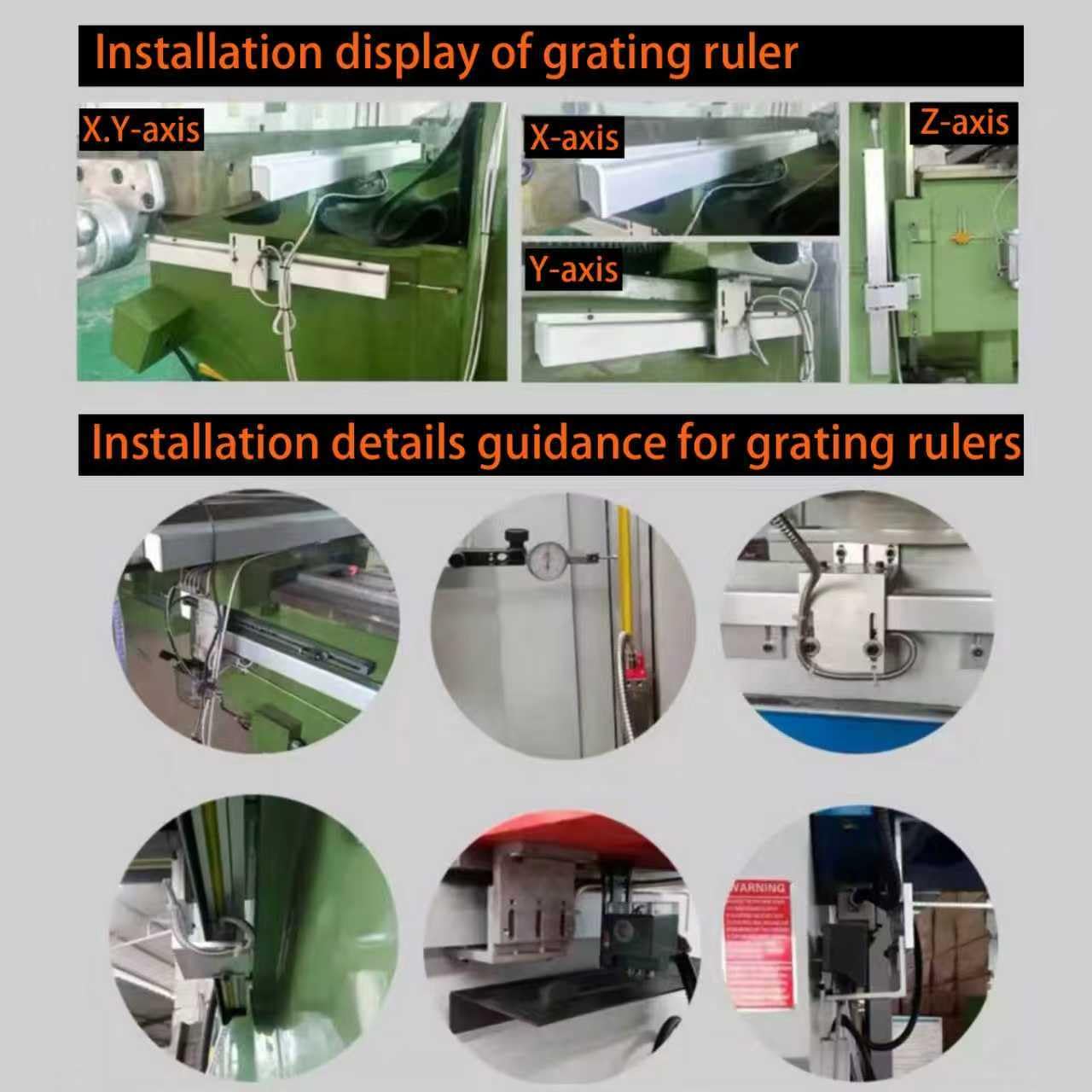

• Easy Install- With its compact and lightweight design, DRO is easy to install and can be used in a wide range of applications. It’s an excellent choice for machinists and manufacturers who demand the highest level of precision and reliability in their work.
• High Quality- The 3 Axis DRO digital readout display meter system is equipped with a variety of intelligent functions:MM/INCH, SDM 200 sets memory, bevel processing, power-off memory, circumference drilling, oblique line drilling, 1/2 centering,Axis sunmming functuon etc. Extra RPM function,Also a calculator is equipped for more convenient usage.

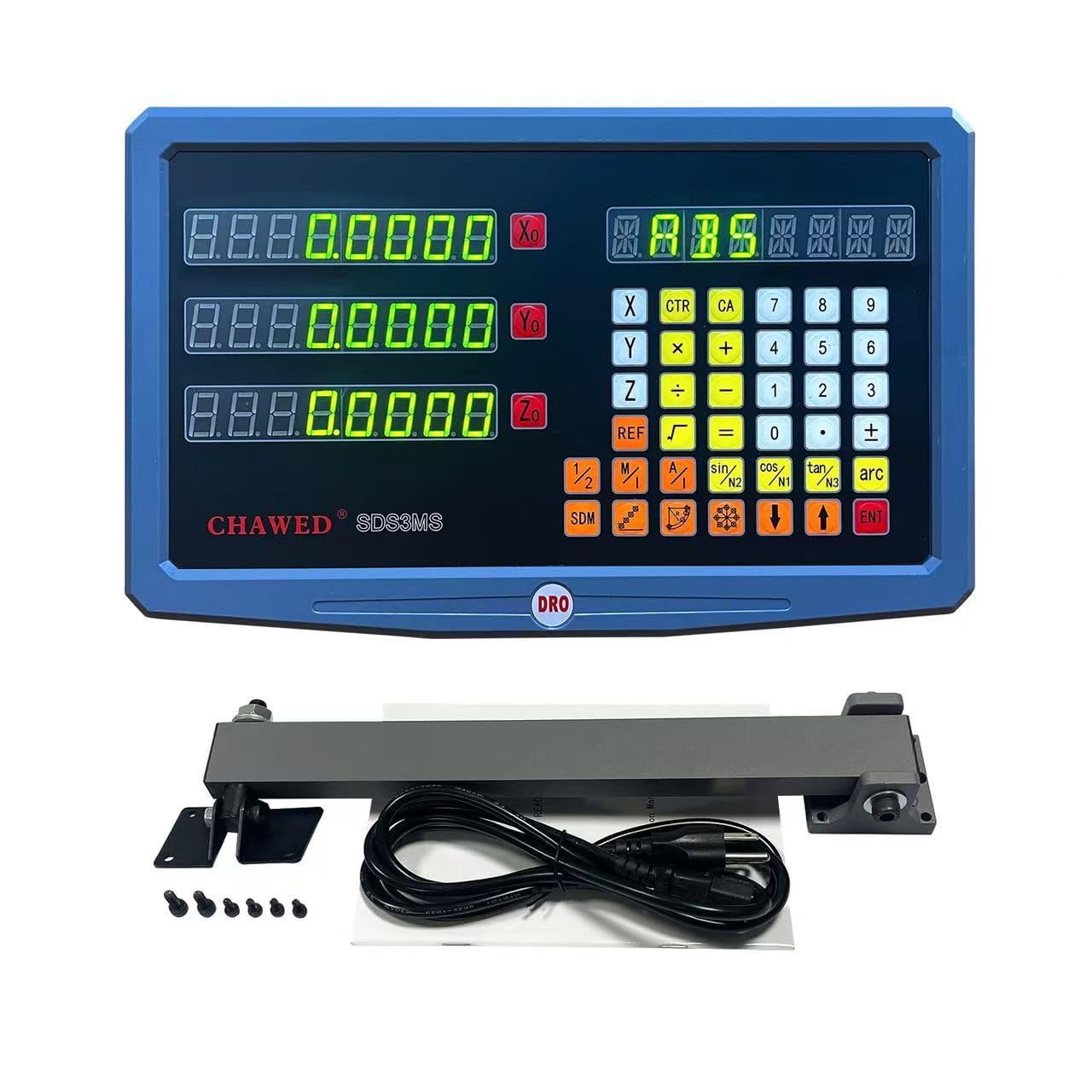

• Order Details - 3 Axis DRO Digital Readout Display +USA plug + Bracket + Screw+ User manual. And provided for 2-year warranty after-sales and lifetime technical support.

model number: SDS-3MS

Part Number: CWD-DR0-2AXIS-3AXIS

Details: Product Specification:

Resolution: 5um
Supply Voltage range: AC 86V~240V; 50~60Hz
Power consumption: 15VA
Operating temperature: 0~50°C

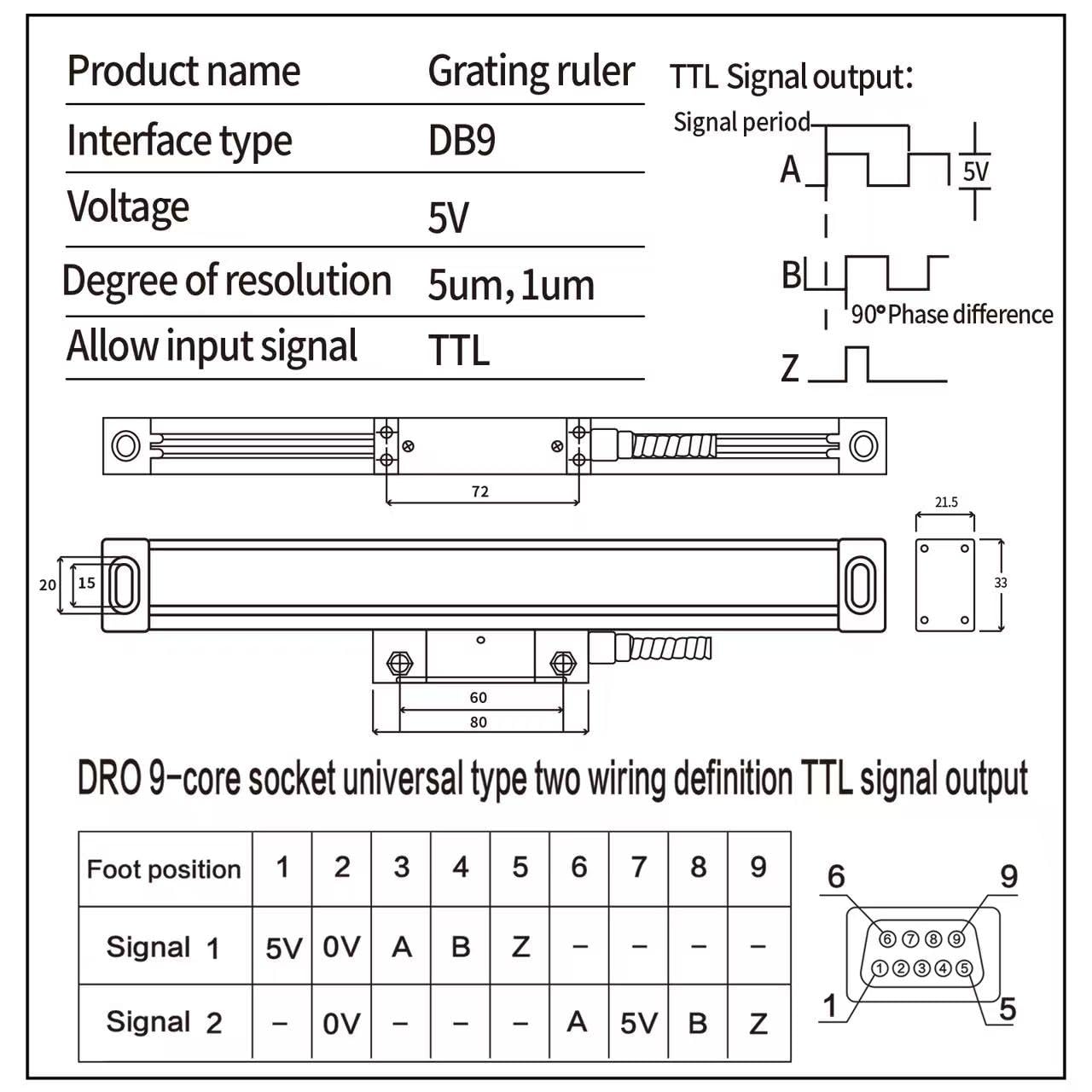

Readout allowable input signa: TTL square wave

Saving the drawing function,the DRO allows to save the drawings into the system which makes the machining to be much more convenient.
Special previewing the drawing function,after setting well the parameters,the DRO will display the machined well effect which makes the operating be more visual.
Displaying the tool’s current position function,during themachining,the system will display the tool’s current position according to the drawing which makes the machining be much more easier.
Help function,during the machining,if there is any doubt,pressing the help button will help you to solve.
Custom settings for the shortcut keys,operator can set the shortcut keys according to his operatinghobits.
Multi-languagesupport:English,German,Spanish,Portuguese,Italian,Polish,Swedish and Dutch.

EAN: 0692090773171

Package Dimensions: 13.0 x 9.0 x 4.0 inches
