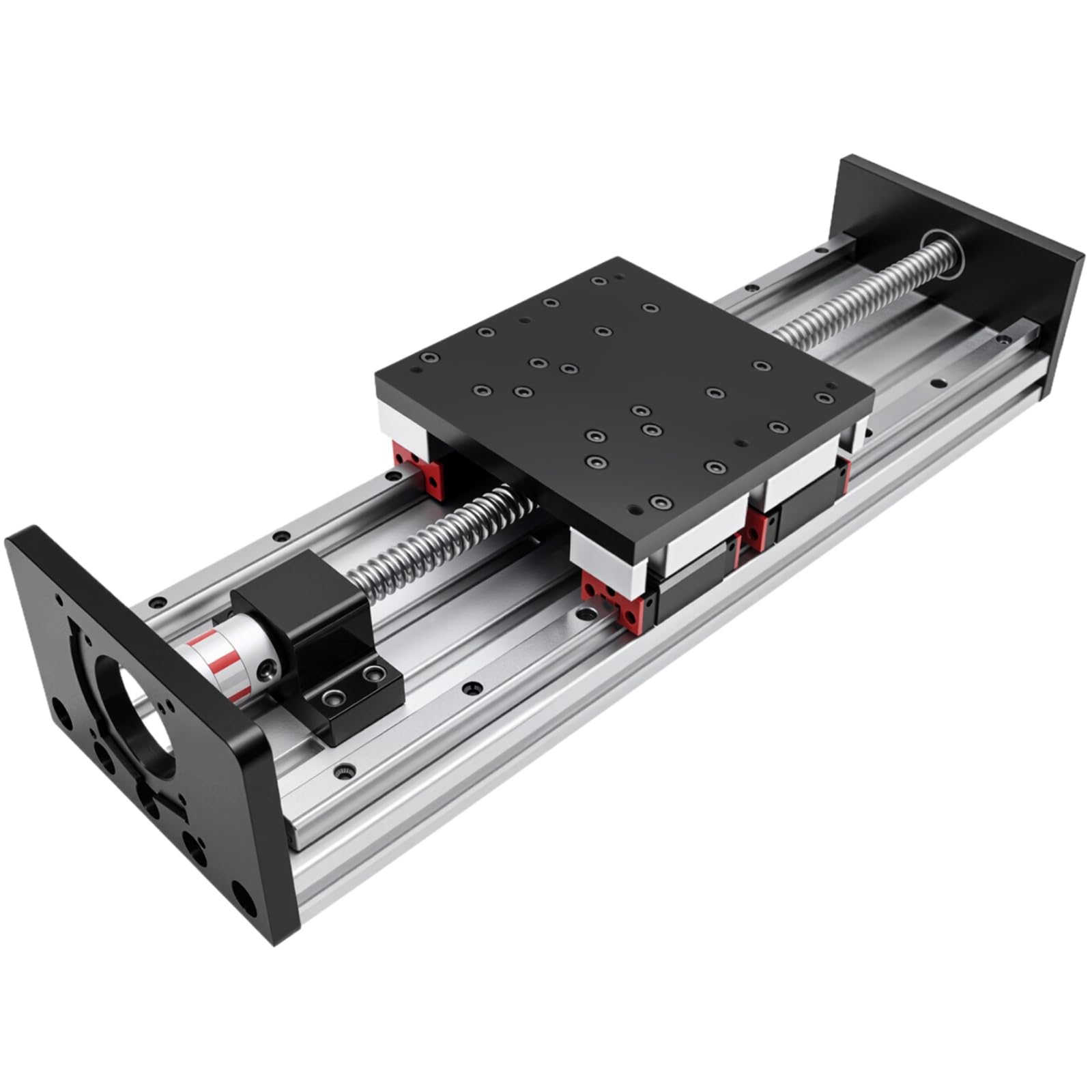

Electric Linear Stage Heavy Duty Load 550 lb 250KG Ballscrew 2005 Double Rail Guide Four Slide 8 Inch 200mm Stroke Slide Stage Compatible Nema23 57mm NEMA34 86mm Stepper Motor for CNC Router

Brand: TOSEASTARS

Color: no dust cover

Features:

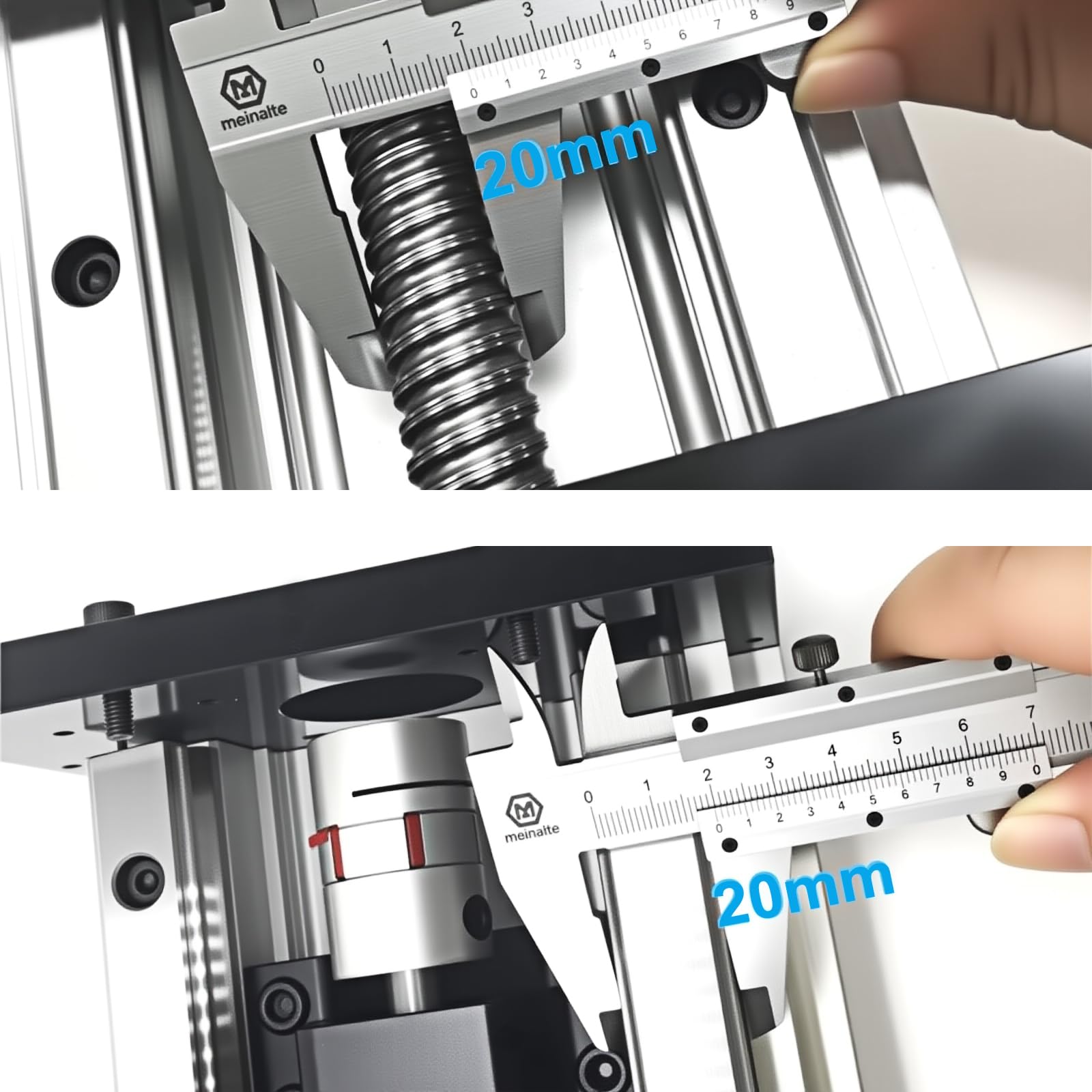

• SFU2005 Ballscrew: Linear guide stage screw diameter 20mm, screw pitch 5mm,the screw rod rotates once and the panel moves 5mm. Ball screw linear rail Screw precision grade: C7, accuracy up to ±0.02mm.

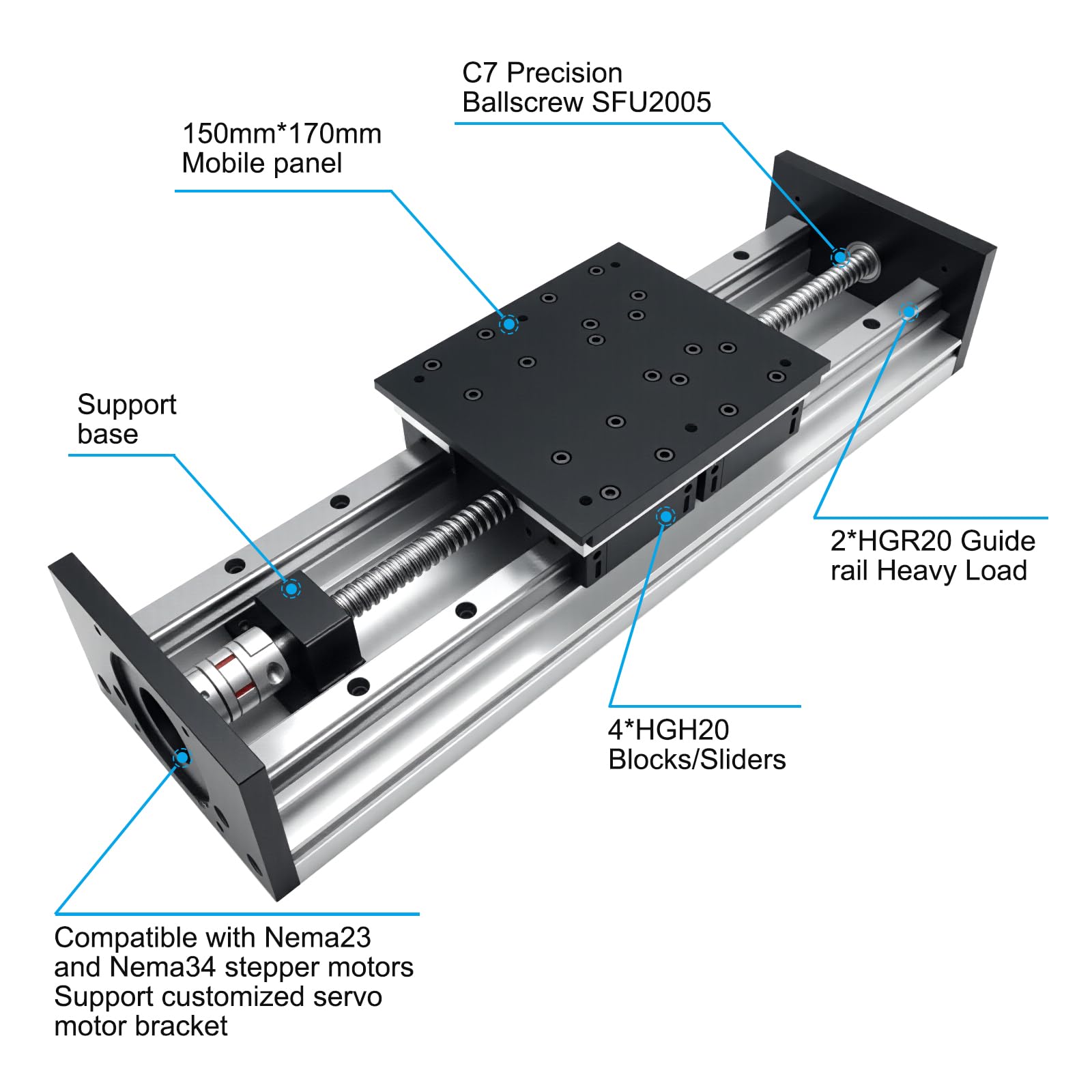

• Slide Block: Mobile panel size: 5.9*6.7 inch/150*170mm, guide diameter: 20mm. Double Guide: 2*HGR20, Four Slider: 4*HGH20. Horizontal loading capacity up to 551 pound / 250kgs,vertical loading capacity up to 220 lb/100 kgs. Low noise. Ensure rigidity and smooth motion under stress.

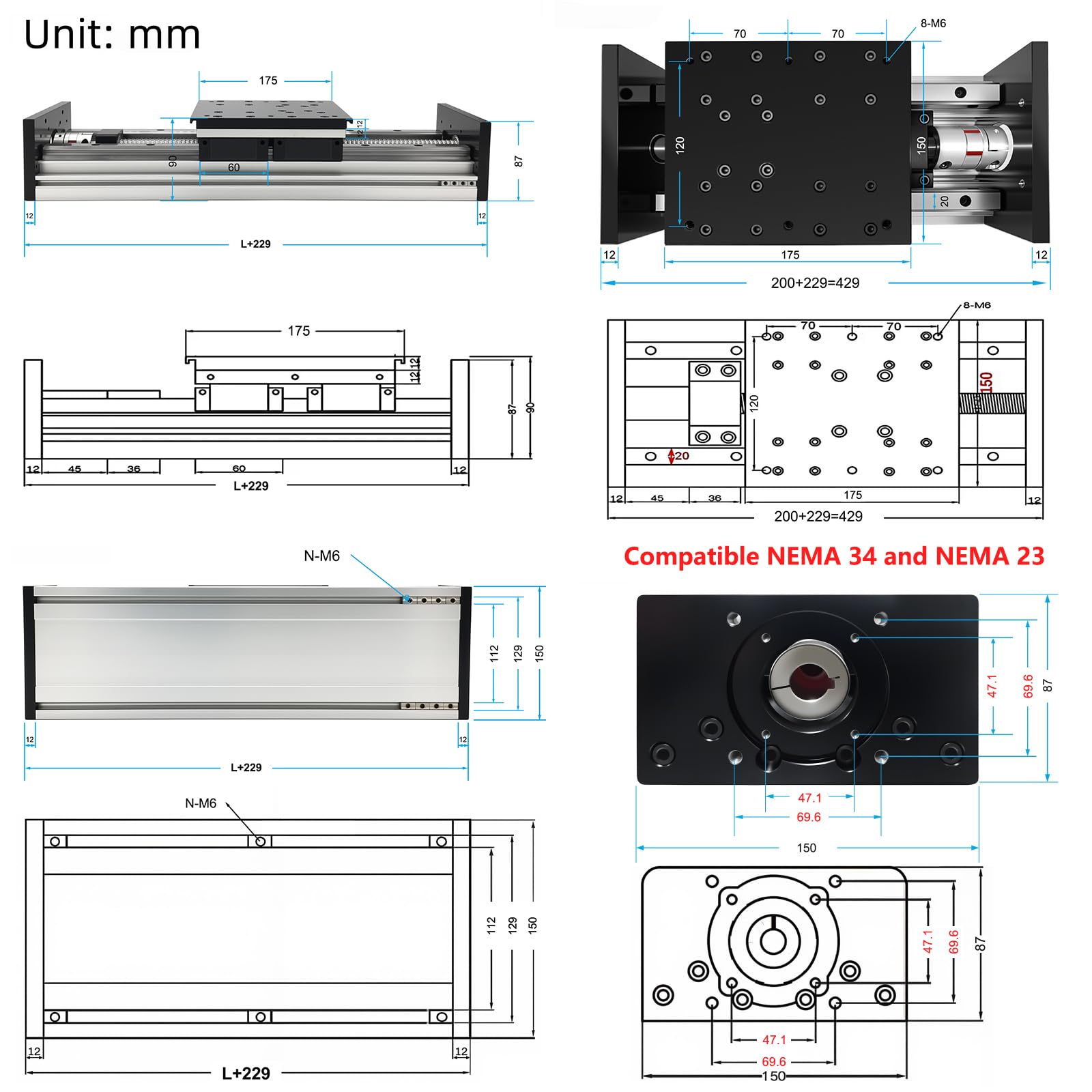

• High-Speed Precision: Total length: Effective Stroke(8 inch) + 8.5 inch= 16.5 inch (no motor). 3.15 inch/s (80mm/s) Max Speed. CNC Linear Stage Motion Actuator Effective Stroke: 8 inch. Linear motion guides supports high-frequency reciprocating motion.
• Linear Guide Applications: Widely used in scenarios requiring high precision and high load mobility, covering manufacturing (automotive, aerospace), logistics and warehousing, construction, medical research, energy facilities, and special industrial fields. Its core advantage lies in combining high load capacity with precise positioning, meeting the dual demands of efficiency and precision in modern industry, and becoming a key component in automated and intelligent production.

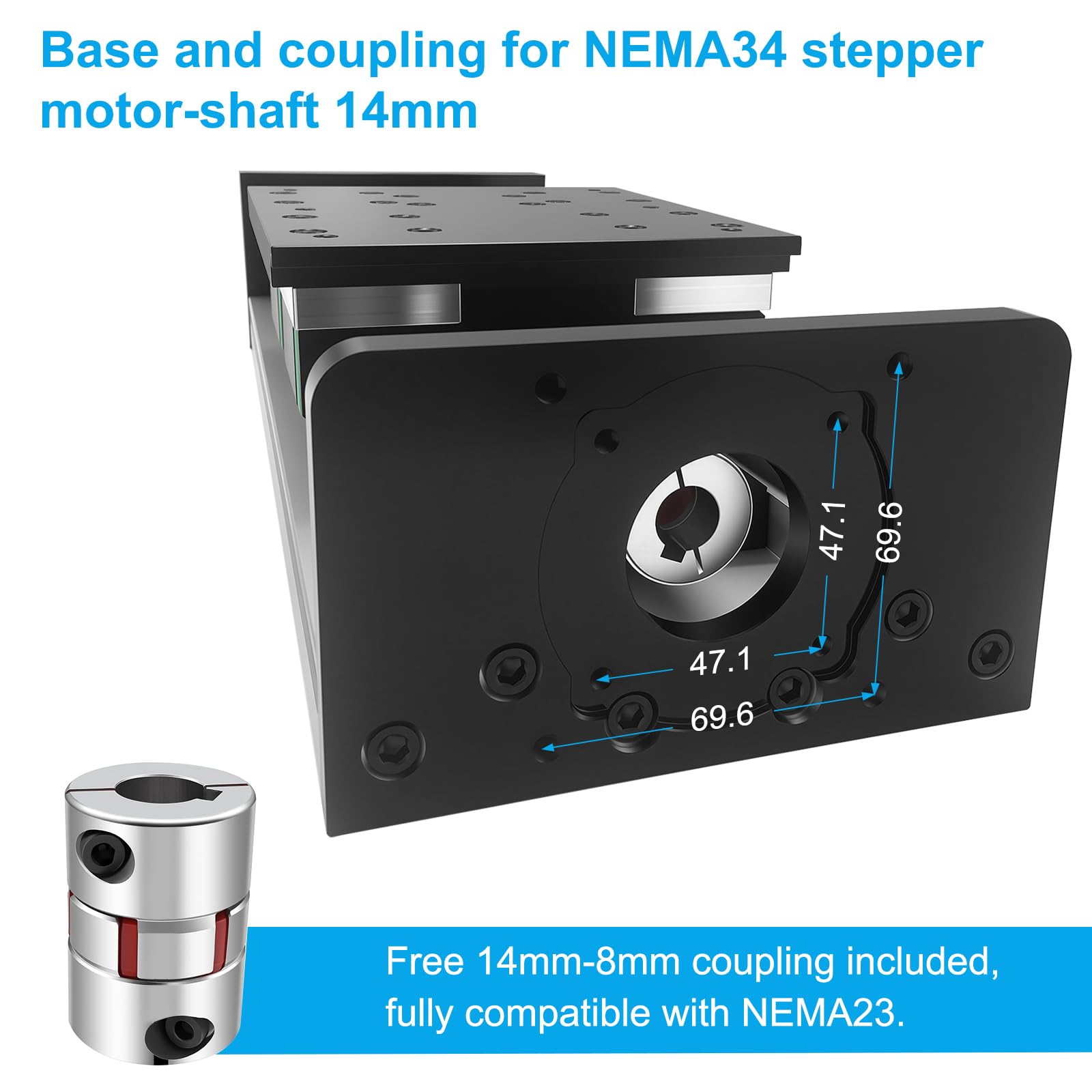

• Ready-to-Use Kit: Includes all necessary parts (NEMA23 57mm & NEMA34 86mm flanges bracket 8mm and 14mm couplings, bearings, etc.) for quick assembly of a fully functional linear motion system. (motor not included, available at TOSEASTARS store).

Part Number: SXG150-2005-200-86

Package Dimensions: 19.6 x 9.1 x 6.6 inches
