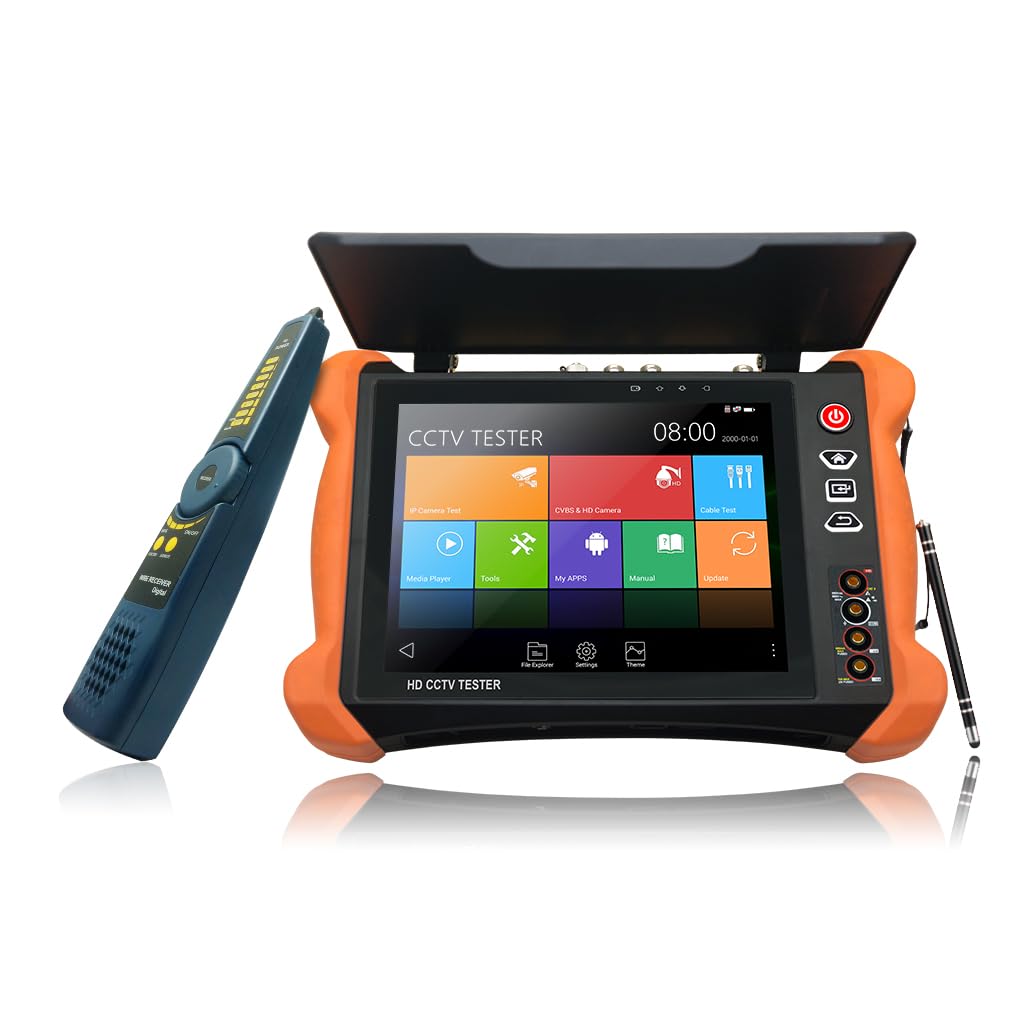

EVERSECU 8 Inch All in One Retina Display CCTV Tester,8K 32MP 12MP IP Camera Tester,4K 8MP TVI/CVI/AHD/SDI/CVBS CCTV Monitor Support DMM, OPM, VFL, TDR,Network Tools,WiFi,HDMI

Brand: EVERSECU

Color: Red

Features:

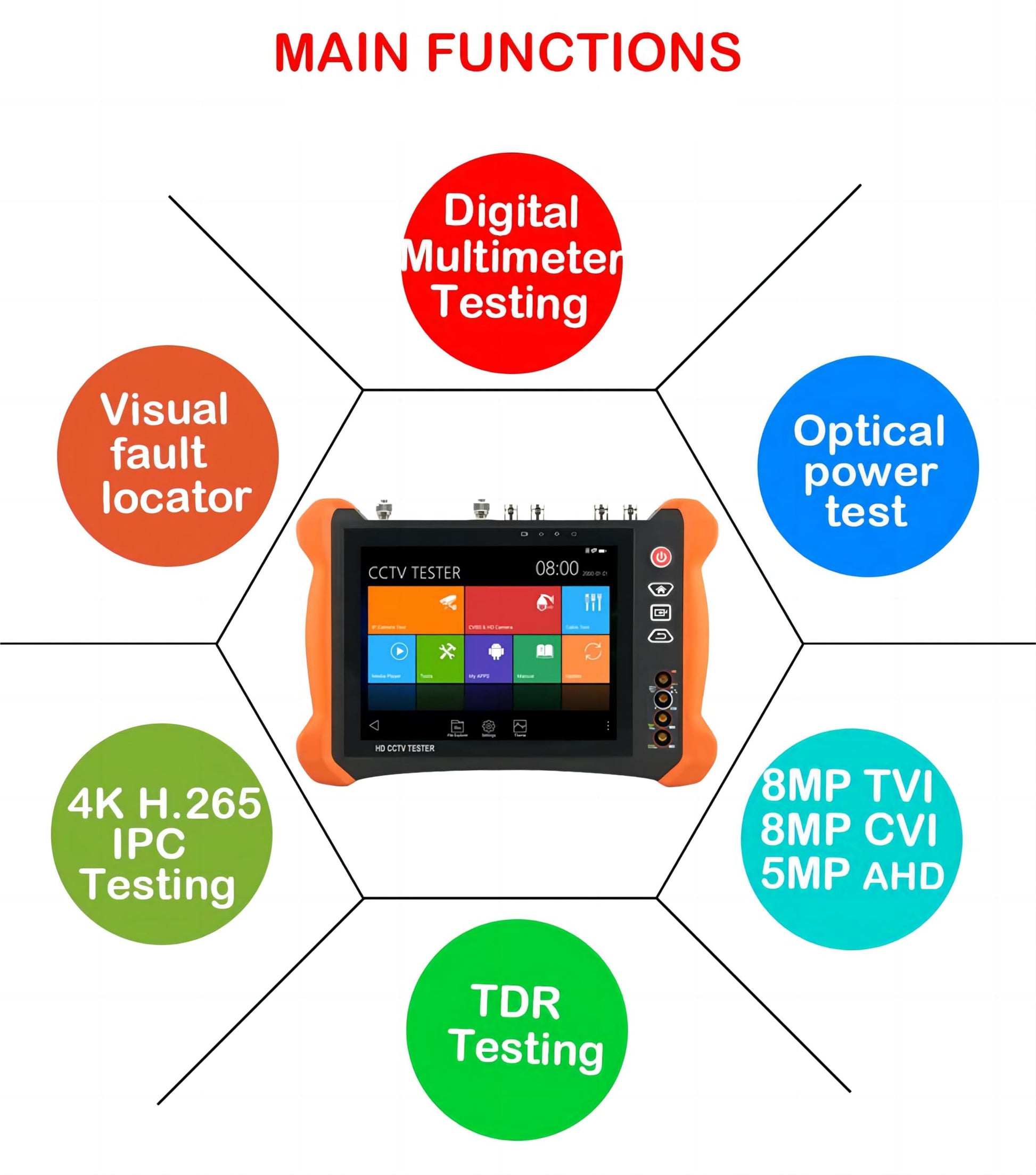

• ✅【Multi-function CCTV Tester】Introducing the X9-MOVTADHS CCTV Tester with an 8' IPS touch screen at 2048x1536 resolution. It features a digital multimeter, optical power meter, TDR cable testing, and cable tracing capabilities. Supports 8K, ONVIF, POE, WiFi, dual Gigabit Ethernet, RS485, audio input, HDMI I/O, LED light, SD card, and a built-in battery. Runs on Android for network connectivity and app updates.
• ✅【DMM&OPM&TDR&VFL】Digital Multimeter: Measures AC/DC voltage, current, resistance, capacitance, with features like data hold, relative measurement, and continuity test. Optical Power Meter: Assesses signal power and insertion loss for equipment and photoelectric components. TDR Cable Test: Measures cable length and detects short circuits, with a range up to 1200 meters.With, Visual Fault Locator. Laser Grade: Class II, Power output: < 1mW, Distance: 98ft
• ✅【8K IP Camera tester】 This network camera tester supports up to 8K 32MP 8160x3616P and 4K 12MP IP cameras, with PoE IEEE802.3af/at 48V up to 25.5W power. It offers rapid video auto-view, testing report creation, and features like IP Discovery, Quick ONVIF, IPC test, RTSP playback, and Client APK. It also creates Wi-Fi hotspots and analyzes Wi-Fi. Includes specialized tools for Hikvision and Dahua cameras, with a one-key activation for image tests and parameter modifications.

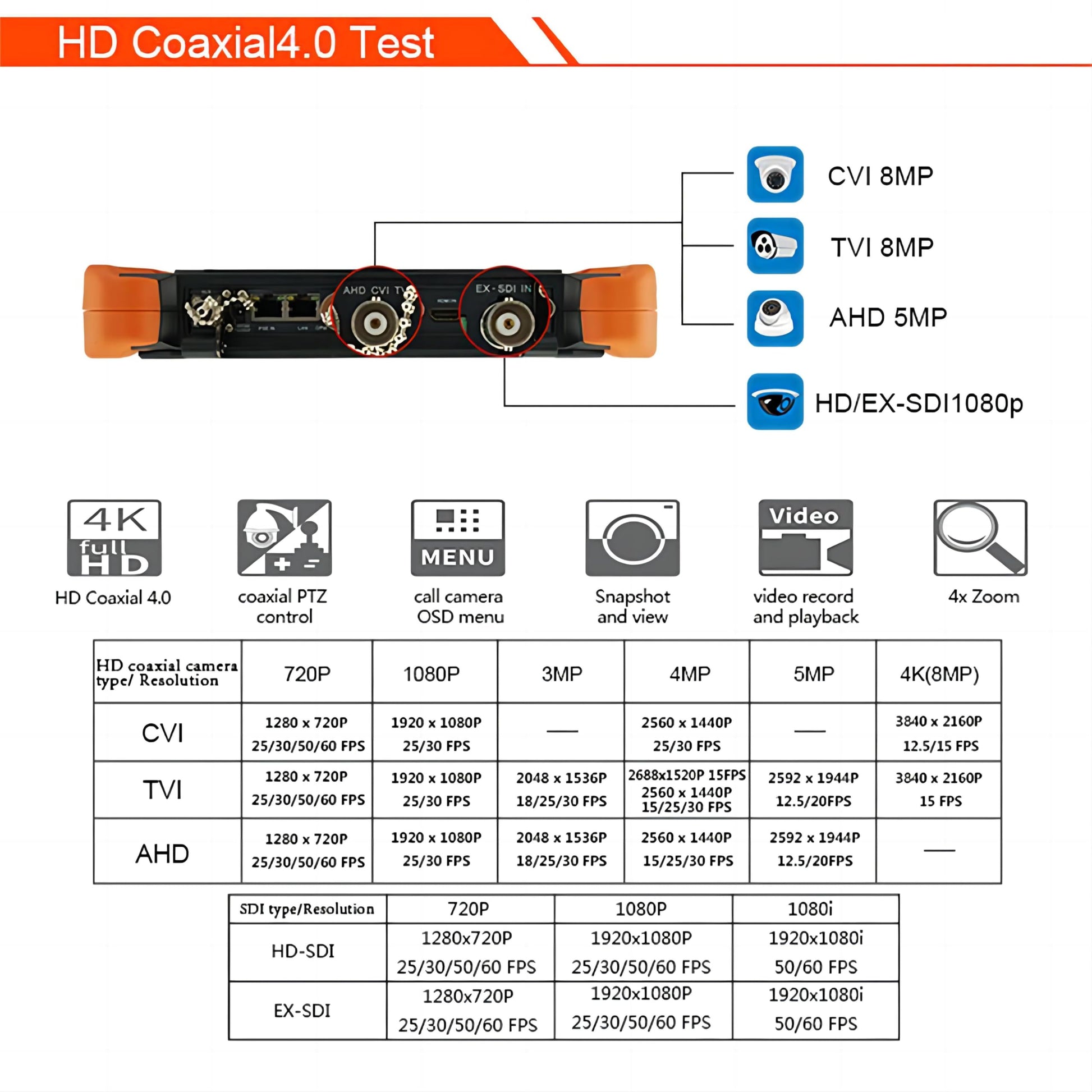

• ✅【8MP HD Analog CCTV Camera Tester】The 5-in-1 Coaxial camera tester supports up to 8MP (3840x2160P) for TVI, AHD, CVI, SDI, and CVBS cameras, with UTC PTZ control and OSD menu access. The built-in 'Auto HD' app automatically detects camera types for HD AHD, TVI, CVI, and SDI models. It features RS485 control with a baud rate of 600-115200bps and is compatible with over 30 protocols including PELCO-D/P, Samsung, and Panasonic.
• ✅【Power & Quality Assurance】Equipped with a 7.4V 7000mAh Lithium polymer battery, offering reliable battery life and charging with DC12V 2A input/output and DC5V 2A output. The X9-MOVTADHS uses the V6 battery model, available in our store, Backed by a professional technical support team, we provide 24-hour assistance and a 1-year warranty. For any inquiries or technical issues, feel free to reach out to us.

Part Number: X9

EAN: 0681413111530

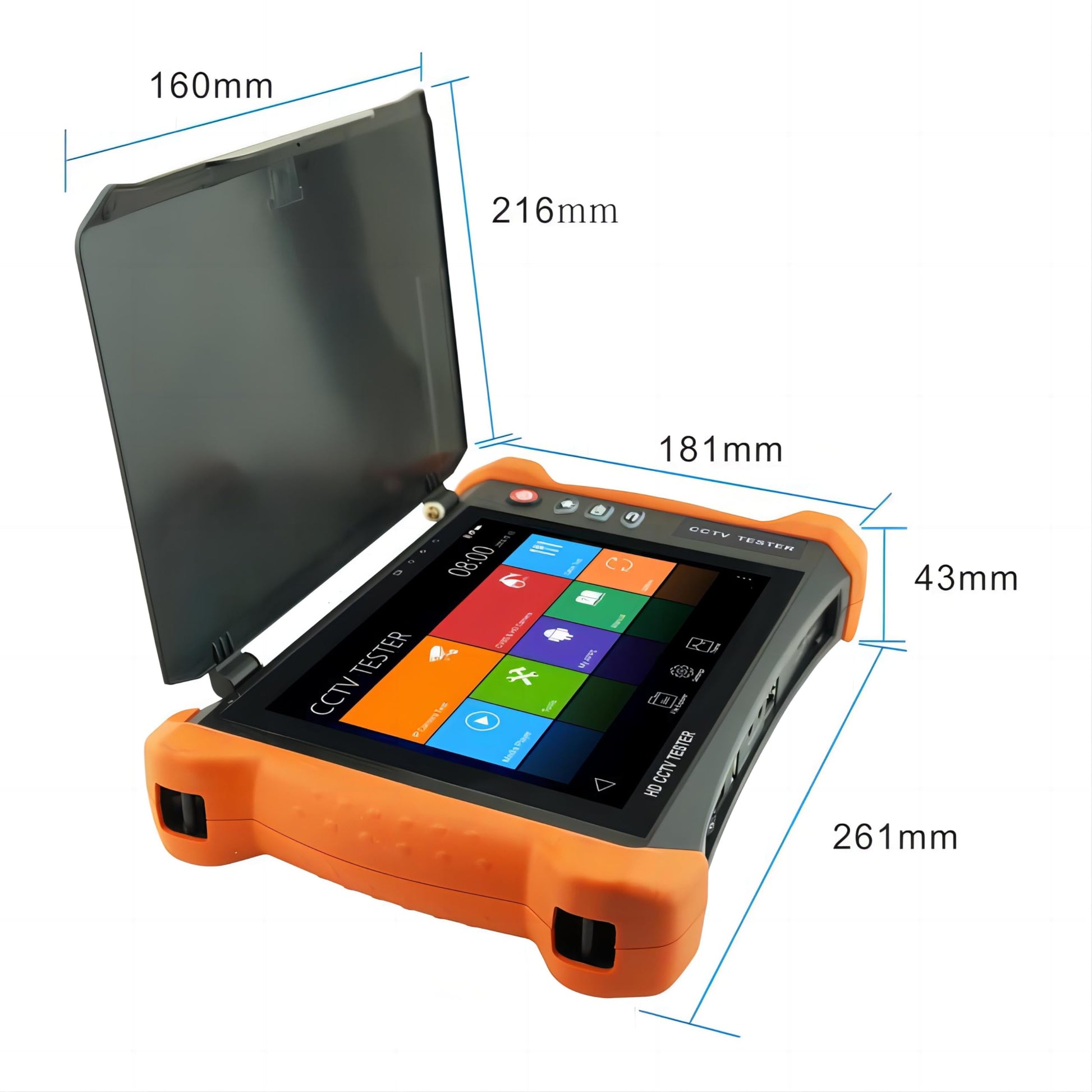

Package Dimensions: 13.7 x 12.3 x 3.9 inches
