FAHKNS 35GPM 120PSI Air-Operated Double Diaphragm Pump QBY4-25L 1 Inlet Outlet Port For Environmental Protection Drainage Construction Petroleum Chemical Pharmaceutical Electric Power

Brand: FAHKNS

Color: Black

Features:

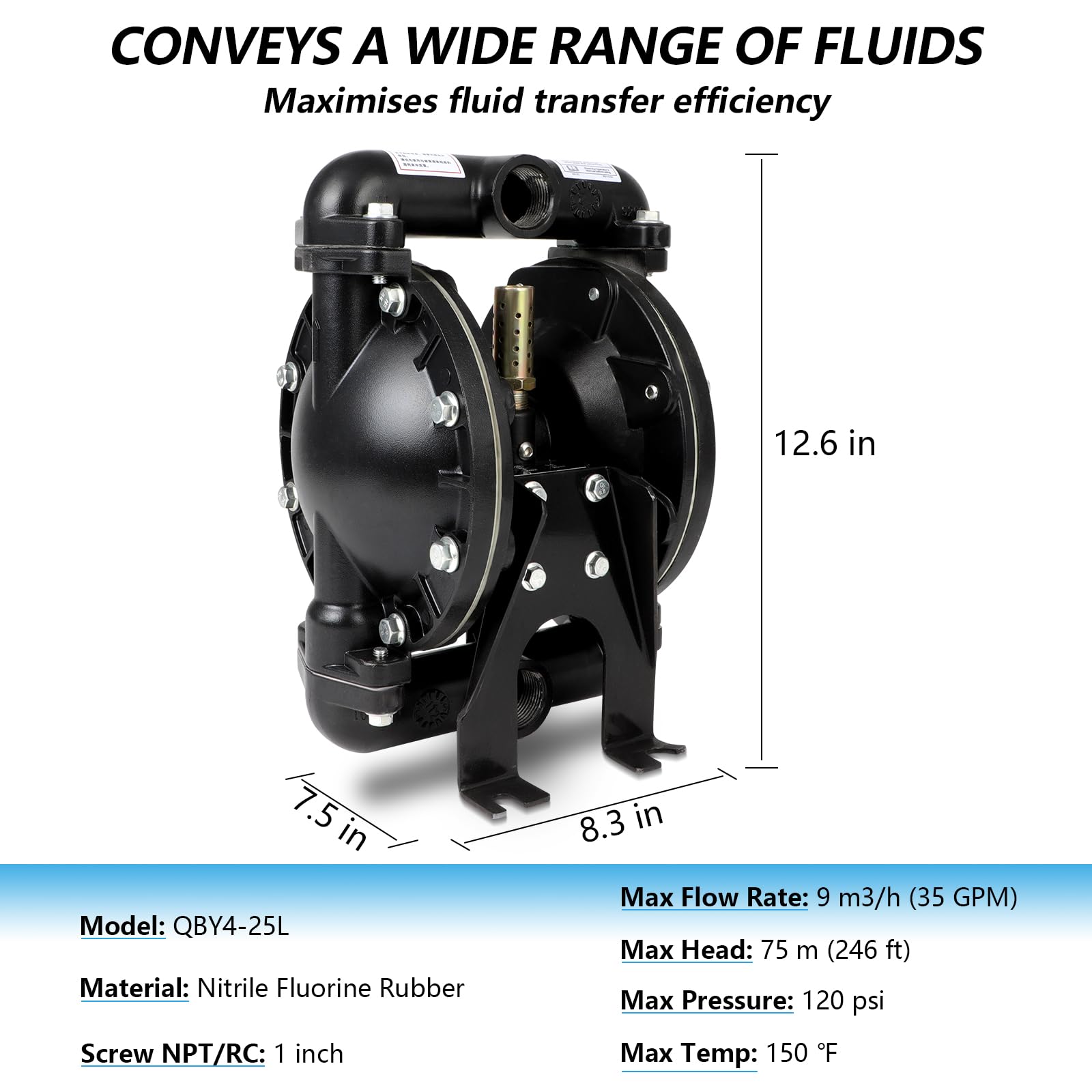

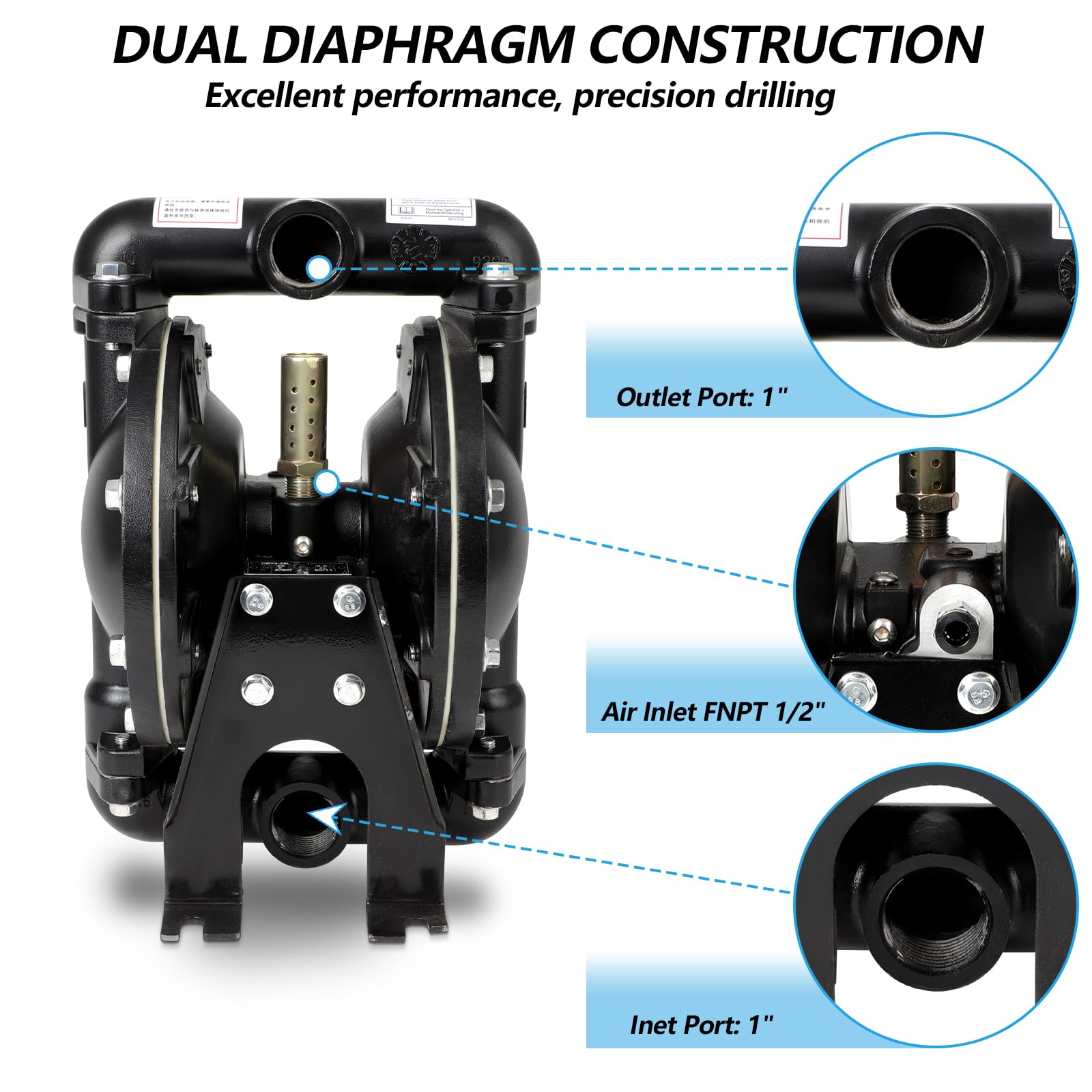

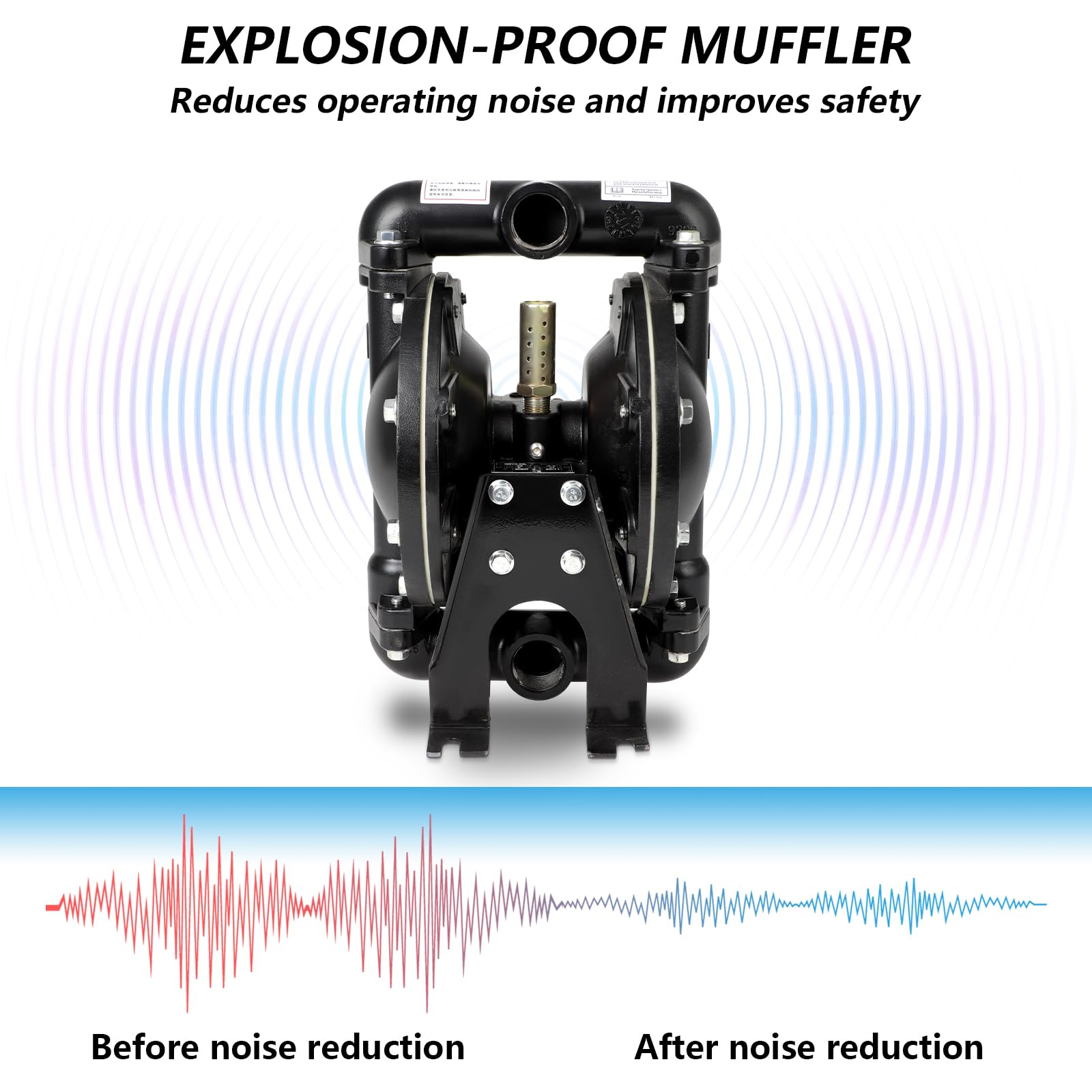

• 1 INCH OUTLET: Double diaphragm pump with 1 ' outlet and 1' inlet threaded.Exit pressure is 8 kgf/cm³.Air inlet size:1/4 inch.Muffler design reduces noise.Air diaphragm pump bolted construction for leak-free fluid handling
• WASTE OIL TRANSFER: 4 mm is the maximum particle diameter which allowed to pass.Max flow rate 35 GPM which suits for for various corrosive liquids,solids-laden fluid,high viscosity liquid.Max pressure:115 psi.Suction lift:0~7 M. Head:0~75 M

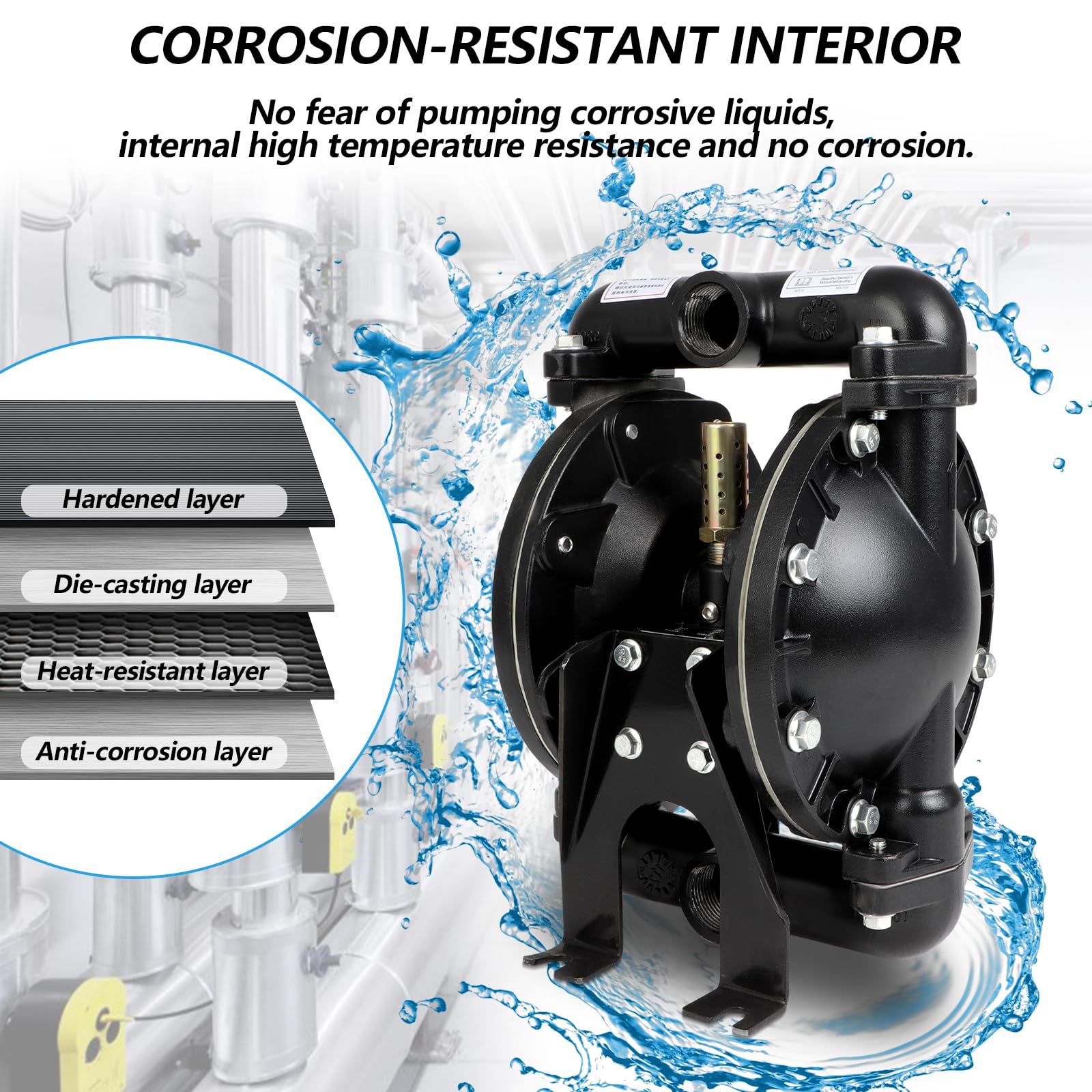

• ANTI-CORROSION: Diaphragm pump has reliability and ability to handle viscous or abrasive fluids,as well as self-priming capabilities and ability to run dry without damage.Air operated diaphragm pump body made of cast iron,stainless steel and aluminum alloy
• RUGGED CONSTRUCTION: Diaphragm Pump resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling

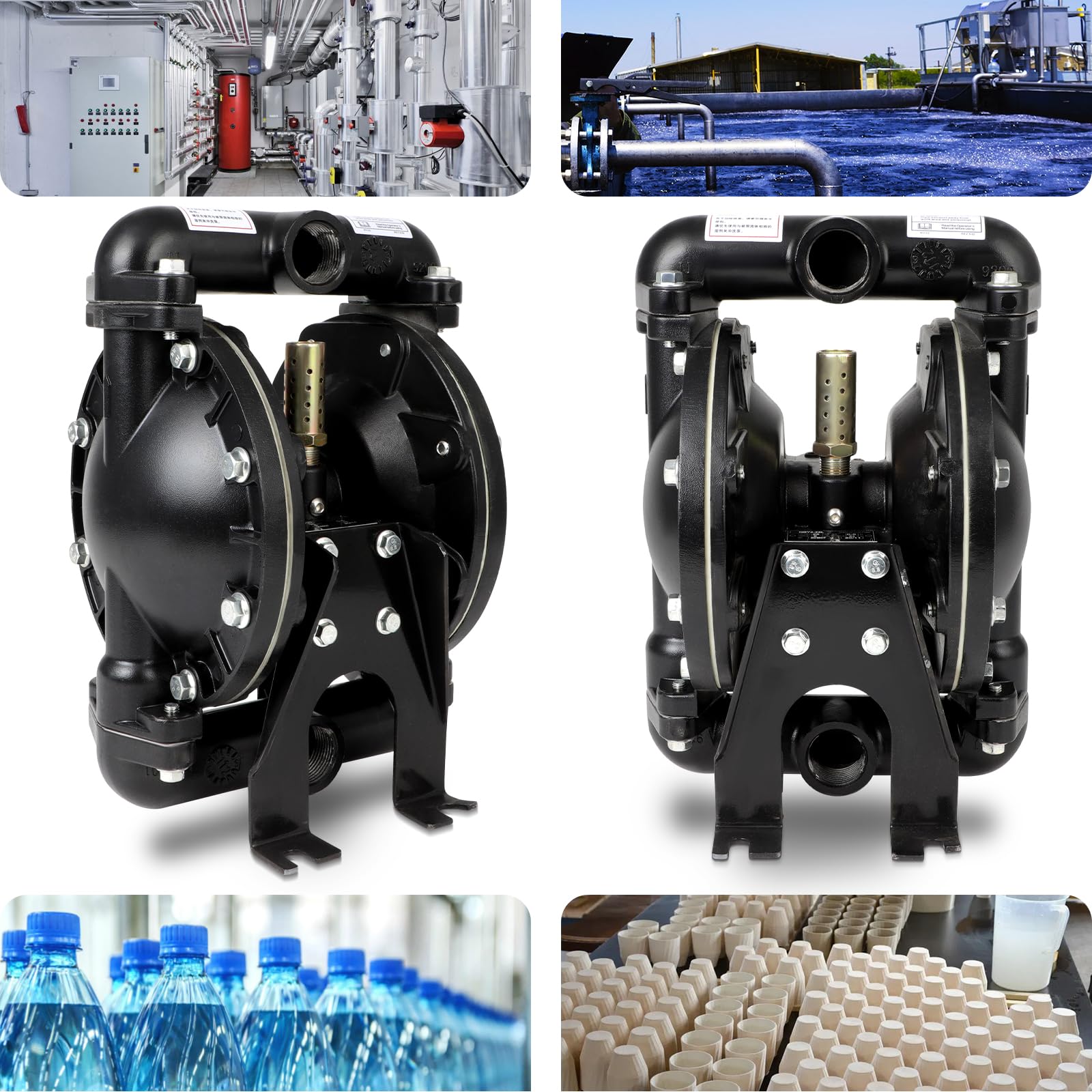

• WIDELY USE: The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive etc
• CUSTOMER SERVICE: Please note: After receiving the diaphragm pump, please check whether the fasteners are tightened, the transportation process may send loose, please tighten the screws first. After use if you find the pump has leakage or other problems, please be sure to contact us, we will help you to replace or solve. Maintenance: It is recommended that you regularly lubricate the moving pin group with lubricant and do regular maintenance, which can prolong the service life of the pump

model number: 167156-4

Part Number: 167156-4

EAN: 0198519302590

Package Dimensions: 15.2 x 11.3 x 9.9 inches
