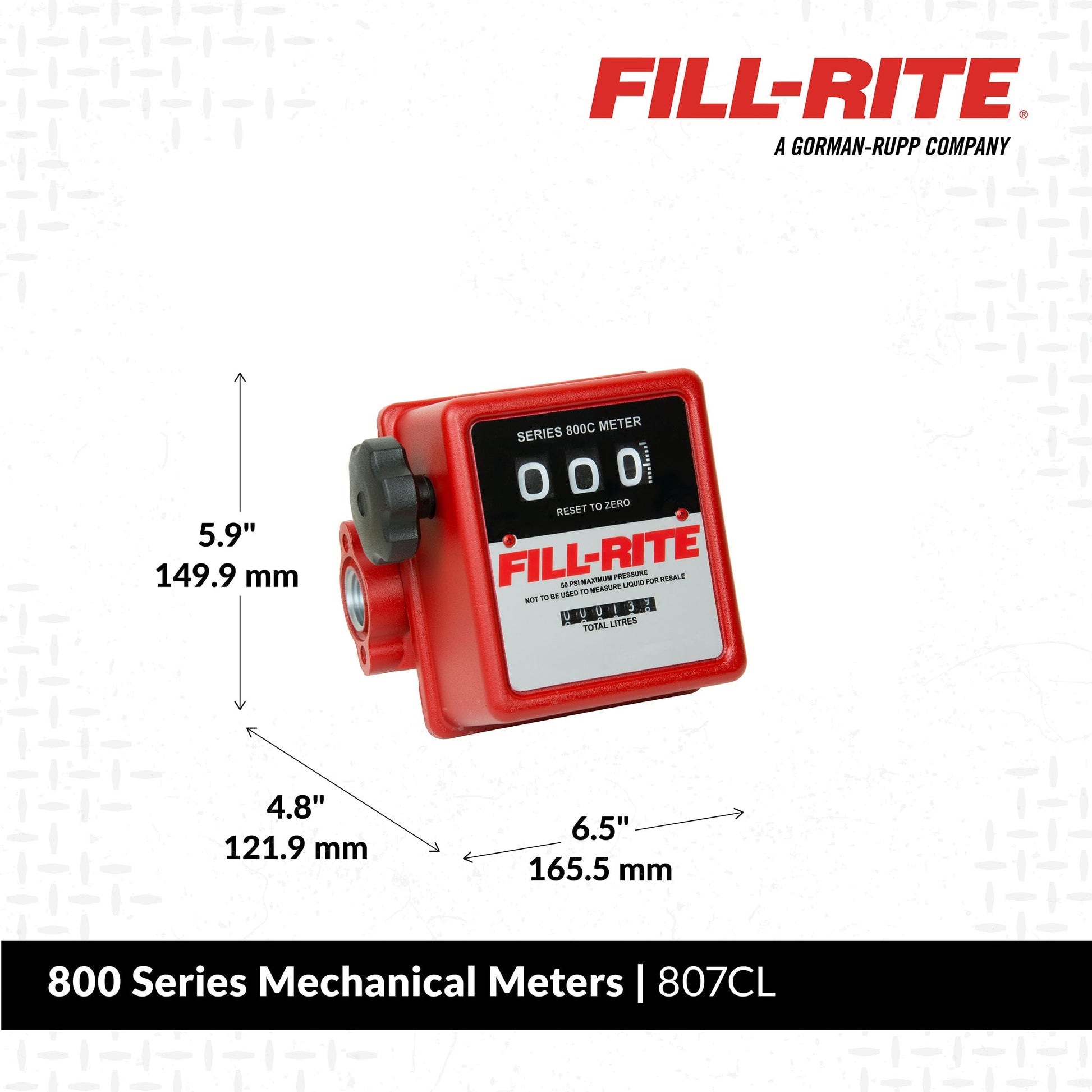

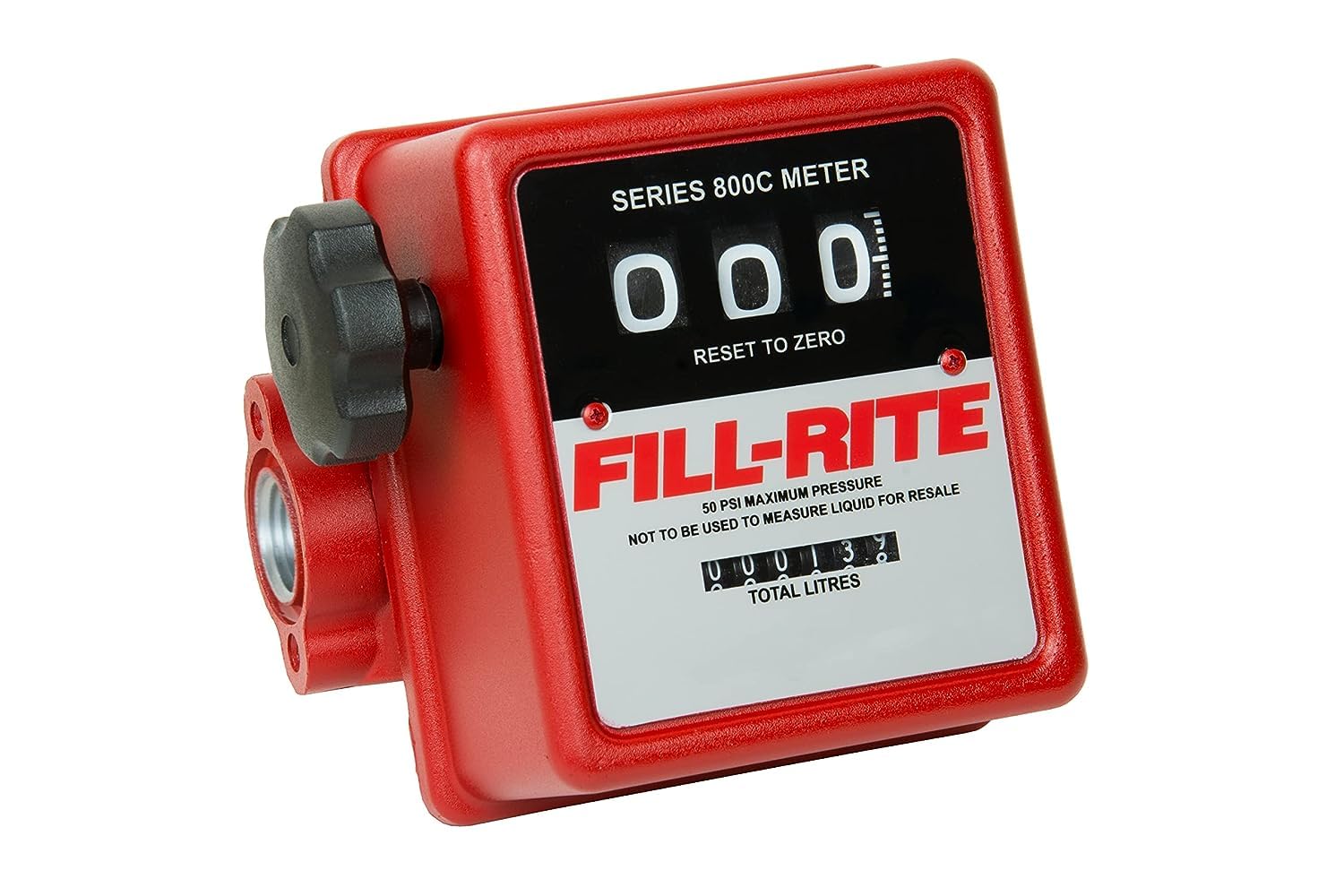

Fill-Rite 807CL Mechanical Fuel Transfer Meter – 3/4" NPT, 19–76 LPM (5–20 GPM), Nutating Disc, ±1% Accuracy, Diesel/Gasoline/Kerosene Compatible, Cast Aluminum

Brand: Fill-Rite

Color: Factory

Features:

• High-Accuracy Mechanical Meter – Provides precise fuel measurement with ±1% accuracy for dependable dispensing
• 19–76 LPM Flow Range – Designed for low-volume fueling applications with a 5–20 GPM operating range
• Rugged Cast-Aluminum Body – Built for durability in commercial, industrial, and agricultural environments
• Nutating-Disc Design – Handles rust particles and small debris that can stop other meters
• 3-Digit Batch Liter Meter + Lifetime Totalizer – Tracks individual fuel transactions and total usage with a 5-digit non-resettable counter
• Wide Fuel Compatibility – Safe for diesel, gasoline, kerosene, mineral spirits, heptane, and hexane
• 3/4″ NPT Inlet/Outlet – Easy integration into existing fuel transfer systems
• Wide Operating Range – Performs from –15°F to 150°F and supports up to 50 PSI
• Certified & Trusted – UL/cUL and CE listed for safety and consistent meter performance

model number: 807CL

Part Number: 807CL

Details: The Fill-Rite 807CL Mechanical Fuel Transfer Liter Meter delivers reliable, high-accuracy performance for low-volume fueling systems. Engineered with a nutating-disc mechanism, this meter handles sediment and small debris without clogging—making it ideal for rugged on-site, farm, and commercial environments. Built from heavy-duty cast aluminum, the 807CL offers long-term durability while maintaining ±1% accuracy across a 19–76 LPM flow range. It features a 3-digit resettable batch meter and a 5-digit lifetime non-resettable totalizer, ensuring accurate tracking of both individual fuel transactions and overall usage. Designed for versatility, the 807CL is compatible with diesel, gasoline, kerosene, mineral spirits, heptane, and hexane. With standard 3/4' NPT ports, it easily integrates into existing fuel transfer systems. UL/cUL and CE certifications guarantee safe, dependable operation in demanding applications. Whether you're managing equipment fleets, agricultural machinery, or on-site fuel storage, the 807CL provides the accuracy, durability, and reliability expected from Fill-Rite.

EAN: 0089404110997

Package Dimensions: 10.7 x 7.4 x 7.4 inches
